1. European Laboratory for Particle Physics LHC Distributed Data Management Eva Arderiu Ribera CERN Geneva 23, SwitzerlandIT Division, ASD/RD45 Eva.Arderiu@cern.ch

2. Introduction • RD45 • LHC distributed scenario • Motivation and Implications of Data Replication • Two choices for LHC Data Distribution • based on one federated database • based on independent federated databases • Basic differences between the two models • Availability/Performance Parameters • Number of replicas • Nature of transaction • Frequency of synchronization • Bandwidth required on the links • Calibration/DB Distribution and Event Tag Data Distribution • Summary

3. RD45 project • Proposed in late 1994 and approved in 1995 • Searching for solutions to the problems of making LHC physics data persistent (objects) • also calibration data, histograms, etc. - any persistent object • LHC experiments will store huge data amounts • 1 PB of data per experiment and year • 100 PB over the whole lifetime • Distributed, heterogeneous environment • Some 100 institutes distributed world-wide • (Nearly) any available hardware platform • Data at regional-centers • Existing solutions do not scale • Solution suggested by RD45: ODBMS coupled to a Mass Storage System, Objectivity/DB and HPSS

4. LHC distributed scenario

5. Motivation and Implications of Data Replication • Motivation • improve performance by having data locally (query may be solved locally) • improve availability by having data at several sites (query may access data at another site) • no bottlenecks for data access • Implications • KEEP CONSISTENCY: keep replicas consistent • PROVIDE CONTINUOUS AVAILABILITY: offer a distributed fault tolerant environment

6. Two Choices for LHC Data Distribution Objectivity/DB client/server offers enough flexibility to adopt different system configurations depending on distribution requirements and constraints TWO CHOICES: I- One federated database with autonomous partitions II- Independent federated databases

7. Fault Tolerant System with one FDB Federated Database Partition 2 Lock server Partition 1 AMS servers LAN AMS servers WAN Lock server LAN AMS/HPSS server Lock server AMS servers Partition 3

8. Fault Tolerant System with independent FDB´s FDB 2 Lock server FDB 1 AMS servers LAN AMS servers WAN Lock server LAN AMS/HPSS server Lock server AMS servers FDB 3

9. Basic differences between the two architectures

10. Relevant Availability and Performance Parameters • Number of Replicas • Nature of Transaction • Frequency of Synchronization • Link Bandwidth

11. Number of replicas H/W testbed: 91 interlinked workstations running AIX 4.1 and composed of several types of IBM RS/6000 nodes, connected via an internal high speed network but we use the Ethernet interface . S/W testbed: a replica generator and update program.

12. Nature of transaction One FDB with Partitions Read • Use of Objectivity/DB cache • LOAD ONCE VIA NETWORK, READ MANY TIMES FROM LOCAL CACHE MEMORY • Some small protocol overhead to contact remote lock servers Update • R replicas of DB1: the update transaction of DB1 size grows by a factor or R • replica synchronization increases the transaction time => increases locking time and waiting time. Independent FDBs Read • the same as with one FDB, but no contact to remote lock servers Update • the update transaction size does not depend on the number of replicas

13. Frequency of replica synchronization One FDB with Partitions Immediate Synchronization a)creation of the replica • via network: oonewdbimage [-remoteHost…] • via tape 1- oonewdbimage [-localHost] 2- oochangedb -catalogonly[new location]3- send replica via tape to the new location b)synchronization of replicas when updating them Objects Automatically sync. by replica protocol. No replica inconsistencies ! Any time Synchronization the same as with independent FDB’s. Replica DB

14. Frequency of replica synchronization Independent FDBs Inmediate Synchronization Any time Synchronization a) creation of the copy 1- oocopydb [localhost] 2- send file by tape or network 3- ooattachdb [new id] [remote host] remote_boot_file b) synchronization of copies databases synchronized by administrator procedure inconsistencies if copies are not sync. immediately ! copy DB

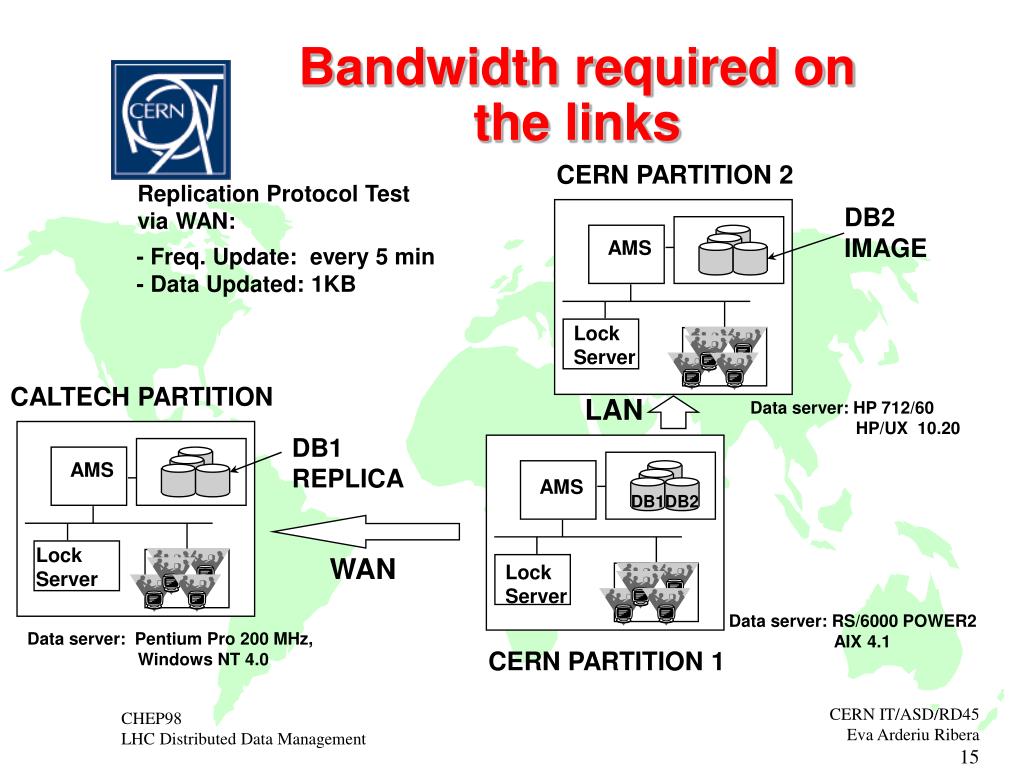

15. Bandwidth required on the links CERN PARTITION 2 Replication Protocol Test via WAN: DB2 IMAGE AMS - Freq. Update: every 5 min - Data Updated: 1KB Lock Server CALTECH PARTITION LAN Data server: HP 712/60 HP/UX 10.20 DB1 REPLICA AMS AMS DB1 DB2 Lock Server WAN Lock Server Data server: RS/6000 POWER2 AIX 4.1 Data server: Pentium Pro 200 MHz, Windows NT 4.0 CERN PARTITION 1

16. Bandwidth required on the links generation of updates during one day NON SATURATED HOURS ~ 1 Mbit/sec SATURATED HOURS ~ 10 Kbit/sec

17. Use Cases Calibration/DB Distribution • ONE FEDERATED DATABASE • calibration packages (I.e. BABAR one) are based on versioning. All users can access to the latest version any time. • INDEPENDENT FDBS • is not possible to have common versioning, calibration data versions done on independent FDB’s should be merged “manually”. Event Tag Data Distribution • ONE FDB • allows links to raw data from Event Tag Objects • INDEPENDENT FDB • no links between objects from different FDB’s

18. Availability and performance parameters

19. MERGING THE TWO MODELS a possible solution central FDB satellite FDB’s Autonomous Partition

20. MERGING THE TWO MODELS a possible solution CENTRAL FDB • An FDB with few partitions to reduce the number of replicas to synchronize and the transaction time. • Updating from anywhere and anytime has immediate synchronization on the rest of the federation. • Partitions belong to centers with required links and administration centers (good QoS). SATELLITE FDBs • Synchronization based on requirements, every hour, every month... • They can be disconnected most of the time. • New databases are attached to them. • Schema must be kept synchronized with the central one.

21. Summary • Objectivity/DB client/server architecture offers enough flexibility to adopt different system configurations depending on experiment distribution requirements and constraints • Three possible distributed architectures • one FDB with partitions: partitions located in remote institutes must offer a good QoS. Asynchronous Replication protocol should be applied to few partitions if update anytime, anywhere is required. • independent FDBs: they offer a completely independent administration but schema and replica synchronization must be done by the DB administrator. • merging both previous solutions. Offers a scalable distributed replica solution with a mixture of administration centers. • Distributed architecture from Objectivity/DB has been tested, not fully autonomous->to be solved, more tests on use cases need to be done.
