The Morse Mouse Crossing Interface

The University of Victoria Assistive Technology Team aims to create a flexible, text-capable user interface designed for various pointing devices, including head-tracking, eye-tracking, and brain-computer interfaces. Our goals are to minimize complexity, optimize generality and compliance, and reduce both the distance traveled and time required for user input. Through alternatives like the Crossing Interface (Morse Mouse), we aspire to develop efficient and effective communication methods for those who could greatly benefit from this technology right now.

aisha
Télécharger la présentation

The Morse Mouse Crossing Interface

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Morse Mouse Crossing Interface Why bother with point-and-click when I can just point…? UVATT - University of Victoria Assistive Technology Team

  2. Project Goals • Develop a flexible, general purpose, text-capable user interface for our various pointing devices • Head-tracking pointing device • Eye-tracking pointing device • Brain-Computer Interface • People we are working with could use this right now UVATT - University of Victoria Assistive Technology Team

  3. Design Criteria • Minimize complexity • Maximize generality • Maximize generality • Maximize compliance • Minimize distance traveled • Minimize time required UVATT - University of Victoria Assistive Technology Team

  4. Alternative Approaches • On-Screen Keyboards • Simple-minded but complete • Zooming Interface (Dasher) • Brilliant but reactive • Crossing Interface (Morse Mouse) • Just right… we hope. UVATT - University of Victoria Assistive Technology Team

  5. Morse Code • Well known and rather efficient • Invented in 1836 by Samuel Morse • Rates of 20 – 30 WPM achievable • Entropy of English: 4.14 bits / letter • Average Morse codeword: 5.56 bits • Average Huffman codeword: 4.35 bits UVATT - University of Victoria Assistive Technology Team

  6. Morse Code Table How de we map this to a graphical interface? UVATT - University of Victoria Assistive Technology Team

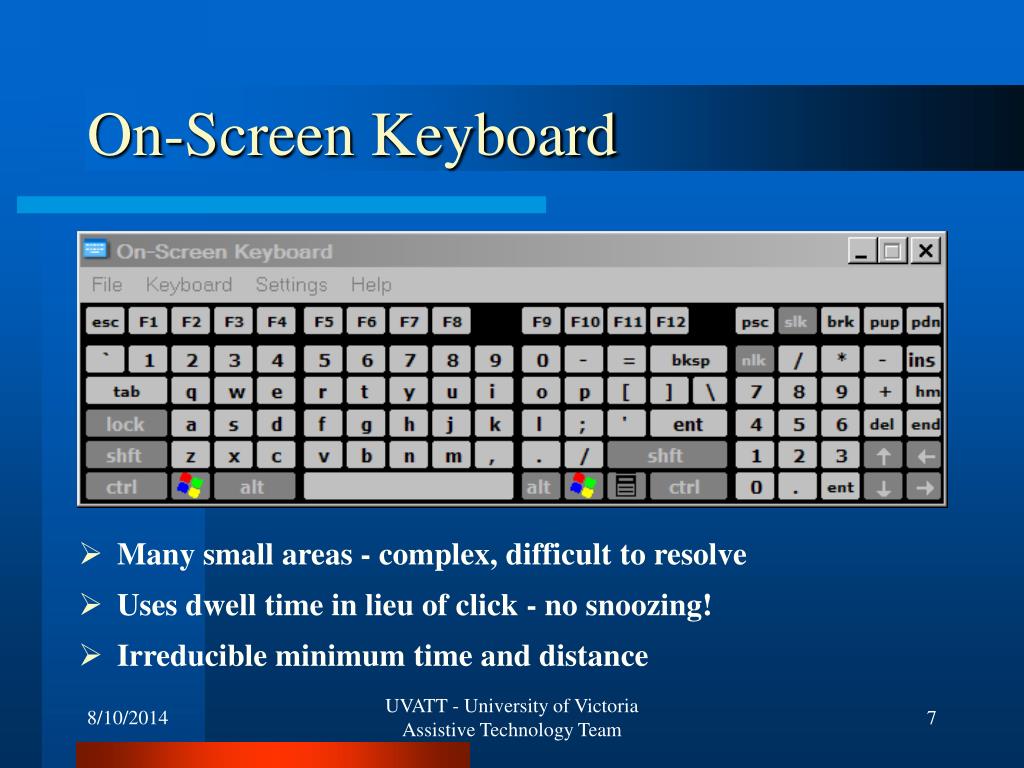

  7. On-Screen Keyboard • Many small areas - complex, difficult to resolve • Uses dwell time in lieu of click - no snoozing! • Irreducible minimum time and distance UVATT - University of Victoria Assistive Technology Team

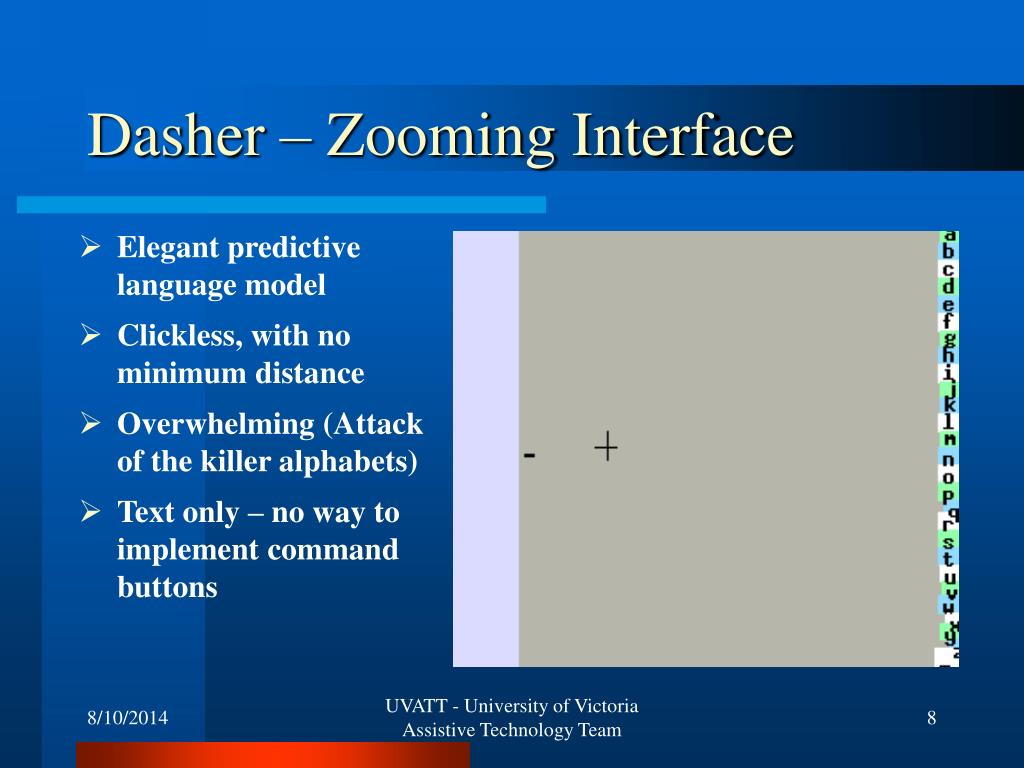

  8. Dasher – Zooming Interface • Elegant predictive language model • Clickless, with no minimum distance • Overwhelming (Attack of the killer alphabets) • Text only – no way to implement command buttons UVATT - University of Victoria Assistive Technology Team

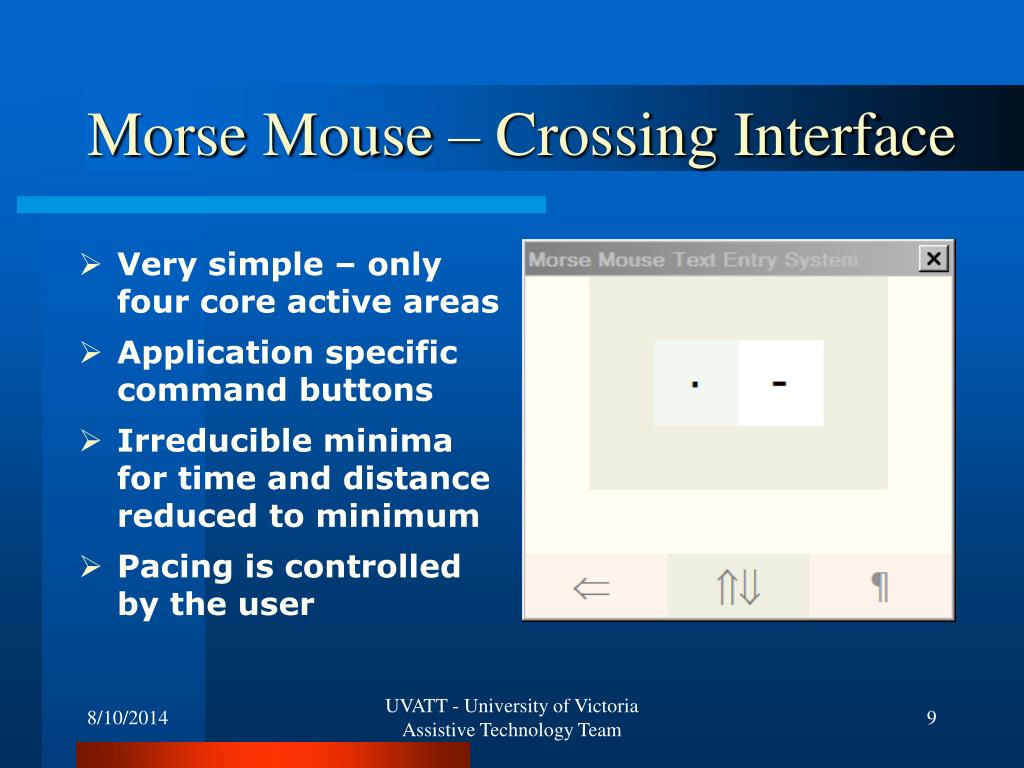

  9. Morse Mouse – Crossing Interface • Very simple – only four core active areas • Application specific command buttons • Irreducible minima for time and distance reduced to minimum • Pacing is controlled by the user UVATT - University of Victoria Assistive Technology Team

  10. References Hansen, J P, Johansen, A S, Torning, K, Itoh, K, & Aoki, H, 2004: Gaze typing compared with input by head and hand, Proc. Eye Tracking & Res. App. Symp. (ETRA'04), pp 131-138. King, T W, 2000: Modern Morse Code in Rehabilitation and Education: New Applications in Assistive Technology, Allyn and Bacon. Ward, D J, Blackwell, A F, and MacKay, D J C, 2002: Dasher - A data entry interface using continuous gestures and language models. Human-Computer Interaction, vol 17 pp 2-3. UVATT - University of Victoria Assistive Technology Team
