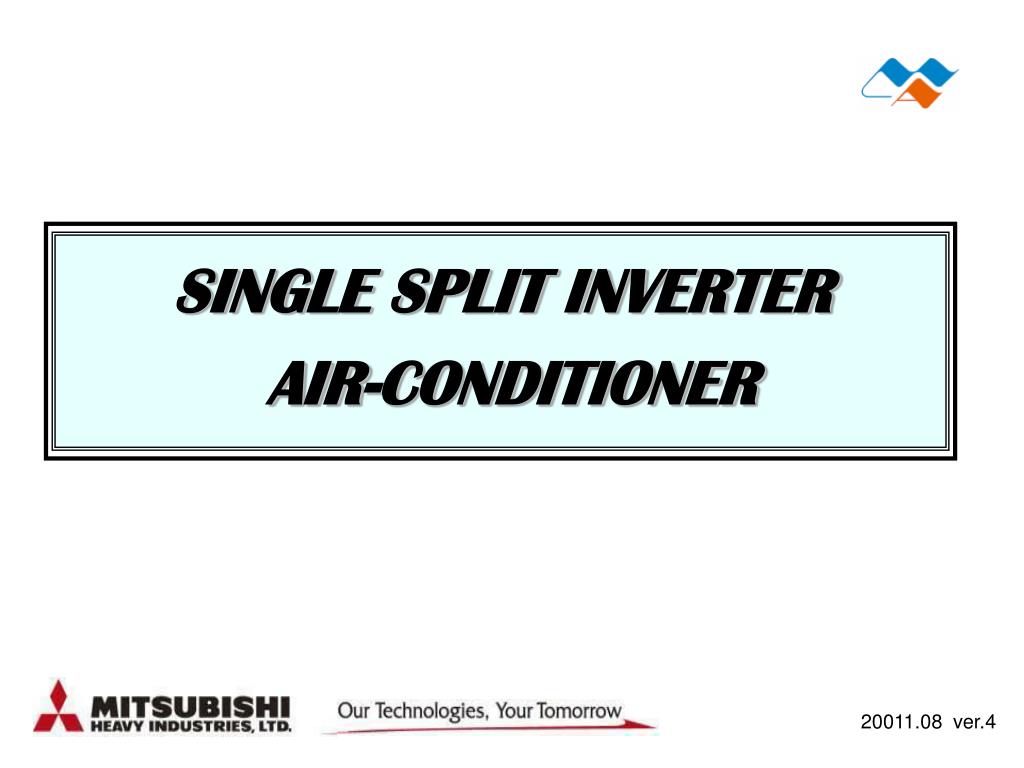

  1. SINGLE SPLIT INVERTER AIR-CONDITIONER 20011.08 ver.4

  2. Features of Inver type Air-conditioners • Energy saving • --- Part load COP > Full load COP --- 2. Comfort operation 3. Quiet operation 4. Caring for the Environment --- R410A ---

  3. Ｓｅｔ　Ｔｅｍｐｅｒａｔｕｒｅ ON ON OFF OFF Operation pattern 1. Conventional unit (Constant speed compressor) ON-OFF operation energy loss (1) Inrush current (2) Re-evaporation of condensed water from the heat exchanger

  4. Ｓｅｔ　Ｔｅｍｐｅｒａｔｕｒｅ Ｓｅｔ　Ｔｅｍｐｅｒａｔｕｒｅ Operation pattern 2. Inverter unit (Variable speed compressor) 2-1. Heat load balance (1) No ON-OFF operation energy loss 2-2. Heat load unbalance or change of heat balance (1) Min ON-OFF operation energy loss (2) No inrush current

  5. Inverter Series MICRO 7.1kW (3HP) ~ 25.0kW (10HP) X X X 5

  6. Hyper Inverter,Hi EER

  7. Model Name For example, F DC140VN X X hyper ,Hi EER /- micro series Power source N: 1 phase / S: 3 phase Symbol for inverter model for PAC Capacity code (14.0kW) Symbol for outdoor unit Symbol for split PAC

  8. Outdoor Unit :FDCVN / VS Rotary Rotary Scroll

  9. 1.1 50HP 1.0 Reciprocating 0.9 Scroll Rotary Rotary 6HP 0.8 0.7 20HP Reciprocating 5 Scroll Screw Screw 40 100HP Comparison data based on the data of 1kw Reciprocating compressor adiabatic efficiency assumed 1.0 100HP Turbo 0.2 1.0 10 100 Compressor: <Compressor Type & Application range (HP)> <Efficiency of compressor> 4 1 3 4-6HP Twin Rotary 8-10HP

  10. IndoorUnit :

  11. -4-way Ceiling Cassette FDT- Industry Leading COP all models cleared CLASS A Indoor Unit :FDT For European countries

  12. New Current Ceiling Cassette : FDT 1-1: Individual flap control system "New" Design Ceiling cassette -4way- type According to room temperature conditions, air flow in four direction can be individually controlled by four flaps. New air outlet design brings sufficient air flow and long of air flow throw is realized.

  13. Current Ceiling Cassette : FDT 1-2 : Compact but High COP # Thin height Newly designed of heat exchanger changed from 2 separate assemblies to 1 single assembly, the height of indoor unit was reduced drastically. # High efficiency New design brings, - Reduction of air flow pressure loss (=Decrease of Fan motor load) Using high efficient piping, high performance heat exchanger, - Increase in heat transfer efficiency Efficiency is increased by 30% !!

  14. Ceiling Cassette : FDT 1-3 : Installation workability 2. Easy checking of drain pan Easy checking of drain pan condition by removing corner lid only 1. Arrangement of installation balance of indoor unit Checking from access ports with detachable covers at each corner without removing a panel 3. Joint stopper Workability is improved by applying temporally joint stopper for panel.

  15. Ceiling Cassette : FDT 1-4 : Air outlet flow Powerful and long reach air flow Applicable to the high ceiling room* 5.0 3.5 * Air flow can reach at floor from 5m height ceiling by an arrangement on site by installer.

  16. Indoor Unit :FDE - Ceiling Suspended -

  17. 1-1 : Installation workability 1-2 : Compact & Thin

  18. 1-3 : Airflow Direction (1) Easy setting from remote controller (2) Selection of the movable range

  19. Indoor Unit :FDUM - Duct connected -

  20. 1-1 : Selectable static pressure 1-2 : High head Drain Pump

  21. Optional Kits

  22. Superlink Network Structure with PAC & RAC Superlink Network (Superlink II) SC-SL1N-E KX6 Series RAC series (SRK50/60ZHX-S) SC-BIKN-E SC-SL2N-E SC-ADN-E SC-ADN-E SC-ADN-E 22

  23. Connections with Wired Remote Controllers Wired Remote Controllers Can Be Connected Can Be Connected Into Superlink-II SC-BIKN-E Superlink II Network RC-E3 SC-ADN-E

  24. Remote Sensor SC-THB-E3 Benefits Exterior √ For installation to most suitable position for checking the indoor temp √ For Remote controller less project Change to cable connection from the original intake air temp sensor. Intake air temp sensor being selectable from indoor side of RC. Cable 8m 54 70 10 5 25 …… 24

  25. Thank youfor your attention!!
