Wall-E Prototype I

Wall-E Prototype I is an innovative, intelligent automated robot designed to collect trash efficiently. Equipped with advanced obstacle detection capabilities, this robot can operate through user manual control or object tracking software to locate and gather targeted trash objects—specifically a colored ping pong ball used as a target. With a compact design measuring 11" x 10" x 5" and a maximum weight limit of 7 lbs, it features a robotic arm gripper and a speed of 5.2 inches per second. This project includes specific constraints regarding dimensions, weight, and performance for optimal operation.

akando
Télécharger la présentation

Wall-E Prototype I

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

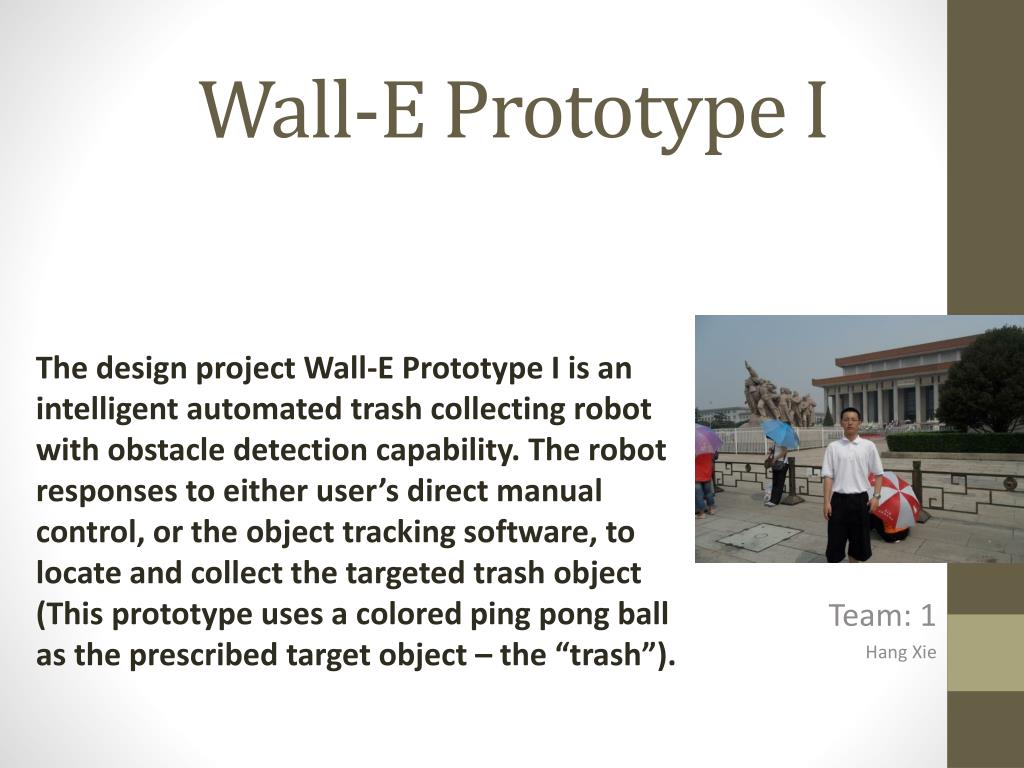

  1. Wall-E Prototype I The design project Wall-E Prototype I is an intelligent automated trash collecting robot with obstacle detection capability. The robot responses to either user’s direct manual control, or the object tracking software, to locate and collect the targeted trash object (This prototype uses a colored ping pong ball as the prescribed target object – the “trash”). Team: 1 Hang Xie

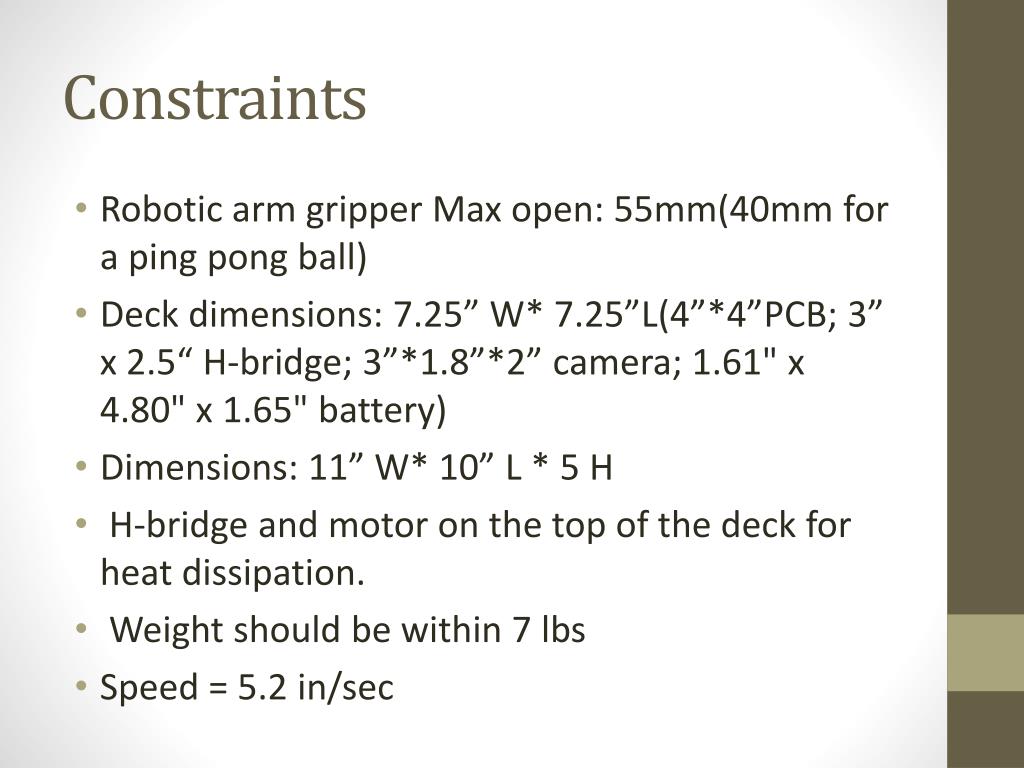

  2. Constraints • Robotic arm gripper Max open: 55mm(40mm for a ping pong ball) • Deck dimensions: 7.25” W* 7.25”L(4”*4”PCB; 3” x 2.5“ H-bridge; 3”*1.8”*2” camera; 1.61" x 4.80" x 1.65" battery) • Dimensions: 11” W* 10” L * 5 H • H-bridge and motor on the top of the deck for heat dissipation. • Weight should be within 7 lbs • Speed = 5.2 in/sec

  3. DustBot • Size: 2 wheel • Capacity: 40 kg • Packing: full-body plastic

  4. Sand Flea • Weight: 11lb • Dimension: 13”L*18”w * 6”H • Power: 2 hours • Speed:3.4 mph • Temperature: -15C to 45C, water resistant
