  1. Balloon Workshop By Raymond Duncan Rob Newell

  2. DAY 1 • Introduced to Arduino • Started learning basic coding • Learned breadboard wiring • Basic programs • Blink: flashing LED • LED Flashing side to side • Potentiometer and light sensor to control the LEDs

  3. DAY 2 • Introduced to ArduinoFio • Learned code for BMP (atmosphere sensor) • Learned Serial Monitor code • Display values read from sensor • Wireless Serial Monitor With XBEE

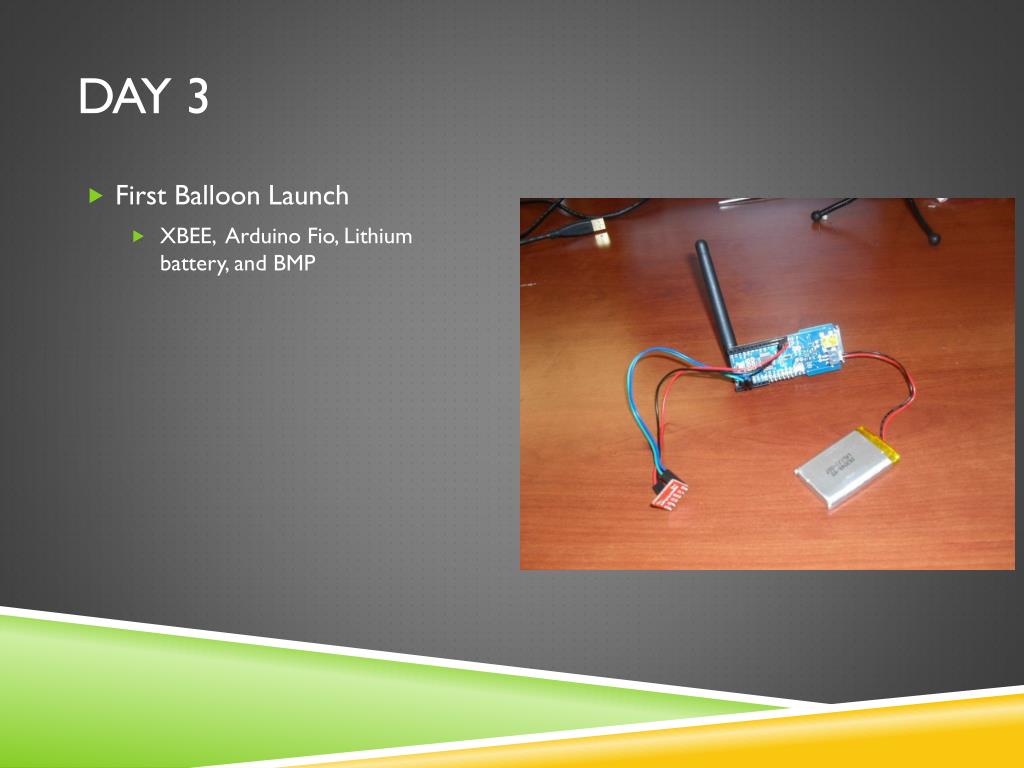

  4. Day 3 • First Balloon Launch • XBEE, ArduinoFio, Lithium battery, and BMP

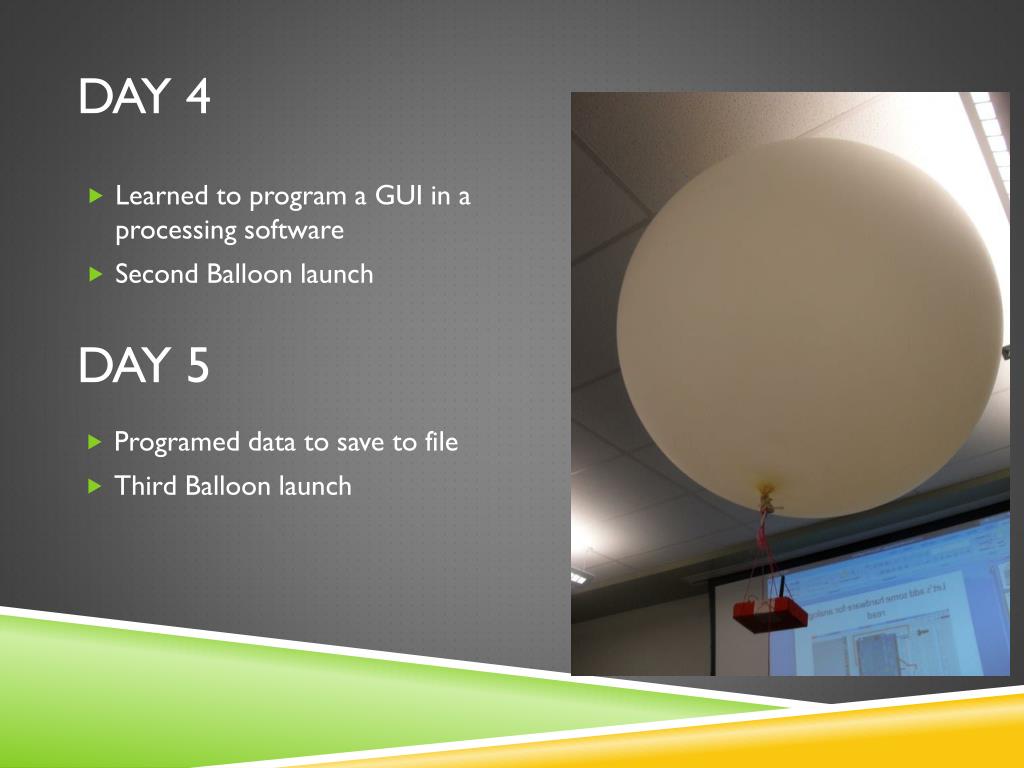

  5. Day 4 • Learned to program a GUI in a processing software • Second Balloon launch Day 5 • Programed data to save to file • Third Balloon launch

  6. Temperature

  7. Pressure

  8. Altitude

  9. Conclusion • What did you learn? • What surprised you? • What was the most frustrating aspect of the project?
