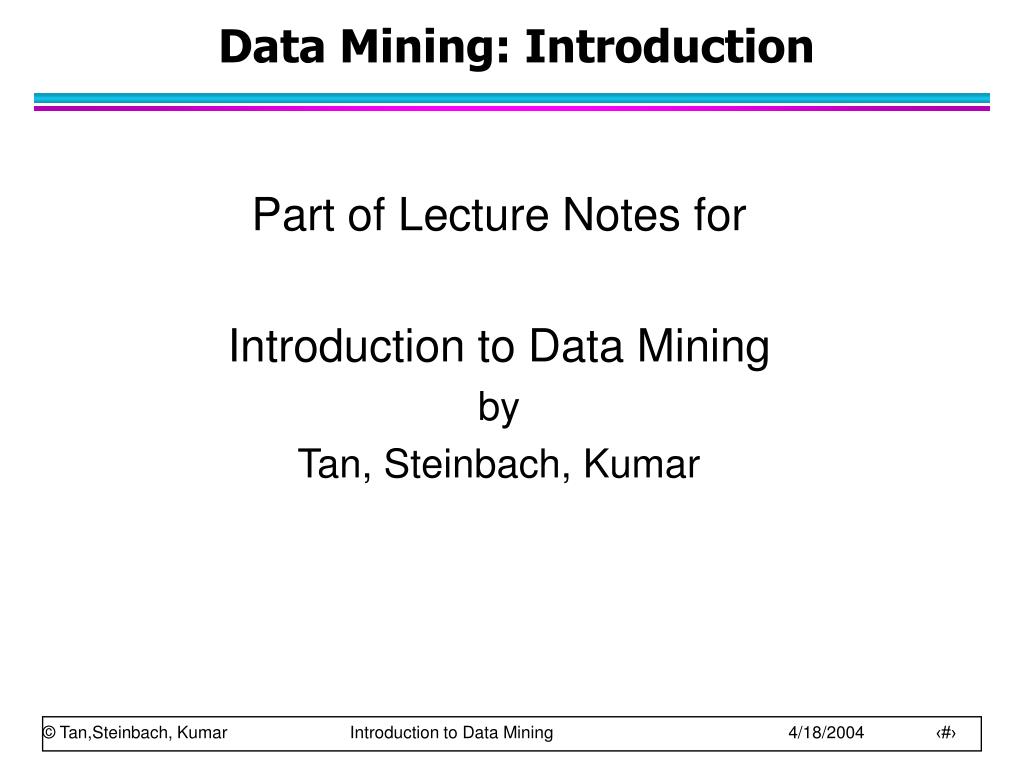

  1. Data Mining: Introduction Part of Lecture Notes for Introduction to Data Mining by Tan, Steinbach, Kumar

  2. Why Mine Data? Commercial Viewpoint • Lots of data is being collected and warehoused • Web data, e-commerce • purchases at department/grocery stores • Bank/Credit Card transactions • Computers have become cheaper and more powerful • Competitive Pressure is Strong • Provide better, customized services for an edge (e.g. in Customer Relationship Management)

  3. Why Mine Data? Scientific Viewpoint • Data collected and stored at enormous speeds (GB/hour) • remote sensors on a satellite • telescopes scanning the skies • microarrays generating gene expression data • scientific simulations generating terabytes of data • Traditional techniques infeasible for raw data • Data mining may help scientists • in classifying and segmenting data • in Hypothesis Formation

  4. From: R. Grossman, C. Kamath, V. Kumar, “Data Mining for Scientific and Engineering Applications” Mining Large Data Sets - Motivation • There is often information “hidden” in the data that is not readily evident • Human analysts may take weeks to discover useful information • Much of the data is never analyzed at all The Data Gap Total new disk (TB) since 1995 Number of analysts

  5. What is Data Mining? • Many Definitions • Non-trivial extraction of implicit, previously unknown and potentially useful information from data • Exploration & analysis, by automatic or semi-automatic means, of large quantities of data in order to discover meaningful patterns

  6. What is (not) Data Mining? • What is not Data Mining? • Look up phone number in phone directory • Query a Web search engine for information about “Amazon” • What is Data Mining? • Certain names are more prevalent in certain US locations (O’Brien, O’Rurke, O’Reilly… in Boston area) • Group together similar documents returned by search engine according to their context (e.g. Amazon rainforest, Amazon.com,)

  7. Origins of Data Mining • Draws ideas from machine learning/AI, pattern recognition, statistics, and database systems • Traditional Techniquesmay be unsuitable due to • Enormity of data • High dimensionality of data • Heterogeneous, distributed nature of data Statistics/AI Machine Learning/ Pattern Recognition Data Mining Database systems

  8. Data Mining Tasks • Prediction Methods • Use some variables to predict unknown or future values of other variables. • Description Methods • Find human-interpretable patterns that describe the data. From [Fayyad, et.al.] Advances in Knowledge Discovery and Data Mining, 1996

  9. Data Mining Tasks... • Classification [Predictive] • Clustering [Descriptive] • Association Rule Discovery [Descriptive] • Sequential Pattern Discovery [Descriptive] • Regression [Predictive] • Deviation Detection [Predictive]

  10. Classification: Definition • Given a collection of records (training set ) • Each record contains a set of attributes, one of the attributes is the class. • Find a model for class attribute as a function of the values of other attributes. • Goal: previously unseen records should be assigned a class as accurately as possible. • A test set is used to determine the accuracy of the model. Usually, the given data set is divided into training and test sets, with training set used to build the model and test set used to validate it.

  11. Test Set Model Classification Example categorical categorical continuous class Learn Classifier Training Set

  12. Examples of Classification Task • Predicting tumor cells as benign or malignant • Classifying credit card transactions as legitimate or fraudulent • Classifying secondary structures of protein as alpha-helix, beta-sheet, or random coil • Categorizing news stories as finance, weather, entertainment, sports, etc

  13. Classification: Application 1 • Direct Marketing • Goal: Reduce cost of mailing by targeting a set of consumers likely to buy a new cell-phone product. • Approach: • Use the data for a similar product introduced before. • We know which customers decided to buy and which decided otherwise. This {buy, don’t buy} decision forms the class attribute. • Collect various demographic, lifestyle, and company-interaction related information about all such customers. • Type of business, where they stay, how much they earn, etc. • Use this information as input attributes to learn a classifier model. From [Berry & Linoff] Data Mining Techniques, 1997

  14. Classification: Application 2 • Fraud Detection • Goal: Predict fraudulent cases in credit card transactions. • Approach: • Use credit card transactions and the information on its account-holder as attributes. • When does a customer buy, what does he buy, how often he pays on time, etc • Label past transactions as fraud or fair transactions. This forms the class attribute. • Learn a model for the class of the transactions. • Use this model to detect fraud by observing credit card transactions on an account.

  15. Classification: Application 3 • Customer Attrition/Churn: • Goal: To predict whether a customer is likely to be lost to a competitor. • Approach: • Use detailed record of transactions with each of the past and present customers, to find attributes. • How often the customer calls, where he calls, what time-of-the day he calls most, his financial status, marital status, etc. • Label the customers as loyal or disloyal. • Find a model for loyalty. From [Berry & Linoff] Data Mining Techniques, 1997

  16. Classification: Application 4 • Sky Survey Cataloging • Goal: To predict class (star or galaxy) of sky objects, especially visually faint ones, based on the telescopic survey images (from Palomar Observatory). • 3000 images with 23,040 x 23,040 pixels per image. • Approach: • Segment the image. • Measure image attributes (features) - 40 of them per object. • Model the class based on these features. • Success Story: Could find 16 new high red-shift quasars, some of the farthest objects that are difficult to find! From [Fayyad, et.al.] Advances in Knowledge Discovery and Data Mining, 1996

  17. Classifying Galaxies Courtesy: http://aps.umn.edu • Attributes: • Image features, • Characteristics of light waves received, etc. Early • Class: • Stages of Formation Intermediate Late • Data Size: • 72 million stars, 20 million galaxies • Object Catalog: 9 GB • Image Database: 150 GB

  18. Clustering Definition • Given a set of data points, each having a set of attributes, and a similarity measure among them, find clusters such that • Data points in one cluster are more similar to one another. • Data points in separate clusters are less similar to one another. • Similarity Measures: • Euclidean Distance if attributes are continuous. • Other Problem-specific Measures.

  19. Inter-cluster distances are maximized Intra-cluster distances are minimized What is Cluster Analysis? • Finding groups of objects such that the objects in a group will be similar (or related) to one another and different from (or unrelated to) the objects in other groups

  20. How many clusters? Six Clusters Two Clusters Four Clusters Notion of a Cluster can be Ambiguous

  21. Types of Clusterings • A clustering is a set of clusters • Important distinction between hierarchical and partitionalsets of clusters • Partitional Clustering • A division data objects into non-overlapping subsets (clusters) such that each data object is in exactly one subset • Hierarchical clustering • A set of nested clusters organized as a hierarchical tree

  22. A Partitional Clustering Partitional Clustering Original Points

  23. Hierarchical Clustering Traditional Hierarchical Clustering Traditional Dendrogram Non-traditional Hierarchical Clustering Non-traditional Dendrogram

  24. Types of Clusters • Well-separated clusters • Center-based clusters • Contiguous clusters • Density-based clusters • Property or Conceptual • Described by an Objective Function

  25. Types of Clusters: Well-Separated • Well-Separated Clusters: • A cluster is a set of points such that any point in a cluster is closer (or more similar) to every other point in the cluster than to any point not in the cluster. 3 well-separated clusters

  26. Types of Clusters: Center-Based • Center-based • A cluster is a set of objects such that an object in a cluster is closer (more similar) to the “center” of a cluster, than to the center of any other cluster • The center of a cluster is often a centroid, the average of all the points in the cluster, or a medoid, the most “representative” point of a cluster 4 center-based clusters

  27. Types of Clusters: Contiguity-Based • Contiguous Cluster (Nearest neighbor or Transitive) • A cluster is a set of points such that a point in a cluster is closer (or more similar) to one or more other points in the cluster than to any point not in the cluster. 8 contiguous clusters

  28. Types of Clusters: Density-Based • Density-based • A cluster is a dense region of points, which is separated by low-density regions, from other regions of high density. • Used when the clusters are irregular or intertwined, and when noise and outliers are present. 6 density-based clusters

  29. Types of Clusters: Conceptual Clusters • Shared Property or Conceptual Clusters • Finds clusters that share some common property or represent a particular concept. . 2 Overlapping Circles

  30. K-means Clustering • Partitional clustering approach • Each cluster is associated with a centroid (center point) • Each point is assigned to the cluster with the closest centroid • Number of clusters, K, must be specified • The basic algorithm is very simple

  31. K-means Clustering – Details • Initial centroids are often chosen randomly. • Clusters produced vary from one run to another. • The centroid is (typically) the mean of the points in the cluster. • ‘Closeness’ is measured by Euclidean distance, cosine similarity, correlation, etc. • K-means will converge for common similarity measures mentioned above. • Most of the convergence happens in the first few iterations. • Often the stopping condition is changed to ‘Until relatively few points change clusters’ • Complexity is O( n * K * I * d ) • n = number of points, K = number of clusters, I = number of iterations, d = number of attributes

  32. Optimal Clustering Sub-optimal Clustering Two different K-means Clusterings Original Points

  33. Importance of Choosing Initial Centroids

  34. Importance of Choosing Initial Centroids

  35. Evaluating K-means Clusters • Most common measure is Sum of Squared Error (SSE) • For each point, the error is the distance to the nearest cluster • To get SSE, we square these errors and sum them. • x is a data point in cluster Ci and mi is the representative point for cluster Ci • can show that micorresponds to the center (mean) of the cluster • Given two clusters, we can choose the one with the smallest error • One easy way to reduce SSE is to increase K, the number of clusters • A good clustering with smaller K can have a lower SSE than a poor clustering with higher K

  36. Importance of Choosing Initial Centroids …

  37. Importance of Choosing Initial Centroids …

  38. Problems with Selecting Initial Points • If there are K ‘real’ clusters then the chance of selecting one centroid from each cluster is small. • Chance is relatively small when K is large • If clusters are the same size, n, then • For example, if K = 10, then probability = 10!/1010 = 0.00036 • Sometimes the initial centroids will readjust themselves in ‘right’ way, and sometimes they don’t • Consider an example of five pairs of clusters

  39. 10 Clusters Example Starting with two initial centroids in one cluster of each pair of clusters

  40. 10 Clusters Example Starting with two initial centroids in one cluster of each pair of clusters

  41. 10 Clusters Example Starting with some pairs of clusters having three initial centroids, while other have only one.

  42. 10 Clusters Example Starting with some pairs of clusters having three initial centroids, while other have only one.

  43. Solutions to Initial Centroids Problem • Multiple runs • Helps, but probability is not on your side • Sample and use hierarchical clustering to determine initial centroids • Select more than k initial centroids and then select among these initial centroids • Select most widely separated • Postprocessing • Bisecting K-means • Not as susceptible to initialization issues

  44. Hierarchical Clustering • Produces a set of nested clusters organized as a hierarchical tree • Can be visualized as a dendrogram • A tree like diagram that records the sequences of merges or splits

  45. Strengths of Hierarchical Clustering • Do not have to assume any particular number of clusters • Any desired number of clusters can be obtained by ‘cutting’ the dendogram at the proper level • They may correspond to meaningful taxonomies • Example in biological sciences (e.g., animal kingdom, phylogeny reconstruction, …)

  46. Hierarchical Clustering • Two main types of hierarchical clustering • Agglomerative: • Start with the points as individual clusters • At each step, merge the closest pair of clusters until only one cluster (or k clusters) left • Divisive: • Start with one, all-inclusive cluster • At each step, split a cluster until each cluster contains a point (or there are k clusters) • Traditional hierarchical algorithms use a similarity or distance matrix • Merge or split one cluster at a time

  47. Agglomerative Clustering Algorithm • More popular hierarchical clustering technique • Basic algorithm is straightforward • Compute the proximity matrix • Let each data point be a cluster • Repeat • Merge the two closest clusters • Update the proximity matrix • Until only a single cluster remains • Key operation is the computation of the proximity of two clusters • Different approaches to defining the distance between clusters distinguish the different algorithms

  48. p1 p2 p3 p4 p5 . . . p1 p2 p3 p4 p5 . . . Starting Situation • Start with clusters of individual points and a proximity matrix Proximity Matrix

  49. C1 C2 C3 C4 C5 C1 C2 C3 C4 C5 Intermediate Situation • After some merging steps, we have some clusters C3 C4 Proximity Matrix C1 C5 C2

  50. C1 C2 C3 C4 C5 C1 C2 C3 C4 C5 Intermediate Situation • We want to merge the two closest clusters (C2 and C5) and update the proximity matrix. C3 C4 Proximity Matrix C1 C5 C2
