  1. StarFish: highly-available block storage Eran Gabber, Jeff Fellin, Michael Flaster, Fengrui Gu, Bruce Hillyer, Wee Teck Ng, Banu Özden, and Elizabeth Shriver Computing Sciences Research Lucent Technologies, Bell Laboratories

  2. Your Data

  3. Your Data

  4. Your Data

  5. How should you store your data? ???

  6. StarFish • Geographically distributed on-the-fly replication. • Dynamic recovery from element failures • Works with any application / OS / file-system – looks like a SCSI disk • Built on commodity hardware

  7. What StarFish is Not • Distributed file system • Solution to the multiple writer problem • iSCSI

  8. Status • Implemented on FreeBSD 4.x. • Live system working in lab since February 28th, 2001. • No production data was ever lost due to software error. However, there were operator errors. • Source available to the public at http://www.bell-labs.com/topic/swdist/

  9. Outline • How Does it Work? • When Things Go Wrong • What’s a Good Configuration? • Performance Measurements

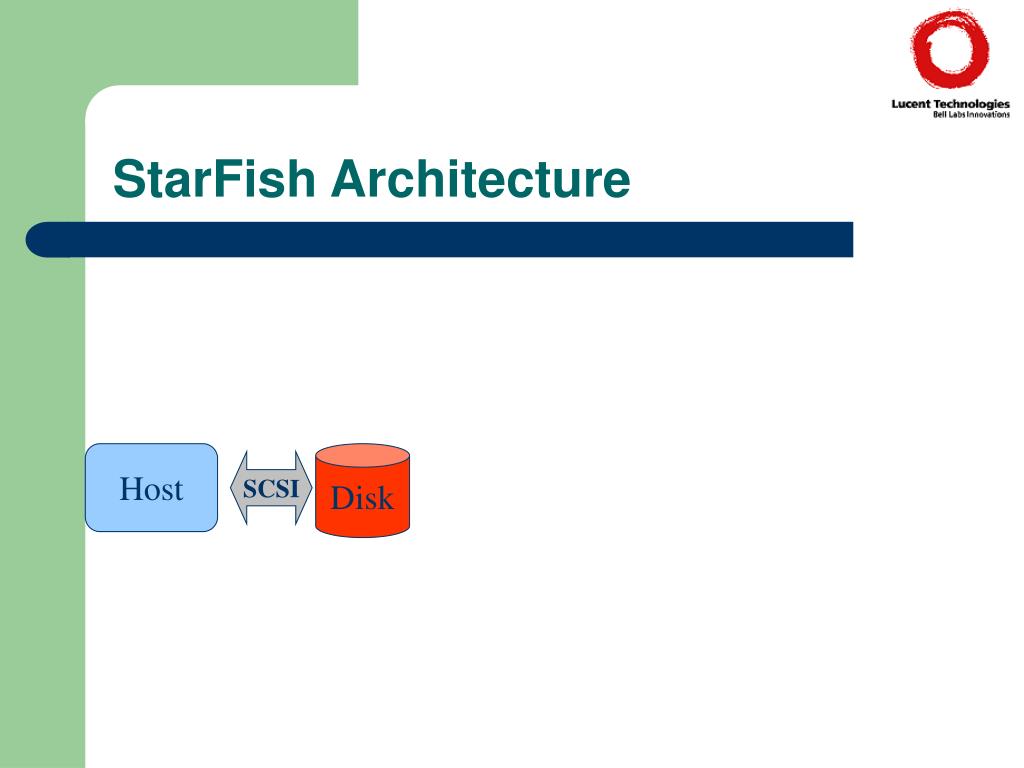

  10. StarFish Architecture Host Disk SCSI

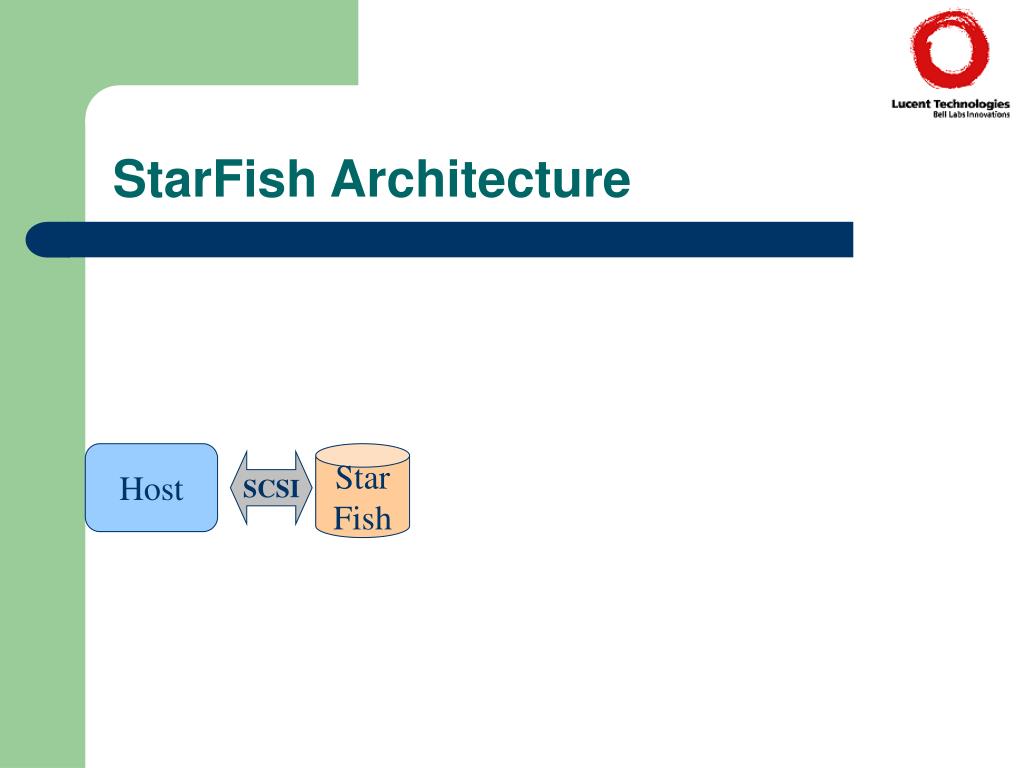

  11. StarFish Architecture Host Star Fish SCSI

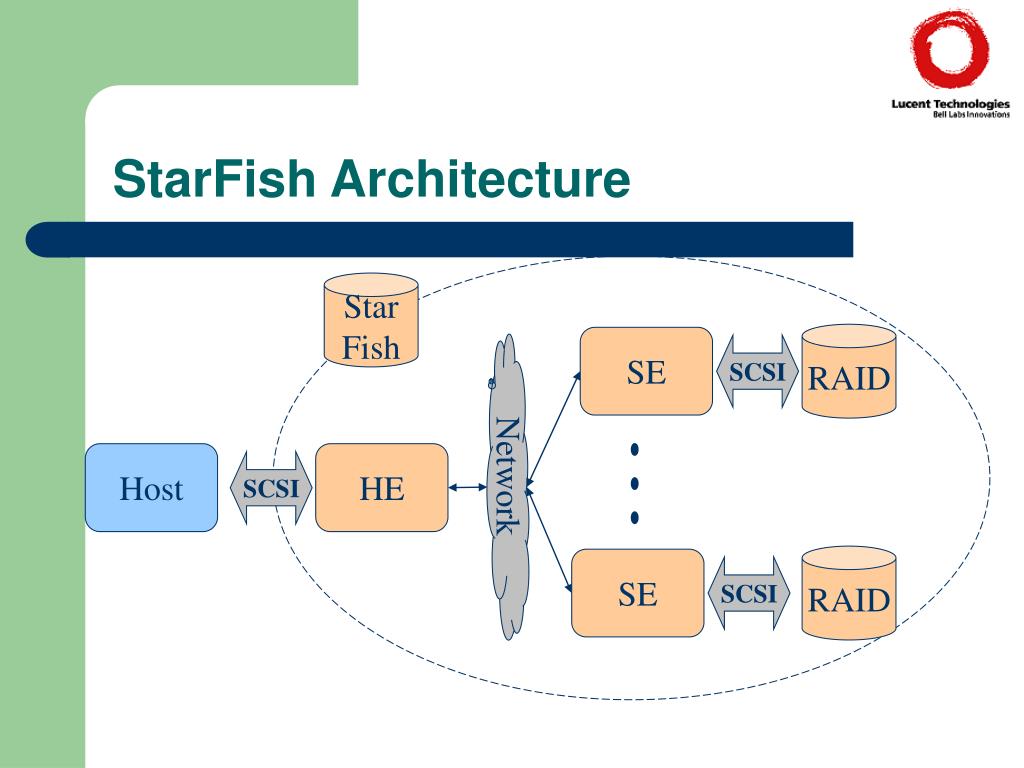

  12. StarFish Architecture RAID SE SCSI Host HE SCSI RAID SE SCSI Star Fish Network

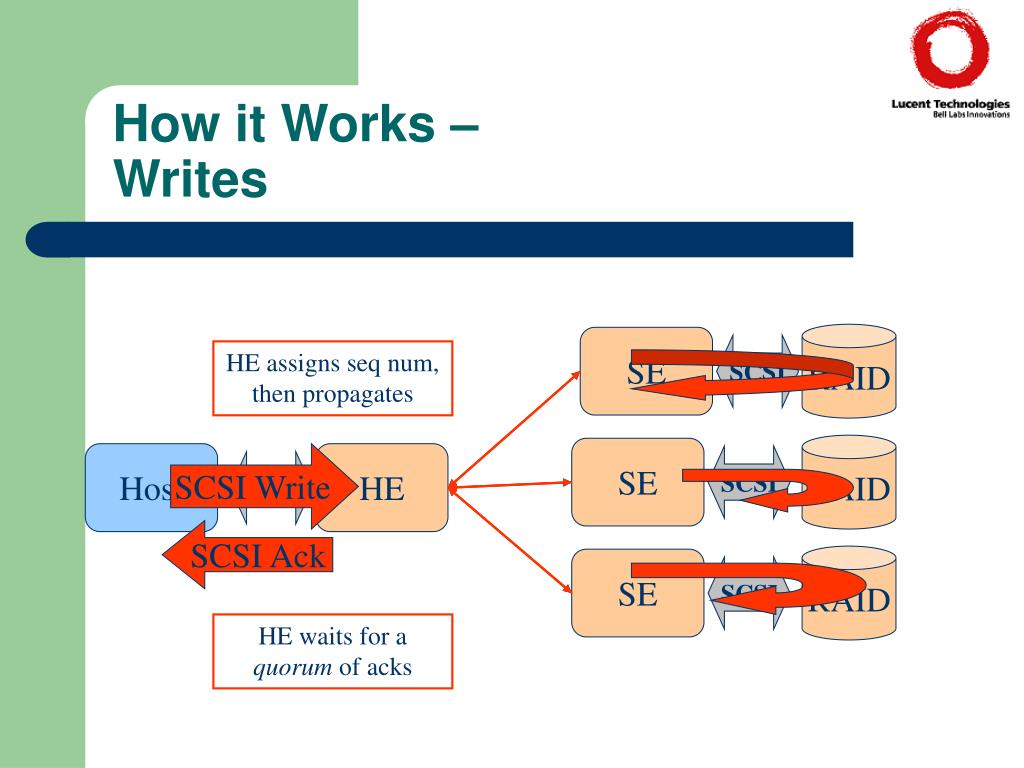

  13. RAID SE SCSI Host HE SCSI RAID RAID SE SE SCSI SCSI How it Works – Writes HE assigns seq num, then propagates SCSI Write SCSI Ack HE waits for a quorum of acks

  14. How it Works – Reads • Depends on “Read Policy” • SendAll – Read is sent to all active SEs, and the HE responds to the host on the 1st reply. • SendOne – Read is sent to lowest latency SE. The HE retries if no response.

  15. Outline • How Does it Work? • When Things Go Wrong • What’s a Good Configuration? • Performance Measurements

  16. When Things Go Wrong – SE Failures • If an out-of-date SE restarts, one of three types of recovery will take place: • Quick (HE) • Replay (SE) • Full (SE)

  17. When Things Go Wrong – HE Failures • Manual switchover to backup HE via SNMP command to SEs. SEs will then reconnect to secondary HE. • SCSI connection is a single point of failure. • Partial implementation of automatic redundant host architecture, using controllable SCSI switch.

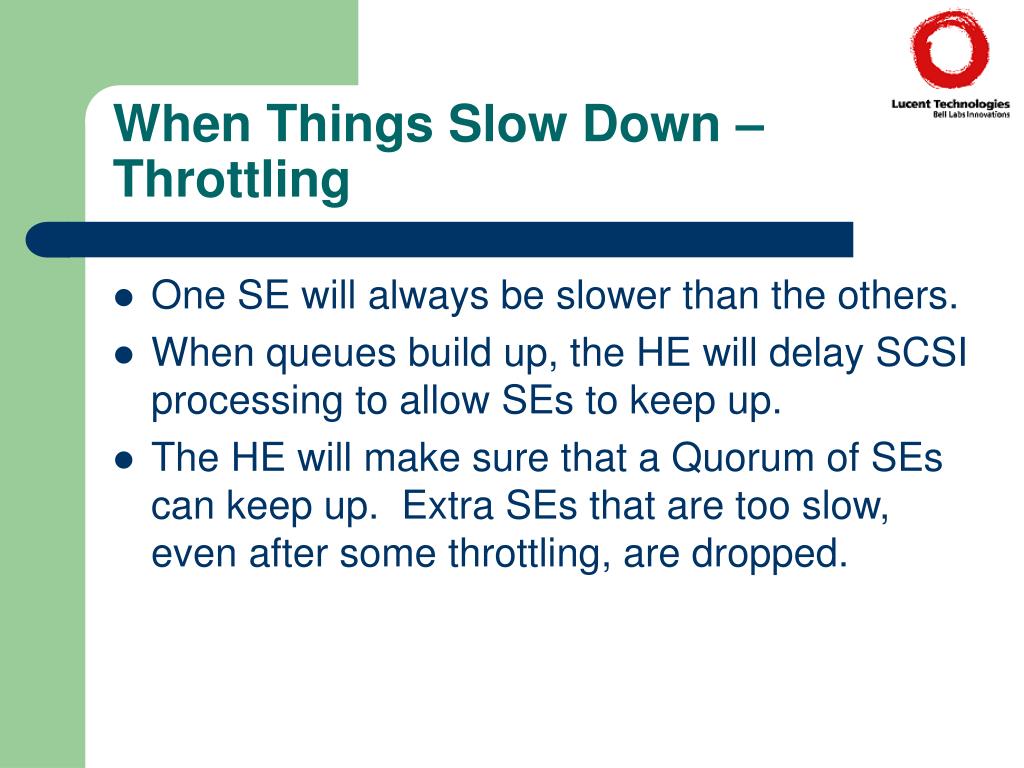

  18. When Things Slow Down – Throttling • One SE will always be slower than the others. • When queues build up, the HE will delay SCSI processing to allow SEs to keep up. • The HE will make sure that a Quorum of SEs can keep up. Extra SEs that are too slow, even after some throttling, are dropped.

  19. Outline • How Does it Work? • When Things Go Wrong • What’s a Good Configuration? • Performance Measurements

  20. Availability Definitions • Read Availability – an up-to-date version of the data is available for reading. • Write Availability – the system is available to accept new writes.

  21. Choosing a Quorum Size – Read Availability

  22. Choosing a Quorum Size – Write Availability

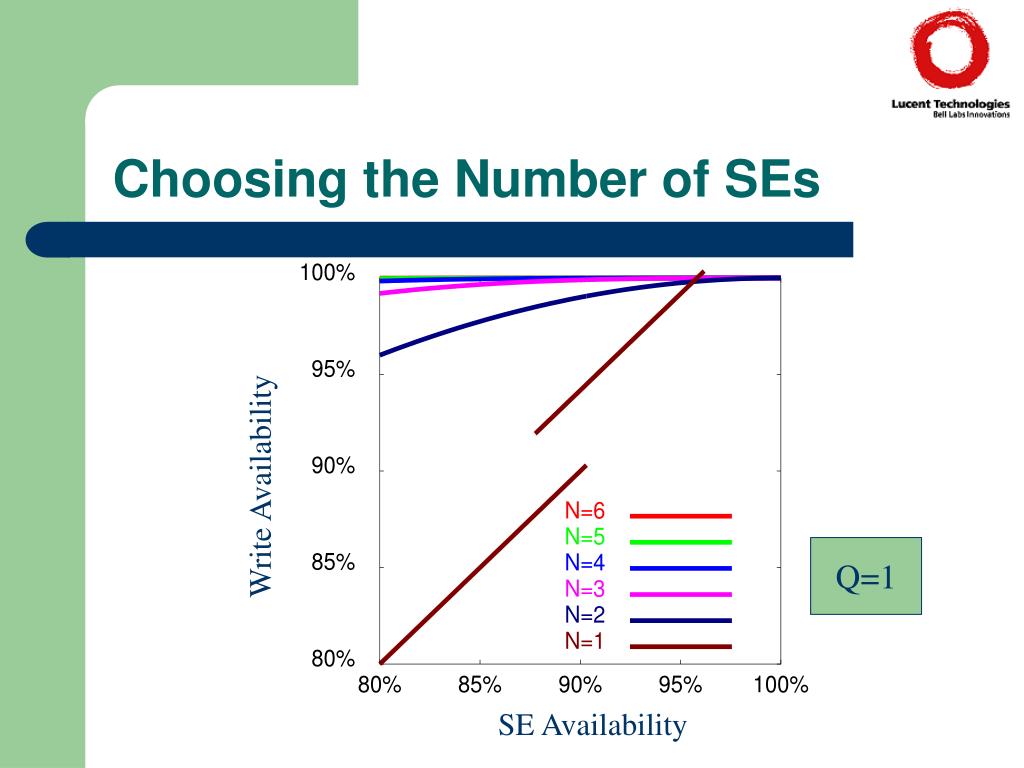

  23. Choosing the Number of SEs Write Availability Q=1 SE Availability

  24. Outline • How Does it Work? • When Things Go Wrong • What’s a Good Configuration? • Performance Measurements

  25. Measurements – testbed • Local SE – different machine connected to the same GbE switch – no artificial delay • Near SE – artificial latency increase simulated through dummynet • Far SE – Using dummynet, simulated increased latency, with and without bandwidth restrictions

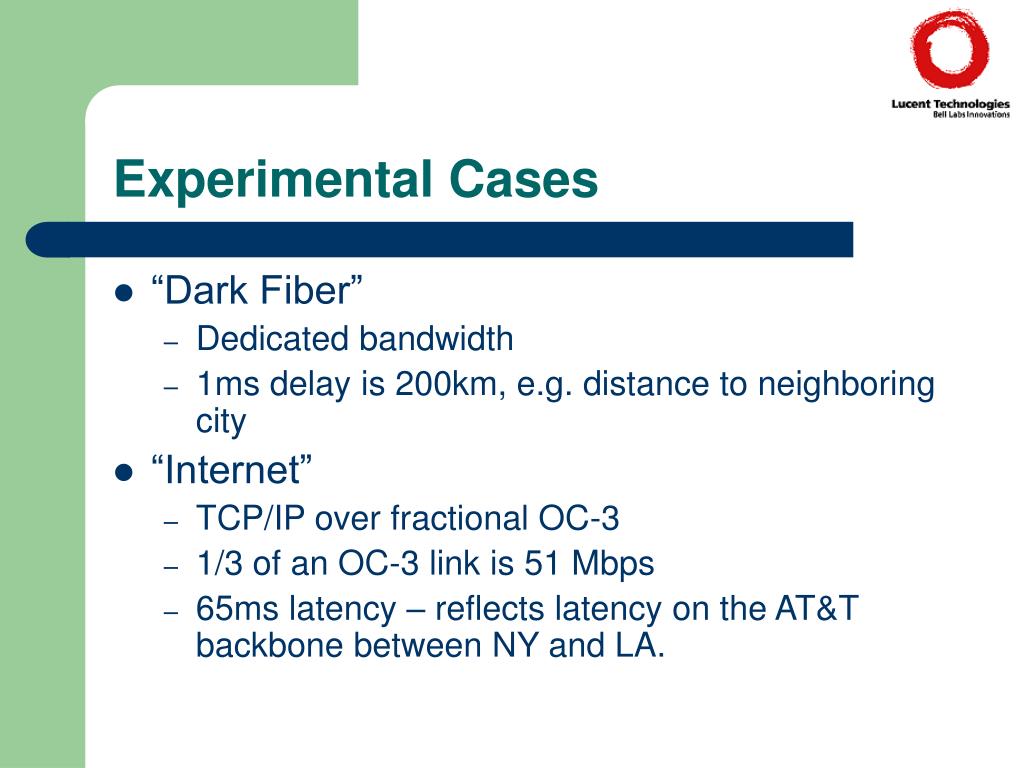

  26. Experimental Cases • “Dark Fiber” • Dedicated bandwidth • 1ms delay is 200km, e.g. distance to neighboring city • “Internet” • TCP/IP over fractional OC-3 • 1/3 of an OC-3 link is 51 Mbps • 65ms latency – reflects latency on the AT&T backbone between NY and LA.

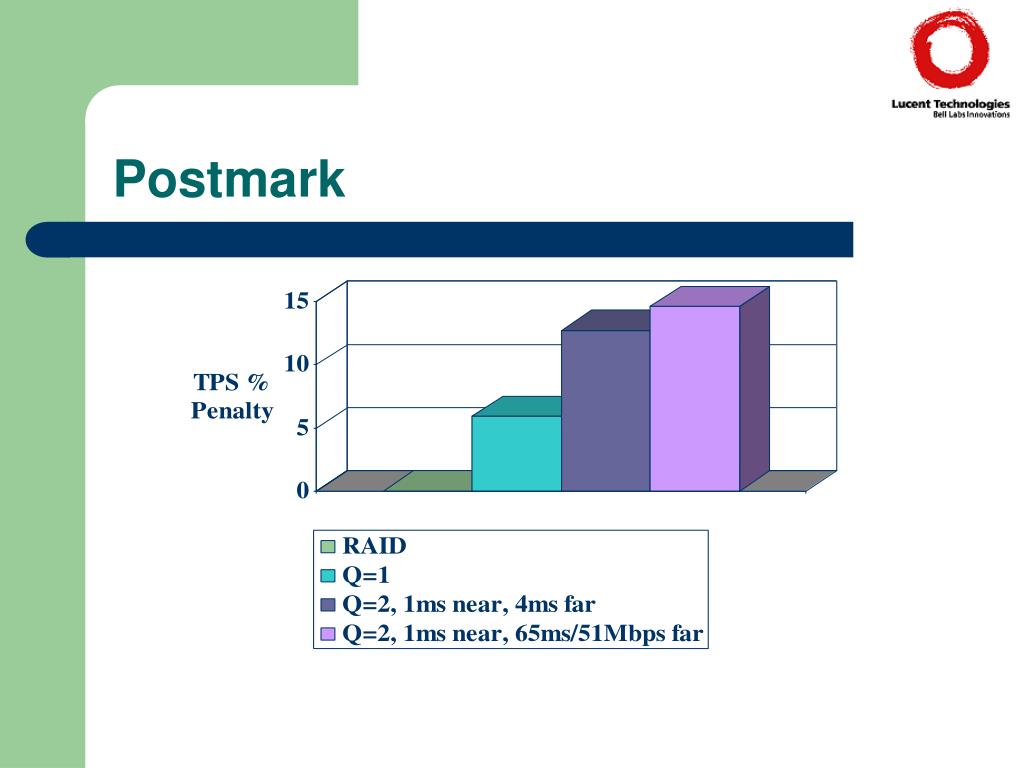

  27. Postmark

  28. Performance During Recoveries

  29. Related Work • High end: EMC SRDF • Mid range: NetApp SnapMirror • DataCore SANsymphony • Petal

  30. Concluding Points • N=3, Q=2 is Good. • Replicas not in the quorum can have high latency / low bandwidth connection. • Recovery activity does not significantly degrade performance.

  31. Questions?

  32. Backup Slides

  33. Making a Good Configuration – definitions • Consistency – Writes, once acknowledged, are not “forgotten”. • Write availability – The system is able to accept and acknowledge writes. • Read Availability – The system is able to respond to read requests.

  34. Choosing a Quorum Size – Consistency • If Q > N/2, StarFish can only lose data if the HE and Q SEs fail simultaneously. • Even if the Q up-to-date SEs fail after the HE has acked the write, as long as the HE is up, it will ensure that all SEs will get the most recent writes. • If Q <= N/2, on restart, the HE might not have access to current data even if Q SEs are available.

  35. Choosing the Number of SEs For a highly available system, where Q = floor(N/2)

  36. How it Works – Writes • Single-owner (the HE) access semantics • Writes are assigned sequence numbers by the HE. • Each SE applies them in order. Any gap necessitates an SE recovery • No reordering/coalescing/optimizations • HE acks the write to the host once a quorum of SEs report it’s been committed.

  37. Read Performance

  38. Write LatencyN=3
