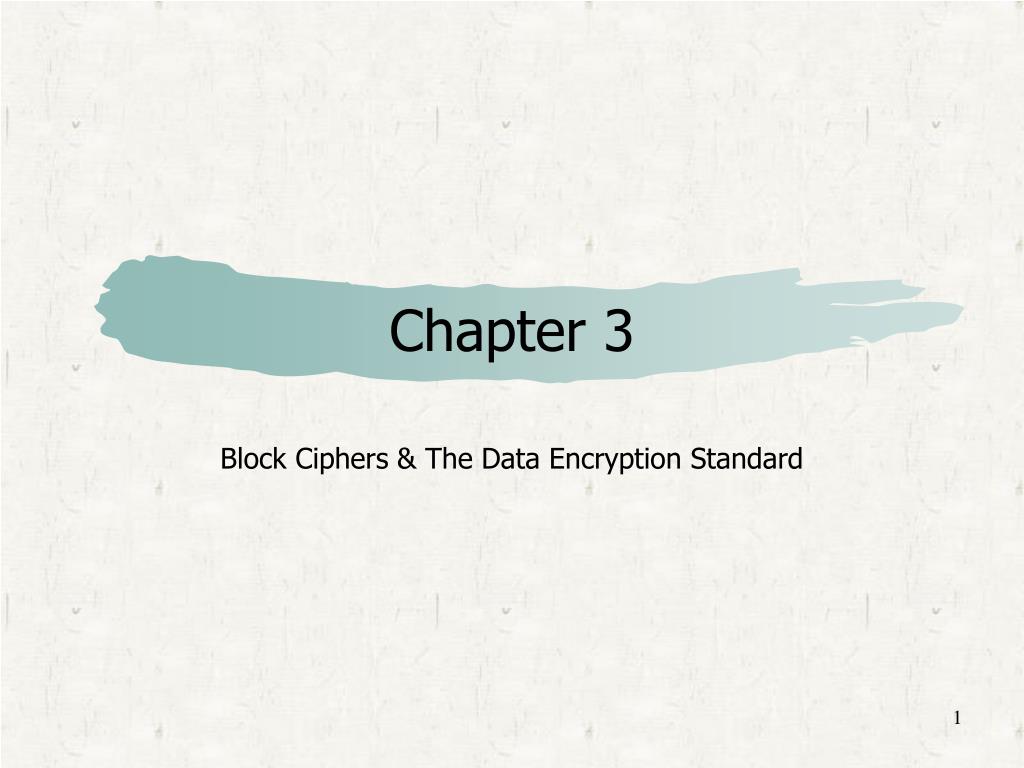

  1. Chapter 3 Block Ciphers & The Data Encryption Standard

  2. Contents • Block Cipher Principles • The Data Encryption Standard • The Strength of DES • Differential and Linear Cryptananlysis • Block Cipher Design Principles

  3. Block Cipher principles • Stream Ciphers and Block Ciphers • Motivation for the Feistel Cipher Structure • The Feistel Cipher

  4. Stream Ciphers and Block Ciphers • Stream cipher • encrypts one bit or one byte at a time. • Vigenère cipher, Verman cipher • Block cipher • encrypts a block of plaintext as a whole • to produce a ciphertext block of equal length. • Typical block size: 64 or 128 bits

  5. Motivation for the Feistel Cipher Structure • A block cipher operates on a plaintext block of n bits to produce a ciphertext block of n bits. • Each plaintext must produce a unique ciphertext block (for decryption to be possible). • Such transformation is called reversible or nonsingular.

  6. Motivation for the Feistel Cipher Structure • The logic of a general substitution cipher. (for n = 4)

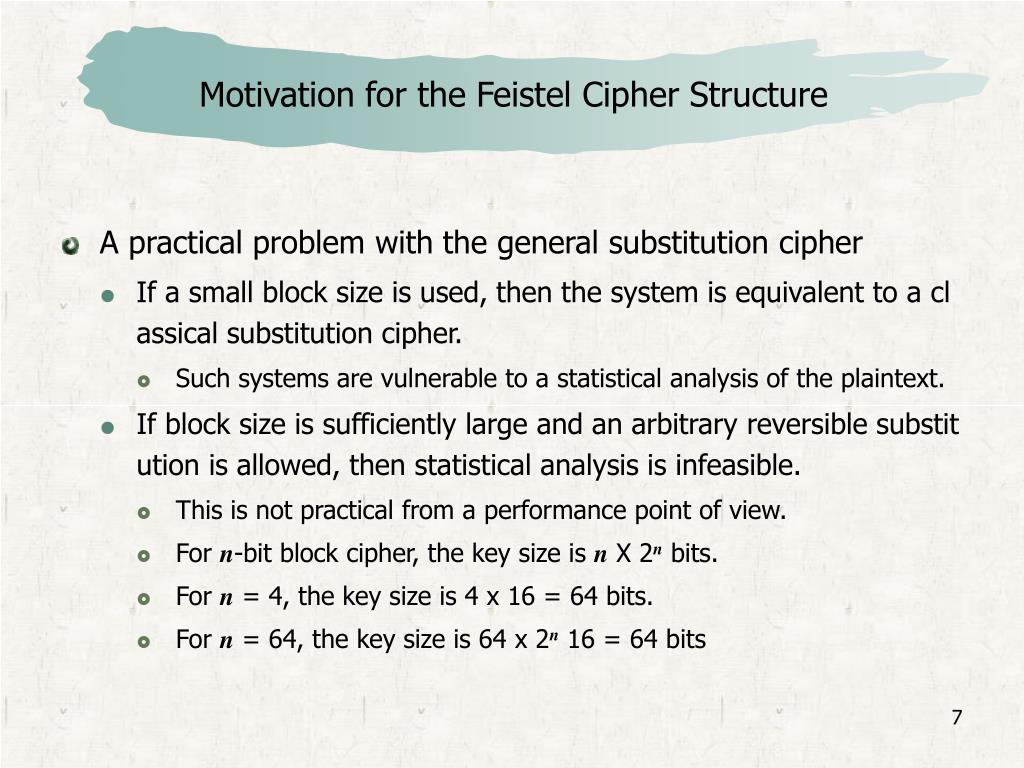

  7. Motivation for the Feistel Cipher Structure • A practical problem with the general substitution cipher • If a small block size is used, then the system is equivalent to a classical substitution cipher. • Such systems are vulnerable to a statistical analysis of the plaintext. • If block size is sufficiently large and an arbitrary reversible substitution is allowed, then statistical analysis is infeasible. • This is not practical from a performance point of view. • For n-bit block cipher, the key size is n X 2n bits. • For n = 4, the key size is 4 x 16 = 64 bits. • For n = 64, the key size is 64 x 2n 16 = 64 bits

  8. The Feistel Cipher • Feistel proposed the use of a cipher that alternates substitutions and permutations. • In fact, this is a practical application of a proposal by Claude Shannon to develop a product cipher that alternates confusion and diffusion functions.

  9. Diffusion and Confusion • Shannon suggests two methods for frustrating statistical cryptanalysis. • Diffusion and Confusion

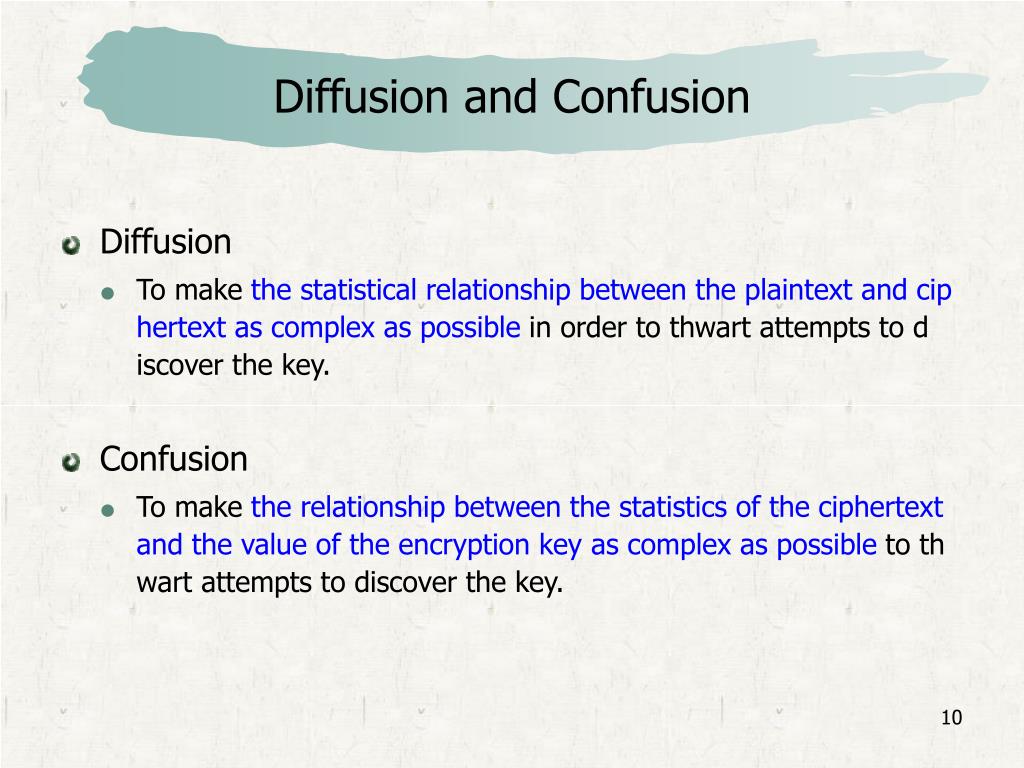

  10. Diffusion and Confusion • Diffusion • To make the statistical relationship between the plaintext and ciphertext as complexas possible in order to thwart attempts to discover the key. • Confusion • To make the relationship between the statistics of the ciphertext and the value of the encryption key as complexas possibleto thwart attempts to discover the key.

  11. Diffusion and Confusion • Diffusion can be achieved by • a permutation followed by a function. • Confusion can be achieved by • a substitution.

  12. Feistel Cipher Structure • Feistel structure • Input • Plaintext : 2w bits • A Key K • Output • Ciphertext : 2w bits

  13. Feistel Cipher Structure • The input is divided into two halves L0 and R0 and they pass through n rounds. • Round i • Input: Li-1,Ri-1, and Ki(round key) • Output: LiandRi • A substitution is performed on the left halfLi-1. • A permutation is performed by swapping the two halves.

  14. Feistel Cipher Structure • Design features • Block size • The larger it is, the securer the cipher is but the slower the cipher is. • 64 or 128 bits • Key size • The larger it is, the securer the cipher is but the slower the cipher is. • 64 or 128 bits • Number of rounds • The larger it is, the securer the cipher is but the slower the cipher is. • 16 rounds is typical.

  15. Feistel Cipher Structure • Design features • Subkey generation • The more complex it is, the securer the cipher is but the slower… • Round function • The more complex it is, the securer the cipher is but the slower… • Fast software encryption/decryption • Ease of analysis

  16. Feistel Decryption Algorithm • Decryption is the same as the encryption except that the subkeys are used in reverse order.

  17. Feistel Cipher Structure • Round i

  18. The Data Encryption Standard • DES Encryption • Initial Permutation • Details of Single Round • Key Generation • The Avalanche Effect

  19. The Data Encryption Standard • The most widely used encryption. • Adopted in 1977 by NIST • FIPS PUB 46 • Data are encrypted in 64-bit blocks using a 56-bit key.

  20. DES Encryption DES is a Feistel cipher with the exception of IP and IP-1.

  21. Initial Permutation • The permutation • X = IP(M) • The inverse permutation • Y = IP-1(X) = IP-1(IP(M)) • The original ordering is restored

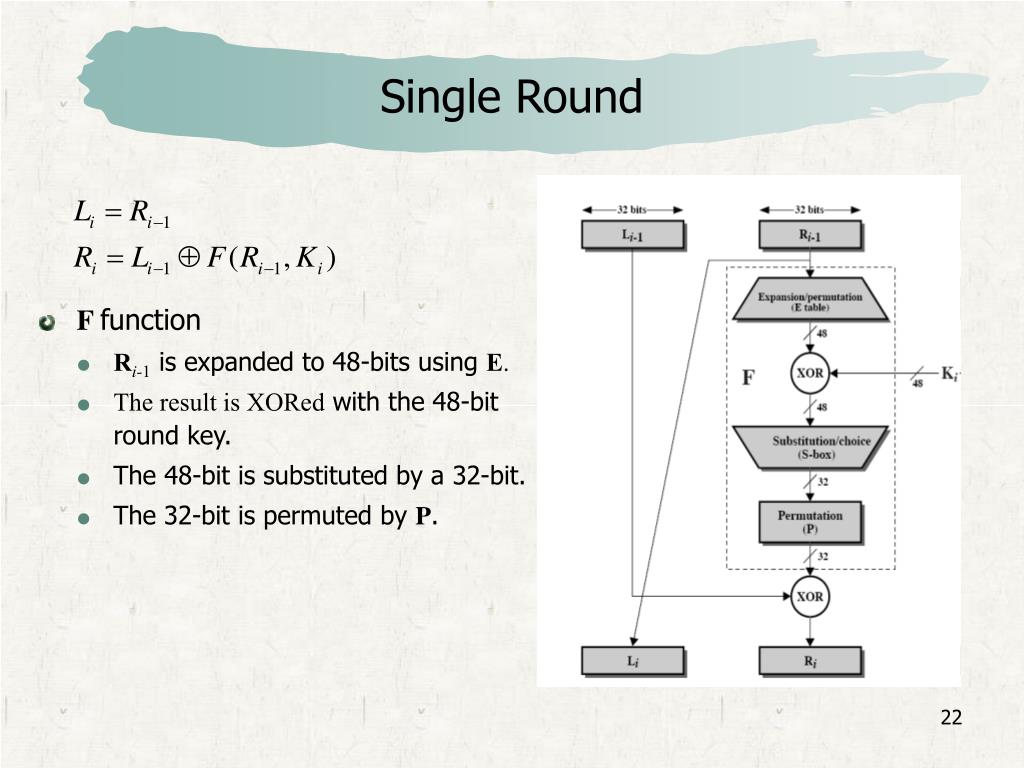

  22. Single Round • F function • Ri-1is expanded to 48-bits using E. • The result is XORed with the 48-bit round key. • The 48-bit is substituted by a 32-bit. • The 32-bit is permuted by P.

  23. Single Round • Expansion E • 32 bits  48 bits • 16 bits are reused. • Permutation P

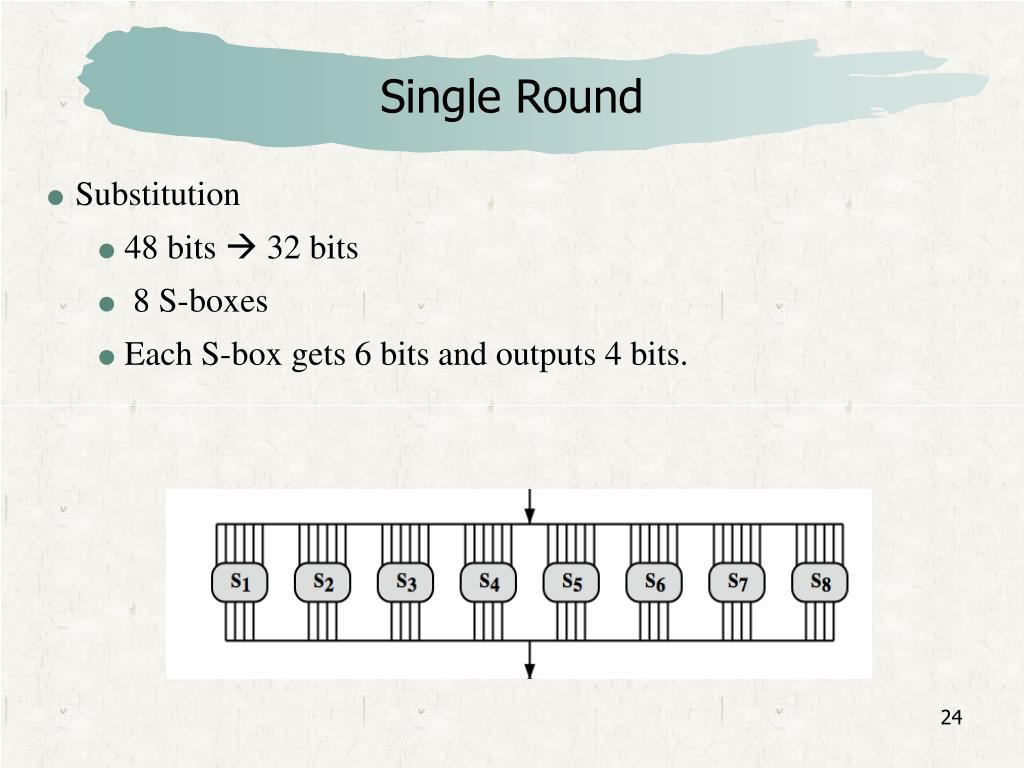

  24. Single Round • Substitution • 48 bits  32 bits • 8 S-boxes • Each S-box gets 6 bits and outputs 4 bits.

  25. Single Round • Each S-box is given in page 79. • Outer bits 1 & 6 (row bits) select one rows • Inner bits 2-5 (col bits) are substituted • Example : Input : 011001 • the row is 01 (row 1) • the column is 1100 (column 12) • Output is 1001

  26. Key Generation • A 64-bit key used as input • Every 8th bit is ignored. • Thus, the key is 56 bits. • PC1permute 56 bits into two 28-bit halves.

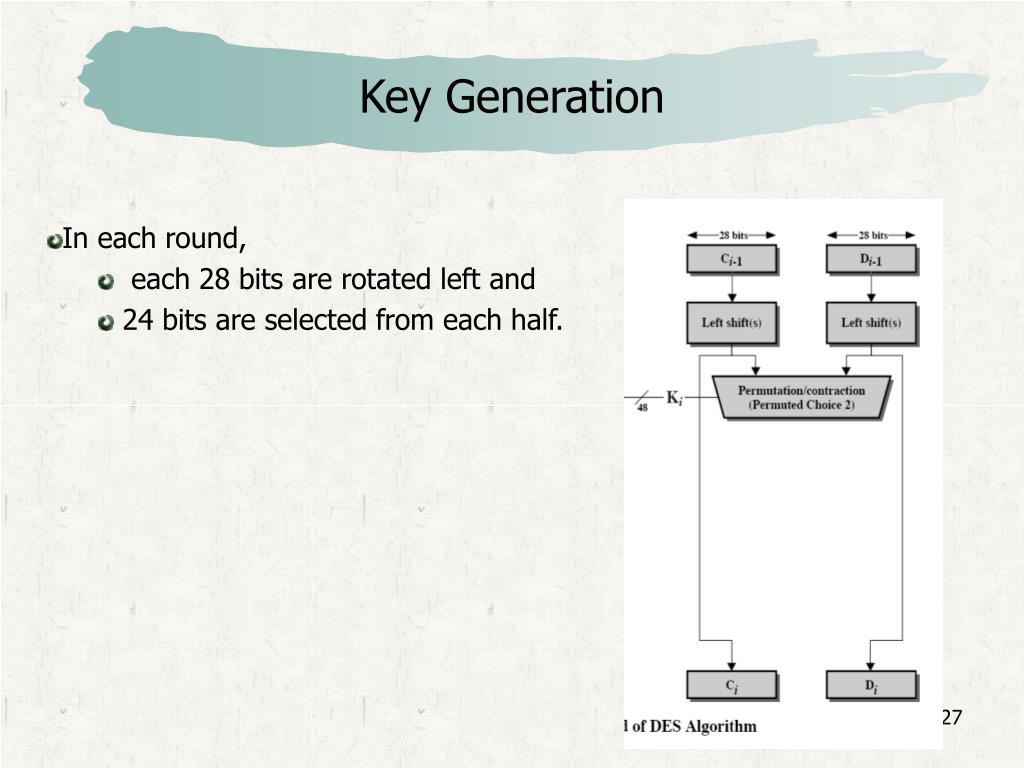

  27. Key Generation • In each round, • each 28 bits are rotated left and • 24 bits are selected from each half.

  28. Key Generation

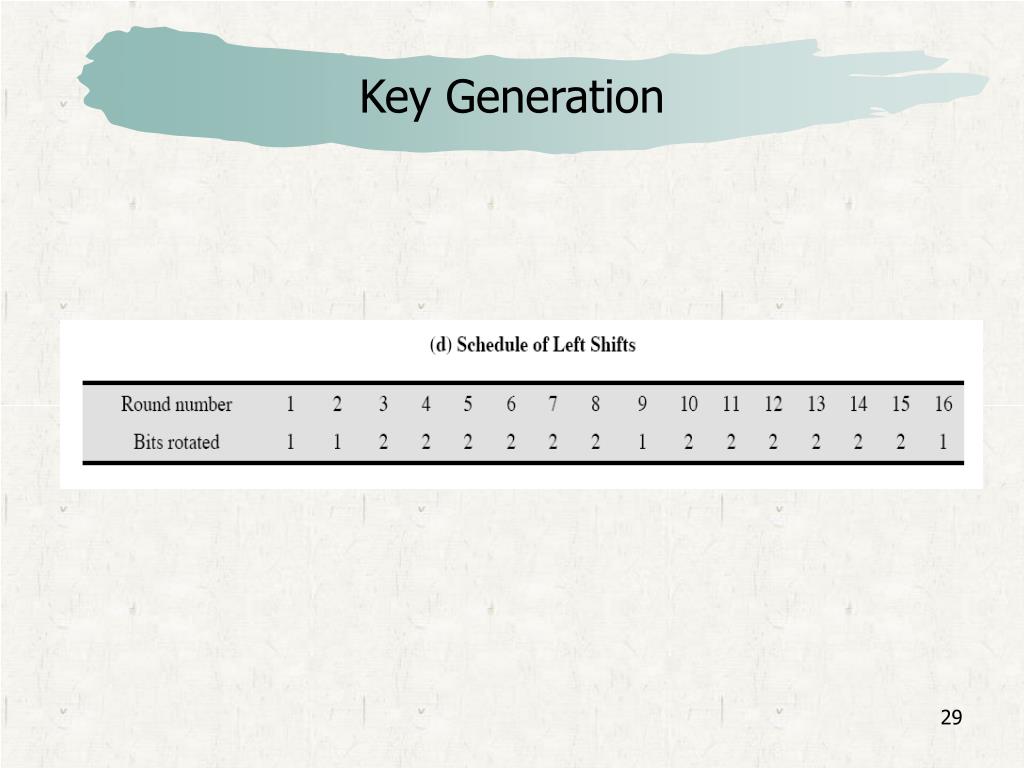

  29. Key Generation

  30. DES Decryption • Decryption uses the same algorithm as encryption. • Feistel cipher • Roundkey schedule is reversed.

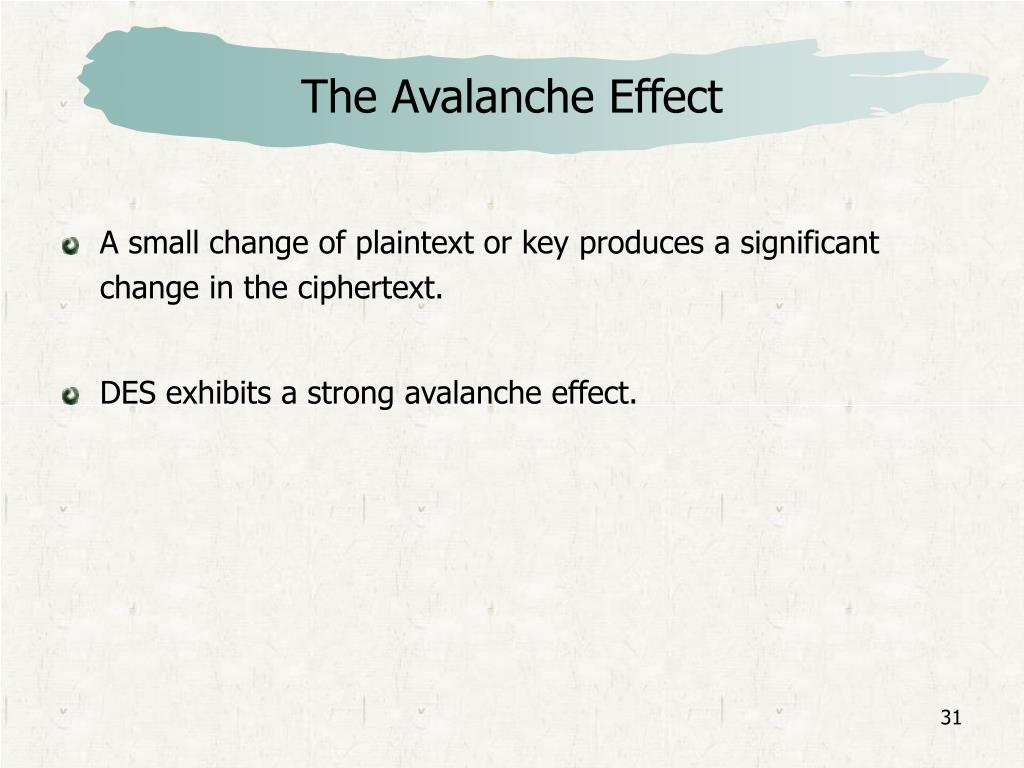

  31. The Avalanche Effect • A small change of plaintext or key produces a significant change in the ciphertext. • DES exhibits a strong avalanche effect.

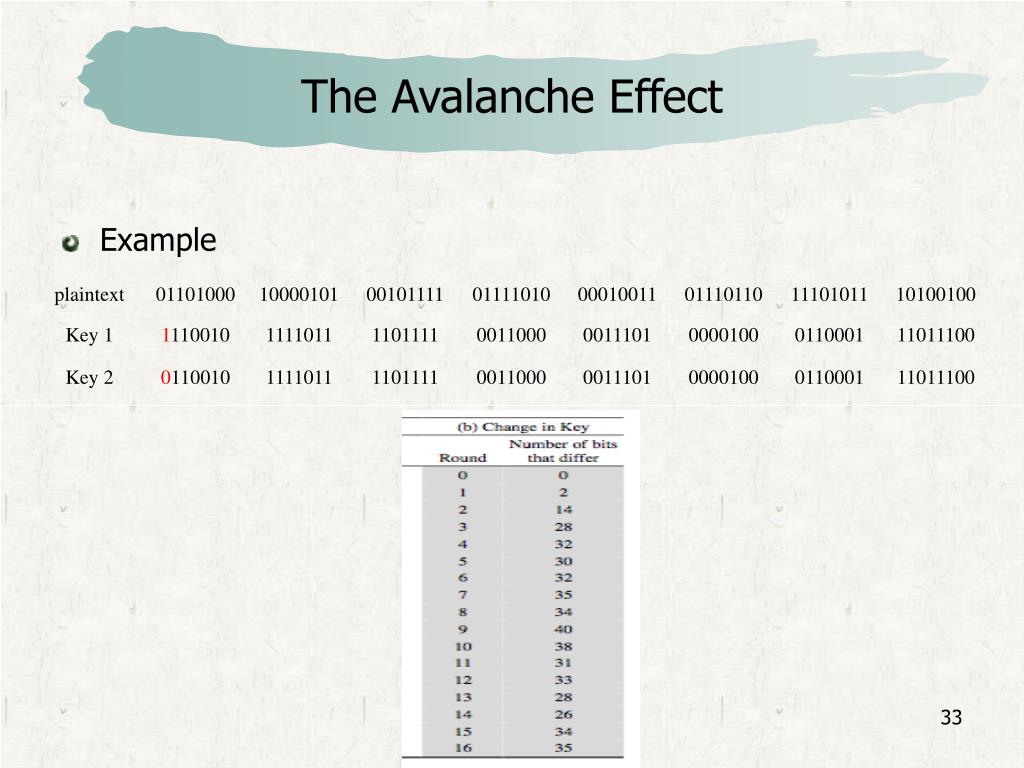

  32. The Avalanche Effect • Example

  33. The Avalanche Effect • Example

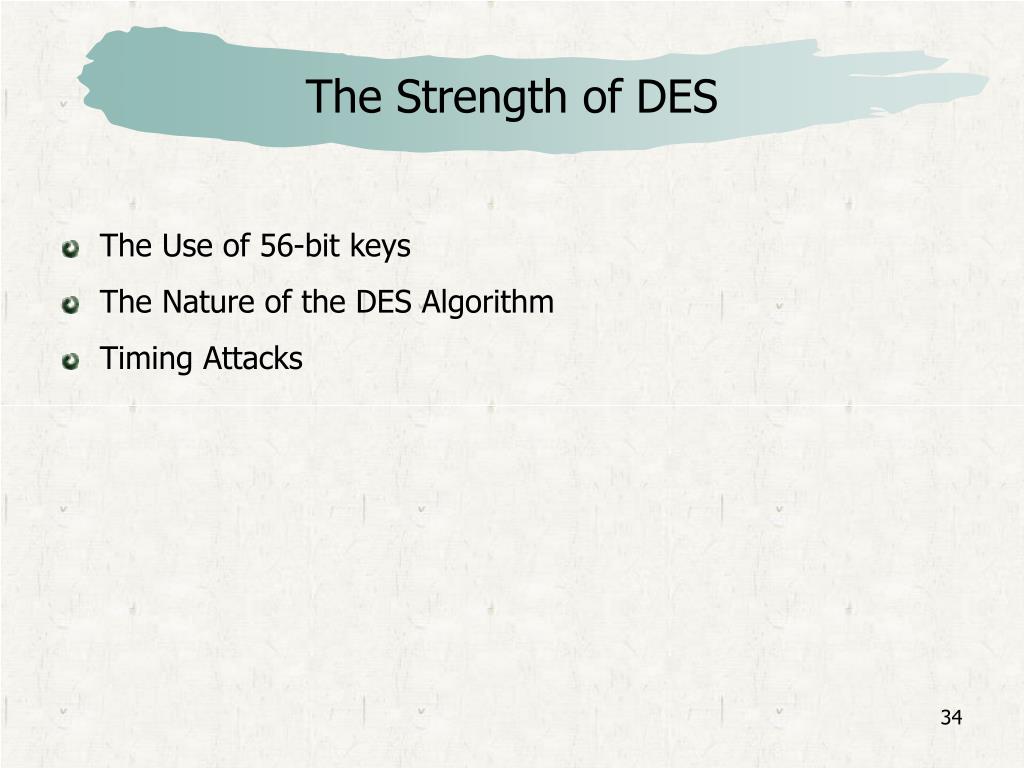

  34. The Strength of DES • The Use of 56-bit keys • The Nature of the DES Algorithm • Timing Attacks

  35. The Use of 56-bit Keys • If the key length is 56-bit, we have 256 = 7.2 x 1016keys. • In 1998, Electronic Frontier Foundation (EFF) announced ‘DES cracker’ which can attack DES in 3 days. • It was built for less than $250,000. • Alternatives to DES • AES (key size is 128 ~ 256 bit) and triple DES (112 ~ 168 bit)

  36. Differential and Linear Cryptanalysis • Differential Cryptanalysis • History • Differential Cryptanalysis Attack • Linear Cryptanalysis

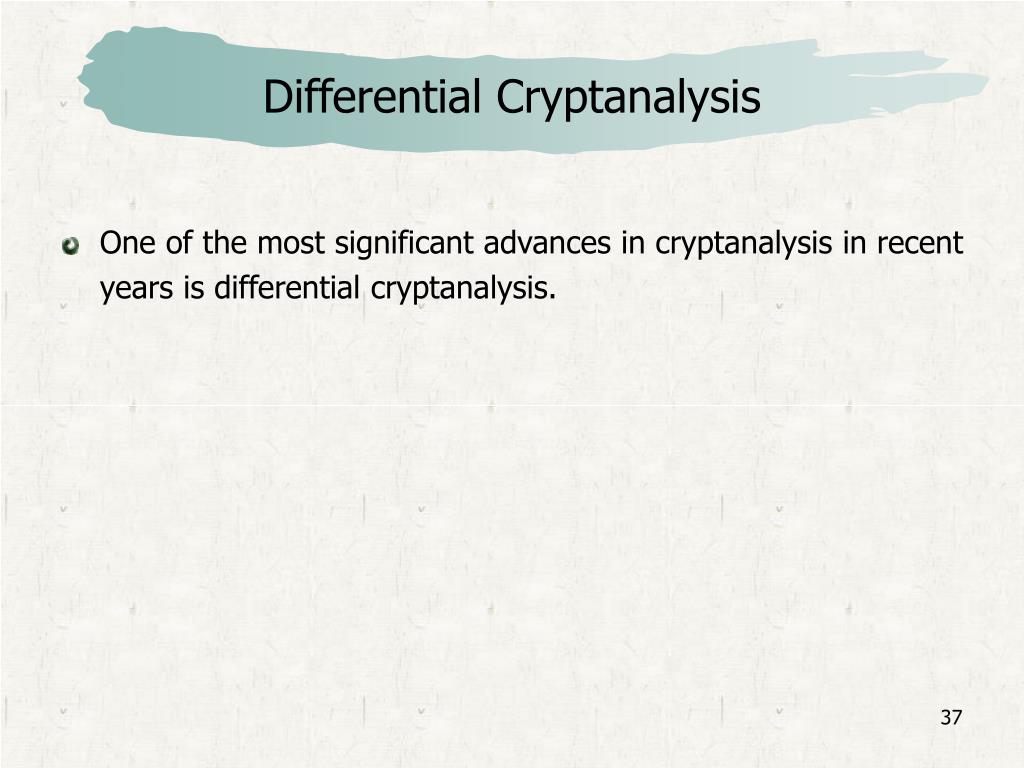

  37. Differential Cryptanalysis • One of the most significant advances in cryptanalysis in recent years is differential cryptanalysis.

  38. History • Murphy, Biham & Shamir published 1990. • The first published attack that is capable of breaking DES in less than 255 complexity. • As reported, can successfully cryptanalyze DES with an effort on the order of 247, requiring chosen plaintexts. • This is a powerful tool, but it does not do very well against DES • Differential cryptanalysis was known to IBM as early as 1974

  39. Differential Cryptanalysis Attack • The differential cryptanalysis attack is complex. • Change in notation for DES • Original plaintext block : m • Two halves : m0, m1 • At each round for DES, only one new 32-bit block is created. • The intermediate message halves are related.

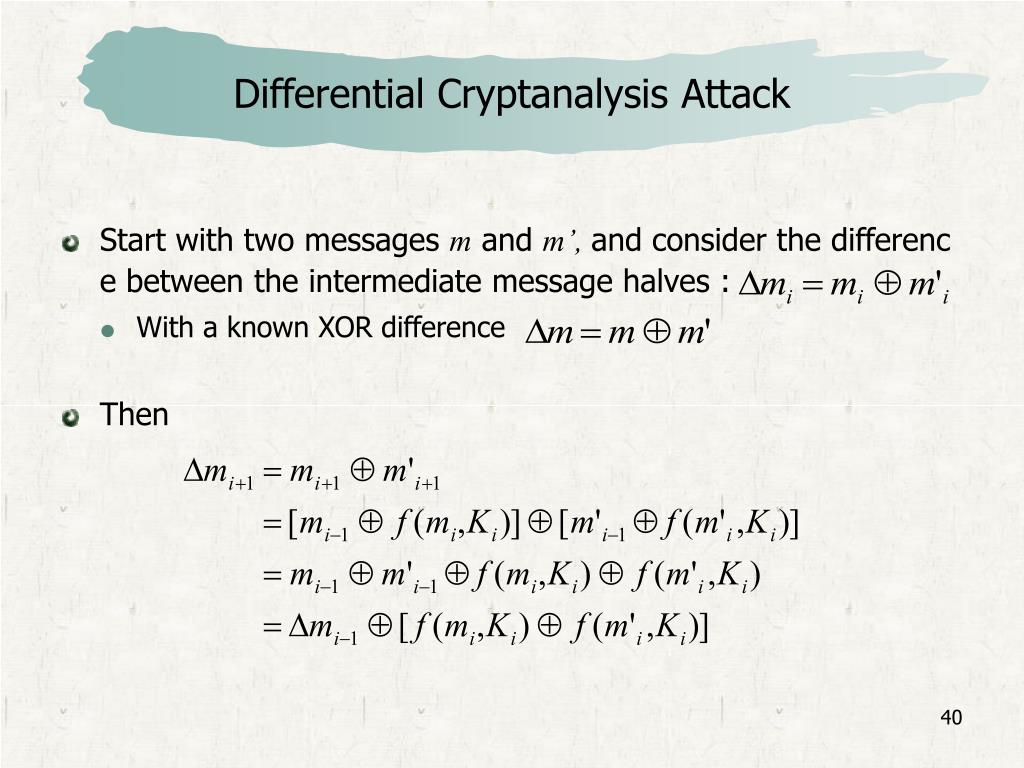

  40. Differential Cryptanalysis Attack • Start with two messages m and m’, and consider the difference between the intermediate message halves : • With a known XOR difference • Then

  41. Differential Cryptanalysis Attack • The Overall strategy is based one these considerations for a single round. • The procedure is • to begin with two plaintext message m and m’ with a given difference. • to trace through a probable pattern of differences after each round to yield a probable difference for the ciphertext.

  42. Differential Cryptanalysis Attack • Actually, there are two probable differences for the two 32-bit halves. • Next, submit m and m’ for encryption to determine the actual difference under the unknown key. • And compare the result to the probable difference. • If there is a match, • Then, suspect that all the probable patterns at all the intermediate rounds are correct. • With that assumption, can make some deductions about the key bits.

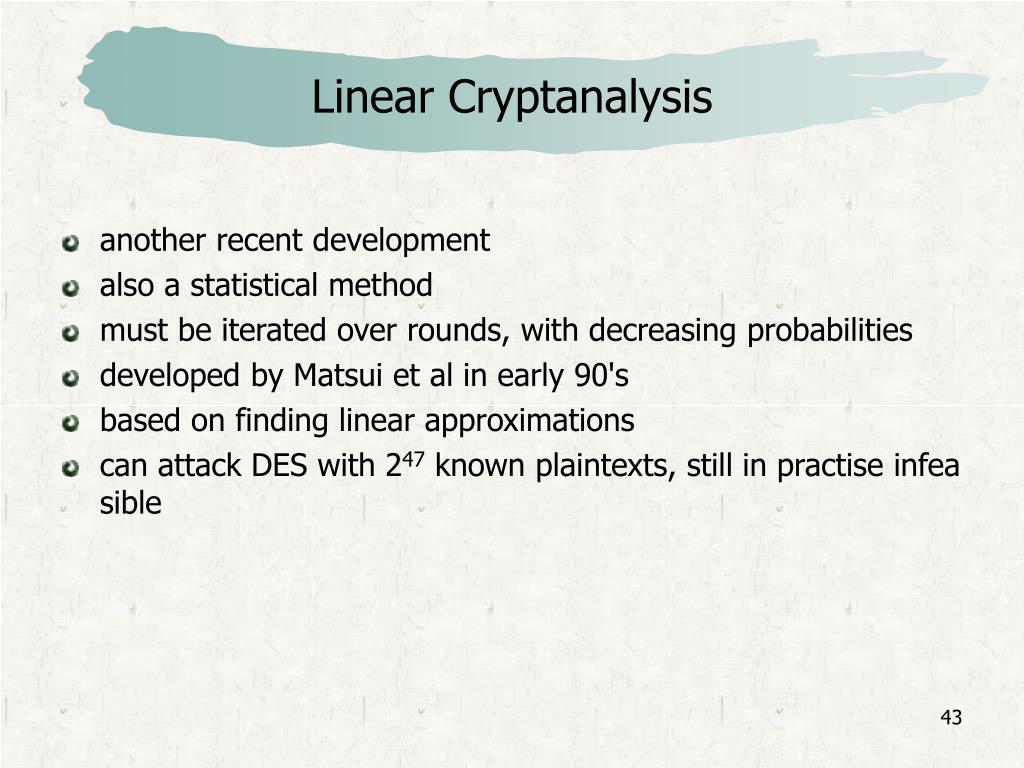

  43. Linear Cryptanalysis • another recent development • also a statistical method • must be iterated over rounds, with decreasing probabilities • developed by Matsui et al in early 90's • based on finding linear approximations • can attack DES with 247 known plaintexts, still in practise infeasible

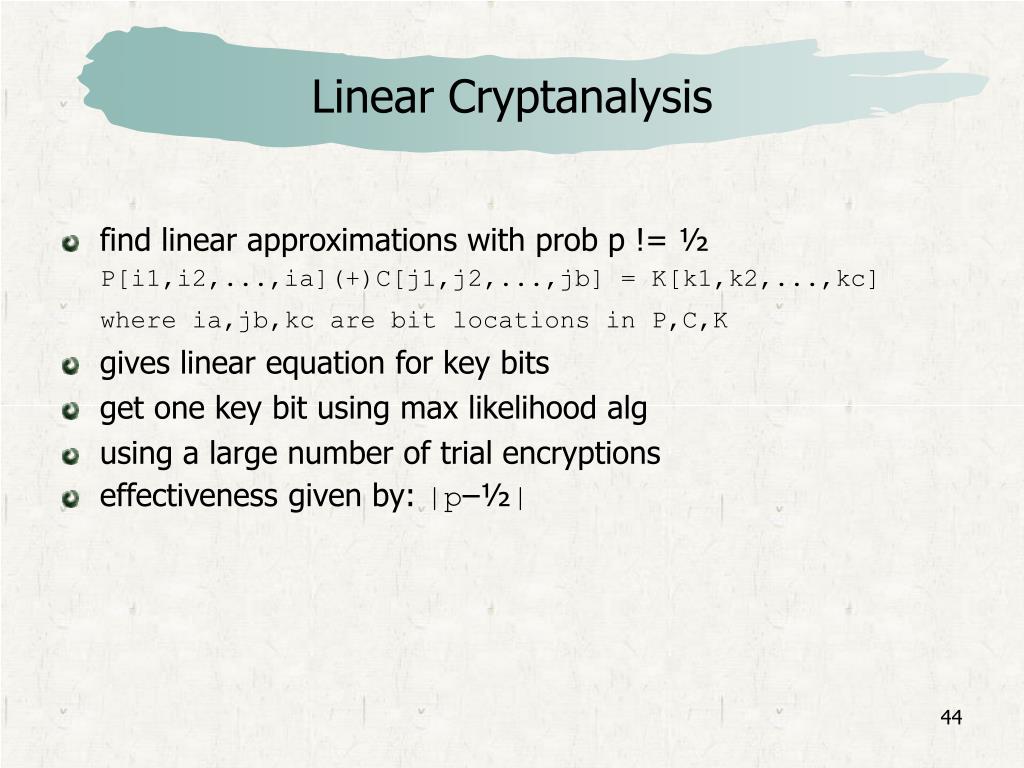

  44. Linear Cryptanalysis • find linear approximations with prob p != ½ P[i1,i2,...,ia](+)C[j1,j2,...,jb] = K[k1,k2,...,kc] where ia,jb,kc are bit locations in P,C,K • gives linear equation for key bits • get one key bit using max likelihood alg • using a large number of trial encryptions • effectiveness given by: |p–½|

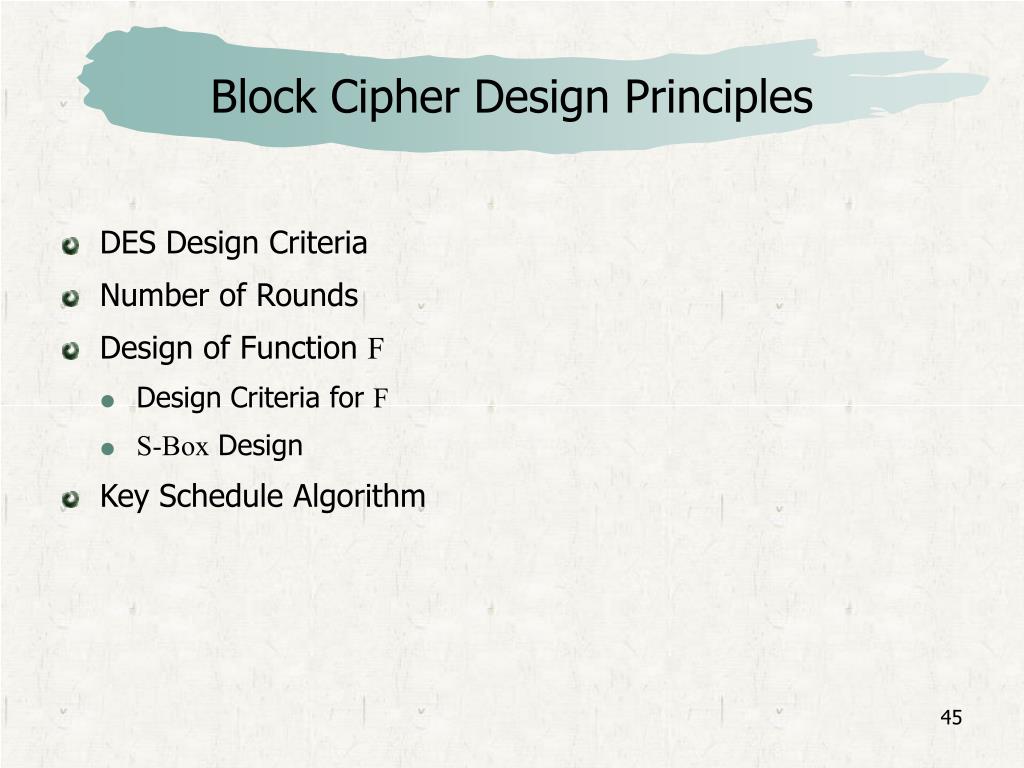

  45. Block Cipher Design Principles • DES Design Criteria • Number of Rounds • Design of Function F • Design Criteria for F • S-Box Design • Key Schedule Algorithm

  46. Block Cipher Design Principles • Although much progress has been made that are cryptographically strong, the basic principles have not changed all.

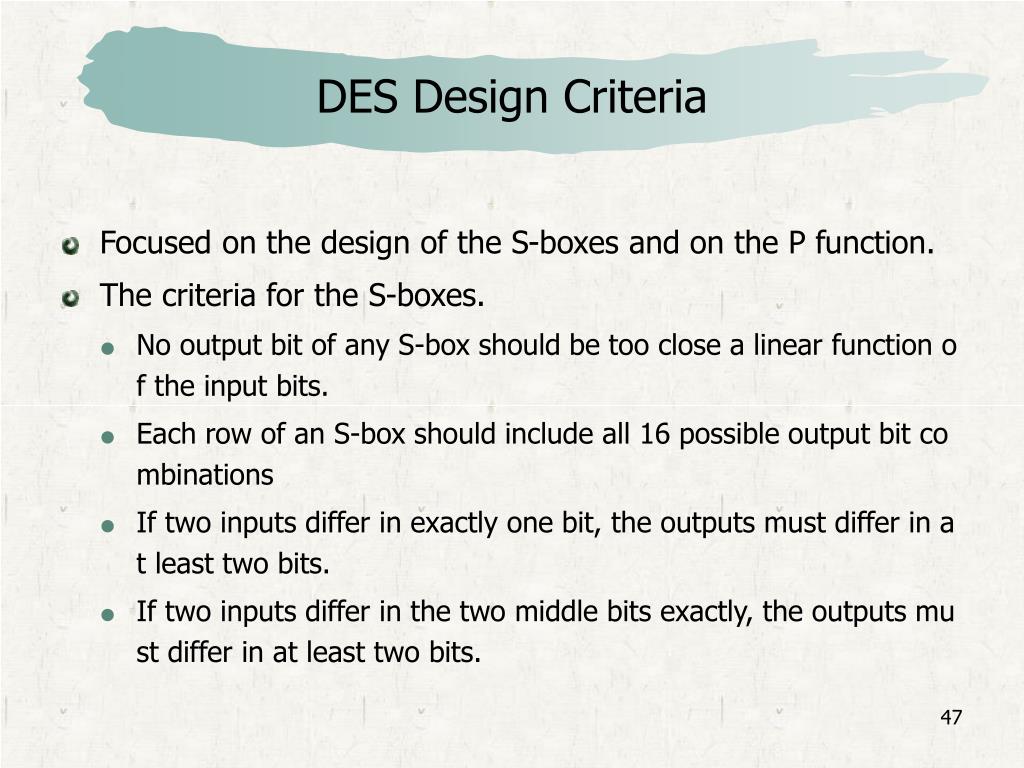

  47. DES Design Criteria • Focused on the design of the S-boxes and on the P function. • The criteria for the S-boxes. • No output bit of any S-box should be too close a linear function of the input bits. • Each row of an S-box should include all 16 possible output bit combinations • If two inputs differ in exactly one bit, the outputs must differ in at least two bits. • If two inputs differ in the two middle bits exactly, the outputs must differ in at least two bits.

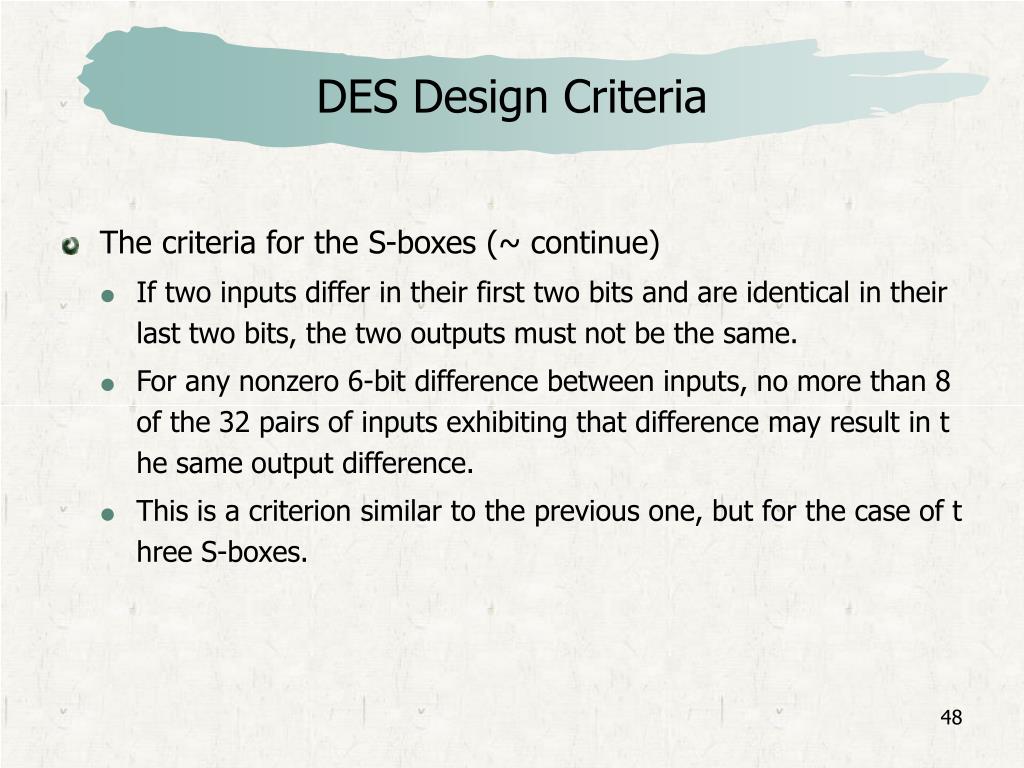

  48. DES Design Criteria • The criteria for the S-boxes (~ continue) • If two inputs differ in their first two bits and are identical in their last two bits, the two outputs must not be the same. • For any nonzero 6-bit difference between inputs, no more than 8 of the 32 pairs of inputs exhibiting that difference may result in the same output difference. • This is a criterion similar to the previous one, but for the case of three S-boxes.

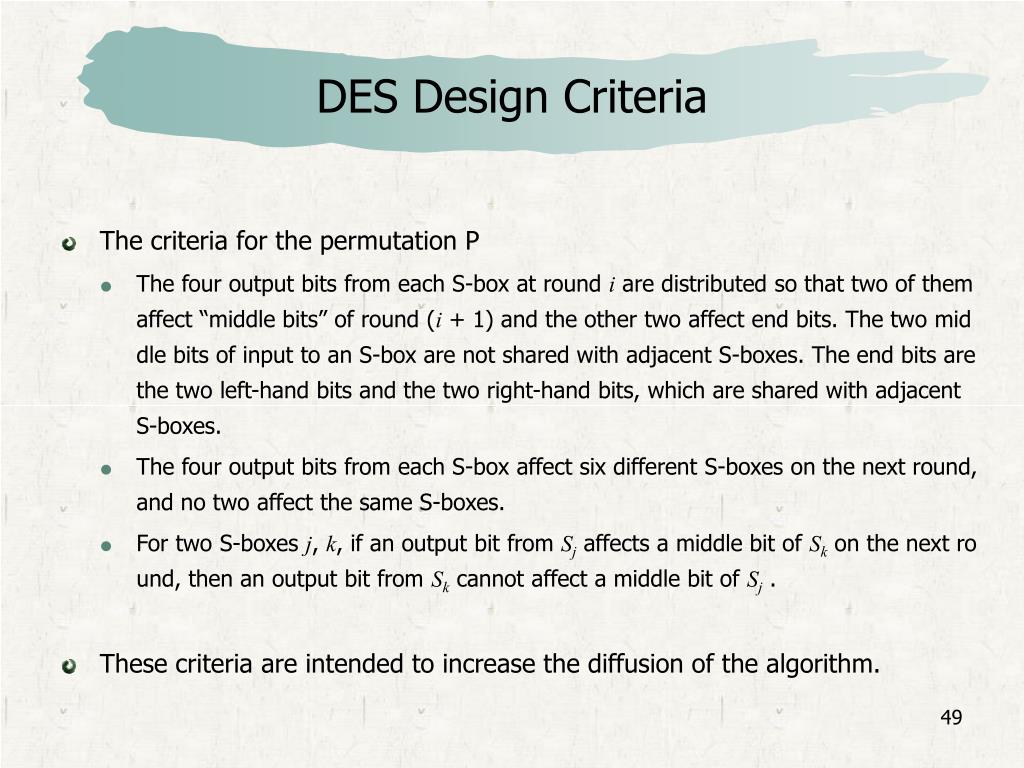

  49. DES Design Criteria • The criteria for the permutation P • The four output bits from each S-box at round i are distributed so that two of them affect “middle bits” of round (i + 1) and the other two affect end bits. The two middle bits of input to an S-box are not shared with adjacent S-boxes. The end bits are the two left-hand bits and the two right-hand bits, which are shared with adjacent S-boxes. • The four output bits from each S-box affect six different S-boxes on the next round, and no two affect the same S-boxes. • For two S-boxes j, k, if an output bit from Sj affects a middle bit of Sk on the next round, then an output bit from Sk cannot affect a middle bit of Sj . • These criteria are intended to increase the diffusion of the algorithm.

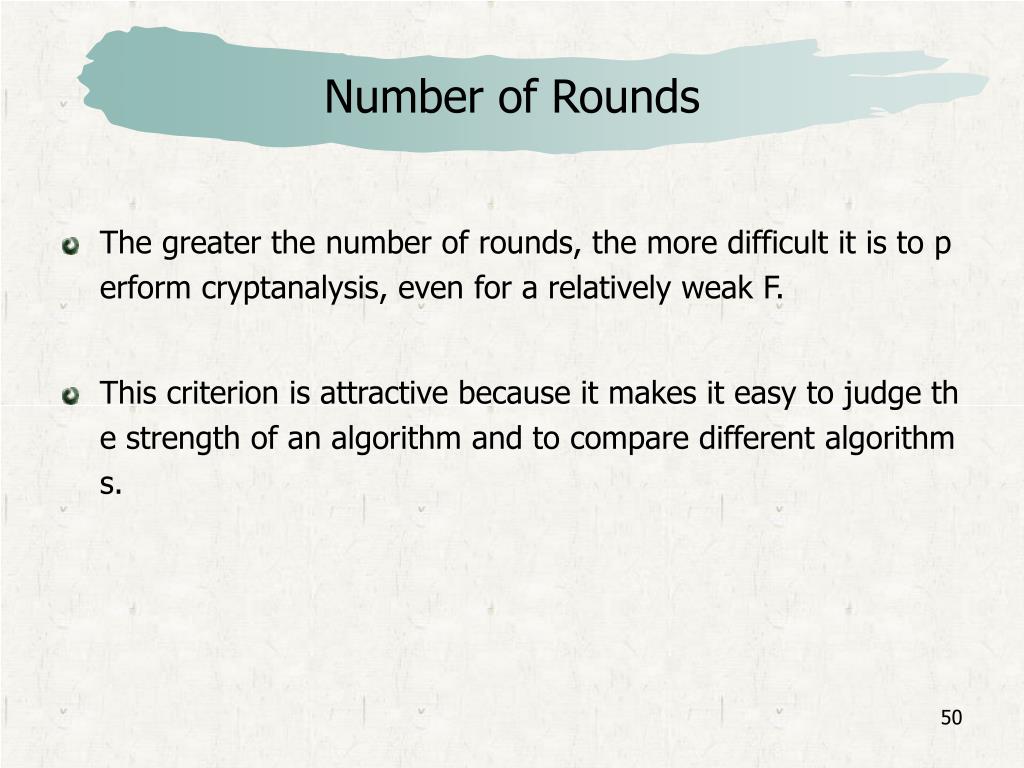

  50. Number of Rounds • The greater the number of rounds, the more difficult it is to perform cryptanalysis, even for a relatively weak F. • This criterion is attractive because it makes it easy to judge the strength of an algorithm and to compare different algorithms.
