Chapter 3. Arithmetic for Computers. Arithmetic for Computers. §3.1 Introduction. Operations on integers Addition and subtraction Multiplication and division Dealing with overflow Floating-point real numbers Representation and operations. operation. a. ALU. 32. result. 32. b. 32.

Télécharger la présentation
## Chapter 3

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

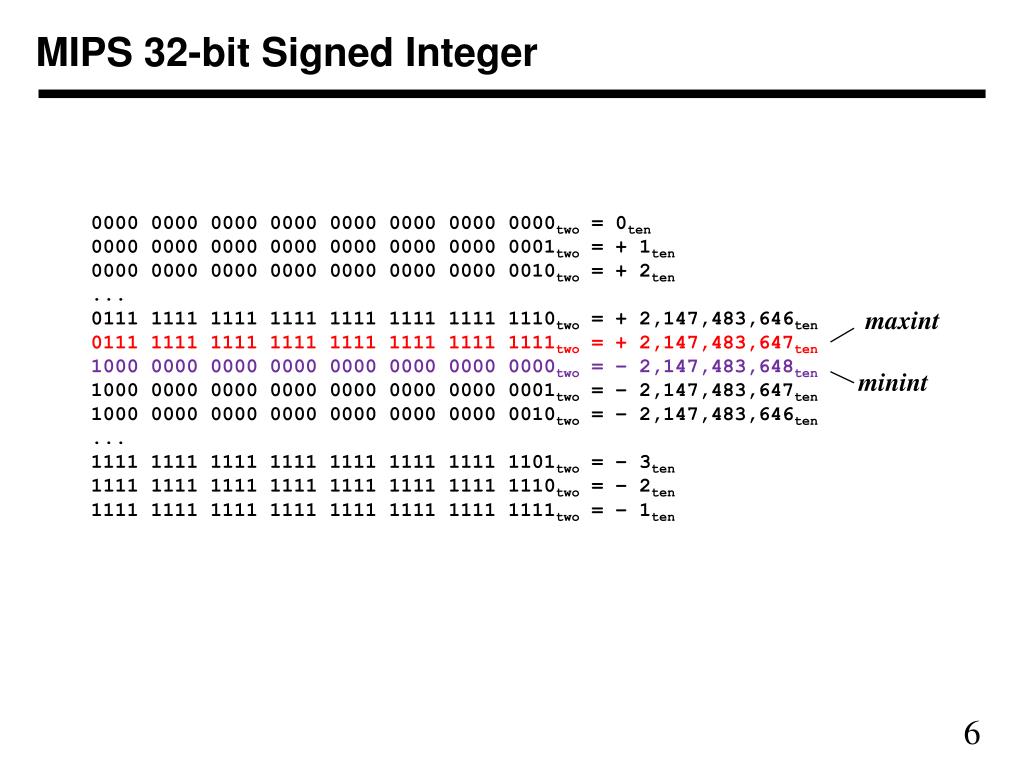

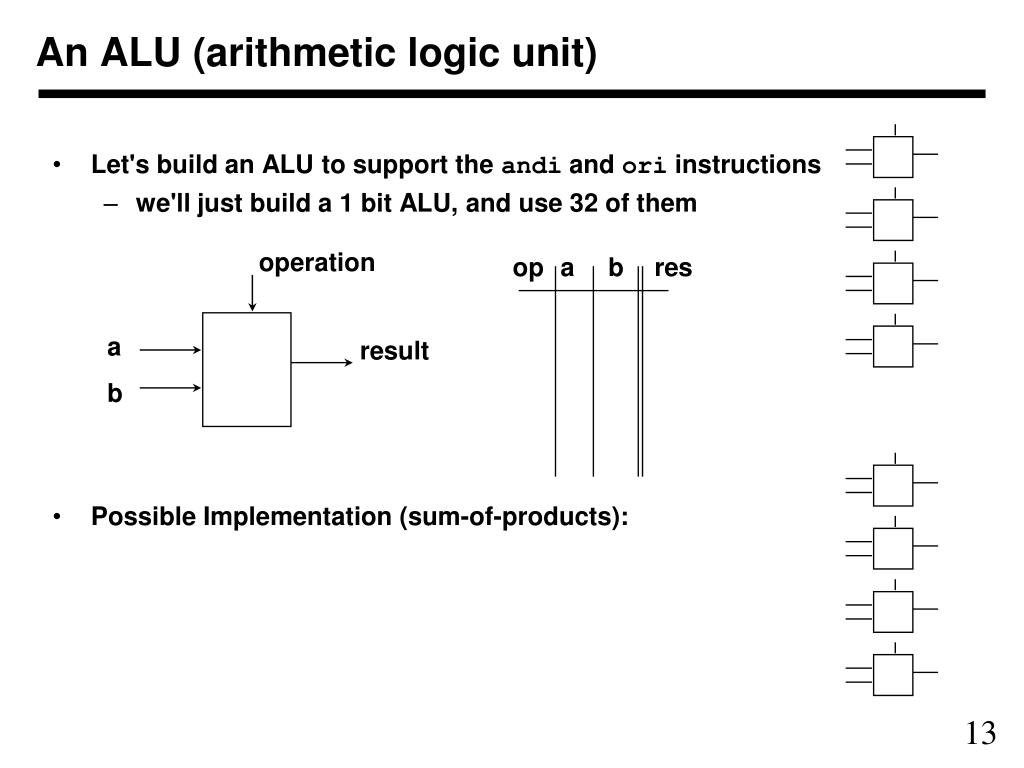

**Chapter 3**Arithmetic for Computers**Arithmetic for Computers**§3.1 Introduction • Operations on integers • Addition and subtraction • Multiplication and division • Dealing with overflow • Floating-point real numbers • Representation and operations Chapter 3 — Arithmetic for Computers — 2**operation**a ALU 32 result 32 b 32 Arithmetic • Where we've been: • Performance (seconds, cycles, instructions) • Abstractions: Instruction Set Architecture Assembly Language and Machine Language • What's up ahead: • Implementing the Architecture**Numbers**• Bits are just bits (no inherent meaning) — conventions define relationship between bits and numbers • Binary numbers (base 2) 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001... decimal: 0...2n-1 • Of course it gets more complicated: numbers are finite (overflow) fractions and real numbers negative numbers e.g., no MIPS subi instruction; addi can add a negative number) • How do we represent negative numbers? i.e., which bit patterns will represent which numbers?**Possible Representations**• Sign Magnitude: One's Complement Two's Complement 000 = +0 000 = +0 000 = +0 001 = +1 001 = +1 001 = +1 010 = +2 010 = +2 010 = +2 011 = +3 011 = +3 011 = +3 100 = -0 100 = -3 100 = -4 101 = -1 101 = -2 101 = -3 110 = -2 110 = -1 110 = -2 111 = -3 111 = -0 111 = -1 • Issues: balance, number of zeros, ease of operations • Which one is best? Why?**maxint**minint MIPS 32-bit Signed Integer 0000 0000 0000 0000 0000 0000 0000 0000two = 0ten0000 0000 0000 0000 0000 0000 0000 0001two = + 1ten0000 0000 0000 0000 0000 0000 0000 0010two = + 2ten...0111 1111 1111 1111 1111 1111 1111 1110two = + 2,147,483,646ten0111 1111 1111 1111 1111 1111 1111 1111two = + 2,147,483,647ten1000 0000 0000 0000 0000 0000 0000 0000two = – 2,147,483,648ten1000 0000 0000 0000 0000 0000 0000 0001two = – 2,147,483,647ten1000 0000 0000 0000 0000 0000 0000 0010two = – 2,147,483,646ten...1111 1111 1111 1111 1111 1111 1111 1101two = – 3ten1111 1111 1111 1111 1111 1111 1111 1110two = – 2ten1111 1111 1111 1111 1111 1111 1111 1111two = – 1ten**Two's Complement Operations**• Negating a two's complement number: invert all bits and add 1 • remember: “negate (+/-)” and “invert (1/0)” are quite different! • Converting n bit numbers into numbers with more than n bits: • MIPS 16 bit immediate gets converted to 32 bits for arithmetic • copy the most significant bit (the sign bit) into the other bits 0010 -> 0000 0010 1010 -> 1111 1010 • "sign extension" • MIPS: lbu vs. lb • ARM: LDRSB vs LDRB**Addition & Subtraction**• Just like in grade school (carry/borrow 1s) 0111 0111 0110+ 0110 - 0110 - 0101 • Two's complement operations easy • subtraction using addition of negative numbers 0111 + 1010 • Overflow (result too large for finite computer word): • e.g., adding two n-bit numbers does not yield an n-bit number 0111 + 0001 note that overflow term is somewhat misleading, 1000 it does not mean a carry “overflowed”**Effects of Overflow**• An exception (interrupt) occurs • Control jumps to predefined address for exception • Interrupted address is saved for possible resumption • Details based on software system / language • example: flight control vs. homework assignment • Don't always want to detect overflow — new MIPS instructions: addu, addiu, subu note: addiu still sign-extends! note: sltu, sltiu for unsigned comparisons — ARM instructions: ADD, SUB • Roll over:circular buffers • Saturation: pixel lightness control**Review: Boolean Algebra & Gates**• Problem: Consider a logic function with three inputs: A, B, and C. Output D is true if at least one input is true Output E is true if exactly two inputs are true Output F is true only if all three inputs are true • Show the truth table for these three functions. • Show the Boolean equations for these three functions. • Show an implementation consisting of inverters, AND, and OR gates.**operation**op a b res result An ALU (arithmetic logic unit) • Let's build an ALU to support the andi and ori instructions • we'll just build a 1 bit ALU, and use 32 of them • Possible Implementation (sum-of-products): a b**S**A C B Review: The Multiplexor • Selects one of the inputs to be the output, based on a control input • Lets build our ALU using a MUX: note: we call this a 2-input mux even though it has 3 inputs! 0 1**Different Implementations**• Not easy to decide the “best” way to build something • Don't want too many inputs to a single gate • Dont want to have to go through too many gates • for our purposes, ease of comprehension is important • Let's look at a 1-bit ALU for addition: • How could we build a 1-bit ALU for add, and, and or? • How could we build a 32-bit ALU? cout = a b + a cin + b cin sum = a xor b xor cin**Building a 32 bit ALU**Case (Op) { 0: R = a ^ b; 1: R = a V b; 2: R = a + b} R0 = a ^ b; R1 = a V b; R2 = a + b; Case (Op) { 0: R = R0; 1: R = R1; 2: R = R2 }**What about subtraction (a – b) ?**• Two's complement approach: just negate b and add. • How do we negate? • A very clever solution: Result = A + (~B) + 1**Tailoring the ALU to the MIPS**• Need to support the set-on-less-than instruction (slt) • remember: slt is an arithmetic instruction • produces a 1 if rs < rt and 0 otherwise • use subtraction: (a-b) < 0 implies a < b • Need to support test for equality (beq $t5, $t6, $t7) • use subtraction: (a-b) = 0 implies a = b**B**i n v e r t O p e r a t i o n C a r r y I n a 0 1 R e s u l t b 0 2 1 L e s s 3 a . C a r r y O u t B i n v e r t O p e r a t i o n C a r r y I n a 0 1 R e s u l t b 0 2 1 L e s s 3 S e t O v e r f l o w O v e r f l o w d e t e c t i o n b . Supporting slt • Can we figure out the idea?**B**i n v e r t O p e r a t i o n C a r r y I n a 0 1 R e s u l t b 0 2 1 L e s s 3 a . C a r r y O u t Test for equality • Notice control lines:000 = and001 = or010 = add110 = subtract111 = slt • Note: zero is a 1 when the result is zero!**Conclusion**• We can build an ALU to support the MIPS instruction set • key idea: use multiplexor to select the output we want • we can efficiently perform subtraction using two’s complement • we can replicate a 1-bit ALU to produce a 32-bit ALU • Important points about hardware • all of the gates are always working • the speed of a gate is affected by the number of inputs to the gate • the speed of a circuit is affected by the number of gates in series (on the “critical path” or the “deepest level of logic”) • Our primary focus: comprehension, however, • Clever changes to organization can improve performance (similar to using better algorithms in software) • we’ll look at two examples for addition and multiplication**Problem: ripple carry adder is slow**• Is a 32-bit ALU as fast as a 1-bit ALU? • Is there more than one way to do addition? • two extremes: ripple carry and sum-of-products Can you see the ripple? How could you get rid of it? c1 = b0c0 + a0c0 +a0b0 c2 = b1c1 + a1c1 +a1b1 c3 = b2c2 + a2c2 +a2b2 c4 = b3c3 + a3c3 +a3b3 Expanding the carry chains… c2 = a1a0b0+a1a0c0+a1b0c0+b1a0b0+b1a0c0+b1b0c0+a1b1 c3 = ??? c4 = ??? Not feasible! Why? Cn has 2P terms(P=0…n)**Carry-lookahead adder**• An approach in-between our two extremes • Motivation: • If we didn't know the value of carry-in, what could we do? • When would we always generate a carry? gi = ai bi • When would we propagate the carry? pi = ai + bi • Did we get rid of the ripple? c1 = g0 + p0c0 c2 = g1 + p1c1 c3 = g2 + p2c2 c4 = g3 + p3c3 Expanding the carry chains… c2 = g1+p1g0+p1p0c0 Feasible! Why? The carry chain does not disappear, but is much smaller: Cn has n+1 terms**P0 = p3 p2 p1 p0**P1 = p7 p6 p5 p4 P2 =p11 p10 p9 p8 P3 = p15 p14 p13 p12 G0 = g3+p3g2+p3p2g1+p3p2p1g0 G1 = g7+p7g6+p7p6g5+p7p6p5g4 G2 = g11+p11g10+p11p10g9+p11p10p9g8 G3 = g15+p15g14+p15p14g13+p15p14p13g12 Use principle to build bigger adders • How about constructing a 16-bit adder in CLA way? • Can’t build a 16 bit adder this way... (too big) • Could use ripple carry of 4-bit CLA adders • Better: use the CLA principle again! C1 = G0 +(P0 ⋅ c0) C2 = G1+(P1 ⋅ G0)+(P1⋅P0⋅c0) C3 = G2+(P2 ⋅ G1)+(P2⋅P1⋅G0)+(P2⋅P1⋅P0⋅c0) C4 = G3+(P3 ⋅ G2)+(P3⋅P2⋅G1)+(P3⋅P2⋅P1⋅G0) +(P3⋅P2⋅P1⋅P0⋅c0)**Dealing with Overflow (ARM)**• Some languages (e.g., C) ignore overflow • Use ARM ADD,SUB instructions • Other languages (e.g., Ada, Fortran) require raising an exception • Use ARM ADDS,SUBS instructions • On overflow, invoke exception handler Chapter 3 — Arithmetic for Computers — 31**Multimedia Support in Modern Instruction Sets**Chapter 3 — Arithmetic for Computers — 33**1000**× 1001 1000 0000 0000 1000 1001000 Multiplication §3.3 Multiplication • Start with long-multiplication approach multiplicand multiplier product Length of product is the sum of operand lengths Chapter 3 — Arithmetic for Computers — 34**Multiplication Hardware**Initially 0 Chapter 3 — Arithmetic for Computers — 35**Optimized Multiplier**• Perform steps in parallel: add/shift • One cycle per partial-product addition • That’s ok, if frequency of multiplications is low Chapter 3 — Arithmetic for Computers — 36**Faster Multiplier**• Uses multiple adders • Cost/performance tradeoff • Can be pipelined • Several multiplication performed in parallel Chapter 3 — Arithmetic for Computers — 37**MIPS Multiplication**• Two 32-bit registers for product • HI: most-significant 32 bits • LO: least-significant 32-bits • Instructions • mult rs, rt / multu rs, rt • 64-bit product in HI/LO • mfhi rd / mflo rd • Move from HI/LO to rd • Can test HI value to see if product overflows 32 bits • mul rd, rs, rt • Least-significant 32 bits of product –> rd Chapter 3 — Arithmetic for Computers — 38**ARM Multiplication**• The MUL instruction is used to multiply signed or unsigned variables to produce a 32-bit result • Instruction • MUL Rd,Rm,Rs ; Rd = Rm * Rs (32 bits) • Because the MUL instruction produces only the lower 32 bits of the 64-bit product, MUL gives the same answer for both signed and unsigned numbers Chapter 3 — Arithmetic for Computers — 39**Division**§3.4 Division • Check for 0 divisor • Long division approach • If divisor ≤ dividend bits • 1 bit in quotient, subtract • Otherwise • 0 bit in quotient, bring down next dividend bit • Restoring division • Do the subtract, and if remainder goes < 0, add divisor back • Signed division • Divide using absolute values • Adjust sign of quotient and remainder as required • Remainder and dividend must have the same sign! • EX: (-7)÷(+2) = (-3)x2 + (-1) or (-4)x2+(+1) ??? quotient dividend 1001 1000 1001010 -1000 10 101 1010 -1000 10 divisor remainder n-bit operands yield n-bitquotient and remainder Chapter 3 — Arithmetic for Computers — 40**Division Hardware**Initially divisor in left half Initially dividend Chapter 3 — Arithmetic for Computers — 41**Optimized Divider**• One cycle per partial-remainder subtraction • Looks a lot like a multiplier! • Same hardware can be used for both Chapter 3 — Arithmetic for Computers — 42**Faster Division**• Can’t use parallel hardware as in multiplier • Subtraction is conditional on sign of remainder • Faster dividers (e.g. SRT devision) generate multiple quotient bits per step • Still require multiple steps Chapter 3 — Arithmetic for Computers — 43**MIPS Division**• Use HI/LO registers for result • HI: 32-bit remainder • LO: 32-bit quotient • Instructions • div rs, rt / divu rs, rt • No overflow or divide-by-0 checking • Software must perform checks if required • Use mfhi, mflo to access result Chapter 3 — Arithmetic for Computers — 44**ARM Division**• The classic ARM instruction set does not include divide instruction • ARMv7R and ARMv7M include • Signed integer divide - SDIV • Unsigned integer divide - UDIV Chapter 3 — Arithmetic for Computers — 45**Floating Point**§3.5 Floating Point • Representation for non-integral numbers • Including very small and very large numbers • Like scientific notation • –2.34 × 1056 • +0.002 × 10–4 • +987.02 × 109 • In binary • ±1.xxxxxxx2 × 2yyyy • Types float and double in C normalized not normalized Chapter 3 — Arithmetic for Computers — 46**Floating Point Standard**• Defined by IEEE Std 754-1985 • Developed in response to divergence of representations • Portability issues for scientific code • Now almost universally adopted • Two representations • Single precision (32-bit) • Double precision (64-bit) Chapter 3 — Arithmetic for Computers — 47**IEEE Floating-Point Format**• S: sign bit (0 non-negative, 1 negative) • Normalize significand: 1.0 ≤ |significand| < 2.0 • Always has a leading pre-binary-point 1 bit, so no need to represent it explicitly (hidden bit) • Significand is Fraction with the “1.” restored • Exponent: excess representation: actual exponent + Bias • Ensures exponent is unsigned • Single: Bias = 127; Double: Bias = 1203 single: 8 bitsdouble: 11 bits single: 23 bitsdouble: 52 bits S Exponent Fraction Chapter 3 — Arithmetic for Computers — 48**Single-Precision Range**• Exponents 00000000 and 11111111 reserved • Smallest value • Exponent: 00000001 actual exponent = 1 – 127 = –126 • Fraction: 000…00 significand = 1.0 • ±1.0 × 2–126 ≈ ±1.2 × 10–38 • Largest value • exponent: 11111110 actual exponent = 254 – 127 = +127 • Fraction: 111…11 significand ≈ 2.0 • ±2.0 × 2+127 ≈ ±3.4 × 10+38 Chapter 3 — Arithmetic for Computers — 49**Double-Precision Range**• Exponents 0000…00 and 1111…11 reserved • Smallest value • Exponent: 00000000001 actual exponent = 1 – 1023 = –1022 • Fraction: 000…00 significand = 1.0 • ±1.0 × 2–1022 ≈ ±2.2 × 10–308 • Largest value • Exponent: 11111111110 actual exponent = 2046 – 1023 = +1023 • Fraction: 111…11 significand ≈ 2.0 • ±2.0 × 2+1023 ≈ ±1.8 × 10+308 Chapter 3 — Arithmetic for Computers — 50**Floating-Point Precision**• Relative precision • all fraction bits are significant • Single: approx 2–23 • Equivalent to 23 × log102 ≈ 23 × 0.3 ≈ 6 decimal digits of precision • Double: approx 2–52 • Equivalent to 52 × log102 ≈ 52 × 0.3 ≈ 16 decimal digits of precision Chapter 3 — Arithmetic for Computers — 51**Floating-Point Example**• Represent –0.75 • –0.75 = (–1)1 × 1.12 × 2–1 • S = 1 • Fraction = 1000…002 • Exponent = –1 + Bias • Single: –1 + 127 = 126 = 011111102 • Double: –1 + 1023 = 1022 = 011111111102 • Single: 1011111101000…00 • Double: 1011111111101000…00 Chapter 3 — Arithmetic for Computers — 52**Floating-Point Example**• What number is represented by the single-precision float 11000000101000…00 • S = 1 • Fraction = 01000…002 • Fxponent = 100000012 = 129 • x = (–1)1 × (1 + 012) × 2(129 – 127) = (–1) × 1.25 × 22 = –5.0 Chapter 3 — Arithmetic for Computers — 53**IEEE 754 encoding of floating-point numbers**+ - + - + -**Floating-Point Addition**• Consider a 4-digit decimal example • 9.999 × 101 + 1.610 × 10–1 • 1. Align decimal points • Shift number with smaller exponent • 9.999 × 101 + 0.016 × 101 • 2. Add significands • 9.999 × 101 + 0.016 × 101 = 10.015 × 101 • 3. Normalize result & check for over/underflow • 1.0015 × 102 • 4. Round and renormalize if necessary • 1.002 × 102 Chapter 3 — Arithmetic for Computers — 57
