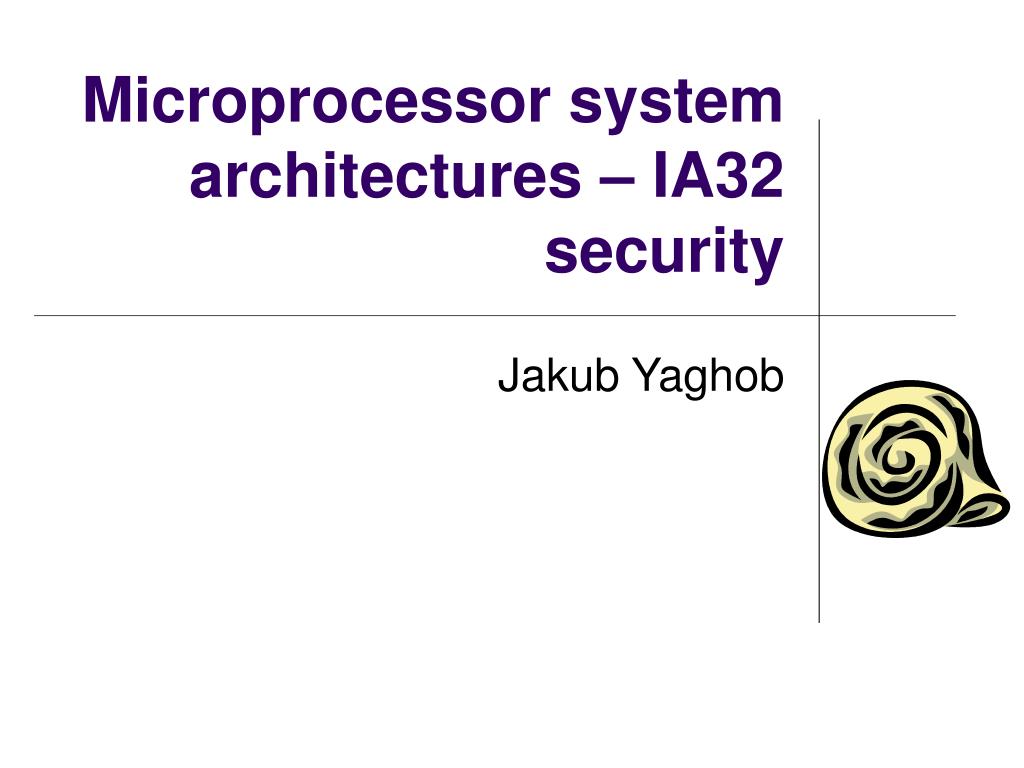

  1. Microprocessor system architectures – IA32 security Jakub Yaghob

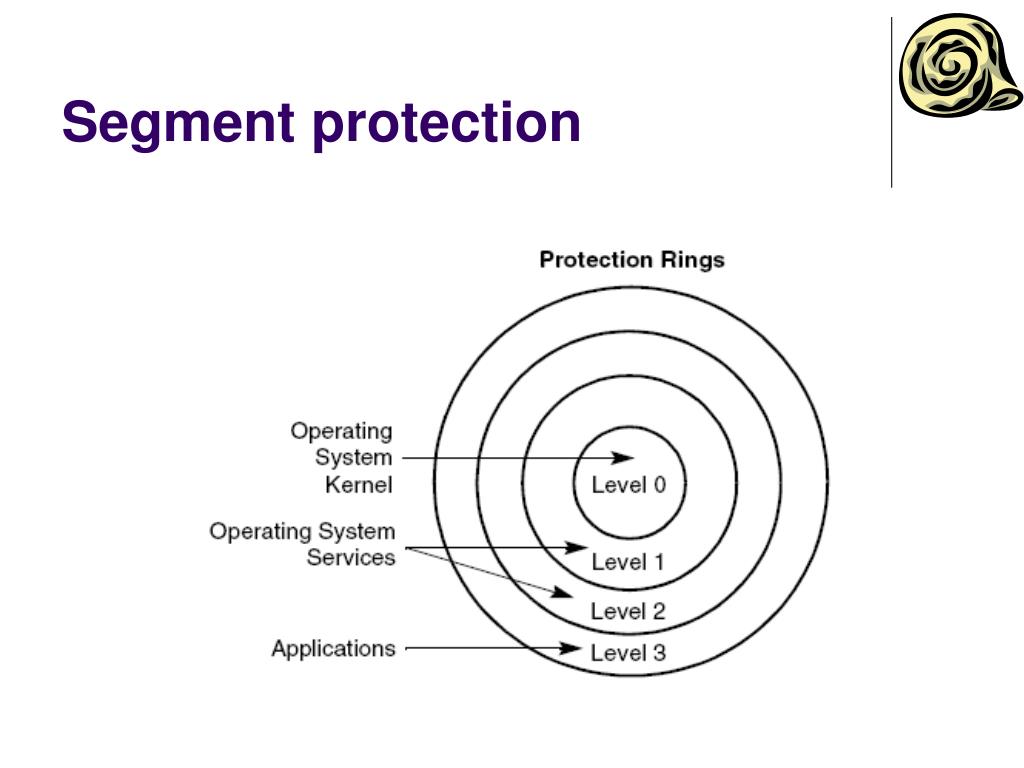

  2. Segment protection

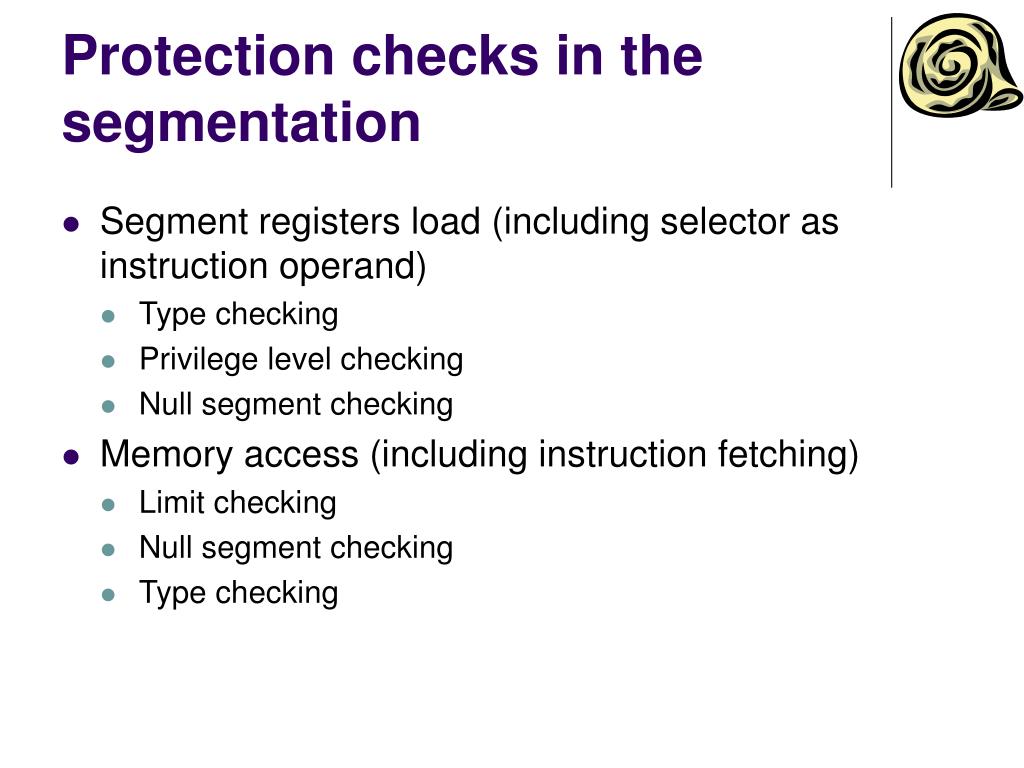

  3. Protection checks in the segmentation • Segment registers load (including selector as instruction operand) • Type checking • Privilege level checking • Null segment checking • Memory access (including instruction fetching) • Limit checking • Null segment checking • Type checking

  4. Privilege level checking – jumps between segments • Direct jump (CALL, JMP) • Nonconforming segment • CPL = DPL • RPL ≤ CPL • CPL remains • Conforming segment • Code modules as part of OS supporting applications without protected system facilities (math library) • DPL represents numerically lowest CPL, which can call conforming segment • CPL ≥ DPL • RPL ignored • CPL remains (even if DPL is not equal)

  5. RET with privilege level change • CPL ≤ DPL of target (returning to less privileged level) • Using RPL from CS saved on stack • Loads CS:EIP/RIP from the stack • Adds parameter count toESP/RSP • Number in bytes obtained from RET • Loads SS:ESP/RSP – see above • Again adds parameter count toESP/RSP • Check DS, ES, FS, GS • If DPL< CPL, then load null segment

  6. System and control registers • EFLAGS • Changes in system parts silently ignored for CPL>0 • IOPL, VM • Changes working only during IRETfor CPL=0 (return from interrupt or task) • VM, RF • Changesinvoke #GP • IF • Control registers • Only system instruction (CPL=0) excluding SMSW

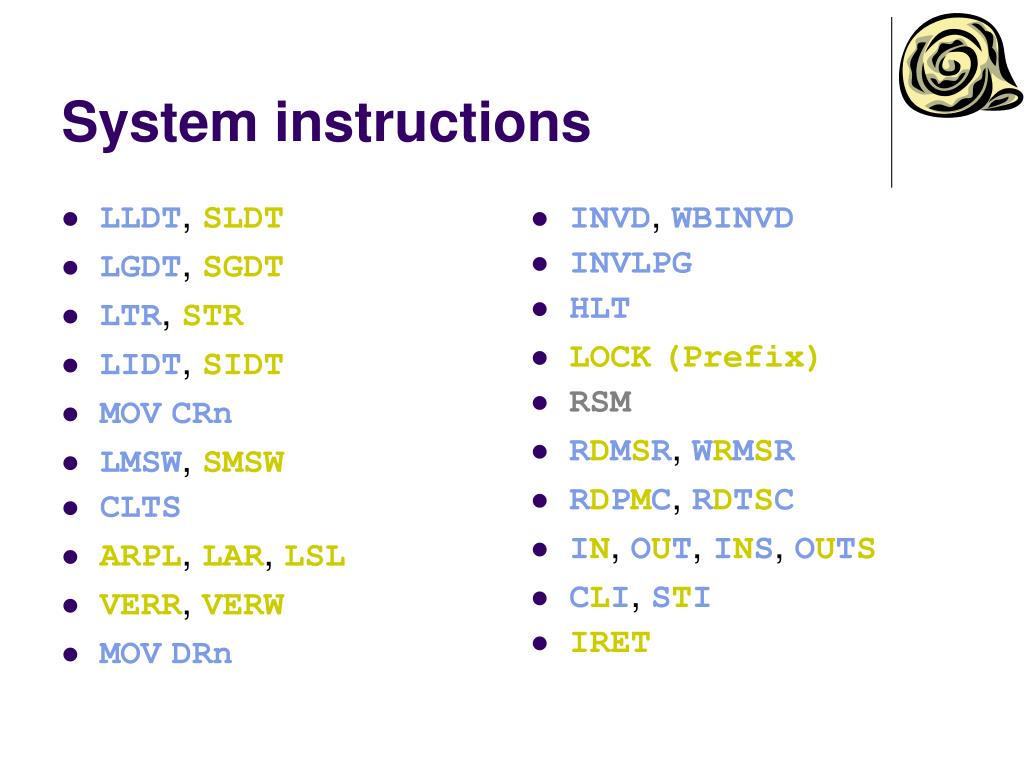

  7. LLDT, SLDT LGDT,SGDT LTR,STR LIDT,SIDT MOVCRn LMSW,SMSW CLTS ARPL,LAR,LSL VERR,VERW MOVDRn INVD,WBINVD INVLPG HLT LOCK(Prefix) RSM RDMSR,WRMSR RDPMC,RDTSC IN,OUT,INS,OUTS CLI,STI IRET System instructions

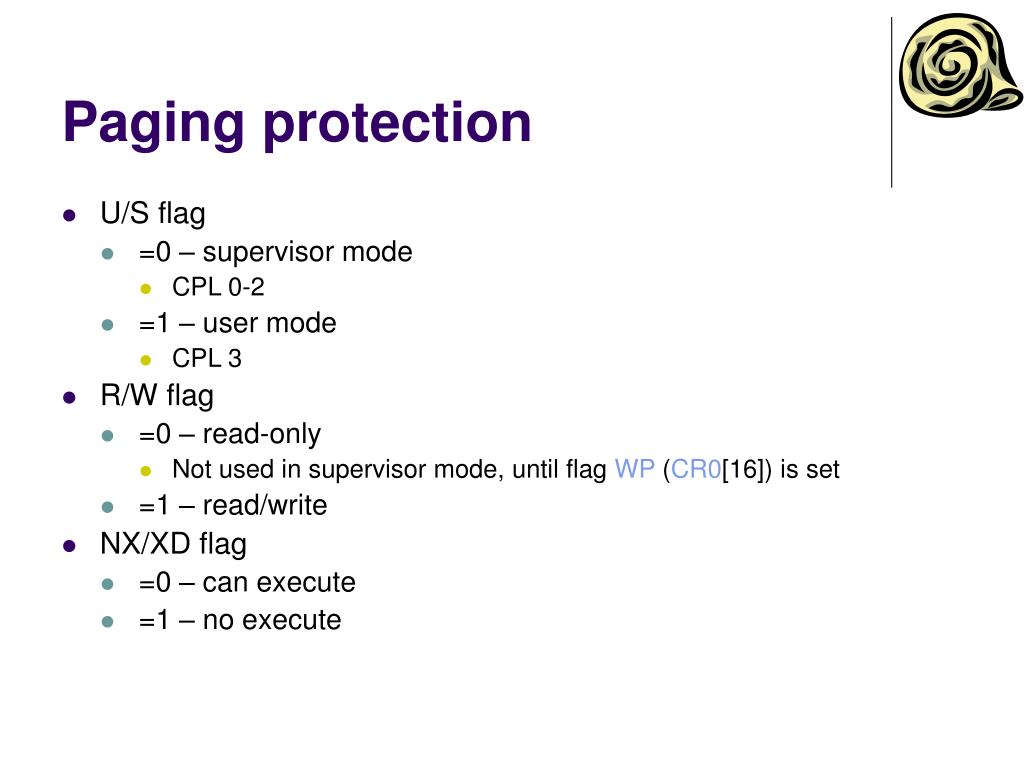

  8. Paging protection • U/S flag • =0 – supervisor mode • CPL 0-2 • =1 – user mode • CPL 3 • R/W flag • =0 – read-only • Not used insupervisor mode, until flagWP (CR0[16]) is set • =1 – read/write • NX/XD flag • =0 – can execute • =1 – no execute

  9. I/O protection • Memory mapped I/O • Segment or paging protection • I/O space • CPL ≤ IOPLfor all ports • I/O permission bitmap in the TSS for CPL >IOPLorVM=1

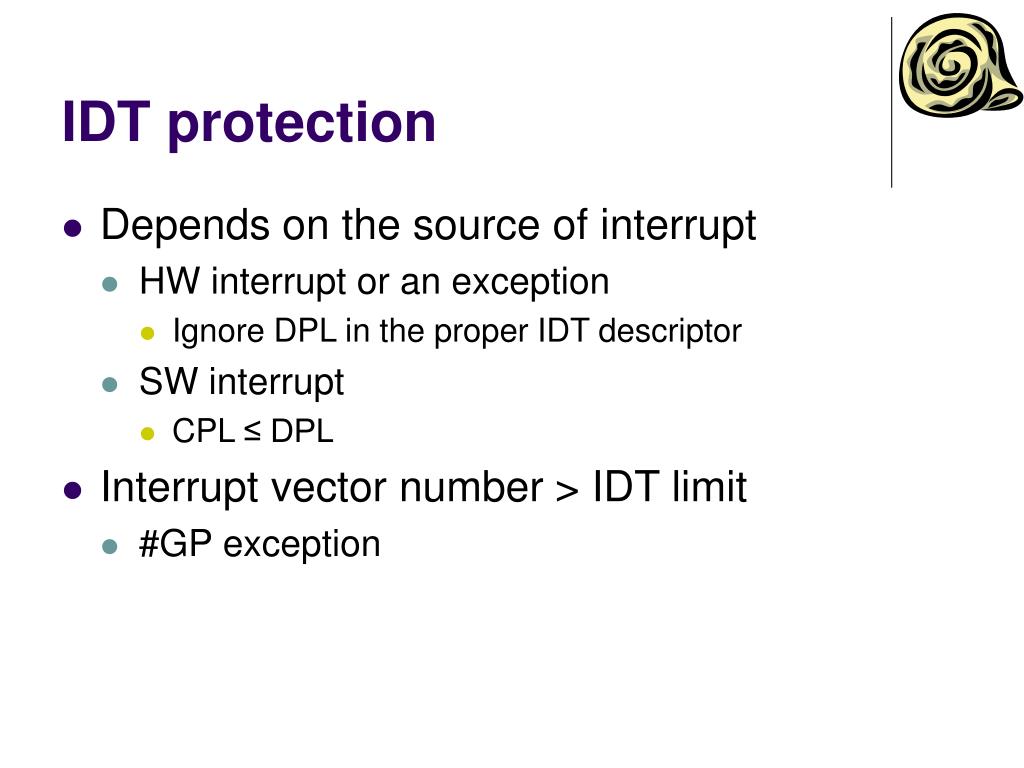

  10. IDT protection • Depends on the source of interrupt • HW interrupt or an exception • Ignore DPL in the proper IDT descriptor • SW interrupt • CPL ≤ DPL • Interrupt vector number> IDT limit • #GP exception
