Problem Solving/Engineering Design Process. By: Nehemiah Phillips Bradley Asbury Cyra Jones. Step 1: Define Problem. Scrap wood needs to be made into a wooden puzzle cube Must design a 3-D puzzle system that only uses 27 small cubes to create a large puzzle cube when assembled.

aldis
Télécharger la présentation

Problem Solving/Engineering Design Process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Problem Solving/Engineering Design Process By: Nehemiah Phillips Bradley Asbury Cyra Jones

  2. Step 1: Define Problem • Scrap wood needs to be made into a wooden puzzle cube • Must design a 3-D puzzle system that only uses 27 small cubes to create a large puzzle cube when assembled

  3. Step 2: Brainstorm, Research & Generate Idea • Our group came up with several designs with the pieces of the cube • Researched possible materials for packaging and possible puzzle cube combination

  4. Step 3: Identify Criteria & Specify Constraints • Use 27 cubes • Forms a 2 ¼ -inch cube when assembled • Pieces must interlock • Each puzzle piece must have more than 3 but no more than 6 small cubes in it • No two puzzles pieces can be the same

  5. Step 4: Develop/ Propose Design & Choose Solution • Selected a complicated cube comprised of 6 puzzle pieces

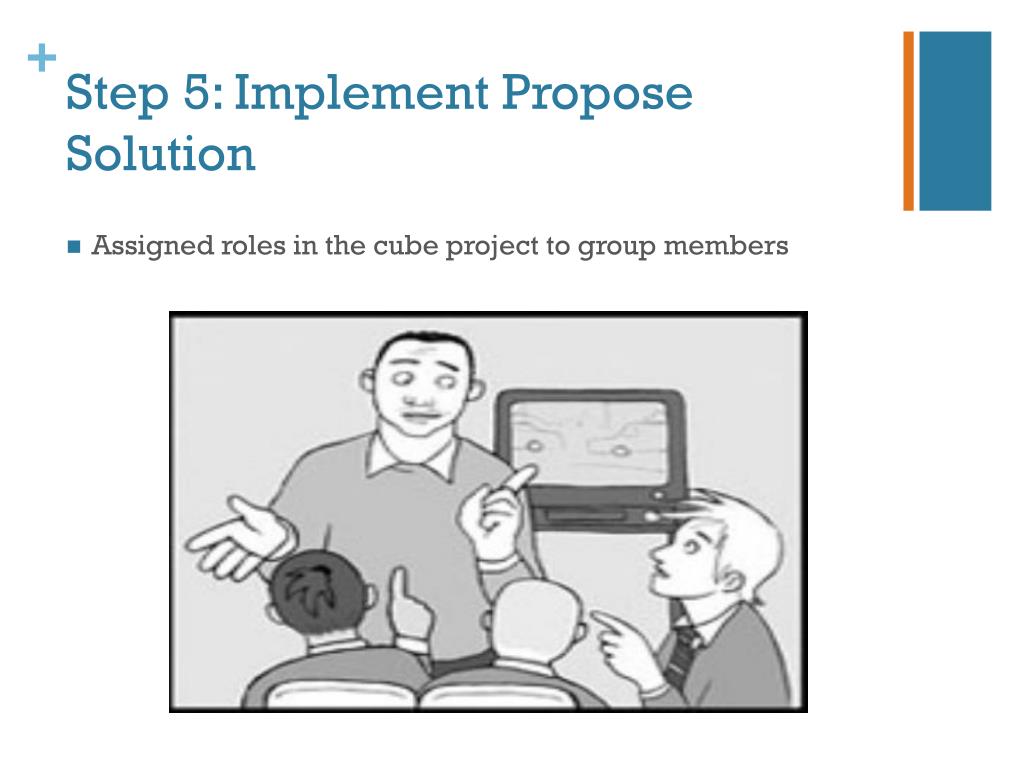

  6. Step 5: Implement Propose Solution • Assigned roles in the cube project to group members

  7. Step 6: Make Model/Prototype • Designed puzzle pieces on AutoCAD and inventor to make sure puzzle cube would assemble correctly

  8. Step 7: Evaluate Solution & It’s Consequences • Design works but only has one combination

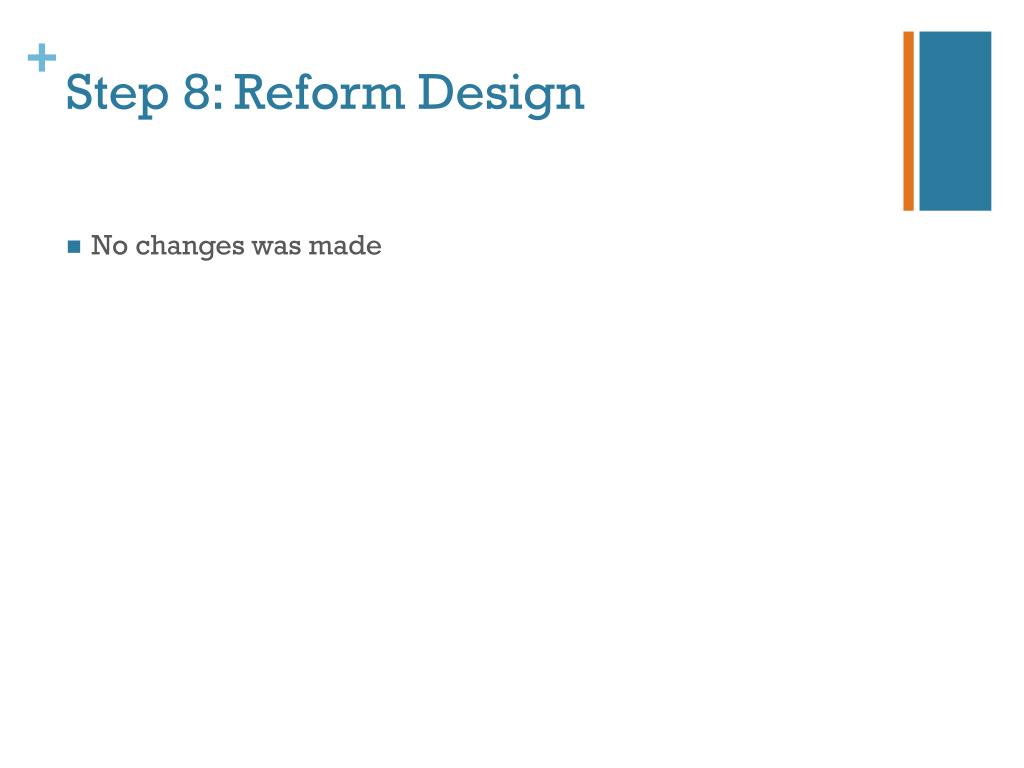

  9. Step 8: Reform Design • No changes was made

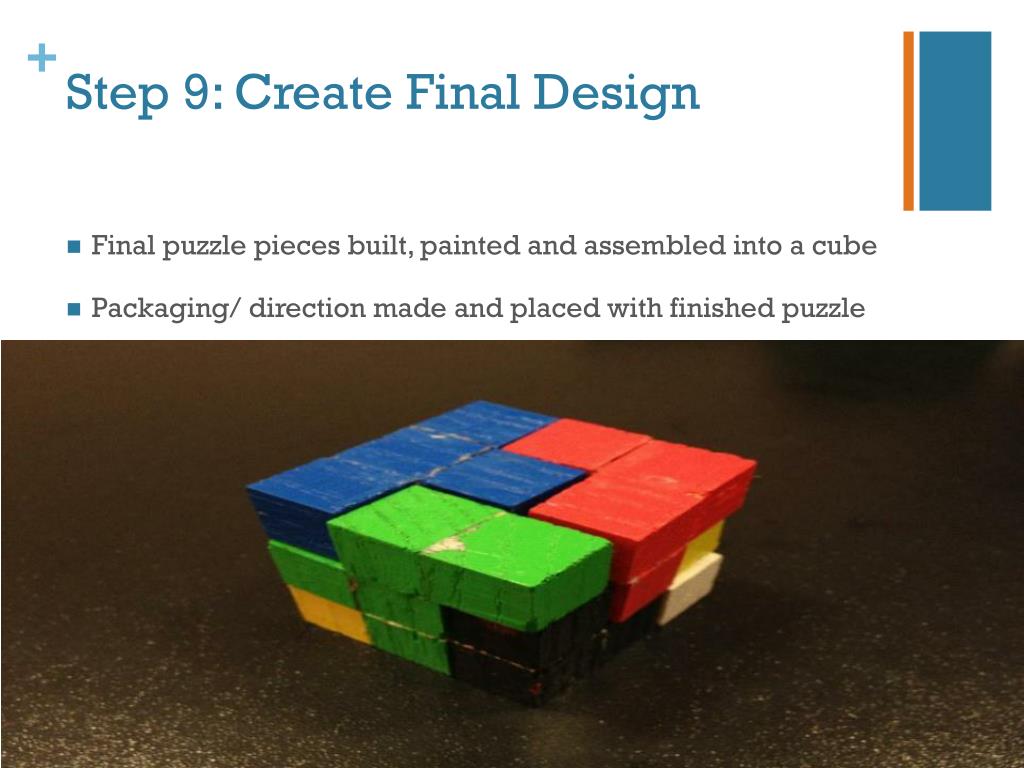

  10. Step 9: Create Final Design • Final puzzle pieces built, painted and assembled into a cube • Packaging/ direction made and placed with finished puzzle

  11. Step 10: Communicate Processes/ Result • Technical report written over project and project shared with the class
