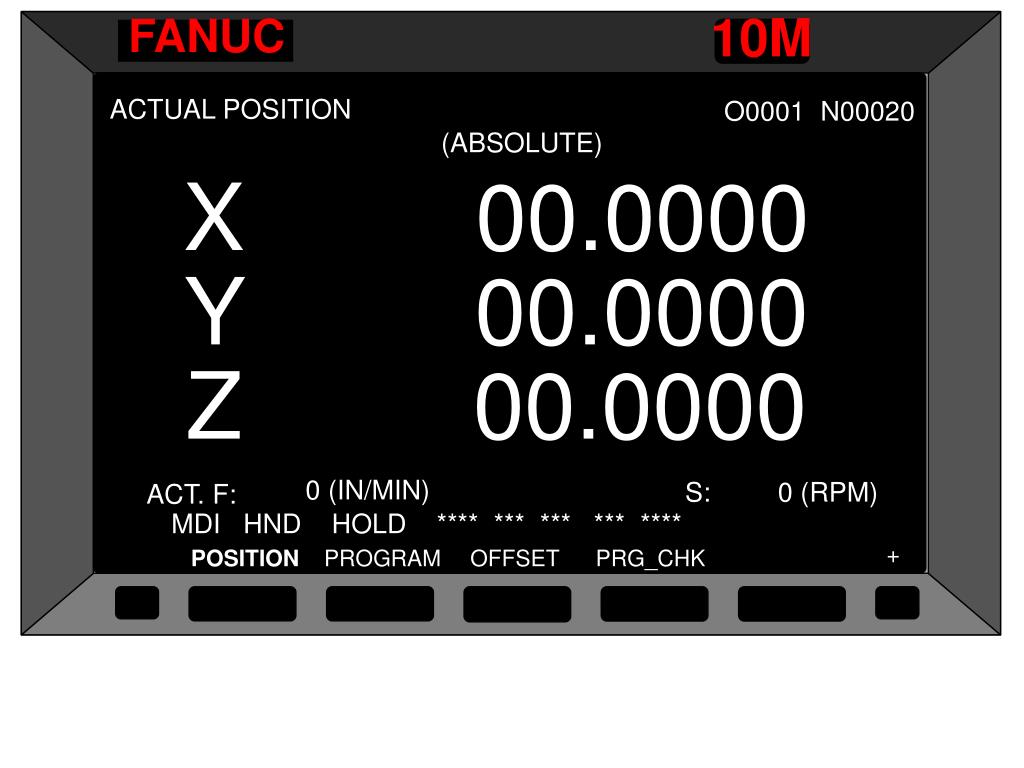

  1. FANUC 10M ACTUAL POSITION O0001 N00020 (ABSOLUTE) X 00.0000Y 00.0000Z 00.0000 0 (IN/MIN) S: 0 (RPM) ACT. F: MDI HND HOLD **** *** *** *** **** + POSITION PROGRAM OFFSET PRG_CHK

  2. FANUC 10M PROGRAM (MEMORY) O0040 N00000 (HOUSING 1ST OP); O0040 (Flange First Op) N005 T01 M06;N010 G54 G90 S500 M03 T02N015 G00 X3.5 Y2.5;N020 G43 H01 Z.1;N025 M08N030 G01 Z-.75 F4.5N035 G00 Z.1 M09N040 G91 G28 Z0 M19; EDIT *** STOP **** *** *** *** *** **** + POSITION PROGRAM OFFSET PRG_CHK

  3. FANUC 10M TOOL OFFSET O0040 N00000 DATA DATA NO. NO. 001002003004005006007008009010 00.000000.000000.000000.000000.000000.000000.000000.000000.000000.0000 00.000000.000000.000000.000000.000000.000000.000000.000000.000000.0000 011012013014015016017018019020 EDIT *** STOP **** *** *** *** *** **** + + + + POSITION POSITION POSITION POSITION PROGRAM PROGRAM PROGRAM PROGRAM OFFSET OFFSET OFFSET OFFSET PRG_CHK PRG_CHK PRG_CHK PRG_CHK

  4. FANUC 10M (PROGRAM) O0040 N00050 N045 G00 X2.0 Y1.; N050 G01 Z-1. F3.5; > N055 G00 Z.1; N060 G91 G28 Z0 M19 (G/D/H) (M) (RELATIVE) X5.0234 Y4.3653 Z2.3223 (DIST TO GO)X00.0000Y00.0000Z-0.2332 M03M08 G01 G20G54 G23G90 G80G40 (F) 23.2 (ACT. F)(S) 543.0 (ACT. S) MEM *** HOLD **** *** *** *** *** **** + POSITION PROGRAM OFFSET PRG_CHK
