  1. ENGINEERING GRAPHICSBy R.NathanAssistant ProfessorDepartment of Mechanical Engineering C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  2. UNIT – 1“FREE HAND SKETCHING” Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  3. FREE HAND SKETCHING SOLIDS Solid is a three dimensional object It has three dimensions (Length, Breadth and Height /Thickness) It is bounded by plane or curved surfaces Atleast 2 orthographic views are required to represent a solid on a flat surface Some times additional views are necessary to describe a solid completely Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

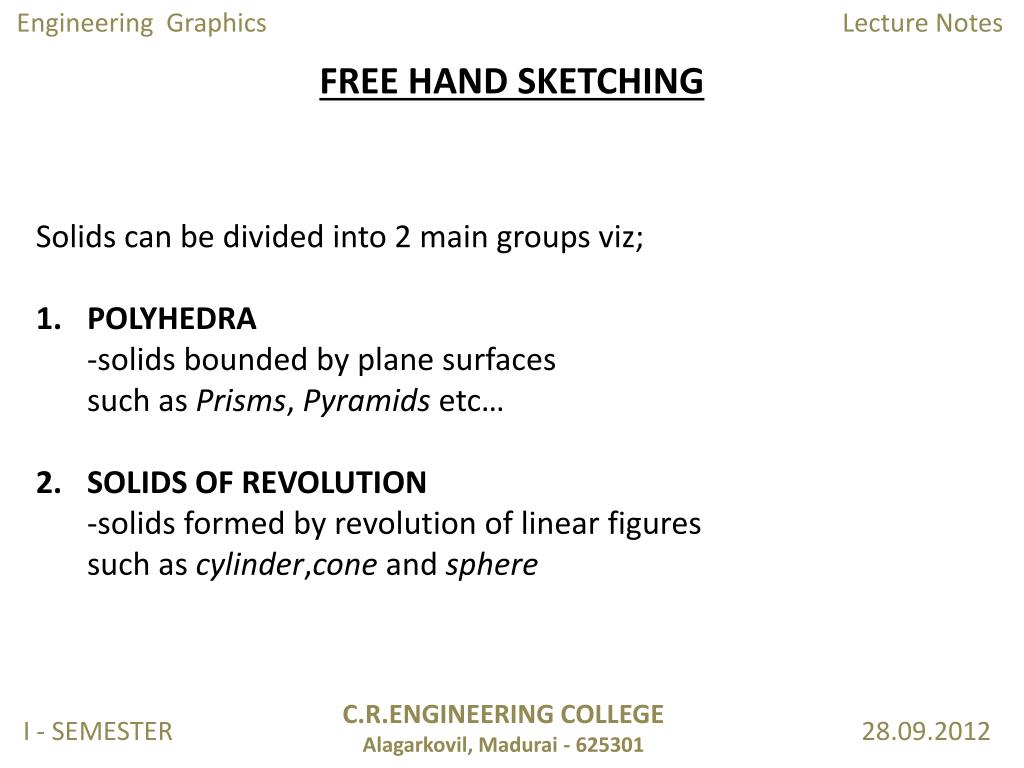

  4. FREE HAND SKETCHING • Solids can be divided into 2 main groups viz; • POLYHEDRA • -solids bounded by plane surfaces • such as Prisms, Pyramids etc… • SOLIDS OF REVOLUTION • -solids formed by revolution of linear figures • such as cylinder,cone and sphere Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  5. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  6. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  7. CUBE Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  8. CYLINDER , CONE & SPHERE Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

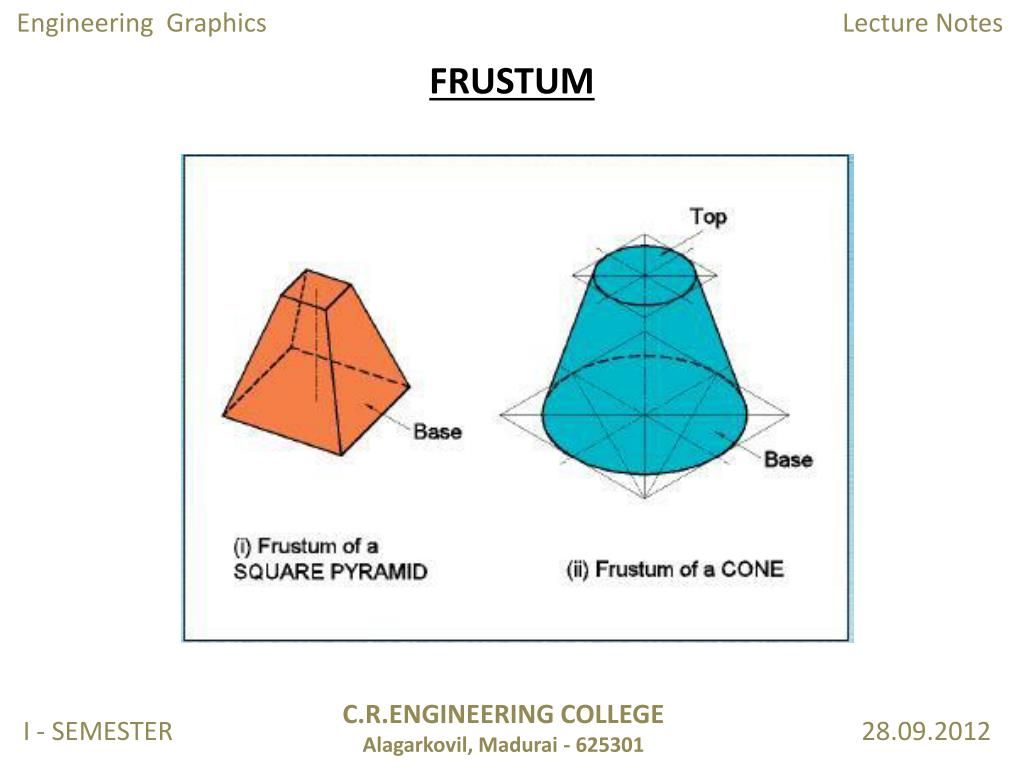

  9. FRUSTUM Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  10. OBLIQUE SOLIDS Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  11. PROJECTION Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  12. TYPES OF PROJECTION Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  13. ORTHOGRAPHIC PROJECTION DEFINITION Method of representing the exact shape of an object in two or more views, on planes always “at right angles to each other” by edtending perpendiculars from the object to the planes. It is universally used in engineering drawing The word “ORTHOGRAPHIC” means to draw at right angles Different views of an object are obtained to describe with all dimensions It is classified into 4 categories according to the orientation of the object. But only Ist angle and IIIrd angle projections are used in engineering drawing. Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  14. ORTHOGRAPHIC VIEWS Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  15. ORTHOGRAPHIC DRAWINGS Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  16. DESIGNATION OF ORTHOGRAPHIC VIEWS Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  17. FIRST ANGLE PROJECTION Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  18. FIRST ANGLE PROJECTION SYMBOL Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  19. THIRD ANGLE PROJECTION Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  20. THIRD ANGLE PROJECTION SYMBOL Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  21. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  22. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  23. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  24. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  25. FREE HAND SKETCHING Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  26. Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  27. Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  28. Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

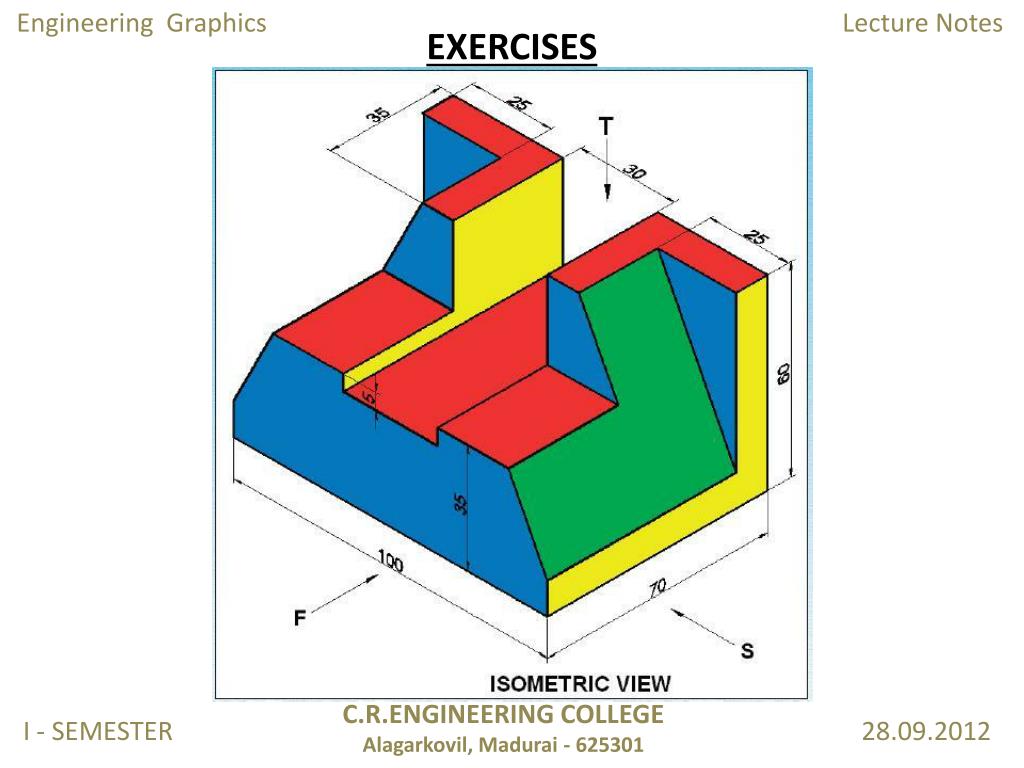

  29. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  30. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  31. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  32. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  33. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012

  34. EXERCISES Engineering Graphics Lecture Notes C.R.ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 I - SEMESTER 28.09.2012
