  1. The anatomy of a WebPage Structure Content Presentation Semantics

  2. Template Analysis DOCTYPE <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>An XHTML 1.0 Strict standard template</title> <meta http-equiv="content-type" content="text/html;charset=utf-8" /> </head> <body> <p>… Your HTML content here …</p> </body> </html> XML Namespace Content Type & Character Set

  3. Template Analysis • Overview • Page consists of: • DOCTYPE • xml namespace • head section • title tags • meta tag • content type • character set • body section • All enclosed in html tags • Lets discuss purpose of each section

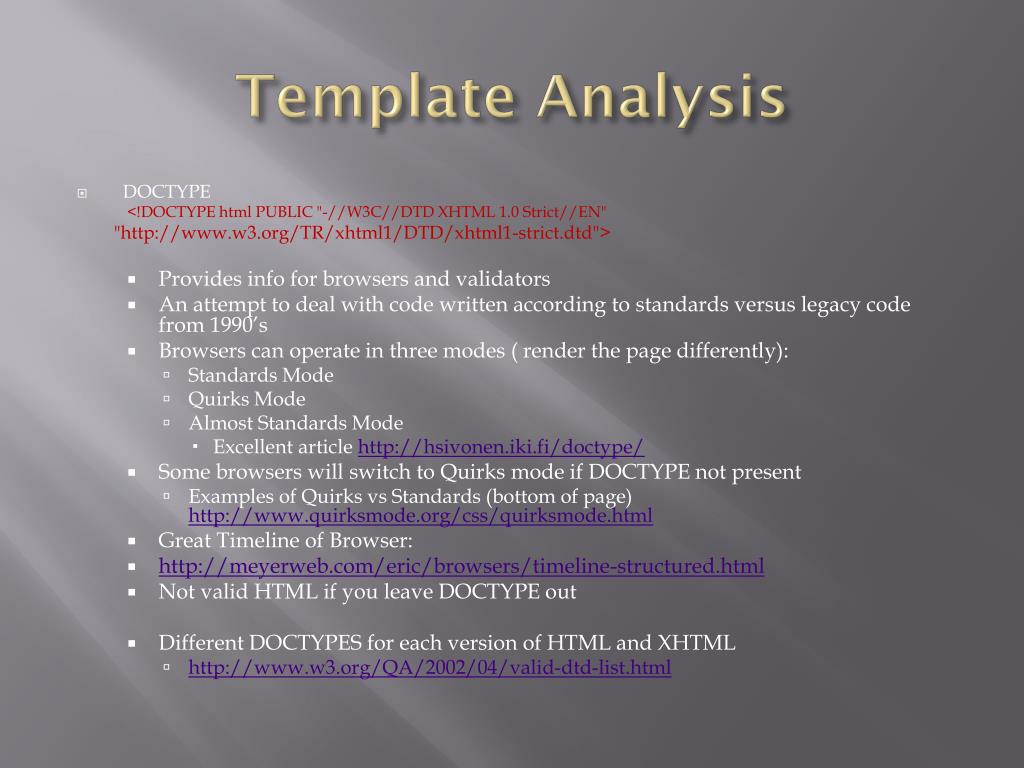

  4. Template Analysis • DOCTYPE <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> • Provides info for browsers and validators • An attempt to deal with code written according to standards versus legacy code from 1990’s • Browsers can operate in three modes ( render the page differently): • Standards Mode • Quirks Mode • Almost Standards Mode • Excellent article http://hsivonen.iki.fi/doctype/ • Some browsers will switch to Quirks mode if DOCTYPE not present • Examples of Quirks vs Standards (bottom of page) http://www.quirksmode.org/css/quirksmode.html • Great Timeline of Browser: • http://meyerweb.com/eric/browsers/timeline-structured.html • Not valid HTML if you leave DOCTYPE out • Different DOCTYPES for each version of HTML and XHTML • http://www.w3.org/QA/2002/04/valid-dtd-list.html

  5. Template Analysis • DOCTYPES exists for different versions of HTML and XHTML but wait they also have different levels. • Strict • This is what you should be using. • Doesn’t allow HTML tags being used for presentational purposes – Ex. center, font, iframe, strike, u, align bgcolor, noshade, nowrap, text, link, vlink, vspace • http://24ways.org/2005/transitional-vs-strict-markup • Transitional • Good for legacy code • Helpful for people moving from older HTML to web standards • Frameset • Not recommended • Look at Dreamweaver settings for new files. • Firefox tells you the mode in upper right corner: checkmark for standards and an x for quirks mode.

  6. Template Analysis • Things to remember about DOCTYPEs • Copy your DOCTYPE from a standardized template because typos or spacing errors could invalidate the DOCTYPE • If a browser reads an HTML file without a DOCTYPE it may think this is a very old html file and the browser may use its old rules (Quirks mode) to try to display it. You may waste time fixing the HTML in a document because of a faulty DOCTYPE • Use the DOCTYPE to help you validate your page – find typos, syntax errors and deprecated tags • For this class use XHTML 1.0 Strict!!!!!

  7. Template Analysis • xml namespace • <html xmlns="http://www.w3.org/1999/xhtml"> • An attribute of the html tag • It is an XML thing. Namespaces help clarify confusion around tags with the same name. • “any tag within this document which doesn't have a namespace explicitly specified exists within the http://www.w3.org/1999/xhtml namespace - and therefore can be interpreted as XHTML. http://archivist.incutio.com/viewlist/css-discuss/32705 • The URL is actually a unique identifier – no code is read from the site or interpreted by the browser

  8. Template Analysis • head section <head> <title>An XHTML 1.0 Strict standard template</title> <meta http-equiv="content-type" content="text/html; charset=utf-8" /> </head> • Head section does not display on rendered document. Why?? • Head section at a minimum consists of a title and a meta tag containing content type and charset

  9. Template Analysis <meta http-equiv="content-type" content="text/html; charset=utf-8" /> • content=“text/html” - MIME (Multipurpose Internet Mail Extensions) is a standard that describes content being sent. • http://www.w3schools.com/media/media_mimeref.asp • Content can be text, images, audio or application specific • The server can send a message in the HTTP header stating the content type • Or the document (in web design) can have a attribute in the meta tag stating the type • The server overrules the document • Remember XHTML 1.1 expected a document of type application/xhtml+xml - never really worked • Browser has different “engines” and rules and needs to know how to interpret the bits and bytes • Firebug – Net panel shows headers with content types

  10. Template Analysis <meta http-equiv="content-type" content="text/html; charset=utf-8" /> • What is this charset stuff?? • http://articles.sitepoint.com/article/guide-web-character-encoding/2 • http://www.joelonsoftware.com/articles/Unicode.html • ASCII – Unicode – UTF8 – More acronym soup • For most html documents you create use utf-8 Very good article

  11. Early HTML • When HTML was only used by scientists the emphasis was on the structure of a page – no need for the page to look “pretty” • Headers(h1), sub-headers(h3), paragraphs(p), lists(ol). • However, users and browser manufacturers allowed users to apply certain HTML tags for presentational (look pretty) purposes. • HTML House of Horror: http://www.goer.org/Journal/2003/10/html_house_of_horror_things_that_go_blink_in_the_n.html#26 • Header tags to make something bold and big even if it wasn’t a header. • Blockquote (blockquote) tags to make some text indented even though it wasn’t a quote. • Font (font) tags to change the size and color of text. • Table (table) tags to make the layout of a page!

  12. Web Standards • Use HTML for structure • Try to use a tag that comes close to the role the content plays on the page ( CSS: The Missing Manual, 2nd edition) • In other words write semantic HTML • http://www.456bereastreet.com/archive/200711/posh_plain_old_semantic_html/ • http://robertnyman.com/2007/10/29/explaining-semantic-mark-up/ • http://www.webdesignfromscratch.com/html-css/semantic-html/ • HTML 4.01/XHTML 1.0 list of allowed tags for Strict, Transitional and Frameset • http://www.w3schools.com/tags/ • Note the deprecated tags – won’t pass validator in Strict mode • Use CSS (Cascading Style Sheets) for presentation • Apply CSS to the HTML tag

  13. Some Basic HTML Authoring Guidelines • From CSS: The Missing Manual 2nd edition • Use HTML for structure • Use CSS for presentation • Stop using <font>, <b>, <i>, <table> for layout and body tag attributes like background, bgcolor, text, link, alink, vlink • Stop using leftmargin, topmargin, marginwidth, marginheight attributes • Don’t overuse the <br /> tag • Rule of thumb: Stop using attributes assigned to tags to control color, borders, backgrounds, and alignments. • List of deprecated tags and attributes: • http://www.codehelp.co.uk/html/deprecated.html

  14. Some More Basic HTML Authoring Guidelines • From CSS: The Missing Manual 2nd edition • Only use one H1 tag per page • Use headings to indicate relative importance of text. Ex. All headers of equal importance should share a <h2> or <h3> tag. Use the next level down for lesser important text. Try not to skip levels. • Use <p> for paragraphs of text • Use <ul> for list of related items • Use <ol> for steps or order of importance

  15. Some More Basic HTML Authoring Guidelines • For glossary of terms use <dl>, <dt>, <dd> • For quotes use either <blockquote> or <q> • Be specific if you can: <cite> for book title, newspaper article, website <address> for contact information • Avoid using tags to simply add presentation • If a tag doesn’t fit the bill look to the <div> and <span> tag • Don’t overuse <div> tag • Develop good coding habits !!!! • http://css-tricks.com/what-beautiful-html-code-looks-like/

  16. Homework 2 • Create a XHTML 1.0 Strict webpage using all of the tags from the HTML Beginner Section of HTML Dog website. http://htmldog.com/ As always run it through and post validator results. BTW, don’t copy the one on the site! NO CSS!!! • Create a XHTML 1.0 Strict webpage using all of the tags from the HTML Intermediate Section (Excluding JavaScript) of HTML Dog website. http://htmldog.com/ As always run it through and post validator results. NO CSS!!! • Create a HTML 4.01 Transitional website using the table tag for layout purposes. Your site should have at a minimum a header, two columns, and a footer. Content is not the emphasis of the assignment - You can use basic, simple, made-up content. BTW – don’t just copy the Knuckles site. NO CSS!!! • Evaluation: Validation, Use of semantic html, correct usage of tags, correct syntax, indentation/formatting of code, correct DOCTYPES, ability to create a table layout and its formatting and appearance.
