Project II: Research on Locking Mechanism and Power Supply Design

This document outlines the findings from Project II, focusing on the locking mechanism and power supply requirements. It includes a comprehensive analysis of different power supply designs with block diagrams. Highlights include a comparative study on battery choices, emphasizing capacity, output current, and cost-effectiveness. The use of voltage dividers and step-up boosters is examined for efficient power management. Additionally, discussions on motor-controlled locking mechanisms present the pros and cons of various designs, culminating in a detailed parts list for implementation.

aleron
Télécharger la présentation

Project II: Research on Locking Mechanism and Power Supply Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ECEN 4013 Project II Research Locking Mechanism & Power Supply

  2. Table of Power Requirements

  3. Level 2 Block Diagram - Power

  4. Level 2 Alt. Block Diagram - Power

  5. Alt. Power Block Explained • Larger Battery: Several aspects of this battery were very nice; it had a large capacity, large output current, and AC charging. I ultimately decided, though, that the change in cost ~$50 wasn’t worth the unneeded difference. • Voltage Dividers: Using resistive voltage dividers to step down the voltage (5 to 3.3 and 27 to 24 & 12) dissipated power unnecessarily, even though it would have been simpler. Regulators do a better job of stepping down voltage. • Using the step-up booster allowed us to run everything off of the single 5V supply, eliminating the need to use the 9V batteries. This also simplifies recharging and maintenance.

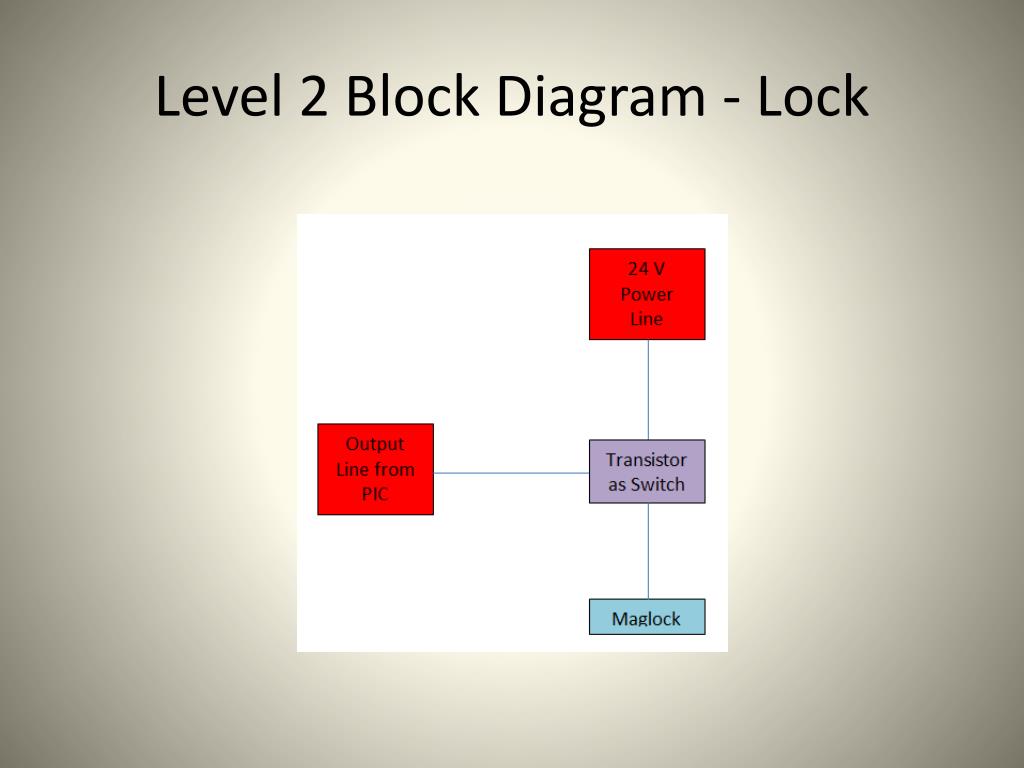

  6. Level 2 Block Diagram - Lock

  7. Level 2 Alt. Lock Block Diagram

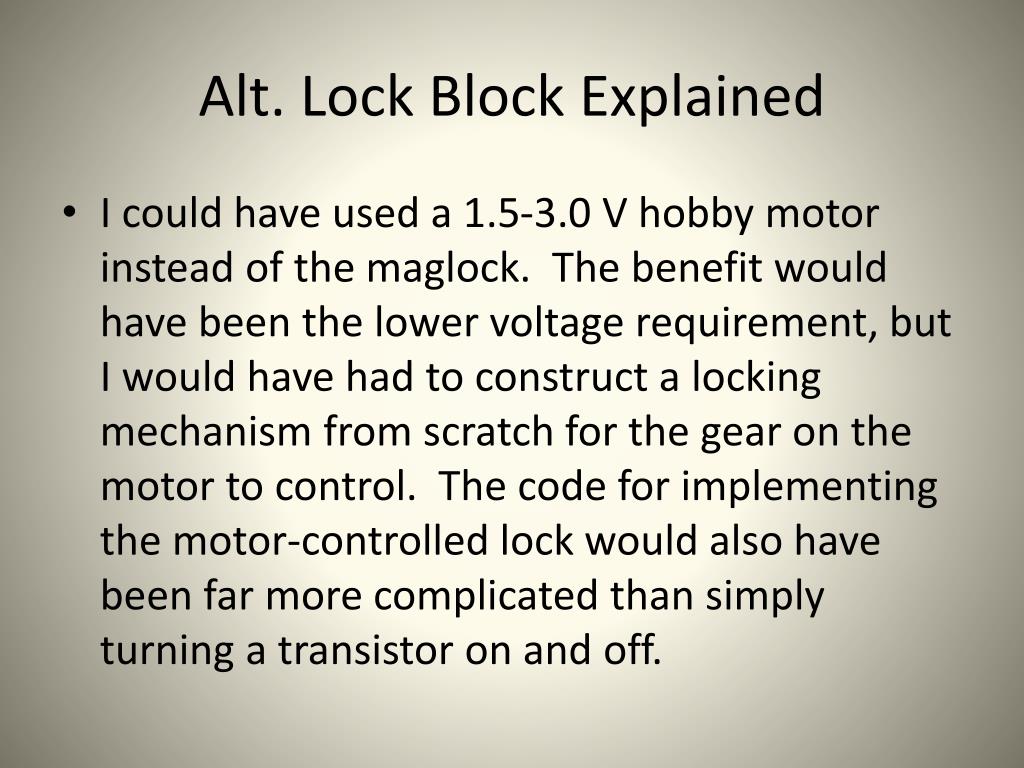

  8. Alt. Lock Block Explained • I could have used a 1.5-3.0 V hobby motor instead of the maglock. The benefit would have been the lower voltage requirement, but I would have had to construct a locking mechanism from scratch for the gear on the motor to control. The code for implementing the motor-controlled lock would also have been far more complicated than simply turning a transistor on and off.

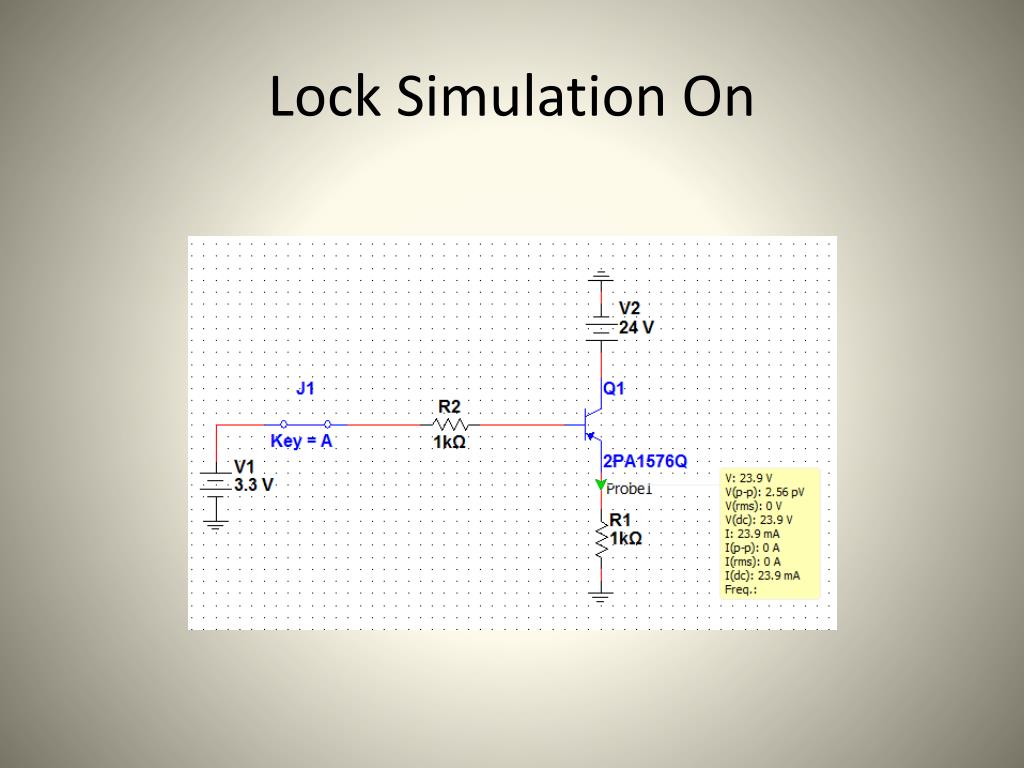

  9. Lock Simulation On

  10. Lock Simulation Off

  11. Parts List
