Area of Regular Polygons

Area of Regular Polygons. We will determine the area of regular polygons using notes. Copy onto your notes:. Copy onto your notes:. Regular Polygon. equal sides equal angles. P = perimeter. a = apothem. * Use this formula for regular pentagons, hexagons, octagons, etc.

alesia
Télécharger la présentation

Area of Regular Polygons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Area of Regular Polygons

  2. We will determinethe area of regular polygons using notes.

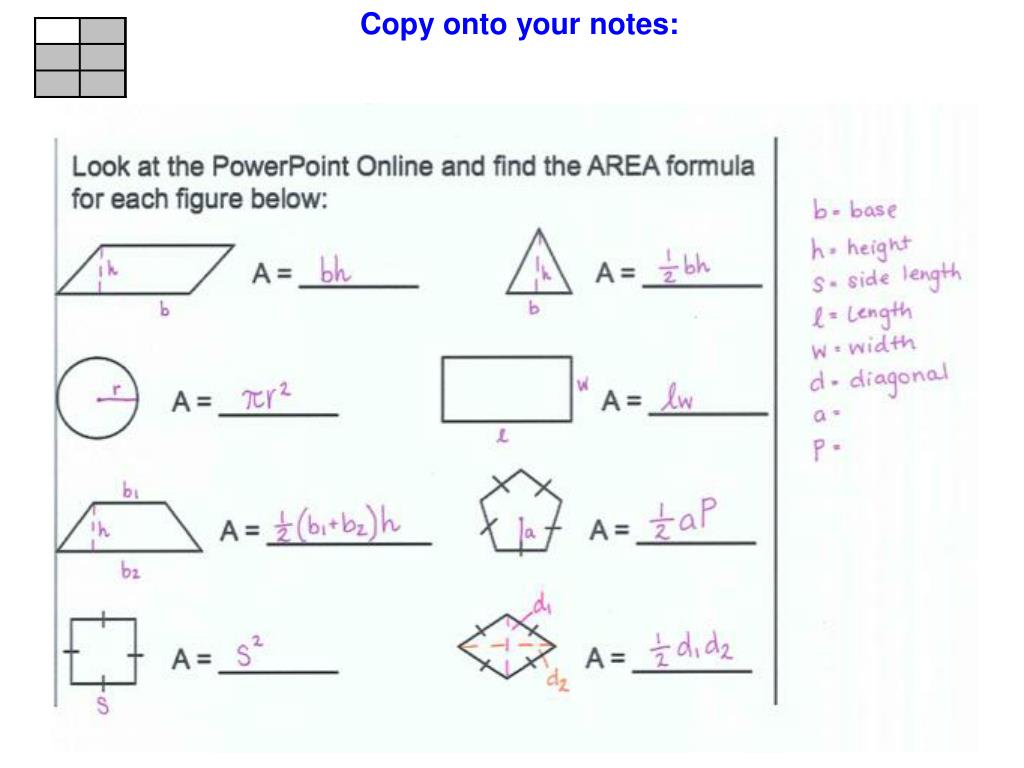

  3. Copy onto your notes:

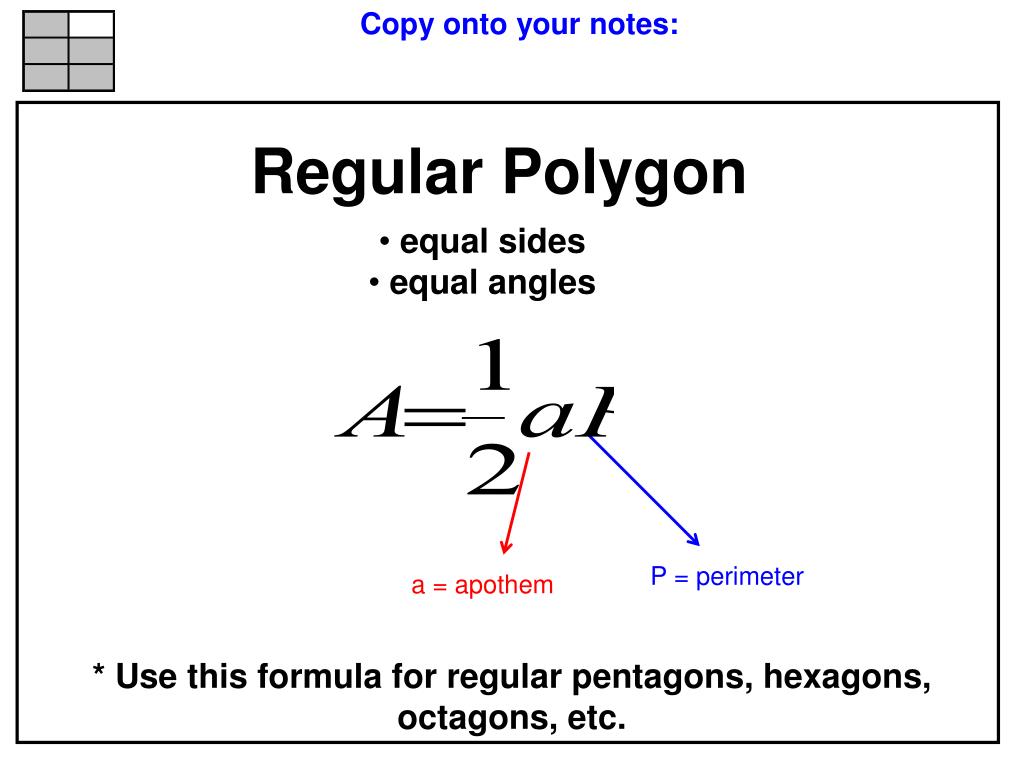

  4. Copy onto your notes: Regular Polygon • equal sides • equal angles P = perimeter a = apothem * Use this formula for regular pentagons, hexagons, octagons, etc.

  5. Copy onto your notes: apothem Apothem - connects center to midpoint and forms a right angle

  6. Copy onto your notes: Examples Non-Examples

  7. Copy onto your notes:

  8. You try this one now… 14 cm 2.5 cm Example 2 : Find the area of the regular octagon.

  9. Click through the animation and copy down the important information. First, divide the hexagon into 6 six congruent figures. What figures did you create? Equilateral Triangles Now, divide the hexagon into 12 congruent figures. What figures did you create? 30 – 60 – 90 Triangles Label the sides of one of the 30 – 60 – 90 Triangle. What did you label the apothem? x√3 What represents the side length? 2x

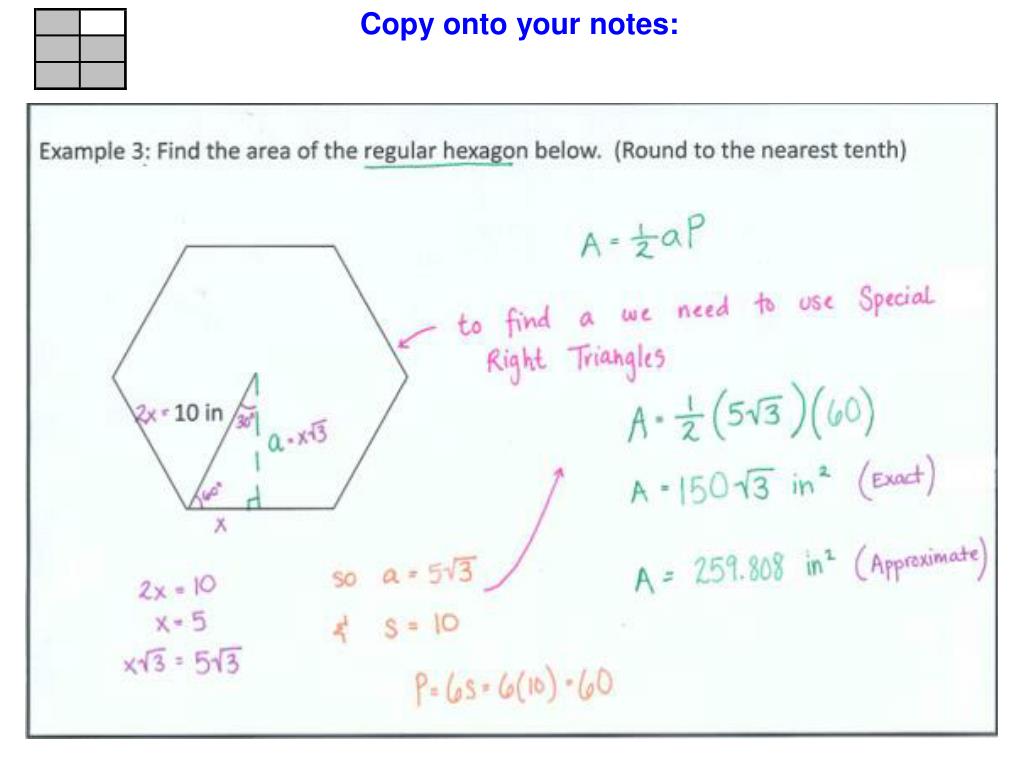

  10. Copy onto your notes:

  11. You try this one now… Example 4: Find the area of the regular hexagon with a perimeter 42 cm. (Round to the nearest tenth)

  12. Keep trying! Example 5 : The area of a regular hexagon is 54 cm2. If the perimeter of the hexagon is 48 cm, what is the length of the apothem?

  13. Keep trying! Example 6: The area of a regular nonagon is 198 mm2. If the apothem of the figure is 6 mm, what is the perimeter?

  14. Keep trying! B A C D E Example 7: The area of regular pentagon ABCDE is 92 cm2. If the apothem of the figure is 4 cm, what is the length of CD?
