ODEQ Nephelometer Network

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

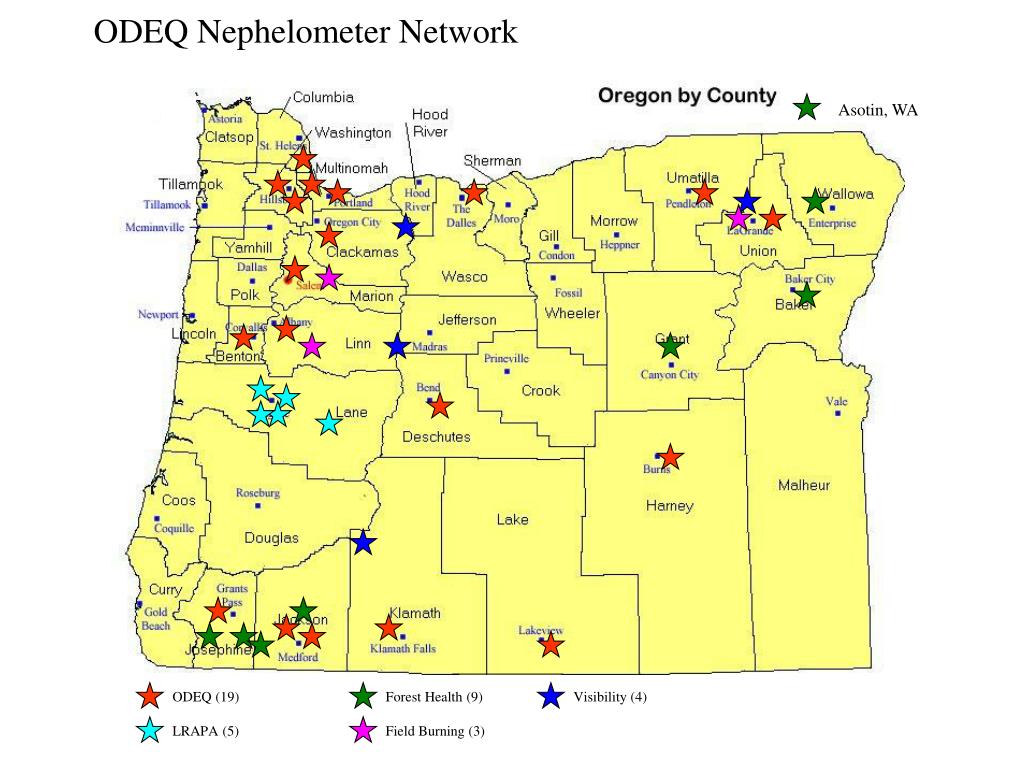

  1. ODEQ Nephelometer Network Asotin, WA ODEQ (19) Forest Health (9) Visibility (4) LRAPA (5) Field Burning (3)

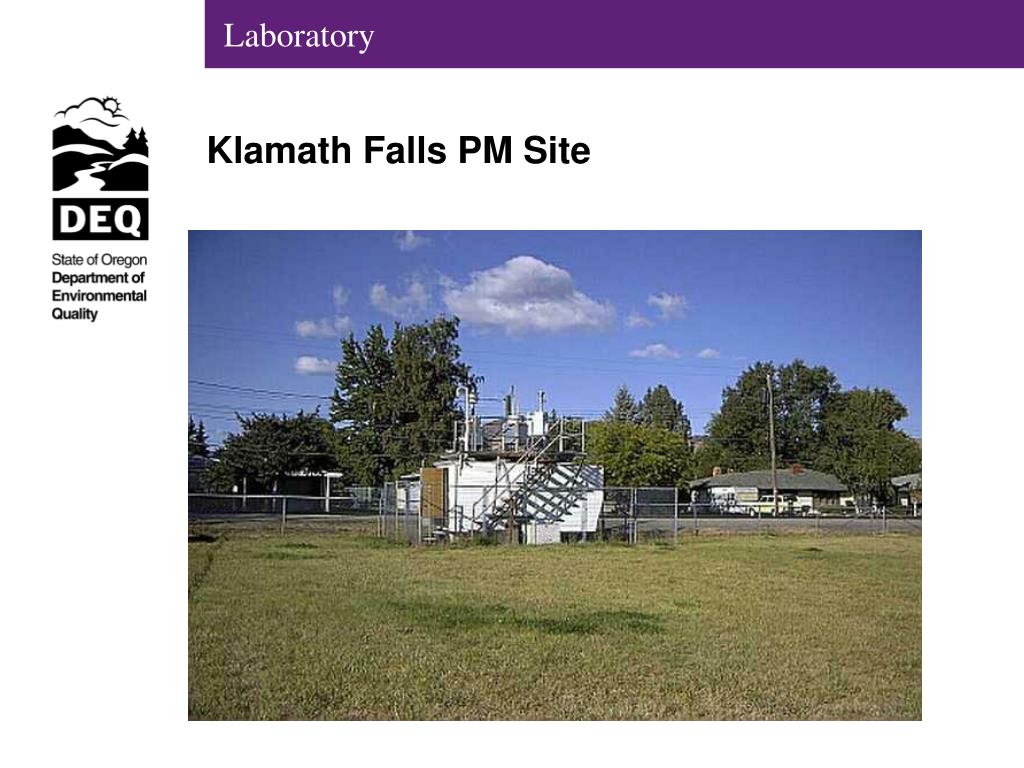

  2. Klamath Falls PM Site

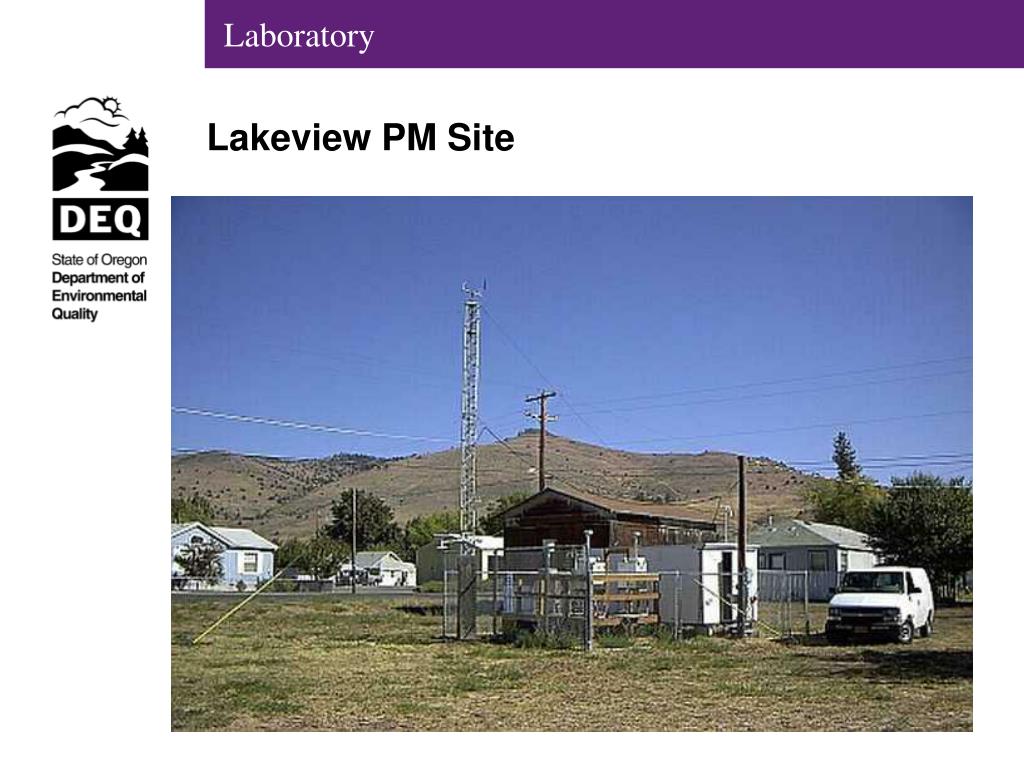

  3. Lakeview PM Site

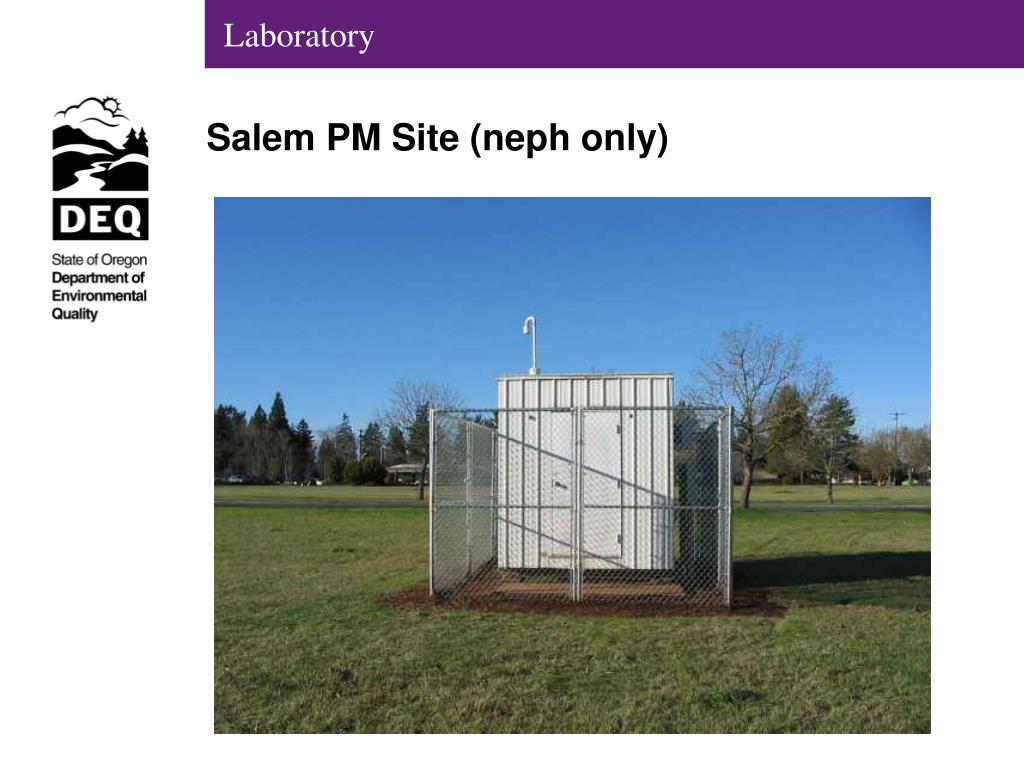

  4. Salem PM Site (neph only)

  5. Albany PM Site

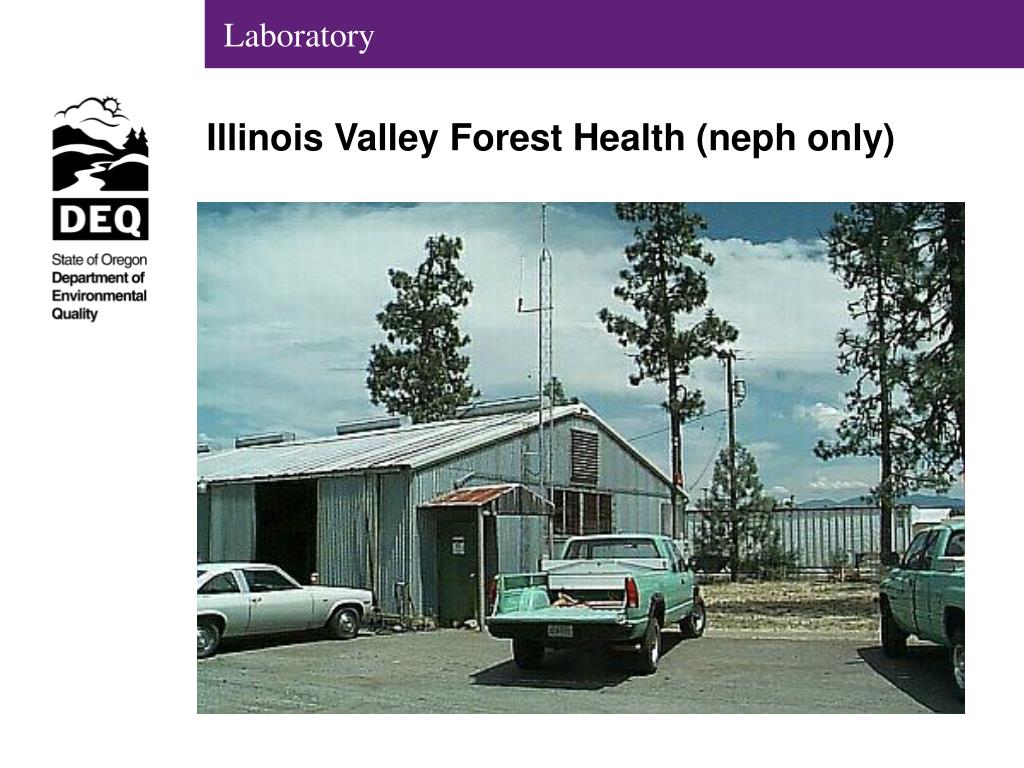

  6. Illinois Valley Forest Health (neph only)

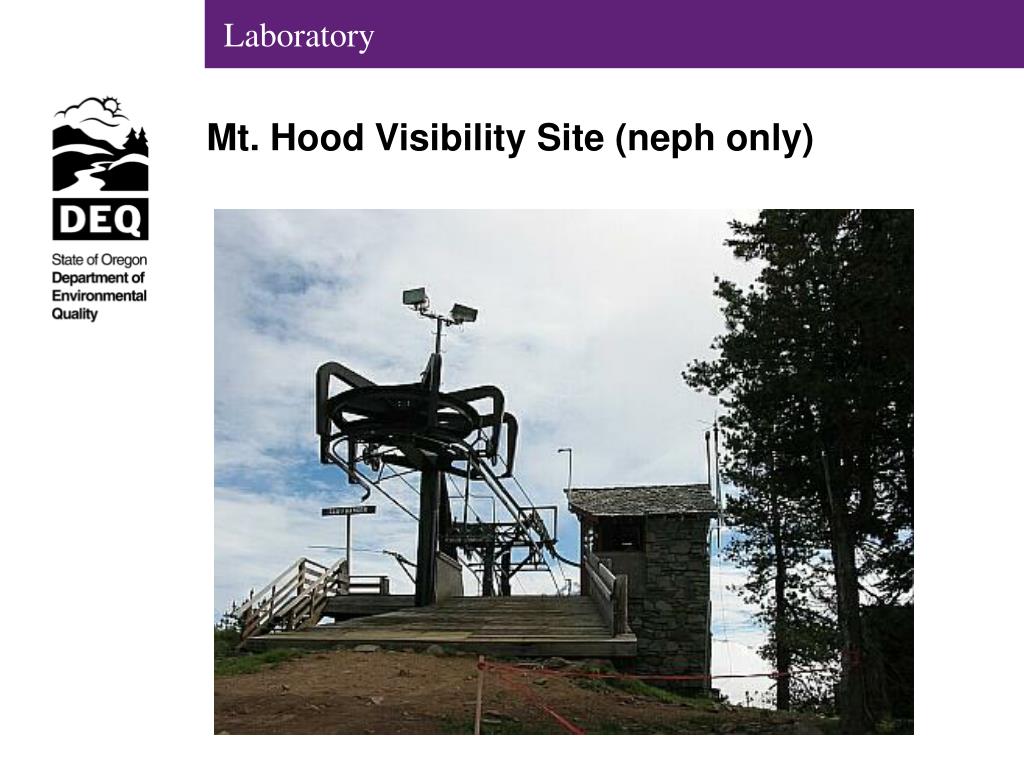

  7. Mt. Hood Visibility Site (neph only)

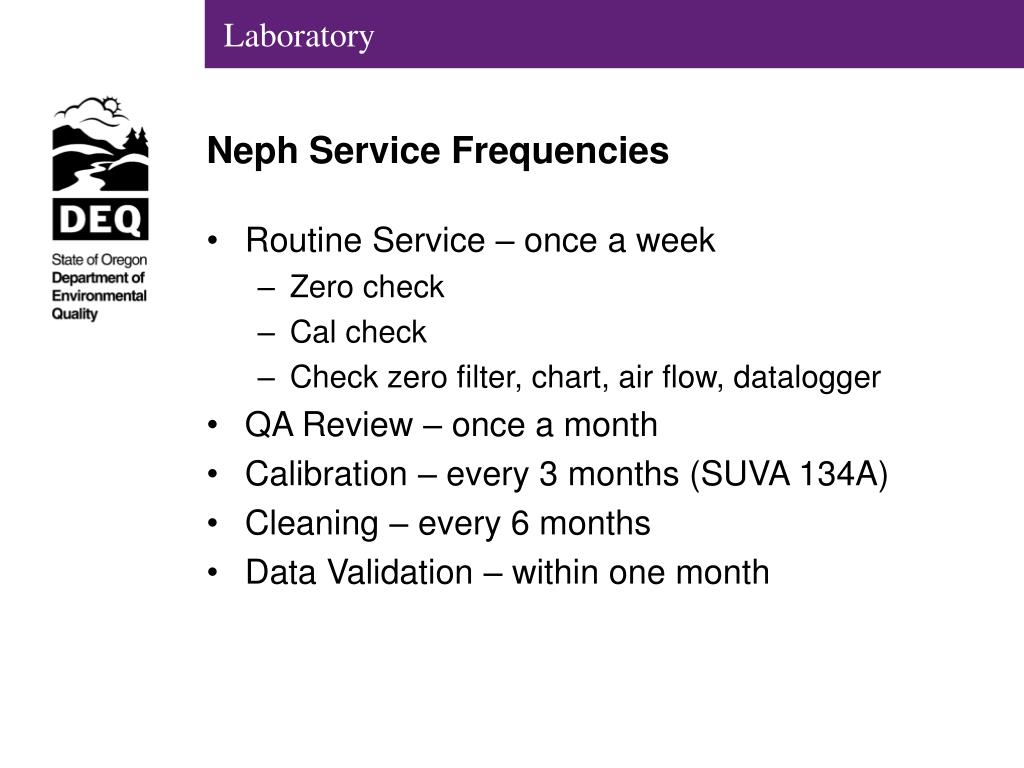

  8. Neph Service Frequencies • Routine Service – once a week • Zero check • Cal check • Check zero filter, chart, air flow, datalogger • QA Review – once a month • Calibration – every 3 months (SUVA 134A) • Cleaning – every 6 months • Data Validation – within one month

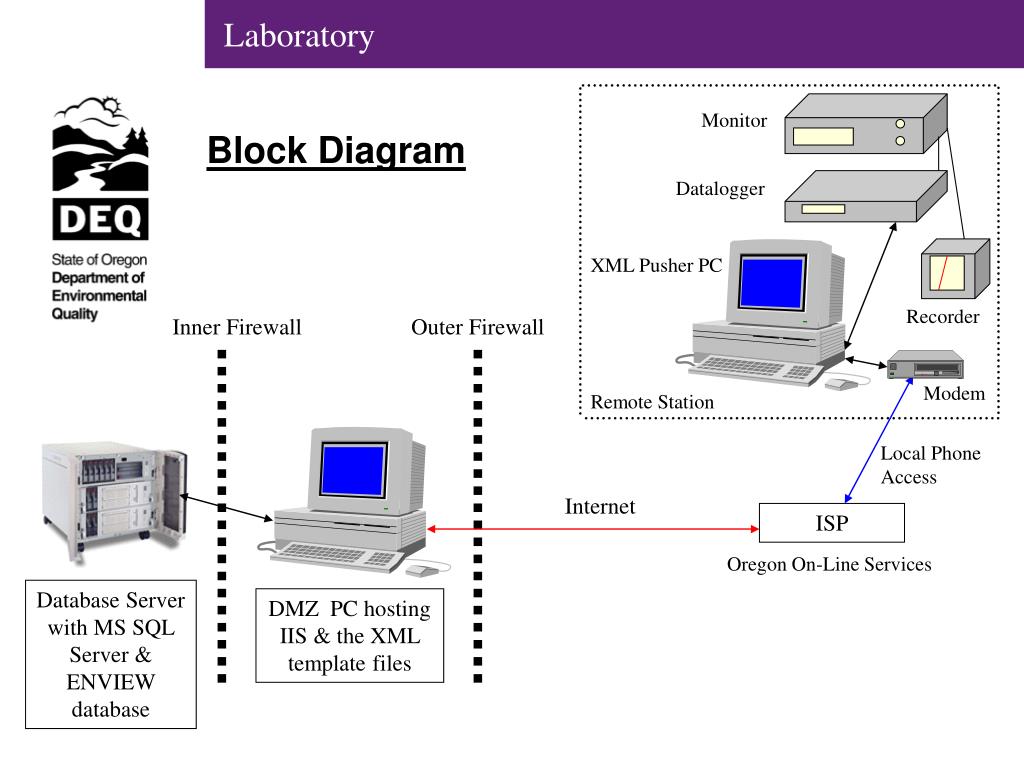

  9. Block Diagram Monitor Datalogger XML Pusher PC Recorder Inner Firewall Outer Firewall Modem Remote Station Local Phone Access Internet ISP Oregon On-Line Services Database Server with MS SQL Server & ENVIEW database DMZ PC hosting IIS & the XML template files

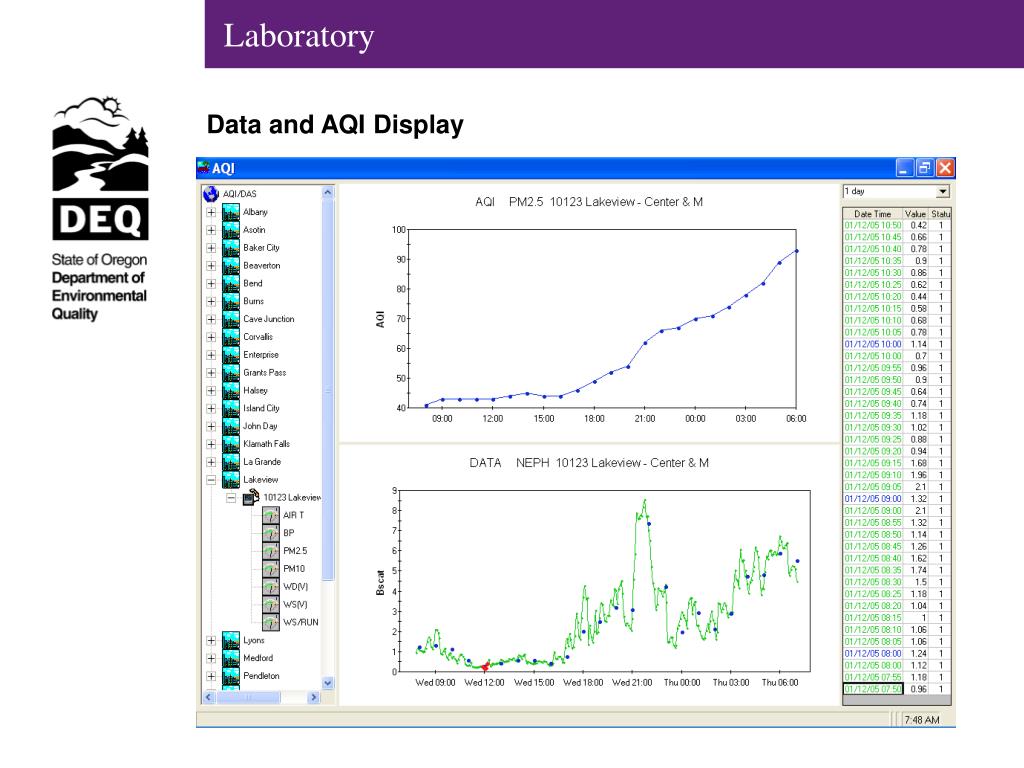

  10. Data and AQI Display
