VoIPBOX Applications

VoIPBOX Applications. Presenter: Mr. Shmueli Eyal October-November 2007. SIP trunking. Applications Point-to-point SIP trunking for industrial parks / business districts Features Multi-customer support per system and per PRI line – timeslot based Faultless fax transport

ali-griffith
Télécharger la présentation

VoIPBOX Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VoIPBOX Applications Presenter: Mr. Shmueli Eyal October-November 2007

  2. SIP trunking • Applications • Point-to-point SIP trunking for industrial parks / business districts • Features • Multi-customer support per system and per PRI line – timeslot based • Faultless fax transport • Integration in existing management system via SNMP client • Customers • BBned, … (IP and VoIP carrier)

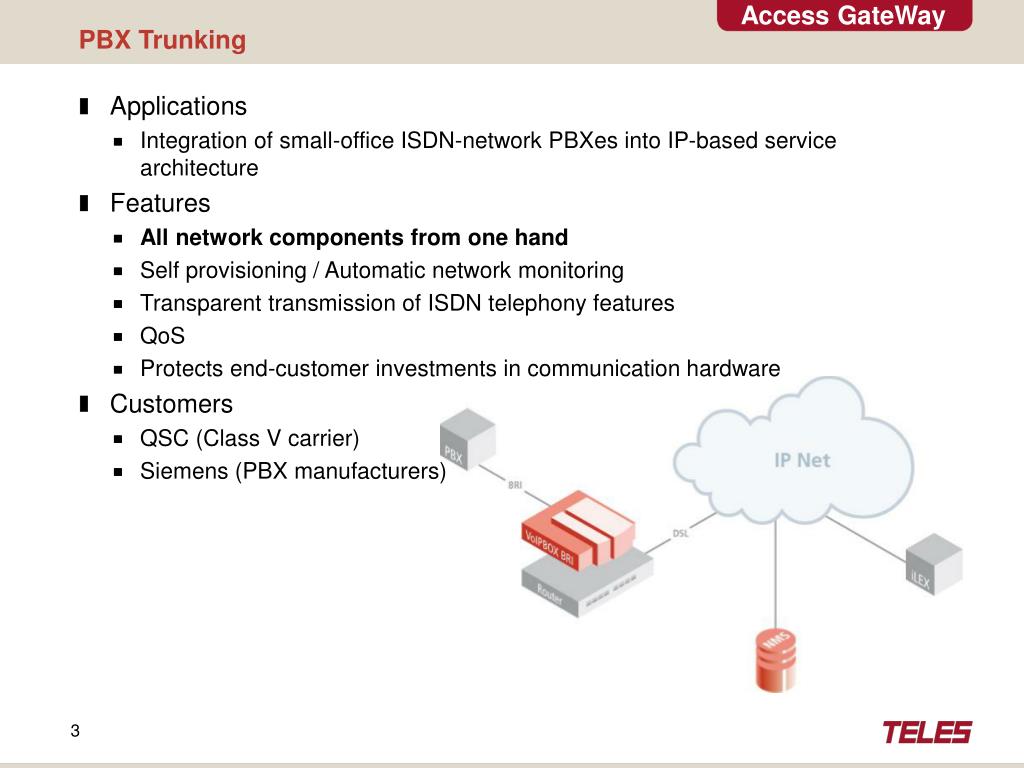

  3. PBX Trunking • Applications • Integration of small-office ISDN-network PBXes into IP-based service architecture • Features • All network components from one hand • Self provisioning / Automatic network monitoring • Transparent transmission of ISDN telephony features • QoS • Protects end-customer investments in communication hardware • Customers • QSC (Class V carrier) • Siemens (PBX manufacturers)

  4. Remote Survivability • Applications • Redundant network breakout in case of failure or quality issues • Features • Integrated SIP server • Various fallback mechanisms • Number converting • (VoIP via ISDN dialup) • High reliability • Customers • Class V carrier (IP Centrex solution): VIP customers, such as hospitals, government offices, …

  5. SoftPBX Trunking Gateway • Applications • New telephony infrastructure connected to established public networks • Features • Interconnection to traditional telephony networks: ISDN (PRI/BRI) or POTS lines • Interconnection to VoIP carriers with state-of-the-art compression algorithms, FAX and DTMF handling • All breakout interfaces from one vendor • No end-customer investment in aged communication equipment • Customers • Globcall (Avaya) (system integrators) - asterisk applications • Pbxnsip – opportunity (Soft-PBX manufacturers)

  6. SoftPBX Remote-User Agent • Applications • Integration of remote locations into PBX dial plan • Features • Interconnection with traditional remote telephony devices • Cost savings by using local breakouts • Customers • Globcall (Avaya) (system integrator) • Telrad conegy (SoftPBX manufacture)

  7. connect the company branches. Connect the company branches for free of charge calls between the sites and local calling fees for international calls to sits with a GW.Smart LCR, support multiple VoIP carrier, PSTN backup, QOS. Addition benefits: DID & DISA per CLI authentication, Carrier selection, Emergency numbers, Redundancy, Reroute of calls. Delta , Golf, Plastro, Netafim, Government office, Toyota, CLP, AxisMobile, AirSpan, MSI.

  8. Extend PBX functionality Save you the investment In an addition PBX that can cost at least twice the cost of a GW. Reduce the telecommunication between the sites up to zero. The remote extension have the same capabilities as the local extension. Very common application for PBX vendors & integrators.Like: Telrad, Tadiran, Avaya, Elmeg, Alcatel, Panasonic and more

  9. LCR 2nd Generation • Applications • Routing to all available networks • Features • Powerful routing • Multi-VoIP-carrier routing • Multi-level fallback routing based on accessibility and QoS • Powerful line-interface routing methods (carrier selection, direct-line access) • Number conversion • Customers • Teles Turkey (system integrators) • (Pure IP (VoIP) carriers)

  10. Wholesale VoIP Termination • Applications • Terminating calls world wide directly to the incumbent networks • Features • Wide product range starting from 4 FXO to 6 PRI lines • Supports SIP and H.323 in parallel • Uptime, voice quality  increase ACD • System management with extensive call statistics • Can cover the location with fog (time-based load management and random CLI generation) • VPN client • Customers • TelesUSA, Taitell (system integrators) • TelesUSA, Hilf Telecom, Delta3 (wholesale companies)

  11. Home/Tele Workers • Applications • Complete integration of part- or full-time tele-workers into the company’s communication infrastructure • Features • Integrated open VPN server • Integrated basic SIP server (registrar, location server) • Symmetric RTP (Comedia) • QoS • Value-added services • Customers • PBX manufacturers • System integrators

  12. Callback Server • Applications • Feature extension of established service / network architecture • Features • New rate approaches for calling-card companies with different callback mechanisms • Unique “second leg @ first” call setup for cost reduction • Radius support (AAA) • Additional integrated DTMF platform for solutions for small/medium corporate customers • Announcement option • Expands established services with new features • Customers • Station 711 (Bezeq) (telephony service companies) • (system integrators)

  13. ISDN Emulation • Applications • Integration of smallest ISDN office networks into IP-based service architecture • Features • Transparent handling of ISDN PMP features (hold, retrieve, …) • AOC handling • Power feeding for ISDN devices • ISDN bus / ISDN device-specific settings and routing • Integration of small enterprise customers to the NGN world • Customers • Tele2 – opportunity (Class V VoIP carrier)

  14. VoIP Emulation • Applications • Integration of VoIP devices into an ISDN network • Features • Standardized handling and translation from VoIP protocol features into ISDN • BRI gateway with integrated SIP server • No investment in aged communication equipment • High product reliability • Customers • Frequentis: application project for rescue services (very quality sensitive)
