  1. Digital communications

  2. Hams have developed techniques for transforming 1’s and 0’s into tones into the same frequency range as human voice. So now a radio can transmit and receive digital data.

  3. The addition of information to a radio wave is called modulation. AM= Amplitude modulation FM= Frequency modulation The rules by which digital data is packaged and exchanged is called protocol.

  4. A modem (modulator-demodulator) changes data signals to and from audio signals. If the modem combines computer software that performs the protocol rules and a soundcard, it is called a terminal node controller (TNC)

  5. The TNC is connected between the transceiver and the computer in a packet radio station. T4A06

  6. Some examples of digital modesT8D01 On HF Bands Radioteletype(uses 5-bit Baudot code) Winlink 2000 (uses PACTOR or WINMOR protocols) PSK31 keyboard to keyboard MFSK On VHF/UHF Packet radio (uses AX.25 protocol) CW (uses Morse code) (T8D09)

  7. Since Radio signals experience many disruptions as they travel from transmitter to receiver; it is likely that errors may be introduced into the stream of data. This is measured by the bit error rate (BER) (T7B12)

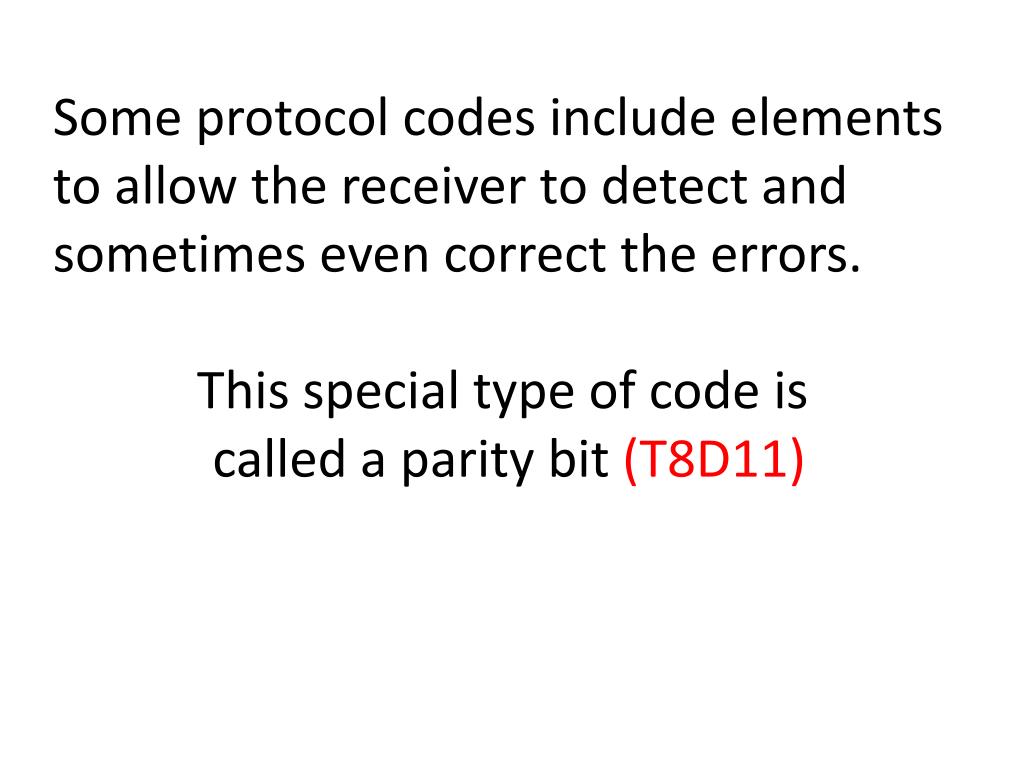

  8. Some protocol codes include elements to allow the receiver to detect and sometimes even correct the errors. This special type of code is called a parity bit (T8D11)

  9. Packet radio is the most common digital mode on VHF and UHF. Packets are transmitted in noise-like bursts. Frequency shift keying (FSK) is used to transmit the individual characters as a series of rapidly alternating tones. The receiving TNC reassembles the data from the packets.

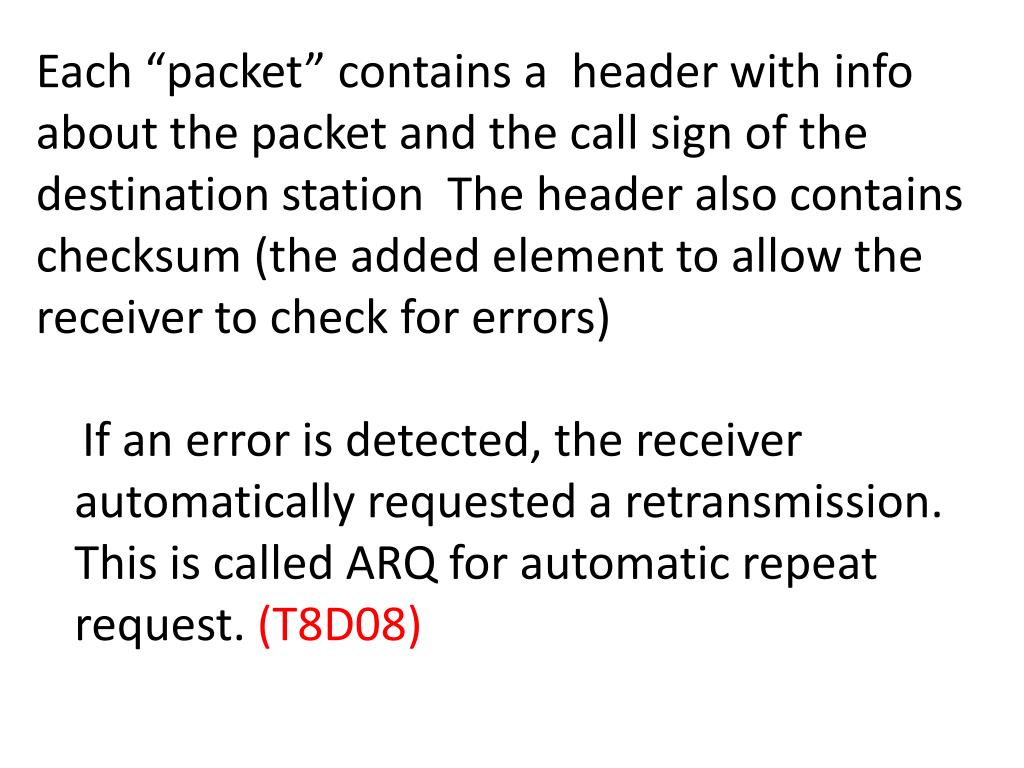

  10. Each “packet” contains a header with info about the packet and the call sign of the destination station The header also contains checksum (the added element to allow the receiver to check for errors) If an error is detected, the receiver automatically requested a retransmission. This is called ARQ for automatic repeat request. (T8D08)

  11. Digital modes designed for real-time person to person communication are called keyboard to keyboard modes. Most popular digital mode is PSK31 (phase shift keying, 31 baud) (T8D06); even though it sends data at a low rate, it works well in noisy conditions (T8D07).

  12. The Automatic Position Reporting System (APRS) uses packet radio to transmit the location of a mobile or portable station. (T8D02) The portable station is basically a packet radio station with a Global Positioning System (GPS) receiver attached to the TNC. (T8D03)

  13. Traveling hams can send e-mail “over the air” by using Winlink. Winlink combines e-mail with a digital modes.

  14. The radio station that makes connection between the traveling radio and the internet is called a gateway. (T8C11)

  15. T7B12 What does the acronym “BER” mean when applied to digital communications systems? A. Baud Enhancement Recovery B. Baud Error Removal C. Bit Error Rate D. Bit Exponent Resource

  16. T8D01 Which of the following is an example of a digital communications method? A. Packet B. PSK31 C. MFSK D. All of these choices are correct

  17. T8D08 Which of the following may be included in packet transmissions? A check sum which permits error detection B. A header which contains the call sign of the station to which the information is being sent C. Automatic repeat request in case of error D. All of these choices are correct

  18. T8D09 What code is used when sending CW in the amateur bands? A. Baudot B. Hamming C. International Morse D. Gray

  19. T8D11 What is a “parity” bit? A. A control code required for automatic position reporting B. A timing bit used to ensure equal sharing of a frequency C. An extra code element used to detect errors in received data D. A “triple width” bit used to signal the end of a character

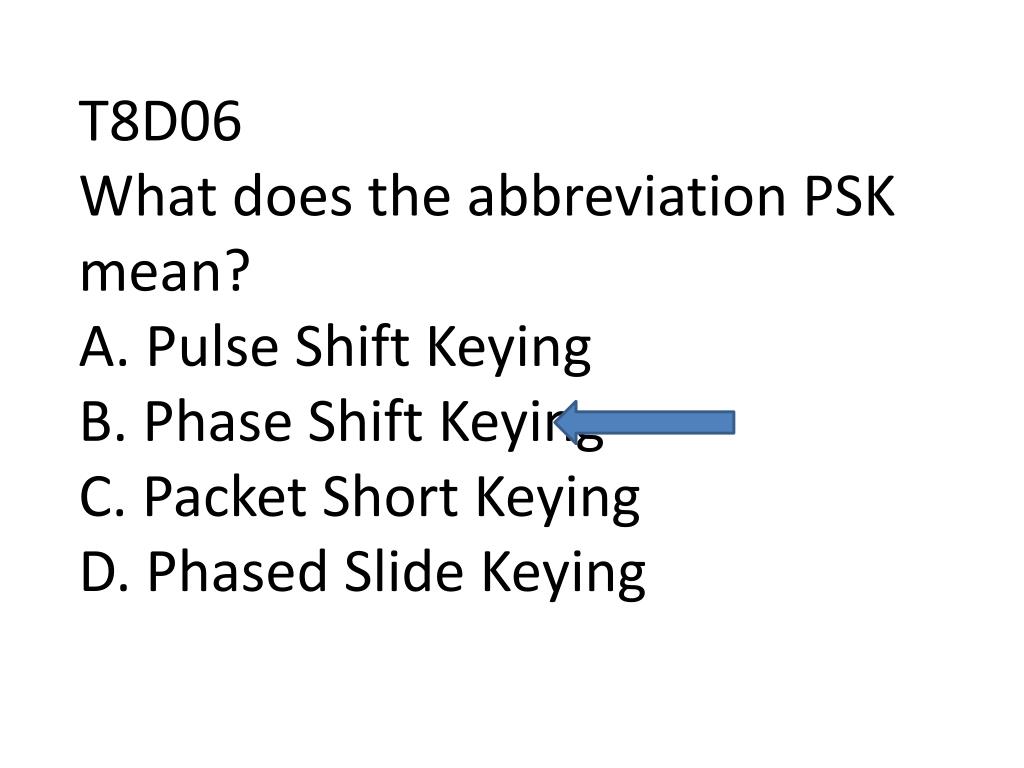

  20. T8D06 What does the abbreviation PSK mean? A. Pulse Shift Keying B. Phase Shift Keying C. Packet Short Keying D. Phased Slide Keying

  21. T8D07 What is PSK31? A. A high-rate data transmission mode B. A method of reducing noise interference to FM signals C. A method of compressing digital television signal D. A low-rate data transmission mode

  22. T8D02 What does the term APRS mean? A. Automatic Position Reporting System B. Associated Public Radio Station C. Auto Planning Radio Set-up D. Advanced Polar Radio System

  23. T8D03 Which of the following is normally used when sending automatic location reports via amateur radio? A. A connection to the vehicle speedometer B. A WWV receiver C. A connection to a broadcast FM sub-carrier receiver D. A Global Positioning System receiver

  24. T4A06 Which of the following would be connected between a transceiver and computer in a packet radio station? A. Transmatch B. Mixer C. Terminal node controller D. Antenna

  25. T4A07 How is the computer’s sound card used when conducting digital communications using a computer? A. The sound card communicates between the computer CPU and the video display B. The sound card records the audio frequency for video display C. The sound card provides audio to the microphone input and converts received audio to digital form D. All of these choices are correct

  26. T8C11 What name is given to an amateur radio station that is used to connect other amateur stations to the Internet? A. A gateway B. A repeater C. A digipeater D. A beacon
