Chapter 7c. The Nervous System

1. Chapter 7c.The Nervous System

2. Regions of the Brain: Cerebellum • Two hemispheres with convoluted surfaces • Looks like cauliflower • Dorsal; under occipital lobe of cerebrum • Outer cortex = gray matter; inner cortex = white matter • Provides involuntary coordination of body movements • Balance & equilibrium • Impulses from ear, eye, touch receptors of skeletal muscles & tendons • Ataxia – damage to cerebellum; loose balance, become clumsy

3. Cerebellum Figure 7.15a

4. Protection of the Central Nervous System • Scalp and skin • Skull and vertebral column • Meninges • Cerebrospinal fluid (CSF) • Blood-brain barrier Figure 7.16a

5. Protection of the Central Nervous System Figure 7.17a

6. Old water tower,Chicago

7. Meninges • 3 connective membranes • Dura mater • Leathery = hard mother • Double-layered external covering • Periosteum – attached to inner surface of the skull • Meningeal layer – outer covering of the brain • Folds inward in several areas to attach to cranial cavity

8. Meninges • Arachnoid layer = weblike = spider • Middle layer • Web-like – span the subarachnoid space to attach to pia matter • Pia mater = gentle mother • Internal layer • Clings to the surface of the brain

9. Meninges Figure 7.17b

10. Cerebrospinal Fluid (CSF) • In subarachnoid space • Similar to blood plasma composition • Formed by the choroid plexus – capillaries hanging from roof of ventricles • Forms a watery cushion to protect the brain • Circulated in arachnoid space, ventricles, and central canal of the spinal cord • Absorbed into venous blood in dural sinuses

11. Ventricles and Location of the Cerebrospinal Fluid Figure 7.17a–b

12. Chicago

13. Ventricles and Location of the Cerebrospinal Fluid Figure 7.17c

14. Meningitis – inflammation of meninges • Bacterial or viral • CSF – similar to plasma • Less protein, more vitamin C • Hydrocephalus = water on brain • Obstruction of CSF drainage

15. Hydrocephalus in a Newborn • Hydrocephalus • CSF accumulates and exerts pressure on the brain if not allowed to drain Figure 7.19

16. Blood Brain Barrier • Includes the least permeable capillaries of the body • Excludes many potentially harmful substances • Brain could not handle fluctuations of chemicals in blood • Only water, glucose, essential amino acids can pass in • Useless as a barrier against some substances • Fats and fat soluble molecules • Respiratory gases • Alcohol • Nicotine • Anesthesia

17. Traumatic Brain Injuries • Brain injured at site of blow & effect of ricocheting & hitting opposite end of skull • Concussion (see stars) • Slight brain injury • No permanent brain damage • Contusion • Nervous tissue destruction occurs (cerebral cortex injury – conscious; brain stem injury – coma) • Nervous tissue does not regenerate • Cerebral edema or intracranial hemorrhage • Swelling from the inflammatory response • May compress and kill brain tissue

18. Cerebrovascular Accident (CVA) • Commonly called a stroke • 3rd leading cause of death • The result of a ruptured blood vessel supplying a region of the brain or a blood clot • Brain tissue supplied with oxygen from that blood source dies • Loss of some functions or death may result • Aphasias- • Motor – damage to Broca’s area; can’t talk • Sensory – can’t understand written or spoken language • Some recovery – undamaged neurons spread into damaged area

19. Alzheimer’s Disease • Progressive degenerative brain disease • Mostly seen in the elderly, but may begin in middle age • Structural changes in the brain include abnormal protein deposits and twisted fibers within neurons • Decrease in Ach, gyri shrink, brain atrophies • Victims experience memory loss, irritability, confusion and ultimately, hallucinations and death

20. Merchandise Mart, Chicago

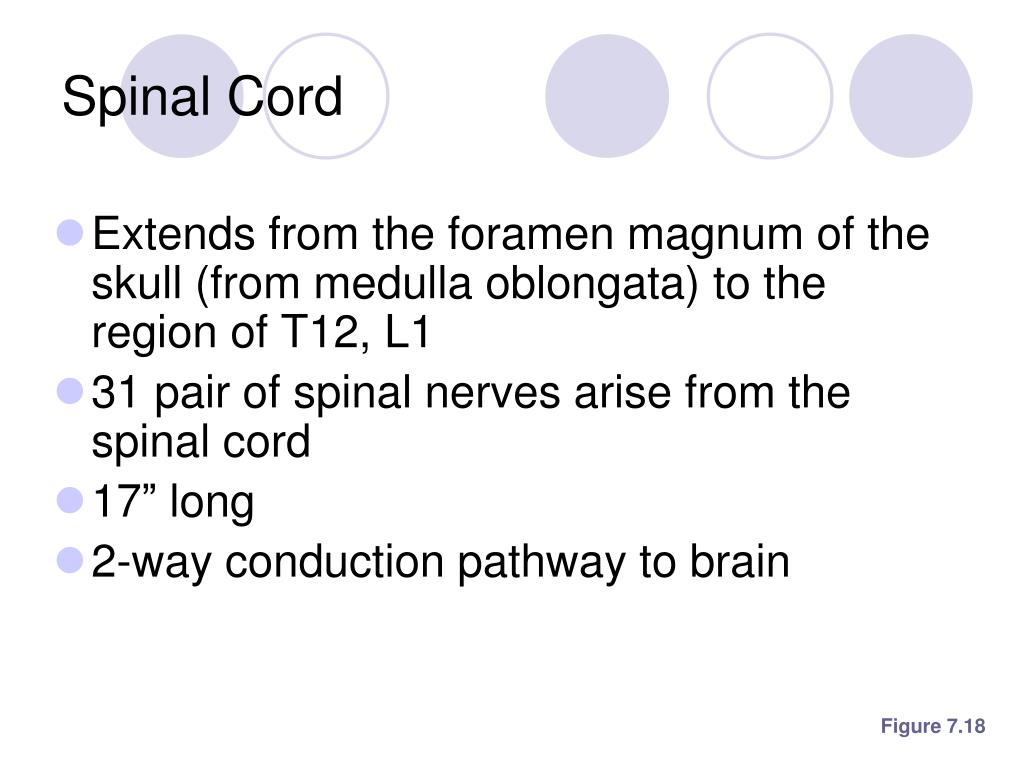

21. Spinal Cord • Extends from the foramen magnum of the skull (from medulla oblongata) to the region of T12, L1 • 31 pair of spinal nerves arise from the spinal cord • 17” long • 2-way conduction pathway to brain Figure 7.18

22. Below T12 is the cauda equina (a collection of spinal nerves) • Because vertebrae grow faster than cord, cord doesn’t reach end of vertebral column • Enlargements occur in the cervical and lumbar regions • Serve upper & lower limbs • Major reflex center • Covered by meninges

23. Spinal Cord Anatomy Figure 7.20 (1 of 2)

24. Spinal Cord Anatomy Figure 7.20 (2 of 2)

25. Spinal Cord Anatomy • Internal gray matter - mostly cell bodies • Dorsal (posterior) horns – association or interneurons & sensory neurons • Anterior (ventral) horns – motor neurons of somatic (voluntary) • Gray matter surrounds the central canal • Central canal is filled with cerebrospinal fluid • Exterior white matter – conduction tracts • Dorsal, lateral, ventral columns • Dorsal & ventral roots fuse into spinal nerves • Central Canal filled with cerebrospinal fluid Figure 7.19

26. Spinal Cord Anatomy Figure 7.21

27. Downtown Chicago

28. Spinal Cord Anatomy • Meninges cover the spinal cord • Spinal Nerves leave at the level of each vertebrae • Dorsal root – cell bodies of sensory neurons • Associated with the dorsal root ganglia – collections of cell bodies outside the central nervous system • Ventral root – motor neurons of somatic system • Contains axons

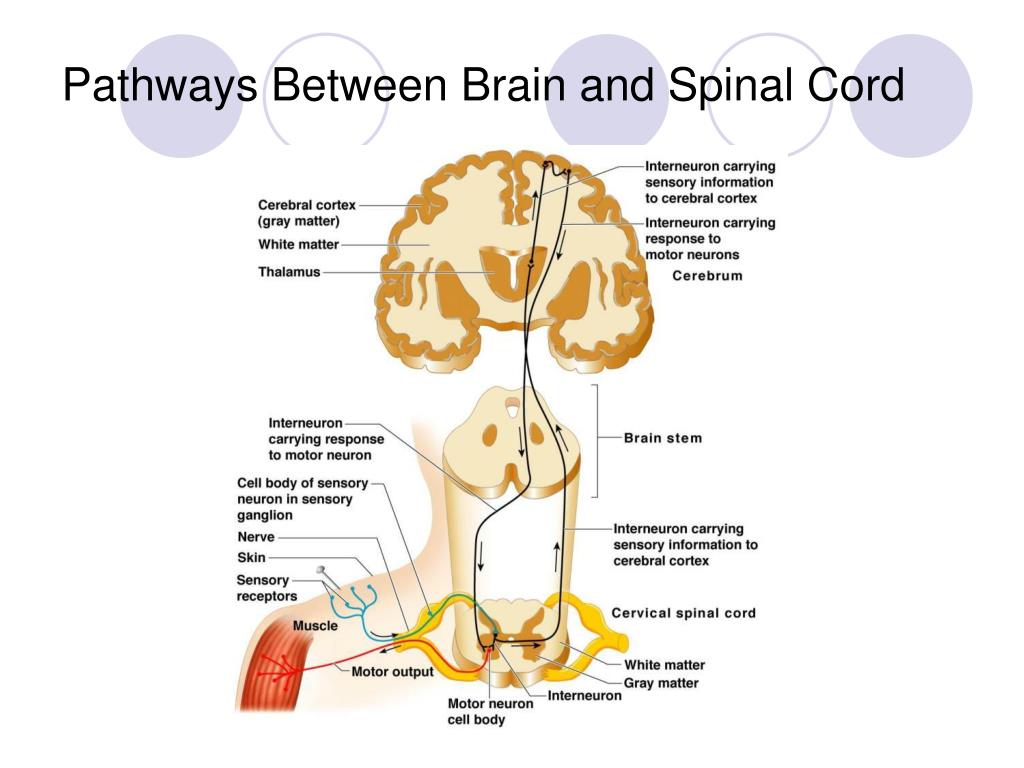

29. Pathways Between Brain and Spinal Cord

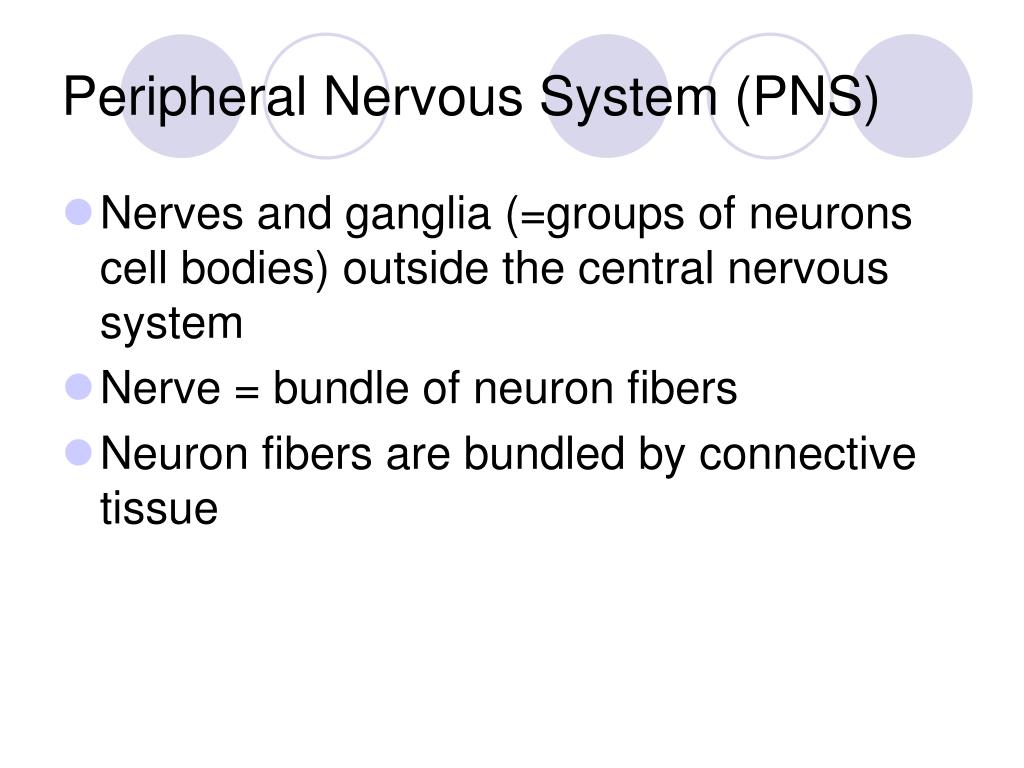

30. Peripheral Nervous System (PNS) • Nerves and ganglia (=groups of neurons cell bodies) outside the central nervous system • Nerve = bundle of neuron fibers • Neuron fibers are bundled by connective tissue

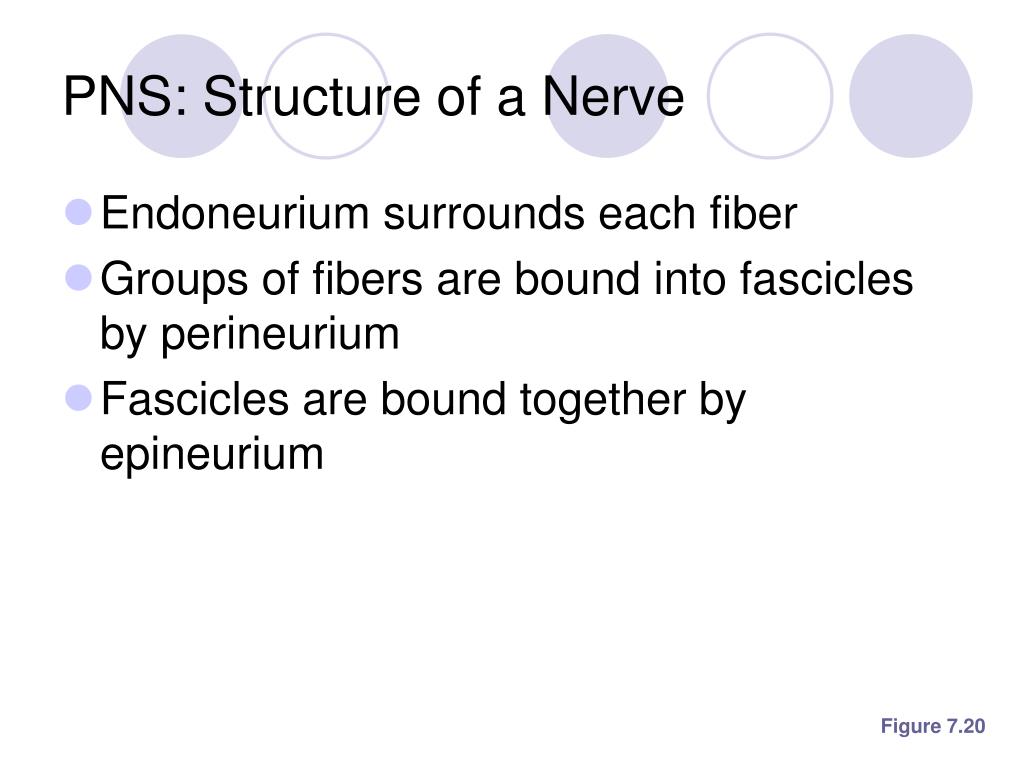

31. PNS: Structure of a Nerve • Endoneurium surrounds each fiber • Groups of fibers are bound into fascicles by perineurium • Fascicles are bound together by epineurium Figure 7.20

32. PNS: Structure of a Nerve Figure 7.23

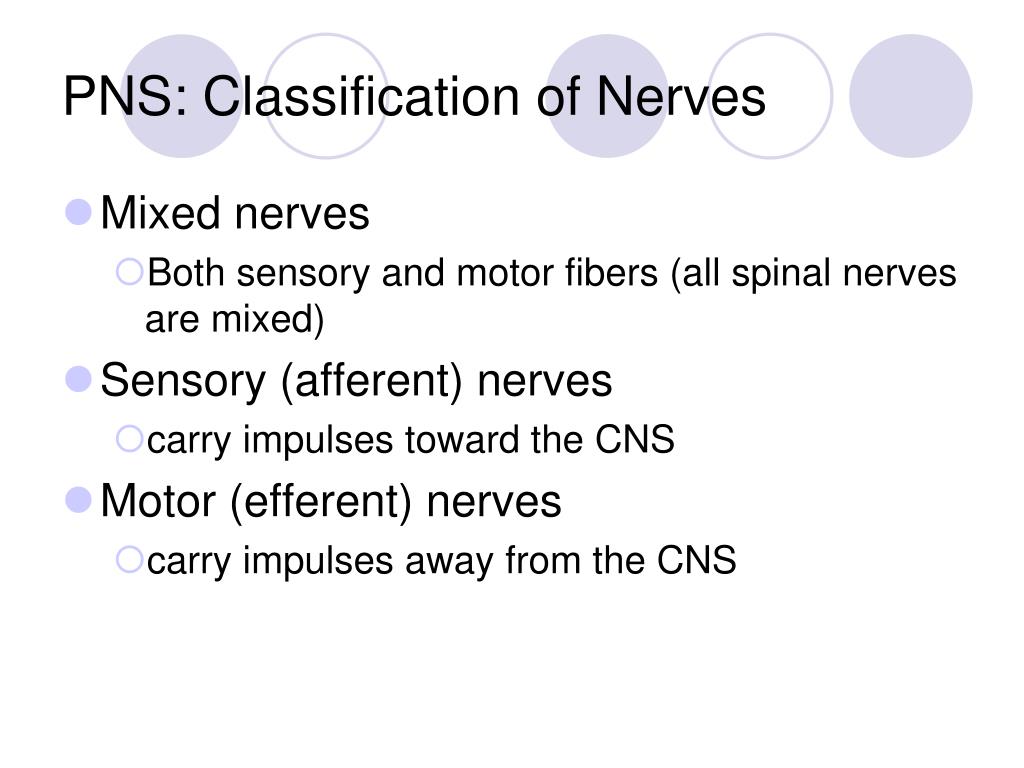

33. PNS: Classification of Nerves • Mixed nerves • Both sensory and motor fibers (all spinal nerves are mixed) • Sensory (afferent) nerves • carry impulses toward the CNS • Motor (efferent) nerves • carry impulses away from the CNS

34. PNS: Cranial Nerves • 12 pairs of nerves that mostly serve the head and neck • Only the pair of vagus nerves extend to thoracic and abdominal cavities • Numbered in order, front to back • Most are mixed nerves, but three are sensory only • Optic, olfactory, vestibulocochlear

35. Hancock Bldg,Chicago

36. PNS: Cranial Nerves • I Olfactory nerve – sensory for smell • II Optic nerve – sensory for vision • III Oculomotor nerve – motor fibers to eye muscles • IV Trochlear – motor fiber to eye muscles

37. Cranial Nerves • V Trigeminal nerve – sensory for the face; motor fibers to chewing muscles • VI Abducens nerve – motor fibers to eye muscles • VII Facial nerve – sensory for taste; motor fibers to the face • VIII Vestibulocochlear nerve – sensory for balance and hearing

38. Cranial Nerves • IX Glossopharyngeal nerve – sensory for taste; motor fibers to the pharynx • X Vagus nerves – sensory and motor fibers for pharynx, larynx, and viscera • XI Accessory nerve – motor fibers to neck and upper back • XII Hypoglossal nerve – motor fibers to tongue

39. PNS: The Cranial Nerves Table 7.1 (1 of 4)

40. PNS: The Cranial Nerves Table 7.1 (2 of 4)

41. PNS: The Cranial Nerves Table 7.1 (3 of 4)

42. PNS: The Cranial Nerves Table 7.1 (4 of 4)

43. PNS: Distribution of Cranial Nerves Figure 7.24
