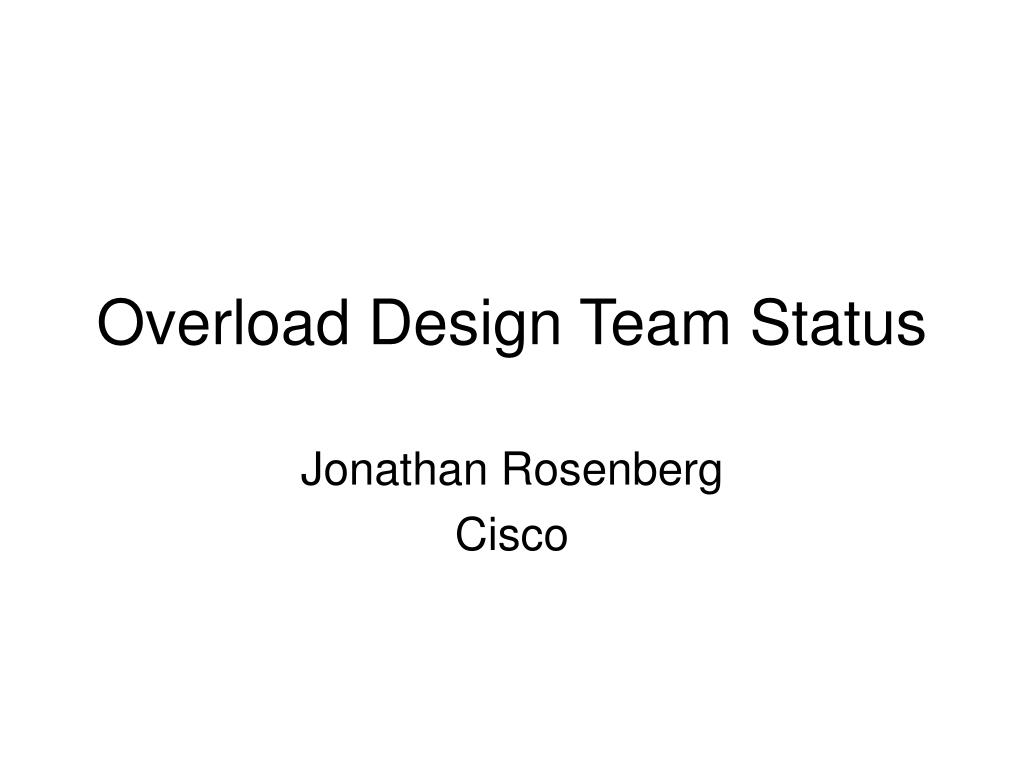

  1. Overload Design Team Status Jonathan Rosenberg Cisco

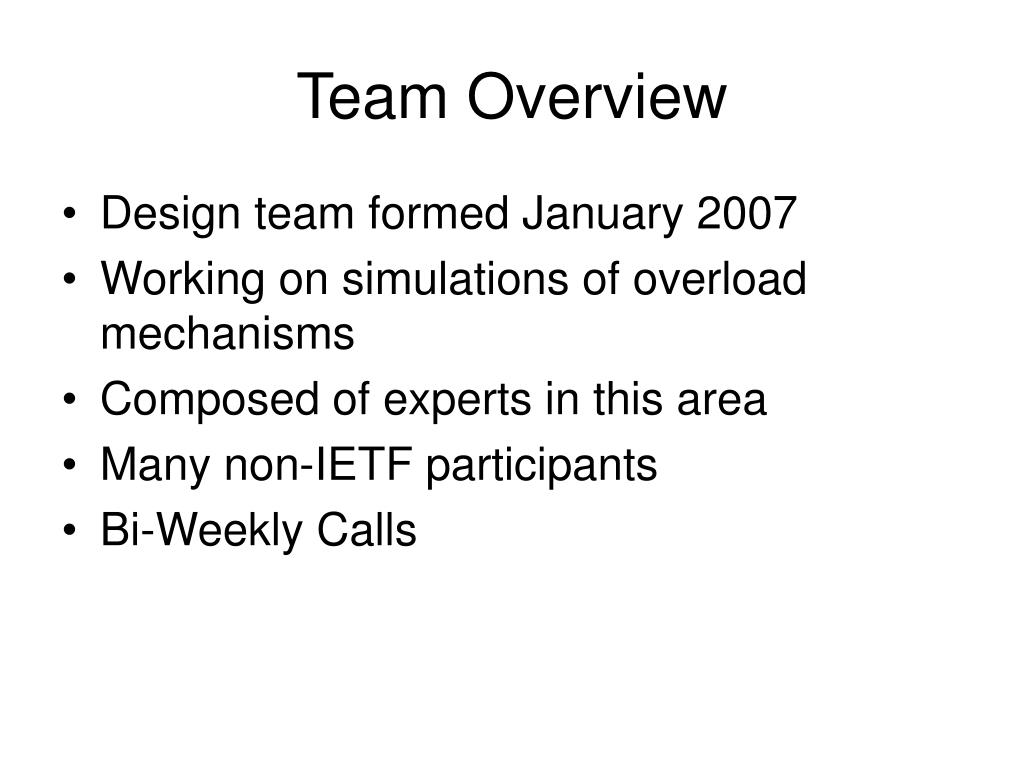

  2. Team Overview • Design team formed January 2007 • Working on simulations of overload mechanisms • Composed of experts in this area • Many non-IETF participants • Bi-Weekly Calls

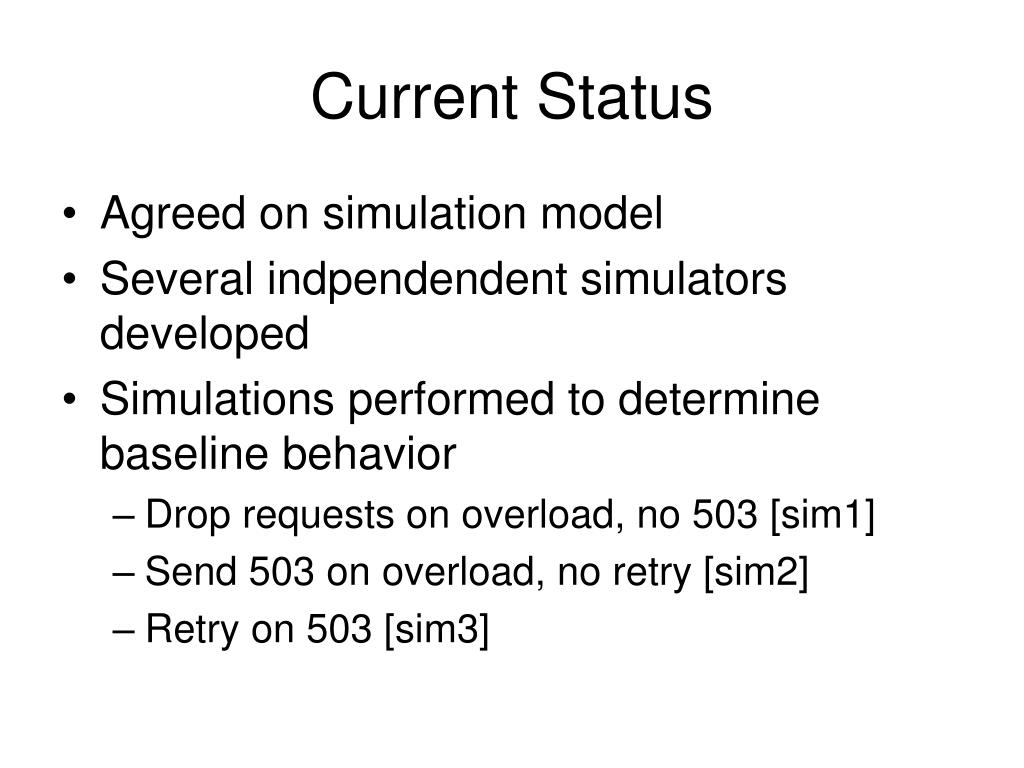

  3. Current Status • Agreed on simulation model • Several indpendendent simulators developed • Simulations performed to determine baseline behavior • Drop requests on overload, no 503 [sim1] • Send 503 on overload, no retry [sim2] • Retry on 503 [sim3]

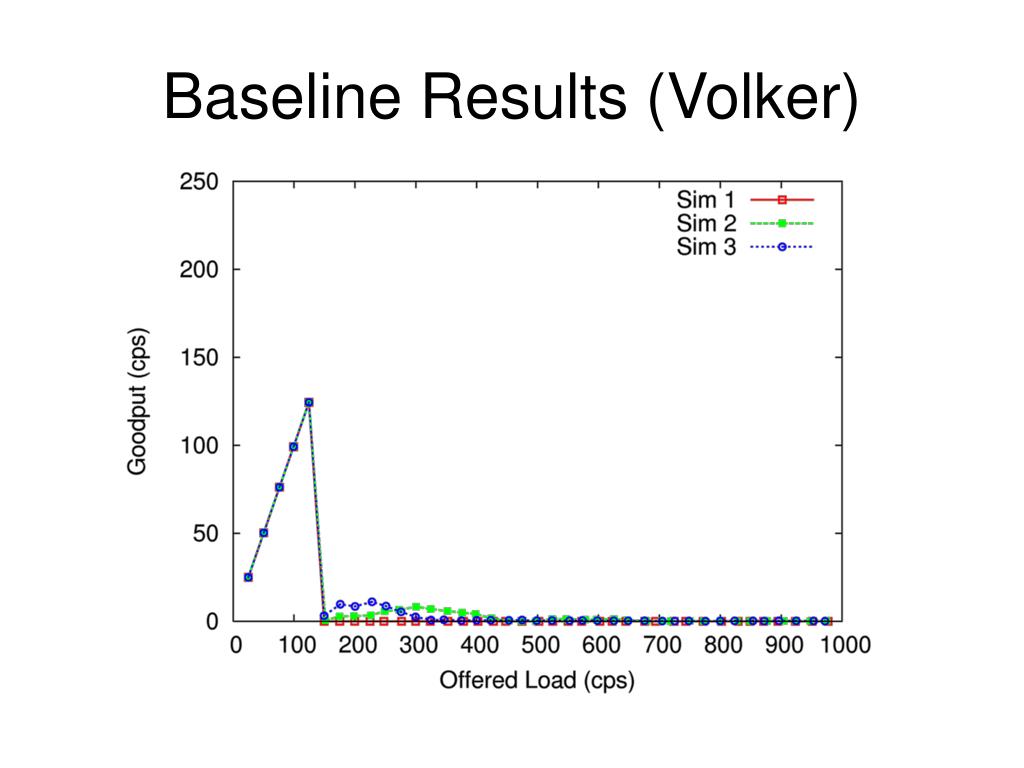

  4. Baseline Results (Volker)

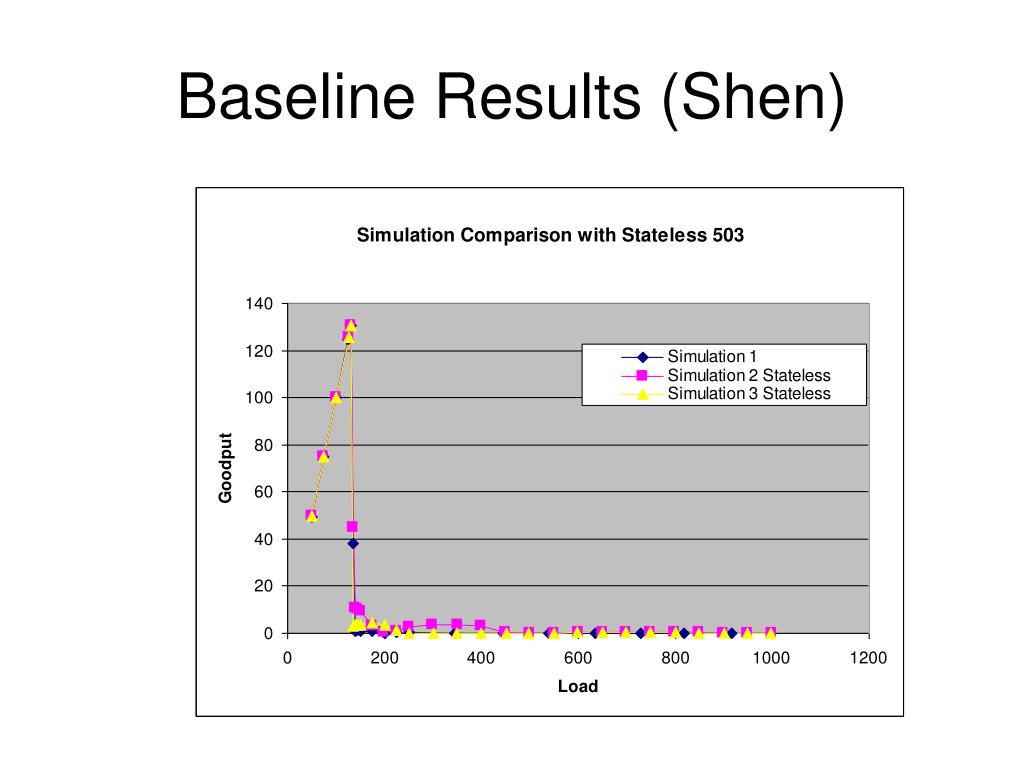

  5. Baseline Results (Shen)

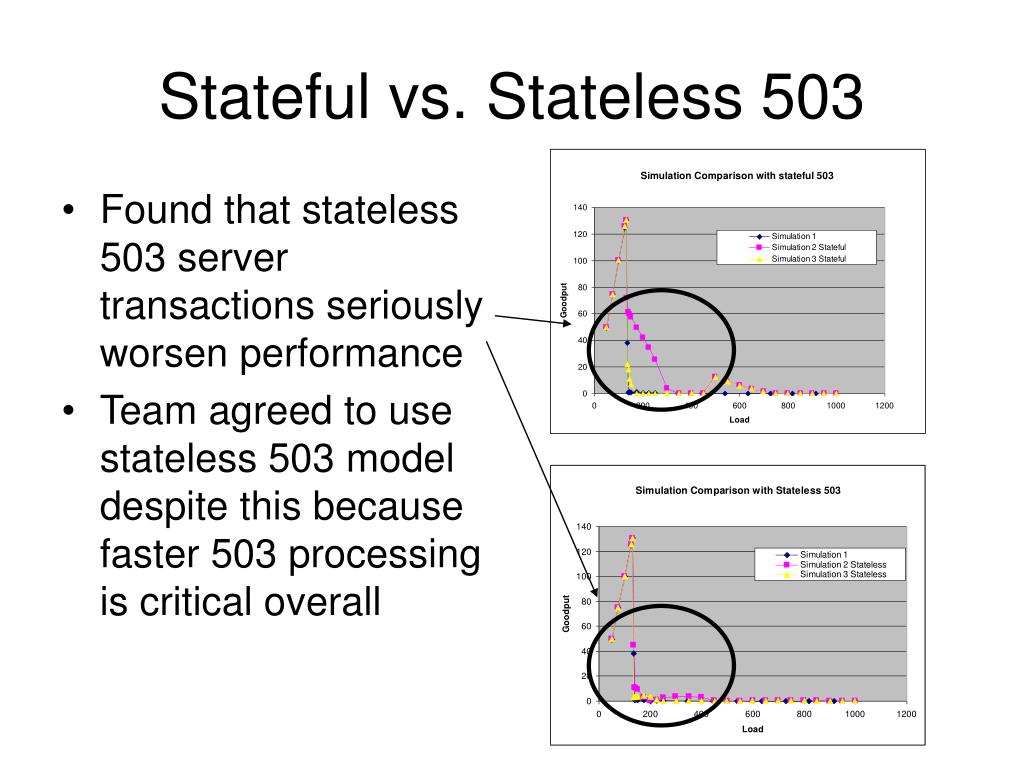

  6. Stateful vs. Stateless 503 • Found that stateless 503 server transactions seriously worsen performance • Team agreed to use stateless 503 model despite this because faster 503 processing is critical overall

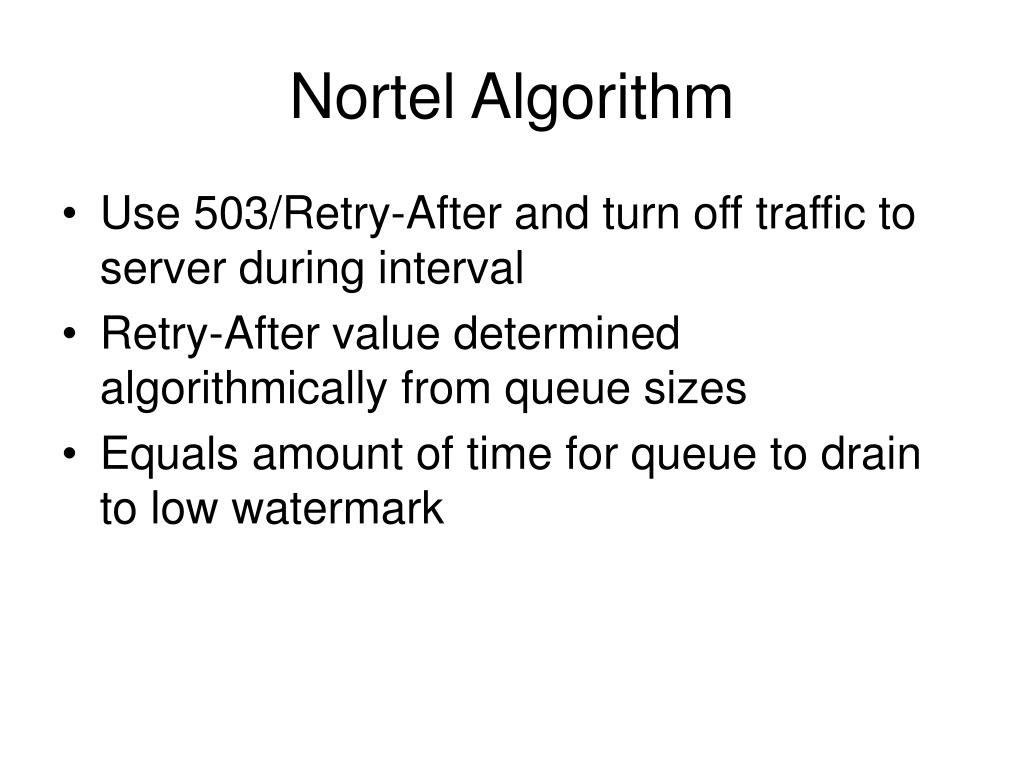

  7. Nortel Algorithm • Use 503/Retry-After and turn off traffic to server during interval • Retry-After value determined algorithmically from queue sizes • Equals amount of time for queue to drain to low watermark

  8. Results

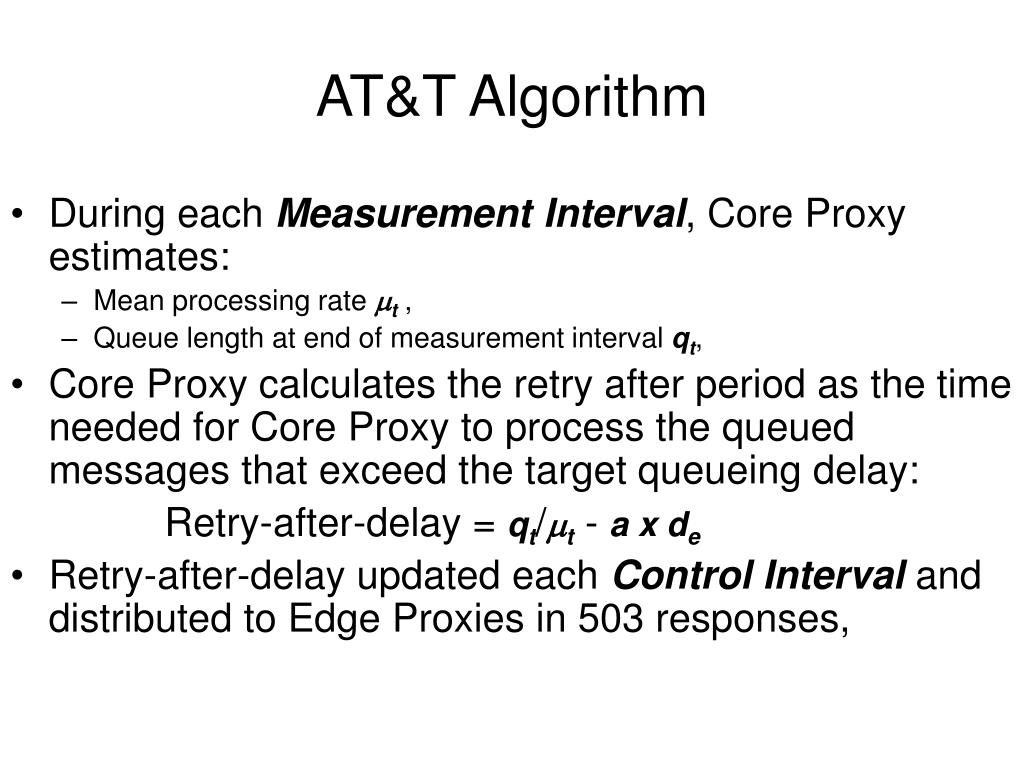

  9. AT&T Algorithm • During each Measurement Interval, Core Proxy estimates: • Mean processing rate mt, • Queue length at end of measurement interval qt, • Core Proxy calculates the retry after period as the time needed for Core Proxy to process the queued messages that exceed the target queueing delay: Retry-after-delay = qt/mt - a x de • Retry-after-delay updated each Control Interval anddistributed to Edge Proxies in 503 responses,

  10. Results

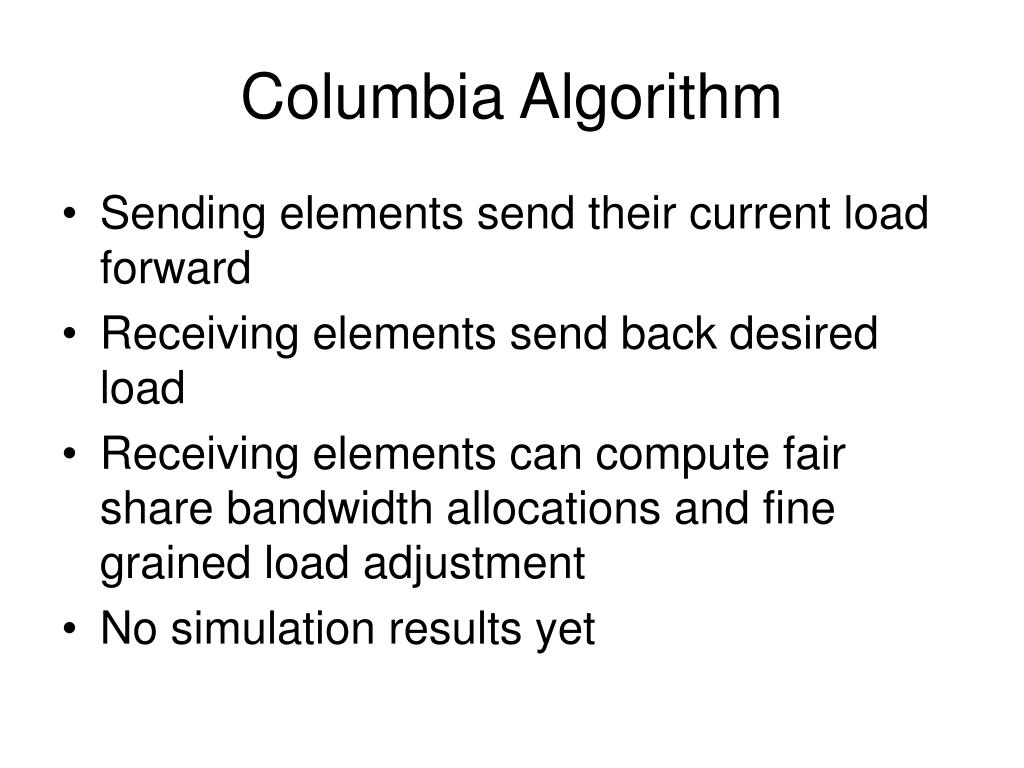

  11. Columbia Algorithm • Sending elements send their current load forward • Receiving elements send back desired load • Receiving elements can compute fair share bandwidth allocations and fine grained load adjustment • No simulation results yet

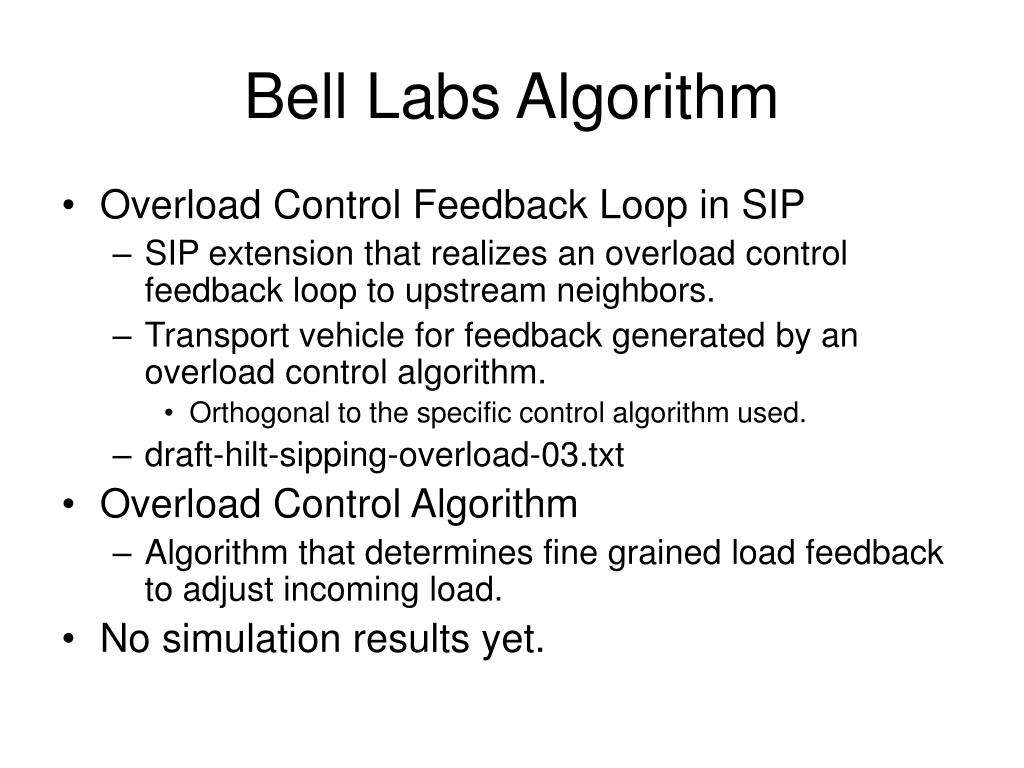

  12. Bell Labs Algorithm • Overload Control Feedback Loop in SIP • SIP extension that realizes an overload control feedback loop to upstream neighbors. • Transport vehicle for feedback generated by an overload control algorithm. • Orthogonal to the specific control algorithm used. • draft-hilt-sipping-overload-03.txt • Overload Control Algorithm • Algorithm that determines fine grained load feedback to adjust incoming load. • No simulation results yet.

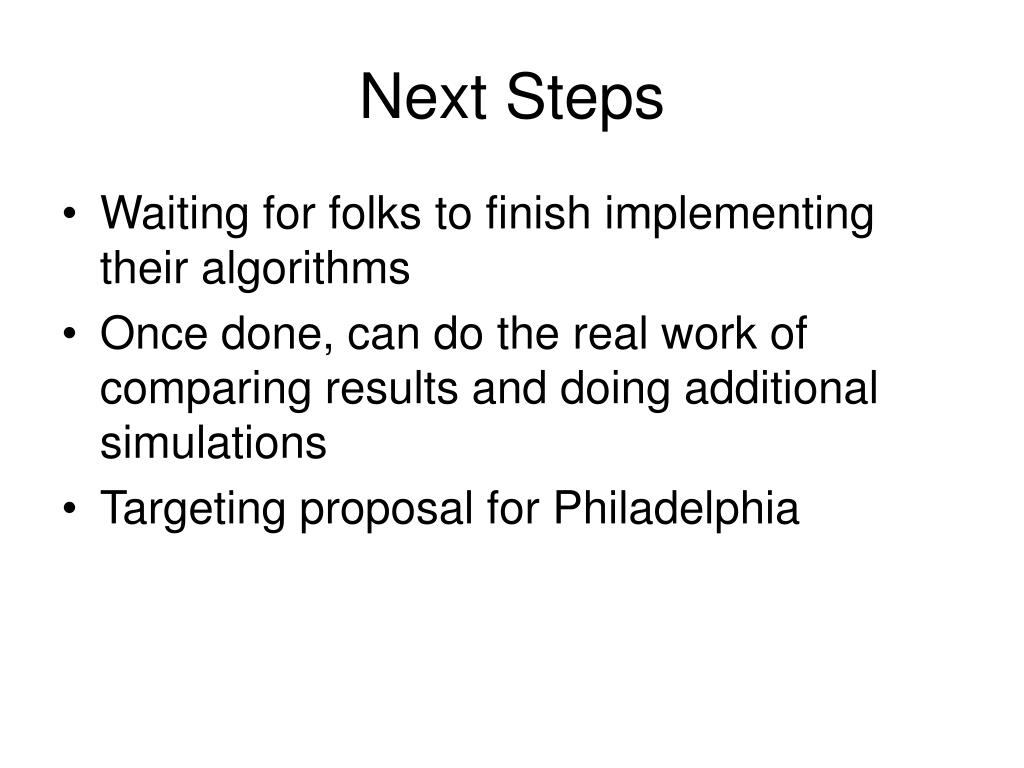

  13. Next Steps • Waiting for folks to finish implementing their algorithms • Once done, can do the real work of comparing results and doing additional simulations • Targeting proposal for Philadelphia
