ALMA – The Atacama Large Millimeter Array

ALMA – The Atacama Large Millimeter Array. Image courtesy of NRAO/AUI. Image courtesy of NRAO/AUI and Computer graphics by ESO. ALMA will be a single telescope composed of up to 64 high precision 12-m antennas, operating between 31 to 950 GHz (0.3-9.6 mm wavelength).

aliza
Télécharger la présentation

ALMA – The Atacama Large Millimeter Array

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

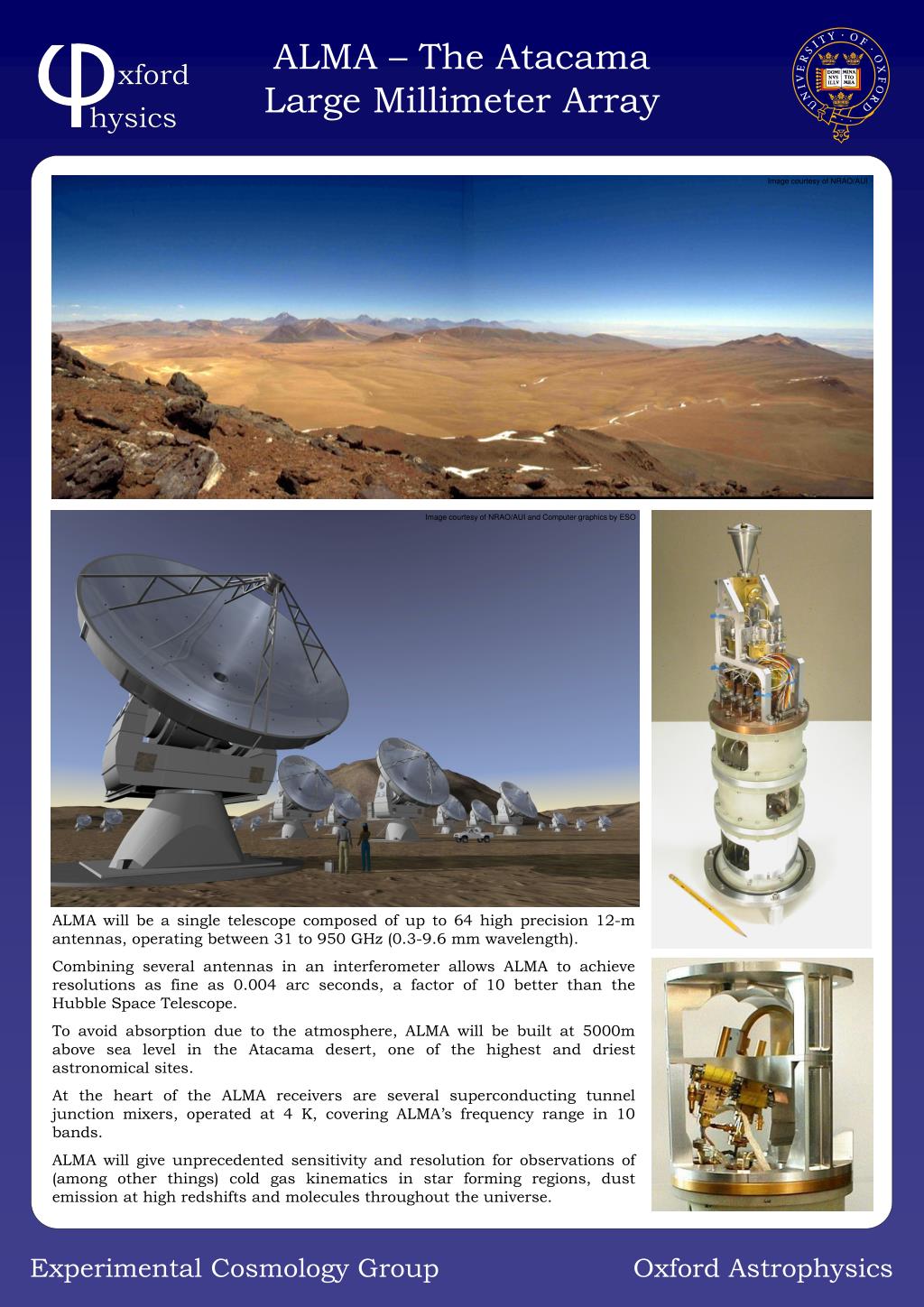

  1. ALMA – The Atacama Large Millimeter Array Image courtesy of NRAO/AUI Image courtesy of NRAO/AUI and Computer graphics by ESO ALMA will be a single telescope composed of up to 64 high precision 12-m antennas, operating between 31 to 950 GHz (0.3-9.6 mm wavelength). Combining several antennas in an interferometer allows ALMA to achieve resolutions as fine as 0.004 arc seconds, a factor of 10 better than the Hubble Space Telescope. To avoid absorption due to the atmosphere, ALMA will be built at 5000m above sea level in the Atacama desert, one of the highest and driest astronomical sites. At the heart of the ALMA receivers are several superconducting tunnel junction mixers, operated at 4 K, covering ALMA’s frequency range in 10 bands. ALMA will give unprecedented sensitivity and resolution for observations of (among other things) cold gas kinematics in star forming regions, dust emission at high redshifts and molecules throughout the universe.
