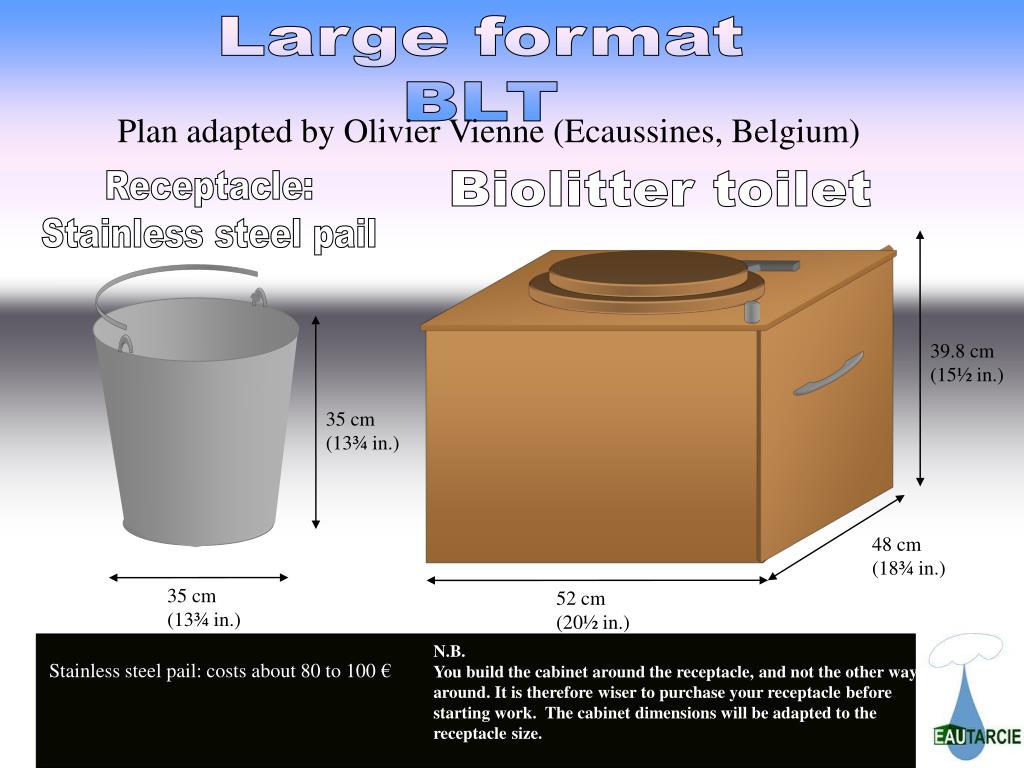

Large format BLT. Plan adapted by Olivier Vienne (Ecaussines , Belgium). Receptacle: Stainless steel pail. Biolitter toilet. 39.8 cm (15½ in.). 35 cm (13¾ in.). 48 cm (18¾ in.). 35 cm (13¾ in.). 52 cm (20½ in.). Stainless steel pail: costs about 80 to 100 €. N.B.
E N D
Large format BLT Plan adapted by Olivier Vienne (Ecaussines, Belgium) Receptacle: Stainless steel pail Biolitter toilet 39.8 cm (15½ in.) 35 cm (13¾ in.) 48 cm (18¾ in.) 35 cm (13¾ in.) 52 cm (20½ in.) Stainless steel pail: costs about 80 to 100 € N.B. You build the cabinet around the receptacle, and not the other way around. It is therefore wiser to purchase your receptacle before starting work. The cabinet dimensions will be adapted to the receptacle size.
Outside dimensions THE PLAN 5-7 cm (2-3 in.) 48 cm (18¾ in.) 52 cm (20½ in.) 39.8 cm (15¾ in.) 38 cm (15 in.) 47 cm (18½ in.) 50.6 cm (20½ in.)
38 cm (15 in.) 38 cm (15 in.) 38 cm (15 in.) 38 cm (15 in.) a a’ b b’ 47 cm (18½ in.) 47 cm (18½ in.) 47 cm (18½ in.) 47 cm (18½ in.) x Panel cutout sizes THE PLAN Panel thickness 18 mm (¾ in.) 48 cm (18¾ in.) c 52 cm (20½ in.) 3-ply 6 mm (¼ in.) - Trace and cut out oval according to seat size and shape by using seat as template. - The hole must be a bit wider than the seat, for a proper fit. y 43.2 cm (17 in.) 43.2 cm (17 in.) 47 cm (18½ in.) 47 cm (18½ in.) ---- y These measurements depend on the cut-out of panel «c». Adjust receptacle position with respect to seat position, considering that a deflective urine baffle will be added inside the oval. ± 7cm (2¾ in.) ± 34 cm (13¼ in.) To be adjusted to outside dimension of receptacle ----
Accessories THE PLAN - 1 toilet seat with cover - 2 brass or stainless steel hinges + adequate screws - 60 cm (24 in.) slim chain - 2 handles + 1 assorted knob - 4 furniture skates (nailed type) - 180 cm (72 in.) of 40 x 40 mm (2x2) mitre wood blockings - 15 mm (5/8 in.) nails - 12 x 40 mm (1½ in.) screws with appropriately-sized screw plugs. - wood glue - varnish (preferable)
Assembly THE PLAN Fix toilet seat to panel «c» c c Hinges a’ b b’ a appropriately-sized screw plugs 40 mm (1½ in.) screws Screw plug
Z* Assembly THE PLAN W Panel «y» (it need not be nailed ) Wood blocking supports (to be nailed to side panels) Panel «x» ( to be nailed to the underside of the wood blockings ) W is a recess to house the receptacle’s handle. W must be as small as possible ! (W depends on your type of receptacle). Z* depends on the receptacle height. If the receptacle is smaller, panel «x» will be adjusted accordingly (positioned higher with respect to the lower edge of the side panels).
Assembly THE PLAN Knob used to lift panel «c» for pail removal Align handles with BLT’s centre of gravity (with receptacle in place) ! Handles It is preferable to nail a stainless steel (or plastic) baffle at frontof hole in panel «c». Nailed skates The deflective baffle is needed to prevent urinating between the receptacle and the cabinet, unless your receptacle rests up against the underside of the toilet seat. Felt protection
