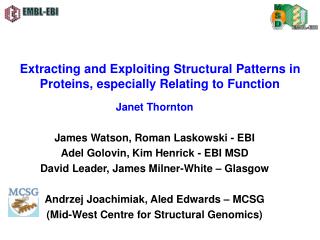

  1. Extracting and Exploiting Structural Patterns in Proteins, especially Relating to Function Janet Thornton James Watson, Roman Laskowski - EBI Adel Golovin, Kim Henrick - EBI MSD David Leader, James Milner-White – Glasgow Andrzej Joachimiak, Aled Edwards – MCSG (Mid-West Centre for Structural Genomics)

  2. Outline • Structural Motifs • PDBsum • MSDmotif • Functional Motifs • Catalytic Site Atlas • DNA Binding Motifs • Automated templates • Reverse Templates • From Structure to Function? - ProFunc

  3. Structural Motifs Structural motifs are commonly occurring small sections of proteins – that are distinguished by: Sequence – Gly-X-Gly Conformation – , angles Secondary structure - helix, bab unit Function – catalytic triad, calcium binding site

  4. Examples of Structural Motifs AlphaBeta Motif Beta Turn Schellmann Loop Beta Bulge (classic) Nest Beta Bulge Loop

  5. Structural Motifs They may be continuous along the chain (e.g. GXG) or discontinuous (e.g. catalytic triad) Historically motifs were identified and analysed in an effort to understand the relationship between protein sequence and structure, to improve prediction methods. They are also used to assign function (Prosite). Many motifs can now be recognised automatically from coordinates, using programmes such as DSSP and Promotif PDB files can be annotated with these structural motifs e.g. in PDBsum

  6. http://www.ebi.ac.uk/thornton-srv/databases/pdbsum/ Roman Laskowski

  7. Example page

  8. Protein detail

  9. MSD motifhttp://www.ebi.ac.uk/msd-srv/msdmotif Adel Golovin Currently alpha test Full Release probably ~Oct 2005 PDB: 1gci

  10. MSD motif Small 3D motifs from J.Milner-White search/view Secondary structure patterns (HTH) search/view ,, based search/view Ligands and their environment search/view Catalytic sites search/view Blast sequence search/view Prosite compliant patterns search/view 3D multiple alignment

  11. MSDmotif options

  12. Small motifs Alpha-Beta Motif Nest ST staple 11 motifs in total (Prof James Milner-White) http://doolittle.ibls.gla.ac.uk:9006/david/ProteinMotifDB.html

  13. Motifs In MSDmotif (1) AlphaBeta Motif Beta Turn Schellmann Loop Beta Bulge (classic) Nest Beta Bulge Loop

  14. Motifs In MSDmotif (2) Asx Motif ST Motif Asx Turn ST Turn ST Staple

  15. Statistics provided by MSDmotifSTmotif a) b) c) • Amino acid occurrence at each position • Correlation between side chain charge and residue position • Motif parameter variation

  16. Hit List after clicking

  17. Small motifs – 3D alignmentfrom different families ST-staple

  18. MSDmotif options

  19. Strand – turn – Strand 2-3 residues gap Glycosylation pattern N{P}[ST]{P} Secondary structure patterns Where N binds sugar: Man or Nag

  20. ,, search PDB:1gci Ideal for short loops search

  21. Example of a search using MSDmotif PDB:1gci Subtilases family PDB:1f5p Globins family Phi/Psi Search using MSDmotif + Other Subtilases Calcium binding site

  22. Sequence search ZN binding pattern: CXXCXXXFXXXXXLXXHXXXH

  23. 3D alignment

  24. MSD motif • Available in alpha version • http://www.ebi.ac.uk/msd-srv/msdmotif • Will be published later this year • Incremental weekly update • 20 G disk space on Oracle DB, linear dependency ~ 0.8 M per PDB • Web application server with J2EE servlet engine • NCBI Blast Adel Golovin Kim Henrick

  25. Outline • Structural Motifs • PDBsum • MSDmotif • Functional Motifs • Catalytic Site Atlas • DNA Binding Motifs • Automated templates • Reverse Templates • From Structure to Function? - ProFunc

  26. Catalytic Site Atlas • Taken from primary literature: • -lactamase Class A • EC: 3.5.2.6 • PDB: 1btl • Reaction: -lactam + H2O  -amino acid • Active site residues: S70, K73, S130, E166 • Plausible mechanism:

  27. The Catalytic Site Atlas: a resource of catalytic sites and residues identified in enzymes using structural data. Craig T. Porter, Gail J. Bartlett, and Janet M. Thornton Nucl. Acids. Res. 2004 32: D129-D133. http://www.ebi.ac.uk/thornton-srv/databases/CSA

  28. Annotates catalytic residues in the PDB • Based on a dataset of 514 enzyme families • Representative catalytic site for each family • Homologues assigned by Psi-BLAST • Limited substitution allowed. • Homologues updated monthly. • Literature references • Data also available via MSDsite • http://www.ebi.ac.uk/thornton-srv/databases/CSA • http://www.ebi.ac.uk/msd-srv/msdsite

  29. 3-D templates • Use 3D templates to describe the active site of the enzyme • analogous to 1-D sequence motifs such as PROSITE, butin 3-D • Sequence position independent • Captures essence of functional site in protein

  30. Pepsin

  31. Aspartic Proteinase - Active Site residues - [DTG]x2 Eukaryotic & Fungal Aspartic Proteinases: all-atom DTG-DTG Template

  32. Aspartic Proteases: Active Site Template Asp CO2 Gly C A template of 8 atoms is sufficient to identify all Aspartic Proteinases Asp O Gly C Thr/Ser O Thr O

  33. Aspartic Protease Template Search against all PDB green= true red=false

  34. TEmplate Search and Superposition TESS Wallace et al., 1997 • defines a functional site as a sequence-independent set of atoms in 3-D space • search a new structure for a functional site • search a database of structures for similar clusters e.g. serine proteinase, catalytic triad

  35. Serine Proteinase templates • A trypsin-based template of 7 atoms was able to identify almost all serine proteinases in PDB- including subtilisin • It also identified active sites of several other functionally distinct enzyme families - serine carboxypeptidase, acetylcholine esterase; lipase; dehalogenase • The catalytic triad has evolved independently many times

  36. Active site convergence Trypsin Subtilisin

  37. Trypsin Subtilisin Alpha/beta hydrolase Brain platelet activating factor acetylhydrolase Clp protease CheB methylesterase

  38. (~600 Metal binding site templates) (189 enzyme active site templates) 3D Templates to Characterise Functional Sites Template searches

  39. GARTfase Cholesterol oxidase IIAglc histidine kinase Database of enzyme active site templates 189 templates … Carbamoylsarcosine amidohhydrase Ser-His-Asp catalytic triad Dihydrofolate reductase

  40. DNA Protein +

  41. DNA-binding Motifs • Helix-Turn-Helix (HTH) • Standard HTH • Winged helix • Beta Sheet • Zinc-finger

  42. Prediction of DNA Binding Function using Structural Motifs • Predicting function from structure • Structural motifs • Helix-Turn-Helix (HTH) • Bind in major groove • Carboxyl terminal helix - DNA recognition • 1/3 DNA-binding protein families (16/54) • Brennan and Mathews 1989: Brennan, 1991

  43. HTH Motif Proteins Catabolic activator protein (1ber) Lambda repressor/operator complex (1lmb)

  44. HTH Motif Templates 3D template library (E.g. 1berA16-36)

  45. Predicting DNA binding function • Scanning template library against 3D structures • One templateT(length n) scanned against proteinP of length m, RMSD calculated optimal superposition at each m-n+1 possible positions in P • Calculate lowest RMSD for optimal superposition

  46. Ideal RMSD distribution

  47. RMSD Distributions with HTH templates 1.2Å RMSD 831/23,506 = 3.5% false positives 2/142 = 1.4% false negatives

  48. HTH Motif Extended Templates • Extend templates by adding +2 residues to start and end • 1berA16-36 • 1berA14-38

  49. RMSD Distributions with extended HTH templates 1.2Å 110/23,506 = 0.5% false positives 2/144 = 1.4% false negatives

  50. Comparison of RMSD Distributions
