  1. An End-to-End Approach to Globally Scalable Network Storage Presented in cs294-4 P2P Systems by Sailesh Krishnamurthy 15 October 2003

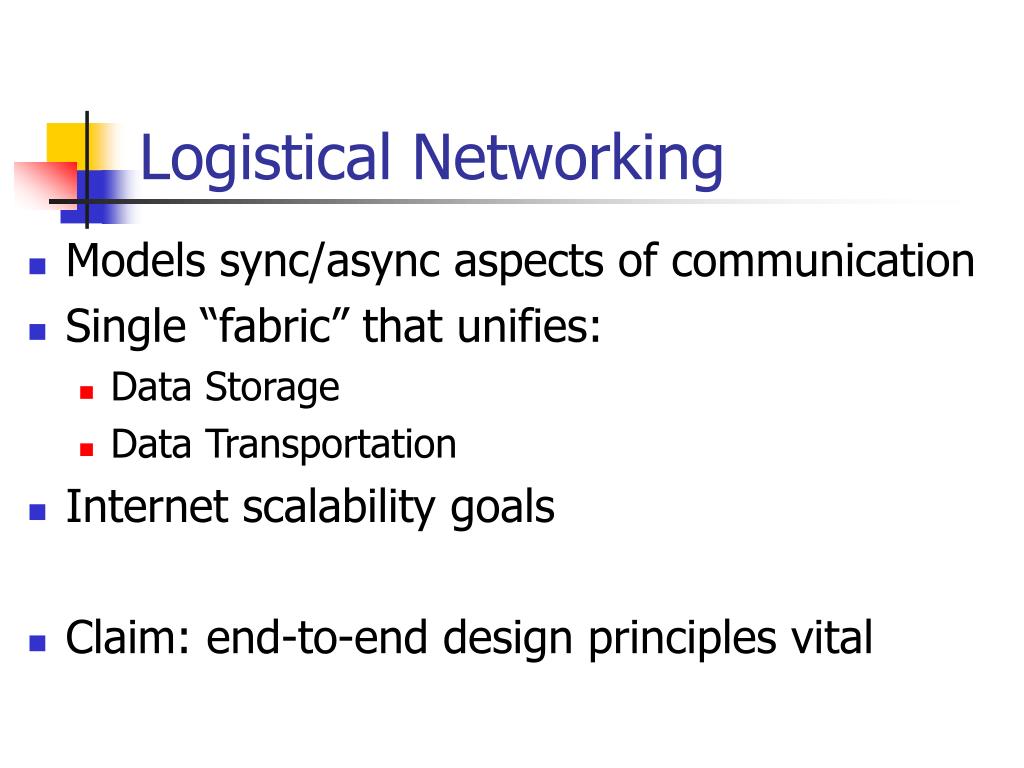

  2. Logistical Networking • Models sync/async aspects of communication • Single “fabric” that unifies: • Data Storage • Data Transportation • Internet scalability goals • Claim: end-to-end design principles vital

  3. Background: SAN vs NAS • Current trends in storage networking • SAN - Storage Area Network • NAS - Network Attached Storage

  4. NAS Wires: TCP/IP Protocol: NFS, CIFS SAN Wires: Fiber Channel Protocol: Encapsulated SCSI More on NAS v. SAN Where is the File System ?

  5. Traditional networks • General goals • Minimize delay • Minimize probability of corruption • Maximize probability of delivery • Assumptions in traditional storage nets • When storage is closely coupled, delay and probability of corruption can be low while availability is high.

  6. SANs cannot scale to SWANs • In the SWAN, resources can be intermittently unavailable • So we need e2e strategies • Simple retries • Redundant data accesses spread across nw • High-latency archival backups

  7. Correctness in the wild • SANs are “controlled” environments and correctness is not an issue • In the SWAN, data storage may not be reliable. • Data accuracy must be checked by producers and consumers - at endpoints

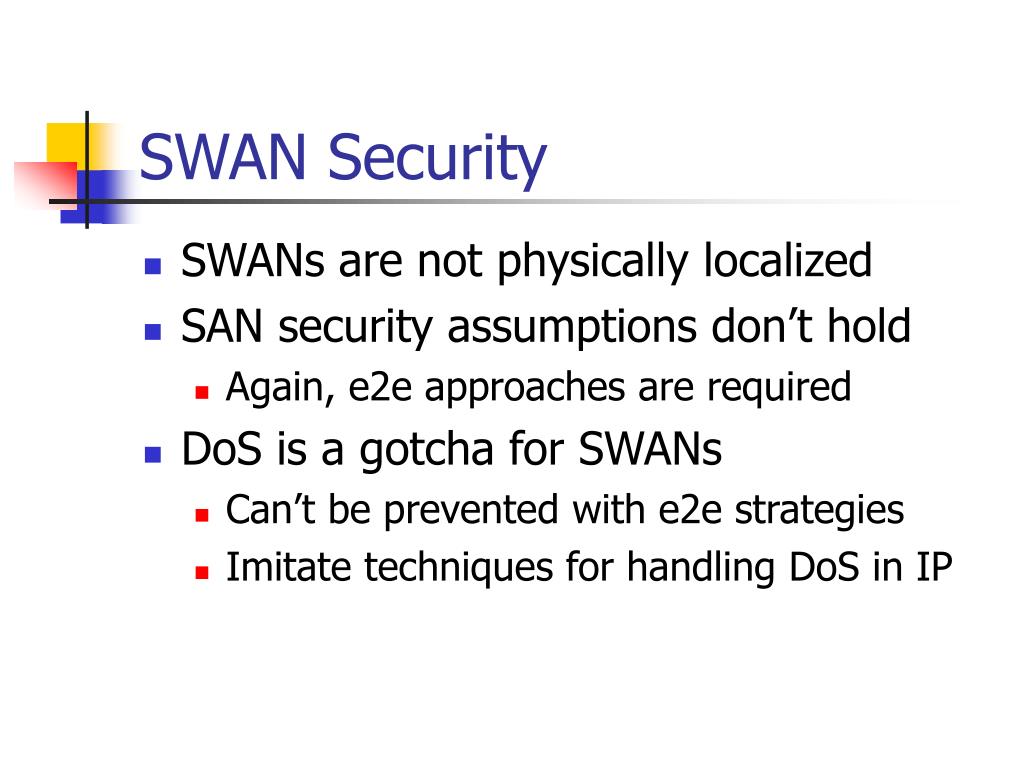

  8. SWAN Security • SWANs are not physically localized • SAN security assumptions don’t hold • Again, e2e approaches are required • DoS is a gotcha for SWANs • Can’t be prevented with e2e strategies • Imitate techniques for handling DoS in IP

  9. Unbounded Size/Duration • Since single store may not have all the resources all the time, the endpoint has to manage distribution of data • Unbounded duration allocation hurts resource sharing. • Should this be managed at endpoints ?

  10. Logistical Networking • Storage Networking • IP networks: interconnection fabric of storage pool • Logistical Networking • Storage part of the networking infrastructure • Shared resource fabric exposing storage resources • Similar to how internet exposes bandwidth resources • Storage Stack • Bottom-up, layered e2e design approach • Internet Backplane Protocol (IBP)

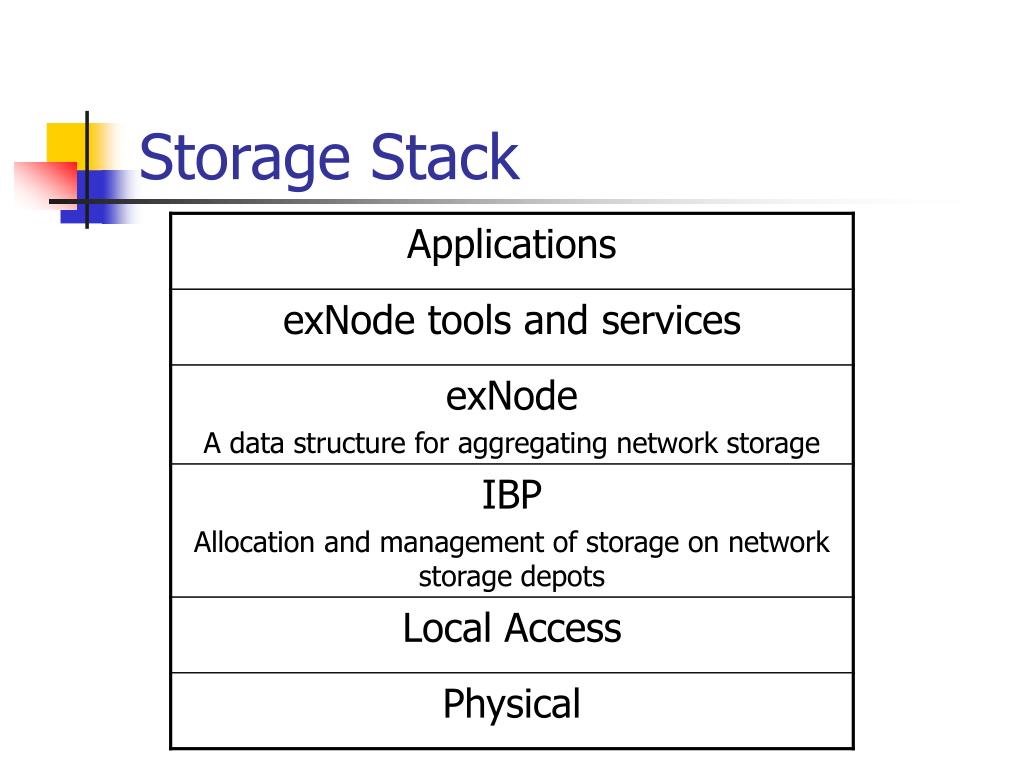

  11. Storage Stack

  12. IBP - Internet Backplane Protocol • First layer of stack that’s globally accessible • Abstracts access layer resources (file/block storage services) • Expose underlying storage resources to maximize freedom at higher levels • Implement only indispensable & common functions • Enable scalable internet style resource sharing • Mask peculiarities of access layer resource • Abstract service based on data blocks that are managed as “byte arrays”

  13. IP vs link layer Agg. of link layer packets masks packet size limits Simple fault detection - faulty datagrams dropped Global addressing masks diffs b/w LANs IP Property Any participant of a routed IP n/w can use any link layer connection IBP “byte array” indep. Agg. access layer blocks masks fixed block size Simple fault detection - drop faulty byte arrays Global addressing (IP) maks diff b/w acc layer IBP Property Any participant of an IBP n/w can use any access layer storage resource IP vs IBP

  14. Issues with IBP • DoS vulnerability is much worse • In IP: • DoS attacks require constant sending of data • Does not profit the attacker in any way • In IBP: • Once data block is allocated it remains used • Using remote storage does benefit the attacker • Strong semantics (reliability) of traditional storage/SAN are difficult to implement in the SWAN

  15. IBP Solutions • Time-limited storage allocations • When a lease expires, the storage can be reused for some other user • Soft storage semantics in IBP • IBP is a “best-effort” service • Allocated storage can be revoked at any time

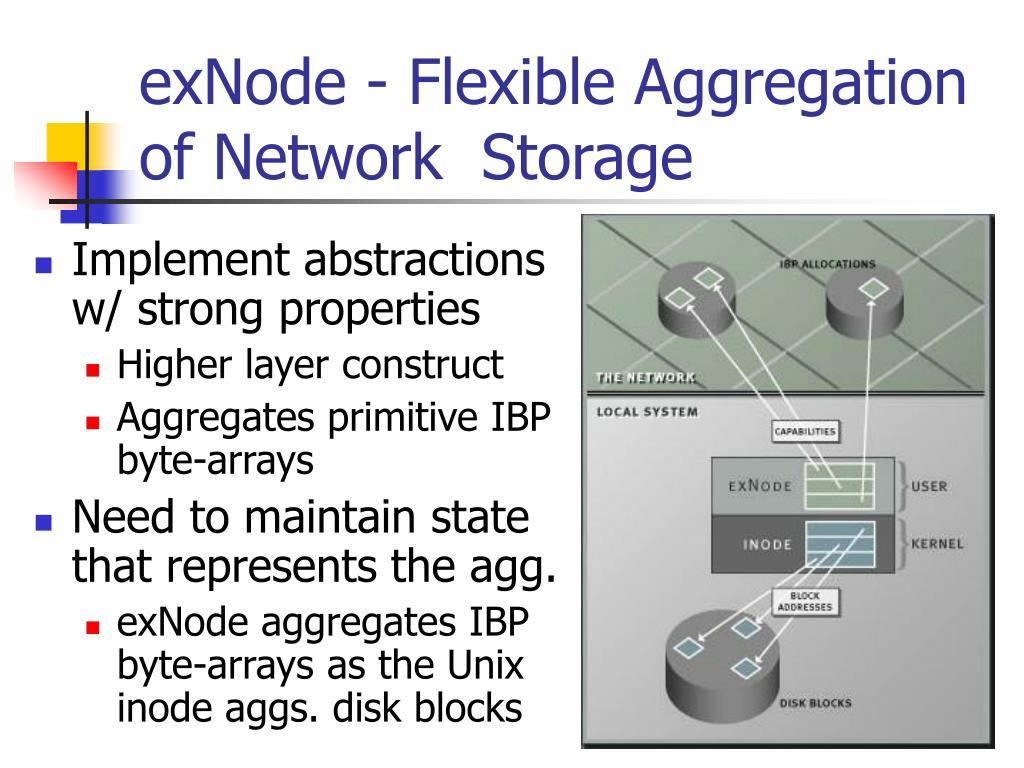

  16. exNode - Flexible Aggregation of Network Storage • Implement abstractions w/ strong properties • Higher layer construct • Aggregates primitive IBP byte-arrays • Need to maintain state that represents the agg. • exNode aggregates IBP byte-arrays as the Unix inode aggs. disk blocks

  17. e2e services for storage • exNode can hold additional metadata for services: • Redundancy • Framing of data into segments w/ checksums • exNode is analogous to the state of a TCP connection, data on disk analogue of a TCP stream

  18. Relation to p2p systems • Paper compares with Napster/Gnutella • In file sharing all allocations are at endpoints .. leads to large data transfers • Appropriate comparison is Oceanstore ? • My view • exNode infrastructure is a way to create storage services from smaller blocks • Can be useful in an Oceanstore-like setting • Can alleviate some SAN shortcomings ?
