Electricians. E C CODES. A Leader in Education. Temperature Terminations. Question:. E C CODES. What size conductor is required if the load is 20 amperes, and the terminations are not marked ?. A Leader in Education. a. # 14. b. # 12. c. # 10. d. #8. E C CODES.

almira
Télécharger la présentation

E C CODES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

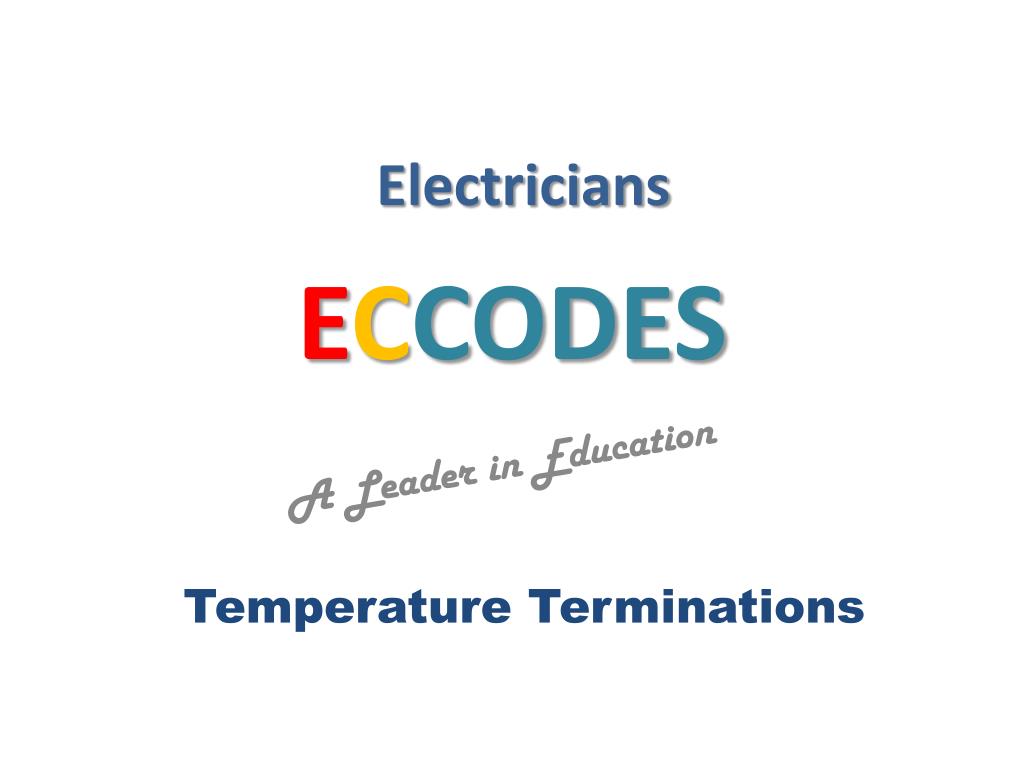

  1. Electricians ECCODES A Leader in Education Temperature Terminations

  2. Question: ECCODES What size conductor is required if the load is 20 amperes, and the terminations are not marked? A Leader in Education a. # 14 b. # 12 c. # 10 d. #8

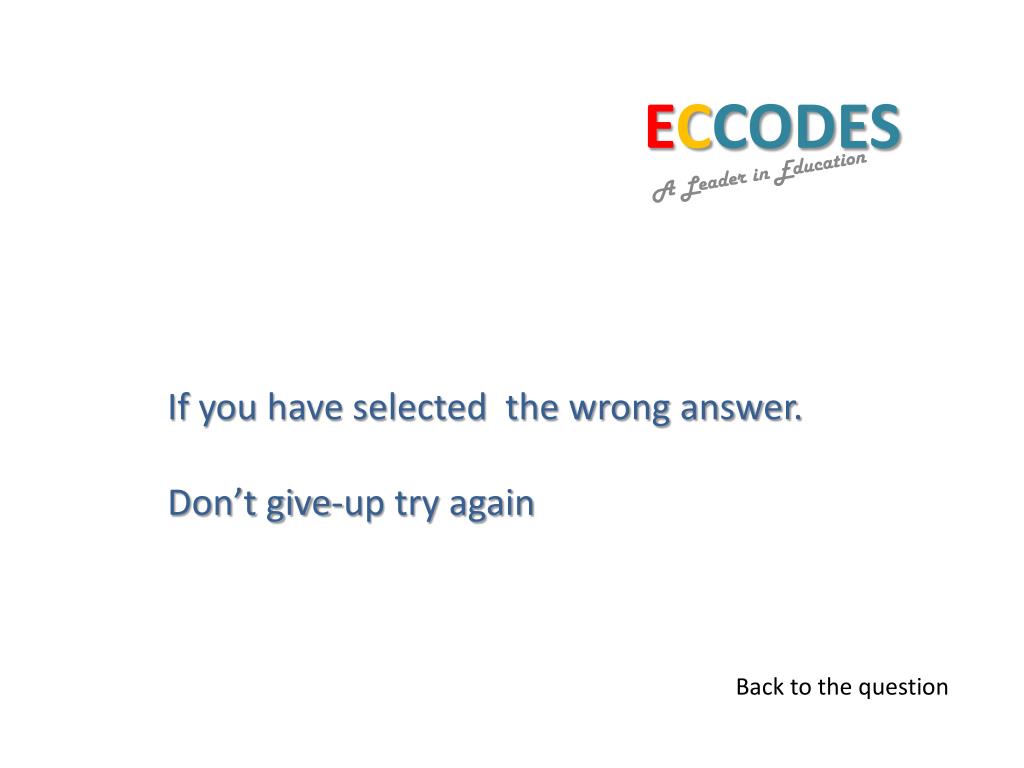

  3. ECCODES If you have selected the wrong answer. Don’t give-up try again A Leader in Education Back to the question

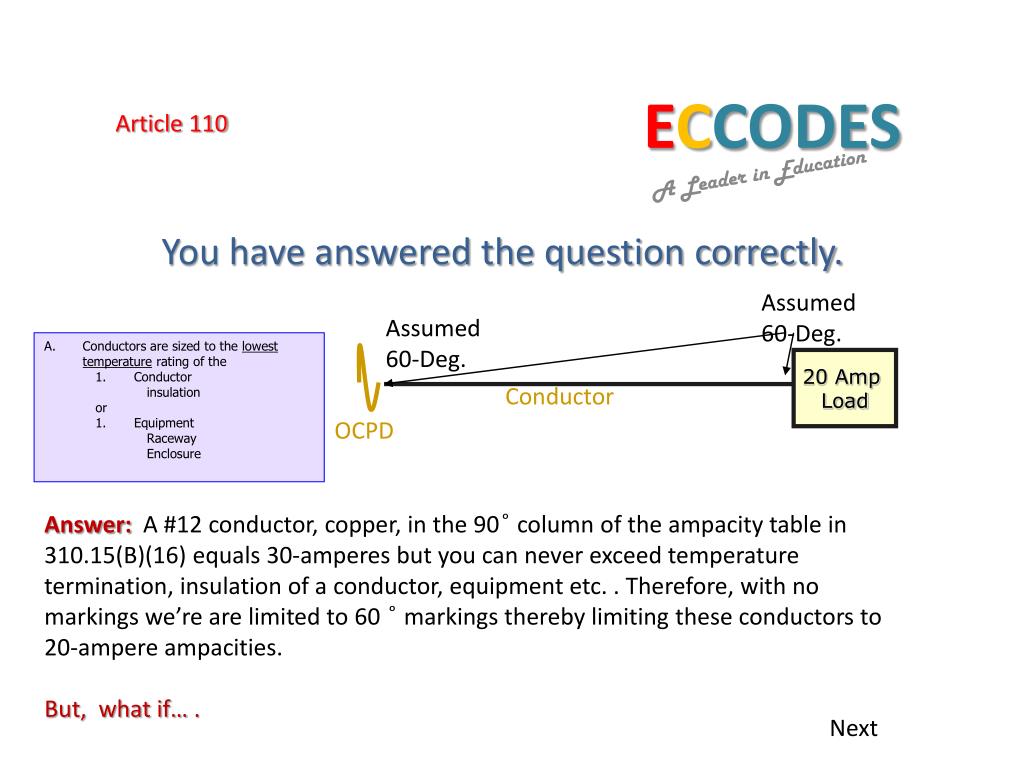

  4. Article 110 You have answered the question correctly. ECCODES Assumed 60-Deg. Assumed 60-Deg. • Conductors are sized to the lowest temperature rating of the • Conductor • insulation • or • Equipment • Raceway • Enclosure 20 Amp Load Conductor OCPD A Leader in Education Answer: A#12 conductor, copper, in the 90 ͦ column of the ampacity table in 310.15(B)(16) equals 30-amperes but you can never exceed temperature termination, insulation of a conductor, equipment etc. . Therefore, with no markings we’re are limited to 60 ͦ markings thereby limiting these conductors to 20-ampere ampacities. But, what if… . Next

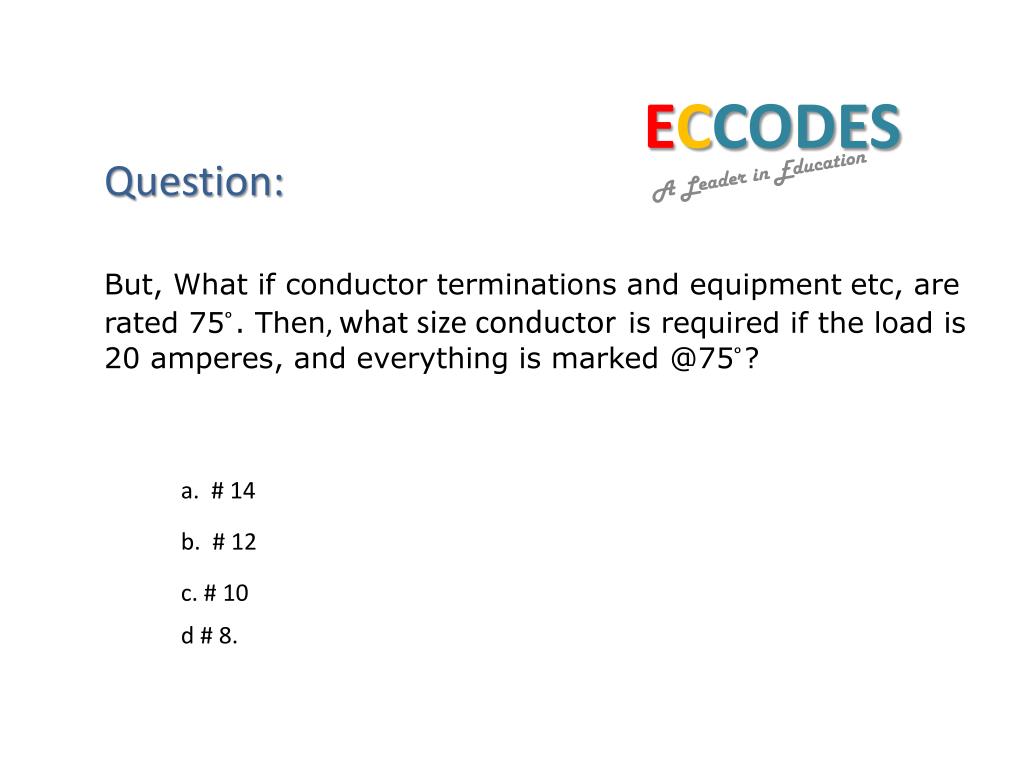

  5. Question: ECCODES But, What if conductor terminations and equipment etc, are rated 75 ͦ. Then, what size conductoris required if the load is 20 amperes, and everything is marked @75 ͦ? A Leader in Education a. # 14 b. # 12 c. # 10 d # 8.
