Teeth

Teeth. A unique vertebrate structure. Tooth Anatomy. Enamel ~96% hydroxyapatite (inorganic); very hard but brittle Dentin ~70% hydroxyapatite; similar to bone Cementum ~50% hydroxyapatite Pulp – connective tissue, blood vessesls , nerves, odontoblasts

alpha
Télécharger la présentation

Teeth

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

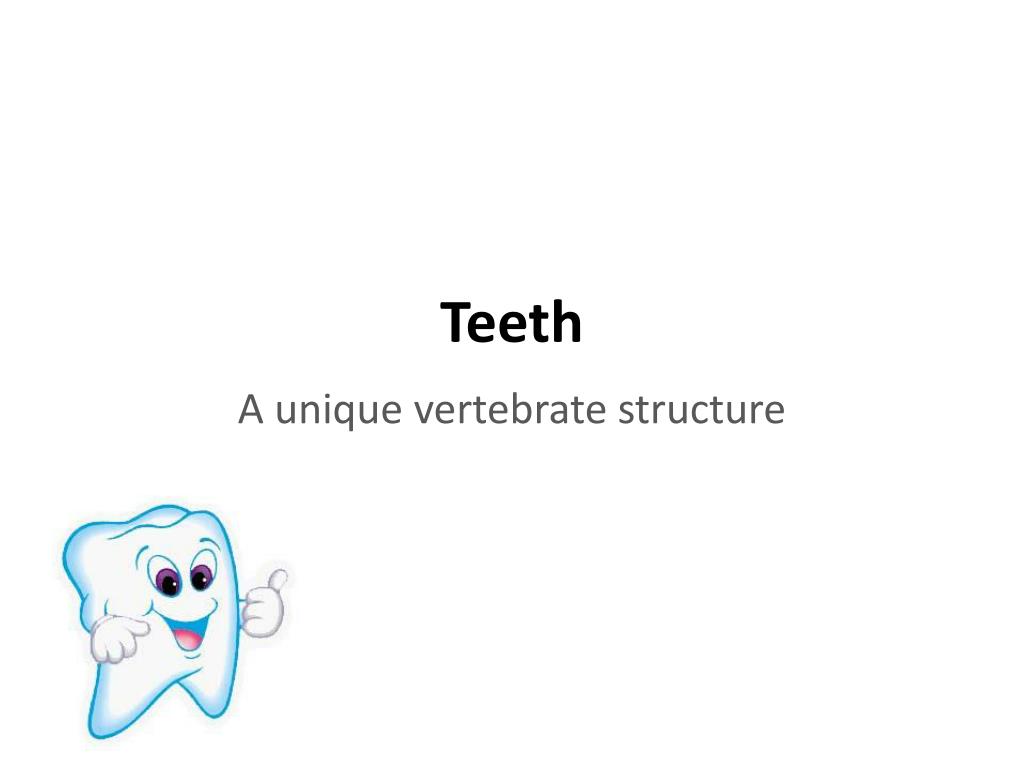

  1. Teeth A unique vertebrate structure

  2. Tooth Anatomy • Enamel ~96% hydroxyapatite (inorganic); very hard but brittle • Dentin ~70% hydroxyapatite; similar to bone • Cementum ~50% hydroxyapatite • Pulp – connective tissue, blood vessesls, nerves, odontoblasts • Periodontal ligament – collagenous; connects cementum to bone of socket

  3. Tooth Anatomy Above gum-line = Made by cementoblasts Within socket = Covered by cementum Apical foramen – entrance in root for blood vessels and nerves

  4. Dentition • Homodont – all teeth similar • Heterodont – teeth differ in appearance • Polyphyodont – teeth continuously replaced • Diphyodont – two sets of teeth • Deciduous dentition = first set • Permanent dentition = second and final set • Monophyodont– one set of teeth

  5. Tooth Development • Epidermis produces enamel organ • Neural crest cells in dermis form dermal papilla • Ameloblastsin enamel organ produce enamel • Odontoblasts in dermal papilla produce dentin • Crown, then root, then cementum and periodontal ligament – sit within dermal bone

  6. Tooth Development From neural crest cells Permanent tooth primordium forms before deciduous tooth lost Fig. 13.8

  7. Tooth Support • Thecodont = set in socket with periodontal ligament; mammals, some reptiles • Acrodont = attached to top of bone or in shallow sockets; some bony fishes, some reptiles • Pleurodont = set in shelf on inner side of jawbone; some bony fishes, amphibians, some reptiles Fig. 13.10

  8. Bony Fish • Some have no teeth • Most with polyphyodont, homodont teeth • Variety of shapes according to diet • Some have pharyngeal teeth that are not homologous to teeth of other vertebrates

  9. Cartilaginous Fish • Polyphyodont, homodont teeth • Lack dermal bones, so develop in a whorl within skin • Some sharks shed > 35,000 teeth in a lifetime!

  10. Cartilaginous Fish • Placoid scales in skin are just small teeth!

  11. Amphibians • Polyphyodont, homodont teeth • Pedicellate teeth – crown and base separated by layer of uncalcified dentin

  12. Amphibians • Frogs have only upper jaw teeth, except one species (Gastrothecaguentheri) • “Fanged frogs” have dentary protrusions • Some amphibians have no teeth Gastrothecaguentheri Limnonectesmacrocephalus

  13. Tetrapods • Birds and turtles do not have teeth • Reptiles – polyphyodont, homodont teeth – variation due to diet

  14. Mammals • Most heterodont, diphyodont • Lots of specializations and variation due to diet • Incisors of rodents and lagomorphs continually grow Grow at roots while crown wears away

  15. Specialized Teeth in Mammals • Incisors – cutting, clipping • Canines – puncturing, holding • Premolars – crushing, grinding • Molars – crushing, grinding • Dental formula explains what teeth present: • I 3/3, C 1/1, PM 4/4, M 2/3 • 3-1-4-2/3-1-4-3 Coyote

  16. Specialized Teeth in Mammals • Mule deer dental formula: 0-0-3-3/3-1-3-3 No upper incisors or canines

  17. Specialized Teeth in Mammals • Cheek teeth = molariform teeth = premolars and molars Fig. 13.15 Notice how wear exposes dentin Can classify based on crown height Low crowns = = High crowns

  18. Specialized Teeth in Mammals • Cusps = raised ridges or peaks on occlusal surfaces (contacts opposing surface) = Cusps in crescent-shaped ridges; artiodactlys = Cusps drawn out into straight ridges; perissodactlys, rodents = Cusps form rounded peaks; omnivores
