  1. SOLUTIONS

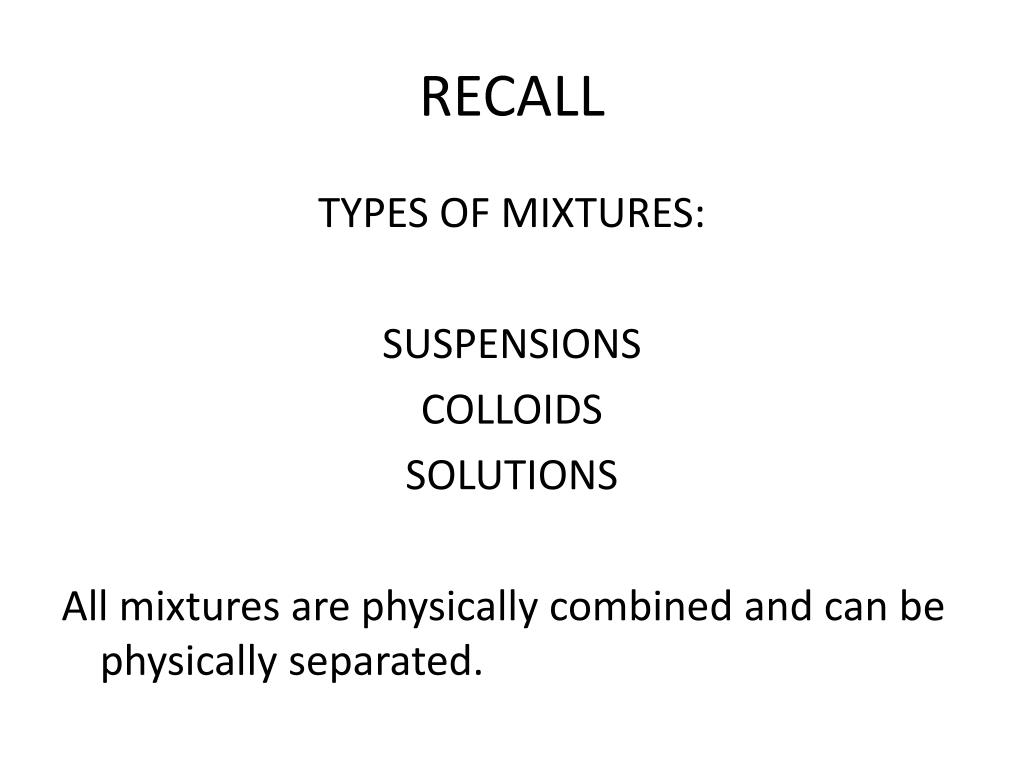

  2. RECALL TYPES OF MIXTURES: SUSPENSIONS COLLOIDS SOLUTIONS All mixtures are physically combined and can be physically separated.

  3. DEFINITION A solution is a homogeneous mixture of two or more substance in a single physical state

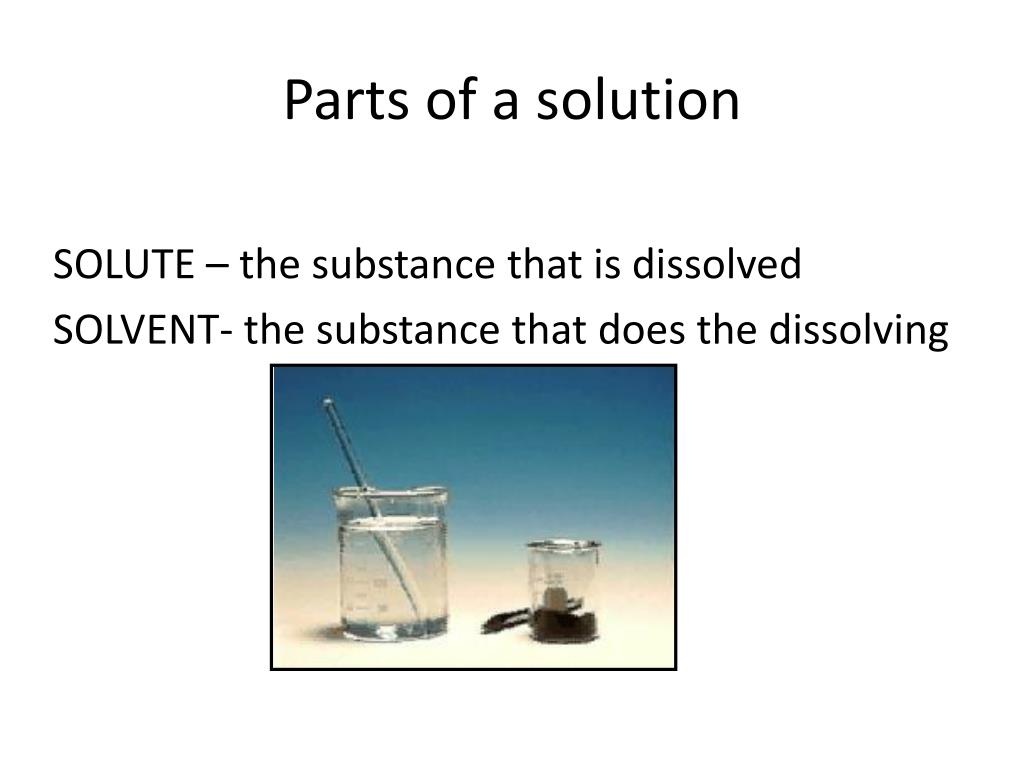

  4. Parts of a solution SOLUTE – the substance that is dissolved SOLVENT- the substance that does the dissolving

  5. Definitions Solute - KMnO4 Solvent - H2O

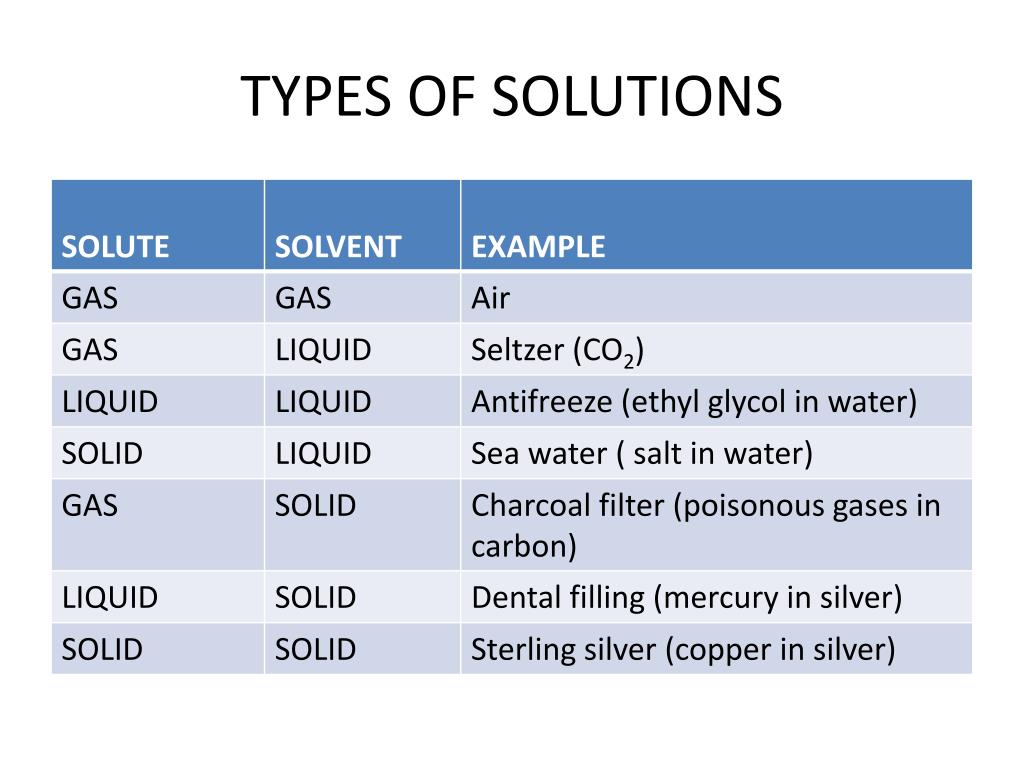

  6. TYPES OF SOLUTIONS

  7. SOLID SOLUTION • Contain two or more metals called alloys • Formed by melting the components and mixing them together and allowing them to cool • Properties of alloys are different from the original component metals

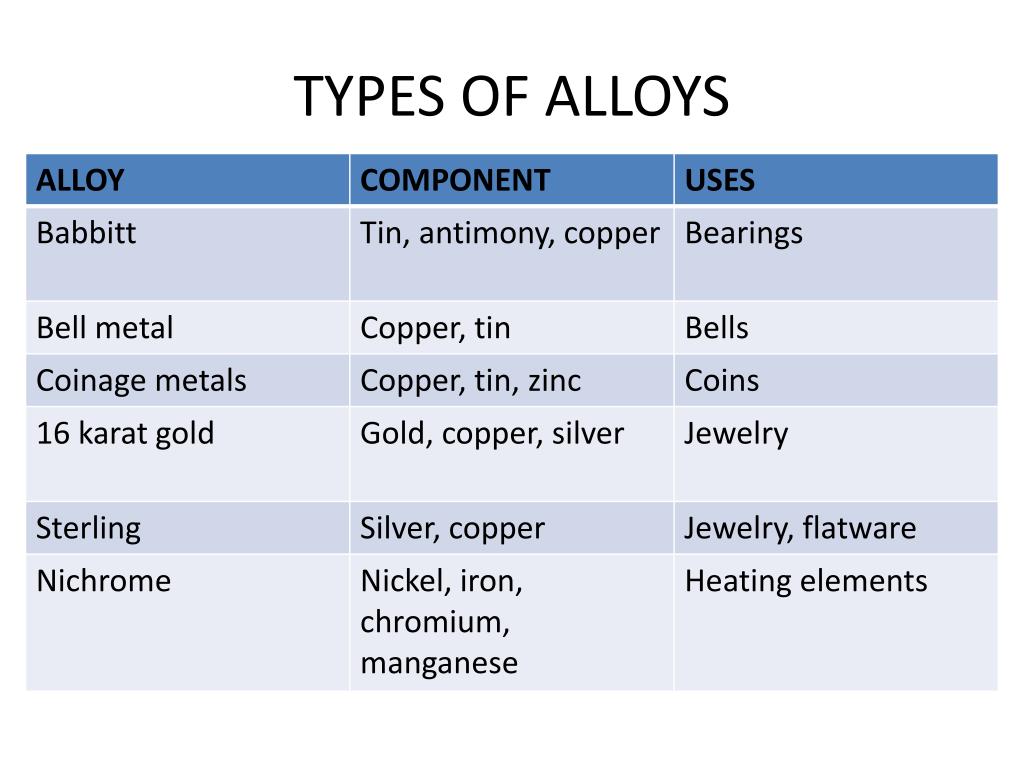

  8. TYPES OF ALLOYS

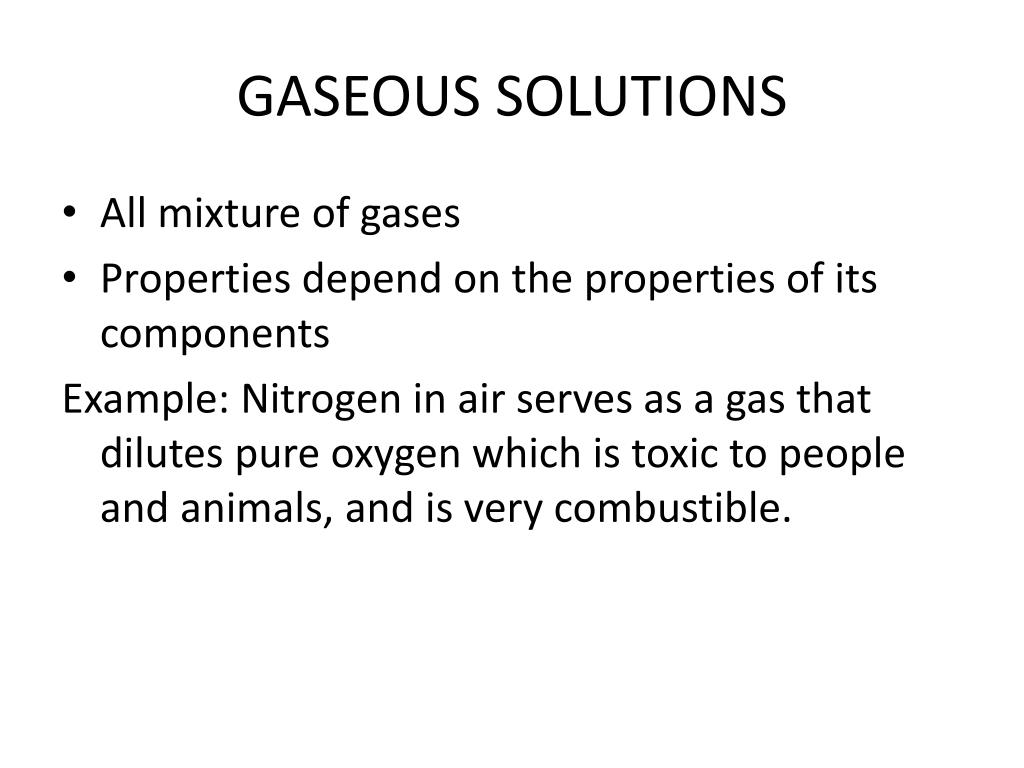

  9. GASEOUS SOLUTIONS • All mixture of gases • Properties depend on the properties of its components Example: Nitrogen in air serves as a gas that dilutes pure oxygen which is toxic to people and animals, and is very combustible.

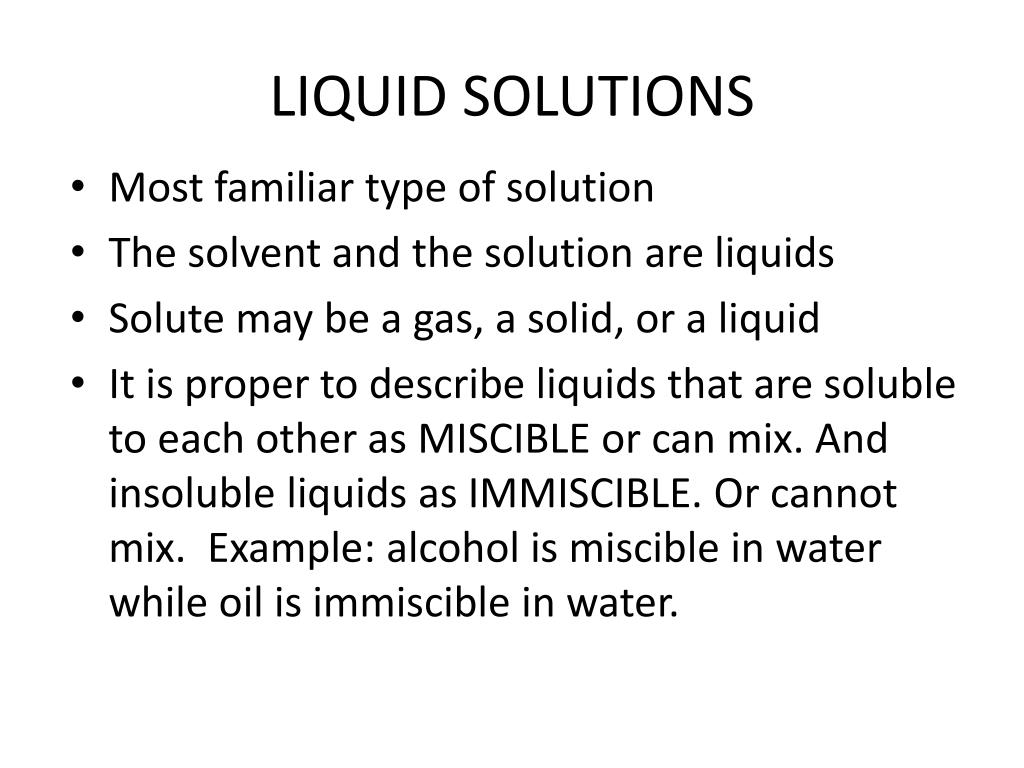

  10. LIQUID SOLUTIONS • Most familiar type of solution • The solvent and the solution are liquids • Solute may be a gas, a solid, or a liquid • It is proper to describe liquids that are soluble to each other as MISCIBLE or can mix. And insoluble liquids as IMMISCIBLE. Or cannot mix. Example: alcohol is miscible in water while oil is immiscible in water.

  11. Important terminologies: • Soluble – substance that dissolves another substance • Insoluble – substance that does not dissolve another substance • Miscible – liquids that are completely soluble in each other or can mix • Immiscible – liquids that are not soluble in each other or cannot mix

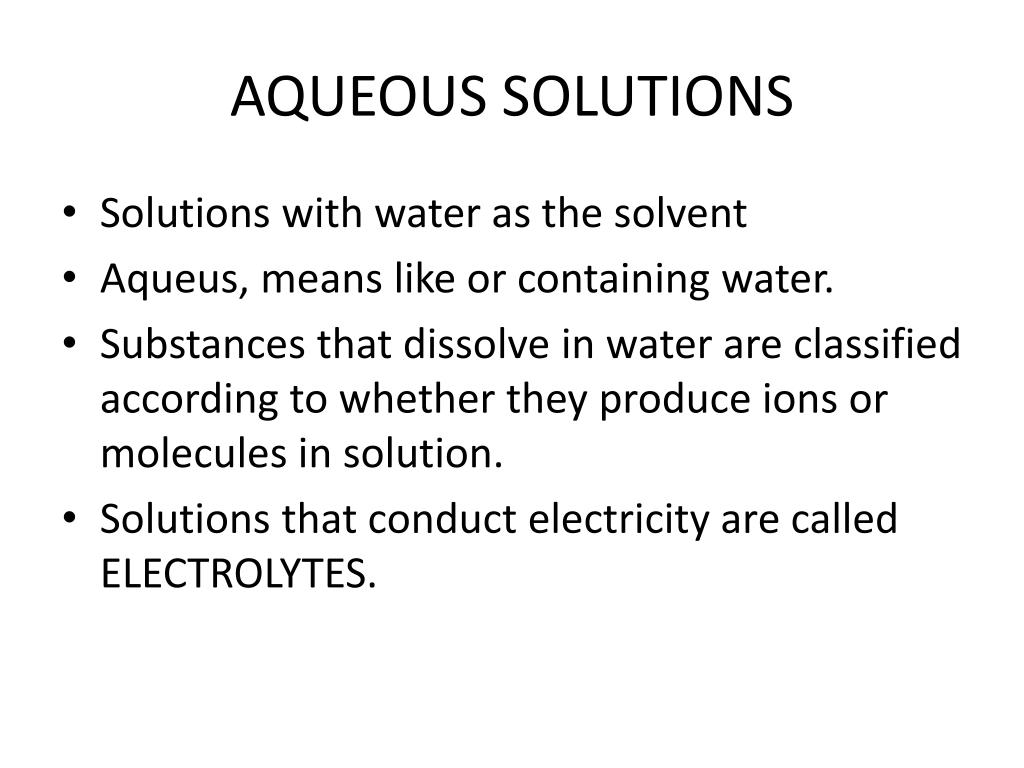

  12. AQUEOUS SOLUTIONS • Solutions with water as the solvent • Aqueus, means like or containing water. • Substances that dissolve in water are classified according to whether they produce ions or molecules in solution. • Solutions that conduct electricity are called ELECTROLYTES.

  13. SOLUBILITY

  14. Solubility • Solubility • maximum grams of solute that will dissolve in 100 g of solvent at a given temperature • varies with temp • based on a saturated solution

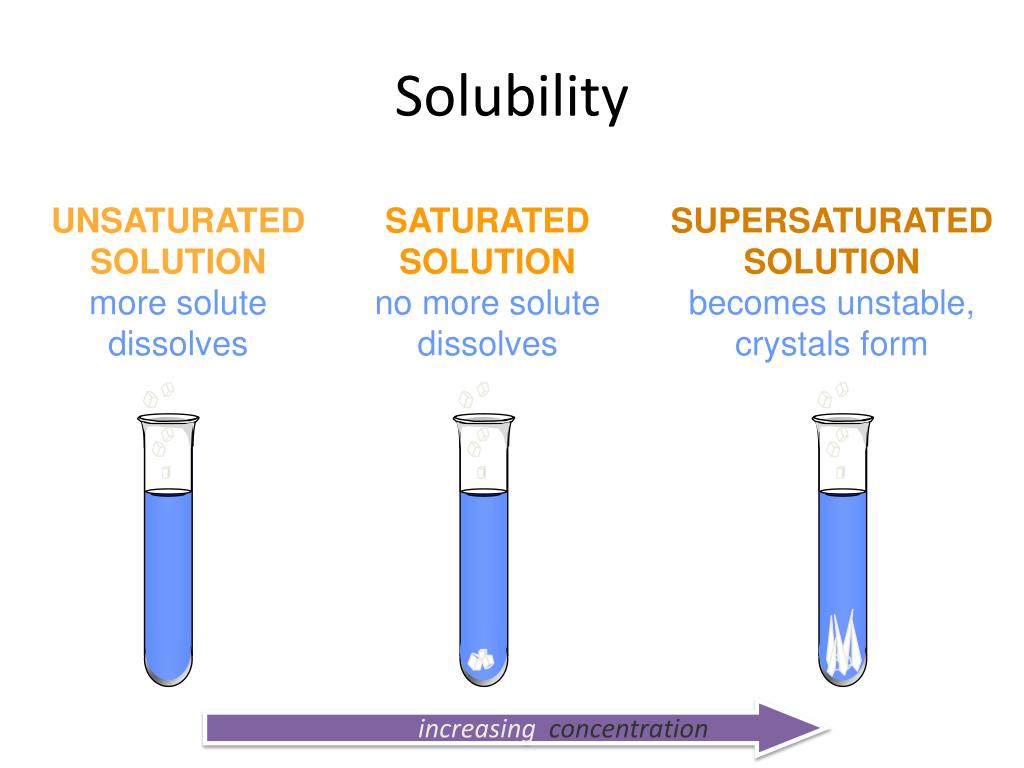

  15. UNSATURATED SOLUTION more solute dissolves SATURATED SOLUTION no more solute dissolves SUPERSATURATED SOLUTION becomes unstable, crystals form Solubility increasing concentration

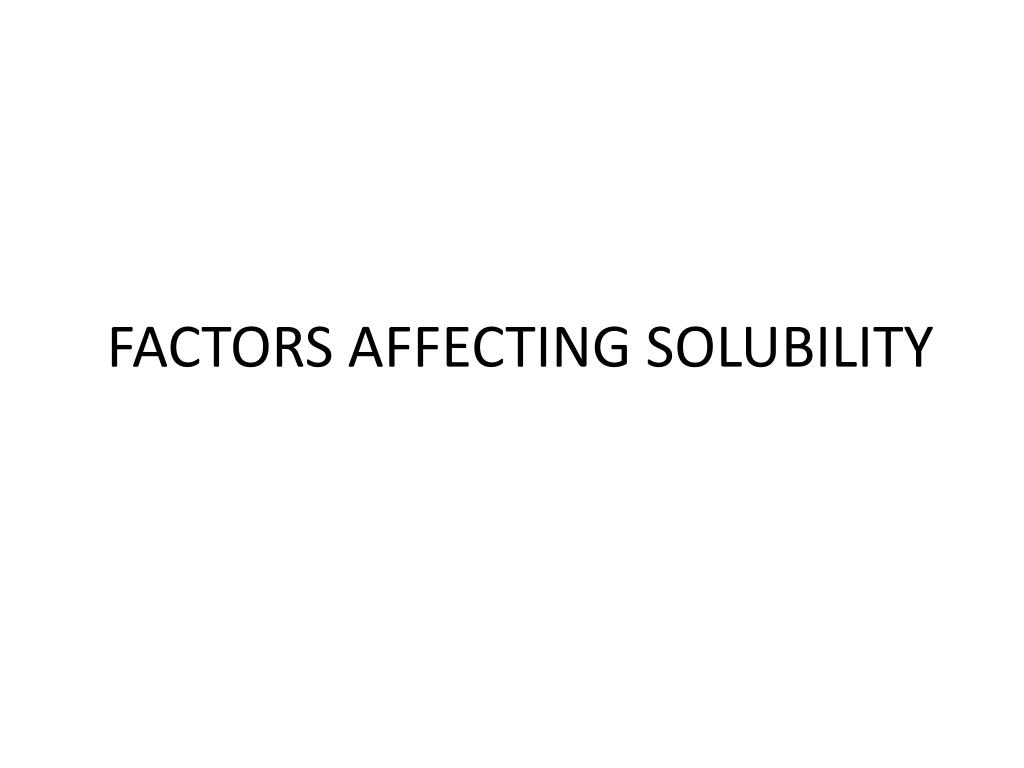

  16. FACTORS AFFECTING SOLUBILITY

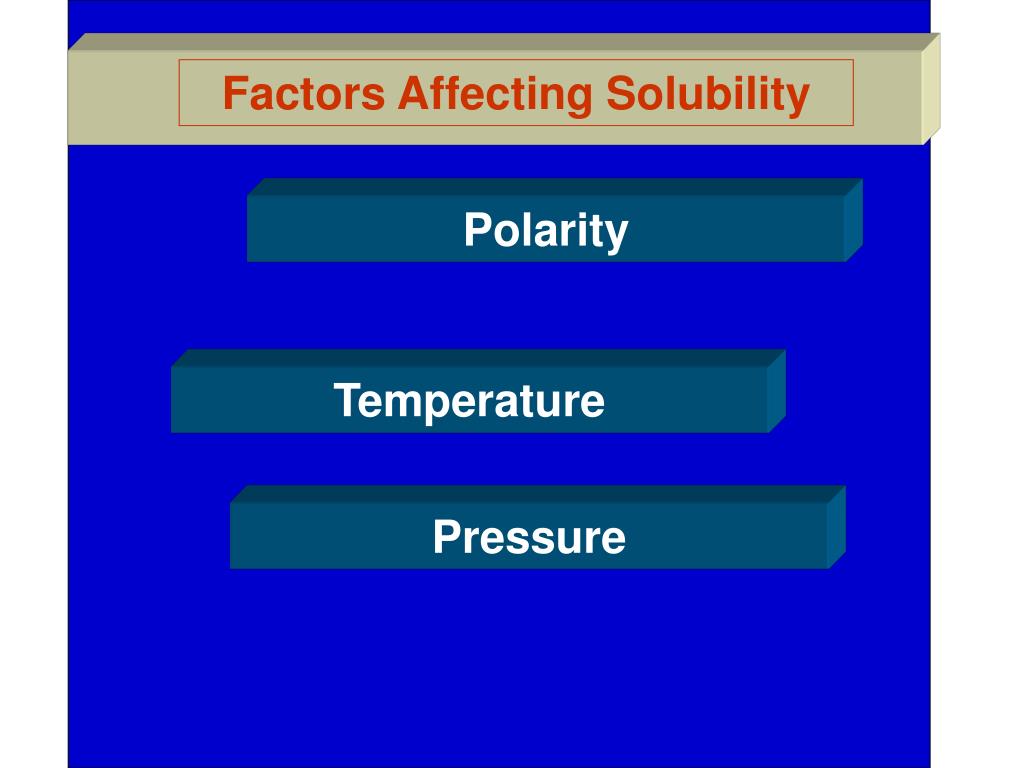

  17. Factors Affecting Solubility Polarity Temperature Pressure

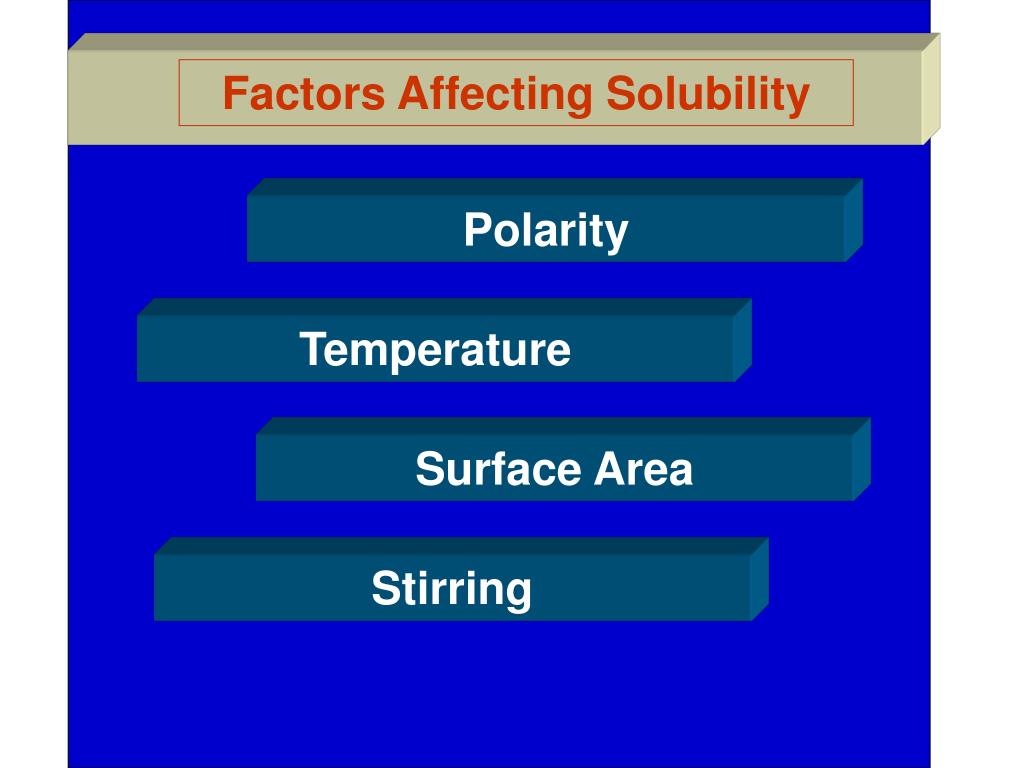

  18. Factors Affecting Solubility Polarity Temperature Surface Area Stirring

  19. NATURE OF SOLUTE AND SOLVENT “LIKE DISSOLVES LIKE” There is a general saying that "like dissolves like" (but this is a very general rule, with many exceptions). • Refers to the type of bonding between separate molecules • If the bonding between separate molecules of the substance to be dissolved is similar to the type of bonding between solvent molecules, there is a good chance that the substance will dissolve.

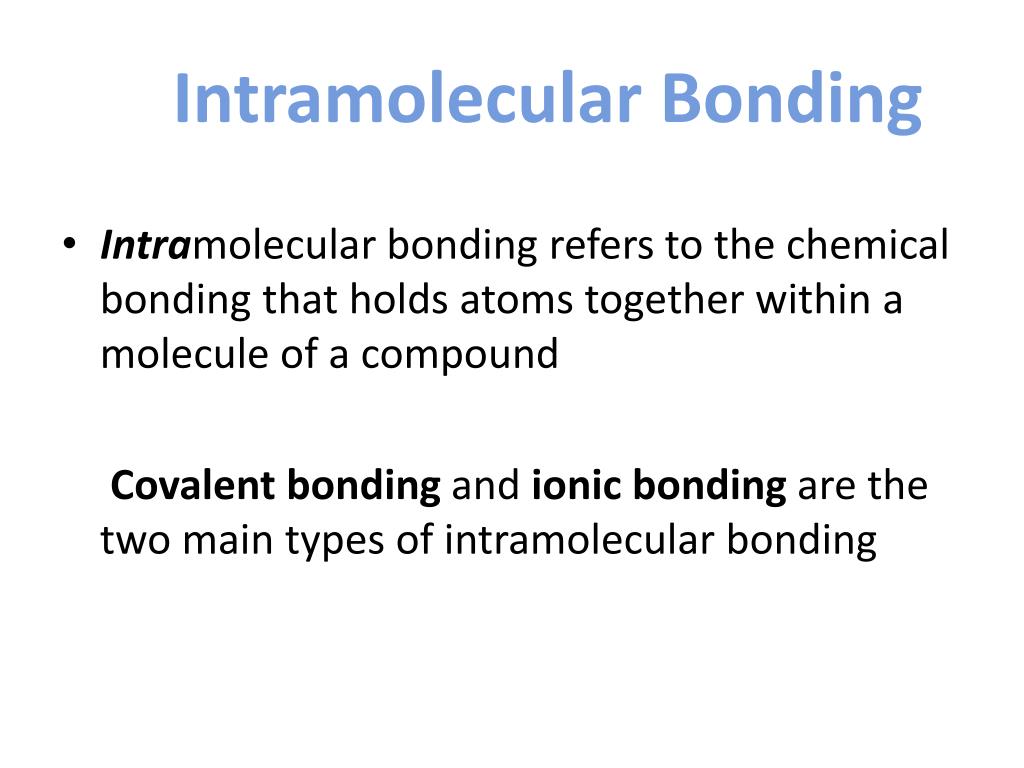

  20. Intramolecular Bonding • Intramolecular bonding refers to the chemical bonding that holds atoms together within a molecule of a compound Covalent bonding and ionic bonding are the two main types of intramolecular bonding

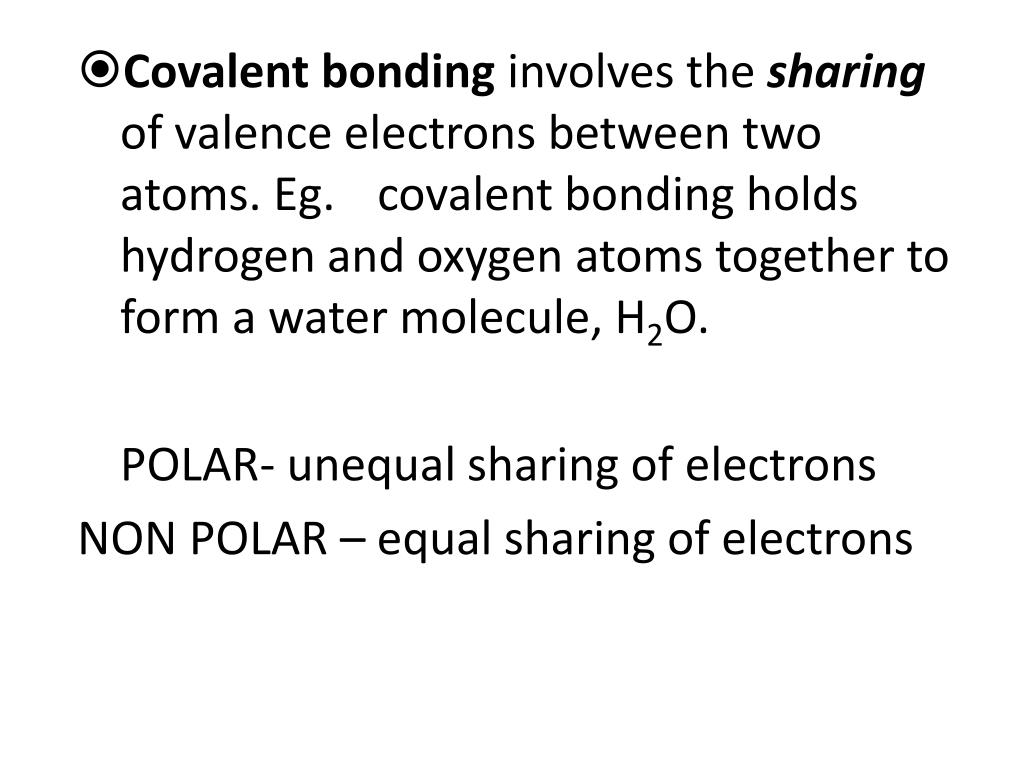

  21. Covalent bonding involves the sharing of valence electrons between two atoms. Eg. covalent bonding holds hydrogen and oxygen atoms together to form a water molecule, H2O. POLAR- unequal sharing of electrons NON POLAR – equal sharing of electrons

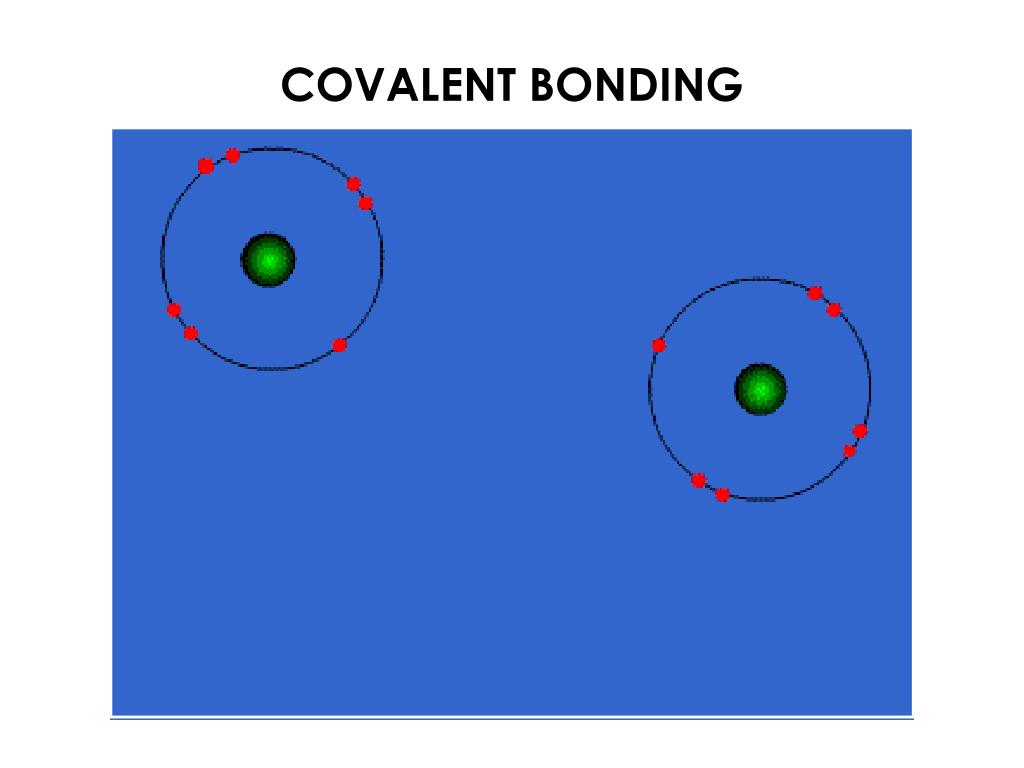

  22. COVALENT BONDING

  23. Ionic bonding involves the transfer of valence electrons from one atom to another. • The electrostatic attraction between opposite charged ions holds the molecule (formula unit) together.  An example is sodium chloride, NaCl, which involves the attraction between Na+ and Cl- ions.

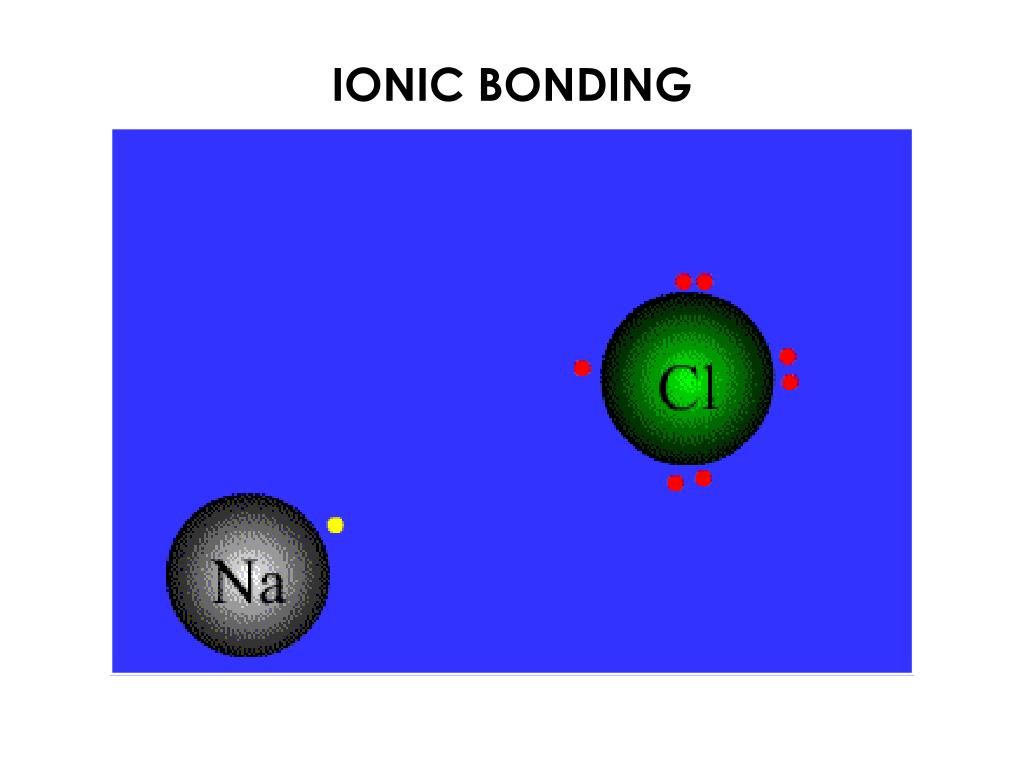

  24. IONIC BONDING

  25. Intermolecular Bonding • Intermolecular bonding, on the other hand, is what holds two or more separate molecules together in the solid and liquid phases. What type of intermolecular bonding is involved largely depends on two main factors: • whether the bonds within a single molecular are polar or not (an unequal distribution of charge between two atoms involved in a chemical bond due to an unequal sharing of electrons), and • the overall shape of the molecule (it's molecular architecture - tetrahedral, linear, bent, etc.).

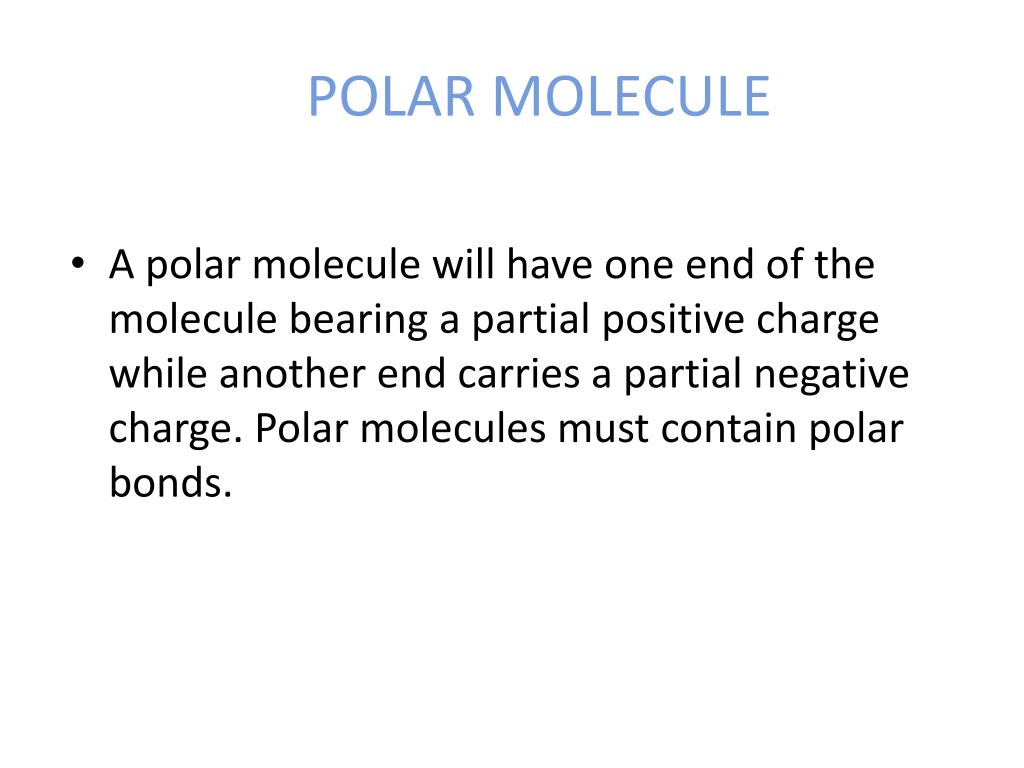

  26. POLAR MOLECULE • A polar molecule will have one end of the molecule bearing a partial positive charge while another end carries a partial negative charge. Polar molecules must contain polar bonds.

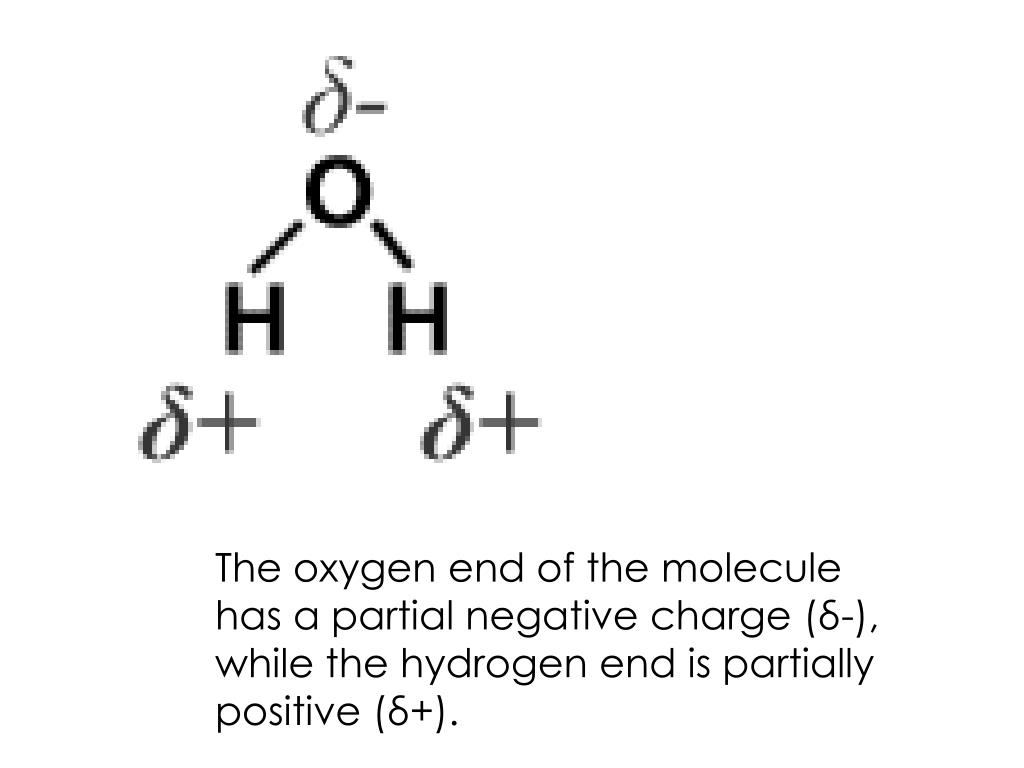

  27. The oxygen end of the molecule has a partial negative charge (δ-), while the hydrogen end is partially positive (δ+).

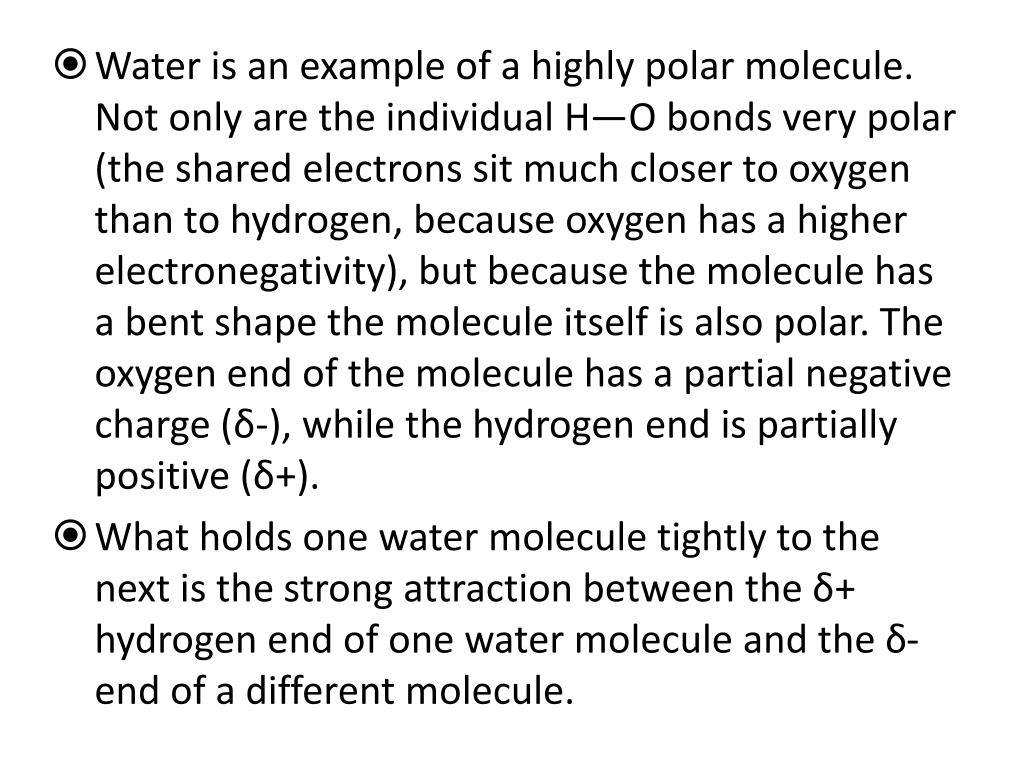

  28. Water is an example of a highly polar molecule. Not only are the individual H—O bonds very polar (the shared electrons sit much closer to oxygen than to hydrogen, because oxygen has a higher electronegativity), but because the molecule has a bent shape the molecule itself is also polar. The oxygen end of the molecule has a partial negative charge (δ-), while the hydrogen end is partially positive (δ+). • What holds one water molecule tightly to the next is the strong attraction between the δ+ hydrogen end of one water molecule and the δ- end of a different molecule.

  29. NON POLAR MOLECULE • Nonpolar molecules either have no positive and negative ends, because the bonds making up the molecule are nonpolar, or because the entire outer "edge" is negative while the core of the molecule is positive (or vice versa), thus having no oppositely charged ends.

  30. The Effect of Temperature on Solubility • Generally, increasing the temperature will increase solubility of solids and liquids. • But increasing temperature will lower the solubility of gases (the gas will escape from solution, going back to the gas phase).

  31. The Effect of Pressure on the Solubility of Gases • Pressure has no effect in the solubility of solids and liquids but has a strong effect on the solubility of gases. • The solubility of gases increases when the pressure above the gas is increased. In other words, more gas will dissolve when pressure is increased. This is known as HENRY’S LAW (William Henry, English chemist).

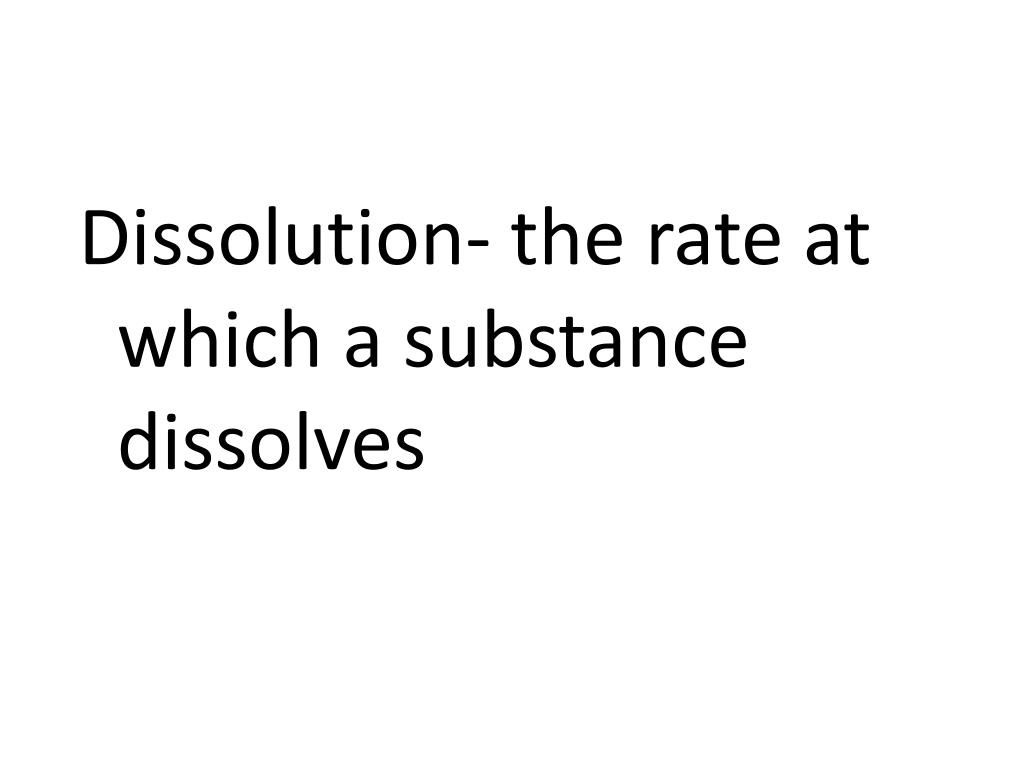

  32. Dissolution- the rate at which a substance dissolves

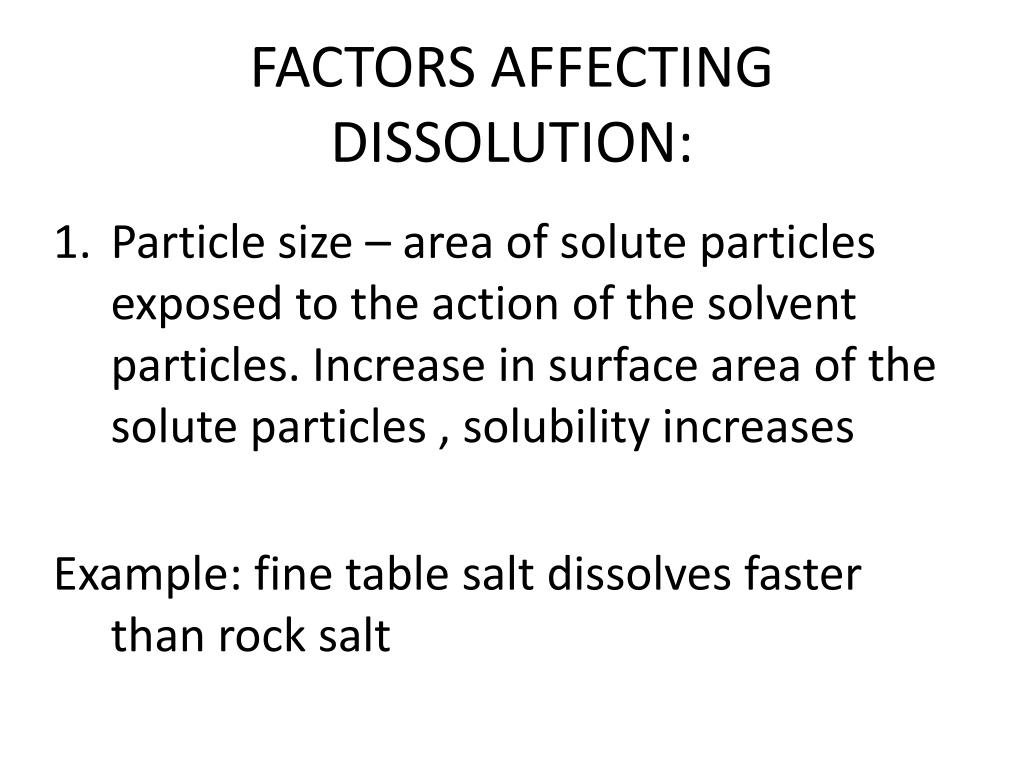

  33. FACTORS AFFECTING DISSOLUTION: • Particle size – area of solute particles exposed to the action of the solvent particles. Increase in surface area of the solute particles , solubility increases Example: fine table salt dissolves faster than rock salt

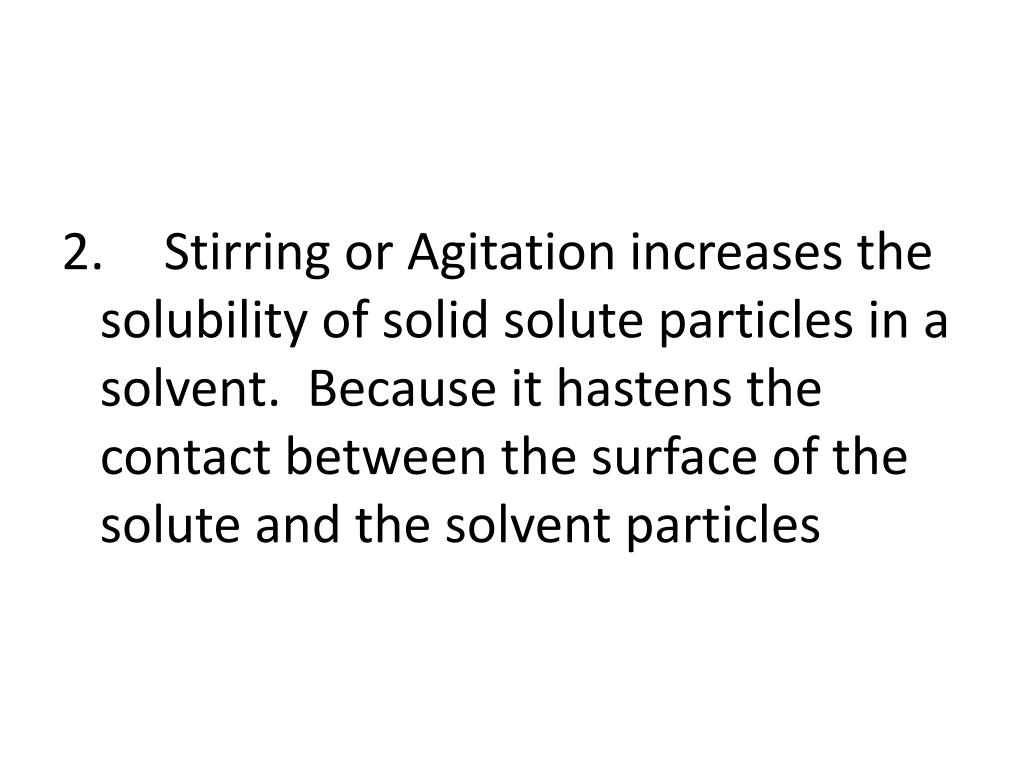

  34. 2. Stirring or Agitation increases the solubility of solid solute particles in a solvent. Because it hastens the contact between the surface of the solute and the solvent particles

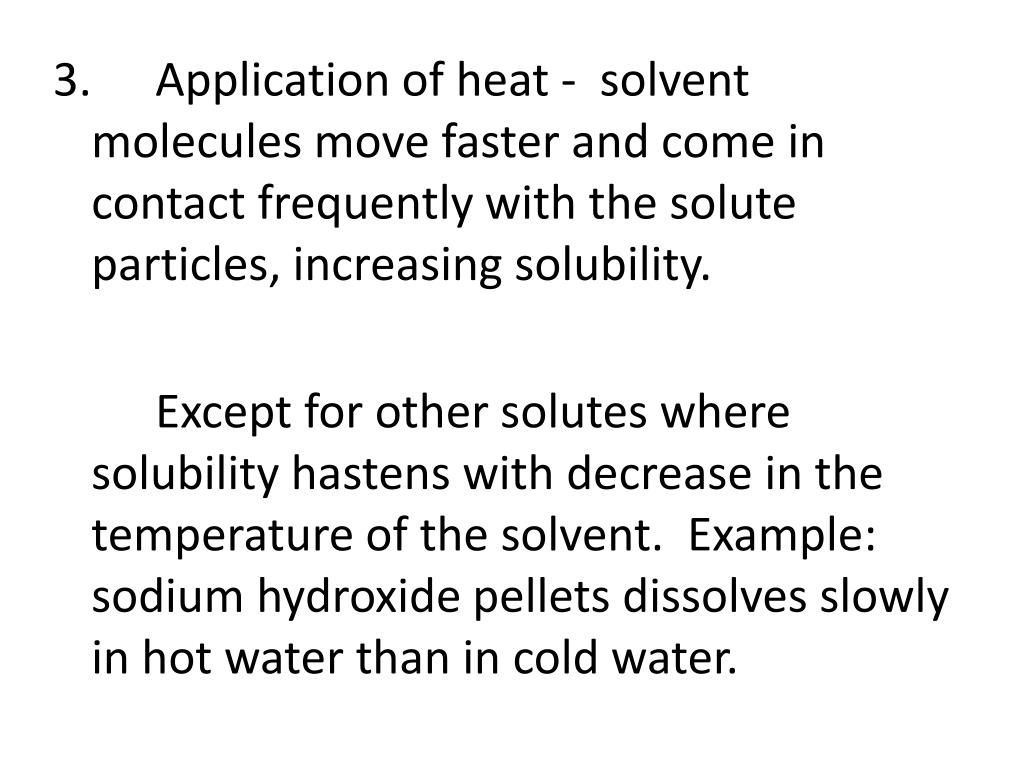

  35. 3. Application of heat - solvent molecules move faster and come in contact frequently with the solute particles, increasing solubility. Except for other solutes where solubility hastens with decrease in the temperature of the solvent. Example: sodium hydroxide pellets dissolves slowly in hot water than in cold water.

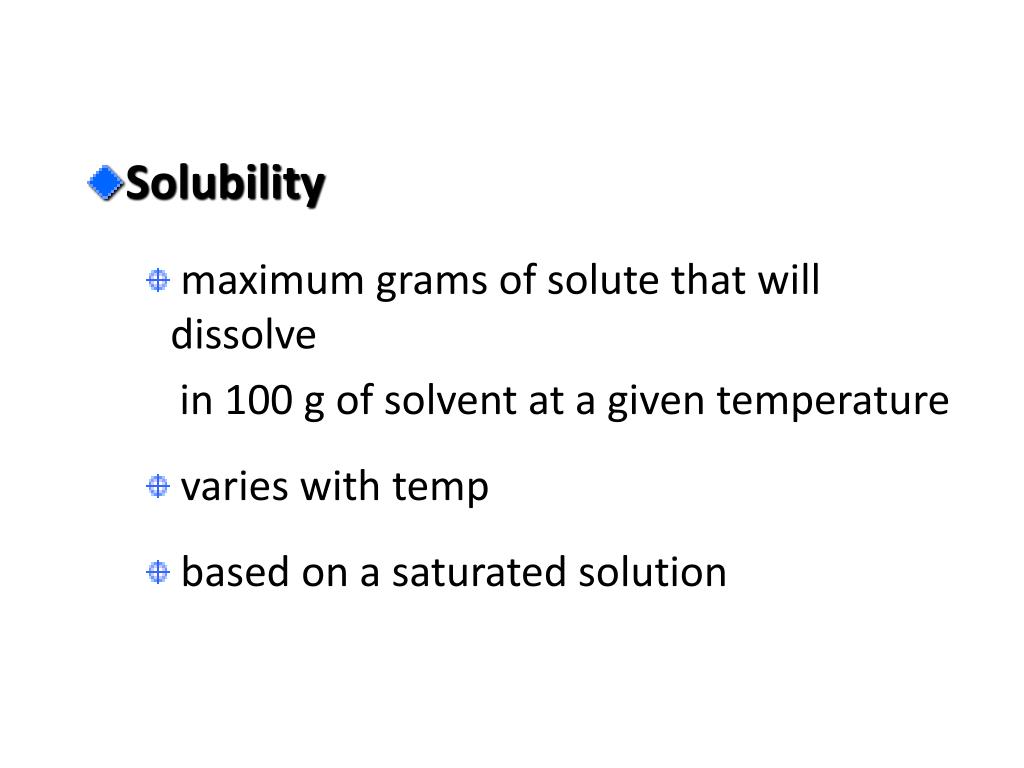

  36. Solubility • Solubility • maximum grams of solute that will dissolve in 100 g of solvent at a given temperature • varies with temp • based on a saturated solution

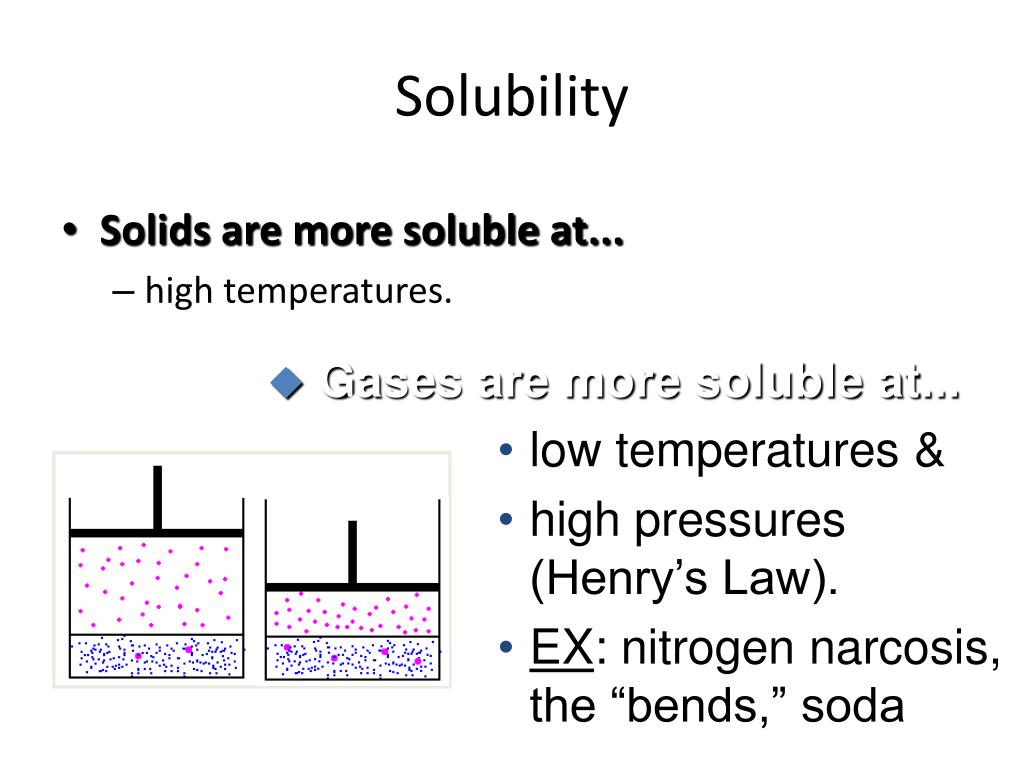

  37. Solubility • Solids are more soluble at... • high temperatures. • Gases are more soluble at... • low temperatures & • high pressures (Henry’s Law). • EX: nitrogen narcosis, the “bends,” soda

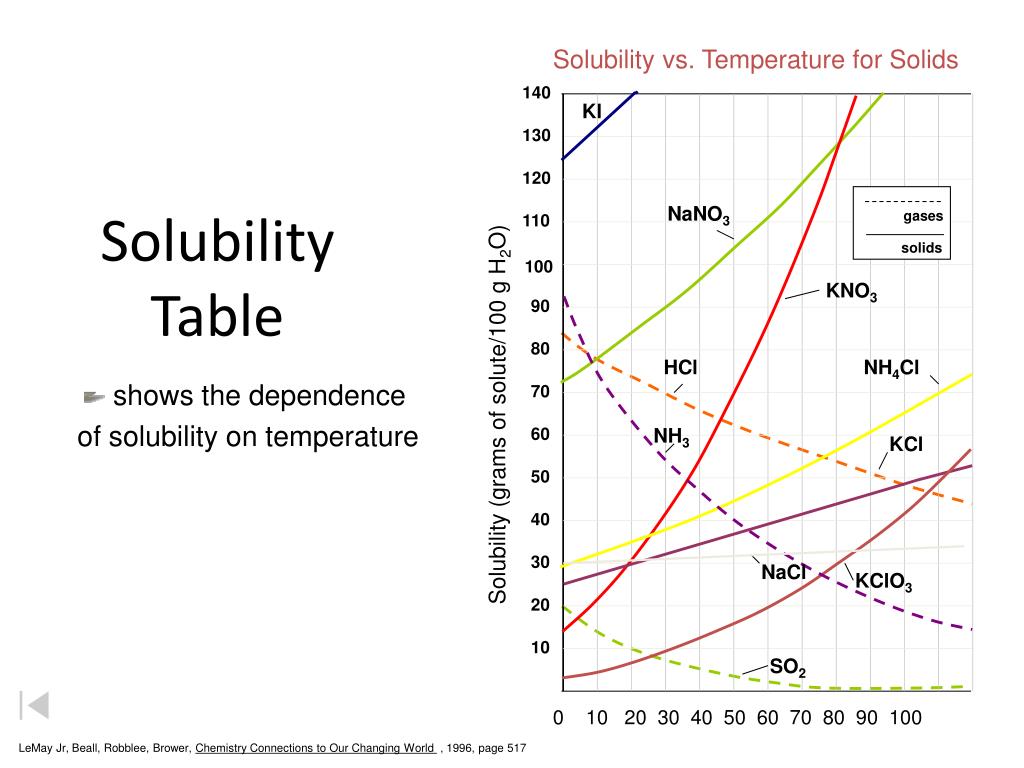

  38. gases solids Solubility Table Solubility vs. Temperature for Solids 140 KI 130 120 NaNO3 110 100 KNO3 90 80 HCl NH4Cl • shows the dependence • of solubility on temperature 70 Solubility (grams of solute/100 g H2O) 60 NH3 KCl 50 40 30 NaCl KClO3 20 10 SO2 0 10 20 30 40 50 60 70 80 90 100 LeMay Jr, Beall, Robblee, Brower, Chemistry Connections to Our Changing World , 1996, page 517

  39. How to determine the solubility of a given substance? • Find out the mass of solute needed to make a saturated solution in 100 cm3 of water for a specific temperature(referred to as the solubility). • This is repeated for each of the temperatures from 0ºC to 100ºC. The data is then plotted on a temperature/solubility graph,and the points are connected. These connected points are called a solubility curve.

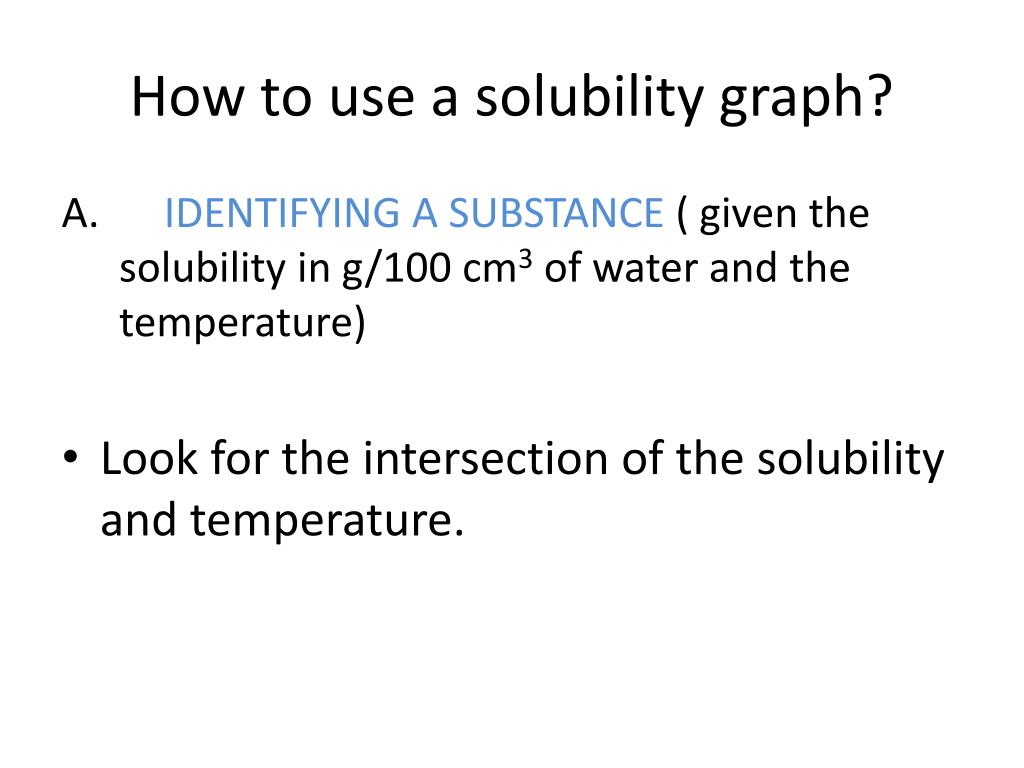

  40. How to use a solubility graph? A. IDENTIFYING A SUBSTANCE ( given the solubility in g/100 cm3 of water and the temperature) • Look for the intersection of the solubility and temperature.

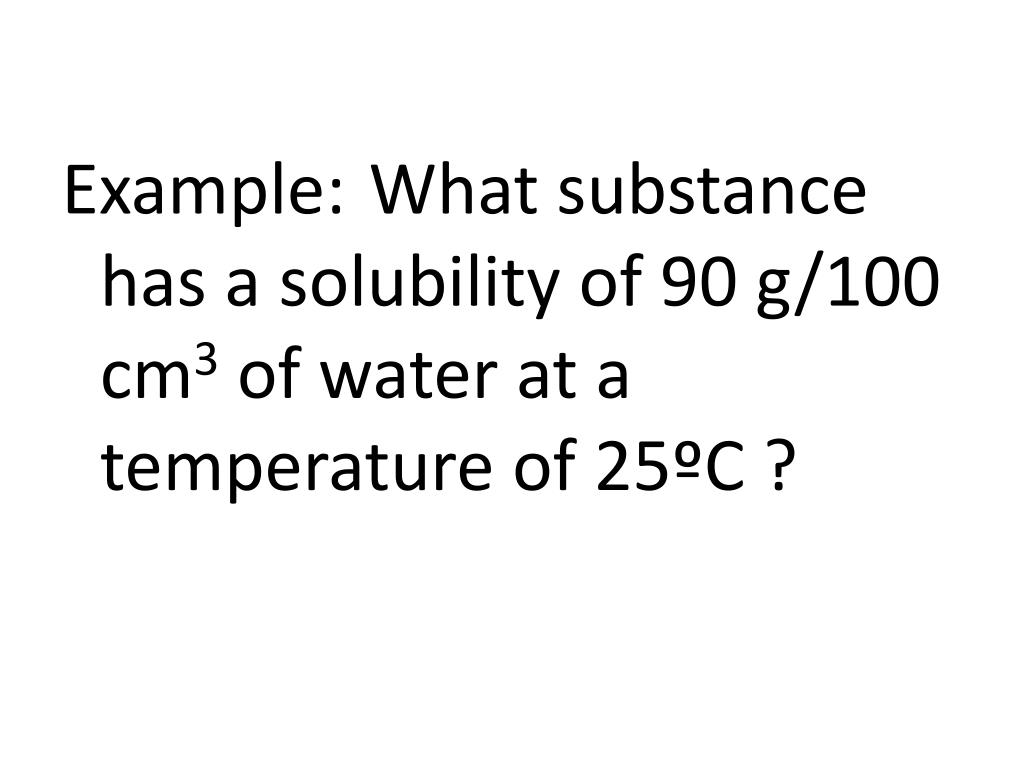

  41. Example: What substance has a solubility of 90 g/100 cm3 of water at a temperature of 25ºC ?

  42. Example: What substance has a solubility of 200 g/100 cm3 of water at a temperature of 90ºC ?

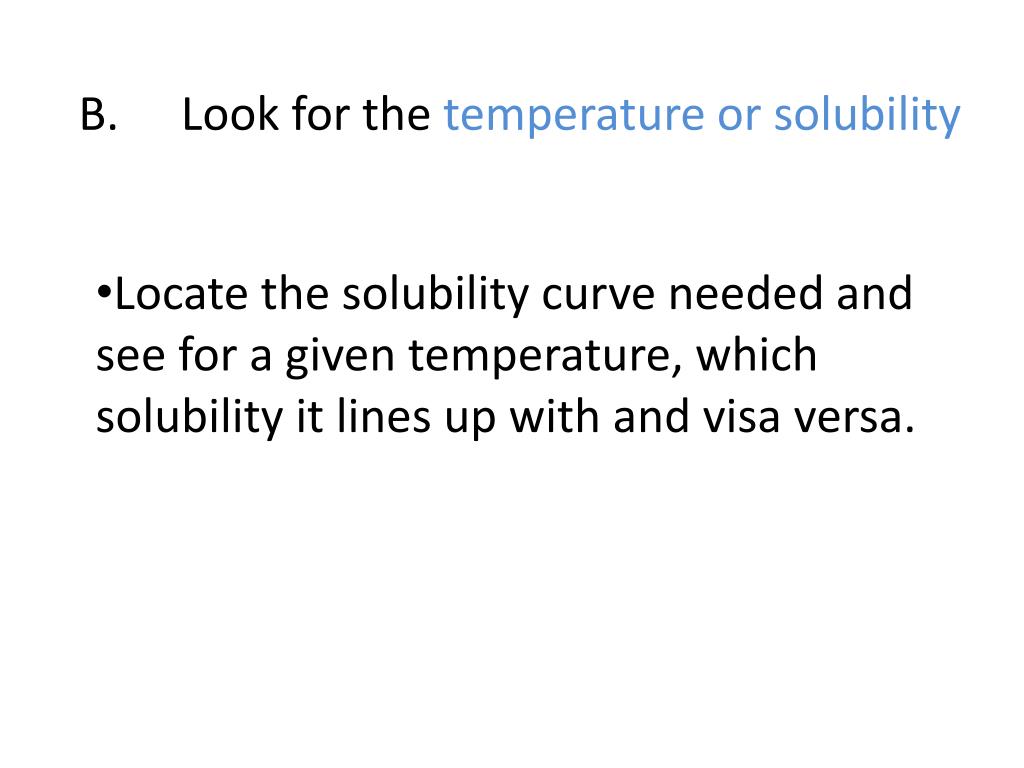

  43. B. Look for the temperature or solubility • Locate the solubility curve needed and see for a given temperature, which solubility it lines up with and visa versa.

  44. What is the solubility of potassium nitrate at 80ºC ?

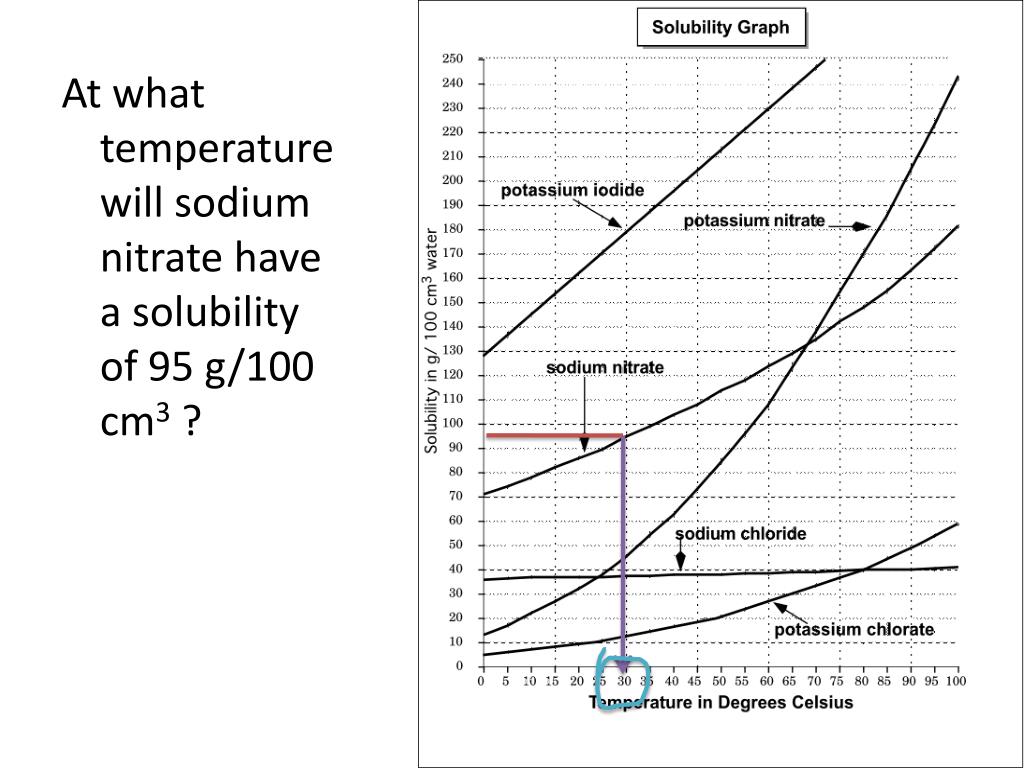

  45. At what temperature will sodium nitrate have a solubility of 95 g/100 cm3 ?

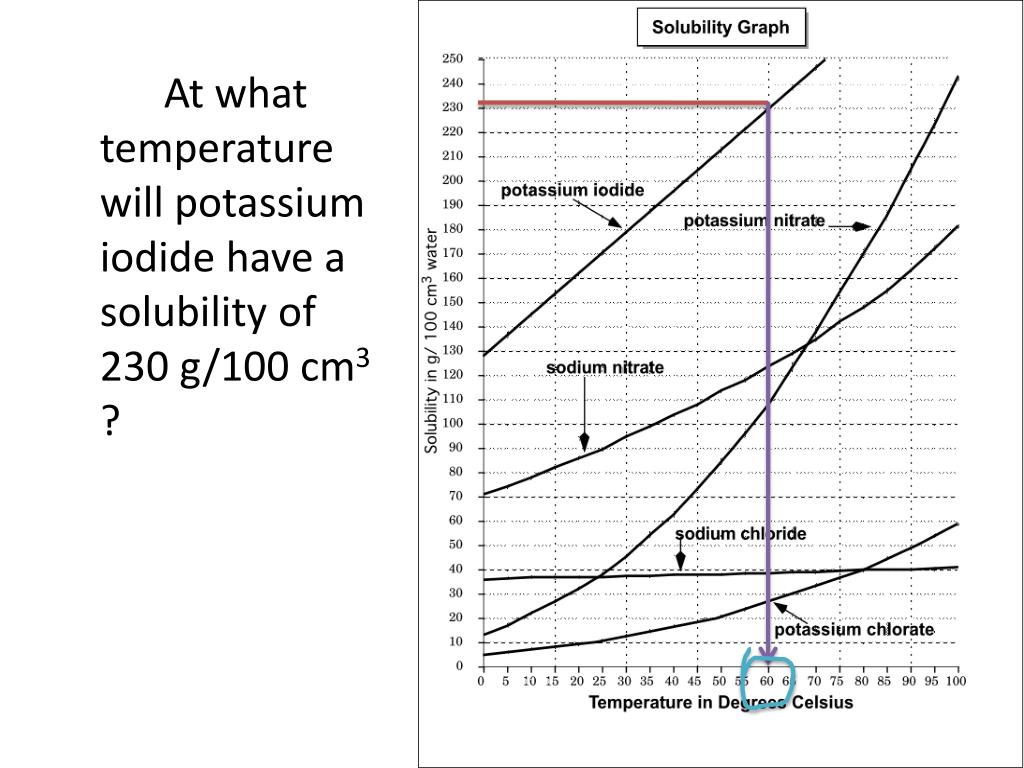

  46. At what temperature will potassium iodide have a solubility of 230 g/100 cm3 ?
