Lecture 18. Mass Spectroscopy I Harris Ch.22. Ion Source. Mass Selector. Detector. Data Processing. Mass Spectrometer. Ion Detectors. Time-of-Flight. +. +. +. V. Energy gain: E = zV. Kinetic energy. Quadrupole. Ion Cyclotron Resonance (FT Mass Spectrometry). Ion Source.

amadeus-franks
Télécharger la présentation

Lecture 18

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture 18 Mass Spectroscopy I Harris Ch.22

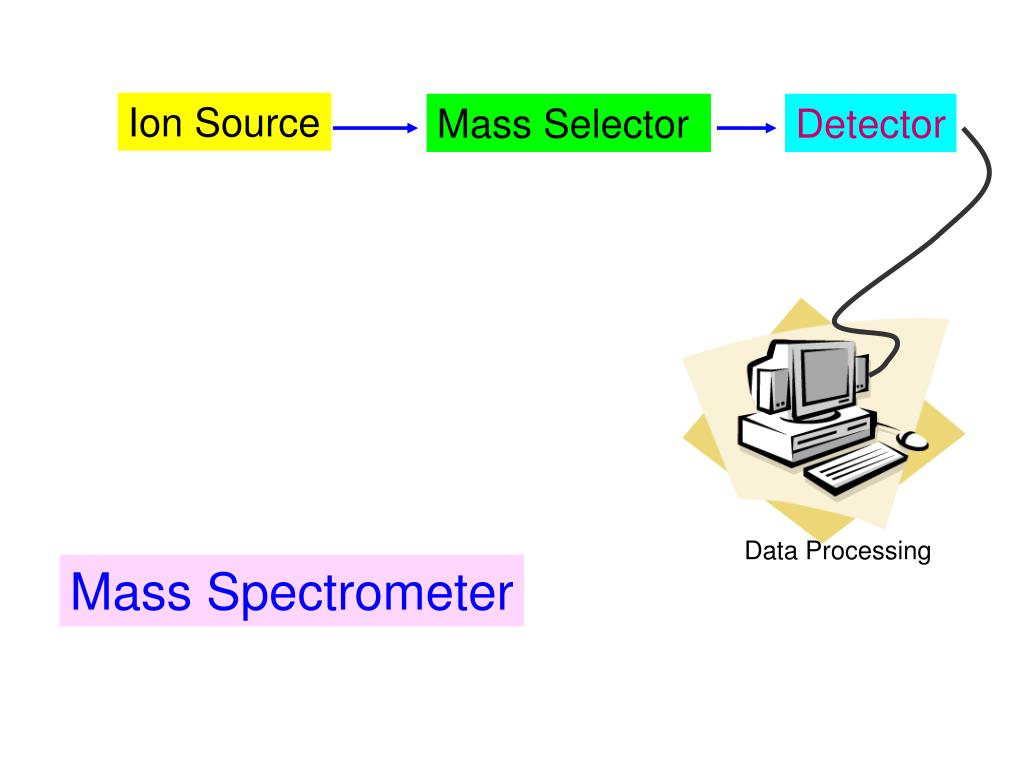

  2. Ion Source Mass Selector Detector Data Processing Mass Spectrometer

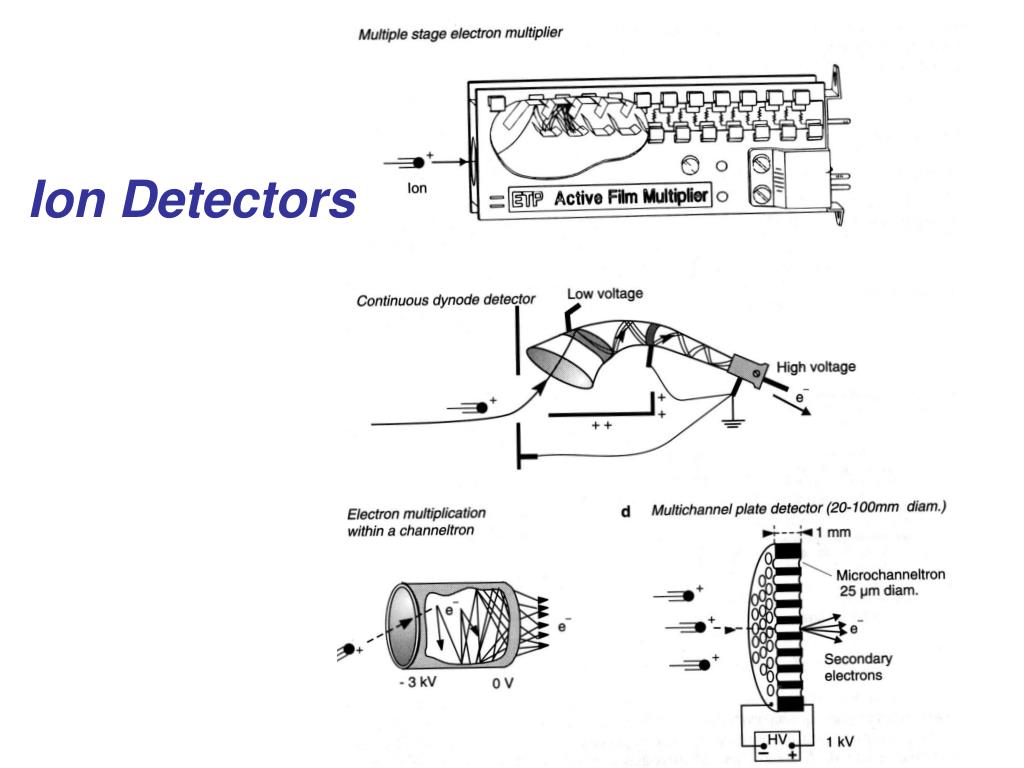

  3. Ion Detectors

  4. Time-of-Flight + + + V Energy gain:E = zV Kinetic energy

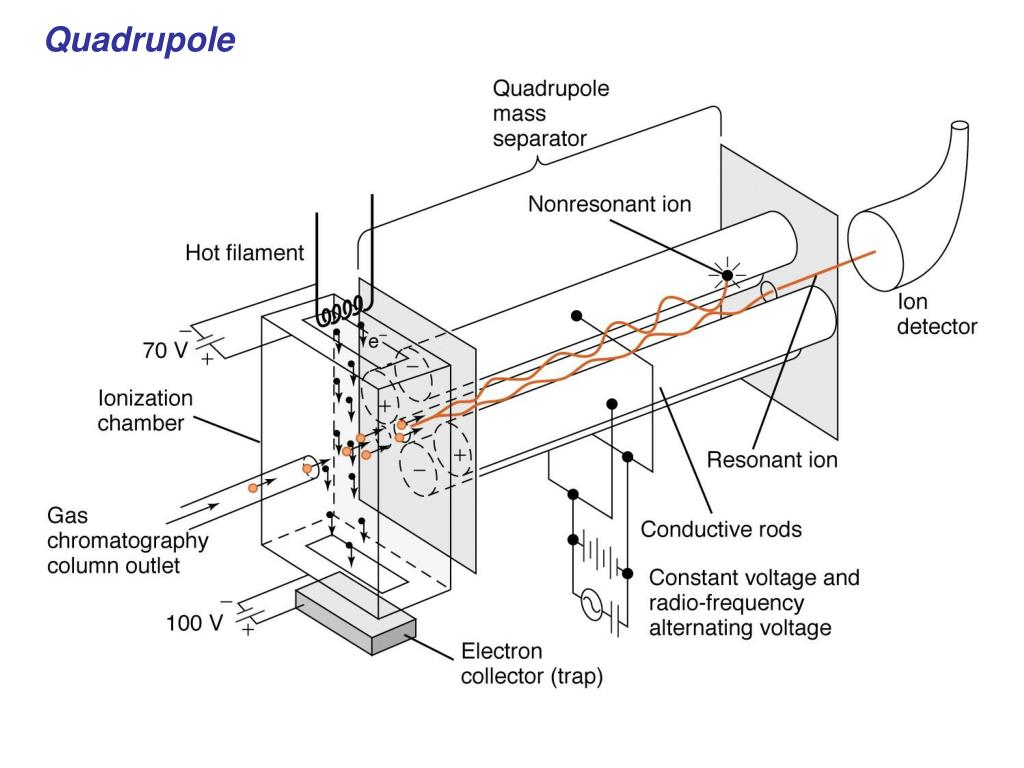

  5. Quadrupole

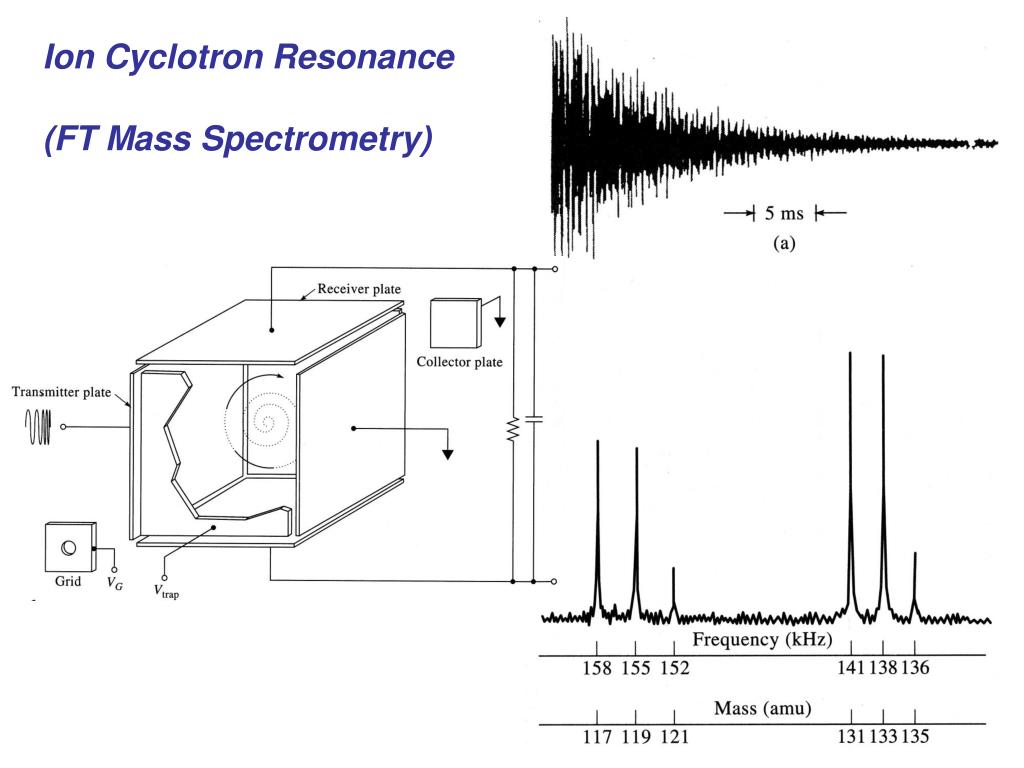

  6. Ion Cyclotron Resonance (FT Mass Spectrometry)

  7. Ion Source Mass Selector Detector Data Processing Mass Spectrometer

  8. Electron ionization of benzene molecule + C C H H H H C + C C H C H H

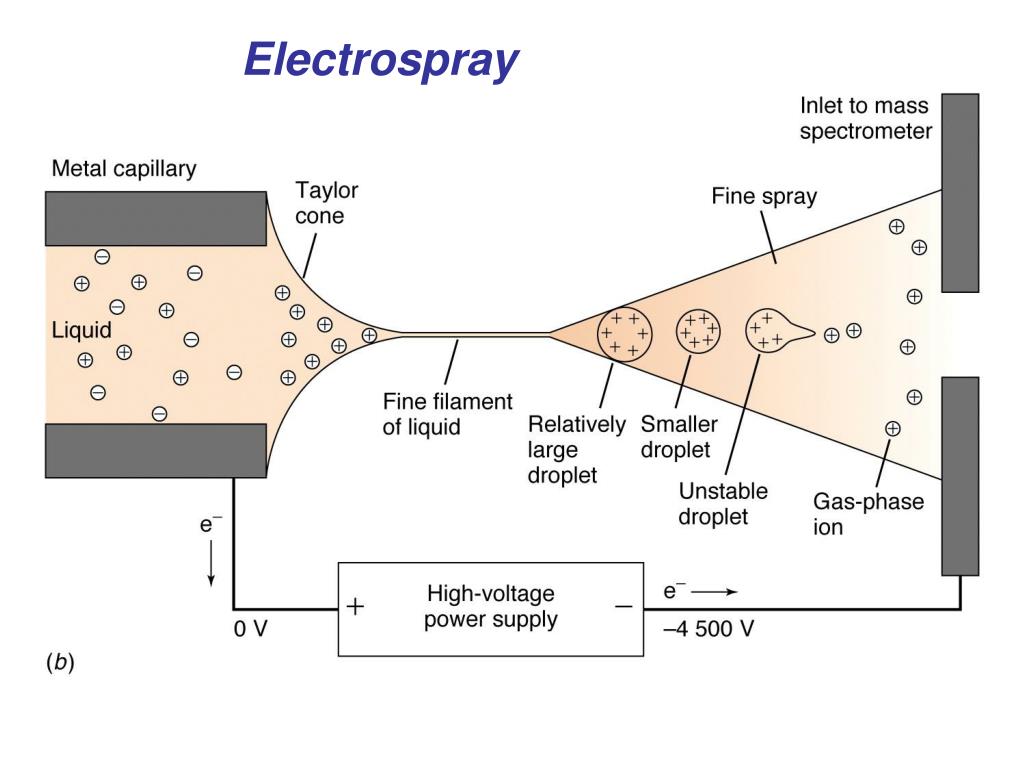

  9. Electrospray
