  1. Scale Drawings & Models What you will learn: Use scale drawings Construct scale drawings

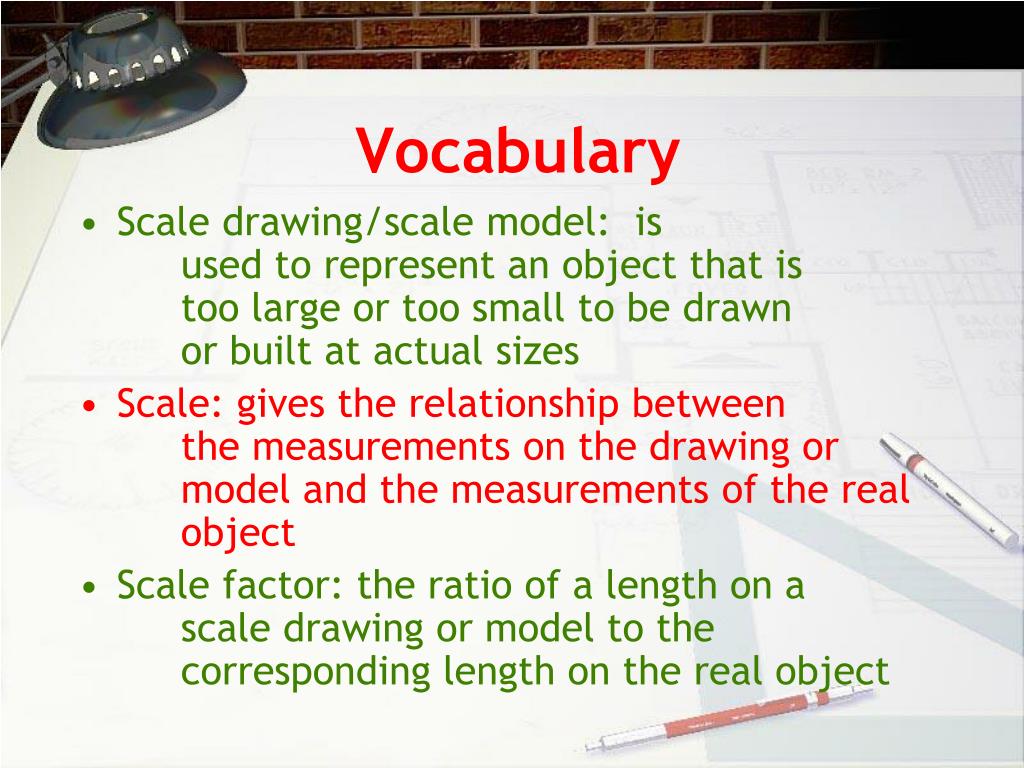

  2. Vocabulary • Scale drawing/scale model: is used to represent an object that is too large or too small to be drawn or built at actual sizes • Scale: gives the relationship between the measurements on the drawing or model and the measurements of the real object • Scale factor: the ratio of a length on a scale drawing or model to the corresponding length on the real object

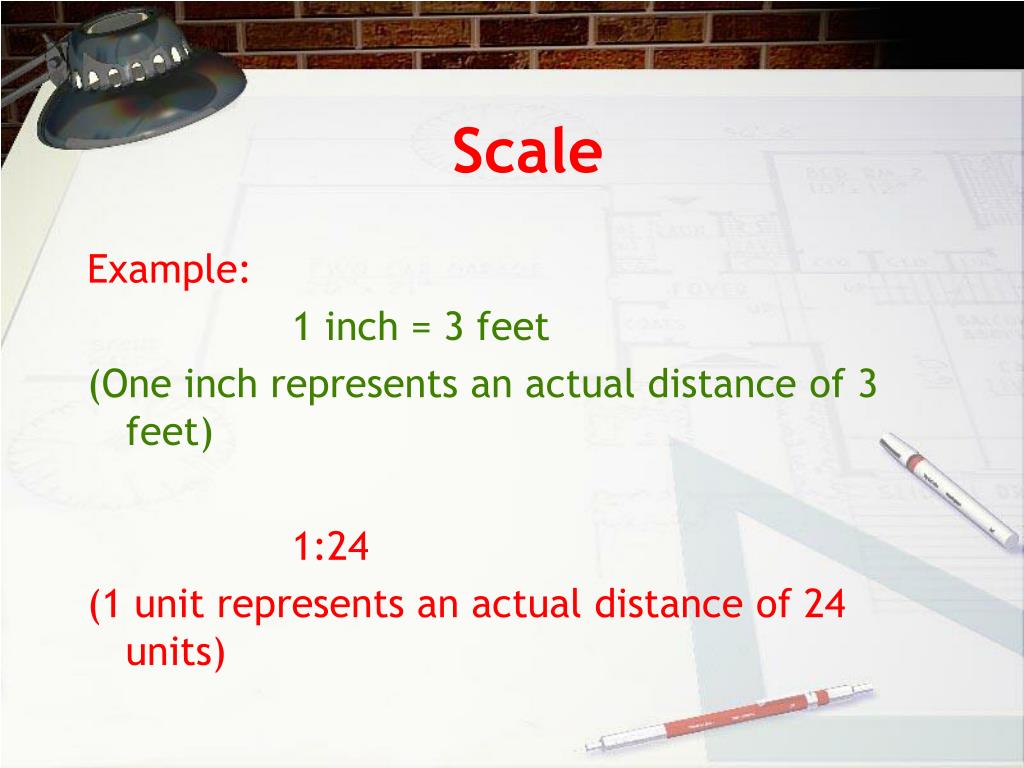

  3. Scale Example: 1 inch = 3 feet (One inch represents an actual distance of 3 feet) 1:24 (1 unit represents an actual distance of 24 units)

  4. Scale Factor Example: Suppose a scale model has a scale of 2 inches = 16 inches. The scale factor is 2 or 1 16 8 The lengths and widths of objects of a scale drawing or model are proportional to the lengths and widths of the actual object.

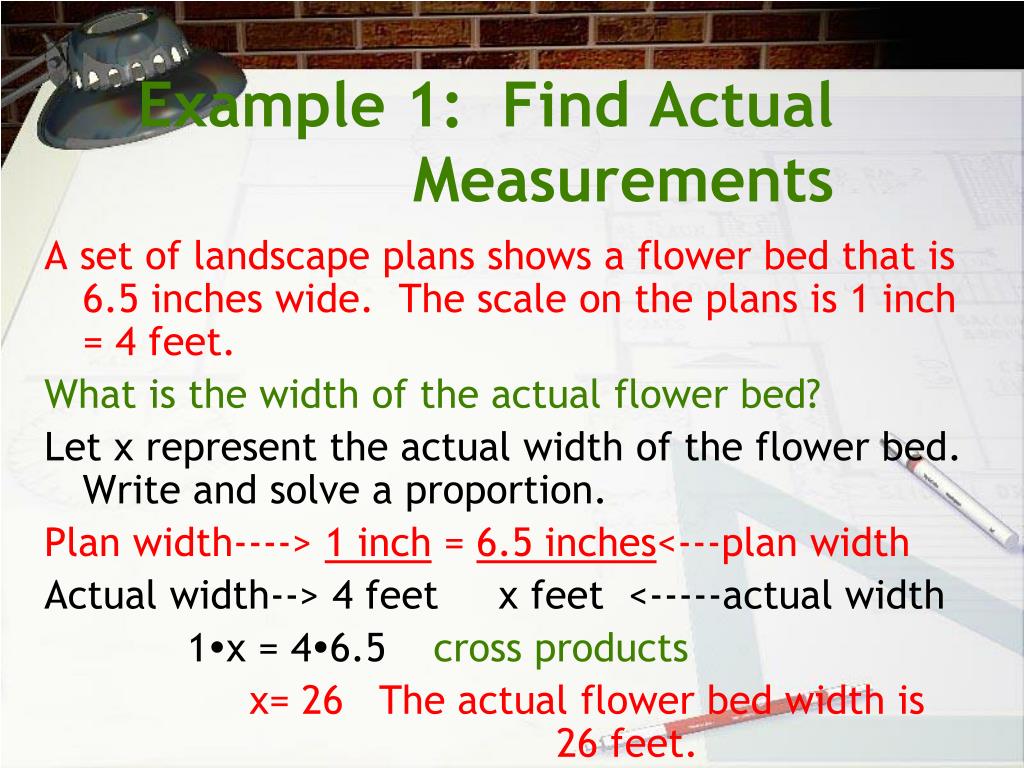

  5. Example 1: Find Actual Measurements A set of landscape plans shows a flower bed that is 6.5 inches wide. The scale on the plans is 1 inch = 4 feet. What is the width of the actual flower bed? Let x represent the actual width of the flower bed. Write and solve a proportion. Plan width----> 1 inch = 6.5 inches<---plan width Actual width--> 4 feet x feet <-----actual width 1x = 46.5 cross products x= 26 The actual flower bed width is 26 feet.

  6. From the last example, what is the scale factor? To find the scale factor, write the ratio of 1 inch to 4 feet in simplest form. 1inch = 1 inch Convert 4 feet 4 feet 48 inches to inches The scale factor is 1 . That is , each 48 measurement on the plan is 1 the actual measurement. 48

  7. Example 2: Determine the Scale In a scale model of a roller coaster, the highest hill has a height of 6 inches. If the actual height of the hill is 210 feet, what is the scale of the model? Model height---> 6 inches = 1 inch <--model height Actual height--->210 feet x feet <--actual height 6x = 210 6x = 210x= 35 6 6 So, the scale is 1” = 35 feet

  8. Example 3: Construct a Scale Drawing A garden is 10 feet wide by 20 feet long. Make a scale drawing of the garden that has a scale of 1 in. = 2ft. 5 Step 1: Find the measure of the garden’s length on the drawing. Let x represent the length. drawing length--> .20in = x in <--drawing length actual length--> 2 ft 20ft <---actual length .2020 =2x 4 = 2x 2 = x On the drawing, the length is 2 inches

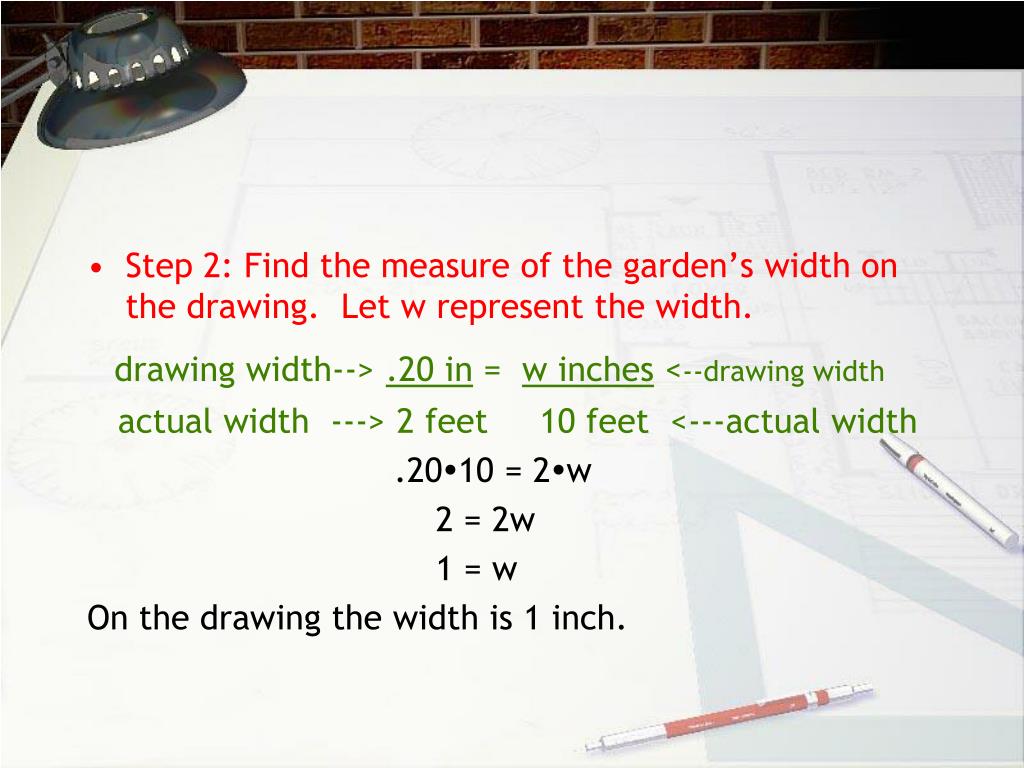

  9. Step 2: Find the measure of the garden’s width on the drawing. Let w represent the width. drawing width--> .20 in = w inches <--drawing width actual width ---> 2 feet 10 feet <---actual width .2010 = 2w 2 = 2w 1 = w On the drawing the width is 1 inch.

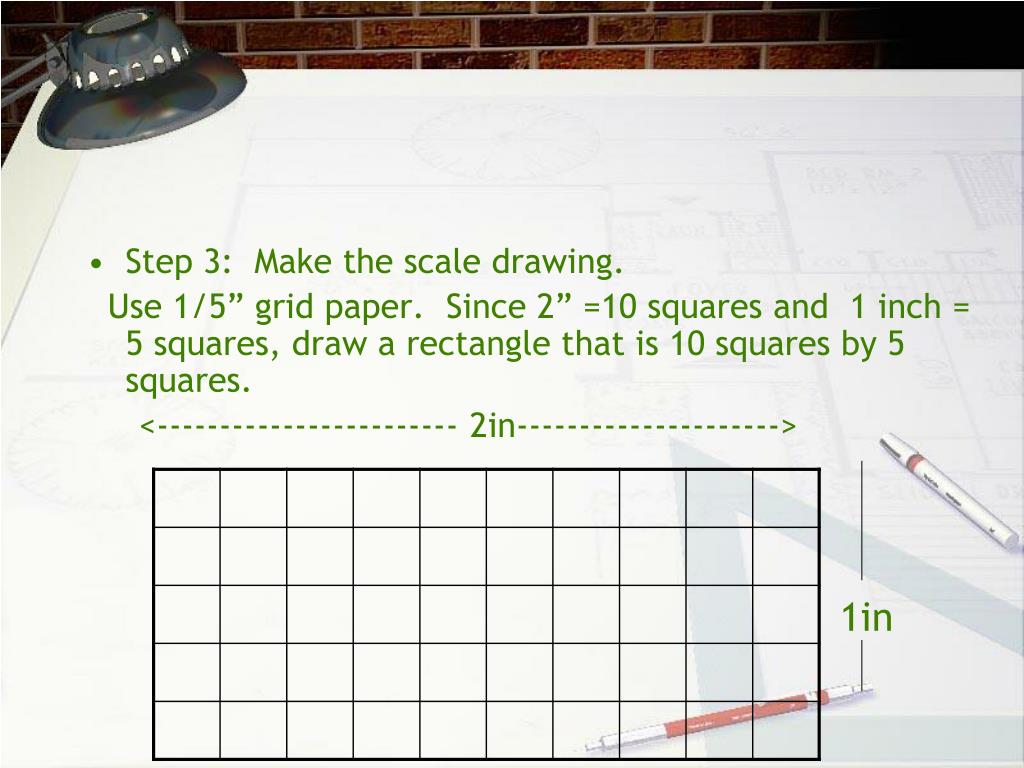

  10. Step 3: Make the scale drawing. Use 1/5” grid paper. Since 2” =10 squares and 1 inch = 5 squares, draw a rectangle that is 10 squares by 5 squares. <------------------------ 2in---------------------> 1in

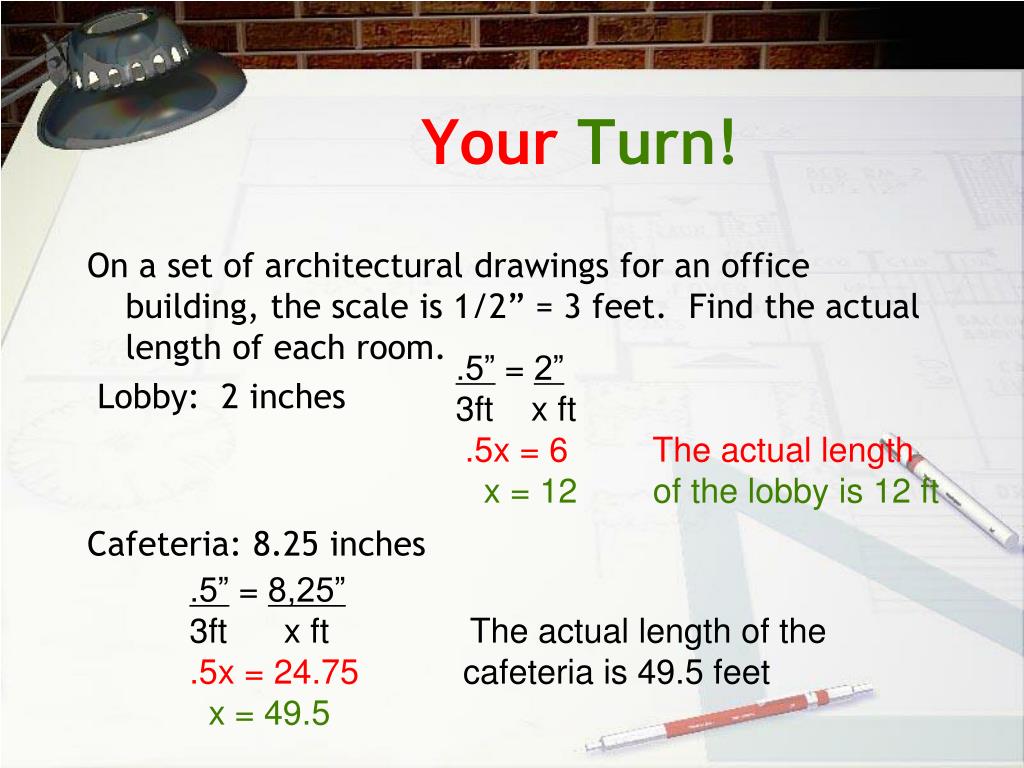

  11. YourTurn! On a set of architectural drawings for an office building, the scale is 1/2” = 3 feet. Find the actual length of each room. Lobby: 2 inches Cafeteria: 8.25 inches .5” = 2” 3ft x ft .5x = 6 The actual length x = 12 of the lobby is 12 ft .5” = 8,25” 3ft x ft The actual length of the .5x = 24.75 cafeteria is 49.5 feet x = 49.5

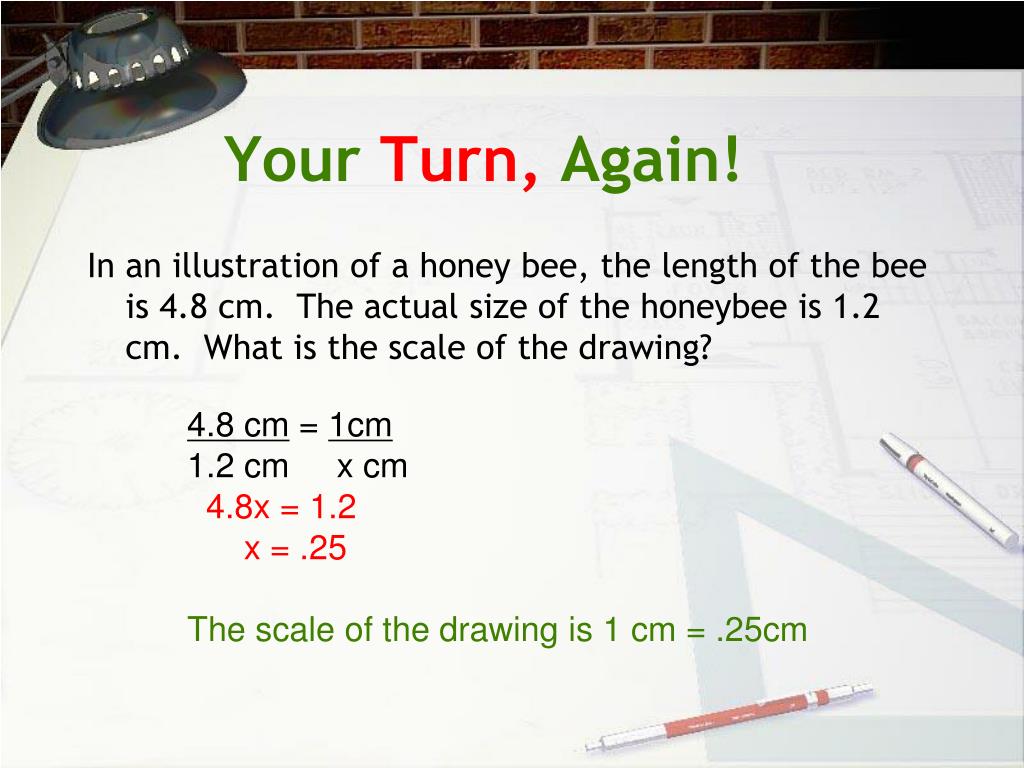

  12. YourTurn,Again! In an illustration of a honey bee, the length of the bee is 4.8 cm. The actual size of the honeybee is 1.2 cm. What is the scale of the drawing? 4.8 cm = 1cm 1.2 cm x cm 4.8x = 1.2 x = .25 The scale of the drawing is 1 cm = .25cm
