  1. Infiniband in EDA (Chip Design) Glenn Newell Sr. Staff IT Architect Synopsys

  2. Agenda • Synopsys + Synopsys Computing • EDA design flow vs. data size and communication • High Performance Linux Clusters at Synopsys • Storage is dominant vs. Inter-process communication • Performance Increases with Infiniband • Tell the world • Next Steps

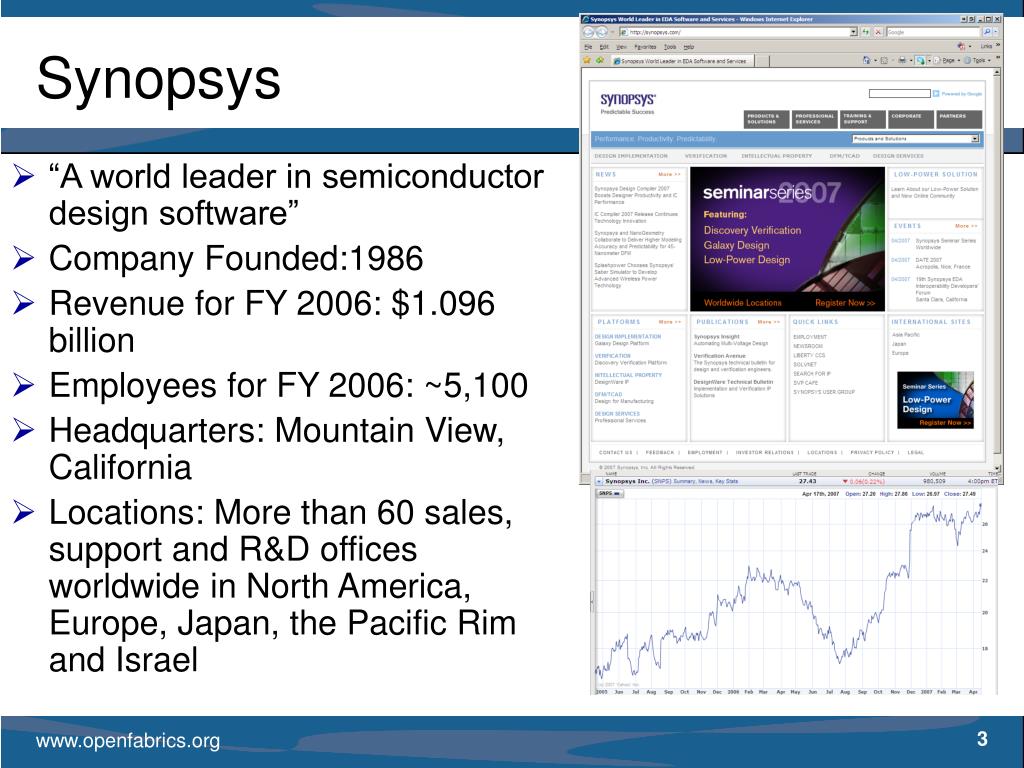

  3. Synopsys • “A world leader in semiconductor design software” • Company Founded:1986 • Revenue for FY 2006: $1.096 billion • Employees for FY 2006: ~5,100 • Headquarters: Mountain View, California • Locations: More than 60 sales, support and R&D offices worldwide in North America, Europe, Japan, the Pacific Rim and Israel

  4. Over 60 Offices World Wide Major Data Centers 5 at HQ Hillsboro OR Austin TX Durham NC Nepean Canada Munich Germany Hyderabad India Yerevan Armenia Shanghai China Tokyo Japan Taipei Taiwan 2 Petabytes of NFS Storage ~15000 compute servers 10000 Linux 4000 Solaris 700 HPUX 300 AIX GRID Farms 65 farms composed of 7000 machines 75% SGE 25% LSF Interconnect GigE storage Fast E clients Synopsys IT (2007) • #242 on Nov. ’06 Top400.org • 3.782 TFlops on 1200 Processors

  5. Design Flow vs. Data Size and Communication (2007) • RTL “relatively” small data sets • Physical Layout Data up to 300GB • Inter Process Communication “small” compared to file i/o • Post Optical Proximity Correction 300GB - >1TB • OPC adds complex polygons • Mask machines need flat data (no hierarchy or pattern replication) • Physical world is “messy” (FFT + FDTD)

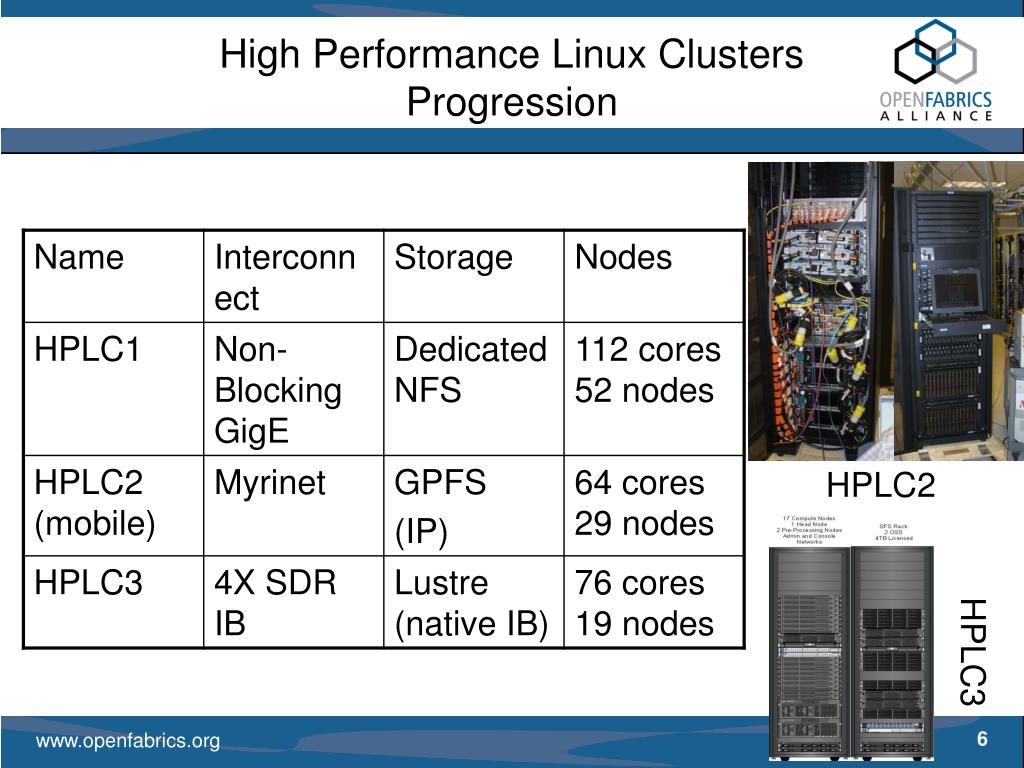

  6. High Performance Linux ClustersProgression HPLC2 HPLC3

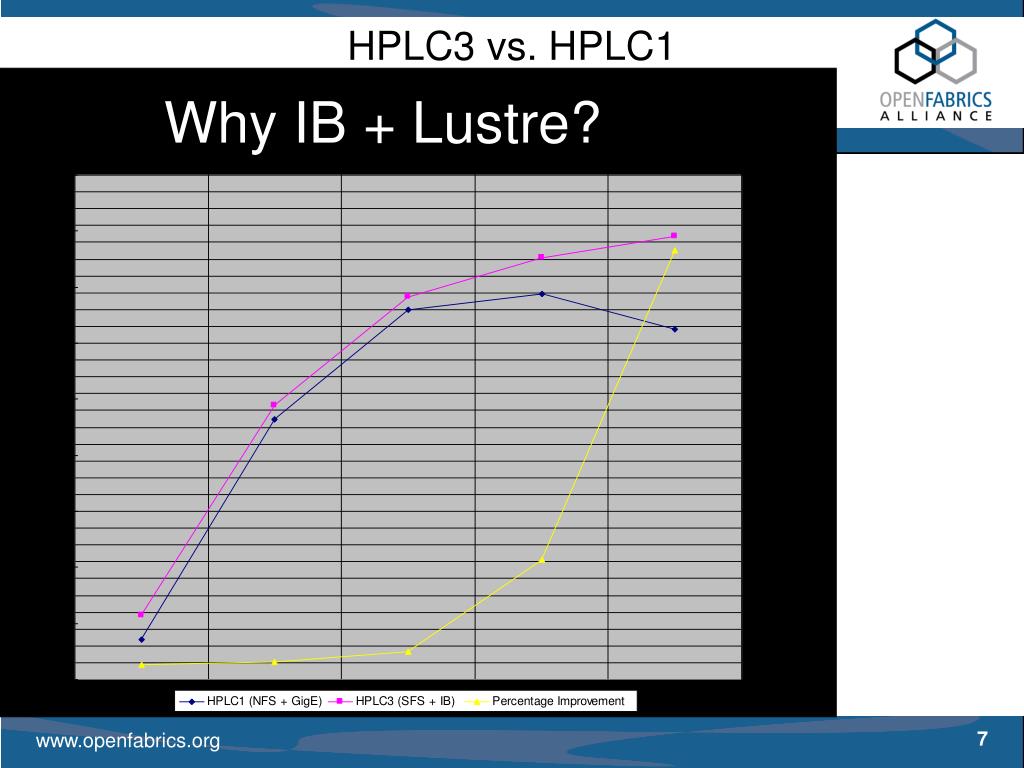

  7. HPLC3 vs. HPLC1 Why IB + Lustre?

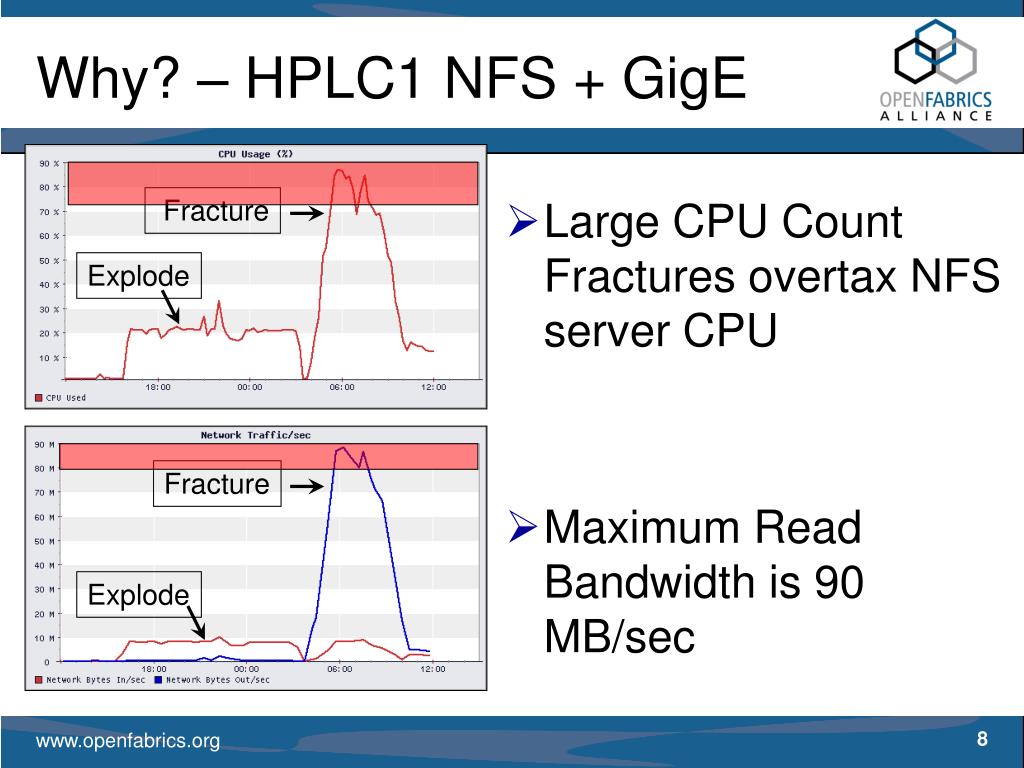

  8. Why? – HPLC1 NFS + GigE • Large CPU Count Fractures overtax NFS server CPU • Maximum Read Bandwidth is 90 MB/sec Fracture Explode Fracture Explode

  9. Why? – HPLC3 Lustre + IB 64 CPU Fracture • Lustre splits traffic across resources • 250MB/sec max read bandwidth

  10. Storage + Interconnect Option Comparisons + Myrinet

  11. High Performance Linux ClustersProduction Model • 17x the storage performance of HPLC1 • 6x the storage performance of HPLC3 • IB gateway to Enterprise (6xGigE) means no dual homed hosts • “Fantastic” Performance • More Linear Scaling for Distributed Processing Applications

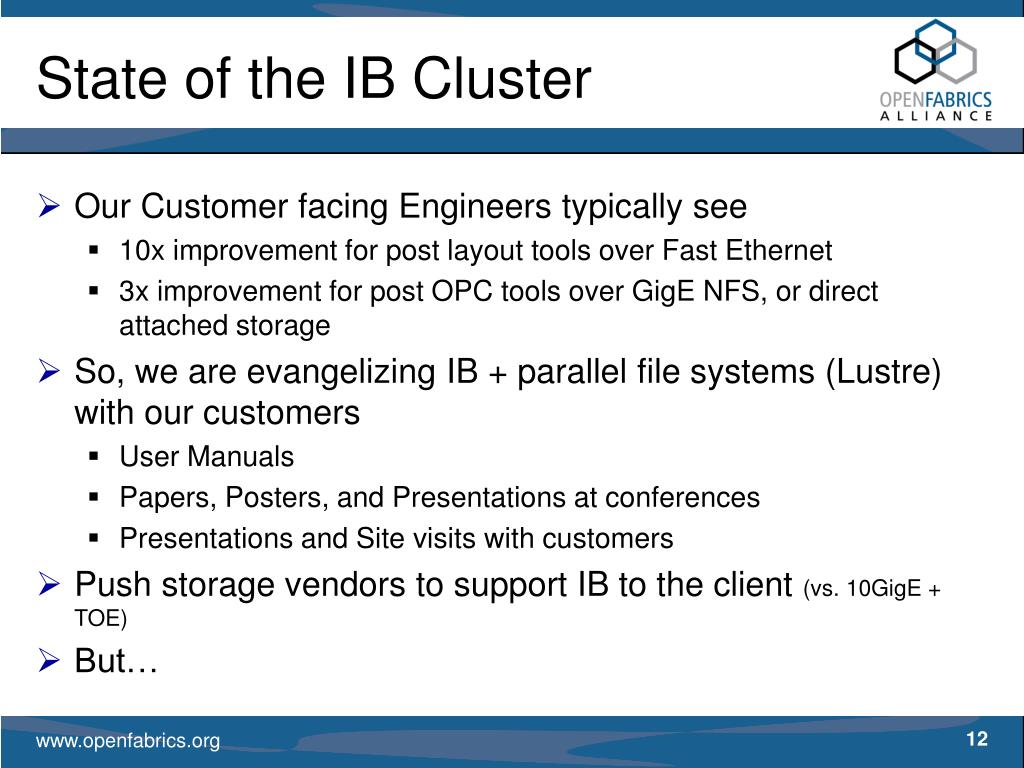

  12. State of the IB Cluster • Our Customer facing Engineers typically see • 10x improvement for post layout tools over Fast Ethernet • 3x improvement for post OPC tools over GigE NFS, or direct attached storage • So, we are evangelizing IB + parallel file systems (Lustre) with our customers • User Manuals • Papers, Posters, and Presentations at conferences • Presentations and Site visits with customers • Push storage vendors to support IB to the client (vs. 10GigE + TOE) • But…

  13. Estimated EDA Relative CPU Cycles Required 2007  2009 ~10x 65nm  45 nm 2007  2012 ~100x 65nm  22 nm 45 nm

  14. Next Steps • “Inside the box” changing • Multicore • Hardware Acceleration (GPU/co-processor merges with CPU) • Micro Architecture • Applications changing to deal with above and increased data set sizes • Things for IT to explore • Other “new” parallel file systems (e.g. Gluster) • 12X DDR IB • 10GB uplinks • IB Top500 entry? ;-)
