Schedulers and Resource Brokers

1. Schedulers and Resource Brokers Grid Computing, B. Wilkinson, 2004

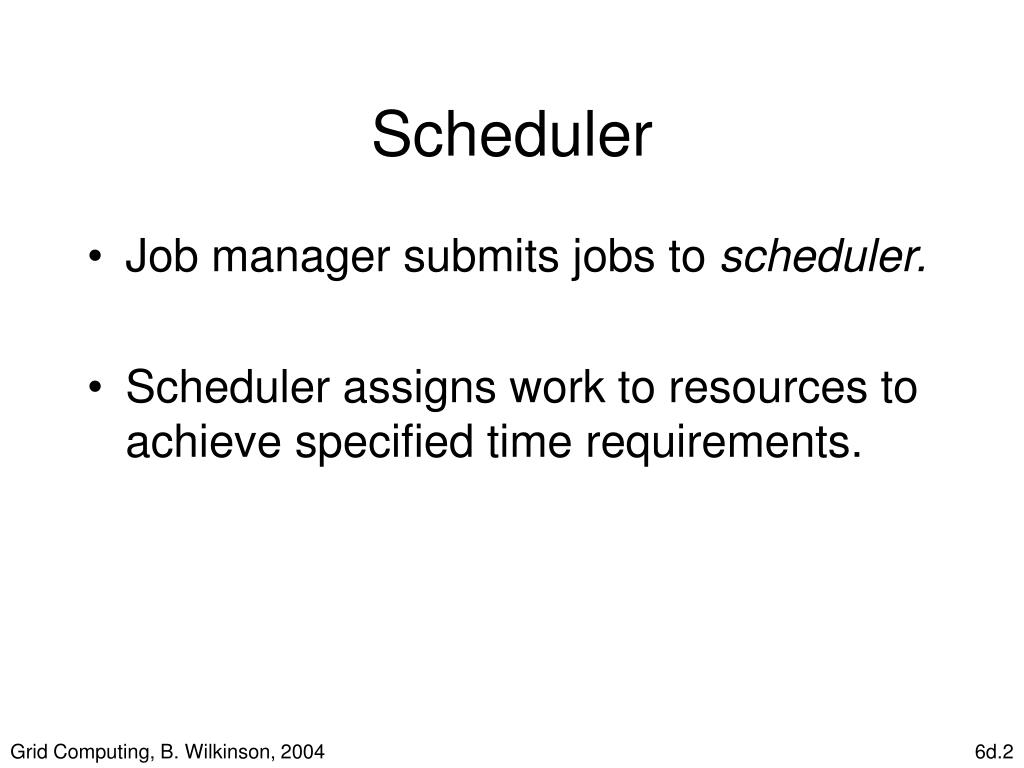

2. Scheduler • Job manager submits jobs to scheduler. • Scheduler assigns work to resources to achieve specified time requirements. Grid Computing, B. Wilkinson, 2004

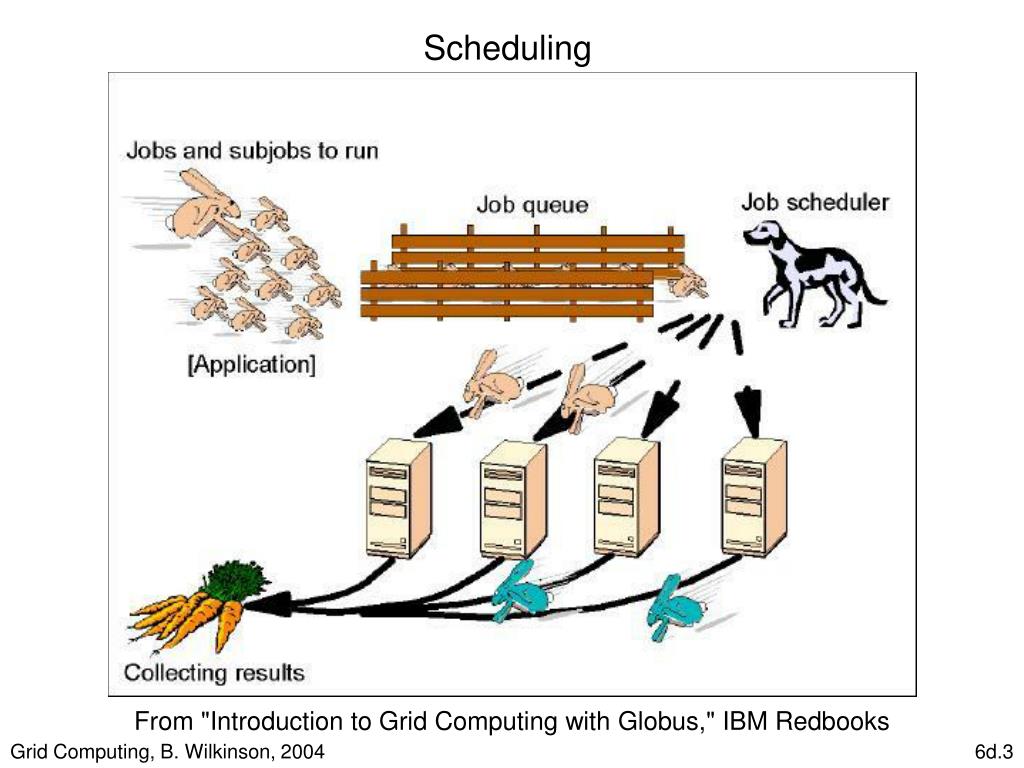

3. Scheduling From "Introduction to Grid Computing with Globus," IBM Redbooks Grid Computing, B. Wilkinson, 2004

4. Advance Reservation • Requesting actions at times in future. (“A service level agreement in which the conditions of the agreement start at some agreed-upon time in the future” [2]) [2] “The Grid 2, Blueprint for a New Computing Infrastructure,” I. Foster and C. Kesselman editors, Morgan Kaufmann, 2004. Grid Computing, B. Wilkinson, 2004

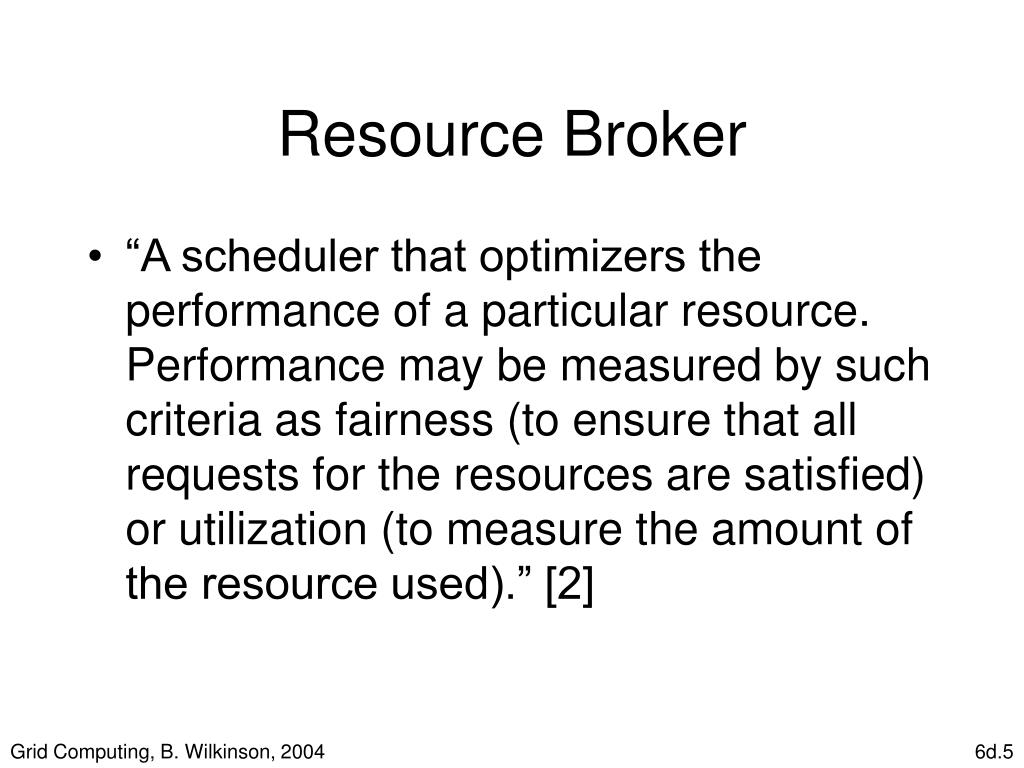

5. Resource Broker • “A scheduler that optimizers the performance of a particular resource. Performance may be measured by such criteria as fairness (to ensure that all requests for the resources are satisfied) or utilization (to measure the amount of the resource used).” [2] Grid Computing, B. Wilkinson, 2004

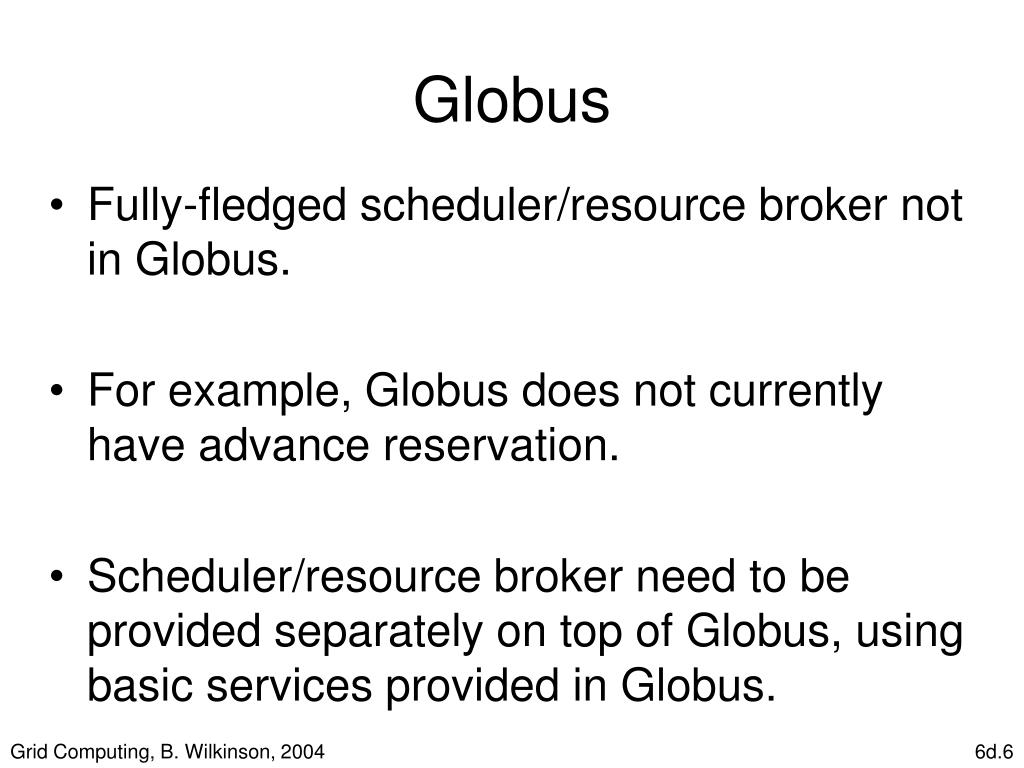

6. Globus • Fully-fledged scheduler/resource broker not in Globus. • For example, Globus does not currently have advance reservation. • Scheduler/resource broker need to be provided separately on top of Globus, using basic services provided in Globus. Grid Computing, B. Wilkinson, 2004

7. Resource Broker Examples • Condor-G, Nimrod/G, Cactus Grid Computing, B. Wilkinson, 2004

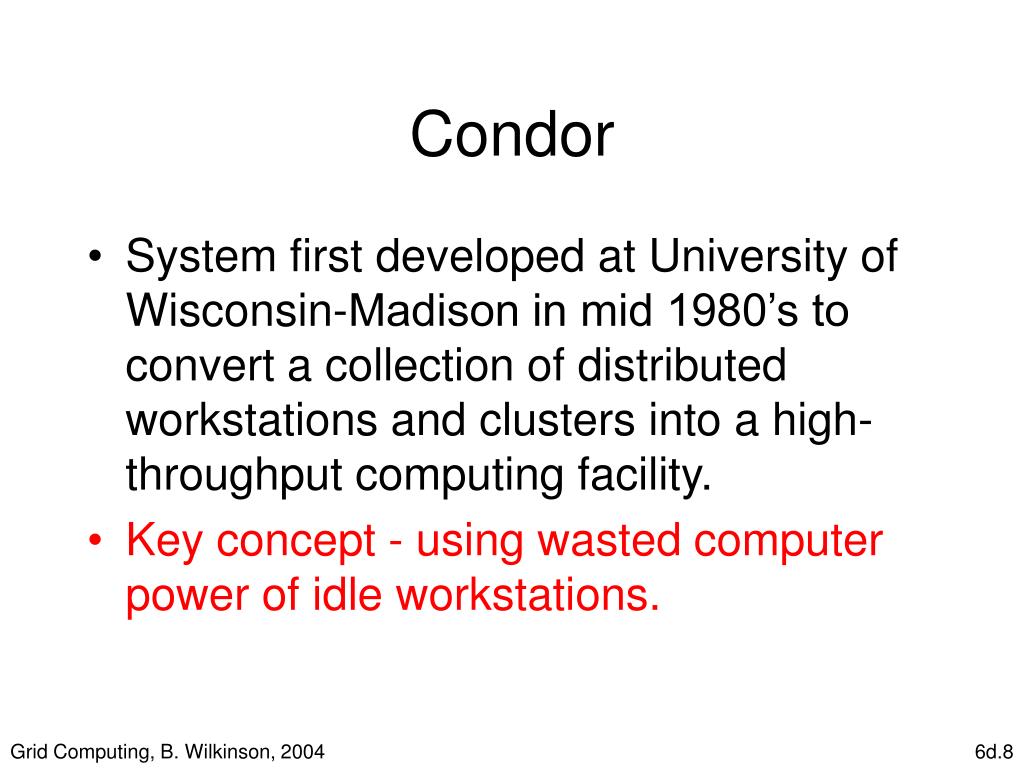

8. Condor • System first developed at University of Wisconsin-Madison in mid 1980’s to convert a collection of distributed workstations and clusters into a high-throughput computing facility. • Key concept - using wasted computer power of idle workstations. Grid Computing, B. Wilkinson, 2004

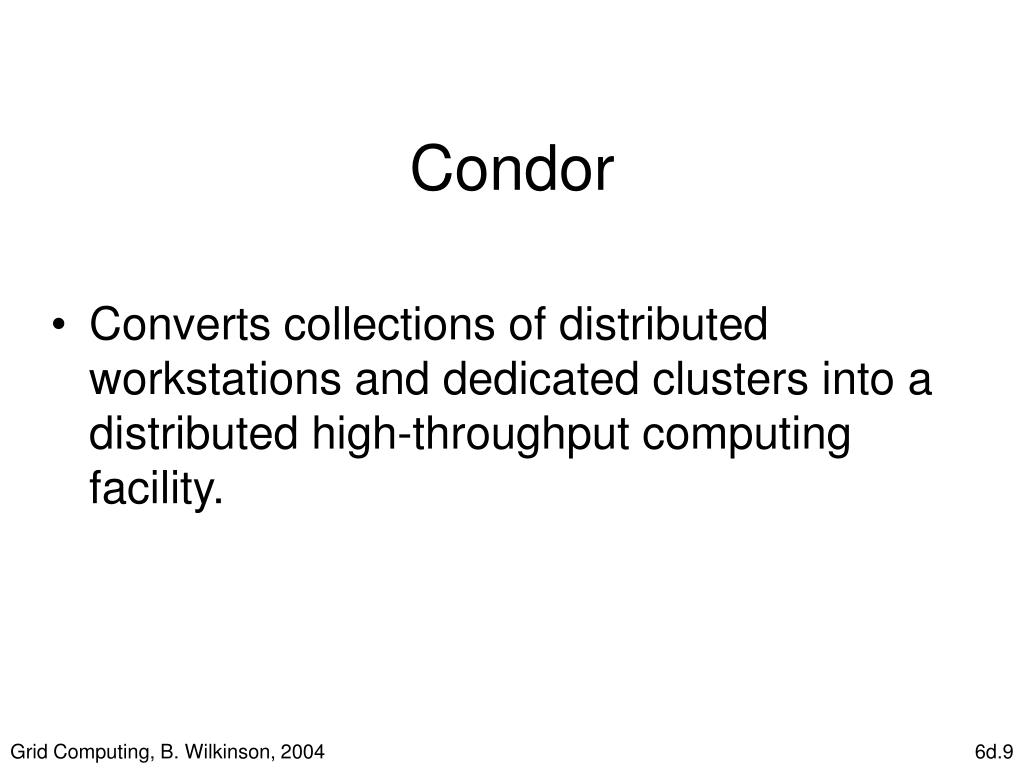

9. Condor • Converts collections of distributed workstations and dedicated clusters into a distributed high-throughput computing facility. Grid Computing, B. Wilkinson, 2004

10. Features • Include: • Resource finder • Batch queue manager • Scheduler • Checkpoint/restart • Process migration Grid Computing, B. Wilkinson, 2004

11. Intended to run job even if: • Machines crash • Disk space exhausted • Software not installed • Machines are needed by others • Machines are managed by others • Machines are far away Grid Computing, B. Wilkinson, 2004

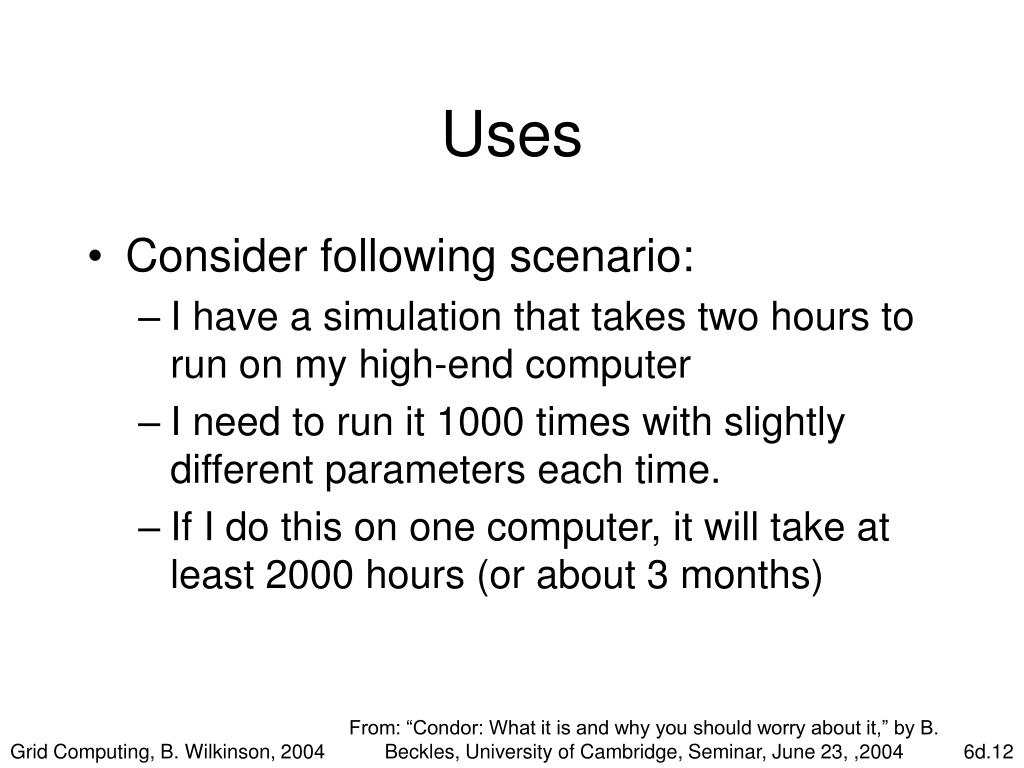

12. Uses • Consider following scenario: • I have a simulation that takes two hours to run on my high-end computer • I need to run it 1000 times with slightly different parameters each time. • If I do this on one computer, it will take at least 2000 hours (or about 3 months) From: “Condor: What it is and why you should worry about it,” by B. Beckles, University of Cambridge, Seminar, June 23, ,2004 Grid Computing, B. Wilkinson, 2004

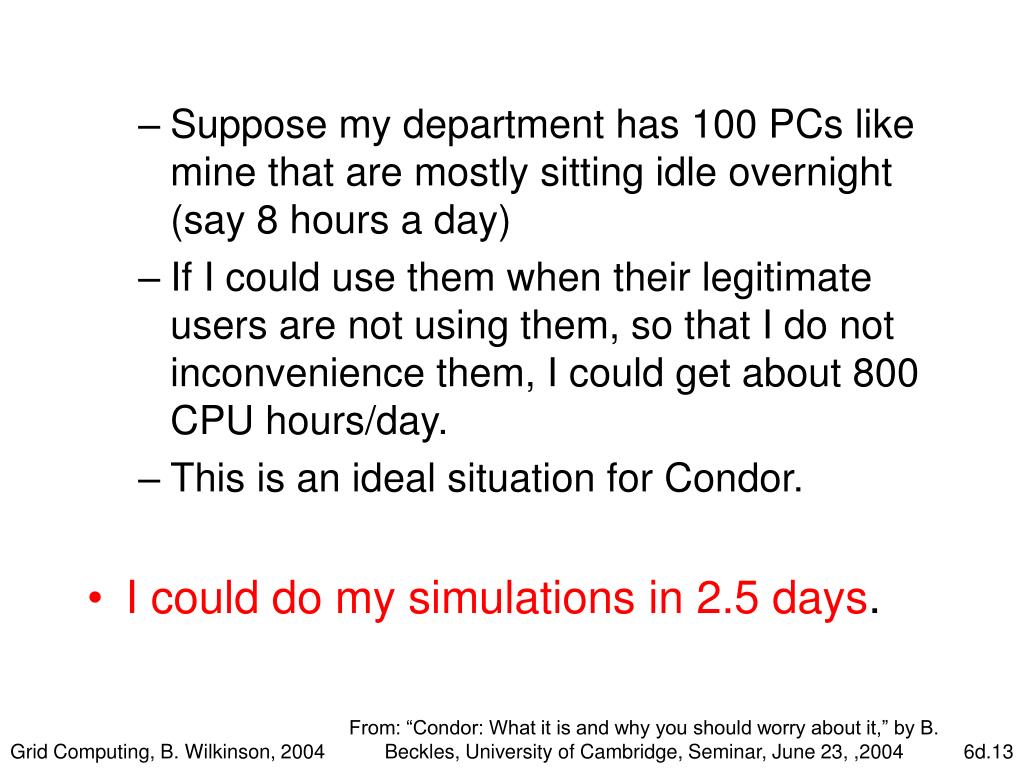

13. Suppose my department has 100 PCs like mine that are mostly sitting idle overnight (say 8 hours a day) • If I could use them when their legitimate users are not using them, so that I do not inconvenience them, I could get about 800 CPU hours/day. • This is an ideal situation for Condor. • I could do my simulations in 2.5 days. From: “Condor: What it is and why you should worry about it,” by B. Beckles, University of Cambridge, Seminar, June 23, ,2004 Grid Computing, B. Wilkinson, 2004

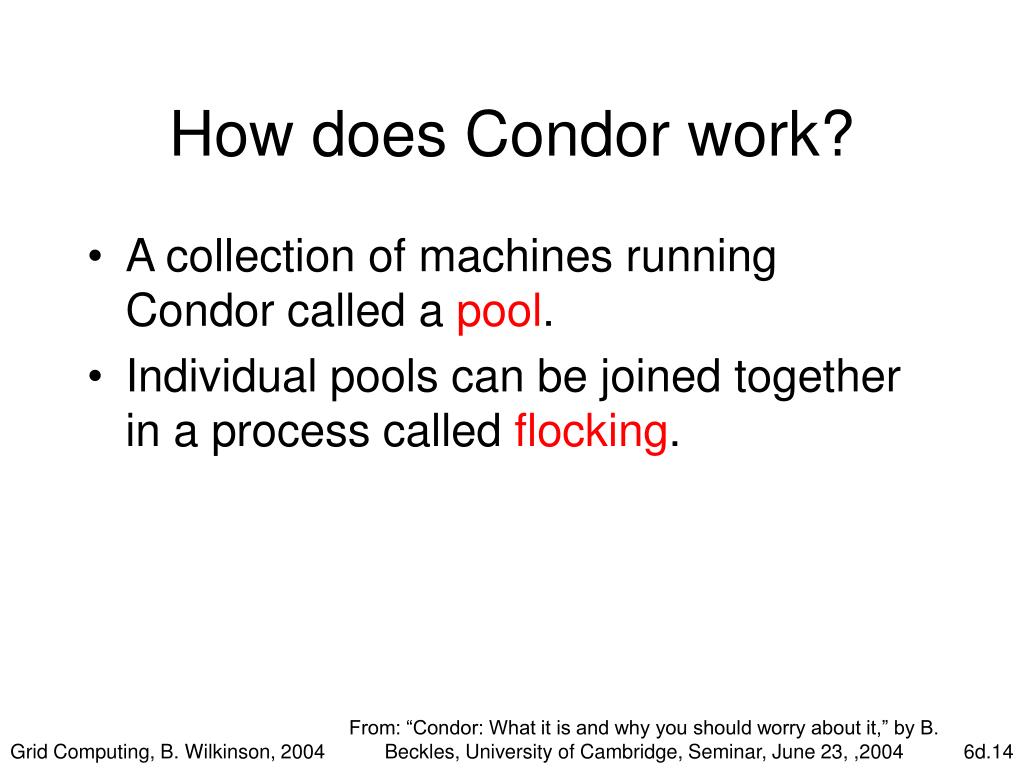

14. How does Condor work? • A collection of machines running Condor called a pool. • Individual pools can be joined together in a process called flocking. From: “Condor: What it is and why you should worry about it,” by B. Beckles, University of Cambridge, Seminar, June 23, ,2004 Grid Computing, B. Wilkinson, 2004

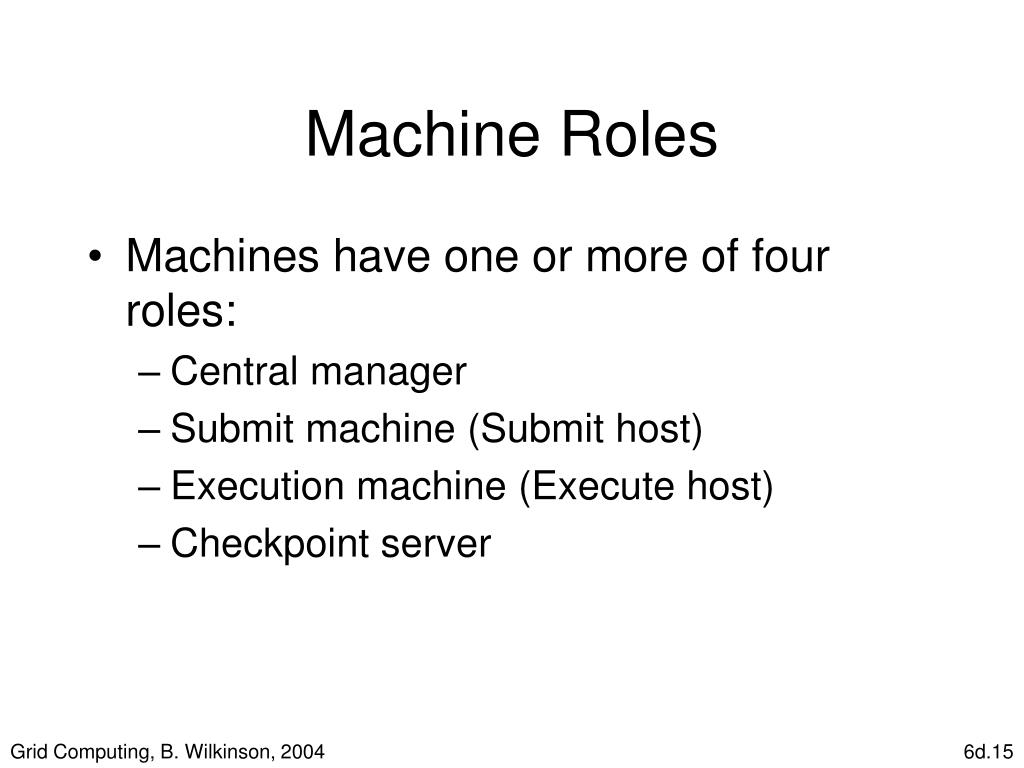

15. Machine Roles • Machines have one or more of four roles: • Central manager • Submit machine (Submit host) • Execution machine (Execute host) • Checkpoint server Grid Computing, B. Wilkinson, 2004

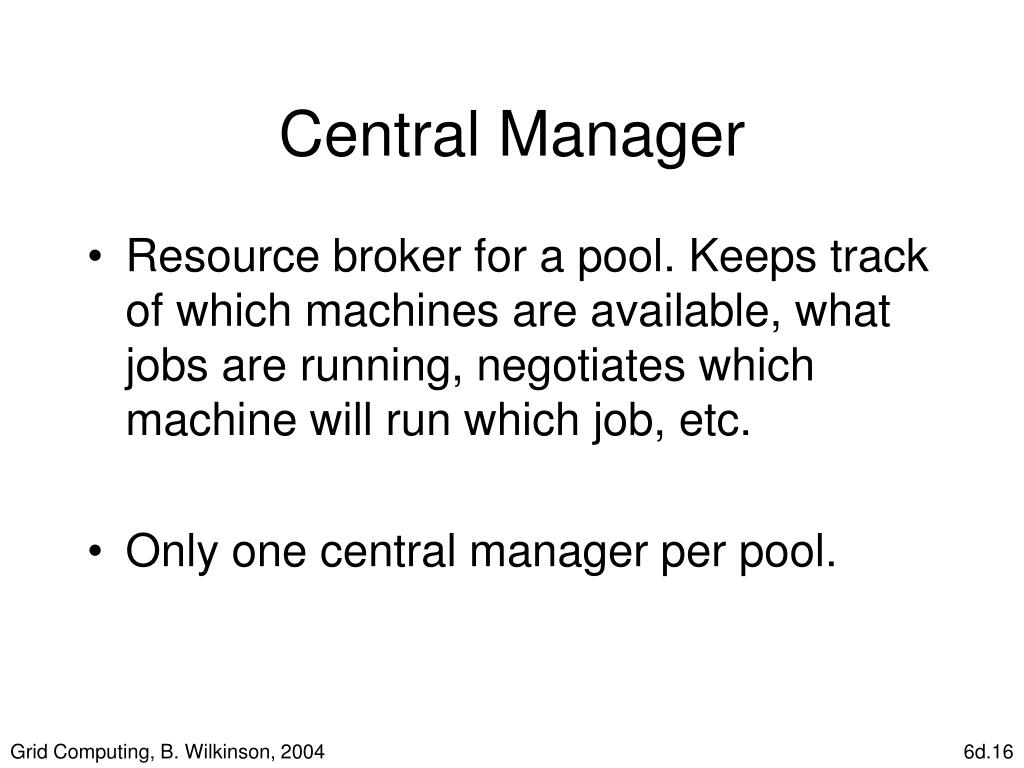

16. Central Manager • Resource broker for a pool. Keeps track of which machines are available, what jobs are running, negotiates which machine will run which job, etc. • Only one central manager per pool. Grid Computing, B. Wilkinson, 2004

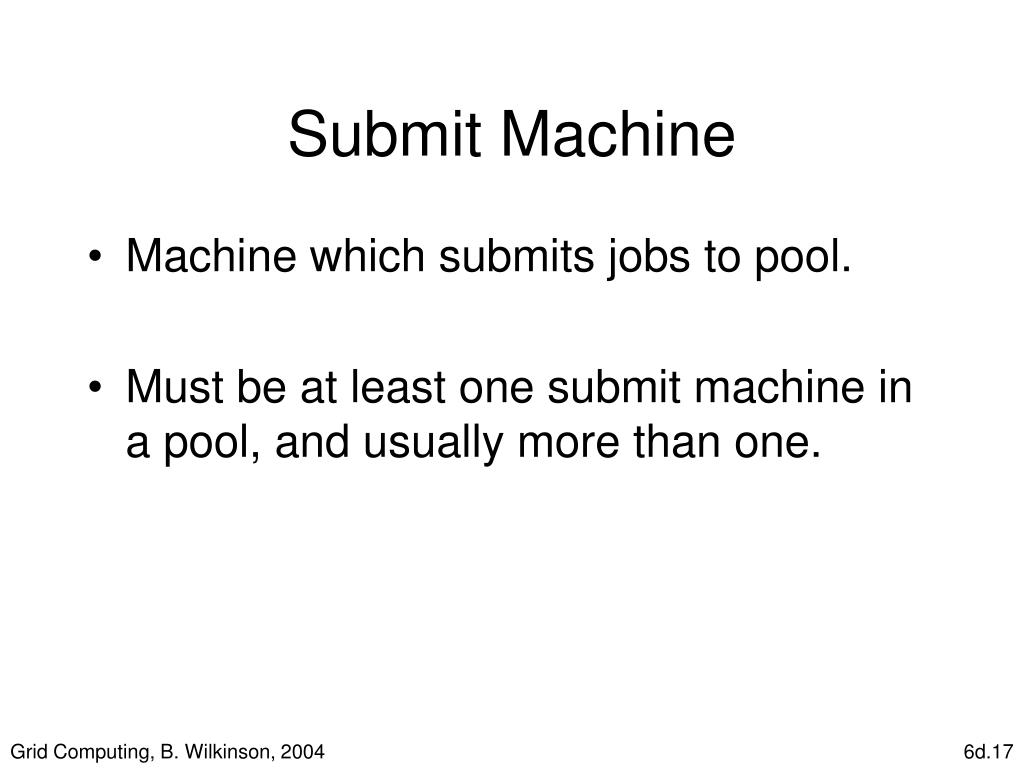

17. Submit Machine • Machine which submits jobs to pool. • Must be at least one submit machine in a pool, and usually more than one. Grid Computing, B. Wilkinson, 2004

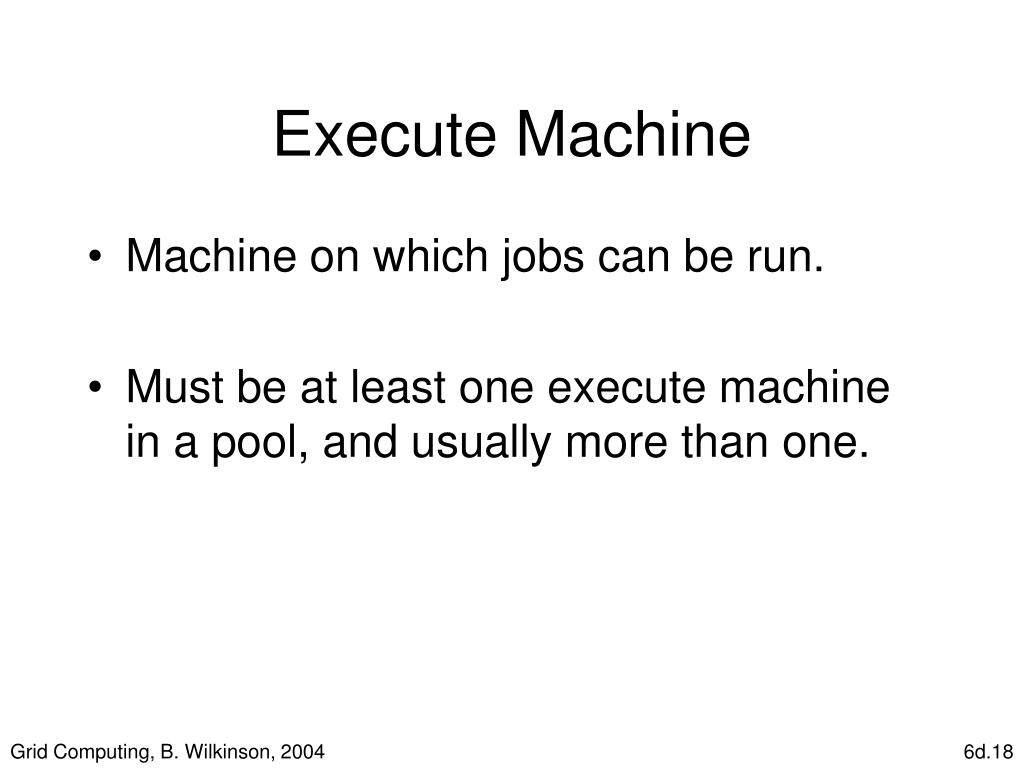

18. Execute Machine • Machine on which jobs can be run. • Must be at least one execute machine in a pool, and usually more than one. Grid Computing, B. Wilkinson, 2004

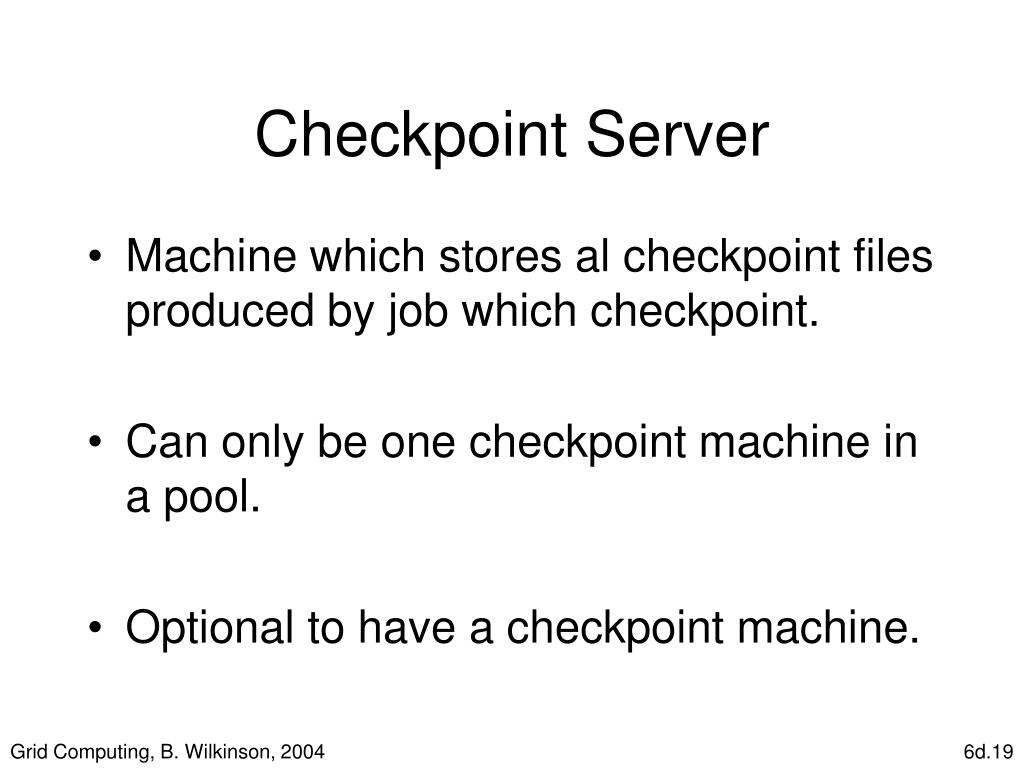

19. Checkpoint Server • Machine which stores al checkpoint files produced by job which checkpoint. • Can only be one checkpoint machine in a pool. • Optional to have a checkpoint machine. Grid Computing, B. Wilkinson, 2004

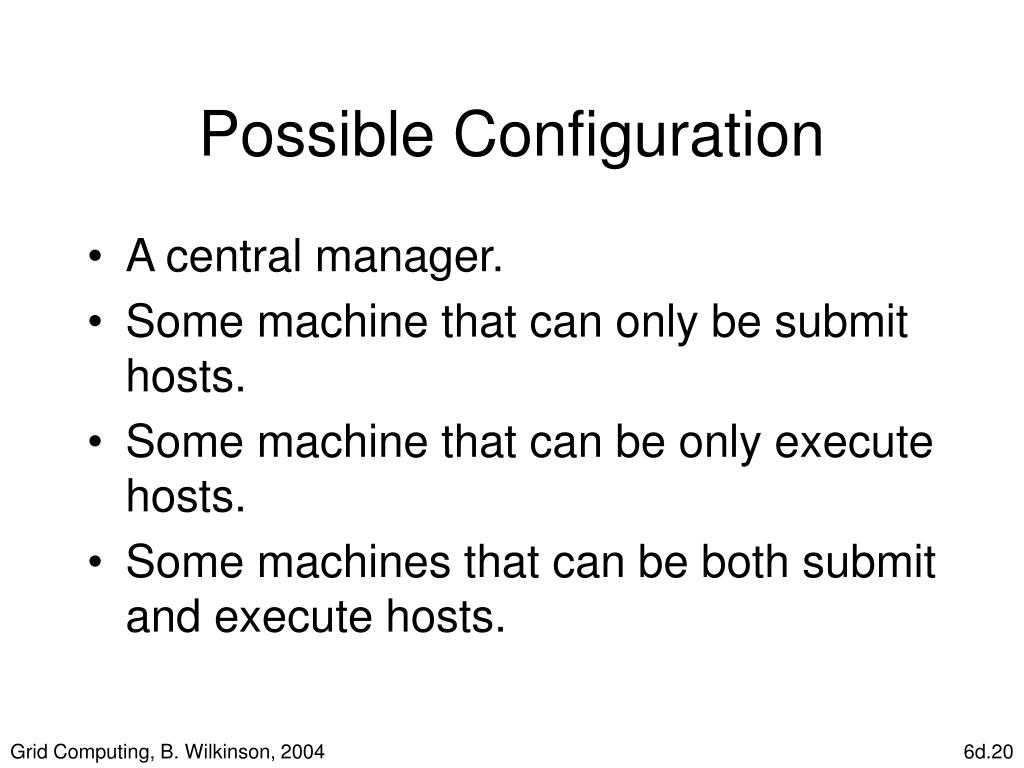

20. Possible Configuration • A central manager. • Some machine that can only be submit hosts. • Some machine that can be only execute hosts. • Some machines that can be both submit and execute hosts. Grid Computing, B. Wilkinson, 2004

21. Grid Computing, B. Wilkinson, 2004

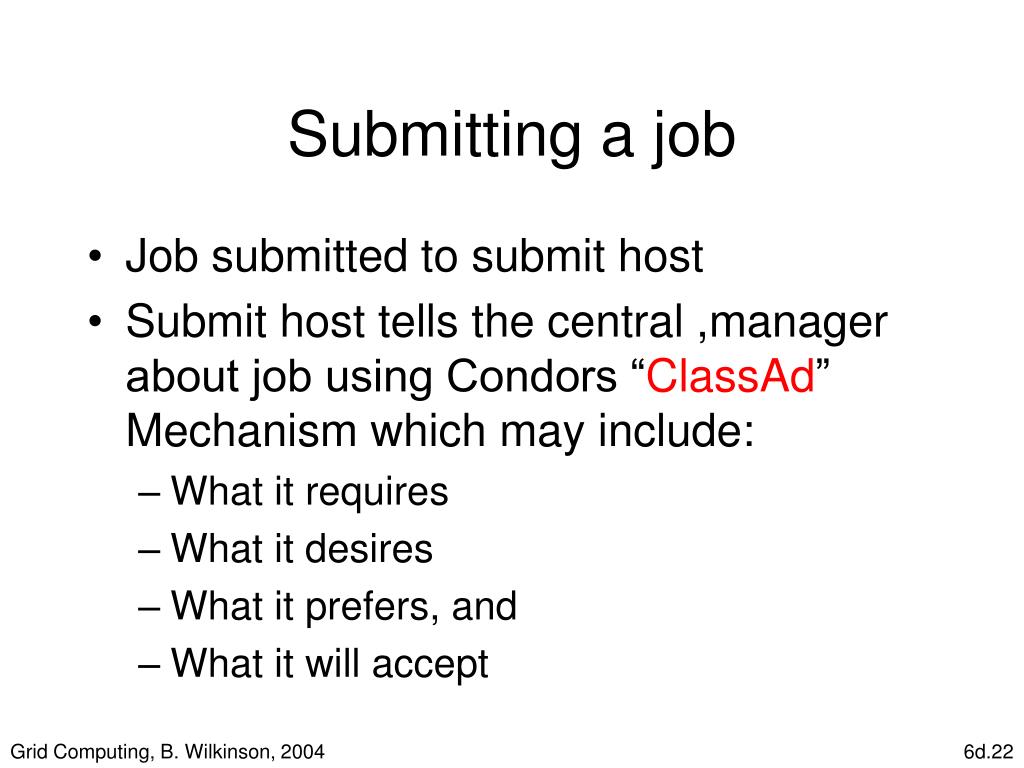

22. Submitting a job • Job submitted to submit host • Submit host tells the central ,manager about job using Condors “ClassAd” Mechanism which may include: • What it requires • What it desires • What it prefers, and • What it will accept Grid Computing, B. Wilkinson, 2004

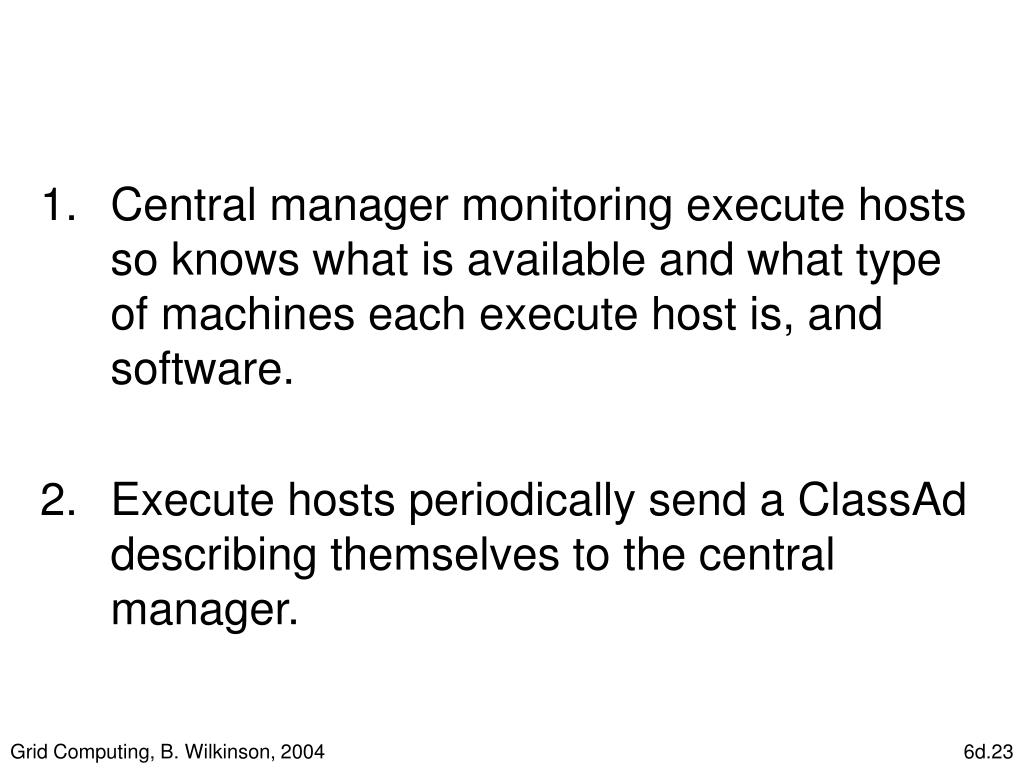

23. 1. Central manager monitoring execute hosts so knows what is available and what type of machines each execute host is, and software. 2. Execute hosts periodically send a ClassAd describing themselves to the central manager. Grid Computing, B. Wilkinson, 2004

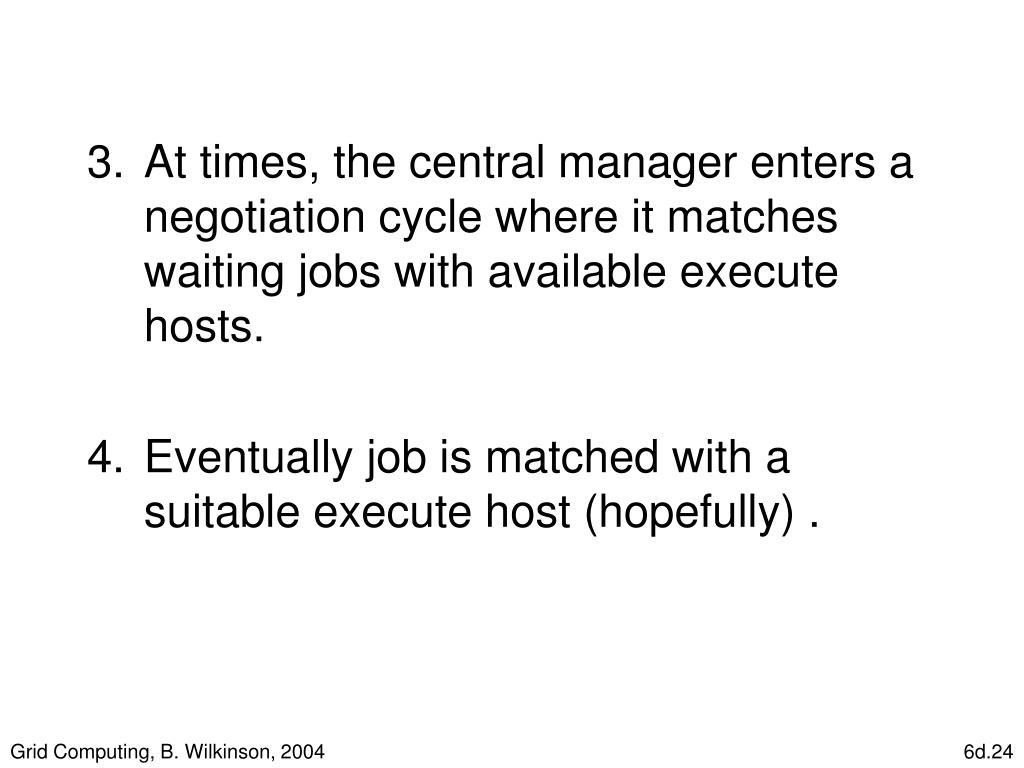

24. 3. At times, the central manager enters a negotiation cycle where it matches waiting jobs with available execute hosts. 4. Eventually job is matched with a suitable execute host (hopefully) . Grid Computing, B. Wilkinson, 2004

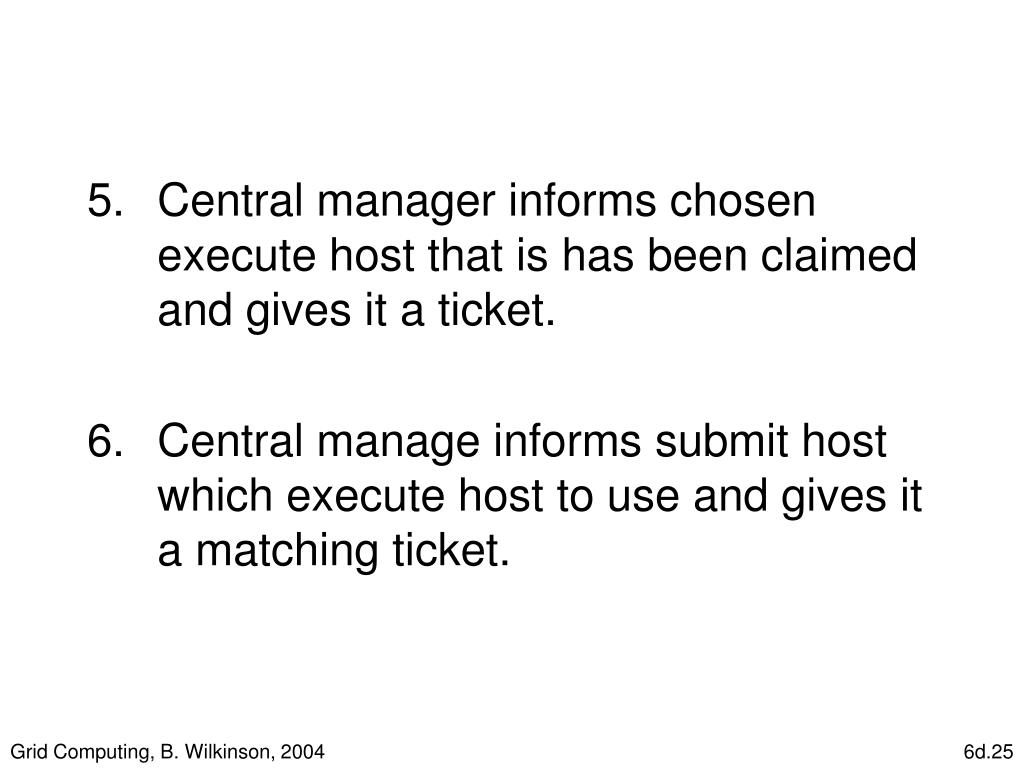

25. 5. Central manager informs chosen execute host that is has been claimed and gives it a ticket. 6. Central manage informs submit host which execute host to use and gives it a matching ticket. Grid Computing, B. Wilkinson, 2004

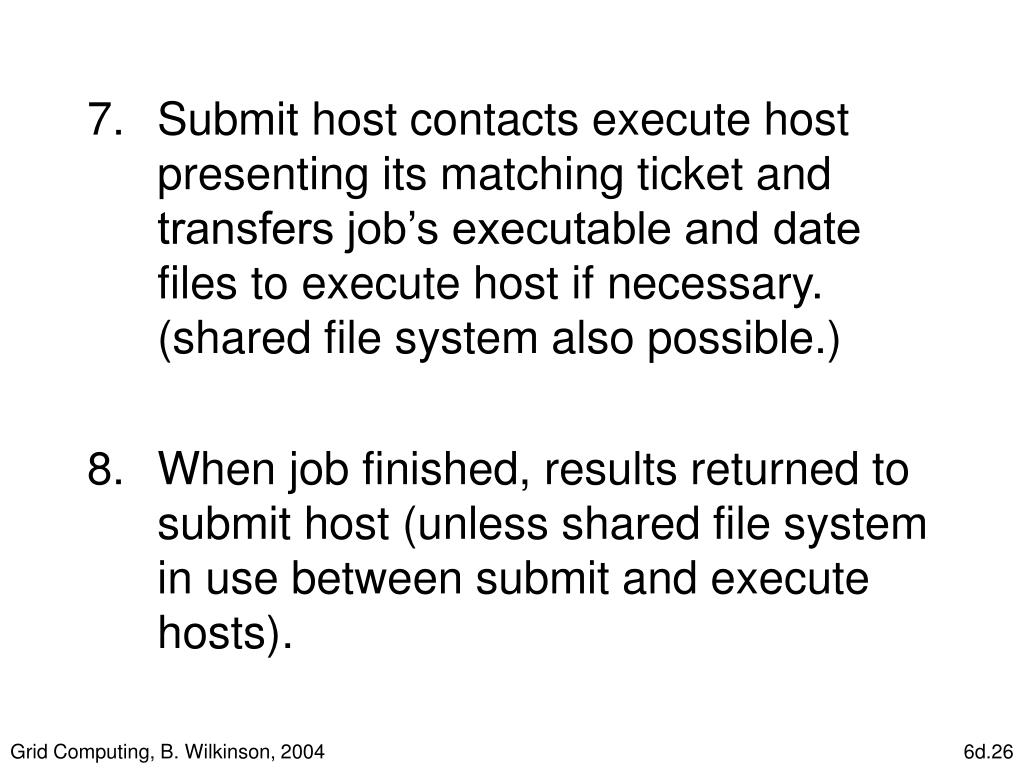

26. 7. Submit host contacts execute host presenting its matching ticket and transfers job’s executable and date files to execute host if necessary. (shared file system also possible.) 8. When job finished, results returned to submit host (unless shared file system in use between submit and execute hosts). Grid Computing, B. Wilkinson, 2004

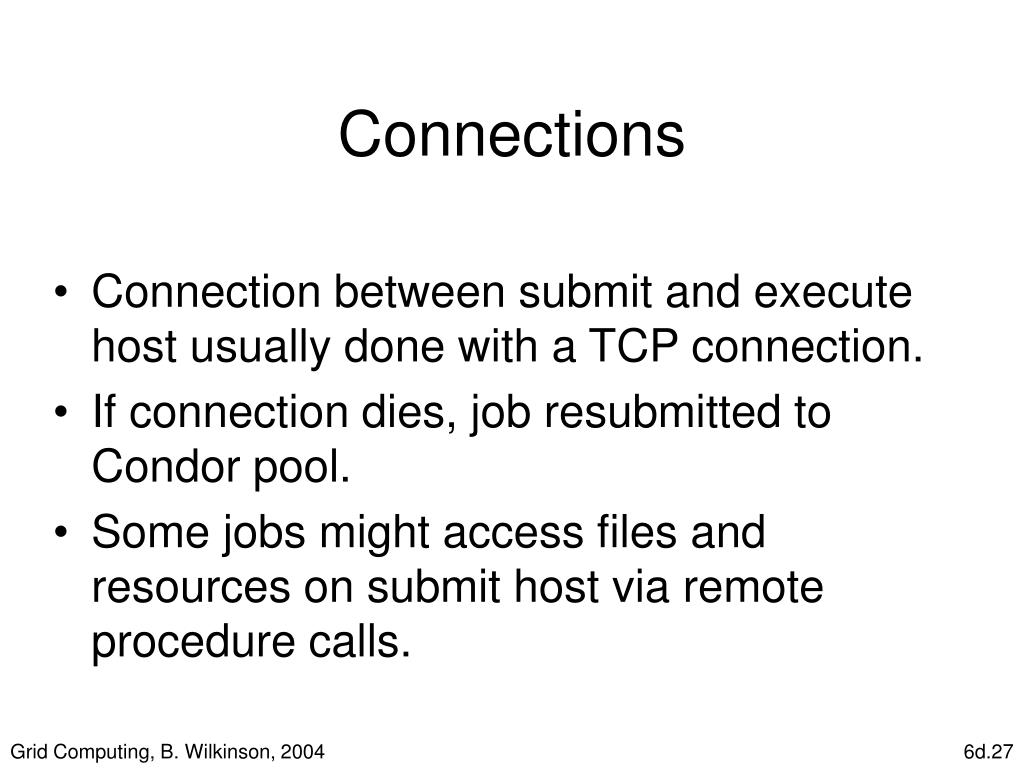

27. Connections • Connection between submit and execute host usually done with a TCP connection. • If connection dies, job resubmitted to Condor pool. • Some jobs might access files and resources on submit host via remote procedure calls. Grid Computing, B. Wilkinson, 2004

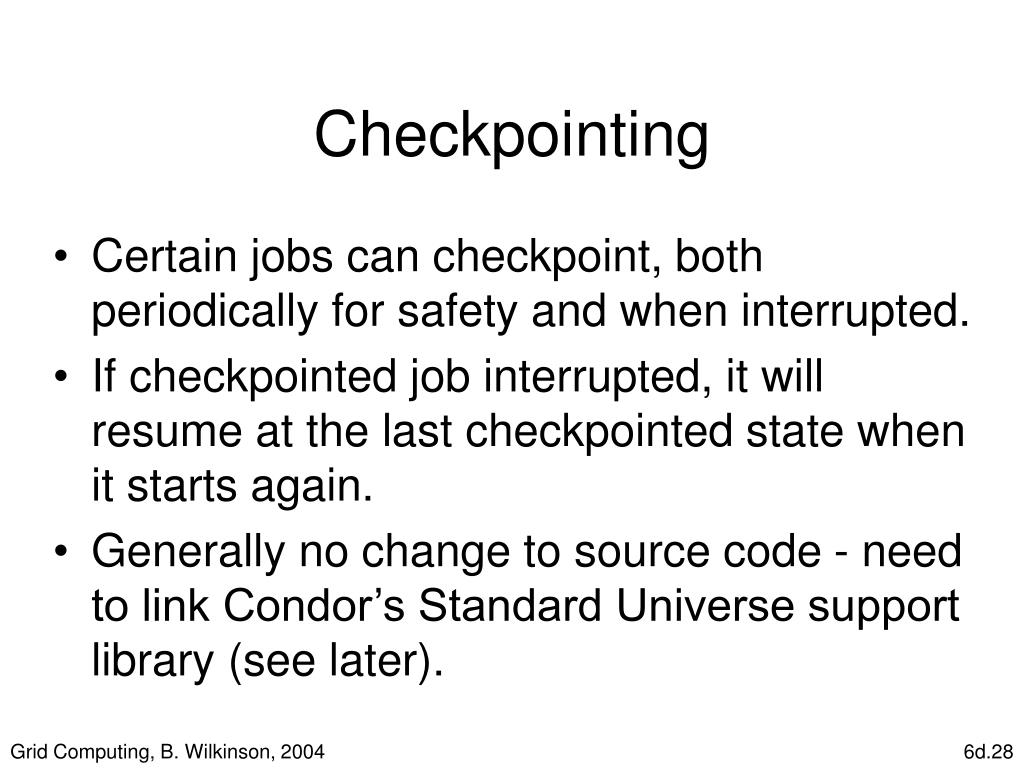

28. Checkpointing • Certain jobs can checkpoint, both periodically for safety and when interrupted. • If checkpointed job interrupted, it will resume at the last checkpointed state when it starts again. • Generally no change to source code - need to link Condor’s Standard Universe support library (see later). Grid Computing, B. Wilkinson, 2004

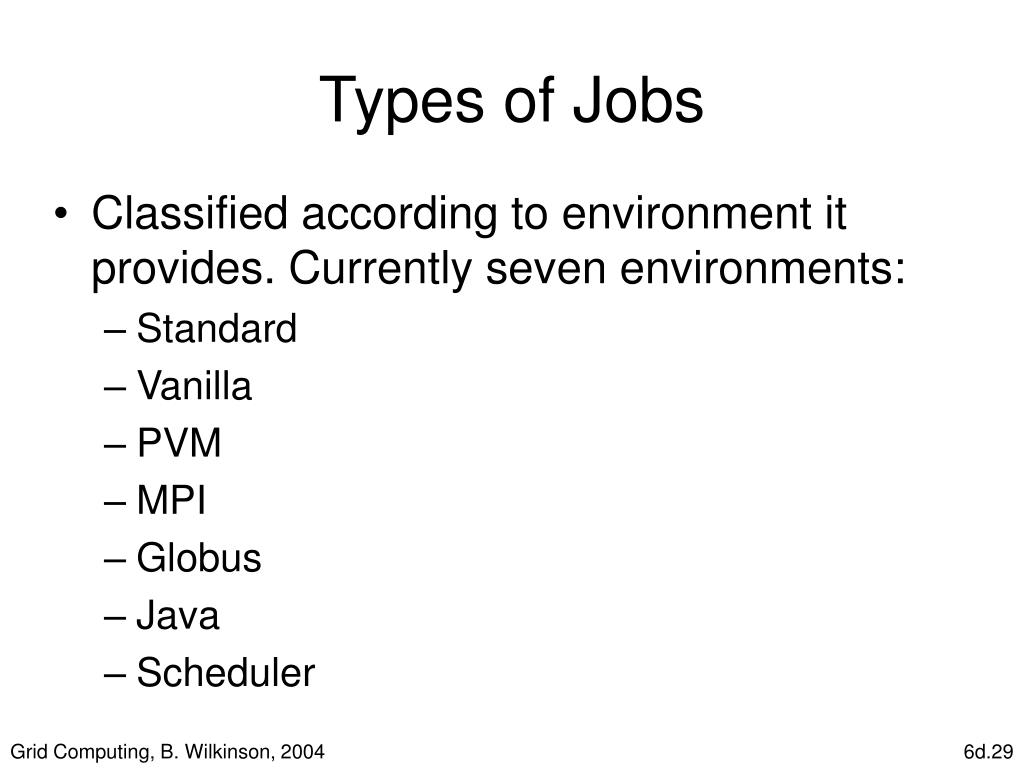

29. Types of Jobs • Classified according to environment it provides. Currently seven environments: • Standard • Vanilla • PVM • MPI • Globus • Java • Scheduler Grid Computing, B. Wilkinson, 2004

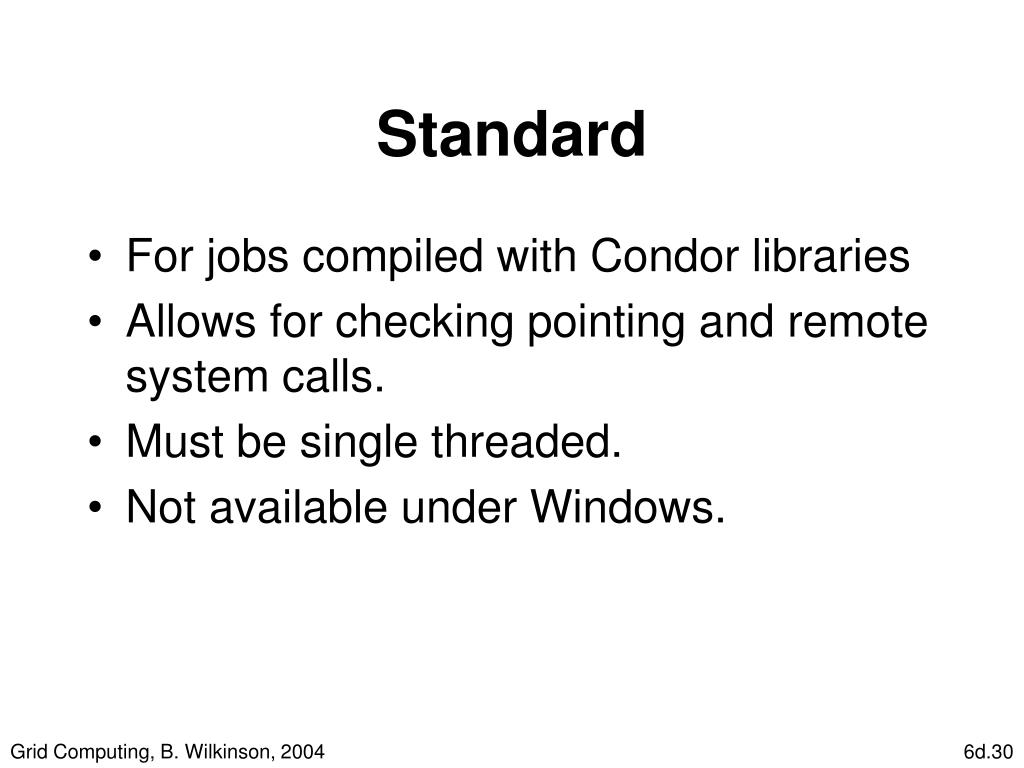

30. Standard • For jobs compiled with Condor libraries • Allows for checking pointing and remote system calls. • Must be single threaded. • Not available under Windows. Grid Computing, B. Wilkinson, 2004

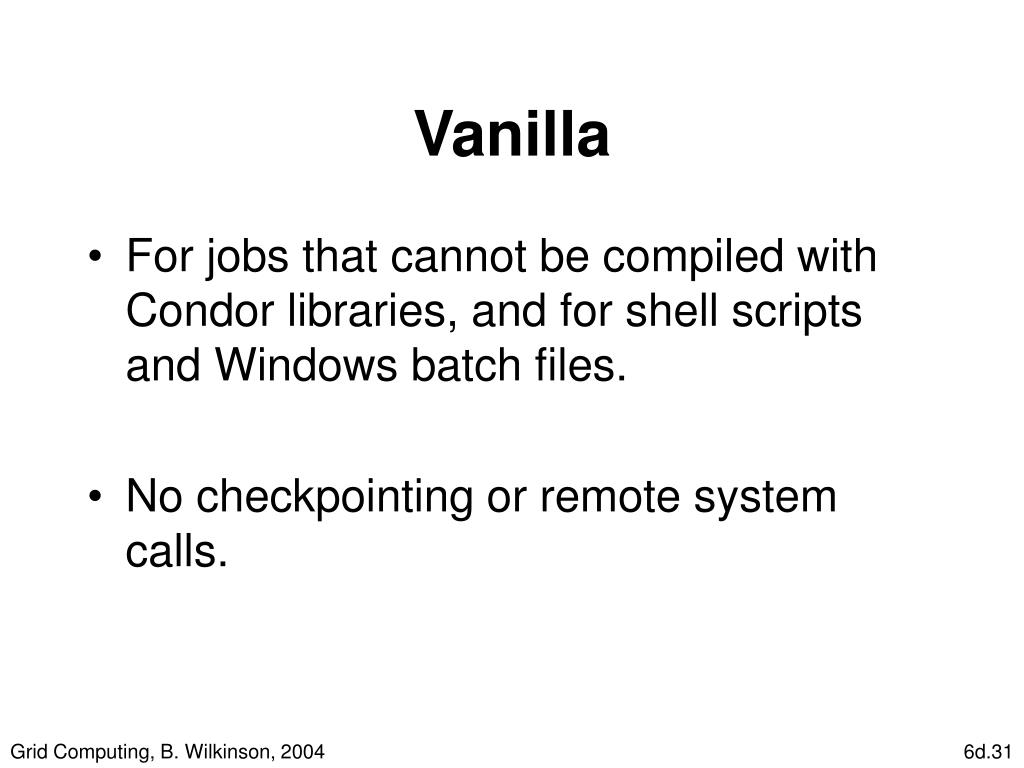

31. Vanilla • For jobs that cannot be compiled with Condor libraries, and for shell scripts and Windows batch files. • No checkpointing or remote system calls. Grid Computing, B. Wilkinson, 2004

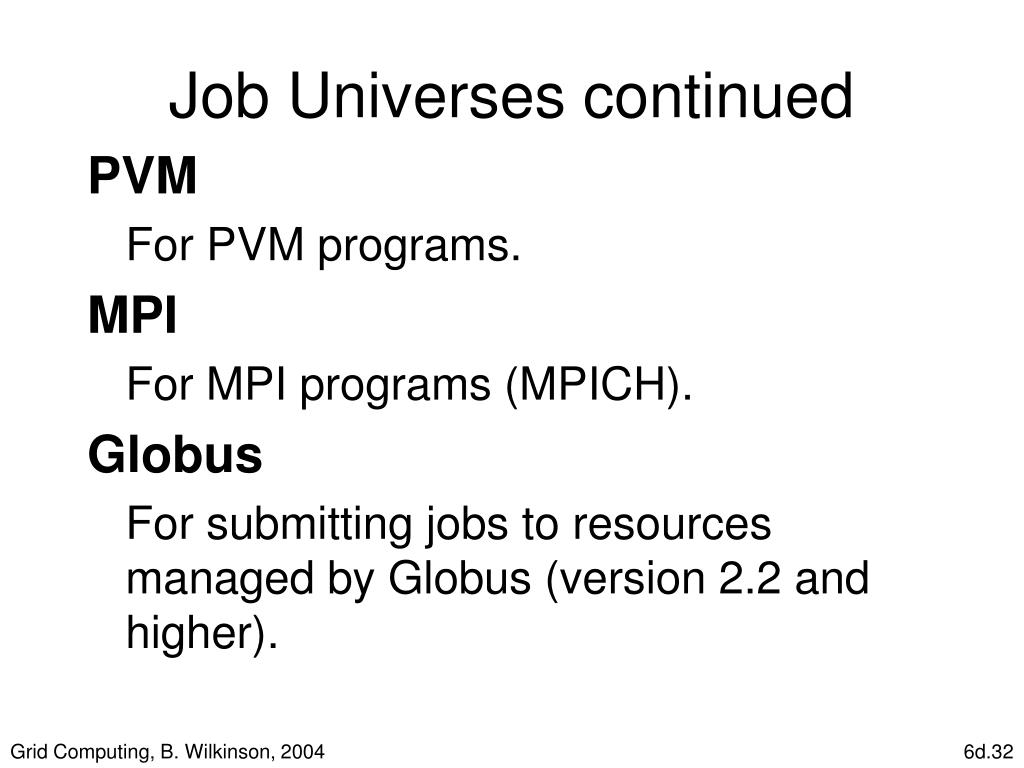

32. Job Universes continued PVM For PVM programs. MPI For MPI programs (MPICH). Globus For submitting jobs to resources managed by Globus (version 2.2 and higher). Grid Computing, B. Wilkinson, 2004

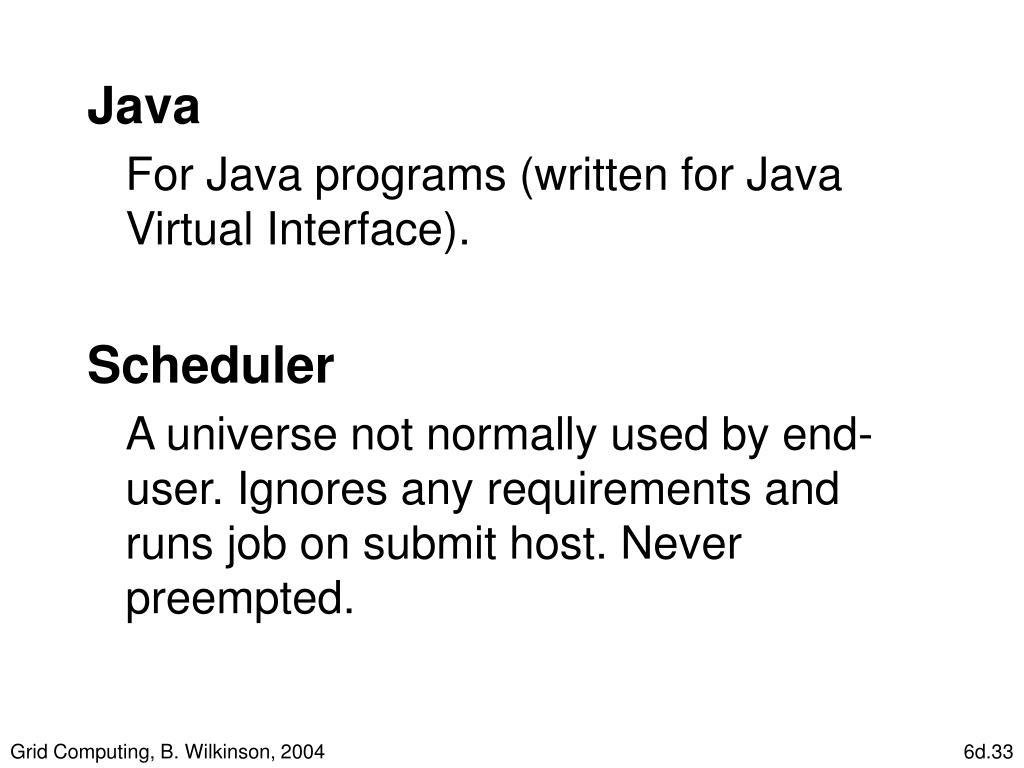

33. Java For Java programs (written for Java Virtual Interface). Scheduler A universe not normally used by end-user. Ignores any requirements and runs job on submit host. Never preempted. Grid Computing, B. Wilkinson, 2004

34. Directed Acyclic Graph Manager (DAGMan) • Allows one to specify dependencies between Condor Jobs. Example “Do not run Job B until Job A completed successfully” Especially important to jobs working together (as in Grid computing). Grid Computing, B. Wilkinson, 2004

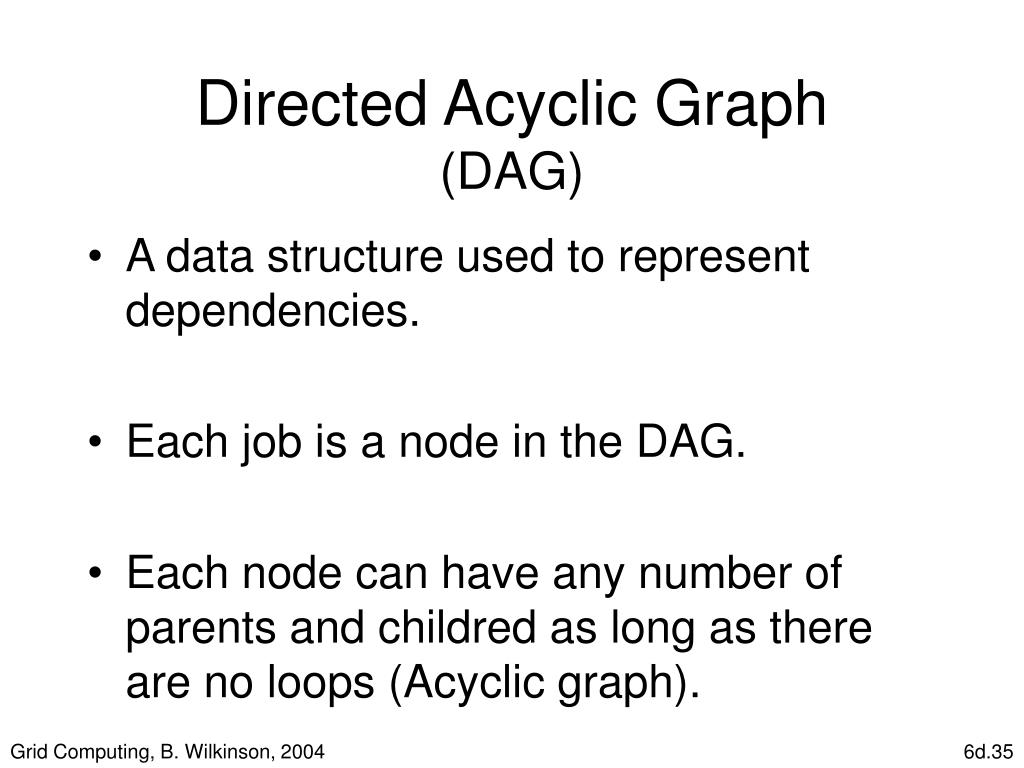

35. Directed Acyclic Graph(DAG) • A data structure used to represent dependencies. • Each job is a node in the DAG. • Each node can have any number of parents and childred as long as there are no loops (Acyclic graph). Grid Computing, B. Wilkinson, 2004

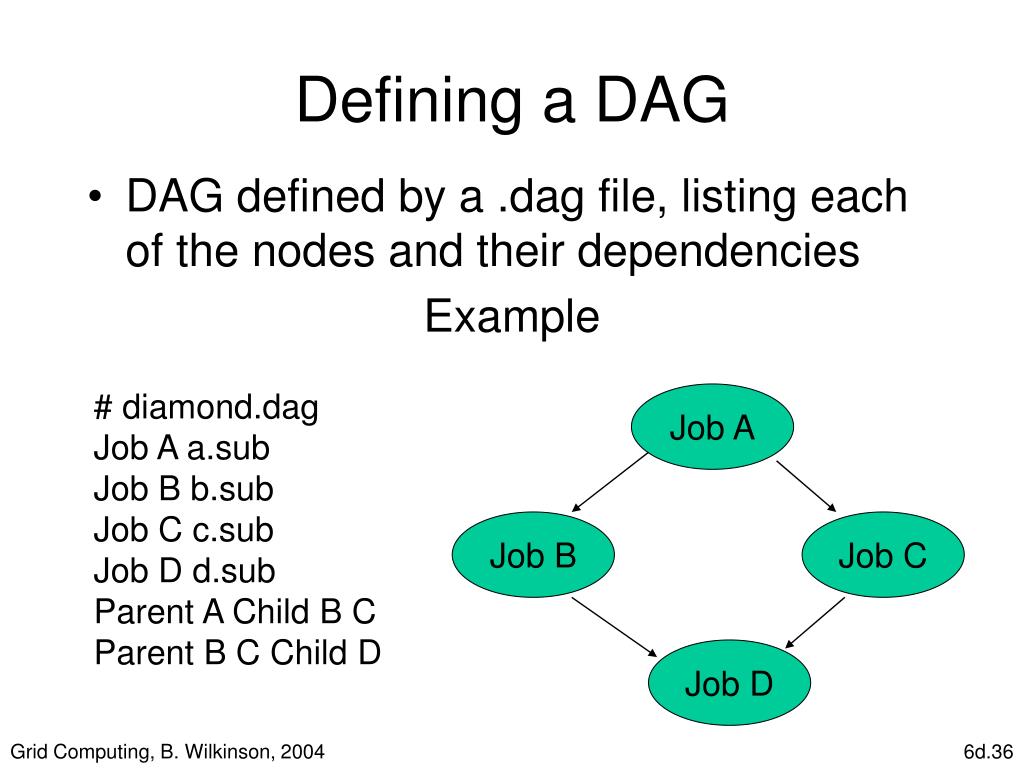

36. Defining a DAG • DAG defined by a .dag file, listing each of the nodes and their dependencies Example # diamond.dag Job A a.sub Job B b.sub Job C c.sub Job D d.sub Parent A Child B C Parent B C Child D Job A Job B Job C Job D Grid Computing, B. Wilkinson, 2004

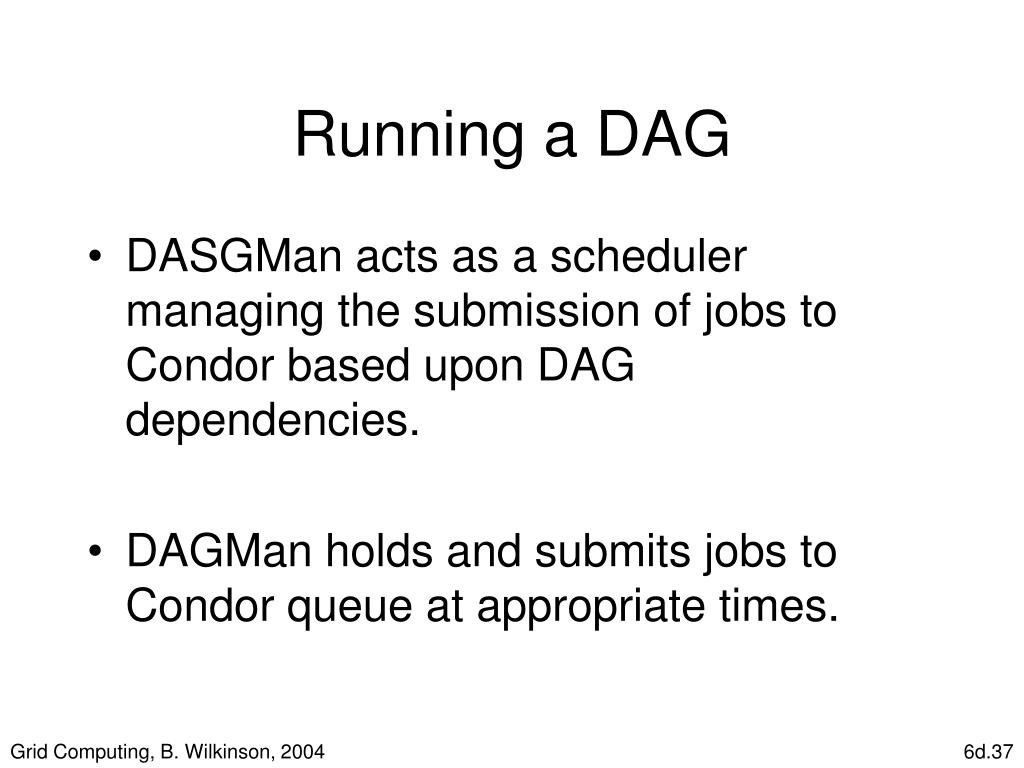

37. Running a DAG • DASGMan acts as a scheduler managing the submission of jobs to Condor based upon DAG dependencies. • DAGMan holds and submits jobs to Condor queue at appropriate times. Grid Computing, B. Wilkinson, 2004

38. Job Failures • DAGMan continues until it cannot make progress and then creates a rescue file holding current state of DAG. • When failed job ready to re-run, rescue file used to restore prior state of DAG. Grid Computing, B. Wilkinson, 2004

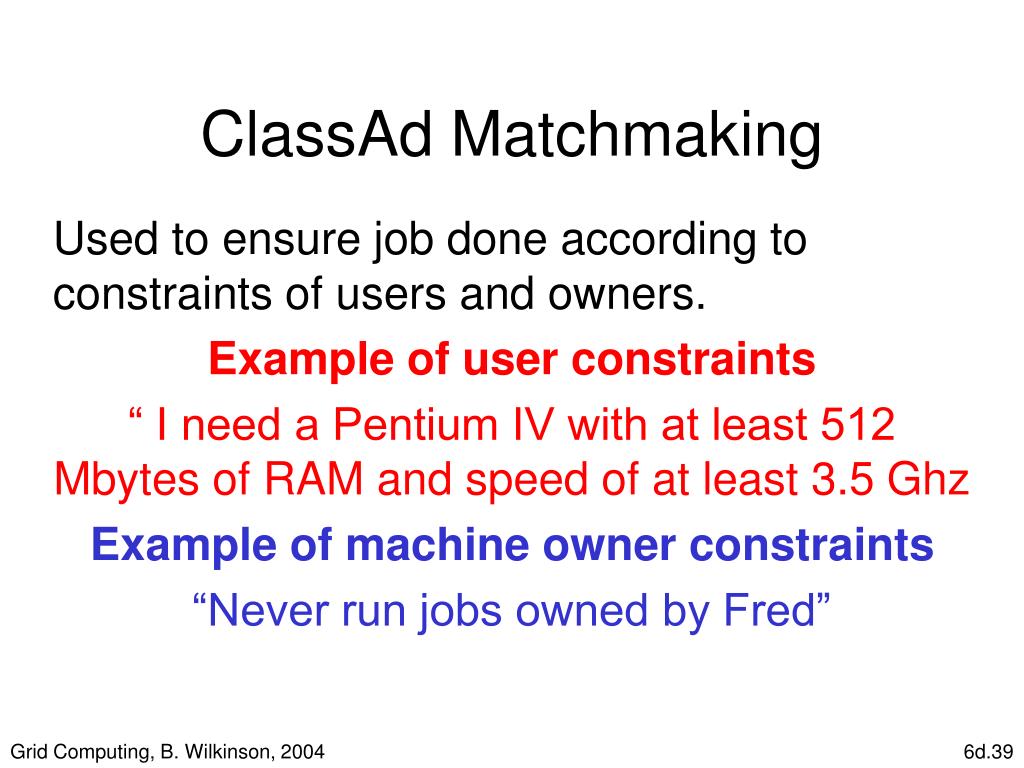

39. ClassAd Matchmaking Used to ensure job done according to constraints of users and owners. Example of user constraints “ I need a Pentium IV with at least 512 Mbytes of RAM and speed of at least 3.5 Ghz Example of machine owner constraints “Never run jobs owned by Fred” Grid Computing, B. Wilkinson, 2004

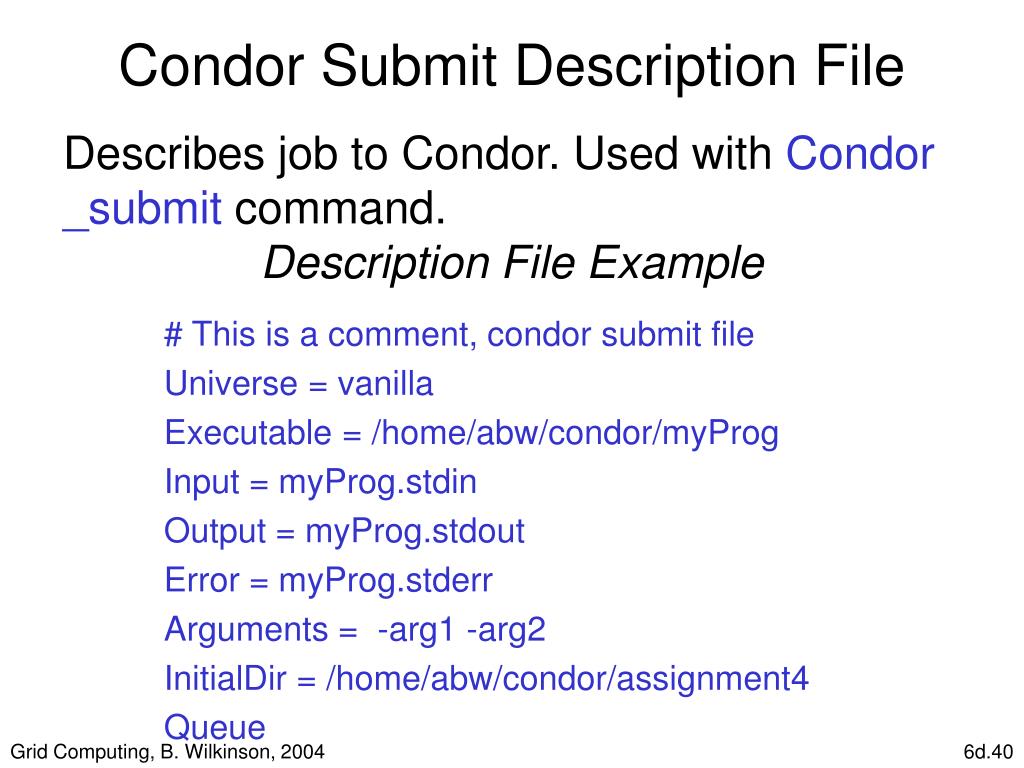

40. Condor Submit Description File Describes job to Condor. Used with Condor _submit command. Description File Example # This is a comment, condor submit file Universe = vanilla Executable = /home/abw/condor/myProg Input = myProg.stdin Output = myProg.stdout Error = myProg.stderr Arguments = -arg1 -arg2 InitialDir = /home/abw/condor/assignment4 Queue Grid Computing, B. Wilkinson, 2004

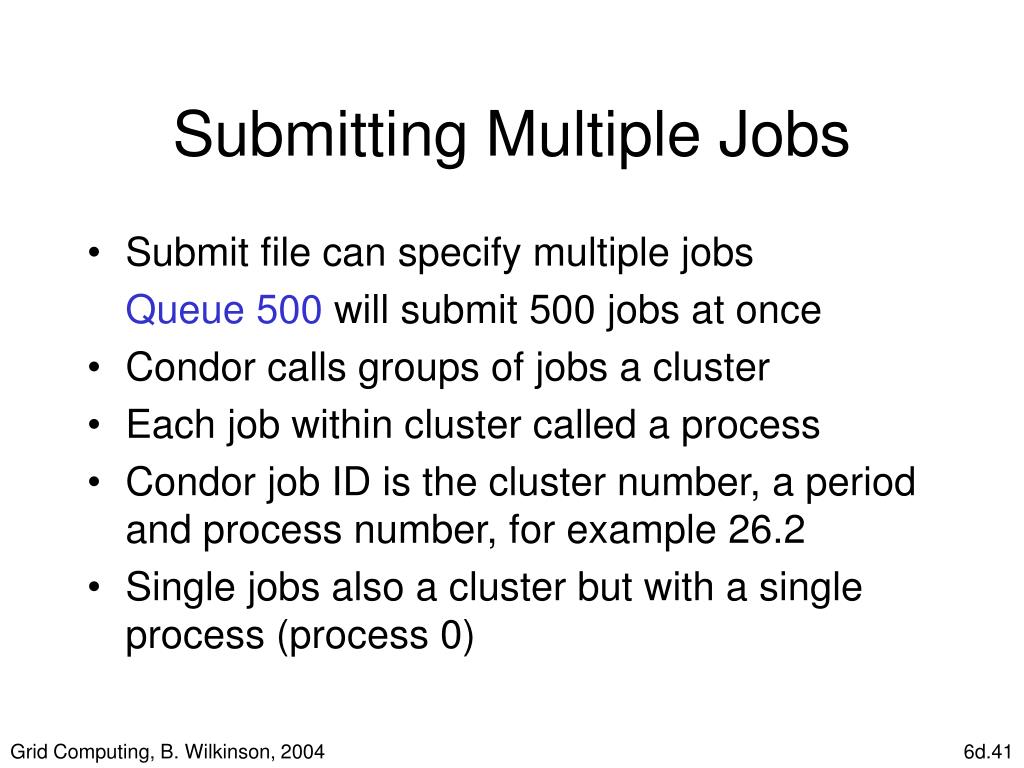

41. Submitting Multiple Jobs • Submit file can specify multiple jobs Queue 500 will submit 500 jobs at once • Condor calls groups of jobs a cluster • Each job within cluster called a process • Condor job ID is the cluster number, a period and process number, for example 26.2 • Single jobs also a cluster but with a single process (process 0) Grid Computing, B. Wilkinson, 2004

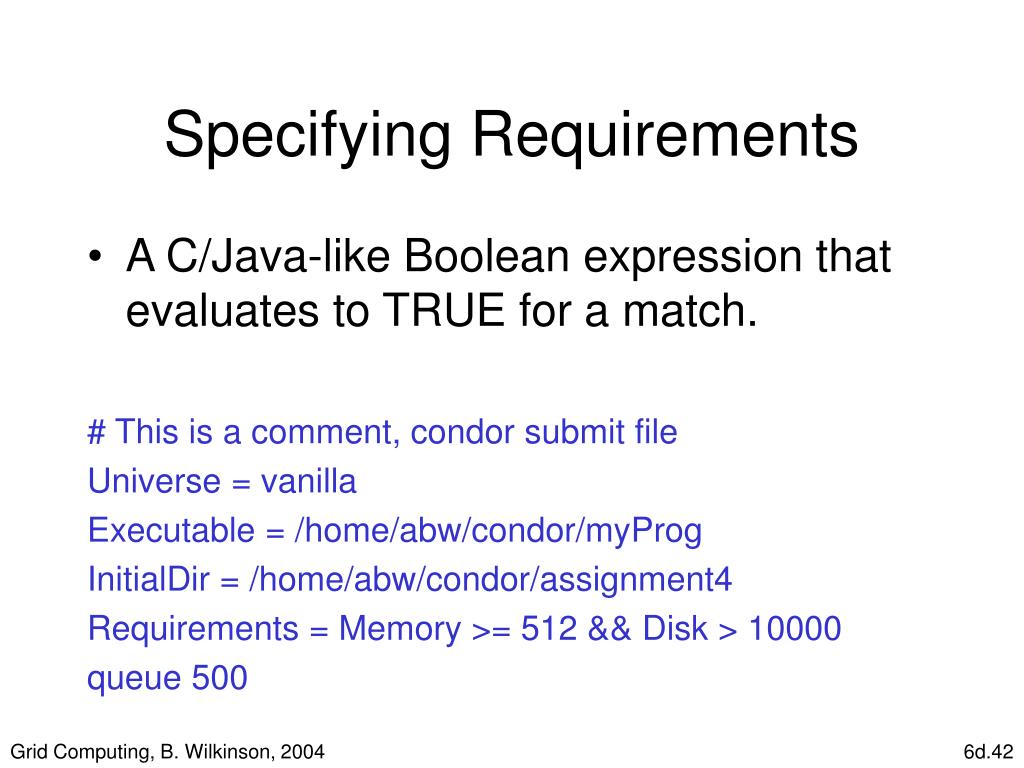

42. Specifying Requirements • A C/Java-like Boolean expression that evaluates to TRUE for a match. # This is a comment, condor submit file Universe = vanilla Executable = /home/abw/condor/myProg InitialDir = /home/abw/condor/assignment4 Requirements = Memory >= 512 && Disk > 10000 queue 500 Grid Computing, B. Wilkinson, 2004

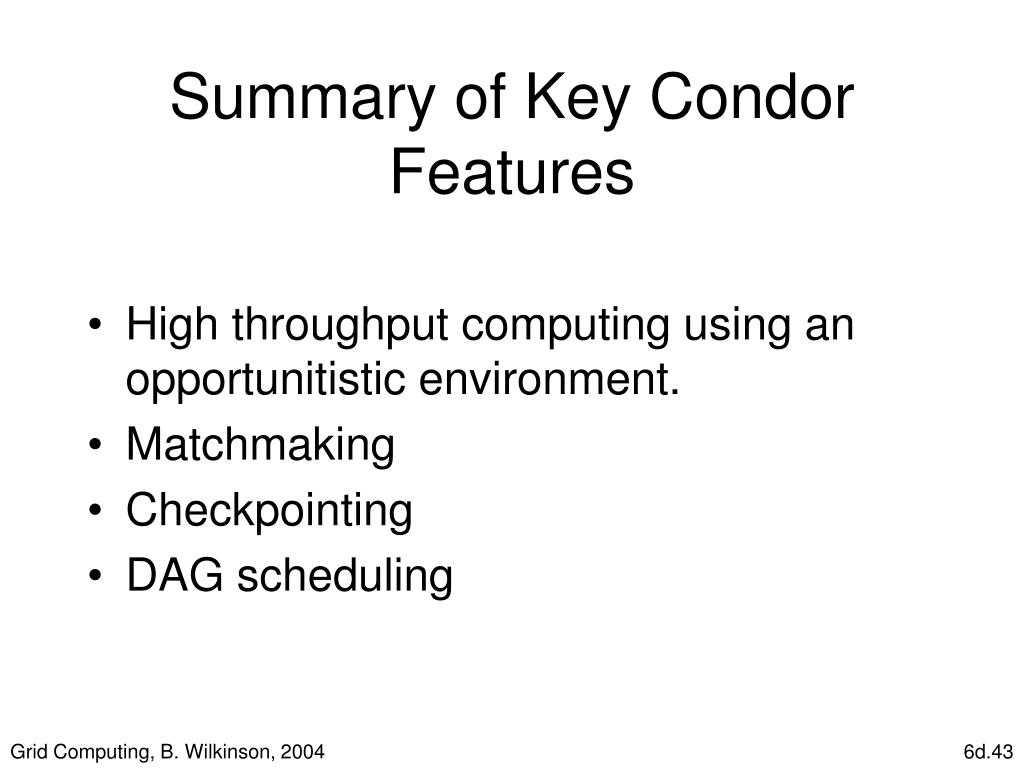

43. Summary of Key Condor Features • High throughput computing using an opportunitistic environment. • Matchmaking • Checkpointing • DAG scheduling Grid Computing, B. Wilkinson, 2004

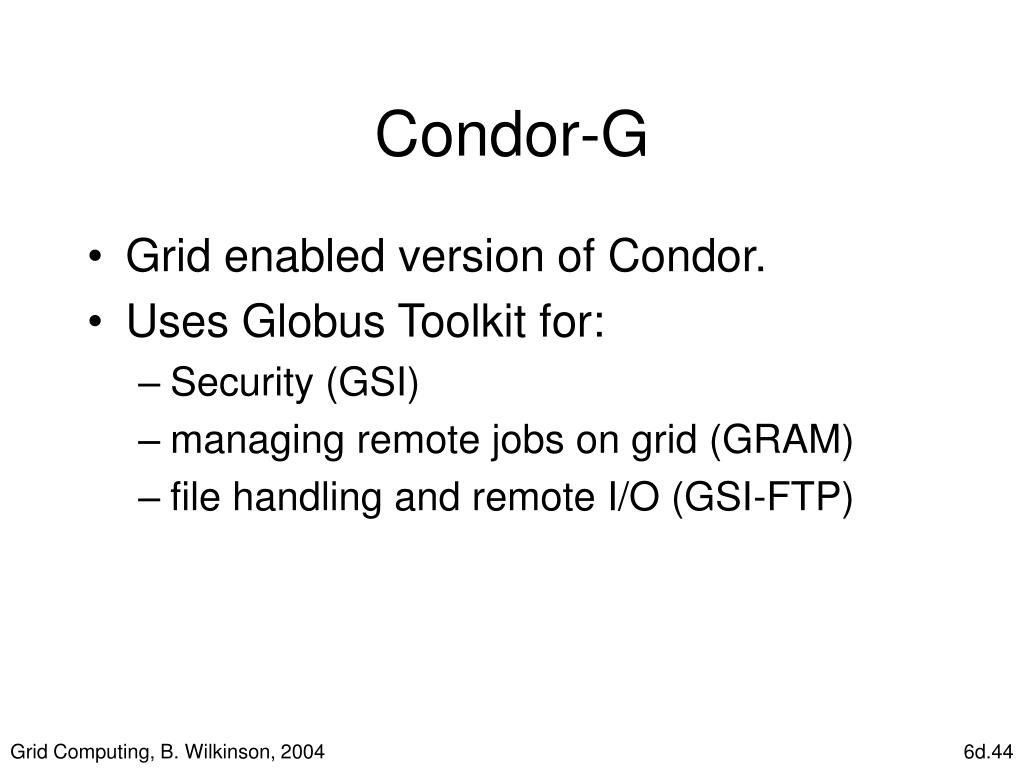

44. Condor-G • Grid enabled version of Condor. • Uses Globus Toolkit for: • Security (GSI) • managing remote jobs on grid (GRAM) • file handling and remote I/O (GSI-FTP) Grid Computing, B. Wilkinson, 2004

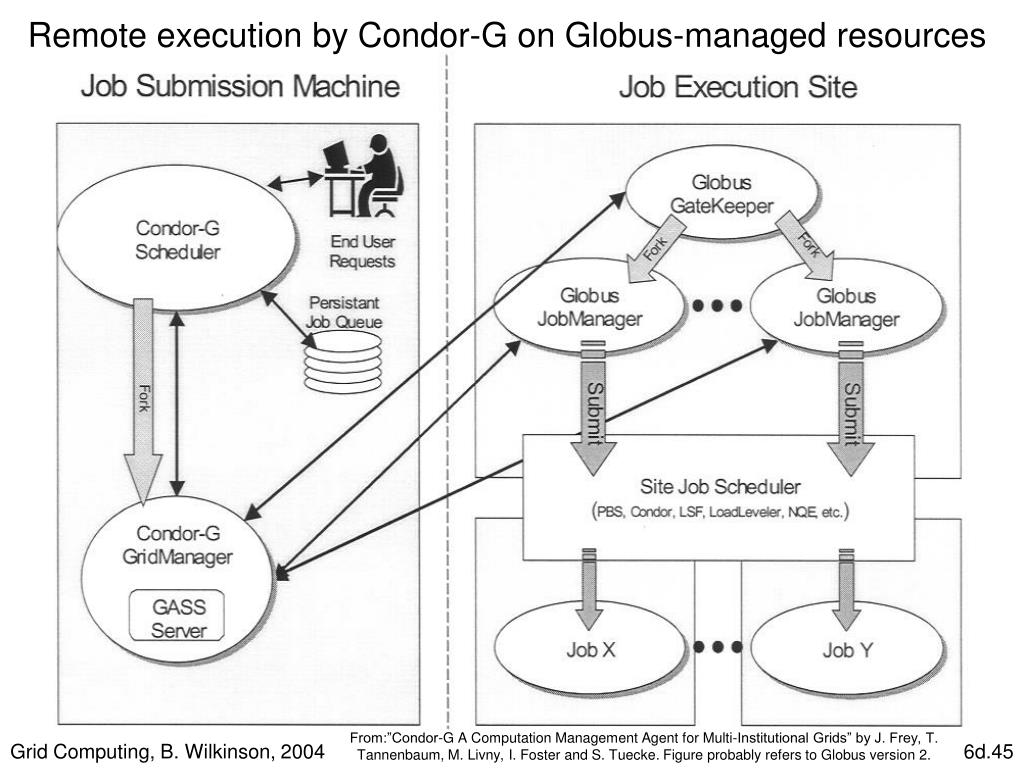

45. Remote execution by Condor-G on Globus-managed resources From:”Condor-G A Computation Management Agent for Multi-Institutional Grids” by J. Frey, T. Tannenbaum, M. Livny, I. Foster and S. Tuecke. Figure probably refers to Globus version 2. Grid Computing, B. Wilkinson, 2004

46. More! • Assignment 4 will ask you to submit a job through Condor-G. • Check out assignment write-up. Grid Computing, B. Wilkinson, 2004

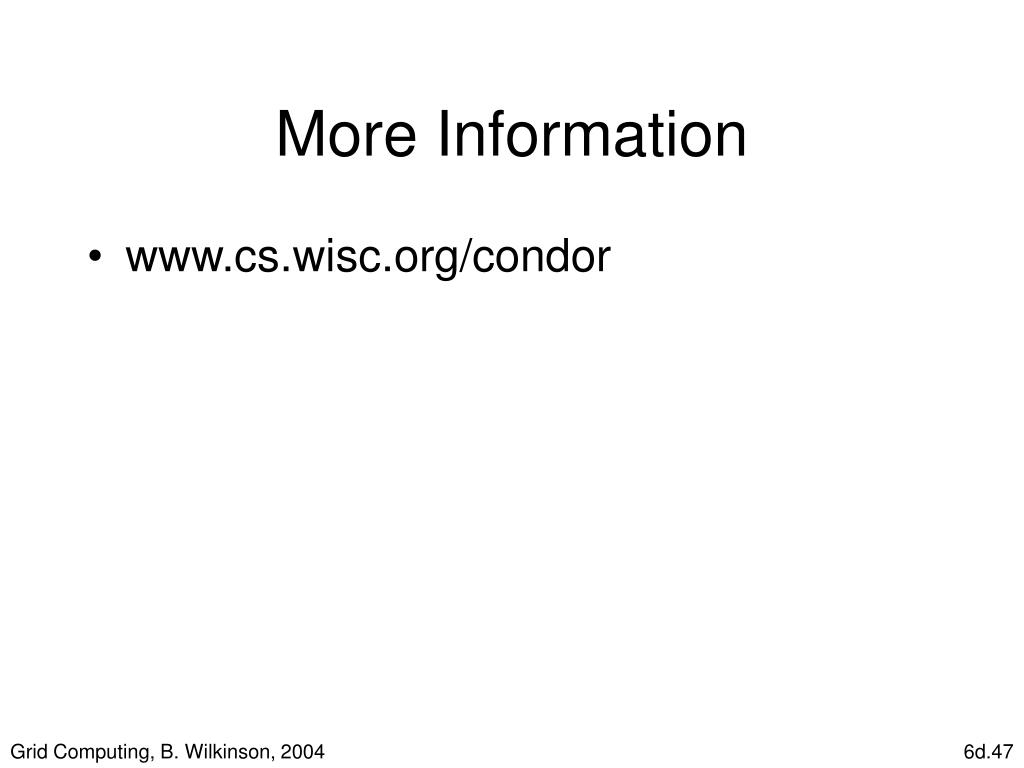

47. More Information • www.cs.wisc.org/condor Grid Computing, B. Wilkinson, 2004
