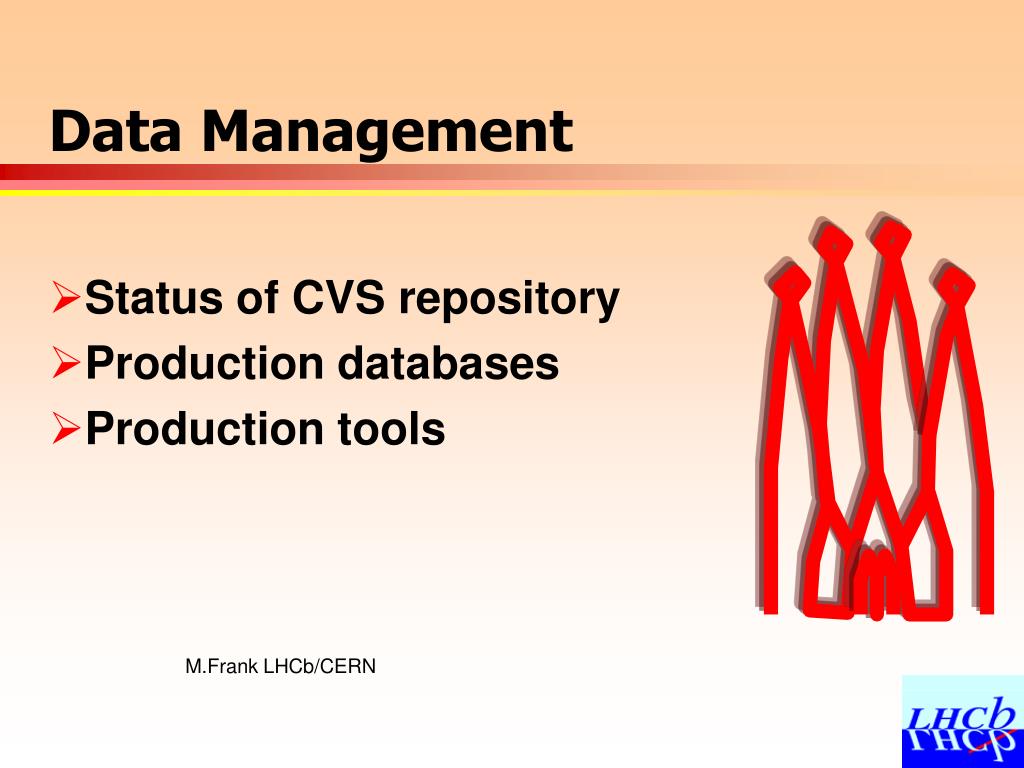

  1. Data Management Status of CVS repository Production databases Production tools

  2. CVS • Separate area for each sub-project • Internal structure • cmt : requirements • <package> : public headers • src : sourceopt: src/<component> • Opt: python, cmds, images, etc POOL

  3. Job . Configuration App/ Pack. Mgr Data . Production Prod.Mgr Book . keeping Physicist Components Job Sub- mission Tool Real dataflow Apparent dataflow POOL

  4. Components • Job configuration Markus • Data production Markus • Job submission Andrei • Bookkeeping Sebastien/Francoise POOL

  5. Job Configuration • Database ok. • Simple HTTP based Editor • XML-RPC based interface • Boost + python • Tool to import applications POOL

  6. Job Configuration: Editor POOL

  7. Pythia – v2 1) Generation Gauss - v5 Gauss - v5 Gauss - v5 Gauss - v5 2) Simulation Brunel - v12 Brunel - v12 3)Reconstruct 4) Mini GenTag v7 Work Flow Execution Flow (Jobs) Data Production POOL

  8. Step Step Step Data Production - Details Workflow Run • Name • State • N(evt) to be processed • Name • Step Seq. # • Nevt(Split) • Nevt(Merge) Step Step • State • Center • Machine Step <Rec> Job <Tags> Job • Name • Input file types • Output file types • Application Name Output File Input File Input File Output File FileType File Type Job Configuration DB Workflow description POOL

  9. Data Production • Work flows • Database ok. • Simple HTTP based Editor • XML-RPC based interface • Boost + python • Data Production • Database ok. • Simple HTTP based Editor • XML-RPC based interface • Boost + python Instantiation of work flows to production runs Very primitive POOL

  10. 1) Generation 2) Simulation 3)Reconstruct 4) Mini Work Flow Instantiation Pythia – v2 Gauss - v5 Gauss - v5 Gauss - v5 Gauss - v5 All processes in one job Tools missing… Brunel - v12 Brunel - v12 GenTag v7 Work Flow Execution Flow (Jobs) POOL

  11. Work Flow Instantiation • Script generation through servlet • Select work flow • Instantiate work flow to production run • Add basic information • # of events • CPU requirements etc. • Generate scripts • Possibility to extend existing runs • Scripts are then picked up by Andrei’s client POOL

  12. Interacting Components • Main strategy on component failure(s) • The system must stay operable • Intermediately produced information items are cached locally until servers are up again • Production server (see next slide) • Production client (see Andrei’s talk) • Servers/servlets to publish bookkeeping information(see Sebastiens talk) POOL

  13. Component Collaboration Production Editor Work flow Editor Production DB Production data Scripts Edit Instantiate Workflow Production Server • Job request • Status updates Prod.Mgr Production Client Bookkeeping info XML Bookkeeping POOL

  14. Script Generation setenv PRODUCTION_IDENTIFIER 400000067 setenv JOB_NAME 400000369 # Target operating system: linux # Parameters of step MinBias.Dec.2002 setenv MBIAS_QQ_USER_FILE None setenv MBIAS_EVTYPE 61 # Parameters of step B2pipi.Dec.2002 setenv B2PIPI_QQ_USER_FILE B2pipi.dec setenv B2PIPI_EVTYPE 411300 # Parameters of work flow B2pipi.Dec.2002 setenv SIMULATION_APP SICBMC setenv SIMULATION_VSN v254r2 setenv RECONSTRUCTION_APP Brunel setenv RECONSTRUCTION_VSN v13r1 setenv DBASE_PKG dbase setenv DBASE_VSN v248r4 setenv XMLDDDB_PKG XmlDDDB setenv XMLDDDB_VSN v8r1 setenv QQ_USER_FILE ${MBIAS_QQ_USER_FILE},${B2PIPI_QQ_USER_FILE} setenv mcevtype ${MBIAS_EVTYPE},${B2PIPI_EVTYPE} setenv SPILLOVER on setenv mcmonihisto on “Instantiated”Workflow POOL

  15. Production Editor POOL

  16. Work Flow Editor POOL

  17. Production DBs - Summary • Primitive production tools exist • WWW based • Basic interface for production clients exists • Needs testing • The environment to start developing production tools is in place • Problems with MySQL • MySQL does not support nested SELECT • MySQL will not come in the very near future POOL

  18. Job List • Import Brunel versions used in production run to job configuration database • Construct “reasonable” work flow • Test generated production script(s) • Test production server-client collaboration POOL
