Understanding Angle and Segment Bisection

Learn how angle bisectors divide angles & segment bisectors divide lines, find midpoints on a coordinate plane & practice the midpoint formula.

amos-young
Télécharger la présentation

Understanding Angle and Segment Bisection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 1.5 SEGMENT AND ANGLE BISECTORS

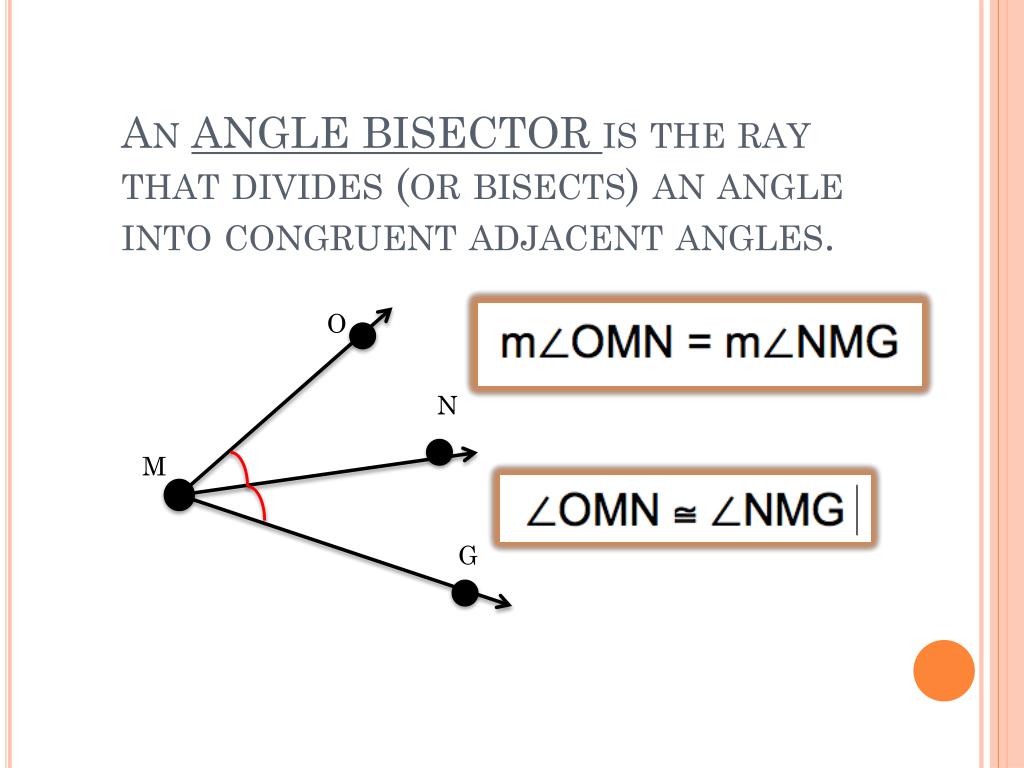

  2. An ANGLE BISECTOR is the ray that divides (or bisects) an angle into congruent adjacent angles. O N M G

  3. How can we use this information about angle bisectors? Q P (x+40)° (3x – 20)° R S

  4. a MIDPOINT is the point that divides (or bisects) the line segment into equal parts. The equal parts are also called congruent segments. DL = LE D L 3 m E 3 m To Bisect means to divide in ½ To be congruent means to be equal

  5. Don’t forget about angle addition and segment addition postulates!

  6. Can we bisect a line? Why or why not? Take a minute to write down your response.

  7. Back to MIDPOINTS! • You will sometimes see midpoints on a coordinate plane. • The MIDPOINT FORMULA will allow you to find the x and y coordinates for the midpoint. P(1,2) Q(3,-2) How do we find that midpoint?

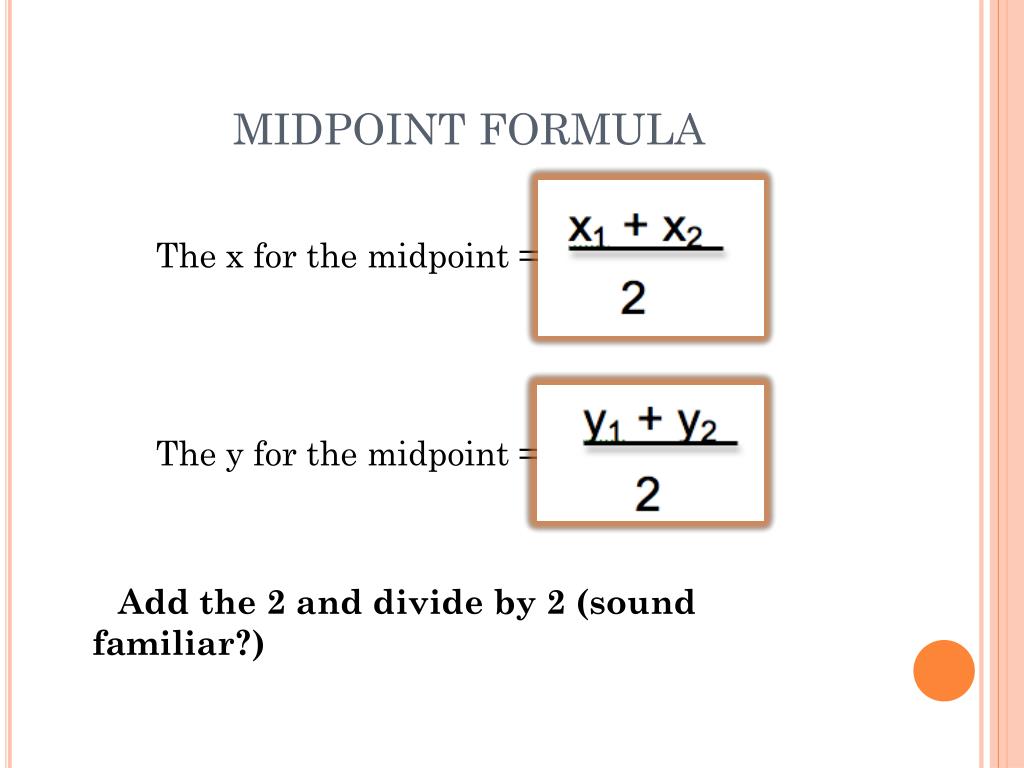

  8. MIDPOINT FORMULA The x for the midpoint = The y for the midpoint = Add the 2 and divide by 2 (sound familiar?)

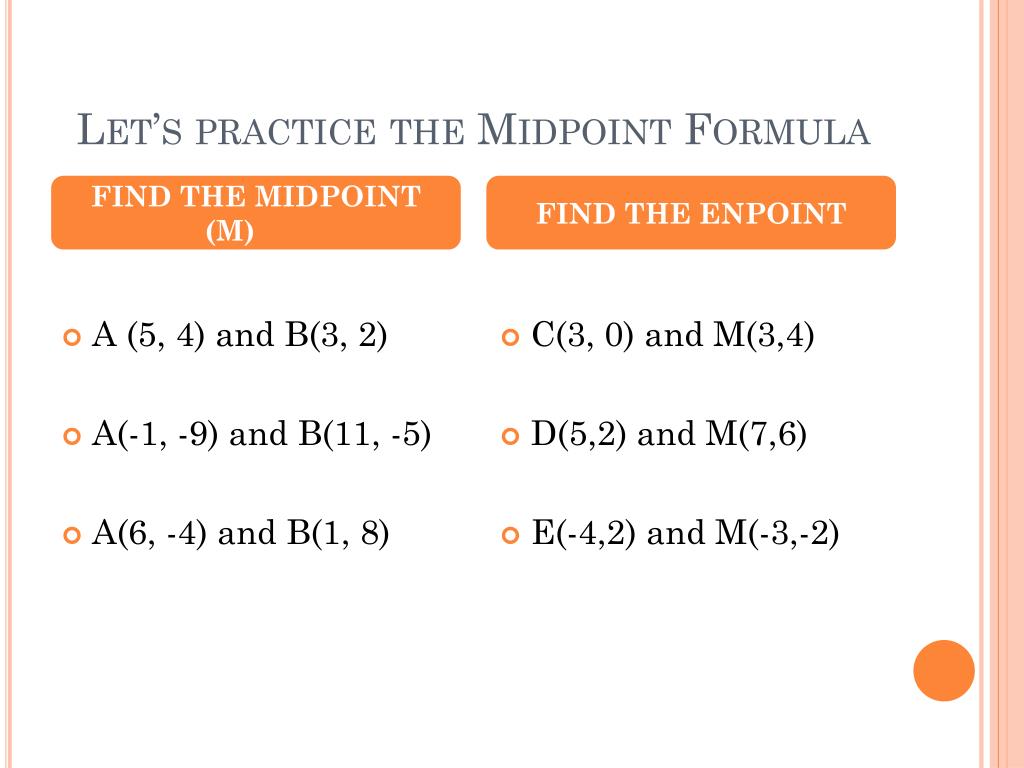

  9. Let’s practice the Midpoint Formula FIND THE MIDPOINT (M) FIND THE ENPOINT • A (5, 4) and B(3, 2) • A(-1, -9) and B(11, -5) • A(6, -4) and B(1, 8) • C(3, 0) and M(3,4) • D(5,2) and M(7,6) • E(-4,2) and M(-3,-2)
