Automated Weld Integrity Analysis Using 3D Point Data for Improved Quality Assurance

This research presents an innovative method for automated weld integrity analysis using high-resolution 3D point data. Bad welds incur high costs due to warranty claims and downtime, while traditional quality assurance methods are time-consuming. Our approach involves scanning the weld with an Aramis camera, generating high-resolution point clouds, and using advanced algorithms to extract weld parameters. Results demonstrate a significant reduction in measurement time and increased accuracy in assessing weld quality, paving the way for future handheld scanning devices and integration into manufacturing processes.

analu
Télécharger la présentation

Automated Weld Integrity Analysis Using 3D Point Data for Improved Quality Assurance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

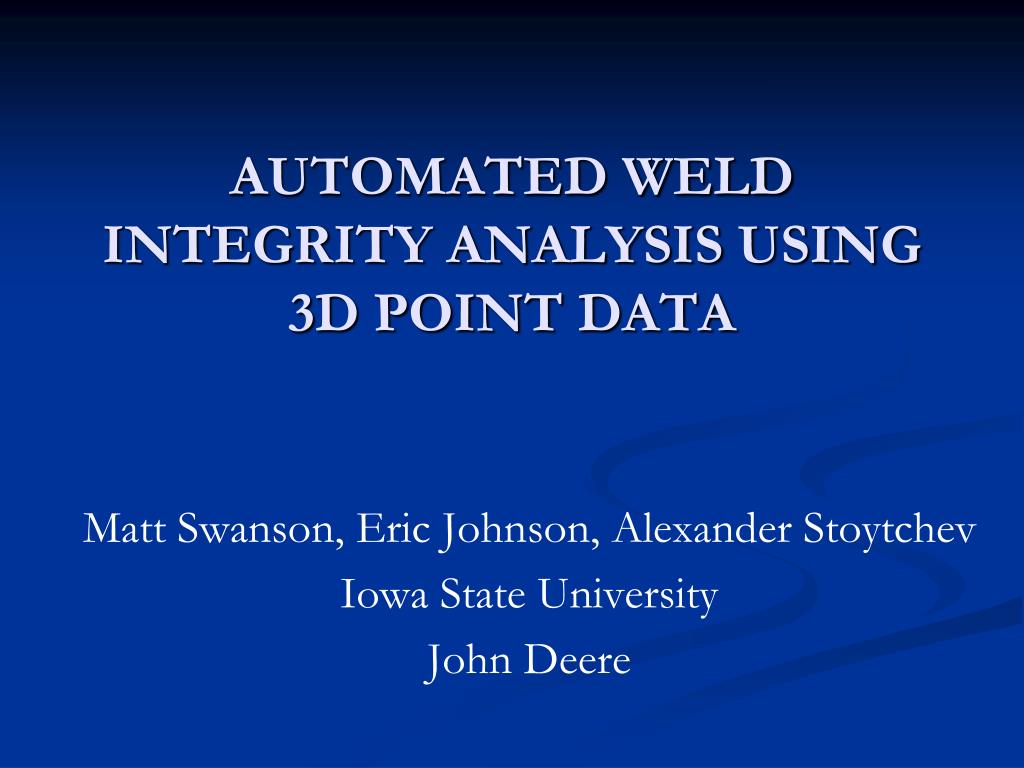

  1. AUTOMATED WELD INTEGRITY ANALYSIS USING 3D POINT DATA Matt Swanson, Eric Johnson, Alexander Stoytchev Iowa State University John Deere

  2. Motivation • Bad welds are expensive • Warranty claims • Down time • Current quality assurance methods are time consuming • Hand measuring weld parameters • Procedure can take 1-2 hours for a single weld

  3. Results of Bad Welds

  4. Some Weld Types

  5. This Work Focuses on T-fillet Welds

  6. Bad vs Good Welds

  7. Previous Approach

  8. Previous Approach

  9. Previous Approach

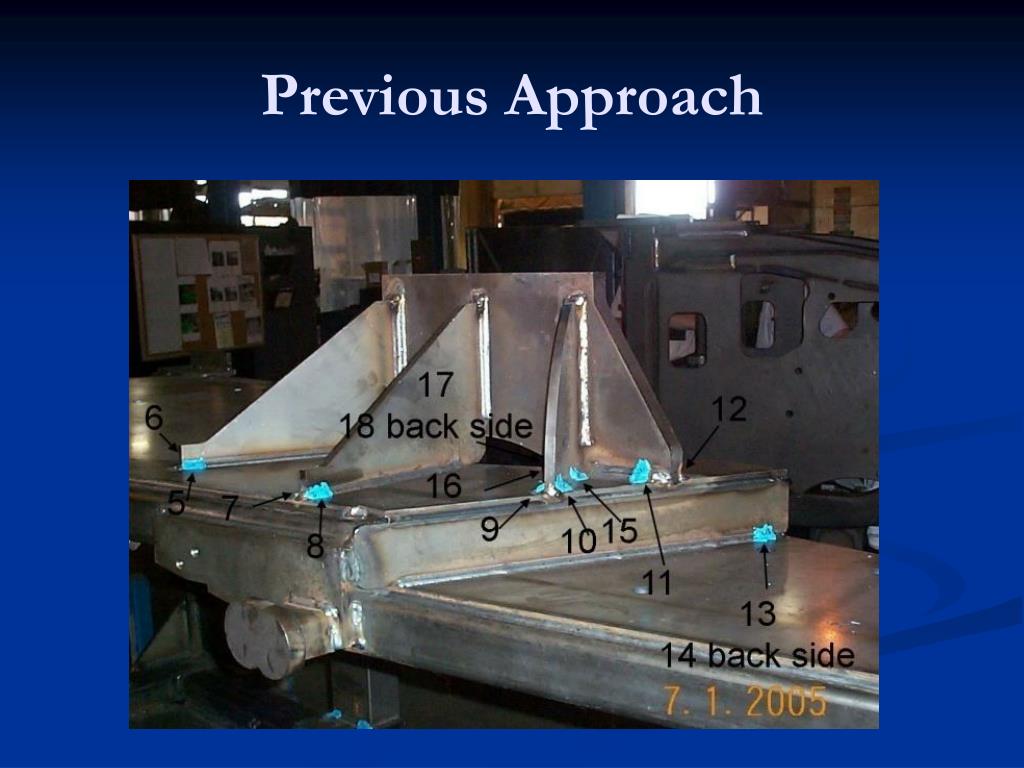

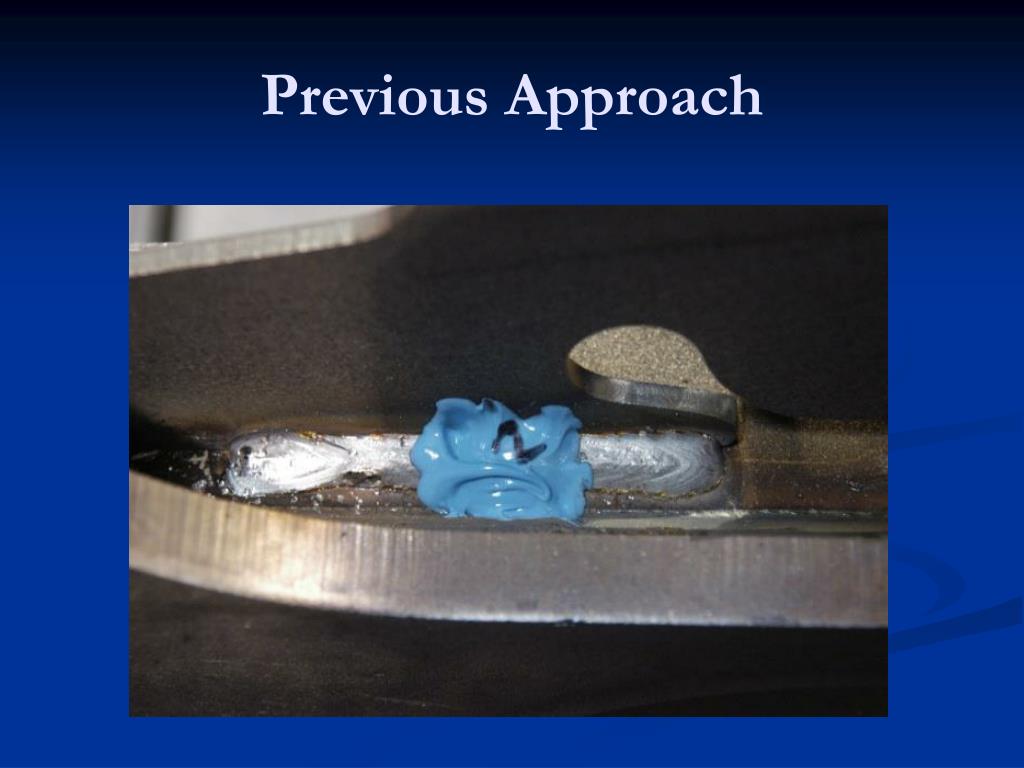

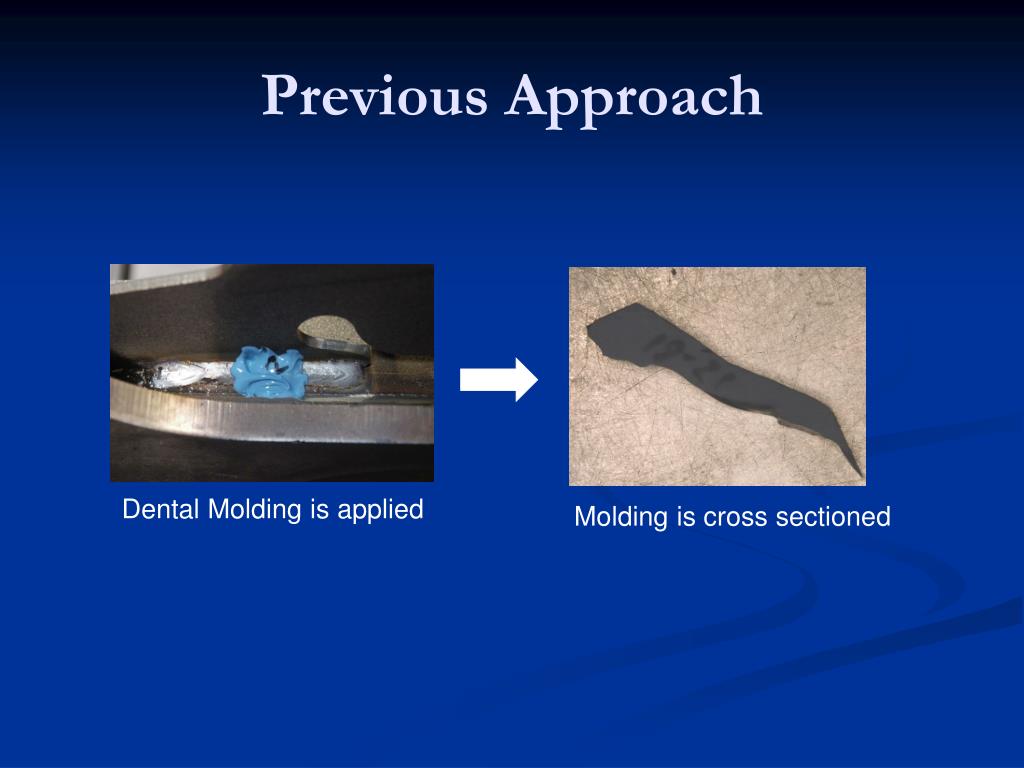

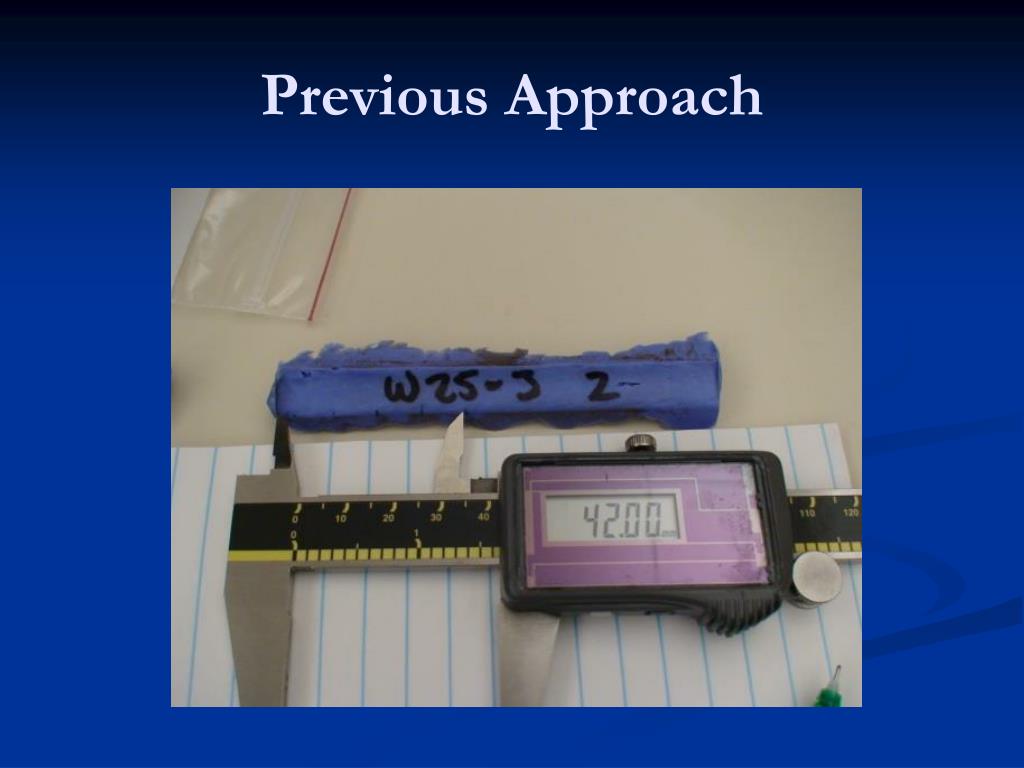

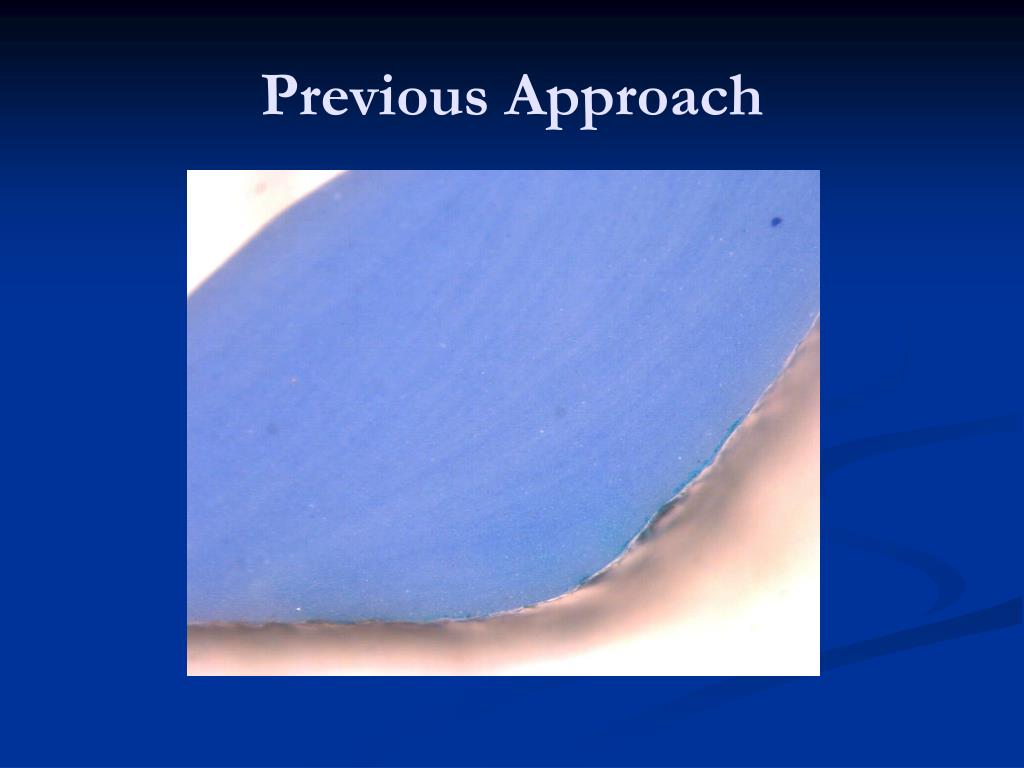

  10. Previous Approach Dental Molding is applied Molding is cross sectioned

  11. Previous Approach

  12. Previous Approach

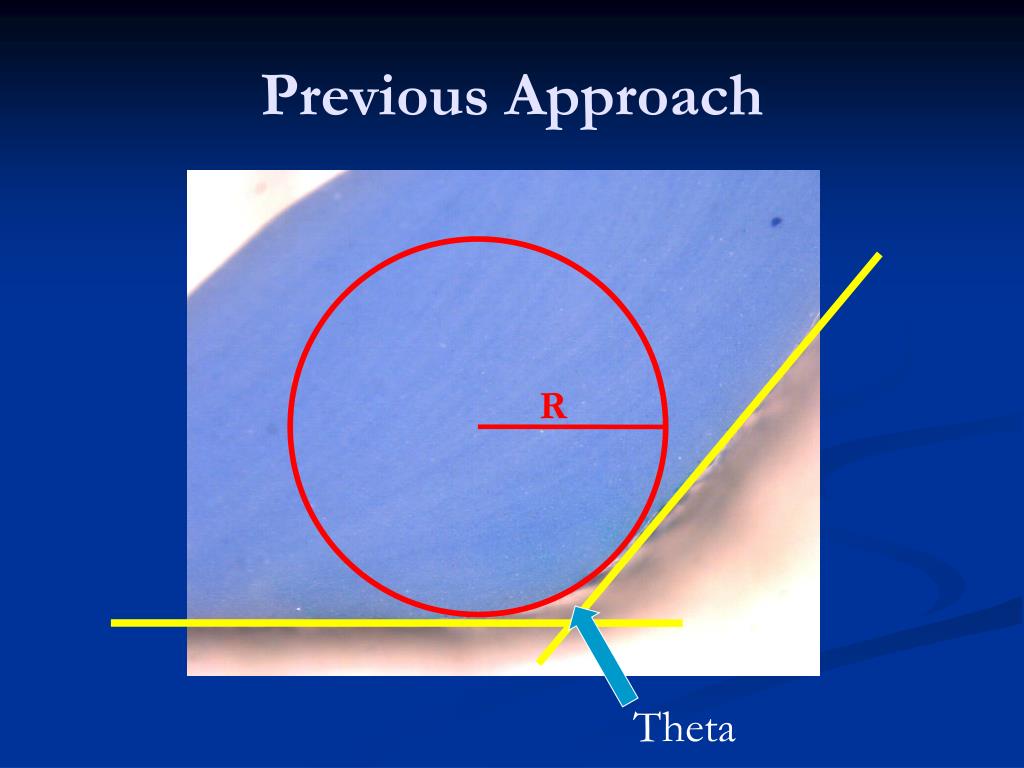

  13. Previous Approach R Theta

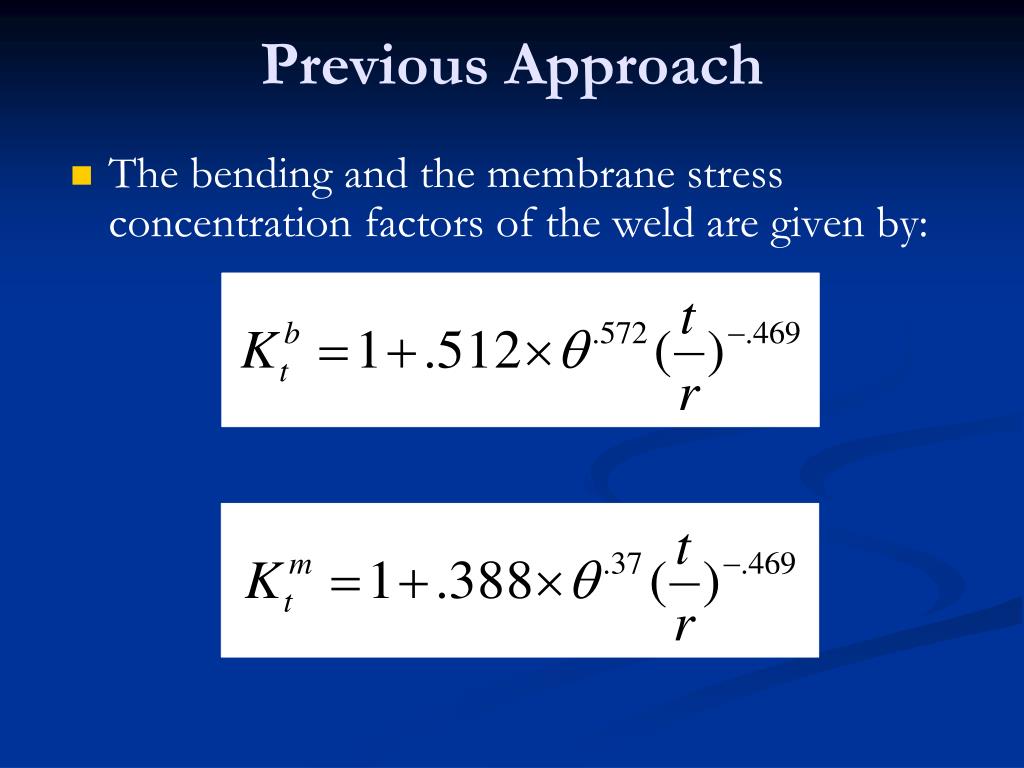

  14. Previous Approach The bending and the membrane stress concentration factors of the weld are given by:

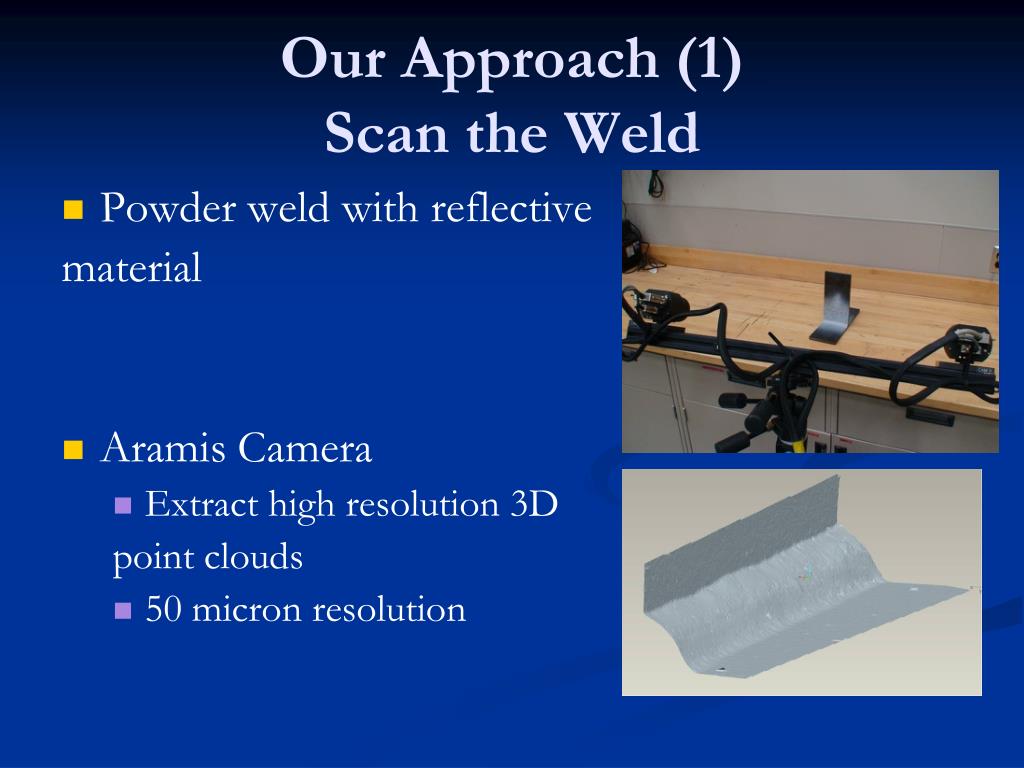

  15. Our Approach (1) Scan the Weld • Powder weld with reflective material • Aramis Camera • Extract high resolution 3D point clouds • 50 micron resolution

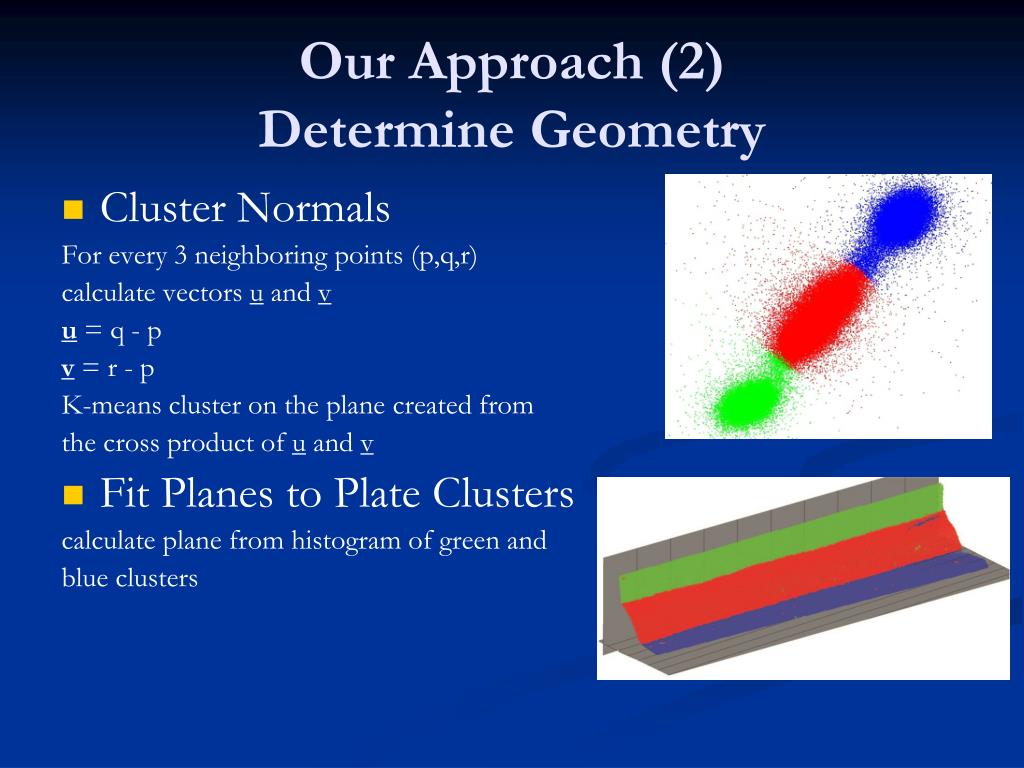

  16. Our Approach (2) Determine Geometry Cluster Normals For every 3 neighboring points (p,q,r) calculate vectors u and v u = q - p v = r - p K-means cluster on the plane created from the cross product of u and v Fit Planes to Plate Clusters calculate plane from histogram of green and blue clusters

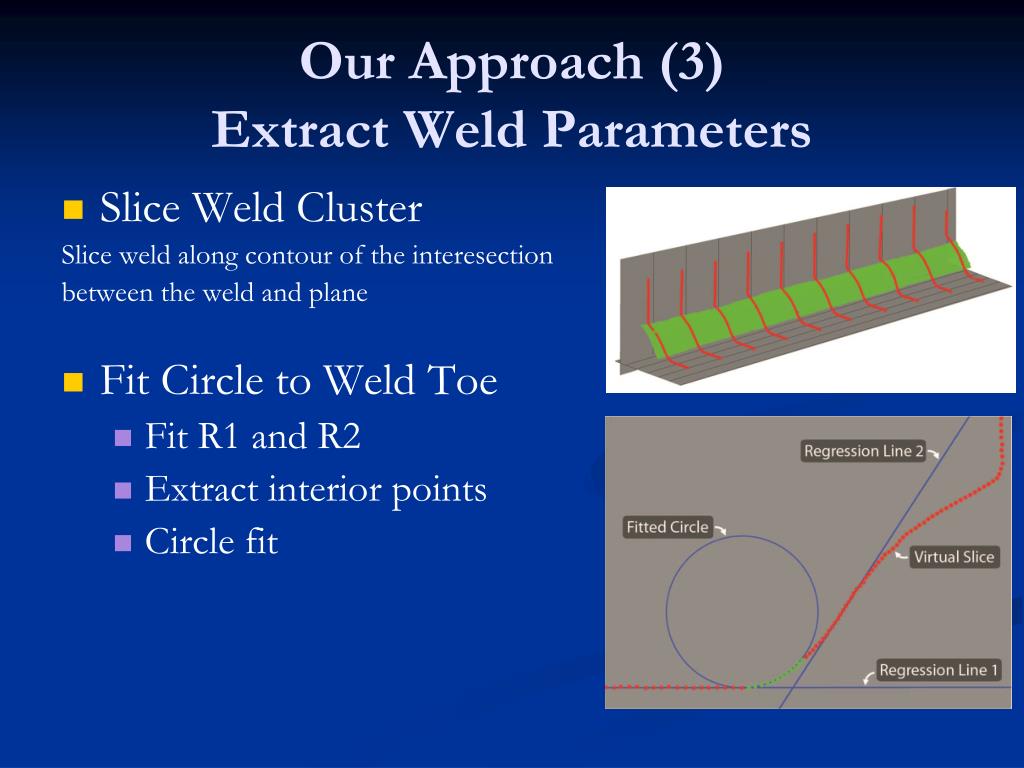

  17. Our Approach (3) Extract Weld Parameters • Slice Weld Cluster Slice weld along contour of the interesection between the weld and plane • Fit Circle to Weld Toe • Fit R1 and R2 • Extract interior points • Circle fit

  18. Results(Compare the two Approaches)

  19. Results (Slice #7 on Weld #1)

  20. Results (Weld #1)

  21. Results (Weld #1) 2.2% difference

  22. Results (Weld #2) 1.9% difference

  23. Video

  24. ART Tracker

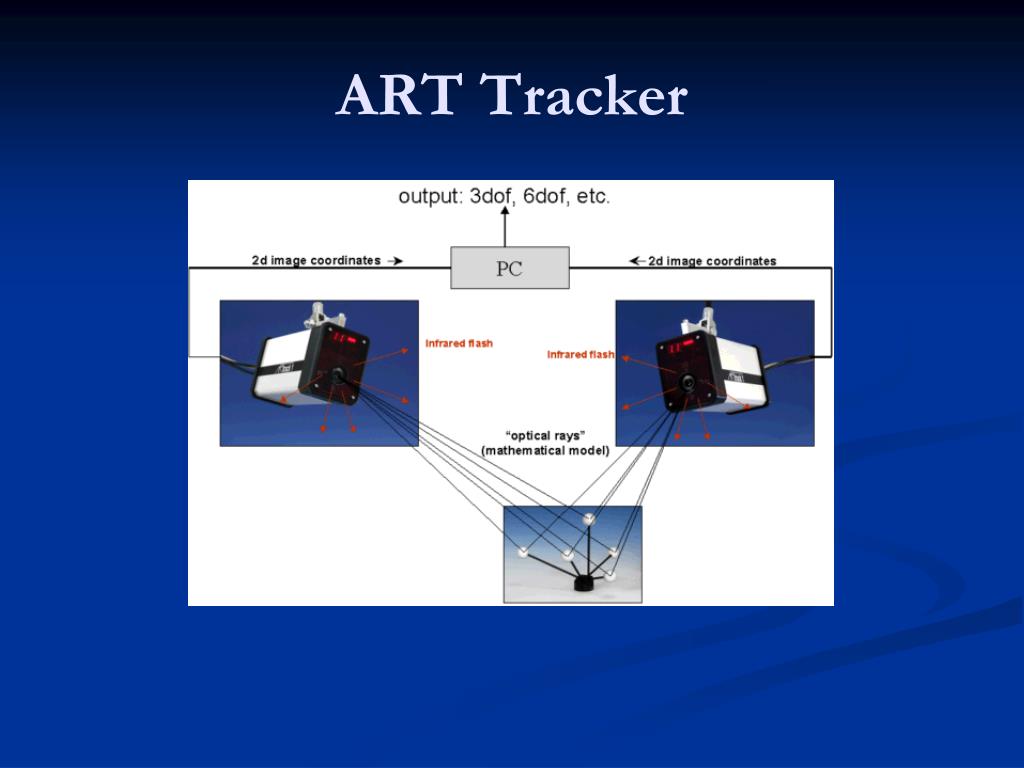

  25. ART Tracker

  26. Future Work • Build a handheld device to scan welds • Couple a pico-projector with a web cam • Extend our software to scan entire assemblies and identify the welds on them automatically • Test under factory conditions

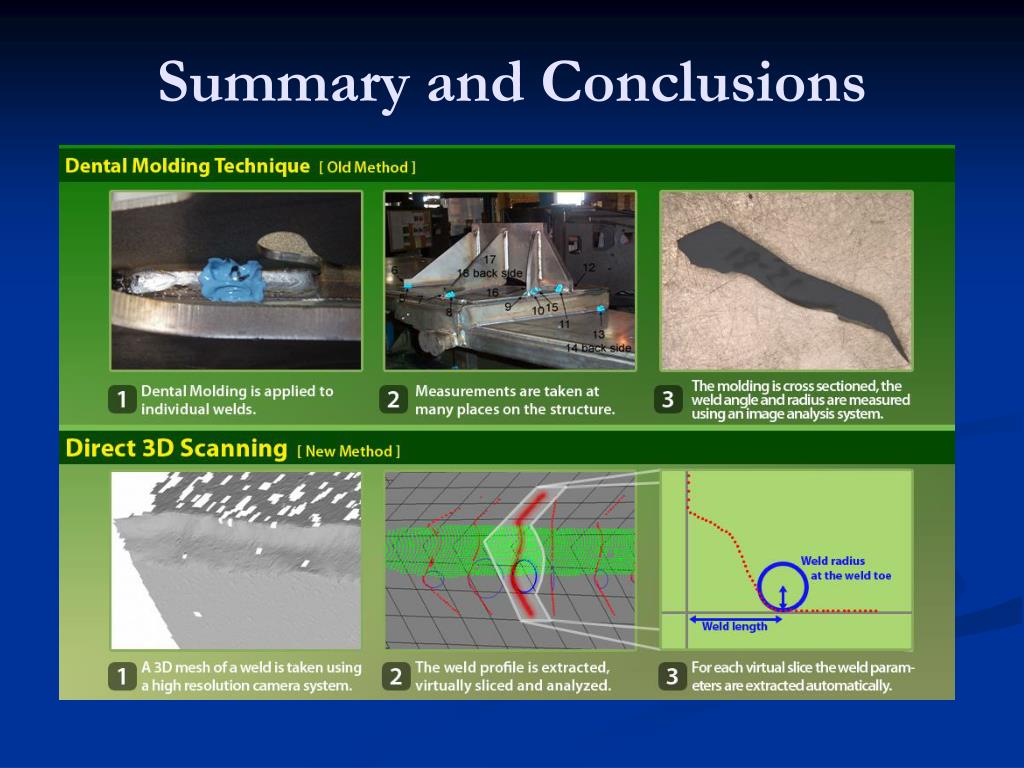

  27. Summary and Conclusions

  28. Questions?
