Crystal Structure Analysis Utilizing Rigid Body Groups

Utilize rigid body groups to analyze crystal structure disorder. Chemical formula: C7H12N4O2. Single crystal data collected with Oxford Diffraction four-circle diffractometer. Input files include dinitros.hkl and dinitros.sum for scaling and absorption correction. Two disordered chairs with different occupancies. Rigid body description of model molecule with refined atomic parameters based on symmetry.

ananda
Télécharger la présentation

Crystal Structure Analysis Utilizing Rigid Body Groups

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

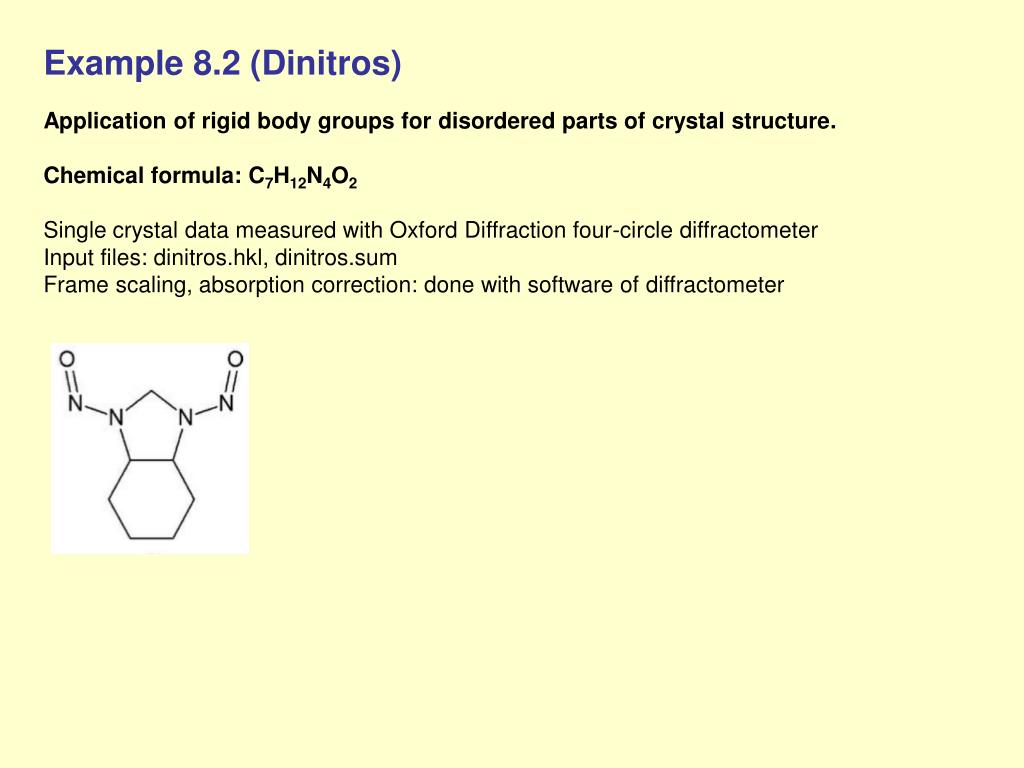

  1. Example 8.2 (Dinitros) Application of rigid body groups for disordered parts of crystal structure. Chemical formula: C7H12N4O2 Single crystal data measured with Oxford Diffraction four-circle diffractometer Input files: dinitros.hkl, dinitros.sum Frame scaling, absorption correction: done with software of diffractometer

  2. Occ=0.738 Occ=0.262 Two disordered chairs.

  3. Rigid body description Actual position #1 Model molecule Placed arbitrarily It does not contribute to F Its atomic parameters are refined Actual position #2

  4. Symmetry of model molecule
