  1. Infiniband Architecture Aniruddha Bohra CS 545 - Distributed Systems

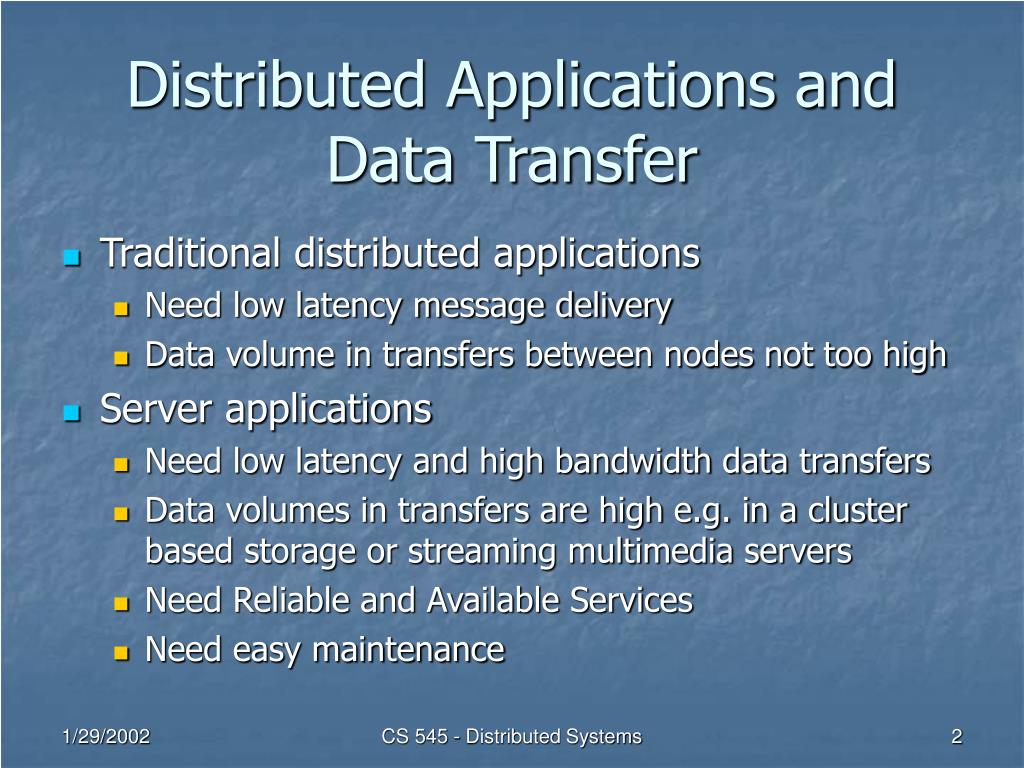

  2. Distributed Applications and Data Transfer • Traditional distributed applications • Need low latency message delivery • Data volume in transfers between nodes not too high • Server applications • Need low latency and high bandwidth data transfers • Data volumes in transfers are high e.g. in a cluster based storage or streaming multimedia servers • Need Reliable and Available Services • Need easy maintenance CS 545 - Distributed Systems

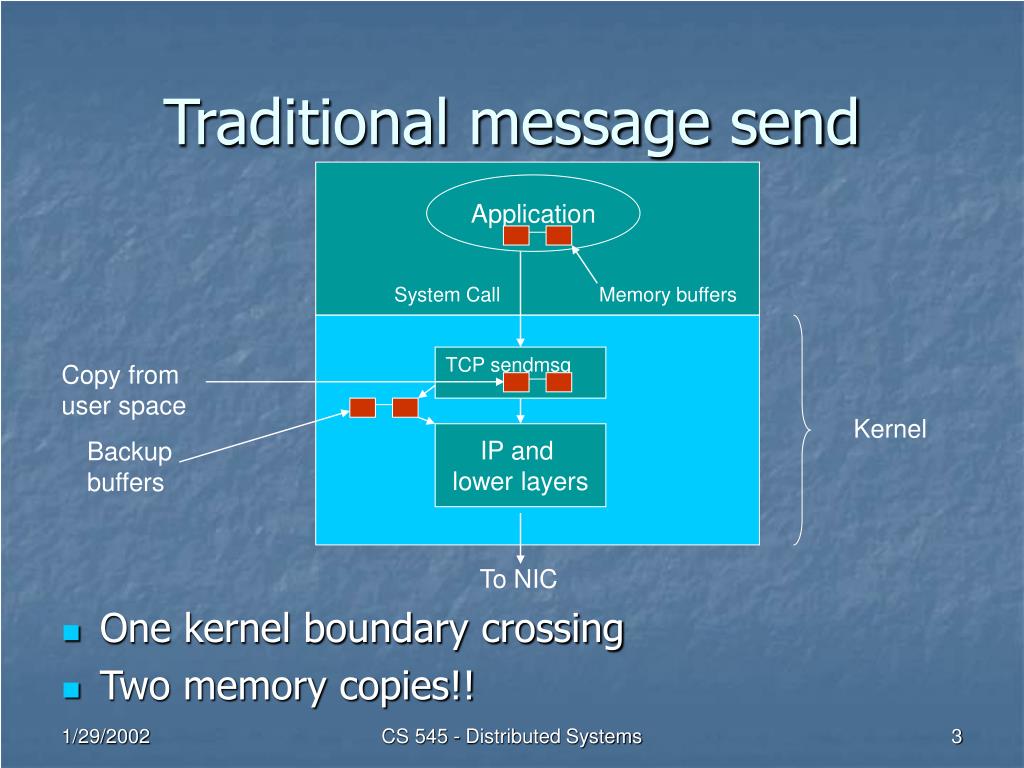

  3. Application System Call Memory buffers TCP sendmsg Copy from user space Kernel IP and lower layers Backup buffers To NIC Traditional message send • One kernel boundary crossing • Two memory copies!! CS 545 - Distributed Systems

  4. Lessons from parallel computing • Co-processors that can access memory directly used for communication • FLASH, J-Machine, Alewife • User level networking • Virtual Memory Mapped Communication • Unet • VMMC • VIA CS 545 - Distributed Systems

  5. Interconnect bottleneck • Servers require high data transfer rate • CPUs operate at GHz speed • Gigabit ethernet is commonly used in cluster based servers • Data volumes are high • PCI bus is much slower • operates at 32 bit/33 MHz or 64 bit/66 MHz • the next generation bus PCI-X operates at 133 MHz CS 545 - Distributed Systems

  6. Some solutions • HyperTransport • Runs at 800MHz full duplex • Bridges with current buses and other HyperTransport buses • 3GIO • Switch based • Provides a layered implementation • Promises more than 40 Gb/s transfer rate CS 545 - Distributed Systems

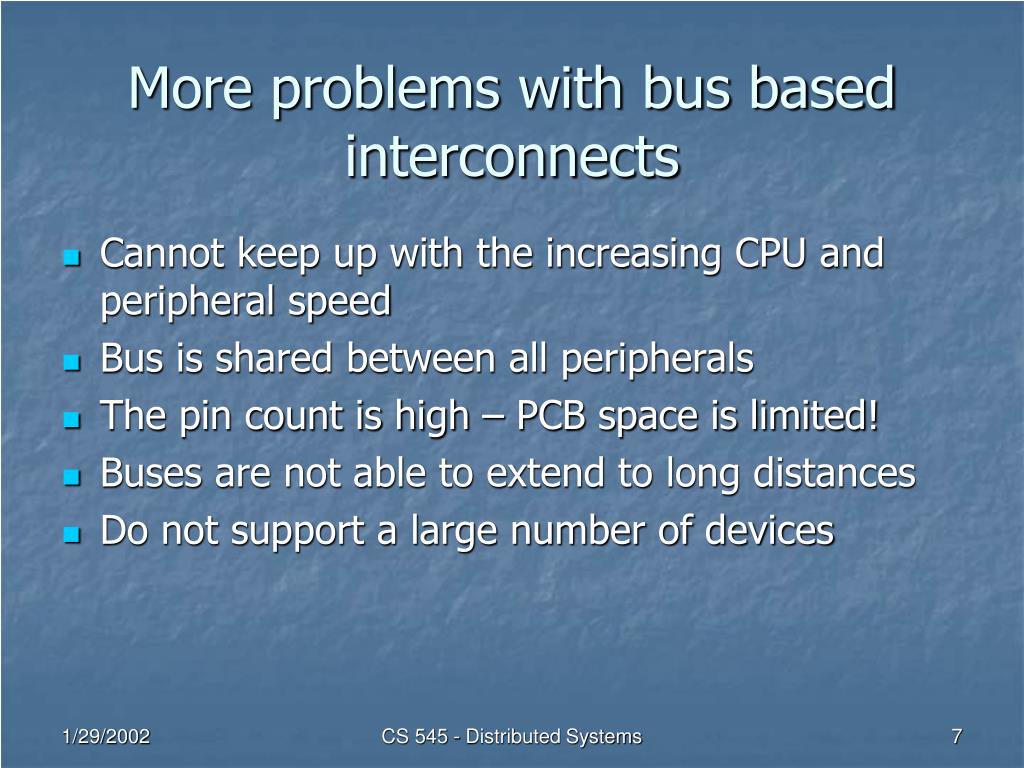

  7. More problems with bus based interconnects • Cannot keep up with the increasing CPU and peripheral speed • Bus is shared between all peripherals • The pin count is high – PCB space is limited! • Buses are not able to extend to long distances • Do not support a large number of devices CS 545 - Distributed Systems

  8. Outline • Motivation and background • Infiniband architecture • Infiniband components • Infiniband operation • Other Infiniband features • Status • Summary CS 545 - Distributed Systems

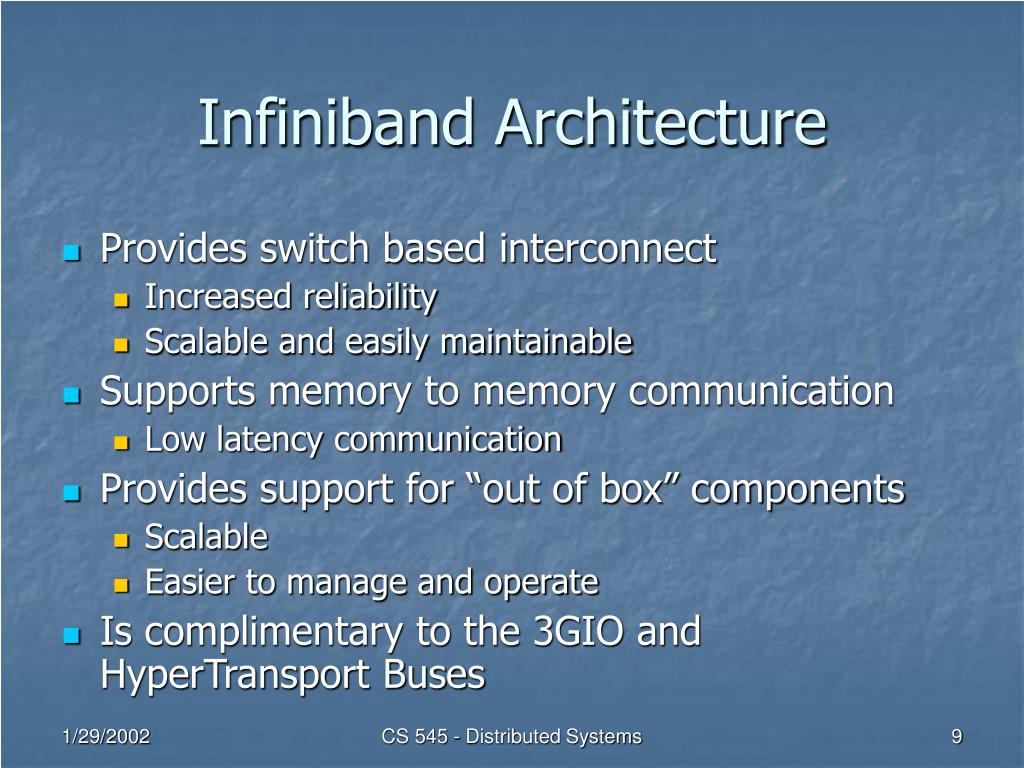

  9. Infiniband Architecture • Provides switch based interconnect • Increased reliability • Scalable and easily maintainable • Supports memory to memory communication • Low latency communication • Provides support for “out of box” components • Scalable • Easier to manage and operate • Is complimentary to the 3GIO and HyperTransport Buses CS 545 - Distributed Systems

  10. What is Infiniband? • Infiniband Architecture(IBA) defines a System Area Network (SAN) • IBA SAN is a communications and management infrastructure for I/O and IPC • IBA defines a switched communications fabric • high bandwidth and low latency • protected, remotely managed environment. • IBA hardware off-loads from the CPU much of the I/O communications operation. CS 545 - Distributed Systems

  11. An IBA SAN CS 545 - Distributed Systems

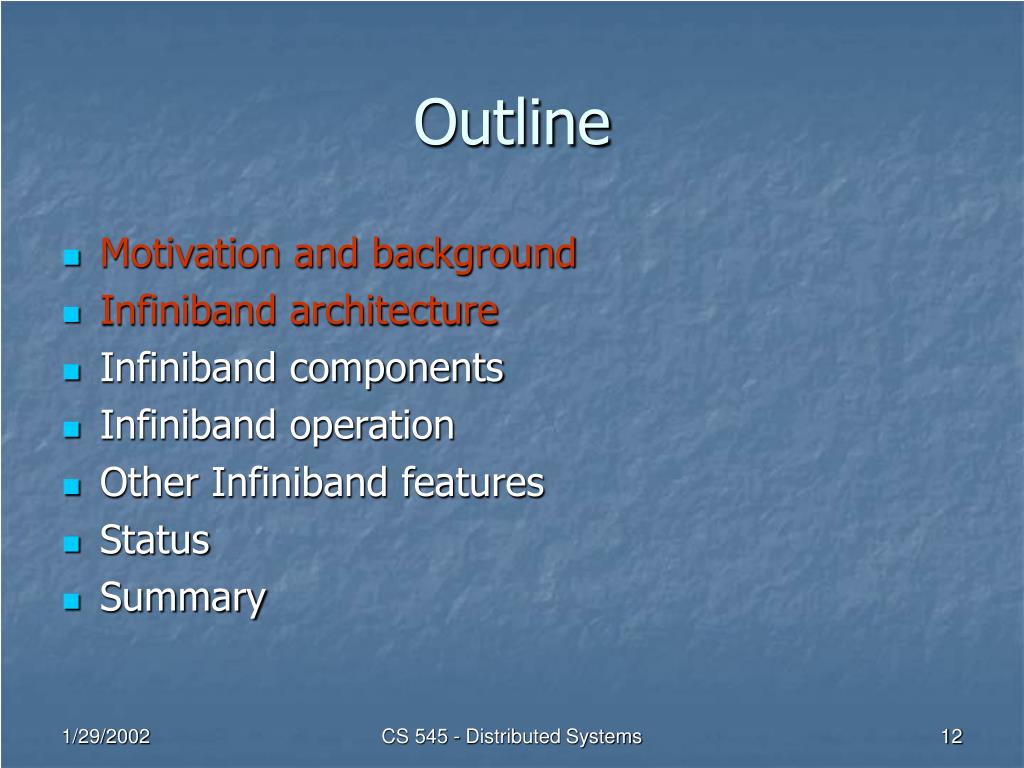

  12. Outline • Motivation and background • Infiniband architecture • Infiniband components • Infiniband operation • Other Infiniband features • Status • Summary CS 545 - Distributed Systems

  13. Topologies and components • IBA serves as an interconnect for endnodes • A node can be a processor node, an I/O unit and/or a router to another network Node Node Infiniband Fabric Node Node Node Node Node CS 545 - Distributed Systems

  14. Topologies and Components • An IBA network is subdivided into subnets interconnected by routers • Endnodes can attach to a single or multiple subnets • An IBA subnet is composed of endnodes, switches, routers and subnet managers • Each IBT device may attach to a single switch or multiple switches and/or directly with each other CS 545 - Distributed Systems

  15. Channel Adapter (endnode) Channel Adapter (endnode) Port Port Port Port IBT device – processor node Verbs Consumer Consumer Consumer Message and Data Service CS 545 - Distributed Systems

  16. Processor node • Each channel adapter constitutes a node on the fabric • Architecture supports multiple channel adapters per unit with each adapter providing one or more ports to the fabric • Message and Data service is an OS component • Verbs describe the functions to configure, manage and operate a host channel adapter • Verbs are not API but provide the framework for OS to specify it CS 545 - Distributed Systems

  17. Channel Adapter • An IBA channel adapter(CA) is a programmable DMA engine with special protection features that allow DMA operations to be initiated locally and remotely. • Host Channel Adapter(HCA) provides a consumer interface providing the functions specified by IBA verbs. • Target Channel Adapter(TCA) provides an interface to the device CS 545 - Distributed Systems

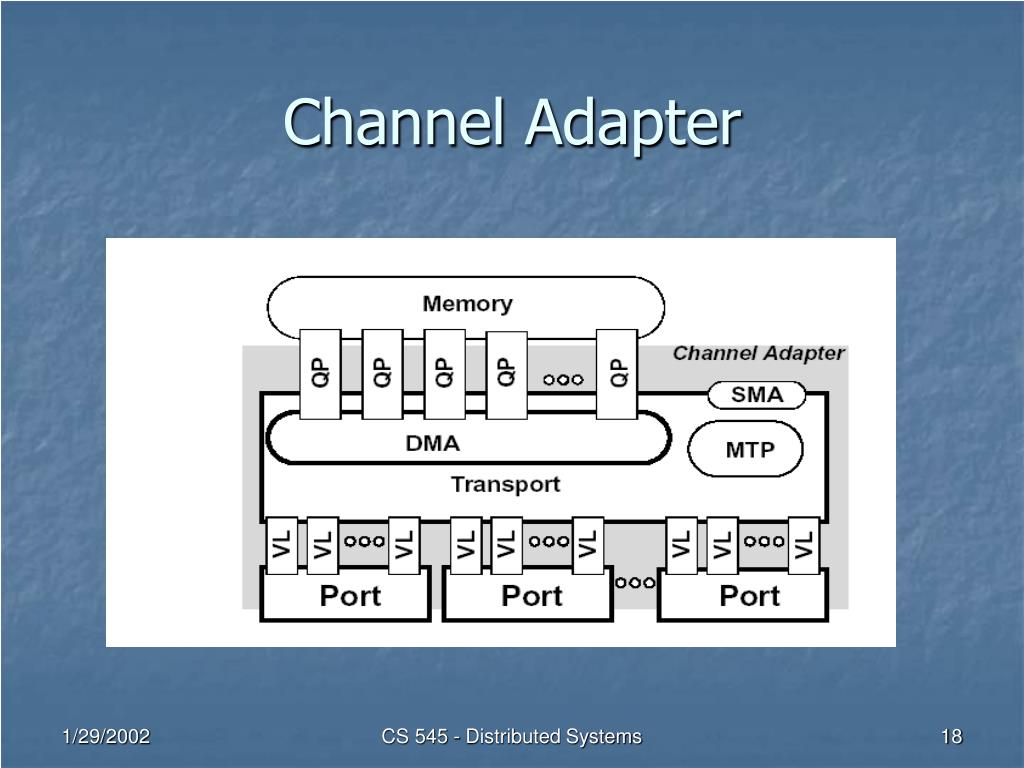

  18. Channel Adapter CS 545 - Distributed Systems

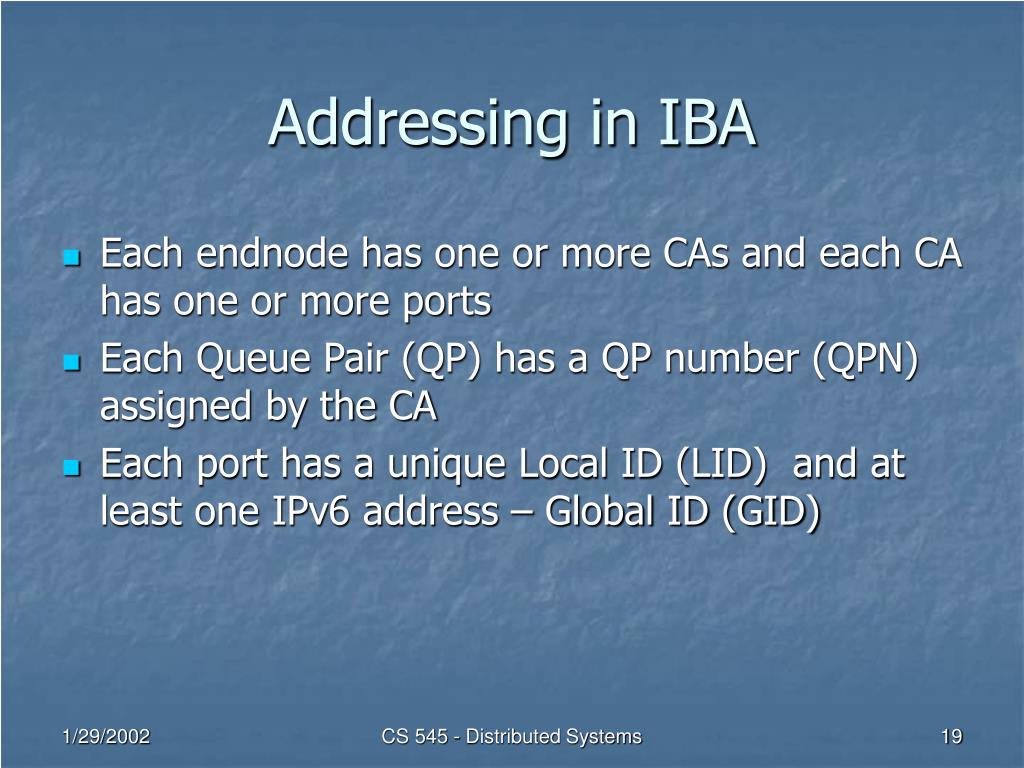

  19. Addressing in IBA • Each endnode has one or more CAs and each CA has one or more ports • Each Queue Pair (QP) has a QP number (QPN) assigned by the CA • Each port has a unique Local ID (LID) and at least one IPv6 address – Global ID (GID) CS 545 - Distributed Systems

  20. Switches • Do not generate or consume packets – pass them along based on the destination address • Are the routing components for intra-subnet routing – support uni or multicast • Every destination is configured with one or more unique Local IDs (LIDs) • Subnet manager configures switches including loading their forwarding tables CS 545 - Distributed Systems

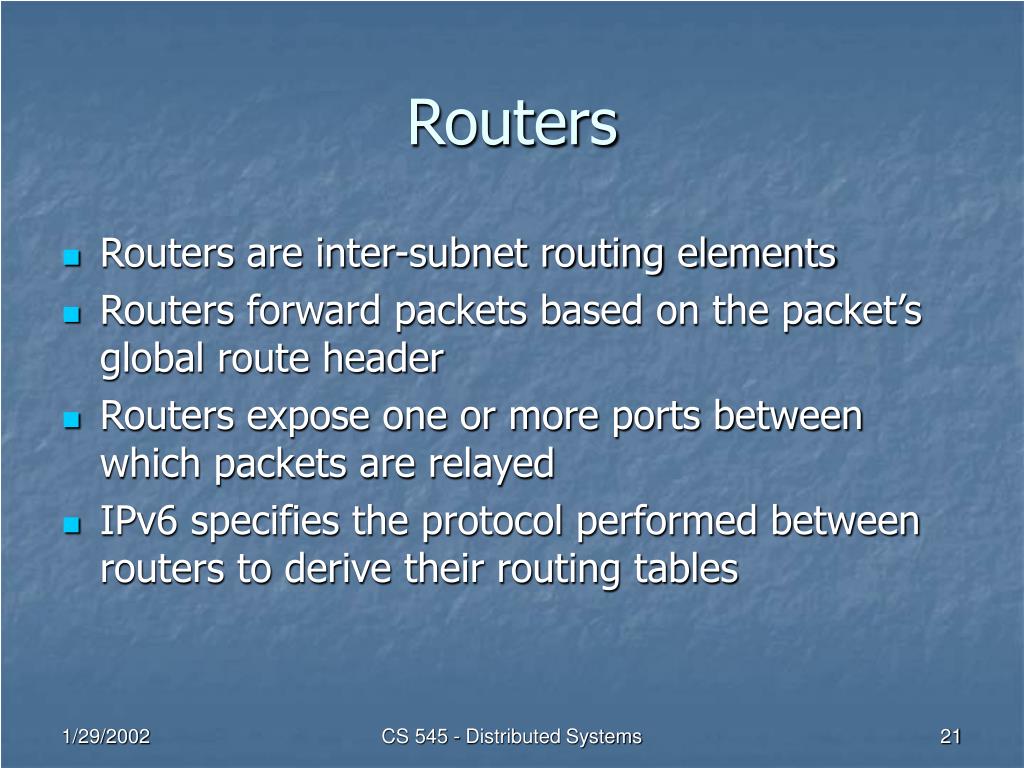

  21. Routers • Routers are inter-subnet routing elements • Routers forward packets based on the packet’s global route header • Routers expose one or more ports between which packets are relayed • IPv6 specifies the protocol performed between routers to derive their routing tables CS 545 - Distributed Systems

  22. Subnet Managers • An Subnet Manager(SM) is an entity attached to a subnet responsible for its management • Tasks • Discover topology • Configure the CA port with a range of LIDs, GIDs, subnet prefix and Partition_Keys • Maintains LID/GID resolution tables CS 545 - Distributed Systems

  23. Outline • Motivation and background • Infiniband architecture • Infiniband components • Infiniband operation • Other Infiniband features • Status • Summary CS 545 - Distributed Systems

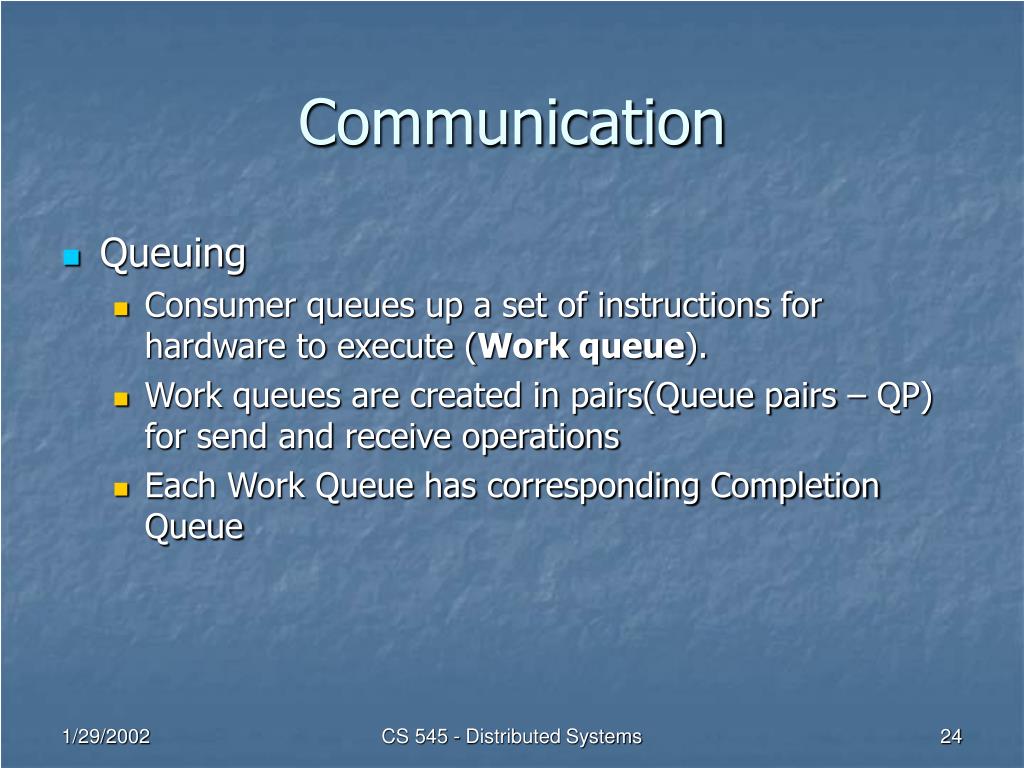

  24. Communication • Queuing • Consumer queues up a set of instructions for hardware to execute (Work queue). • Work queues are created in pairs(Queue pairs – QP) for send and receive operations • Each Work Queue has corresponding Completion Queue CS 545 - Distributed Systems

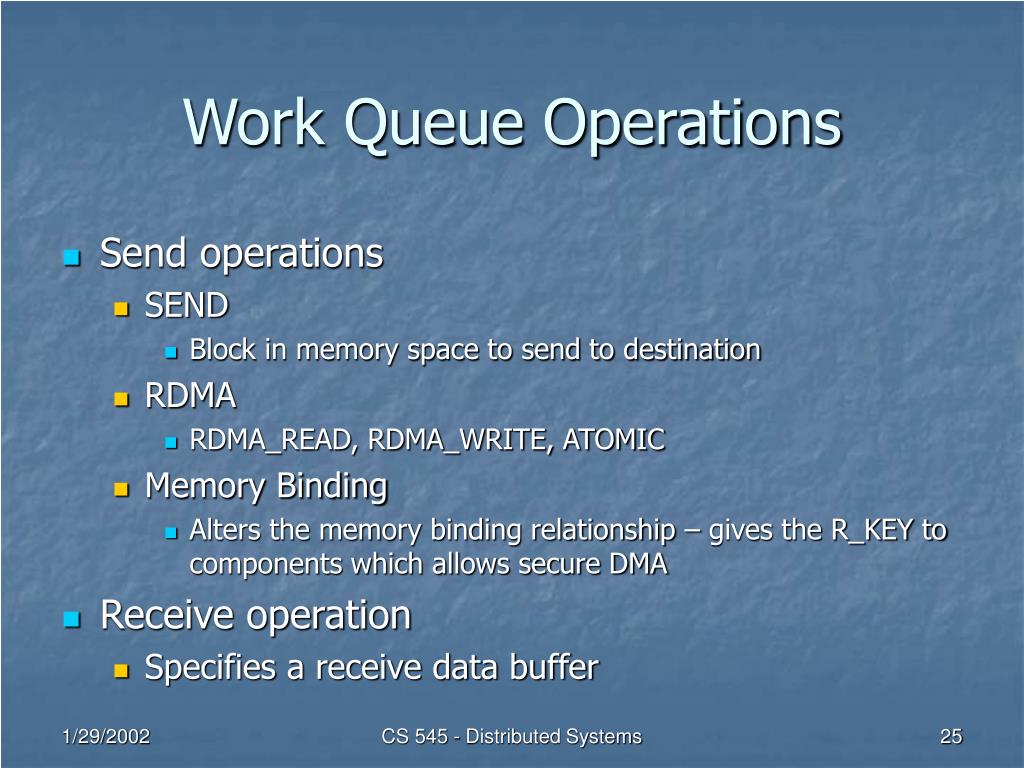

  25. Work Queue Operations • Send operations • SEND • Block in memory space to send to destination • RDMA • RDMA_READ, RDMA_WRITE, ATOMIC • Memory Binding • Alters the memory binding relationship – gives the R_KEY to components which allows secure DMA • Receive operation • Specifies a receive data buffer CS 545 - Distributed Systems

  26. Work Queue Operations CS 545 - Distributed Systems

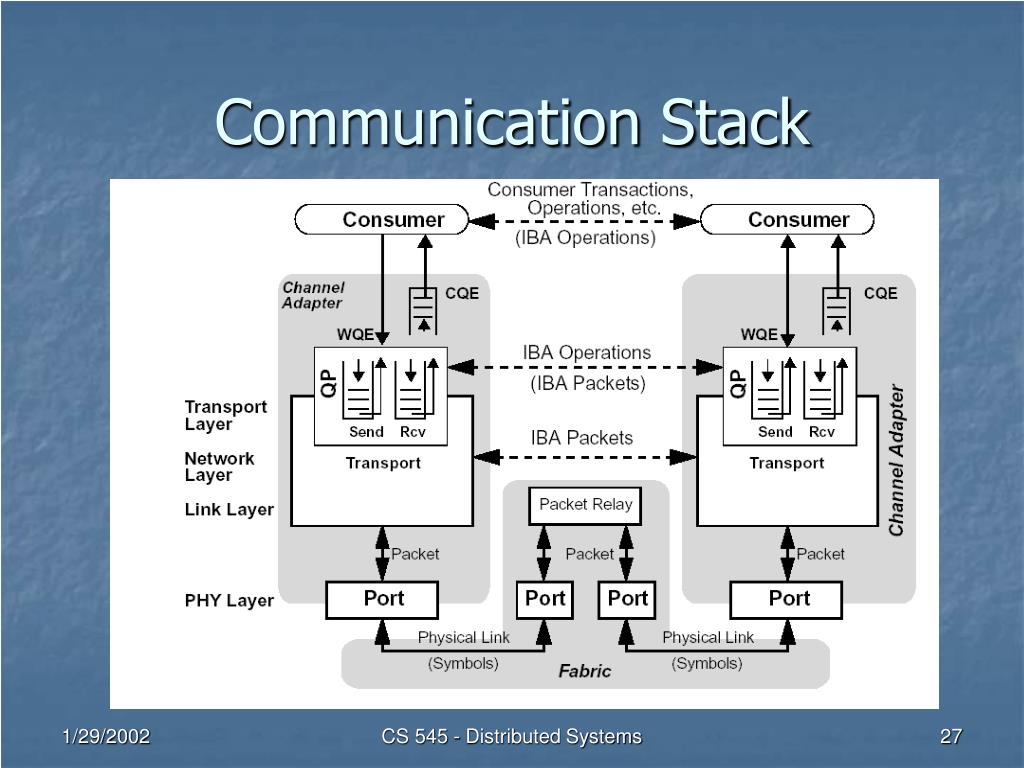

  27. Communication Stack CS 545 - Distributed Systems

  28. Keys • Keys are used to provide isolation and protection • M_KEY • Enforces the control of a master Subnet Manager • B_KEY • Enforces control of a baseboard Subnet Manager • P_KEY • Enforces membership in a subnet • Q_KEY • Enforces access rights for reliable or unreliable service • L_KEY and R_KEY • Provide access rights to Remote registered memory CS 545 - Distributed Systems

  29. Outline • Motivation and background • Infiniband architecture • Infiniband components • Infiniband operation • Other Infiniband features • Status • Summary CS 545 - Distributed Systems

  30. Virtual Lanes • A virtual lane represents a set of transmit and receive buffers in a port • VL15 is used for subnet management • Each port must have at least one data VL • Separate flow control is maintained over each VL CS 545 - Distributed Systems

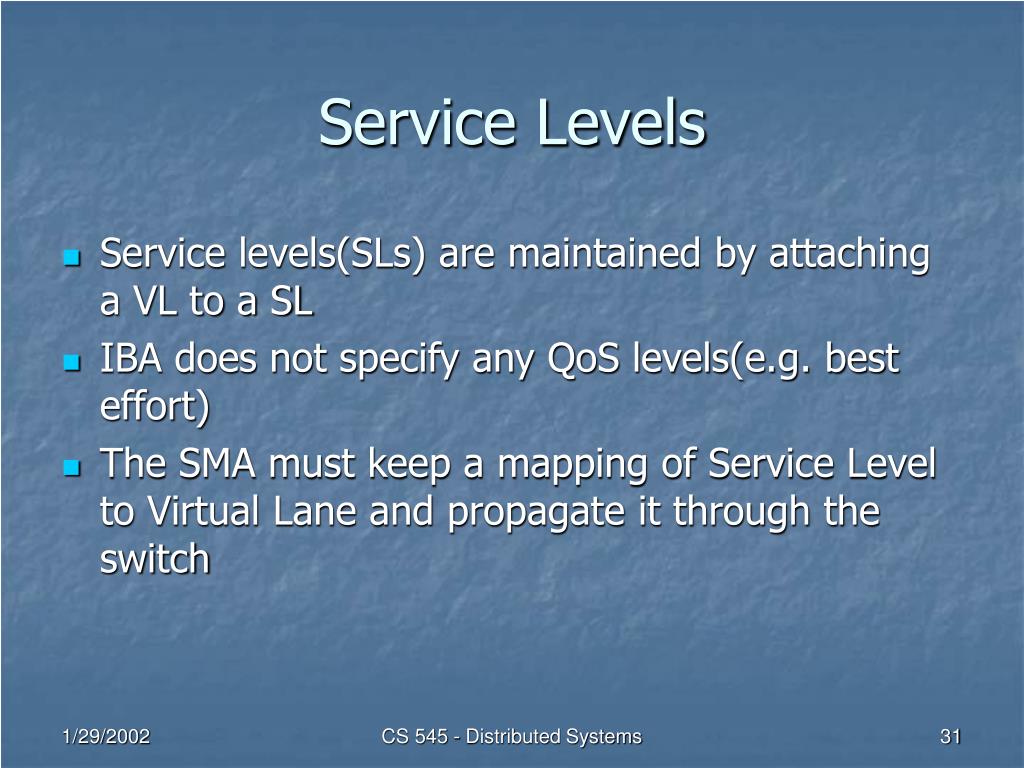

  31. Service Levels • Service levels(SLs) are maintained by attaching a VL to a SL • IBA does not specify any QoS levels(e.g. best effort) • The SMA must keep a mapping of Service Level to Virtual Lane and propagate it through the switch CS 545 - Distributed Systems

  32. Status • Intel Developer Forum had several status talks • http://www.intel.com/idf/us • IBA enabled network storage has been demonstrated at industry shows • Banderacom • Windriver • The first products are expected to be in the market by middle of 2002 CS 545 - Distributed Systems

  33. Summary • Future bandwidth requirements for servers would lead to the interconnect becoming a bottleneck – IBA is an attempt to alleviate the problem • IBA provides a thorough migration from a bus based to a switch based architecture while maintaining interoperability • Further deployment is needed to realize other issues that would arise in operation CS 545 - Distributed Systems
