  1. Introduction to Virtualization Michael Otey Technical Director Windows IT Pro Magazine

  2. What this session covers • Types of Virtualization • Hardware Virtualization • Virtual Machine Virtualization • Application Virtualization • Future directions in Virtualization

  3. Hardware Partitioning

  4. Scenarios for Hardware Partitioning • Server Consolidation • Reduced TCO • Increased server utilization • Separate production and test environments • Application Isolation

  5. Hardware Partitioning • Physical system is divided into multiple partitions • One or more CPUs per partition • Full electrical isolation between partitions • Redundant hardware components

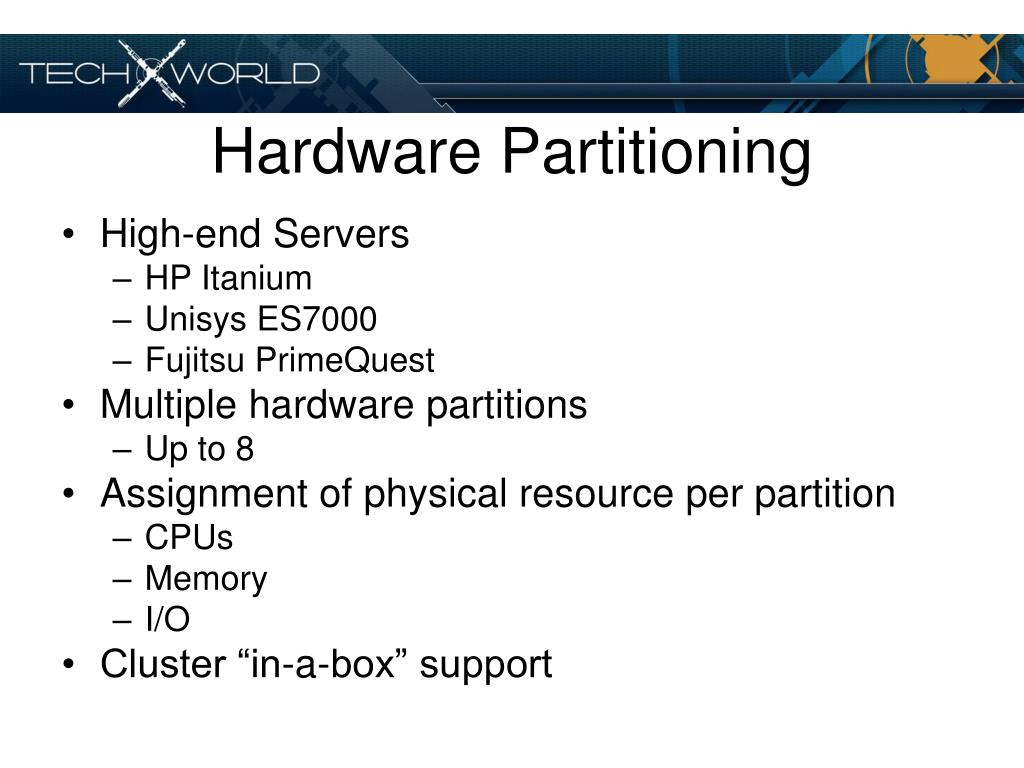

  6. Hardware Partitioning • High-end Servers • HP Itanium • Unisys ES7000 • Fujitsu PrimeQuest • Multiple hardware partitions • Up to 8 • Assignment of physical resource per partition • CPUs • Memory • I/O • Cluster “in-a-box” support

  7. Hardware Partitioning Summary • Can Consolidate multiple servers • Reduced administration • Requires high-end servers • Usually Itanium based • Can be expensive • Limited number of partitions

  8. Virtual Machine Virtualization

  9. Virtualization Scenarios • Server consolidation • Multiple OS & Application support • Lab and Deployment Testing • Training • Disaster Recovery • Application Isolation

  10. Virtual Machine Virtualization V i r t u a l Applications Applications Applications Guest OS(Windows NT) Guest OS(Windows 2000) Guest OS(Windows 2003) Virtual Machine Virtual Machine Virtual Machine P h y s i c a l Virtual Machine Manager Host Operating System System Hardware

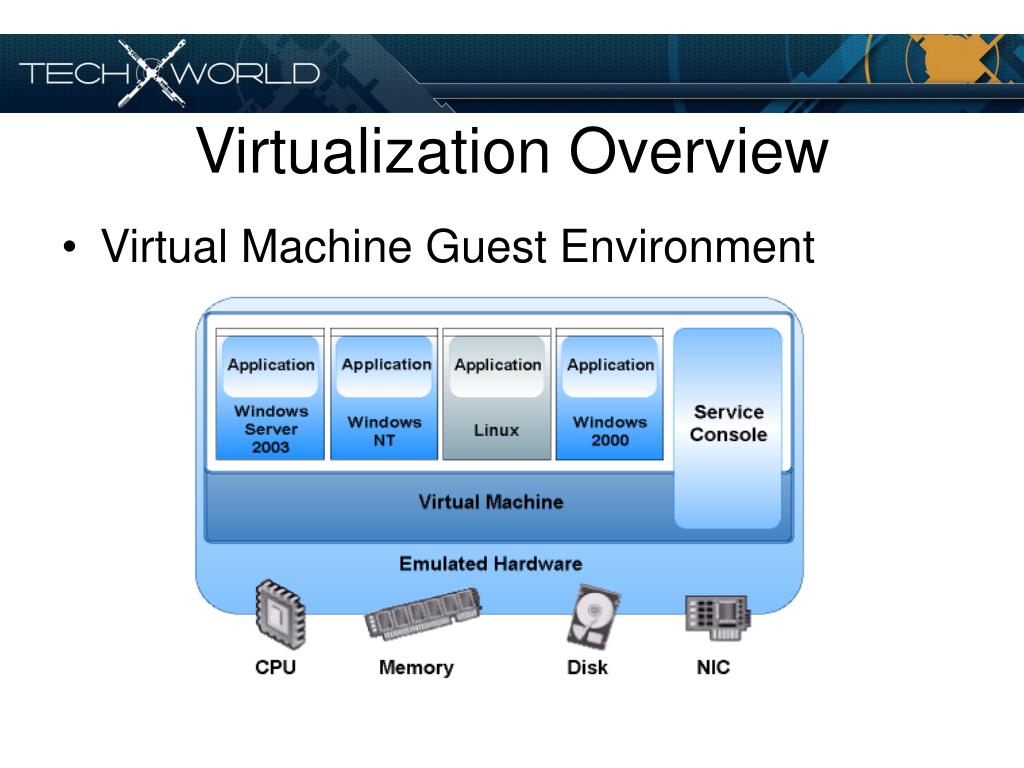

  11. Virtualization Overview • Virtual Machine Guest Environment

  12. VM Hard Disk Options • Virtual Hard Disks • Fixed • Dynamic • Virtual Hard Disk Features • Snapshots • Undo disks • Differencing Disks

  13. VM Networking Options • Virtual Networking • None • Internal • External (Bridged)

  14. Virtual Machine Additions • Installed after the guest OS • Typically from installed IS image • Improves VM performance • Enhanced SVGA video drivers • Improved mouse support • Drag-and-drop with the host • Time synchronization

  15. 64-bit Support • 64-bit host support • Windows Server SE and EE x64 • x64 eliminates physical memory restrictions • 64-bit Virtual Machine Manager • Larger kernel address space

  16. Virtual Machine Types and Uses • Desktop Products • Development • Testing • Training • Server Products • Server consolidation • Disaster Recovery • High Availability • Testing and deployment

  17. Virtual Machine Products • Desktop • VMware Workstation 5.5 • Virtual PC 2004

  18. VMware Workstation 5.5 • First VM Product • 64-bit host & guests • 2-way virtual SMP • SCSI VHDs • Multiple snapshots • Compatible VM images w/ Virtual Server • Can Import MS VM Images • USB & Audio support • $189

  19. VMware Workstation 5.5 • Supported Hosts

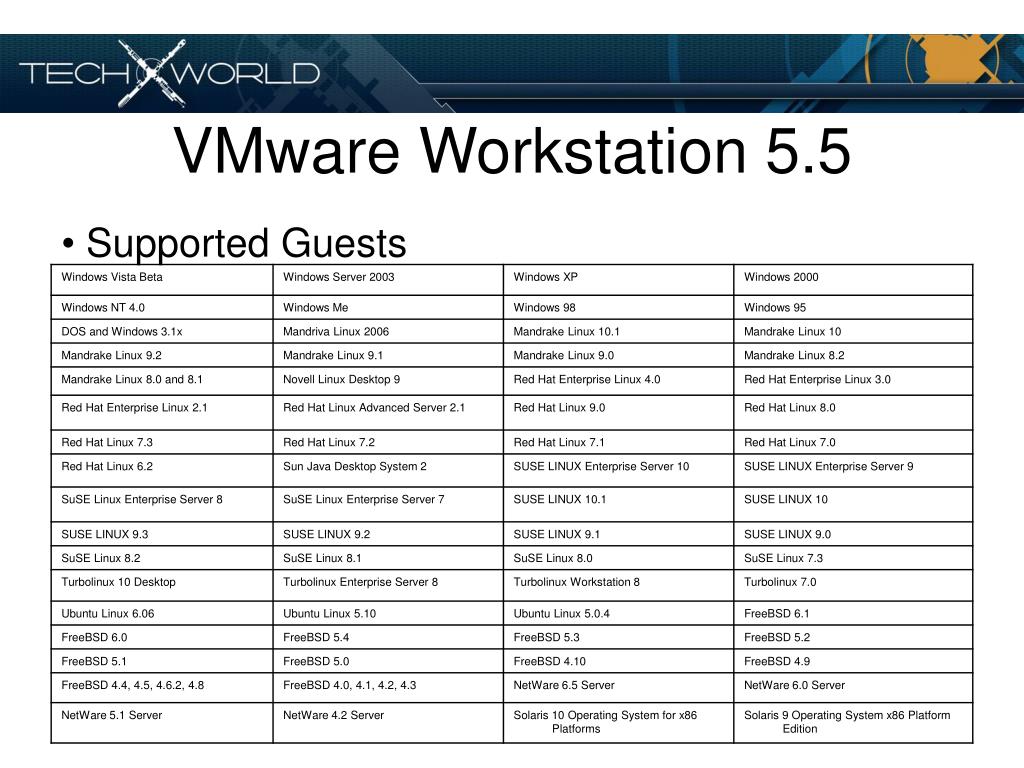

  20. VMware Workstation 5.5 • Supported Guests

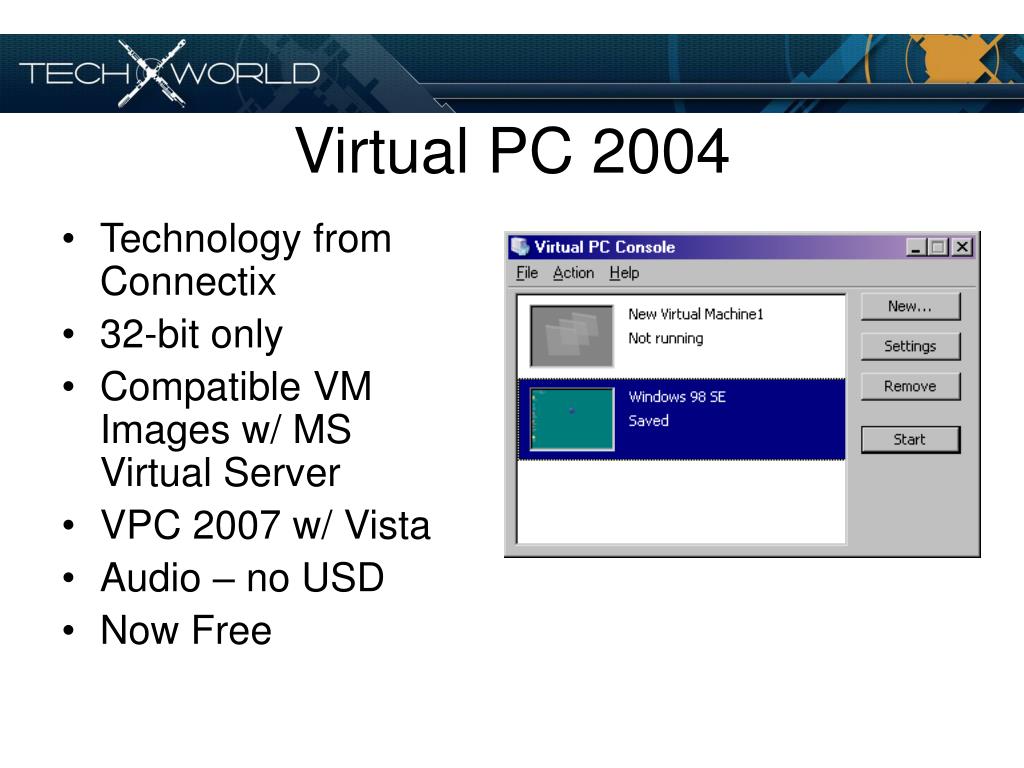

  21. Virtual PC 2004 • Technology from Connectix • 32-bit only • Compatible VM Images w/ MS Virtual Server • VPC 2007 w/ Vista • Audio – no USD • Now Free

  22. Supported Hosts Supported Guests Virtual PC 2004

  23. Virtual Desktop Products Summary • Microsoft Virtual PC • Free • Less hosts & guests support • Less VM features and capabilities • Soon to be replaced by Virtual PC 2007 • VMware Workstation • Costs more • More host & guests support • Better features (Snapshots, USB) • 64-bit hosts and guests

  24. Virtual Server Products • Server Products • VMware Virtual Server 1.01 • Microsoft Virtual Server 2005 R2 • VMware ESX Server 3.0 • Others: XEN 3.0 & Virtuozzo

  25. VMware Virtual Server • Features • 64-bit host & guest support • Virtual SMP Support • USB Support • VM Snapshots • Import MS VM Images • Windows and Web Management • Central Management with VirtualCenter • Limitations • No support for host clustering

  26. VMware Virtual Server • Supported Hosts

  27. VMware Virtual Server • Supported Guests

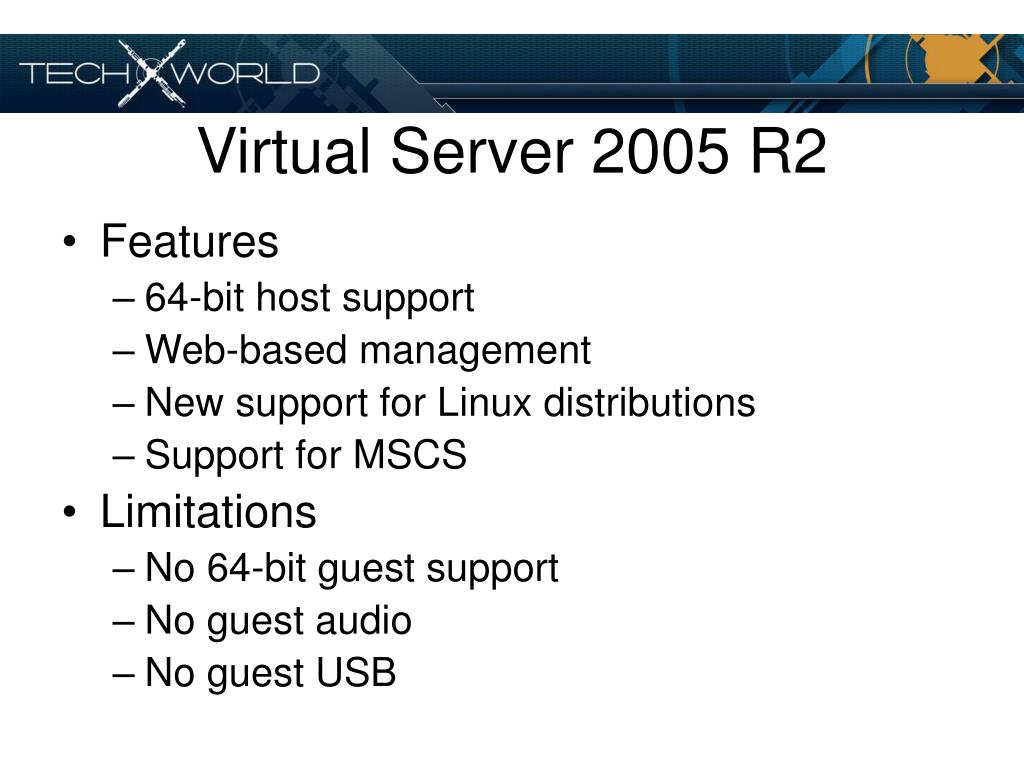

  28. Virtual Server 2005 R2 • Features • 64-bit host support • Web-based management • New support for Linux distributions • Support for MSCS • Limitations • No 64-bit guest support • No guest audio • No guest USB

  29. VS2005 R2 MSCS Host Support • Support for Microsoft Clustering Services • Windows Server 2003 Enterprise Edition or Datacenter Edition • VS is MSCS cluster-aware • Eliminates single point of failure • Automatic VM startup

  30. Windows Server 2003 R2 • Applies to any virtualization product running on Windows Server 2003 R2 • VM licensing changes • Windows Server 2003 Enterprise Edition R2 • Base OS • Four additional VM OS • Windows Server 2003 Datacenter Edition • Unlimited VMs

  31. VMware ESX Server 3.0 • Leader in the enterprise virtualization products • Bare metal installation • No host OS • Best performance

  32. ESX Server Overview V i r t u a l Applications Applications Applications Guest OS(Linux) Guest OS(Windows 2000) Guest OS(Windows 2003) Virtual Machine Virtual Machine Virtual Machine P h y s i c a l Virtual Machine Manager (ESX Server) System Hardware

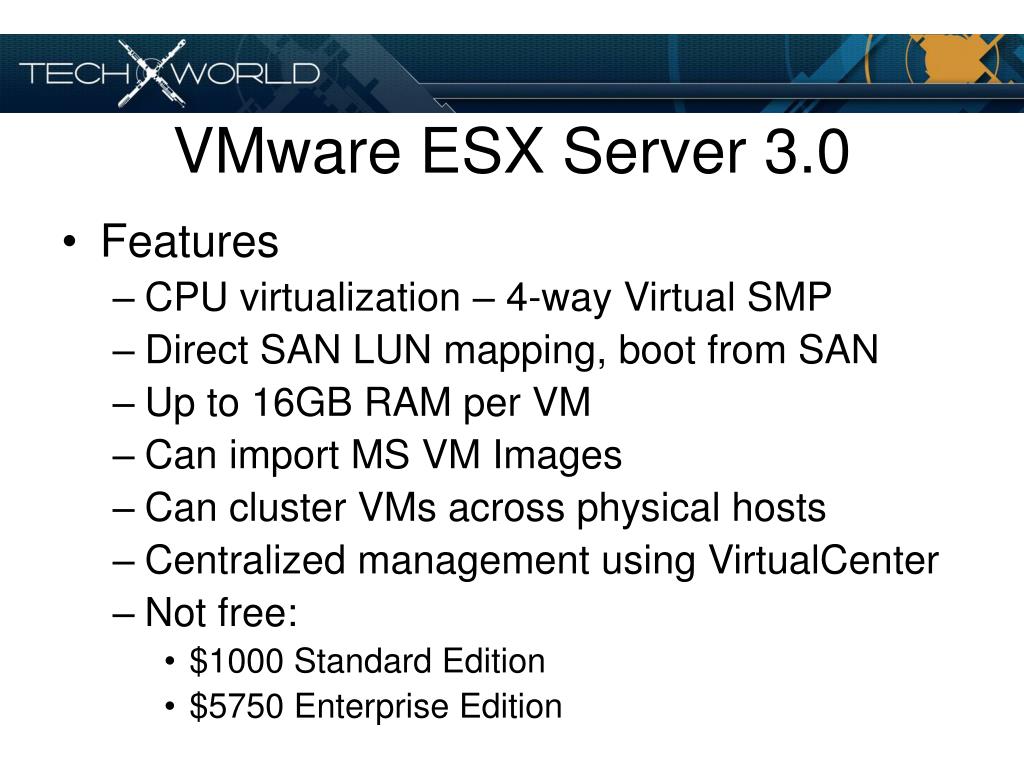

  33. VMware ESX Server 3.0 • Features • CPU virtualization – 4-way Virtual SMP • Direct SAN LUN mapping, boot from SAN • Up to 16GB RAM per VM • Can import MS VM Images • Can cluster VMs across physical hosts • Centralized management using VirtualCenter • Not free: • $1000 Standard Edition • $5750 Enterprise Edition

  34. VMware ESX Server 3.0 • Limitations • Unfamiliar management for Windows administrators • No official support for MSCS host • No USB support in the guests

  35. VMware ESX Server 3.0 • Supported 32-bit Guests

  36. VMware ESX Server 3.0 • 64-bit Guests • Windows 2003 64-bit SP1 (Standard, Enterprise) • Red Hat Enterprise Linux 3 64-bit (UP6, UP7) • Red Hat Enterprise Linux 4 64-bit (UP2, UP3) • SuSE Linux Server (SLES) 9 64-bit (SP3) • Solaris 10 1/062

  37. Other Virtualization platforms • XEN • XEN 3.0 -- Open source • Limited guest support • Requires OS Source code changes • XEN Enterprise – commercial • Windows and Linux support • Virtuozzo • Linux roots • Virtualizes the OS rather than the hardware

  38. Virtual Servers Summary • VMware Virtual Server • Free, excellent host and guest support • 64-bit host and guest support • No clustering support • Microsoft Virtual Server 2002 R2 • Free, Microsoft-only hosts, good guest support • 64-bit host support, no 64-bit guest support • Support Microsoft Clustering for hosts (Both benefit for Windows Server 2003 R2 licensing)

  39. Virtual Servers Summary • ESX Server • Highest costs, bare metal performance • Virtual SMP, highest guest capacities • No clustering for hosts, clustering for guests • XEN • Free, open source, requires OS source code changes • Virtuozzo • Not free, virtualizes OS not hardware

  40. Application Virtualization

  41. Application Virtualization Scenarios • Legacy applications • Incompatible applications • End of DLL Hell • No OS changes • Can be coupled w/ AD or other management frameworks for client management and deployment

  42. Application Virtualization • Runs as an application • Virtualizes OS settings • Registry • File System

  43. Application Virtualization Products • Softricity SoftGrid • Application virtualization • Deployment • Altiris Software Virtualization Solution • Application virtualization

  44. Softricity SoftGrid • $5000 base price w/ 20 CALs • Purchased by Microsoft • Requires AD • Requires a backend applications server • On-demand deployment • Streams software to clients • Policy-based management

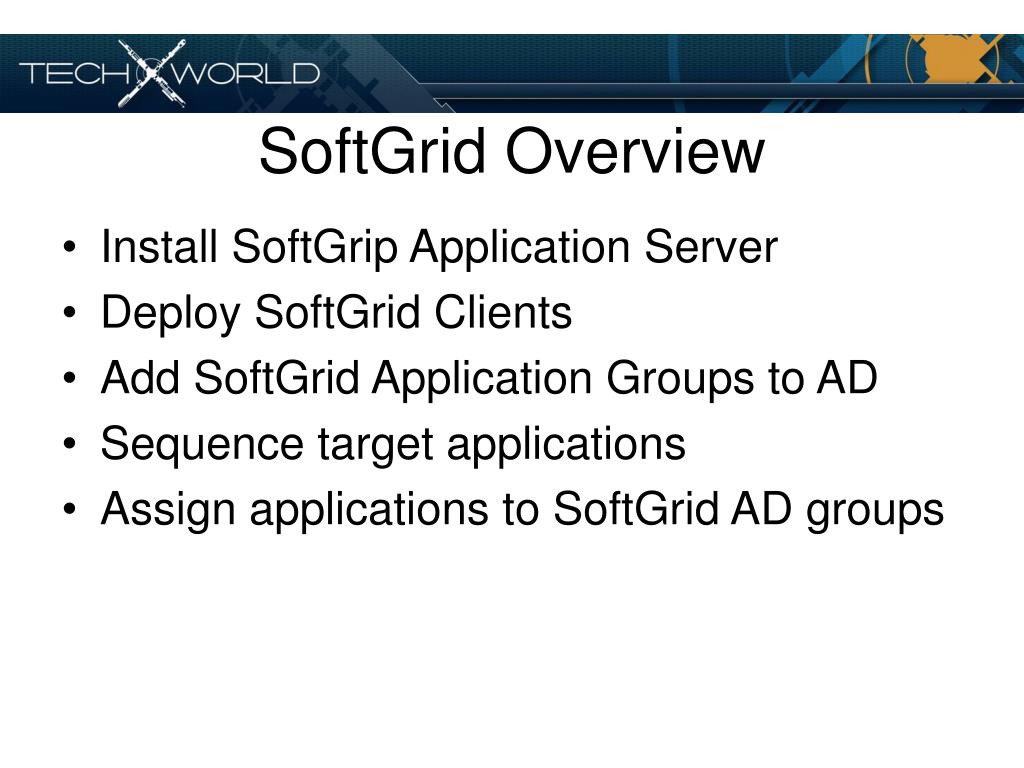

  45. SoftGrid Overview • Install SoftGrip Application Server • Deploy SoftGrid Clients • Add SoftGrid Application Groups to AD • Sequence target applications • Assign applications to SoftGrid AD groups

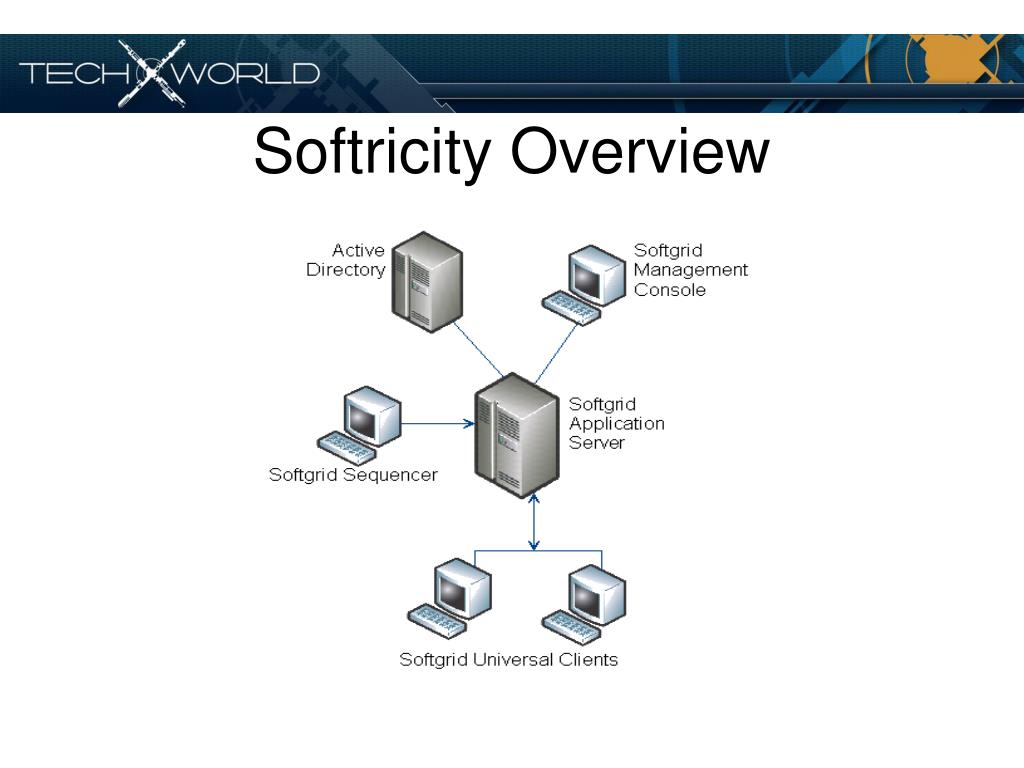

  46. Softricity Overview

  47. Altiris SVS • Free • No complex infrastructure requirements • Implemented as a file system filter driver • Redirects registry and file system calls

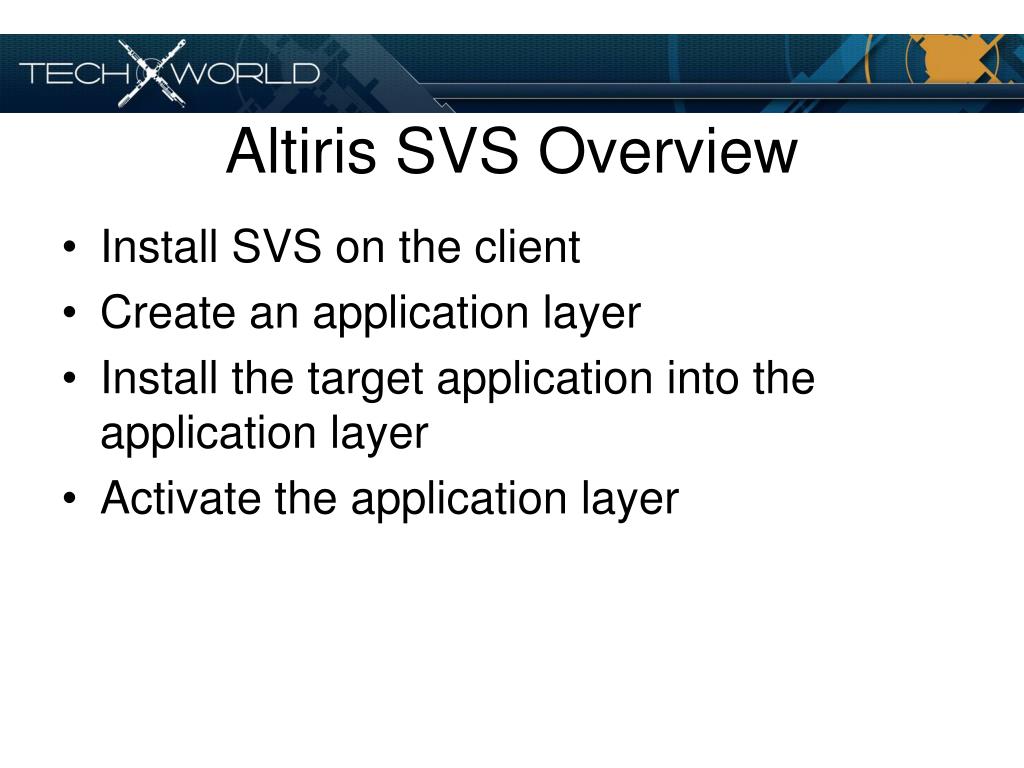

  48. Altiris SVS Overview • Install SVS on the client • Create an application layer • Install the target application into the application layer • Activate the application layer

  49. Future Directions in Virtualization
