  1. Poly stop a hacker David Walker Princeton University (joint work with Lujo Bauer and Jay Ligatti)

  2. Language-Based Security • language-based security mechanisms protect a host from untrusted applications analyzing or modifying application behavior • static mechanisms (analysis at link time) • type checking, proof checking, abstract interpretation • dynamic mechanisms (analysis at run time) • access-control lists, stack inspection, capabilities Poly stop a hacker

  3. Language-Based Security • language-based security mechanisms protect a host from untrusted applications by analyzing or modifying application behavior • static mechanisms (analysis at link time) • type checking, proof checking, abstract interpretation • dynamic mechanisms (analysis at run time) • access-control lists, stack inspection, capabilities Poly stop a hacker

  4. Program Monitors • A program monitor is a computation that runs in parallel with an untrusted application • monitors detect, prevent, and recover from application errors at run time • monitor decisions may be based on execution history • we assume monitors have no knowledge of future application actions Poly stop a hacker

  5. Program Monitors: Good Operations Monitor Application fopen () Poly stop a hacker

  6. Program Monitors: Bad Operations Monitor Application halt! fopen () Poly stop a hacker

  7. Program Monitors: Bad Operations Monitor Application fopen () Poly stop a hacker

  8. Program Monitors: Options • A program monitor may do any of the following when it recognizes a dangerous operation: • halt the application • suppress (skip) the operation but allow the application to continue • insert (perform) some computation on behalf of the application Poly stop a hacker

  9. Past Research • Program monitors have a lengthy history in the systems community • OS kernels • use hardware support • secure fixed system-call interface • mobile code architectures and safe languages (Java, CLR) • more complex interactions between applications • more diverse set of interfaces to secure • more diverse set of policies necessary Poly stop a hacker

  10. The Polymer Project • Theoretical analysis of the range of the policies enforceable at run time • Definition and implementation of a high-level policy language • incorporate types, modularity and high-level programming techniques • Formal semantics and tools for reasoning about policies Poly stop a hacker

  11. The Polymer Project • Theoretical analysis of the range of the policies enforceable at run time • Definition and implementation of a high-level policy language • incorporate types, modularity and high-level programming techniques • Formal semantics and tools for reasoning about policies Poly stop a hacker

  12. Today: Polymer the Language • Polymer via Pictures • simple policies • complex policies • Polymer semantics • monadic structure • types • Polymer discussion • implementation, related and future work Poly stop a hacker

  13. Today: Polymer the Language • Polymer via Pictures • simple policies • complex policies • Polymer semantics • monadic structure • types • Polymer discussion • implementation, related and future work Poly stop a hacker

  14. What is in a run-time security policy? • Policy-relevant actions • method calls, get/set state, raise exception • Security-relevant state • inaccessible to application program • Decision procedure • does the current action satisfy the policy in the current state? • if not, what supplementary action must be taken? Poly stop a hacker

  15. Example: Access Control Access Control Monitor (ACM) a state actions computation fopen fclose getc putc acl acl lookup Poly stop a hacker

  16. Example: Deadlock Prevention Deadlock Prevention Monitor (Deadlock) state actions computation acquire release locks held locking protocol Poly stop a hacker

  17. Security in Complex Systems • Restating the obvious: • it’s hard to secure complex systems against the determined attacker • Design goal: • prepare for mistakes • be ready for change • Mechanisms: • modularity • highly structured and parameterized policies Poly stop a hacker

  18. Security in Complex Systems • Polymer Mechanisms • high-level policy combinators • conjunctive policies • disjunctive policies • modularity mechanisms from modern languages (eg: ML) • hierarchical policies • parameterized policies • higher-order policies Poly stop a hacker

  19. Parallel Conjunctive Policies ResourceMgr Application Deadlock ACM conjunctive decision Poly stop a hacker

  20. Parallel Conjunctive Policies • two independent parallel processes decide whether an action is allowed • both say okay ==> application goes ahead • either says halt ==> application halts • one says okay and the other does not care about this action ==> application goes ahead • example: • resourceMgr = ACM AND Deadlock Poly stop a hacker

  21. Policy Combinators • Conjunctive policies narrow the set of acceptable program action sequences • Disjunctive policies widen the set of acceptable program action sequences Poly stop a hacker

  22. Parallel Disjunctive Policies ACM++ Application Authenticated ACM ACM disjunctive decision Poly stop a hacker

  23. Parallel Disjunctive Policies • two independent parallel processes decide whether an action is allowed • either says okay ==> app. goes ahead • both say halt ==> application halts • one says okay and the other does not care about this action ==> app. goes ahead • example: • ACM++= ACM OR AuthenticatedACM Poly stop a hacker

  24. Chinese Wall Policies • Chinese Wall Policies • each application is offered a number of protocol choices • when the application selects one choice, all other choices become unavailable Poly stop a hacker

  25. Parallel Disjunctive Policies Chinese Wall Monitor Application File not Network Network not File disjunctive decision Poly stop a hacker

  26. Complete Mediation • A Crucial Security Principle • in order to protect a resource, one must mediate all accesses to that resource • Naive composition of policies can lead to violations of complete mediation • eg: kernelSafety AND deadlock inserts acquire/release to protect kernel data must see all acquire/ release actions Poly stop a hacker

  27. Sequential Conjunction Application Resource Manager deadlock prevention kernel safety conjunctive decision Poly stop a hacker

  28. Sequential Conjunction Application System Policy resource manager logging/ auditing process conjunctive decision Poly stop a hacker

  29. Sequential Disjunction Application Disjunctive Monitor disjunctive decision Poly stop a hacker

  30. Today: Polymer the Language • Polymer via Pictures • simple policies • complex policies • Polymer semantics • monadic structure • types • Polymer discussion • implementation, related and future work Poly stop a hacker

  31. Formal Language Structure • Derived from the computational lambda calculus [Moggi] • computations (E) • run in parallel with an untrusted application • have effects on the application (halt, suppress, change state, perform application actions, etc.) • terms (M) • an algebra for manipulating suspended computations (ie: policies) • do not have effects Poly stop a hacker

  32. Simple Policies • actions (method calls) • a in A • terms (policies) • M ::= {actions: A; policy: E} | fun f (x:t) = M | M1 M2 | ... • monitoring computations • E ::= M | ok; E | sup; E | call (a) next: E1 done: E2 | do M; E | case * of (A1: E1 | A2: E2) | ... Poly stop a hacker

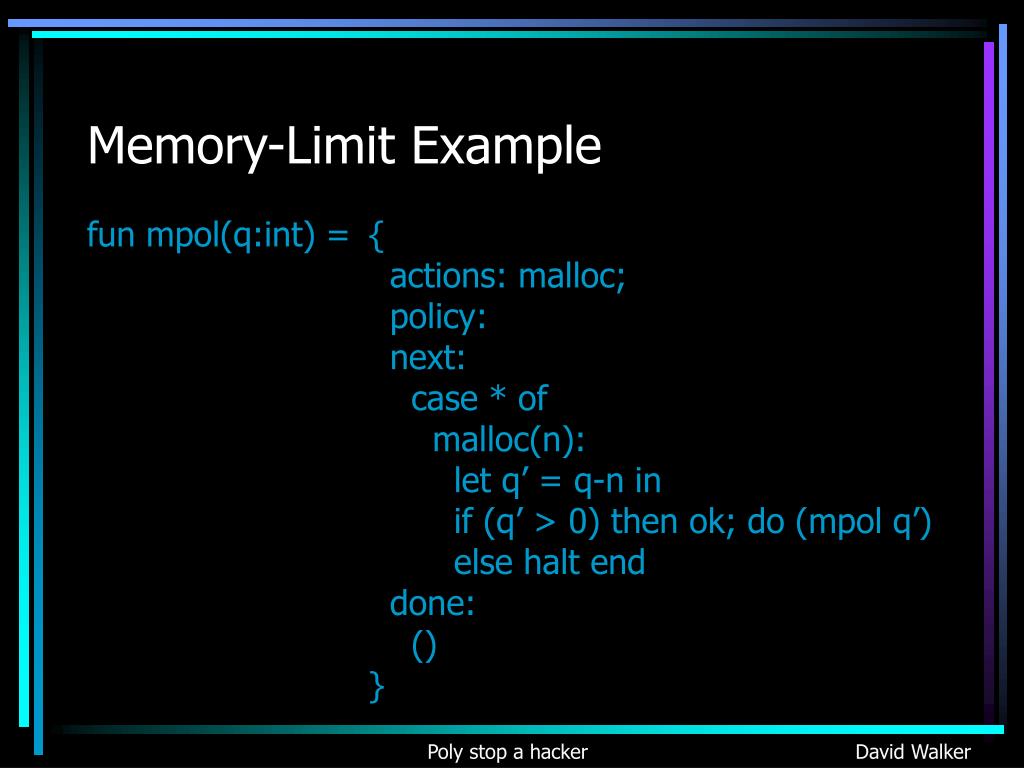

  33. Memory-Limit Example fun mpol(q:int) = { actions: malloc; policy: next: case * of malloc(n): let q’ = q-n in if (q’ > 0) then ok; do (mpol q’) else halt end done: () } Poly stop a hacker

  34. Memory-Limit Policy • mpol is a function from integers to policies • to generate a policy we apply our function to an initial memory quota: • memLimit = mpol 10000 Poly stop a hacker

  35. File-Access Example { actions: fopen, fcloses; policy: next: case * of fopen(s,m): if (acl s m) then ok; do (fpol (s::files)) else sup; do (fpol (files)) | fcloses (l): ... done: call (fcloses files) } fun fpol (files: file list) = Poly stop a hacker

  36. File-Access Policy • Once again, we apply our recursive function to an initial argument to get a policy • fileAccess = fpol [] Poly stop a hacker

  37. Policy Types • types • t ::= int | () | t1 x t2 | t1 + t2 | t1 -> t2 | M t • examples: • mpol : int -> M () • memLimit : M () • a simple type system prevents standard sorts of errors Poly stop a hacker

  38. Parallel Conjunctive Policies • A parallel conjunctive policy is a suspended computation that returns a pair of values • Types: • if P1 : M t1 and P : M t2 then P1 AND P2 : M (t1 x t2) • Curry-Howard strikes again! • Trivial policy T is the identity for AND • T : M () Poly stop a hacker

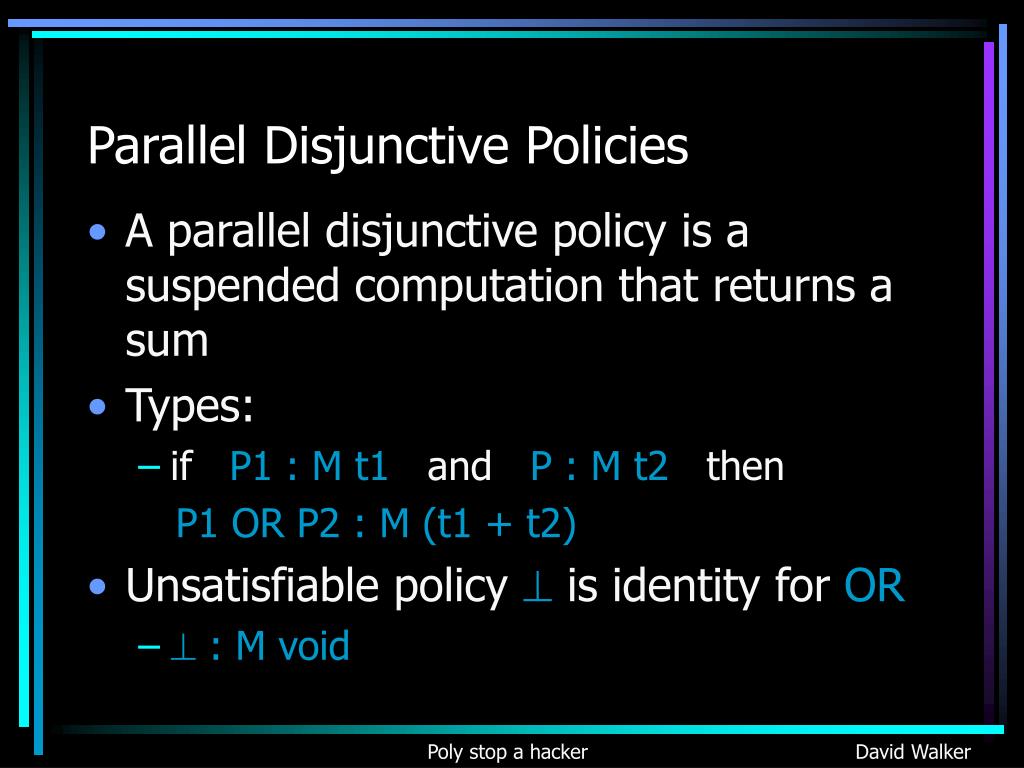

  39. Parallel Disjunctive Policies • A parallel disjunctive policy is a suspended computation that returns a sum • Types: • if P1 : M t1 and P : M t2 then P1 OR P2 : M (t1 + t2) • Unsatisfiable policy  is identity for OR •  : M void Poly stop a hacker

  40. Complete Mediation Failure Monitor Application foo () auditing process deadlock Poly stop a hacker

  41. Conflicting Policies Monitor Application foo () sup ok ? Poly stop a hacker

  42. Types and Effects • We synthesize the effects of a computation • the effects = the actions that may be inserted or suppressed by a computation • P1 AND P2 is well-formed when • the effects of P1 are disjoint from the regulated set of P2 and vice versa • effect analysis • ensures complete mediation for parallel pol’s • provides flexibility in sequential pol’s Poly stop a hacker

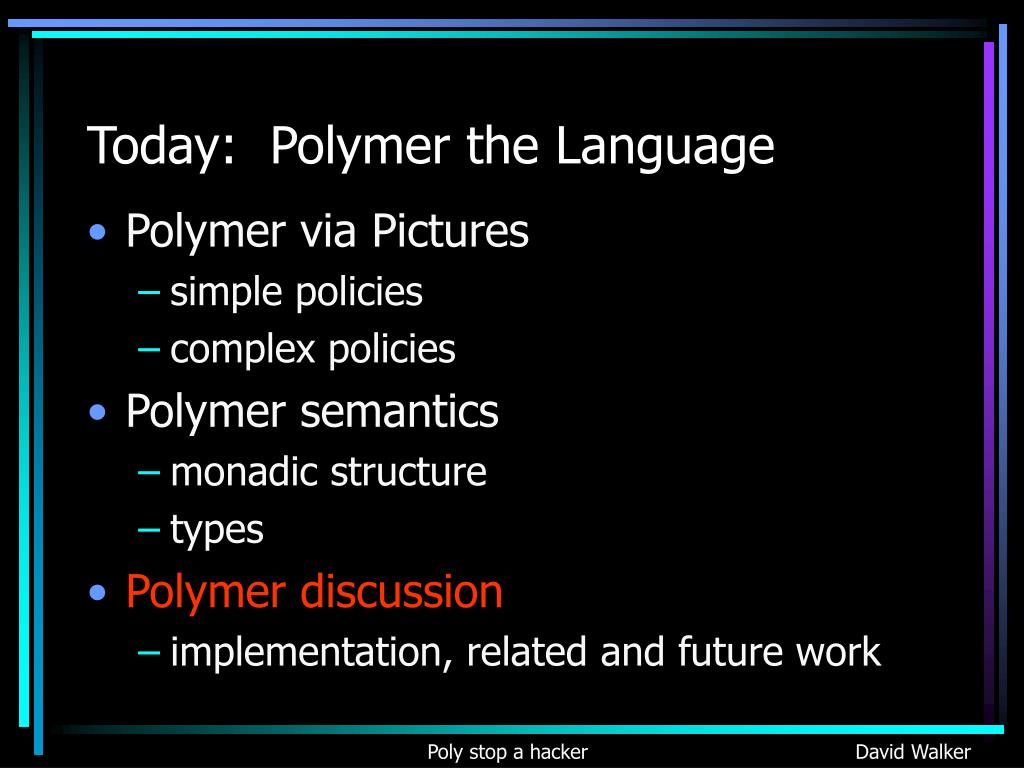

  43. Today: Polymer the Language • Polymer via Pictures • simple policies • complex policies • Polymer semantics • monadic structure • types • Polymer discussion • implementation, related and future work Poly stop a hacker

  44. Implementation Architecture Java application policy interface policy implementation instrumented application secure application Poly stop a hacker

  45. Implementation Progress • work so far: • simple policies with basic features (ok, sup, pattern matching, case, Java base) • higher-order policies and policy combinators • future work: • networking applications • further combinators • type and effect system • dynamic policy updates Poly stop a hacker

  46. Related Work • Aspect-oriented programming • Polymer is a domain-specific aspect-oriented programming language • New features: • an aspect algebra with novel combinators • a new approach to aspect collision (types and effects) • formal semantics as an extension of Moggi’s computational lambda calculus • see also Wand et al.’s semantics for aspects Poly stop a hacker

  47. Related Work • Monitoring languages • General-purpose languages/systems for monitoring applications • Poet and Pslang, Naccio, Ariel, Spin Kernel • Logical monitoring specifications • MAC (temporal logic), Bigwig (second-order monadic logic) Poly stop a hacker

  48. Summary: Polymer • First steps towards the design of a modern language for programming modular run-time security monitors • References • FCS ‘02 (expressible and inexpressible policies) • Princeton TR 655-02 (Polymer semantics) • www.cs.princeton.edu/sip/projects/polymer/ Poly stop a hacker

  49. End Poly stop a hacker
