  1. Advanced Computer VisionIntroduction Lecture 02 Roger S. Gaborski Roger S. Gaborski

  2. Corner Detection: Basic Idea We should easily recognize the point by looking through a small window Shifting a window in anydirection should give a large change in intensity “flat” region:no change in all directions “edge”:no change along the edge direction “corner”:significant change in all directions Roger S. Gaborski Source: A. Efros

  3. Corner Detection: Mathematics Window function Shifted intensity Intensity Window function w(x,y) = or 1 in window, 0 outside Gaussian Change in appearance for the shift [u,v]: Roger S. Gaborski Source: R. Szeliski

  4. Corner Detection: Mathematics Change in appearance for the shift [u,v]: I(x, y) E(u, v) E(3,2) E(0,0) Roger S. Gaborski Source: R. Szeliski

  5. Corner Detection: Mathematics Change in appearance for the shift [u,v]: We want to find out how this function behaves for small shifts Second-order Taylor expansion of E(u,v) about (0,0) (local quadratic approximation): Roger S. Gaborski Source: R. Szeliski

  6. Corner Detection: Mathematics M The quadratic approximation simplifies to where M is a second moment matrixcomputed from image derivatives: Roger S. Gaborski Source: R. Szeliski

  7. Interpreting the second moment matrix First, consider the axis-aligned case (gradients are either horizontal or vertical) λ1 and λ2 will be proportional to the principal curvature of autocorrelation function. If either eigenvalue λ is close to 0, then this is not a corner, so look for locations where both are large. Roger S. Gaborski

  8. Interpreting the eigenvalues Classification of image points using eigenvalues of M: 2 “Edge” 2 >> 1 “Corner”1 and 2 are large,1 ~ 2;E increases in all directions 1 and 2 are small;E is almost constant in all directions “Edge” 1 >> 2 “Flat” region 1 Roger S. Gaborski

  9. Defining Corner Response Function, R Recall: A = [ a b; c d] Det(A) = ad – bc Then: R = det(M)- α trace(M)2 = λ1λ2 - α (λ1 + λ2) Where α = .04 to .06 Roger S. Gaborski

  10. Corner Response Function R < 0 R > 0 Edge Corners |R| small R < 0 “Flat” region Edge Roger S. Gaborski

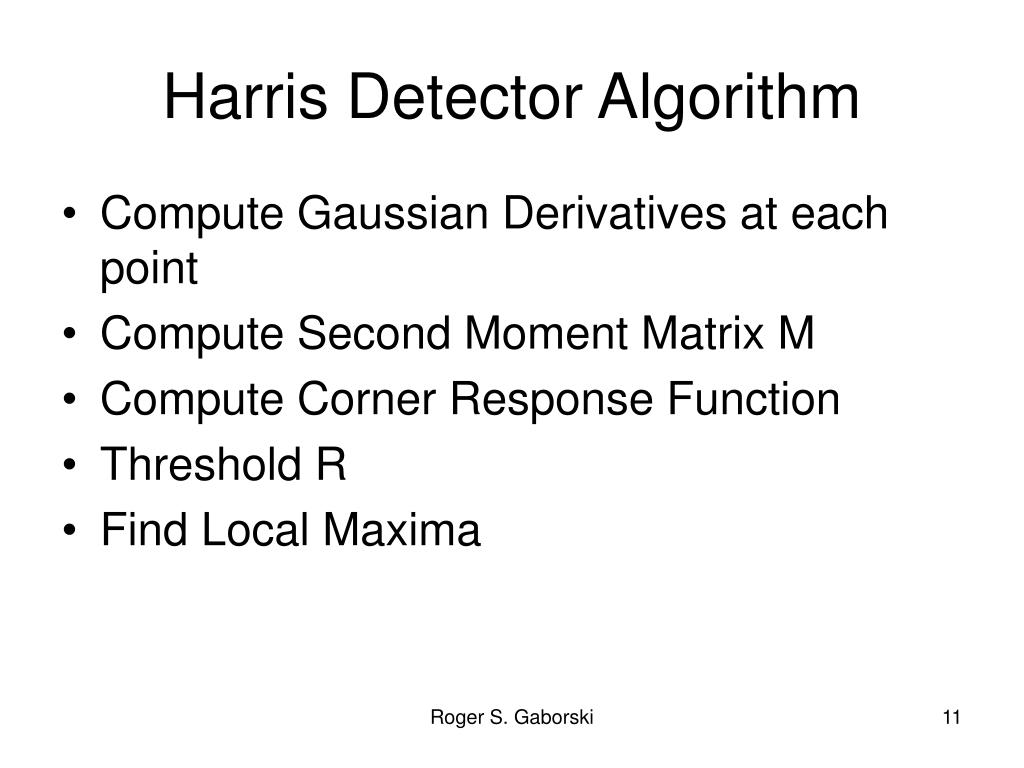

  11. Harris Detector Algorithm • Compute Gaussian Derivatives at each point • Compute Second Moment Matrix M • Compute Corner Response Function • Threshold R • Find Local Maxima Roger S. Gaborski

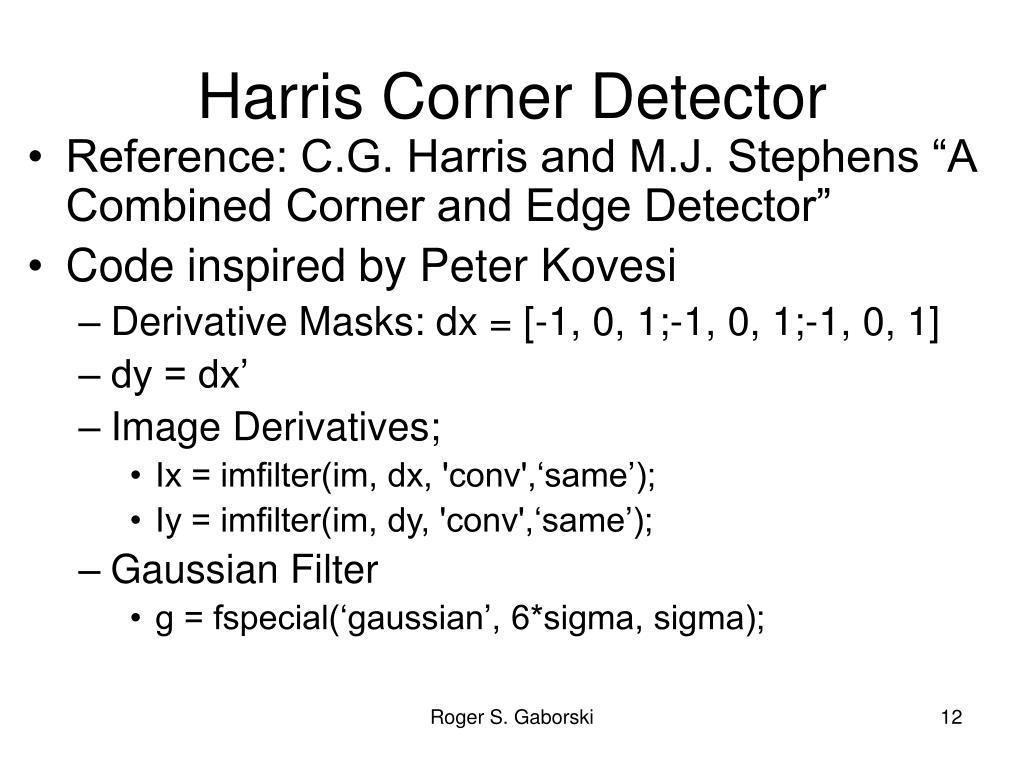

  12. Harris Corner Detector • Reference: C.G. Harris and M.J. Stephens “A Combined Corner and Edge Detector” • Code inspired by Peter Kovesi • Derivative Masks: dx = [-1, 0, 1;-1, 0, 1;-1, 0, 1] • dy = dx’ • Image Derivatives; • Ix = imfilter(im, dx, 'conv',‘same’); • Iy = imfilter(im, dy, 'conv',‘same’); • Gaussian Filter • g = fspecial(‘gaussian’, 6*sigma, sigma); Roger S. Gaborski

  13. Smooth squared image derivative • Ix2 = imfilter (Ix.^2, g, 'conv', ‘same’); • Iy2 = imfilter (Iy.^2, g, 'conv', ‘same’); • IxIy = imfilter (Ix .* Iy, g, 'conv', ‘same’); c = (Ix2.*Iy2 – IxIy.^2)./(Ix2+Iy2).^2; Roger S. Gaborski

  14. Non-maximal Suppression and Threshold • Extract local maxima – gray scale morphological dilation • size = 2*radius+1; %radius is parameter • mx = imdilate(c,ones(size)); %gray scale dilate • cc = (c==mx)&(c>thresh); %find maxima • [r,c] = find(cc) %find row, col coordinates • figure, imagesc( im), colormap(gray) • hold on • plot(c,r, ‘rs’), title(‘Corners) Roger S. Gaborski

  15. 100x100 Grid background =1, lines = 1 Roger S. Gaborski

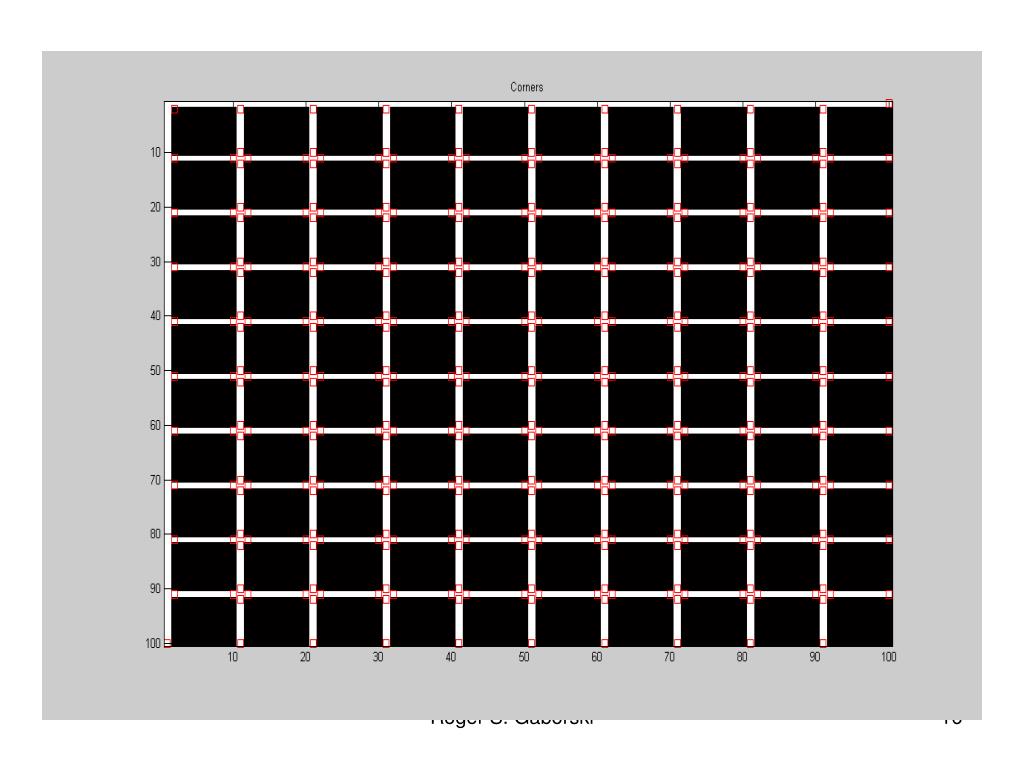

  16. Roger S. Gaborski

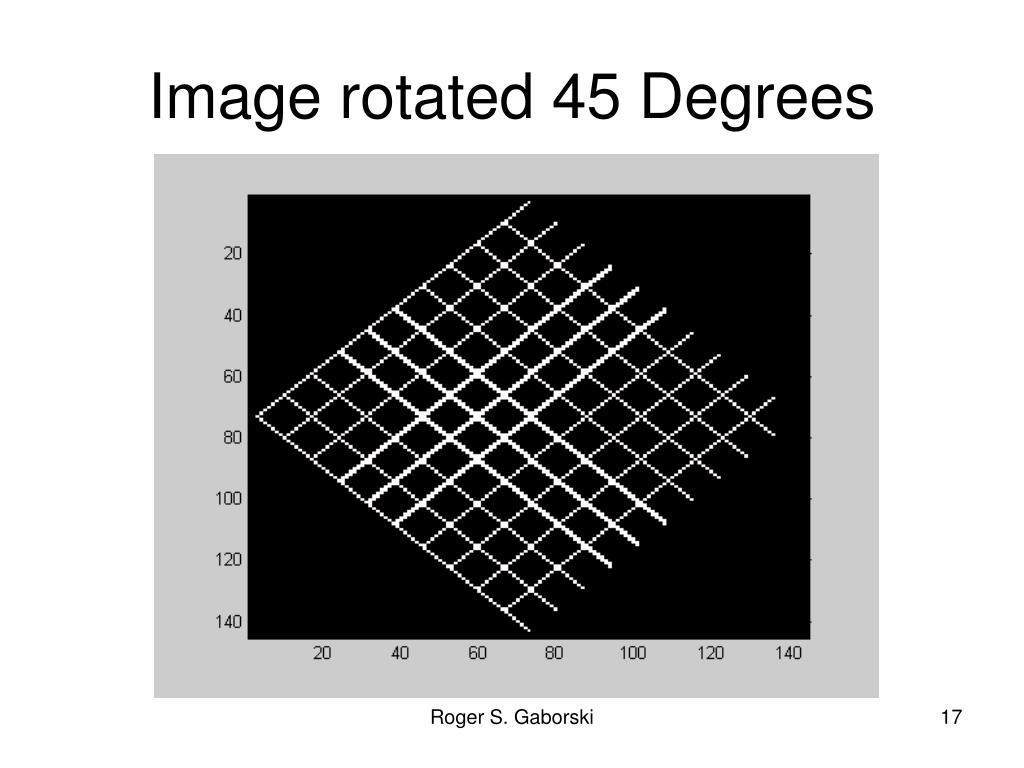

  17. Image rotated 45 Degrees Roger S. Gaborski

  18. Image rotated 45 Degreessame parameters Roger S. Gaborski

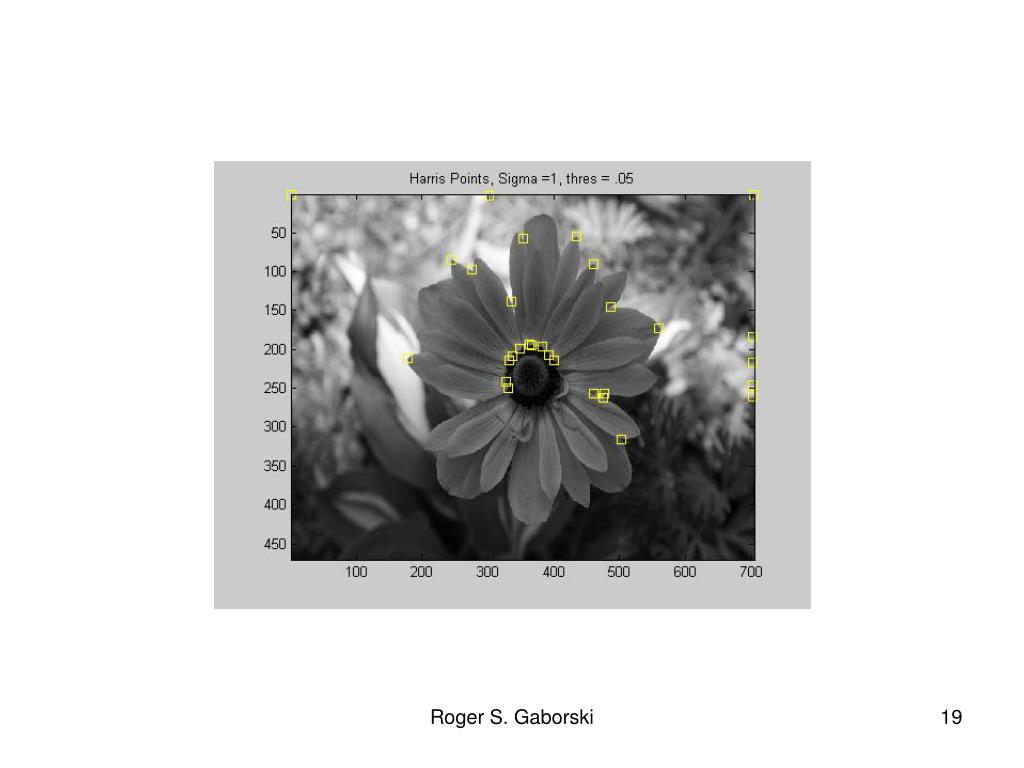

  19. Roger S. Gaborski

  20. Roger S. Gaborski

  21. Porsche Image Roger S. Gaborski

  22. Harris Points Roger S. Gaborski

  23. 1983 Porsche Roger S. Gaborski

  24. HW#2 – Due Tuesday, noon • Work in teams of 2 or 3 • Write a Harris Detector Function (do not simply copy one from web, write your own) • Experiment with ‘grid image’ and Flower2 image and two ‘interesting’ images of your choice • Goals: - Find all intersections on grid image • Detect all petal end points on flower image – better results that class lecture slide • Email: 1- write up including result images, observations and 2-MATLAB code Roger S. Gaborski

  25. Object Recognition • Issues: • Viewpoint • Scale • Deformable vs. rigid • Clutter • Occlusion • Intra class variability Roger S. Gaborski

  26. Current Work • Fix: • Viewpoint • Scale • Rigid • Explore affects of: • Intra class variability • Clutter • Occlusion Roger S. Gaborski

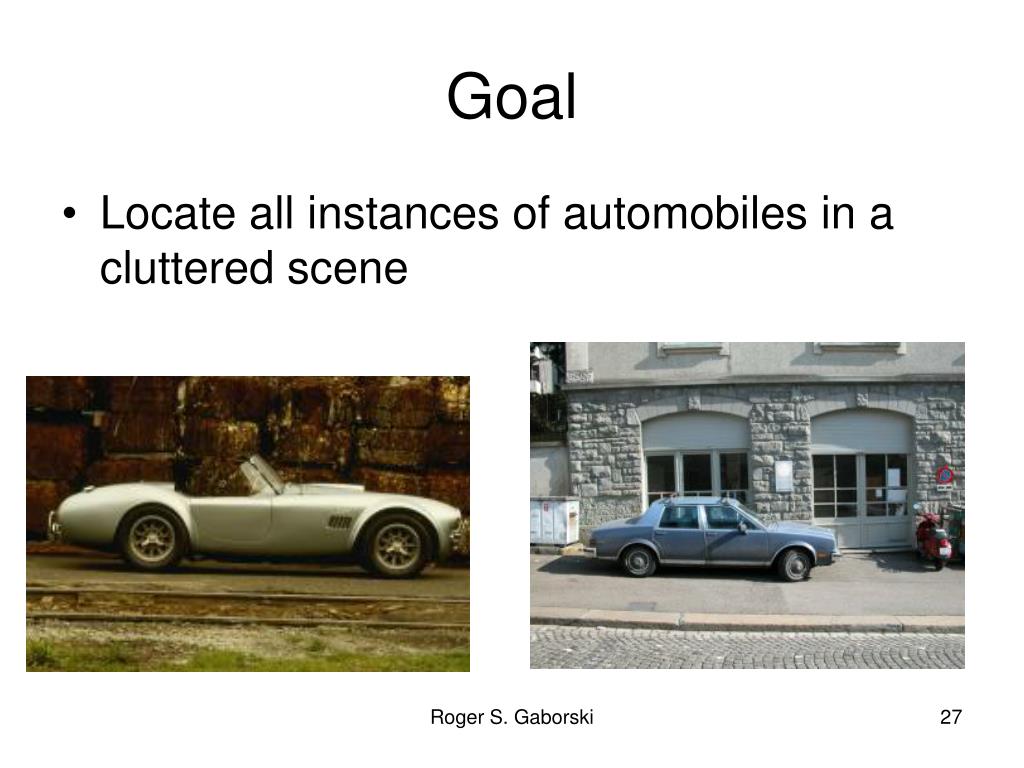

  27. Goal • Locate all instances of automobiles in a cluttered scene Roger S. Gaborski

  28. Acknowledgements • Students: • Tim Lebo • Dan Clark • Images used in presentation: • ETHZ Database, UIUC Database Roger S. Gaborski

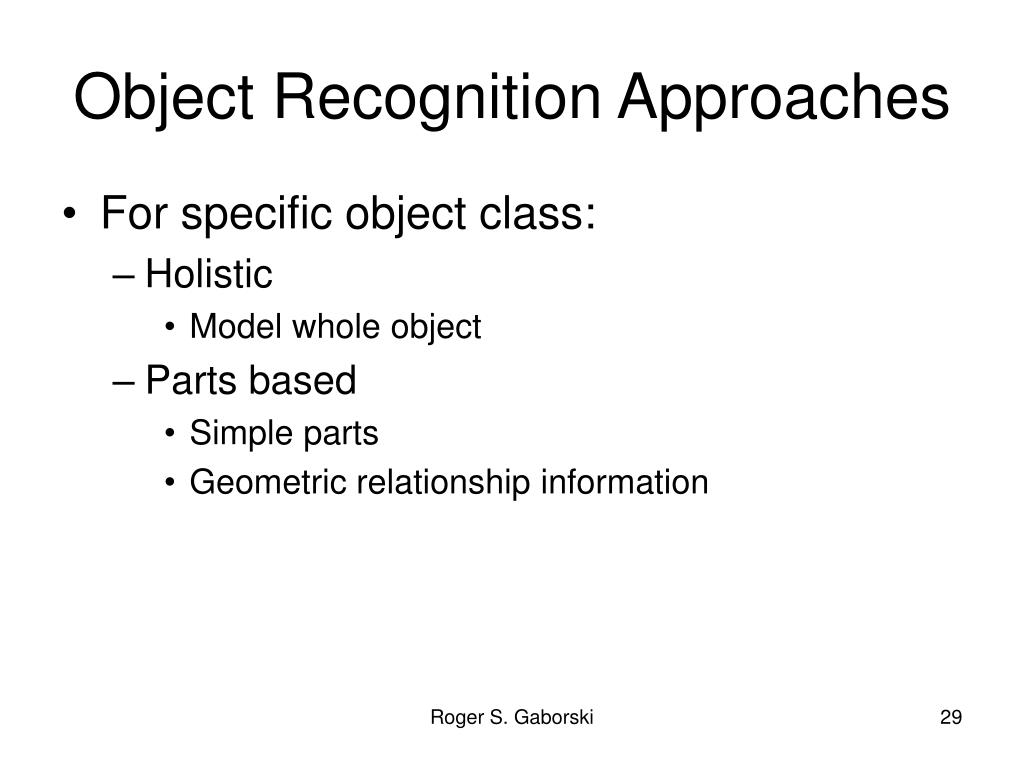

  29. Object Recognition Approaches • For specific object class: • Holistic • Model whole object • Parts based • Simple parts • Geometric relationship information Roger S. Gaborski

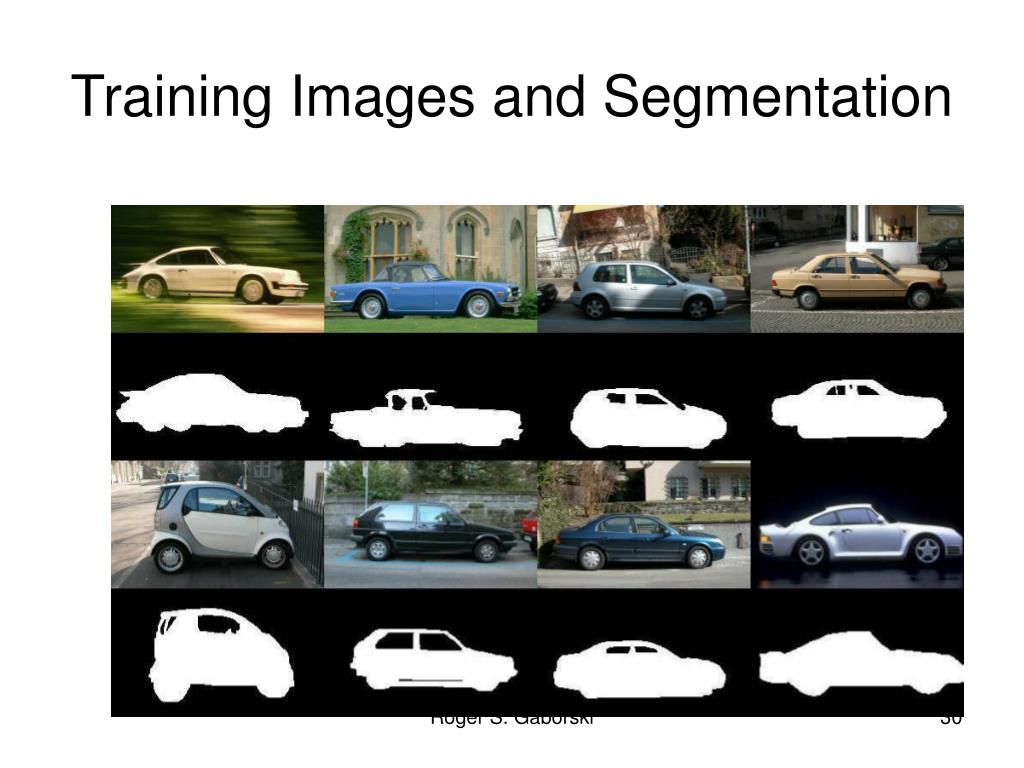

  30. Training Images and Segmentation Roger S. Gaborski

  31. Implicit Shape Model • Patches – local appearance prototypes • Spatial relationship – where the patch can be found on the object • For a given class w: ISM(w) = (Iw ,Pw ) where Iw is the codebook containing the patches and Pw is the probability distribution that describes where the patch is found on the object • How do we find ‘interesting’ patches? Roger S. Gaborski

  32. Harris Point Operator • what is it? Roger S. Gaborski

  33. Roger S. Gaborski

  34. Harris Points Roger S. Gaborski

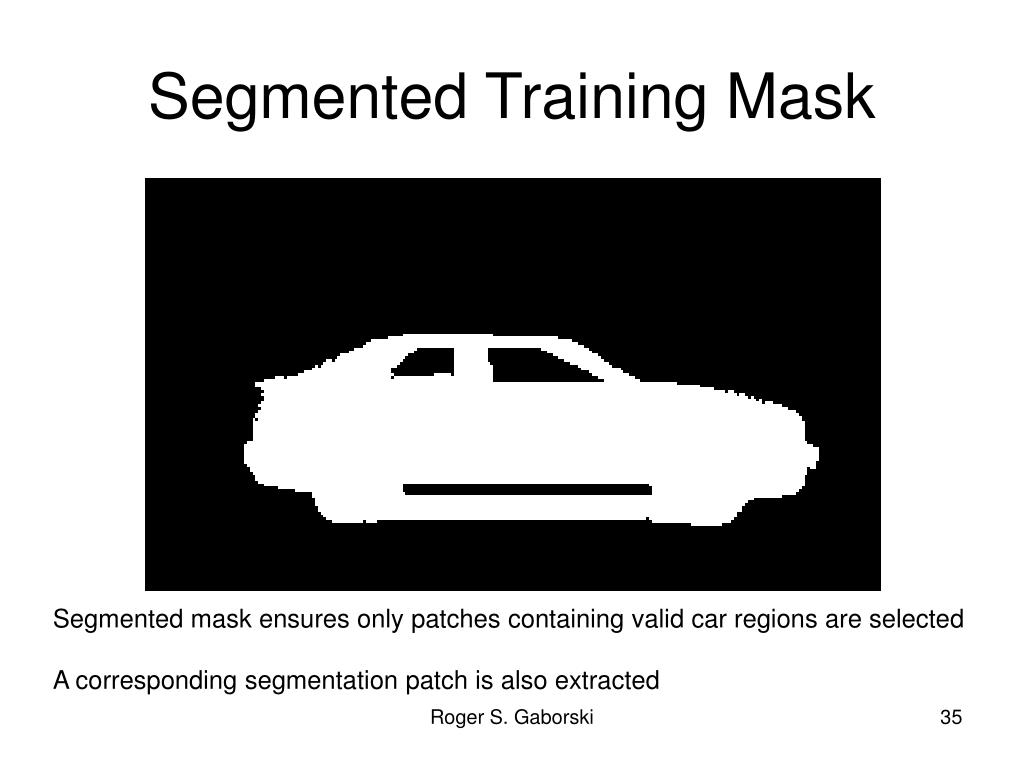

  35. Segmented Training Mask Segmented mask ensures only patches containing valid car regions are selected A corresponding segmentation patch is also extracted Roger S. Gaborski

  36. Selected Patches Roger S. Gaborski

  37. How is spatial information represented? • Estimate the center of the object using the centroid of the segmentation mask • Displacement between: • Center of patch • Centroid of segmentation mask Roger S. Gaborski

  38. Individual Patch and Displacement Information Roger S. Gaborski

  39. Typical Training Example Roger S. Gaborski

  40. Typical Training Example Roger S. Gaborski

  41. Extracted Training Patches Roger S. Gaborski

  42. Cluster Patches • Many patches will be visually similar • Normalized Grayscale Correlation is used to cluster patches • All patches within a certain neighborhood defined by the NGC are grouped together • The representative patch is determined by mean of the patches • The geometric information for each patch in the cluster is assigned to the representative patch Roger S. Gaborski

  43. Patches Roger S. Gaborski

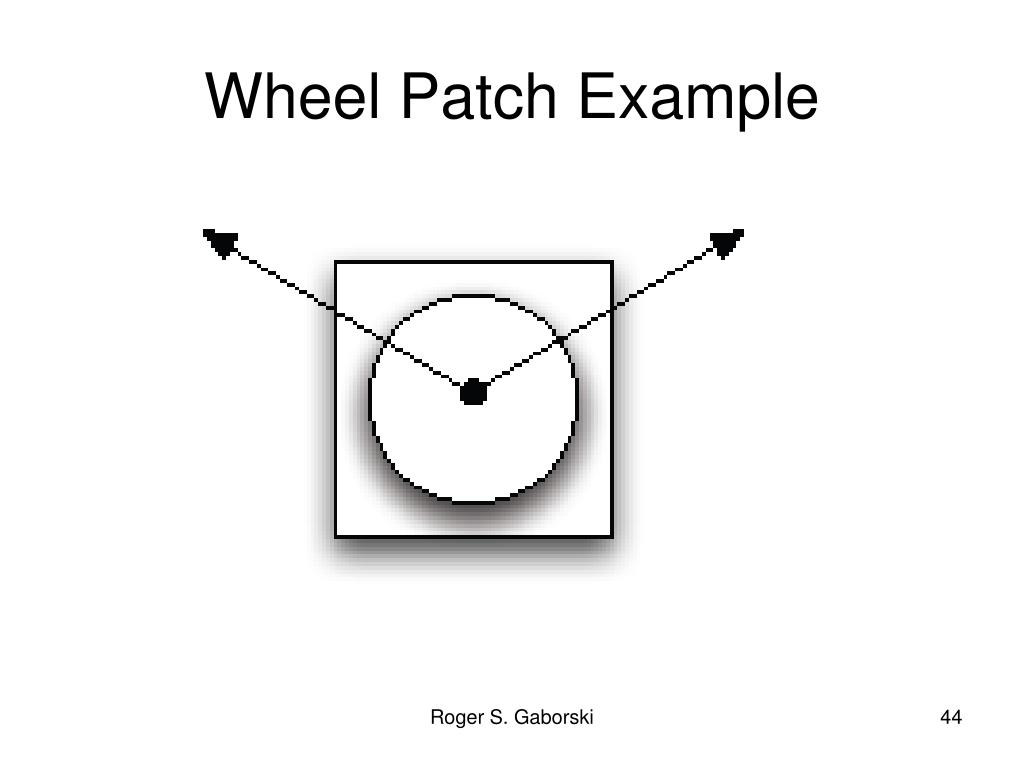

  44. Wheel Patch Example Roger S. Gaborski

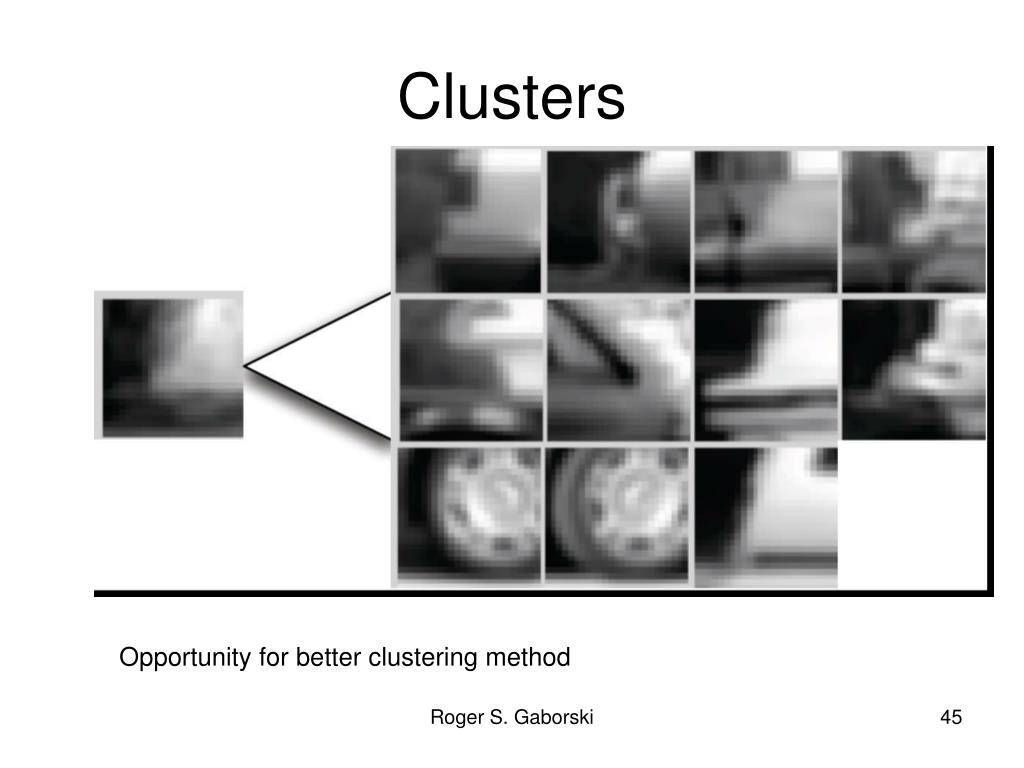

  45. Clusters Opportunity for better clustering method Roger S. Gaborski

  46. Clusters Roger S. Gaborski

  47. Roger S. Gaborski

  48. Object Detection • Harris point operator to find interesting points • Extract patches • Match extracted patches with model patches • Spatial information predicts center of object • Create voting space Roger S. Gaborski

  49. Ideal Voting Space Example Roger S. Gaborski

  50. Multiple Votes Multiple geometric interpretations Roger S. Gaborski
