Inapproximability of the Smallest Superpolyomino Problem

This paper explores the complexities of the Smallest Superpolyomino Problem, wherein the objective is to find a minimal superpolyomino covering a given set of polyominoes. We establish that this problem is NP-hard, even under constraints such as limited colors. Nonetheless, we introduce a greedy 4-approximation algorithm that yields a superpolyomino at most four times the size of the optimal solution. In addition, we discuss various aspects related to approximation ratios, reduction ideas, and implications for string and image compression.

angie
Télécharger la présentation

Inapproximability of the Smallest Superpolyomino Problem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Inapproximability of the Smallest Superpolyomino Problem Andrew Winslow Tufts University

  2. Polyominoes Colored poly-squares (stick) Rotation disallowed

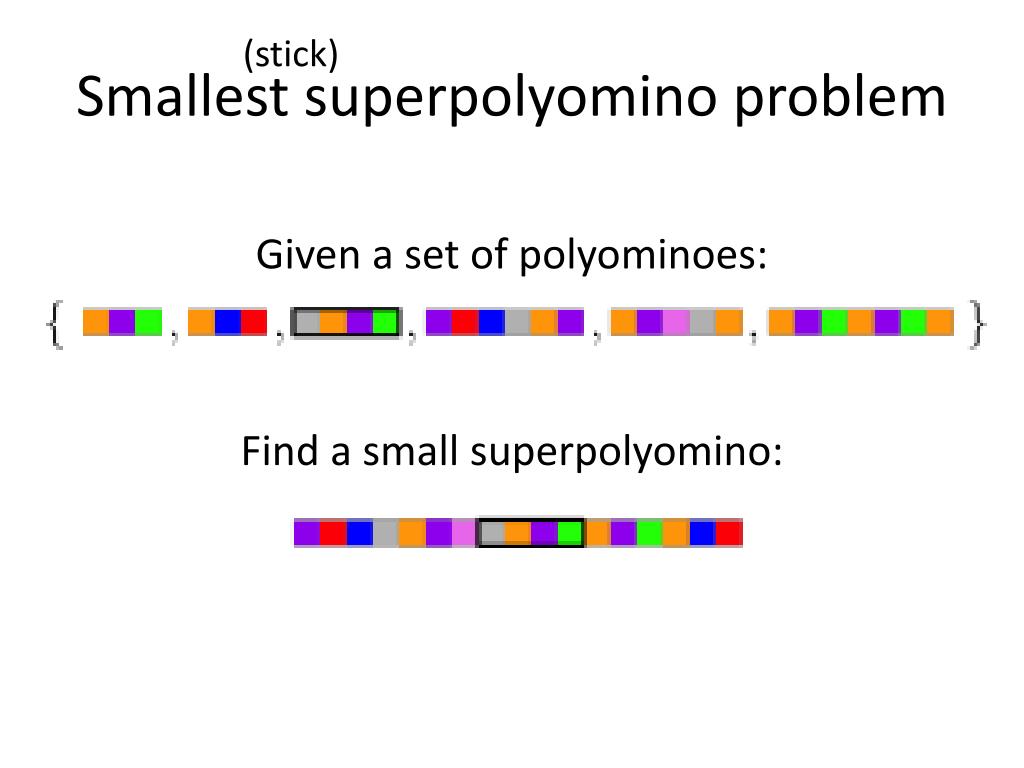

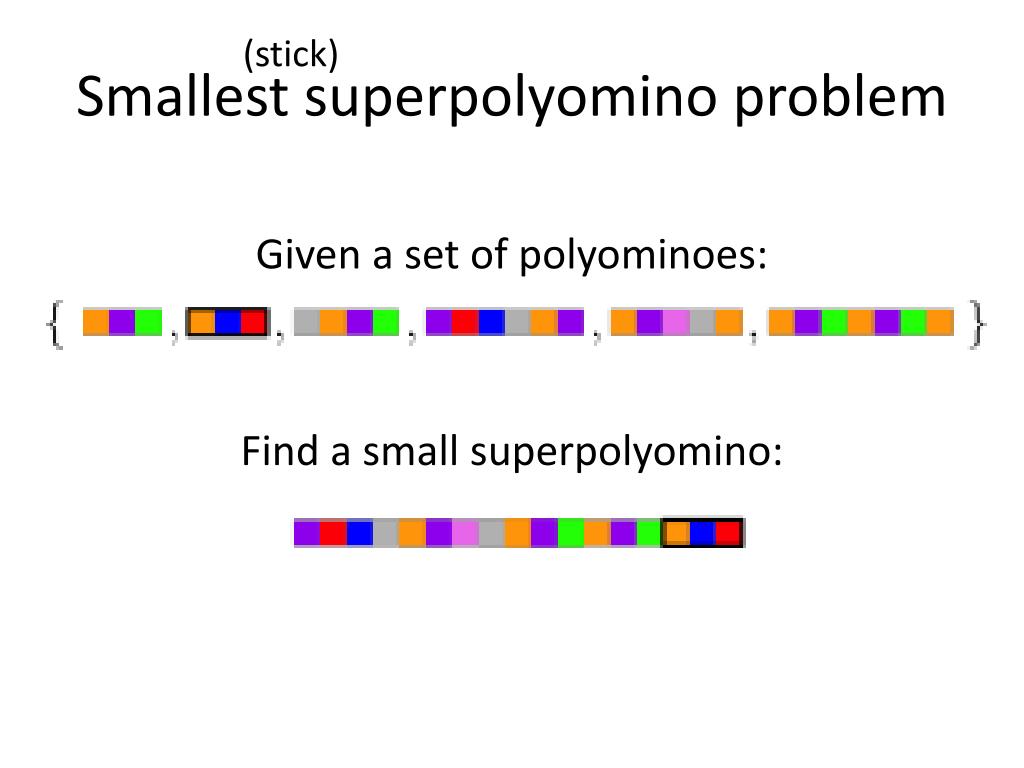

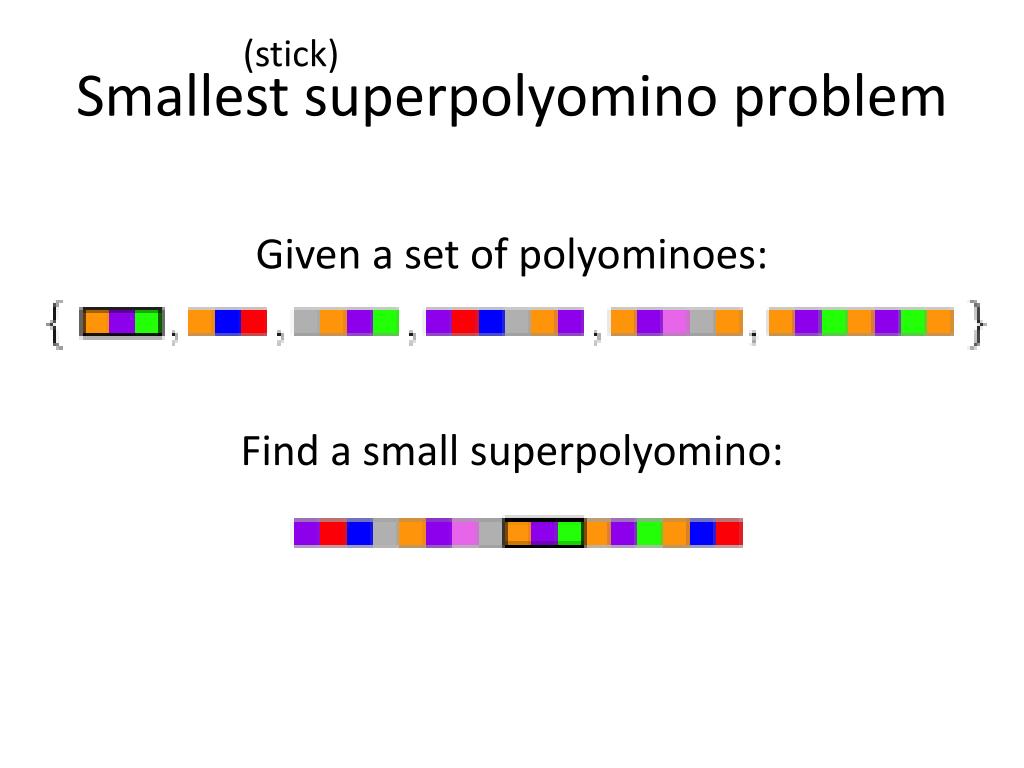

  3. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

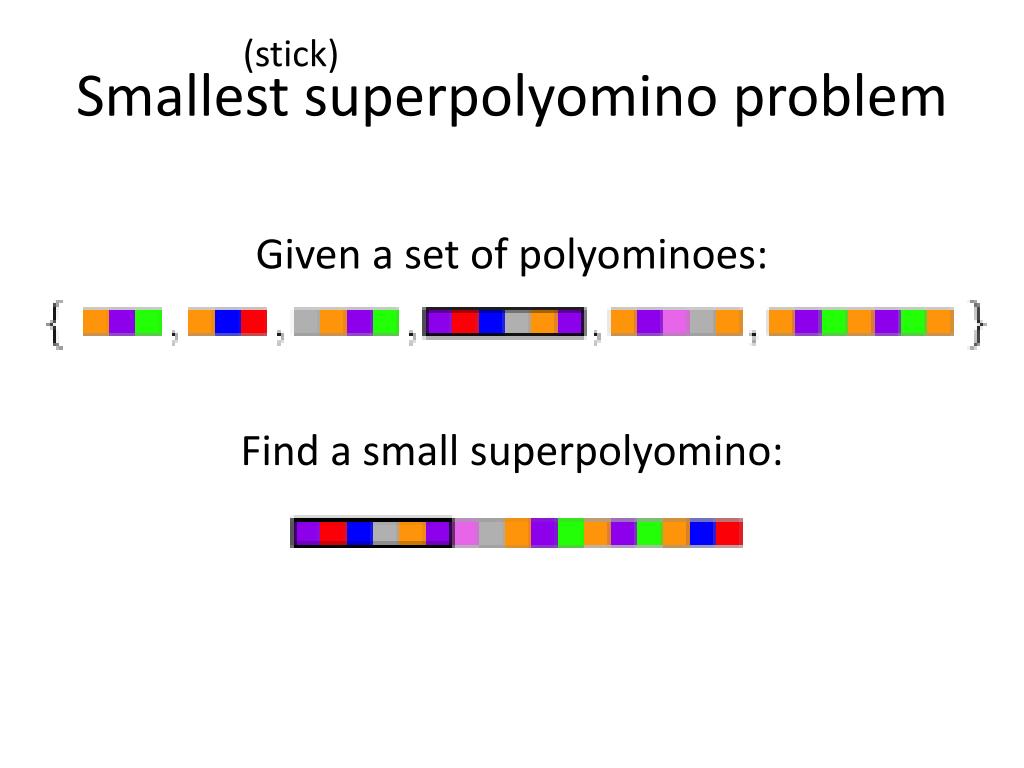

  4. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

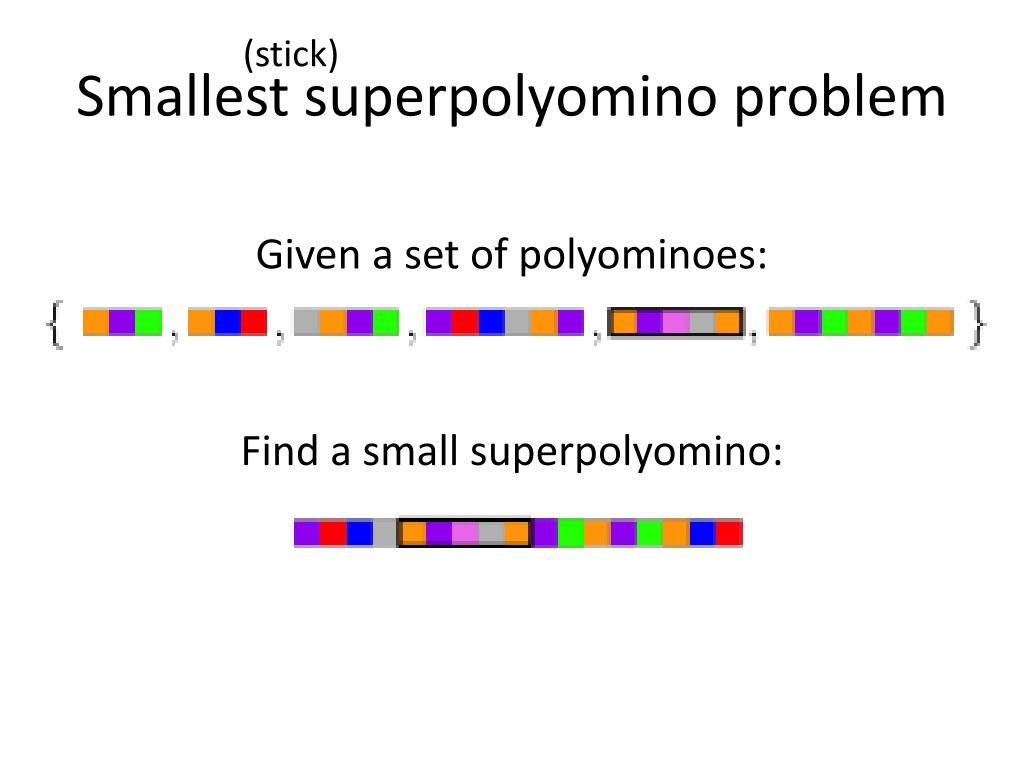

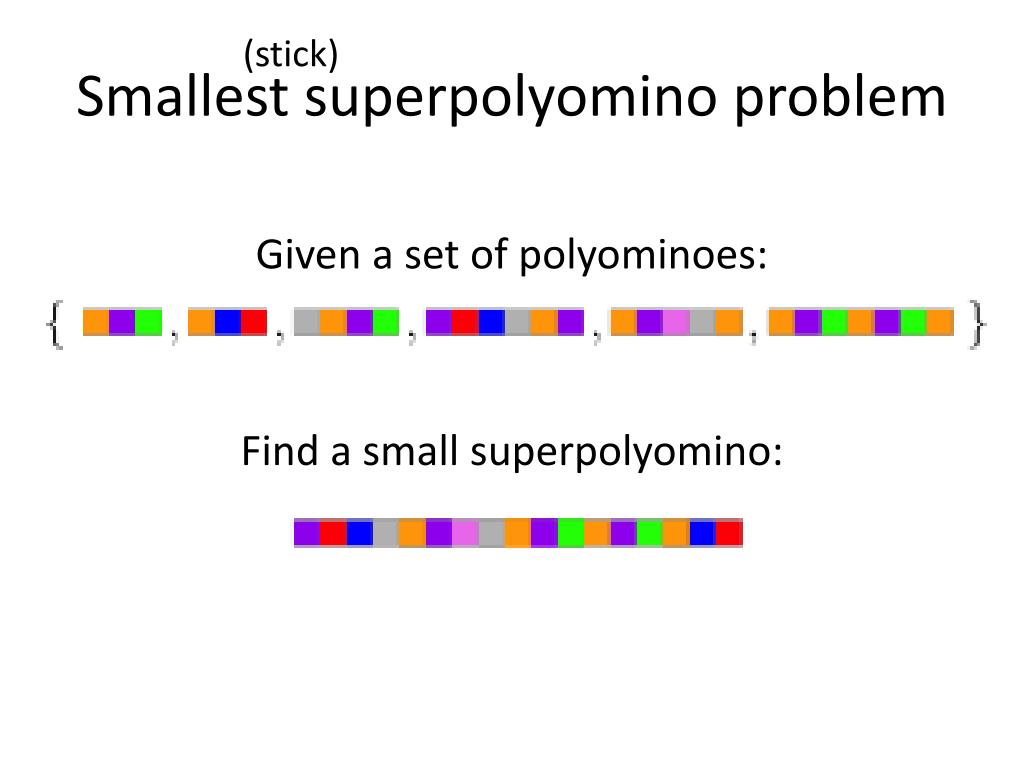

  5. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

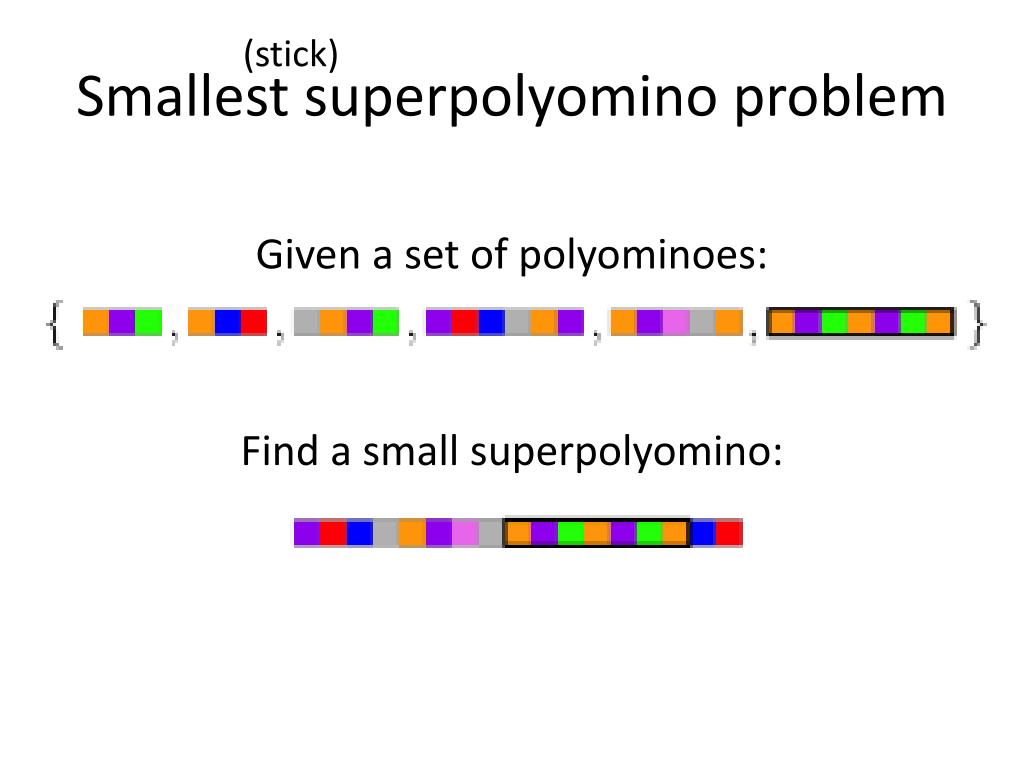

  6. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

  7. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

  8. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

  9. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:

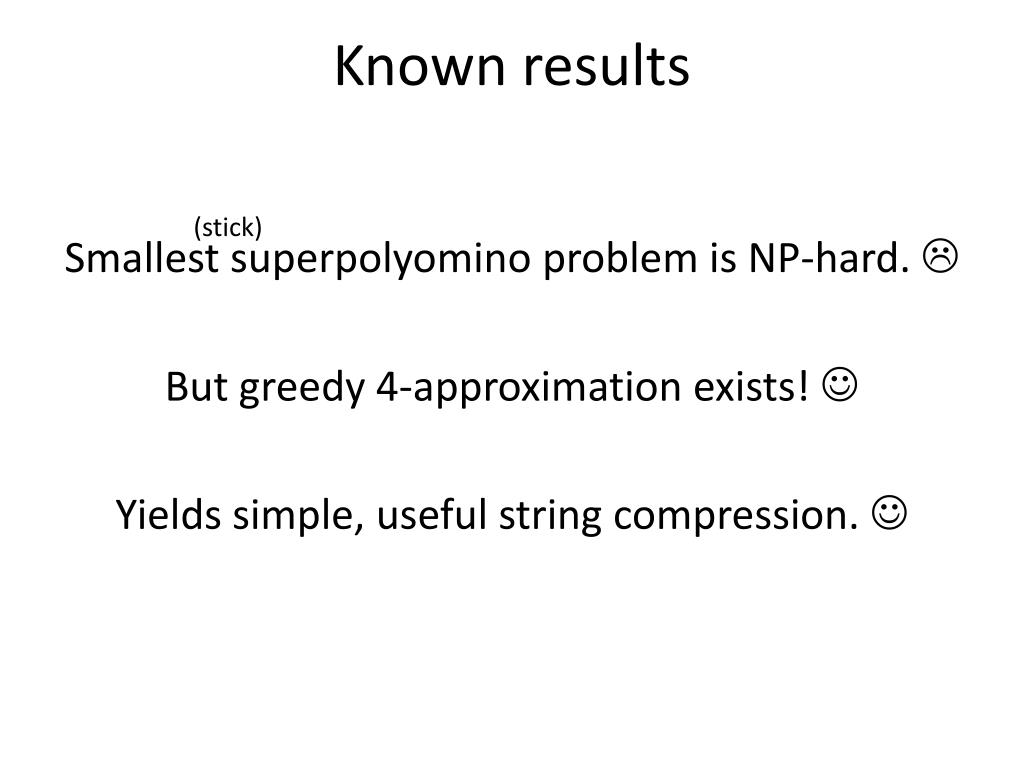

  10. Known results Smallest superpolyomino problem is NP-hard.  (stick) But greedy 4-approximation exists!  Yields simple, useful string compression. 

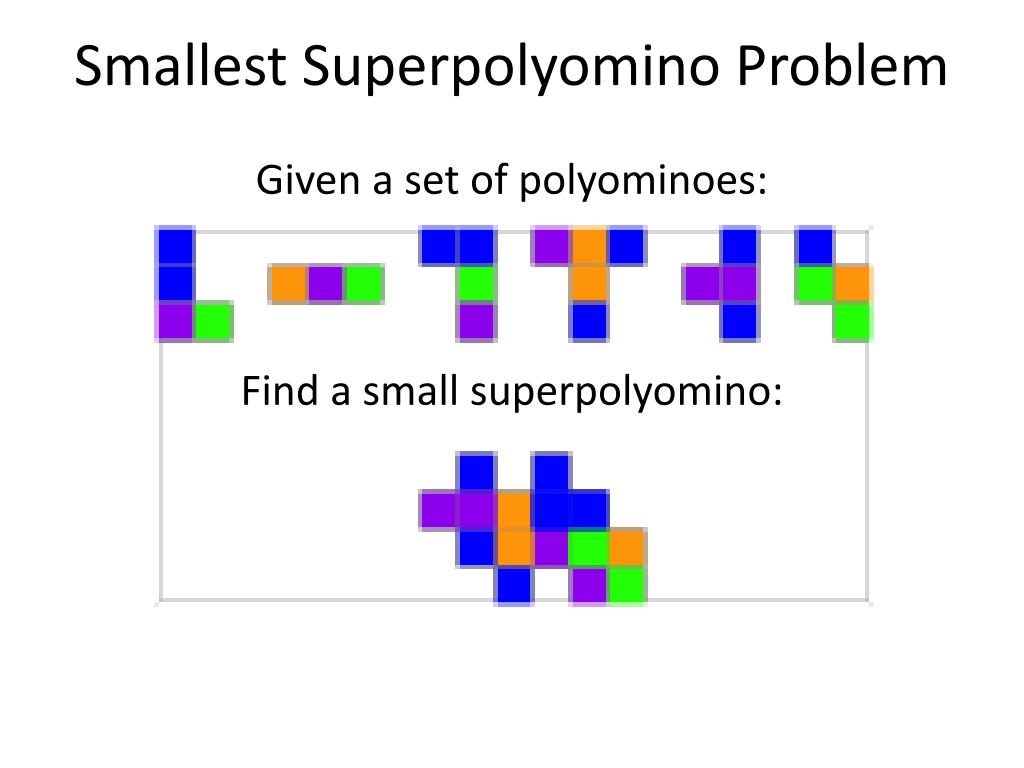

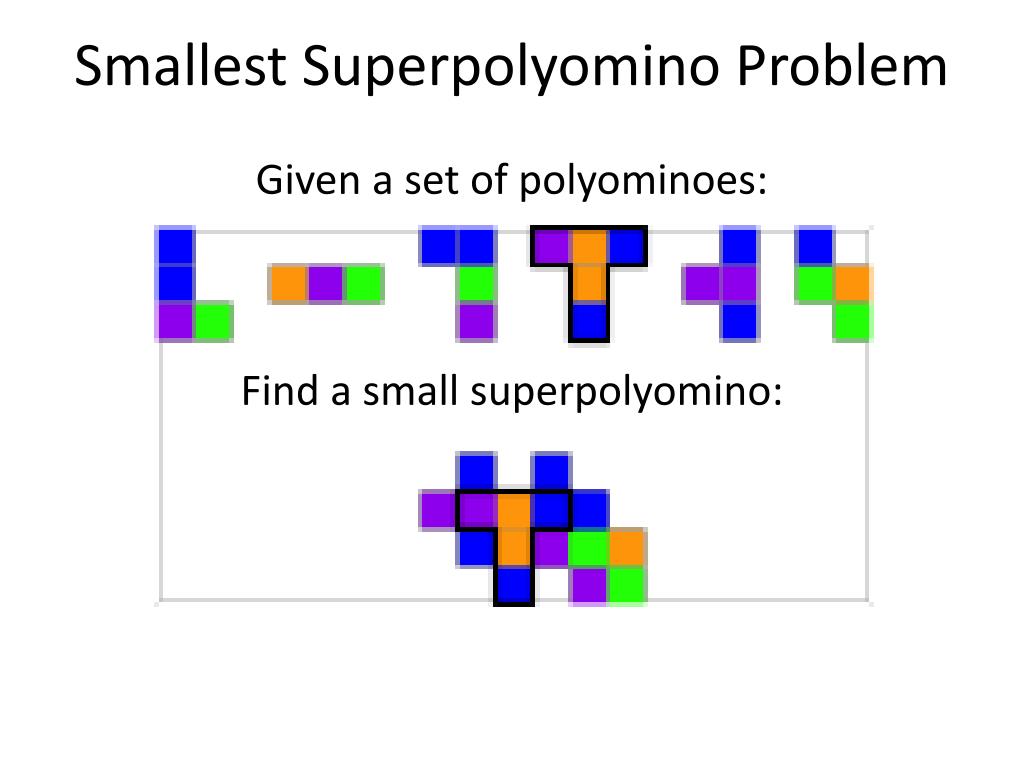

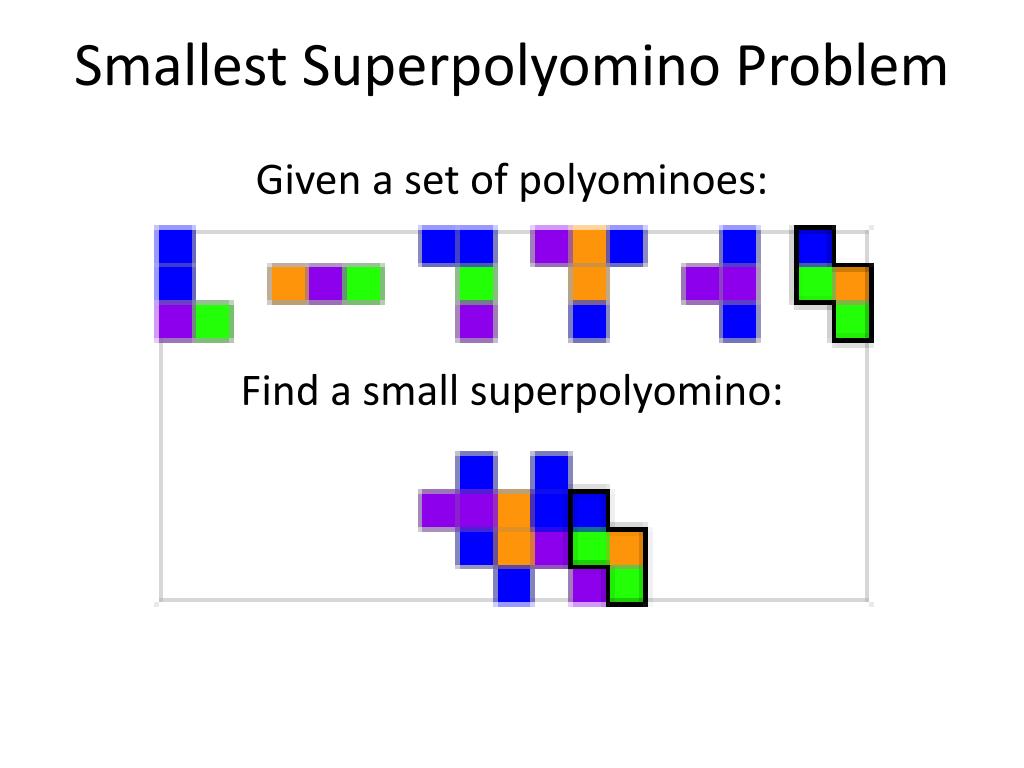

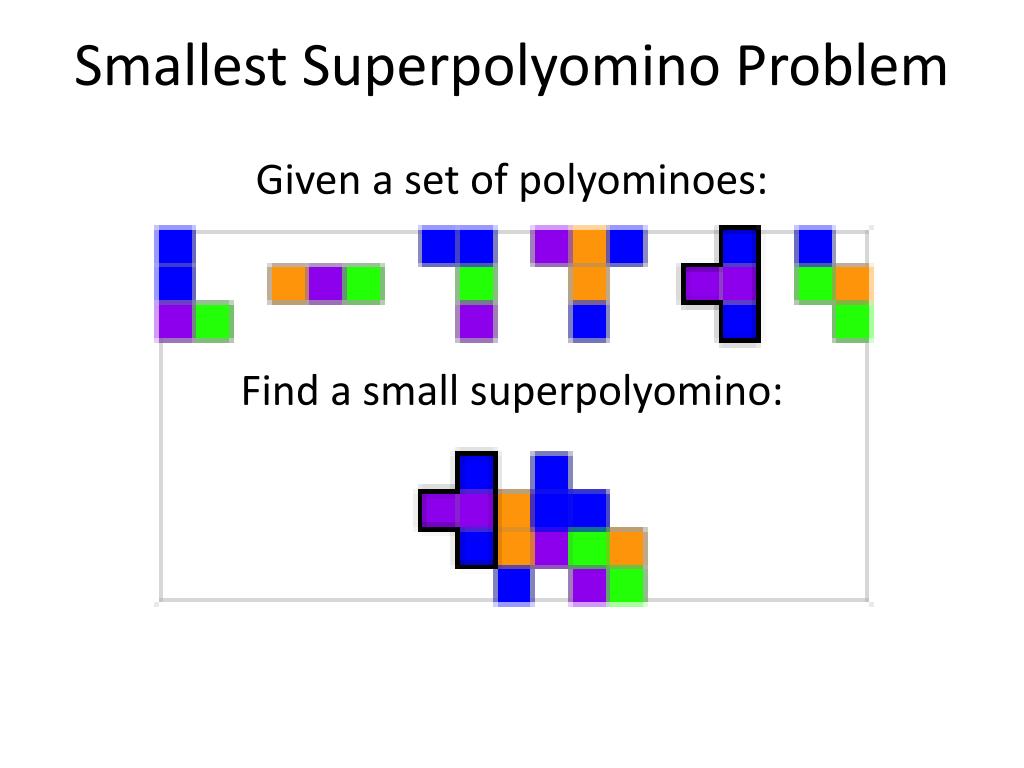

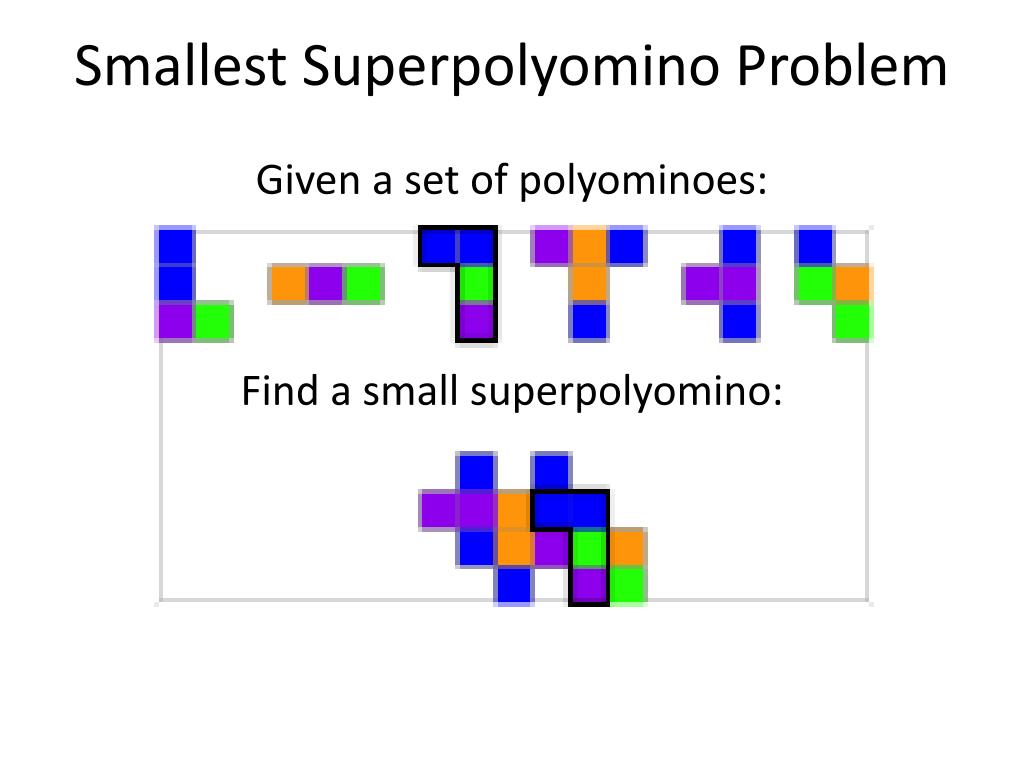

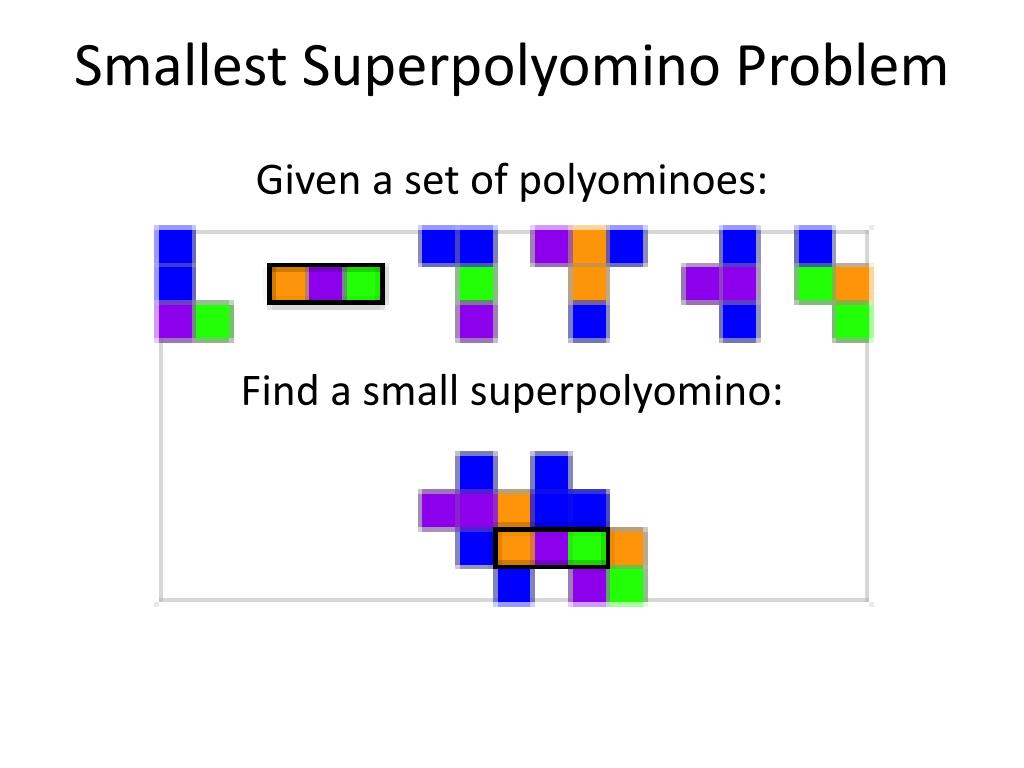

  11. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  12. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  13. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

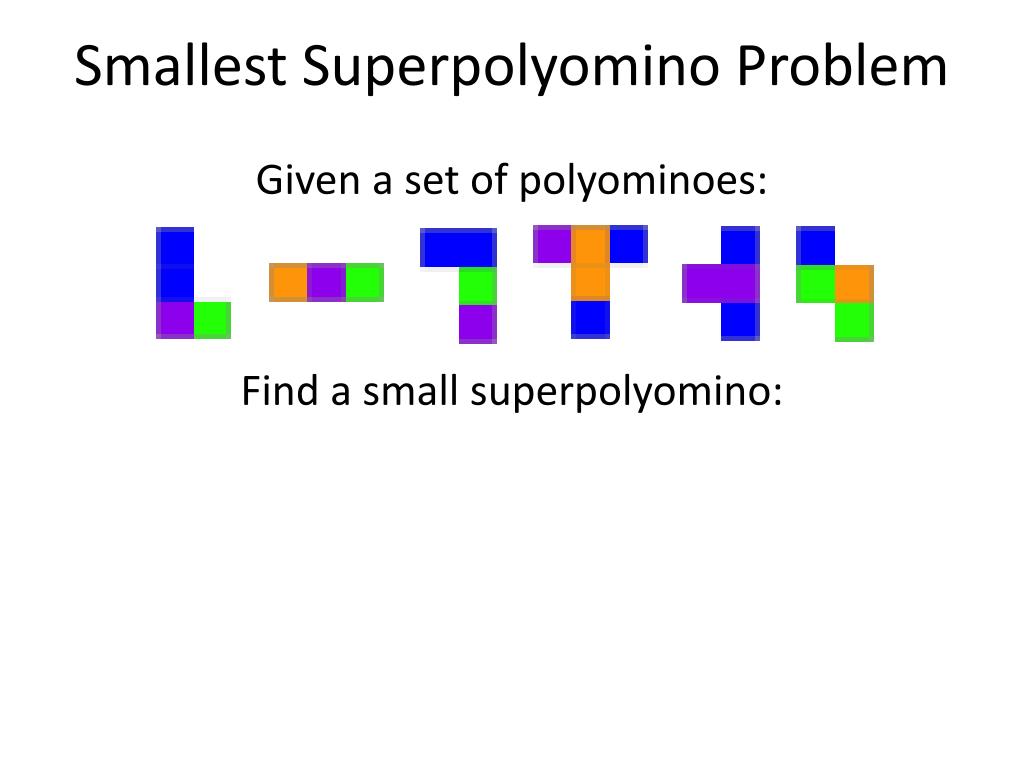

  14. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  15. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  16. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  17. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  18. Smallest Superpolyomino Problem Given a set of polyominoes: Find a small superpolyomino:

  19. O(n1/3 – ε)-approximation is NP-hard.  (ε > 0) (even if only two colors) NP-hard even if only one color is used.  Simple, useful image compression? No

  20. Reduction Idea Reduce from chromatic number. Polyomino ≈vertex. Polyominoes can stack iff vertices aren’t adjacent.

  21. Generating polyominoes from input graph

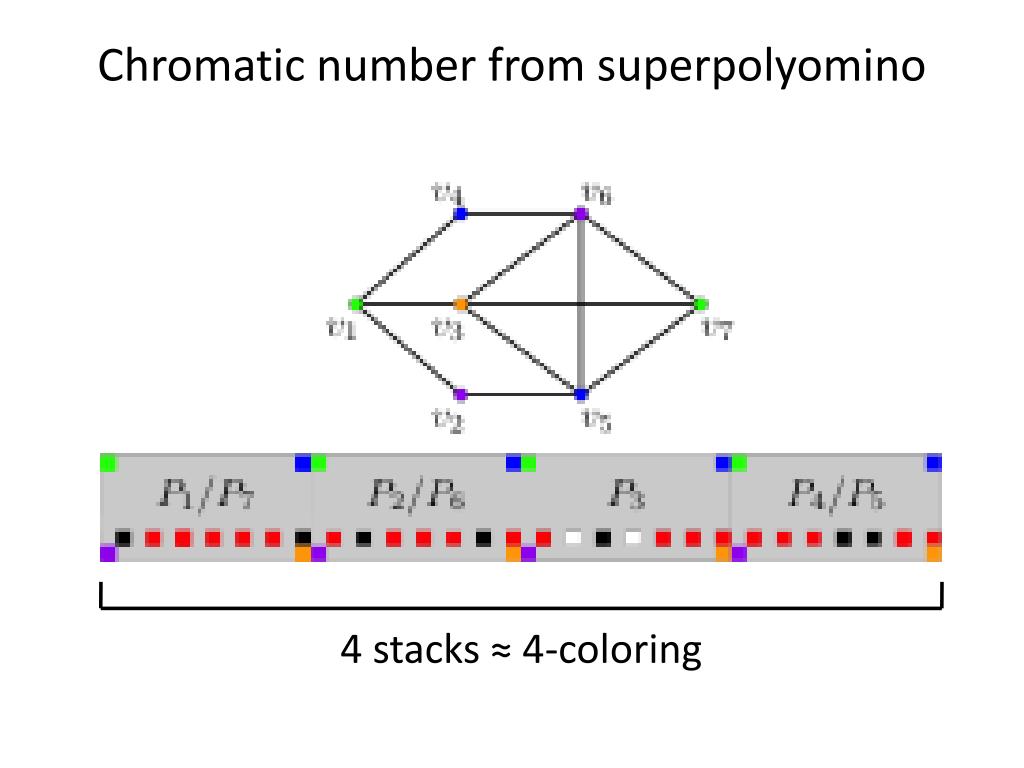

  22. Chromatic number from superpolyomino 4 stacks ≈ 4-coloring

  23. Two-color polyomino sets

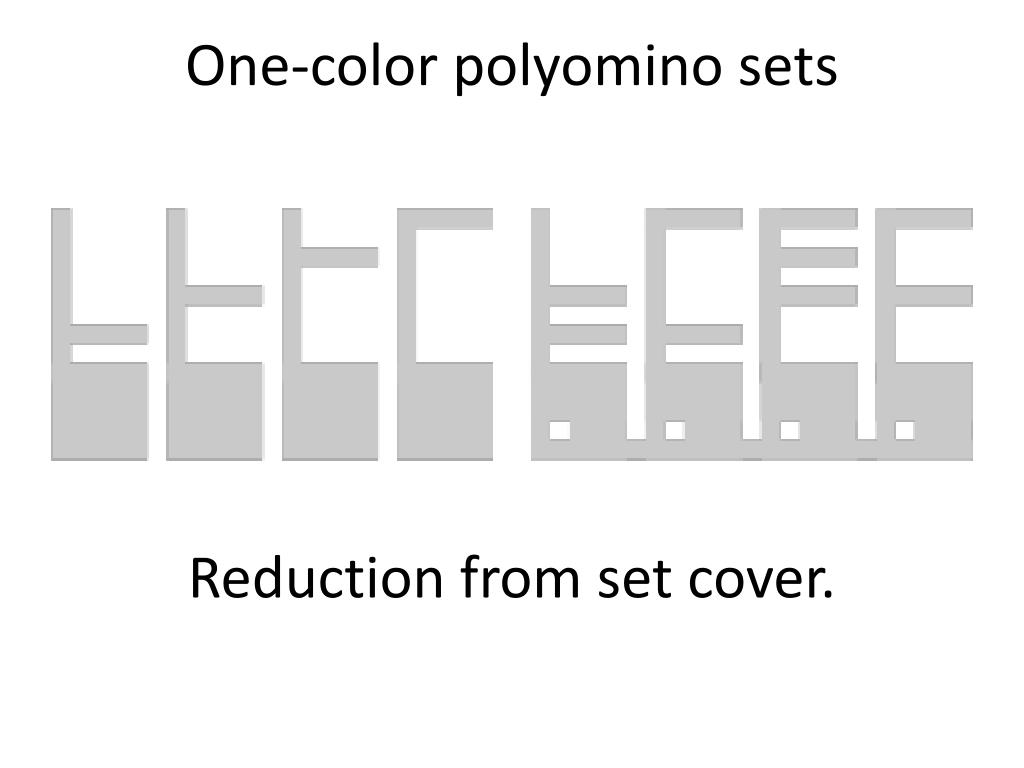

  24. One-color polyomino sets Reduction from set cover.

  25. Sets Elements

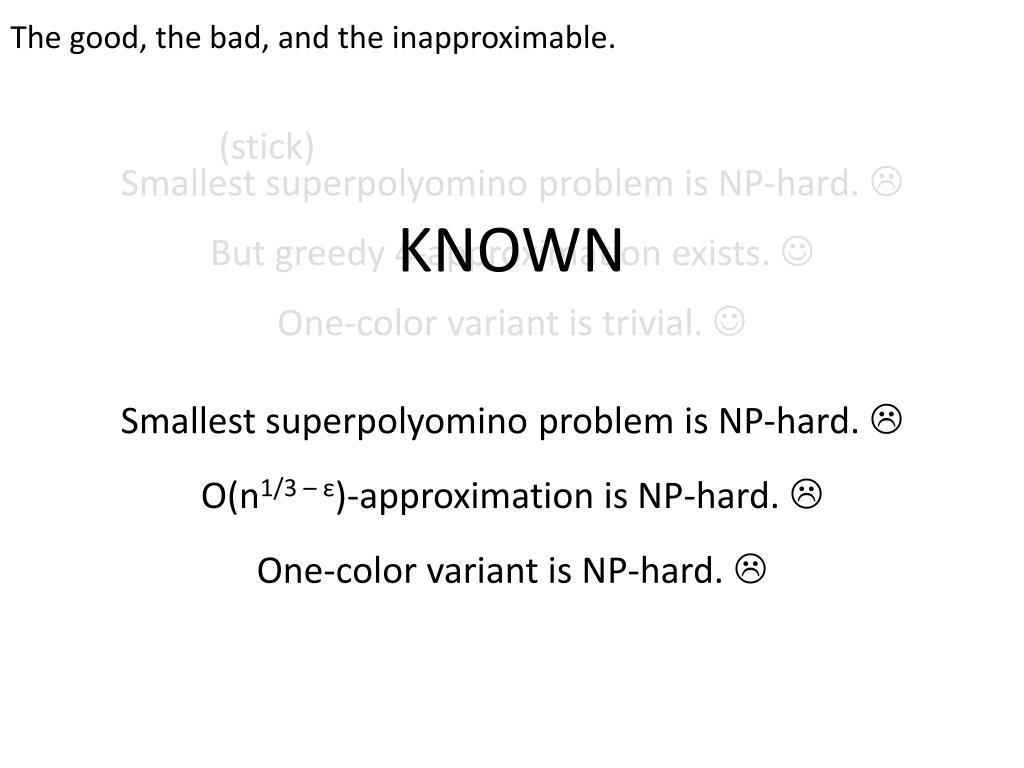

  26. The good, the bad, and the inapproximable. Smallest superpolyomino problem is NP-hard.  (stick) KNOWN But greedy 4-approximation exists.  One-color variant is trivial.  Smallest superpolyomino problem is NP-hard.  • O(n1/3 – ε)-approximation is NP-hard.  • One-color variant is NP-hard. 

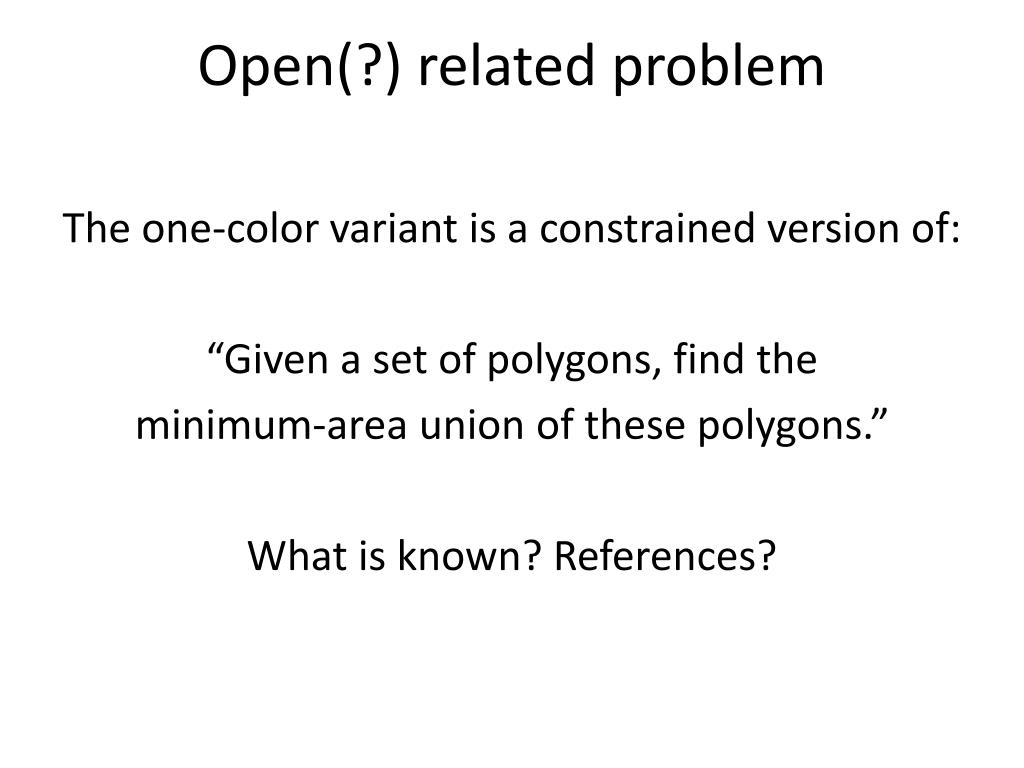

  27. Open(?) related problem The one-color variant is a constrained version of: “Given a set of polygons, find the minimum-area union of these polygons.” What is known? References?

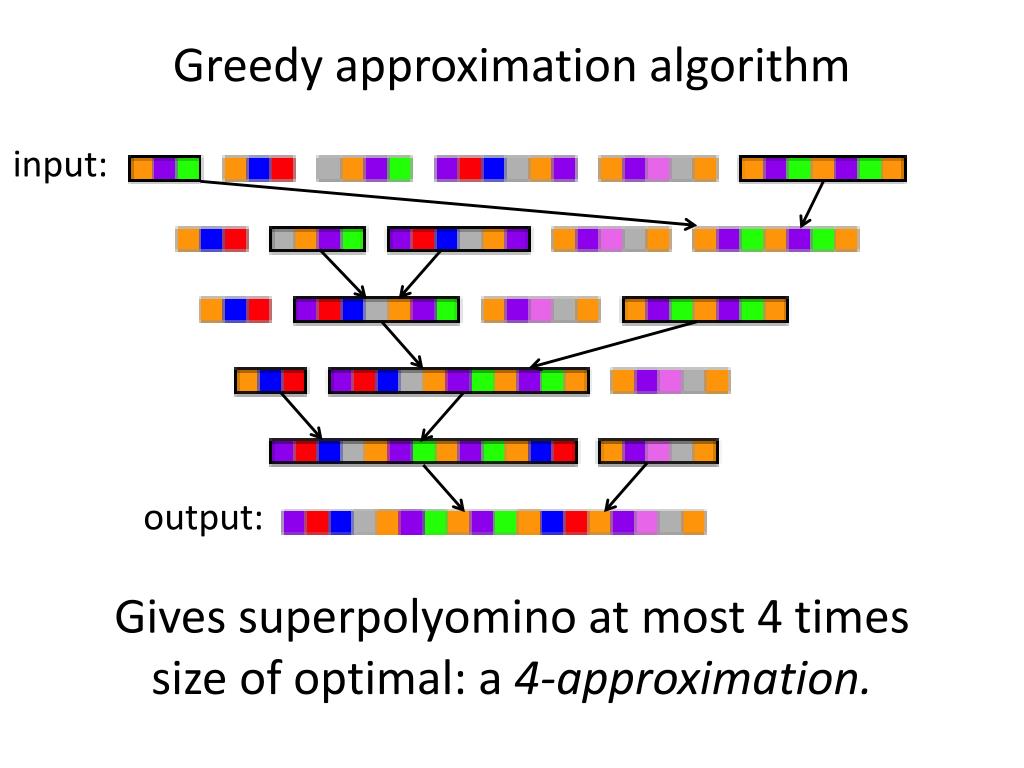

  28. Greedy approximation algorithm input: output: Givessuperpolyomino at most 4 times size of optimal: a 4-approximation.

  29. Inapproximability ratio • Stack size is θ(|V|2) So smallest superpolyomino is O(n1/3-ε)-inapproximable. k-stack superpolyomino has size θ(k|V|2): • k is (n1-ε)-inapproximable.

  30. Cheating is as bad as worst cover. • So smallest superpolyomino is a good cover • and finding it is NP-hard.

  31. (stick) Smallest superpolyomino problem Given a set of polyominoes: Find a small superpolyomino:
