  1. Chapter 4Creating Placed Features

  2. Holes • Hole command • Simple drilled • Counterbore • Spotface • Countersink • other info: • Tapped • Clearance Hole • NPT (U.S. National Pipe Thread standard for tapered threads on pipes/fittings)

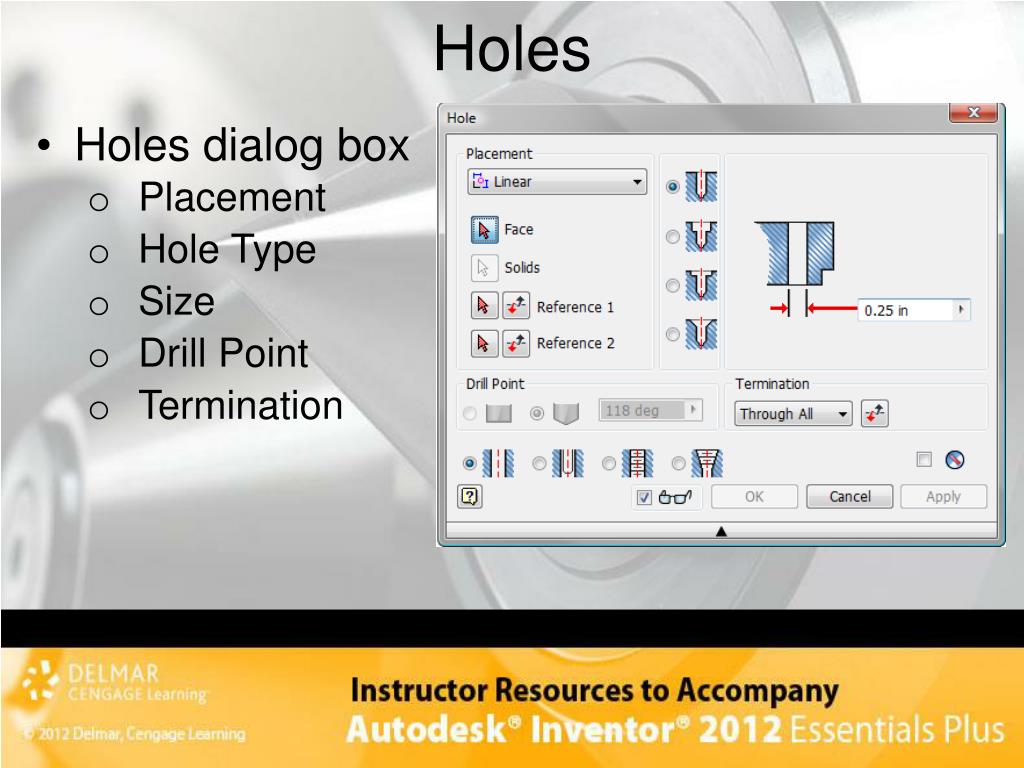

  3. Holes • Holes dialog box • Placement • Hole Type • Size • Drill Point • Termination

  4. Holes • Placement • Concentric • Select Face • Select Circular Edge • On Point • Have to have a Work Point • Positioned to an axis, edge or work plane • From Sketch • Hole Center • Sketched Point • Linear • Select Face • 1st Reference Edge • 2nd Reference Edge
