  1. Microprocessor based Design for Biomedical ApplicationsMBE 3 – MDBAXI :Project Outlooks

  2. Resumee of our Project Works (1) We built 4 AVR Evaluation Board Kits and used them for basic firmware projects with the ATmega8 : ●AVR-GCC, make, AVRStudio toolchains ● Firmware download via direct SPI access ● GPIO, Timer Interrupts, ISRs ● UART, Interrupt driven communication ● Analog/Digital Conversion ● Transfer of multiple channels, data packets

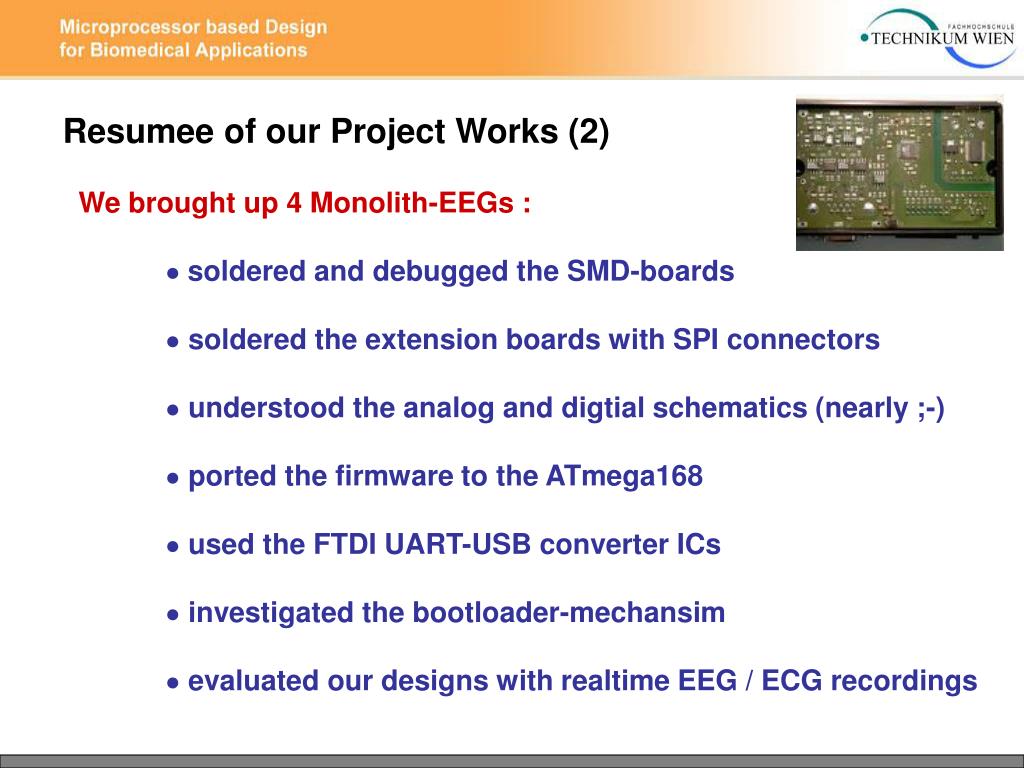

  3. Resumee of our Project Works (2) We brought up 4 Monolith-EEGs : ●soldered and debugged the SMD-boards ● soldered the extension boards with SPI connectors ● understood the analog and digtial schematics (nearly ;-) ● ported the firmware to the ATmega168 ● used the FTDI UART-USB converter ICs ● investigated the bootloader-mechansim ● evaluated our designs with realtime EEG / ECG recordings

  4. So I would say : We did a great job ! http://www.aerotraining.com/awards.htm

  5. For sure, this project could be extended. Here come a few ideas ….

  6. Possible Hardware extensions : ● an EEPROMto store configuration data ● battery driven (offline) operation: what batteries / accus ? Stepup converter ? ● wireless communication: add a bluetooth or zigbee module http://www.bluegiga.com/default.asp?f=2&t=1&p=8700&subp=200 ● on-board data-logging: interface with a MMD / SD memory card http://www.ulrichradig.de/home/index.php/avr/mmc-sd ● new sensors: GSR/EDA , temperature, pulse, acceleration .. http://electronicdesign.com/Articles/Index.cfm?AD=1&ArticleID=6343 ● evaluate active (dry) electrodes and alternative electrode caps http://www.dcc.uchile.cl/~peortega/ae/

  7. The Serial Peripheral Interface Miso: master in slave out Mosi: master out slave in SCK: clock SS: slave select

  8. SD / MMC – Interface : SPI - Bus

  9. TWI – The Two Wire Interface (IIC Bus) SDA : serial Data SCL : serial Clock R1, R2 : Pullup Resistors on the Bus lines, devices tri-state their outputs line level goes low if any of the connected device outputs 0 START: SDA goes low during SCL high STOP: SDA goes high during SCL high

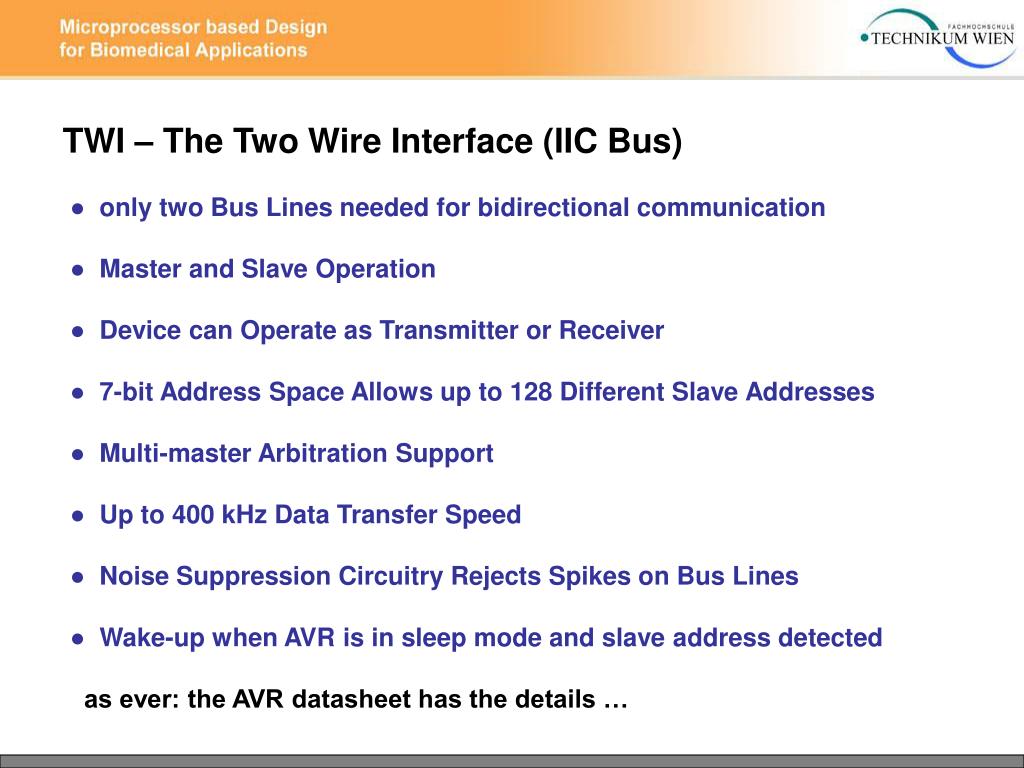

  10. TWI – The Two Wire Interface (IIC Bus) ●only two Bus Lines needed for bidirectional communication ● Master and Slave Operation ●Device can Operate as Transmitter or Receiver ●7-bit Address Space Allows up to 128 Different Slave Addresses ●Multi-master Arbitration Support ●Up to 400 kHz Data Transfer Speed ●Noise Suppression Circuitry Rejects Spikes on Bus Lines ●Wake-up when AVR is in sleep mode and slave address detected as ever: the AVR datasheet has the details …

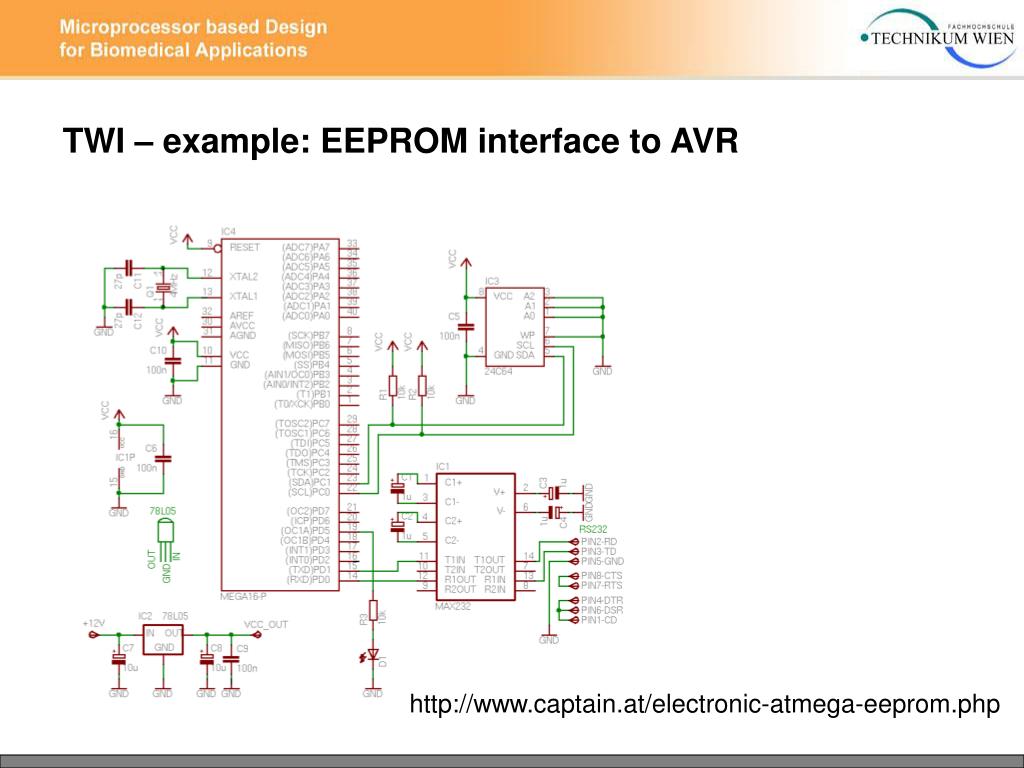

  11. TWI – example: EEPROM interface to AVR http://www.captain.at/electronic-atmega-eeprom.php

  12. Some Ideas for Software extensions …

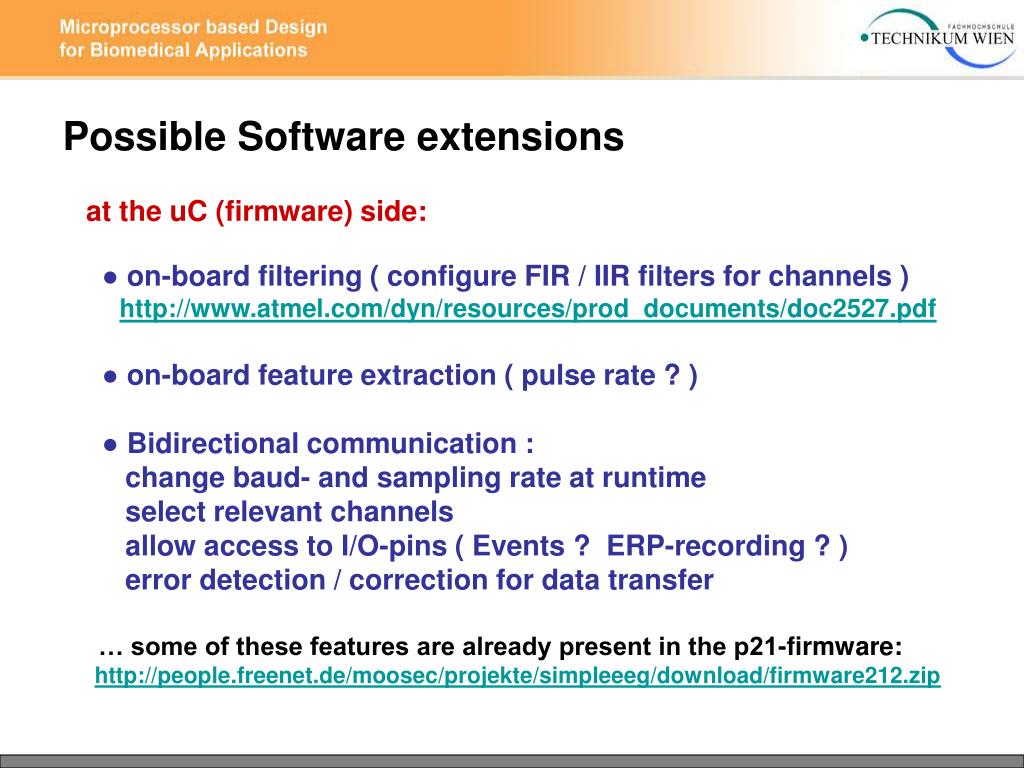

  13. Possible Software extensions at the uC (firmware) side: ● on-board filtering ( configure FIR / IIR filters for channels ) http://www.atmel.com/dyn/resources/prod_documents/doc2527.pdf ● on-board feature extraction ( pulse rate ? ) ● Bidirectional communication : change baud- and sampling rate at runtime select relevant channels allow access to I/O-pins ( Events ? ERP-recording ? ) error detection / correction for data transfer … some of these features are already present in the p21-firmware: http://people.freenet.de/moosec/projekte/simpleeeg/download/firmware212.zip

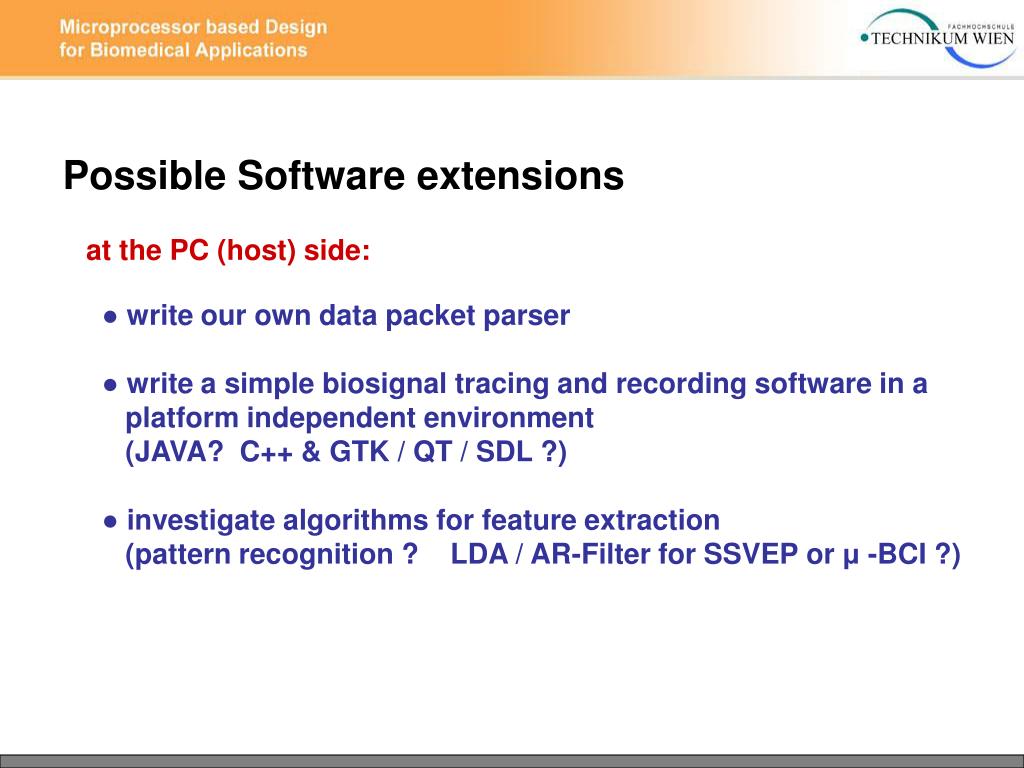

  14. Possible Software extensions at the PC (host) side: ● write our own data packet parser ● write a simple biosignal tracing and recording software in a platform independent environment (JAVA? C++ & GTK / QT / SDL ?) ● investigate algorithms for feature extraction (pattern recognition ? LDA / AR-Filter for SSVEP or μ -BCI ?)

  15. BrainBay - extensions Configurations: ● design Biosignal protocols with midi / optical feedback Alpha / Theta Training ? REM-Detection ? Muscle Rehabilitation Training ? Extend / improve the software: ● add new modules ● remove OS-dependent parts ● improve signal handling … http://www.shifz.org/brainbay/manuals/brainbay_developer_manual.pdf

  16. Conclusions: ● This project has lots of potential for future improvements ● in the optimal case, Open Source Projects are a win-win situation I hope you enjoyed the show - have a good time and much Alpha-Activity !
