  1. admin@cwms.co.in COMPREHENSIVE WATER MANAGEMENT SOLUTIONS PVT. LTD. www.cwms.co.in

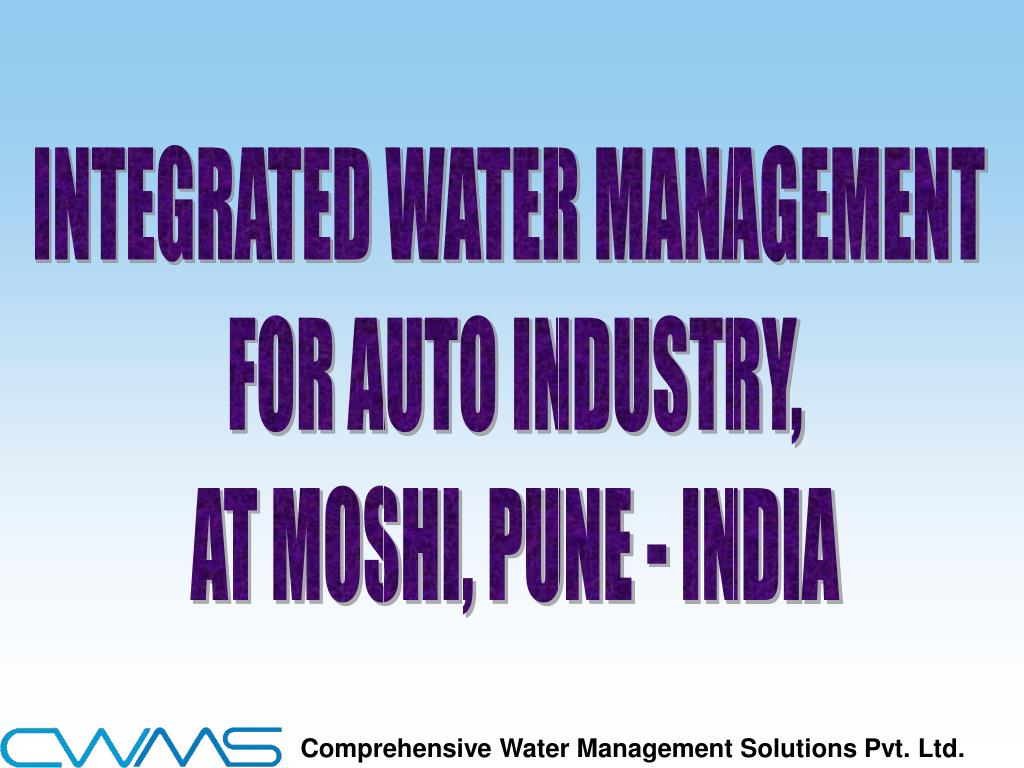

  2. INTEGRATED WATER MANAGEMENT FOR AUTO INDUSTRY, AT MOSHI, PUNE - INDIA Comprehensive Water Management Solutions Pvt. Ltd.

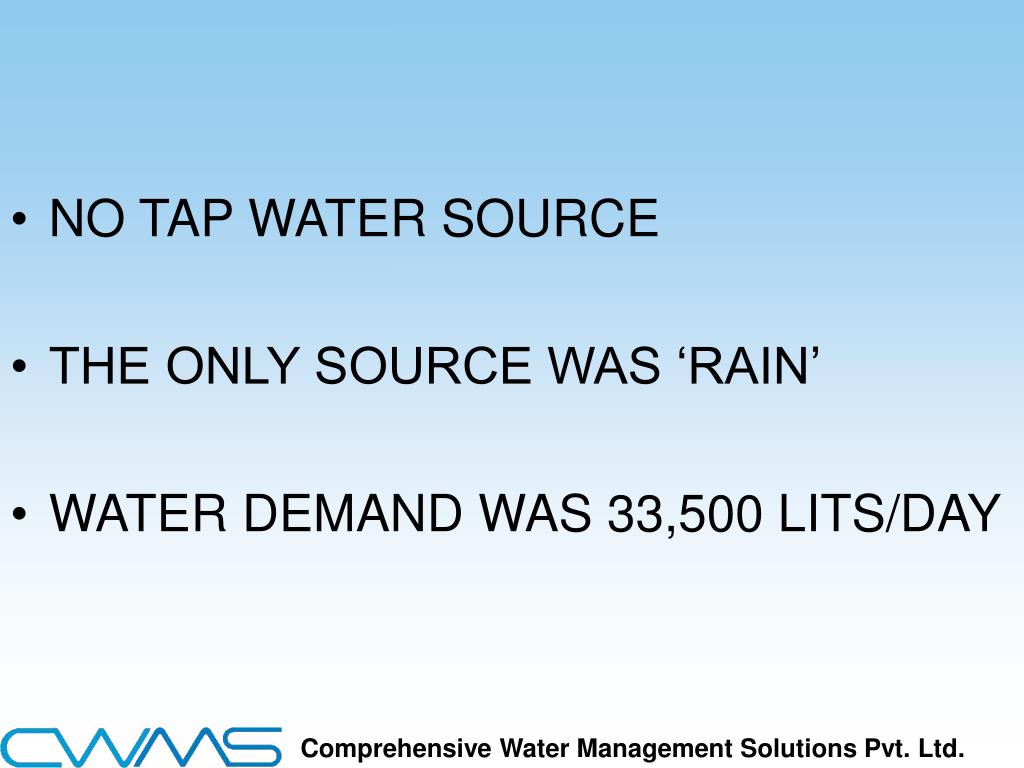

  3. NO TAP WATER SOURCE • THE ONLY SOURCE WAS ‘RAIN’ • WATER DEMAND WAS 33,500 LITS/DAY Comprehensive Water Management Solutions Pvt. Ltd.

  4. AIM WAS TO ACHIEVE ‘SELF SUFFICIENCY’ IN WATER Comprehensive Water Management Solutions Pvt. Ltd.

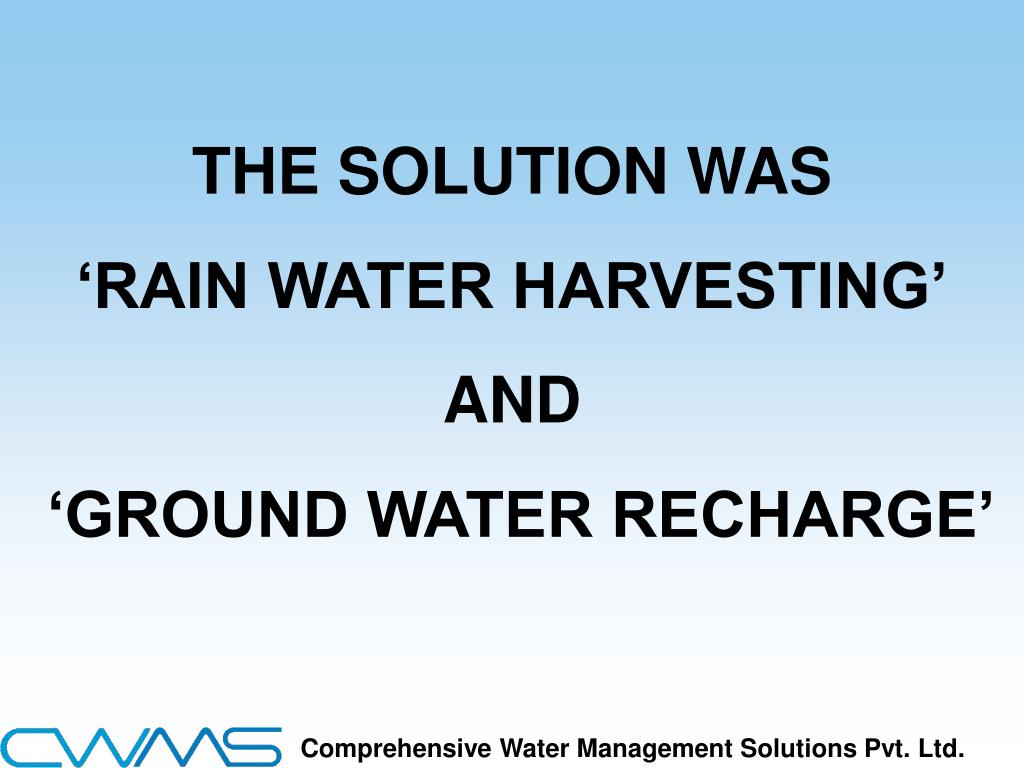

  5. THE SOLUTION WAS‘RAIN WATER HARVESTING’AND ‘GROUND WATER RECHARGE’ Comprehensive Water Management Solutions Pvt. Ltd.

  6. ENTIENT RAIN WATER HARVESTING IN RAJASTHAN Comprehensive Water Management Solutions Pvt. Ltd.

  7. ENTIENT RAIN WATER HARVESTING IN SOUTH INDIAN TEMPLES Comprehensive Water Management Solutions Pvt. Ltd.

  8. IN INDIA, AVERAGE RAINFALL IS 117 CM. Comprehensive Water Management Solutions Pvt. Ltd.

  9. However In Rajasthan 20 cm. and in Cherrapunji 1168 cm. Comprehensive Water Management Solutions Pvt. Ltd.

  10. BUT IT RAINS IN SHORT SPELL, THAT IS JUST 90 DAYS.HOW TO USE THIS? Comprehensive Water Management Solutions Pvt. Ltd.

  11. WATER DEMAND TOTAL MANPOWER OF FACTORY : 500 NOS. REQUIREMENT AS PER NORMS: • Drinking 500 x 3 lits = 1,500 lits/day (1.5 cu.m/day) • Hand wash 500 x 10 lits = 5,000 lits/day (5.0 cu.m/day) • Sanitation 500 x 30 lits. = 15,000lits/day (15.0 cu.m/day • Water for Processing = 2,000 lits/day (2.0 cu.m/day) • Water for Landscaping = 10,000 lits/day (10.0 cu.m/day) • HENCE THE TOTAL WATER NEED WAS 33,500 LITS. /DAY (33.5 cu.m/day) NOTE: 1 cu.m = 1,000 lts Comprehensive Water Management Solutions Pvt. Ltd.

  12. LOCATION : DEHU ALANDI ROAD. PLOT AREA : 12,000.00 SQ.M. SLOPE FROM : SOUTH TO NORTH WITH A DIFF. OF 3.0 M NO TAP WATER SOURCE.BOREWELL 15 CU.M YIELD Comprehensive Water Management Solutions Pvt. Ltd.

  13. BUILT UP AREA DETAILSBUILT UP AREA OF MAIN FACTORY : 4,800.00 SQ.MUTILITY BUILDING : 200.00 SQ.M TOTAL BUILT UP AREA : 5,000.00 SQ.M Comprehensive Water Management Solutions Pvt. Ltd.

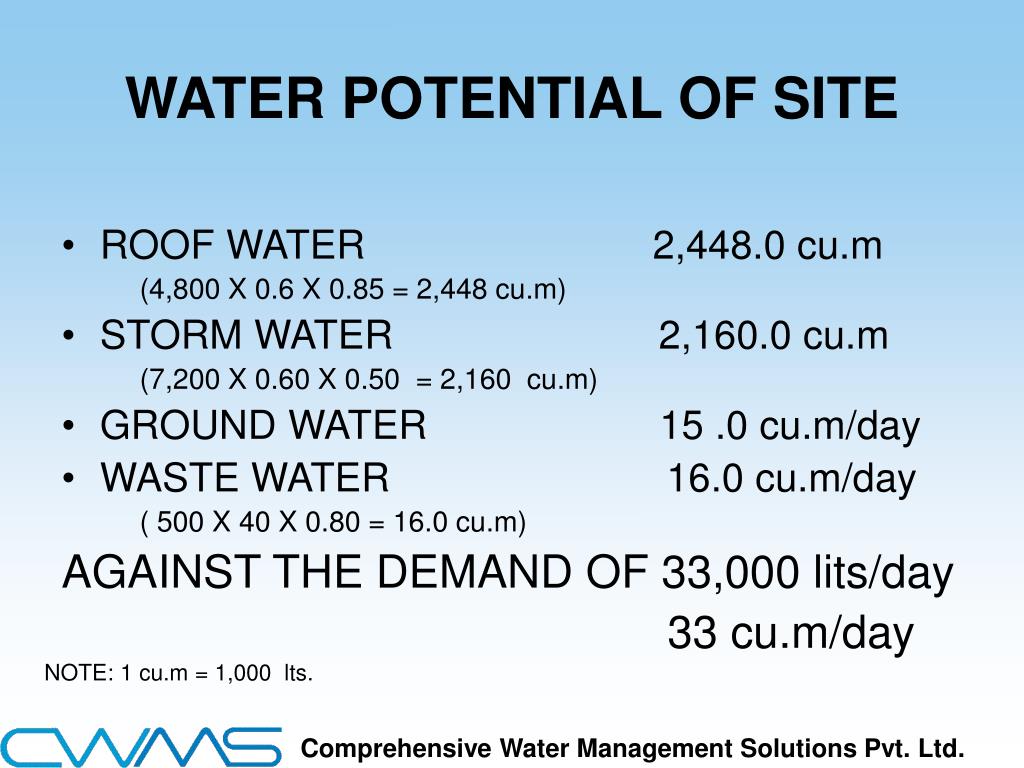

  14. WATER POTENTIAL OF SITE • ROOF WATER 2,448.0 cu.m (4,800 X 0.6 X 0.85 = 2,448 cu.m) • STORM WATER 2,160.0 cu.m (7,200 X 0.60 X 0.50 = 2,160 cu.m) • GROUND WATER 15 .0 cu.m/day • WASTE WATER 16.0 cu.m/day ( 500 X 40 X 0.80 = 16.0 cu.m) AGAINST THE DEMAND OF 33,000 lits/day 33 cu.m/day NOTE: 1 cu.m = 1,000 lts. Comprehensive Water Management Solutions Pvt. Ltd.

  15. Comprehensive Water Management Solutions Pvt. Ltd.

  16. ROOF WATER FOR DRINKING – 2,448 cu.m 4,800 x 0.6 x 0.85 = 2,448 cu.m ROOF WATER - DOWN TAKE PIPE - SAND FILTER - RO FILTER,UG TANK 16X10X2M - DRINKING WATER POINTS&OVERFLOW TO DRY BORE WELL While drinking water requirement is 3,00,000 lts. Comprehensive Water Management Solutions Pvt. Ltd.

  17. PIPE FOR COLLECTION OF ROOF WATER DOWN TAKE FILTER Comprehensive Water Management Solutions Pvt. Ltd.

  18. RAIN WATER TESTING REPORT Comprehensive Water Management Solutions Pvt. Ltd.

  19. STORM WATER FOR GROUND WATER RECHARGE – 2,100 CU.M7,200 x 0.6 x 0.5 = 2,160 cu.mSURFACE WATER – CHANNEL - GUTTERS - RAW WATER FROM BORE WELL - U.G.TANK - SOFTENING PLANT - TOILETS & PROCESSINGBecause of recharging treatment the borewells started giving more yield every year Comprehensive Water Management Solutions Pvt. Ltd.

  20. STORM WATER CHANNELS AND RECHARGE BORE WELL Comprehensive Water Management Solutions Pvt. Ltd.

  21. SECTION OF RECHARGE BOREWELL IT WAS FOUND THAT DUE TO CONTINUOUS RECHARGING THE GROUND WATER YEILD HAS INCREASED SUBSTANTIALLY Comprehensive Water Management Solutions Pvt. Ltd.

  22. GROUND WATER TESTING REPORT Comprehensive Water Management Solutions Pvt. Ltd.

  23. WASTE WATER RECYCLINGWASTE WATER - STP PLANT - COLLECTION TANK - WATER FOR LANDSCAPING Comprehensive Water Management Solutions Pvt. Ltd.

  24. DISTRIBUTION NETWORK Comprehensive Water Management Solutions Pvt. Ltd.

  25. WATER USUAGE TABLE NOTE: 1 cu.m = 1000 lts Comprehensive Water Management Solutions Pvt. Ltd.

  26. ARCHITECTURAL DETAILS FOR MAXIMUM COLLECTION OF WATER • NORTH LIGHT ROOF TRUSS WITH GUTTER SLOPE ON BOTH SIDES . • ROADS SLOPED ON ONE SIDE WITH CAMBER. • PUSH COCKS IN TOILET. • ALLOCATION OF SERVICES AS PER NATURAL GROUND SLOPE. • EMPHASIS ON METICULOUS EXECUTION. Comprehensive Water Management Solutions Pvt. Ltd.

  27. WATER COST WITHOUT ANY WATER MANAGEMENT PLANWOULD HAVE BEENRs. 330,000/yr.330 x 1,000 = Rs. 3,30,000(330 = actual working days)( App. 35 days public holidays)Rs. 500/tanker and 2 tankers/day Comprehensive Water Management Solutions Pvt. Ltd.

  28. AS AGAINSTActual project cost was Rs. 6,75,000/-So the payback timejust two years Comprehensive Water Management Solutions Pvt. Ltd.

  29. RESULTS • The entire plan of ‘Integrated Water Management’ was achieved by – detail augmentation plan, collection, purification and plumbing net-working plan. • Every year the water yield is increasing as ground water table is also improved substantially because of the treatments. Comprehensive Water Management Solutions Pvt. Ltd.

  30. FACTORY AT MOSHI, PUNE (INDIA) Comprehensive Water Management Solutions Pvt. Ltd.

  31. Our mission is to promote sustainable WATER MANAGEMENT as per the supply and demand without disturbing the natural balance and make it available for everyone. Comprehensive Water Management Solutions Pvt. Ltd.

  32. THANK YOU. Comprehensive Water Management Solutions Pvt. Ltd.
