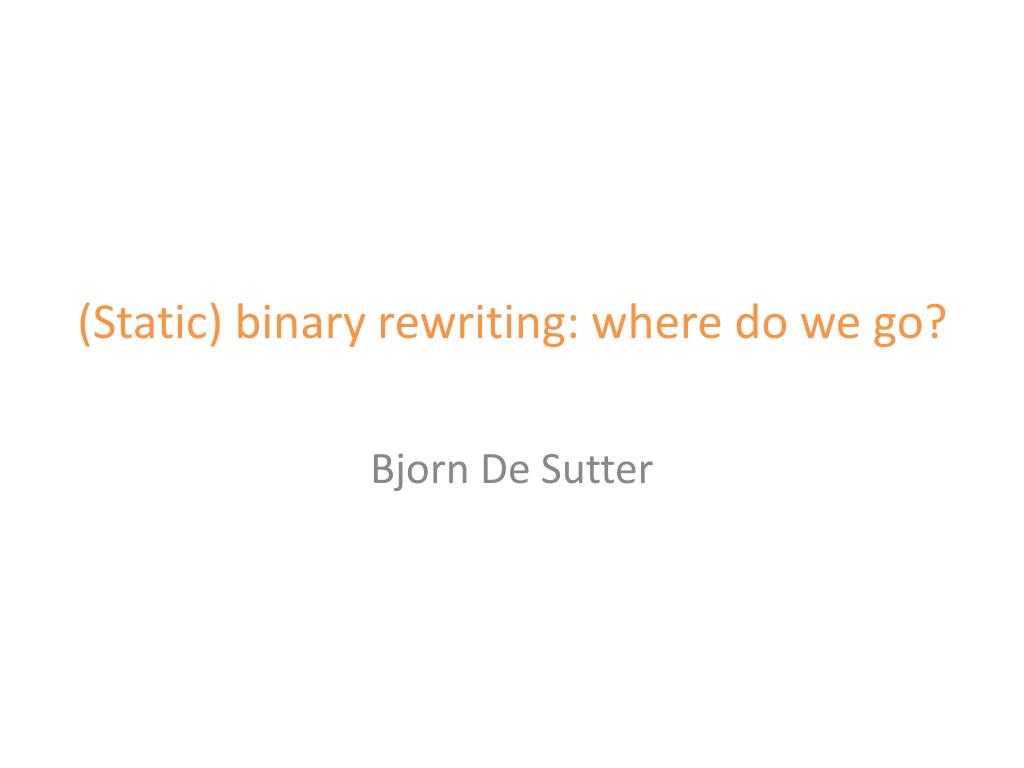

  1. (Static) binary rewriting: where do we go? Bjorn De Sutter

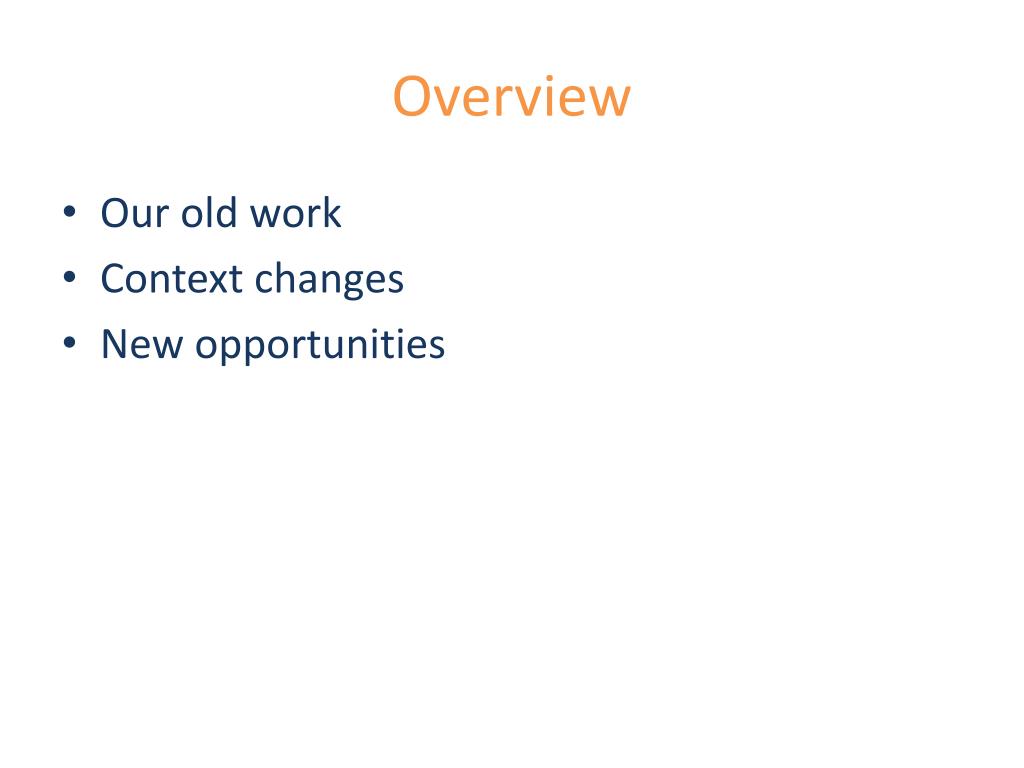

  2. Overview • Our old work • Context changes • New opportunities

  3. Our old work (1) • Dynamic Binary Rewriting • tool called Diota • good for instrumentation • vertical profiling (JVM for example)

  4. Our old work (2) • Static binary rewriting • long history • first link-time rewriting prototypes on Alpha • Alto: program optimization • Squeeze: program compaction • Squeeze++: C++ oriente program compaction • retargertable, extensible link-time rewriting framework • Diablo

  5. Our old work (3) • Diablo applications • program compaction and program optimization • ARM and x86 • great results on top of GCC and ARM RVCT • kernel specialization (Linux) • system call optimization • boot process optimization • compaction • in kernel page fault support • cold code compression

  6. Our old work (4) • Diablo applications • program instrumentation • ATOM-like tool called FIT for ARM and x86 • software protection • obfuscation techniques • steganography • diversity

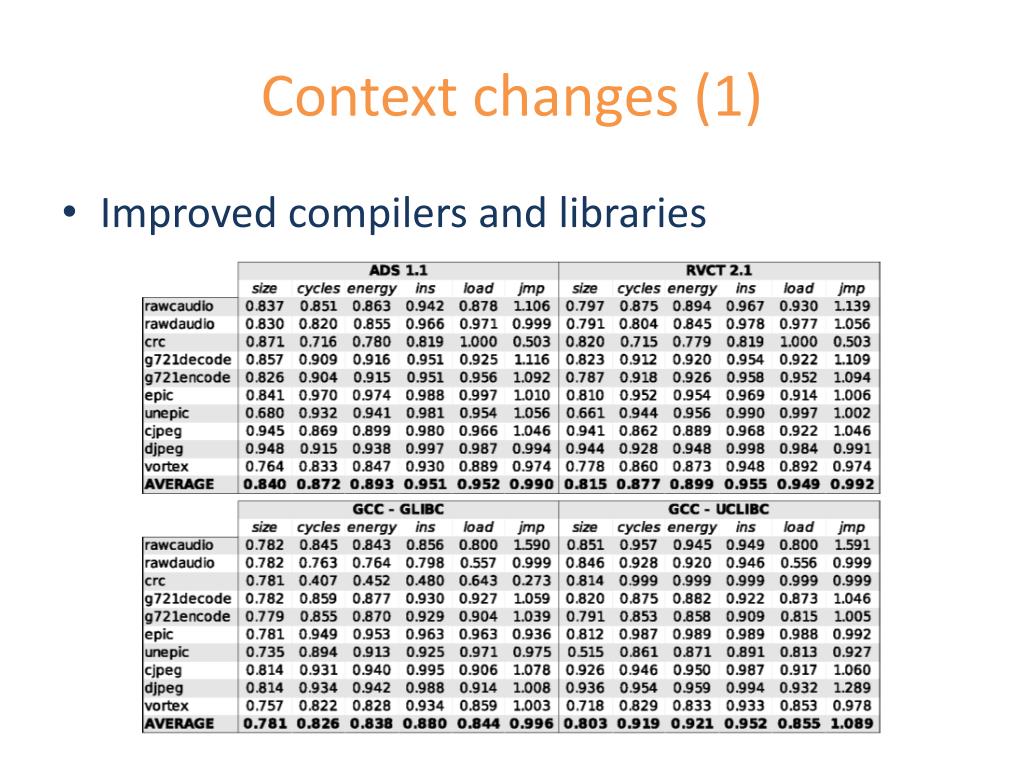

  7. Context changes (1) • Improved compilers and libraries

  8. Context changes (2) • Compilers with whole-program optimization • ARM a.c armcc a.o b.c armcc b.o optimizing ld + feedback a.out c.c armcc c.o

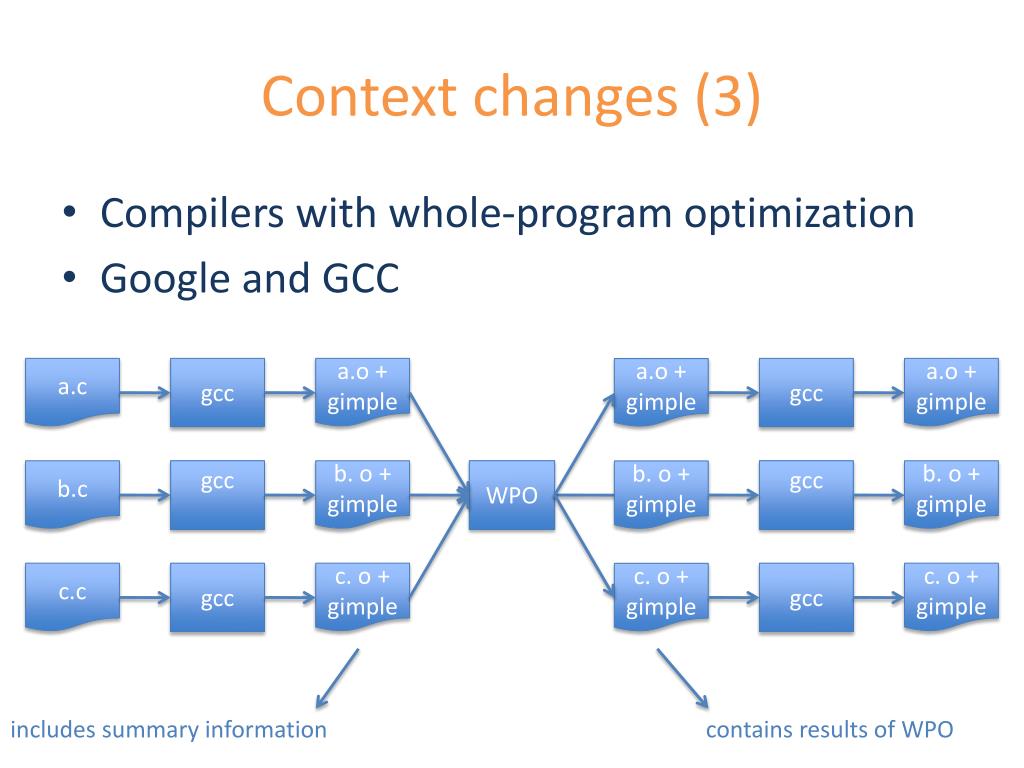

  9. Context changes (3) • Compilers with whole-program optimization • Google and GCC a.c gcc a.o + gimple gcc a.o + gimple a.o + gimple b.c gcc b. o + gimple WPO gcc b. o + gimple b. o + gimple c.c gcc c. o + gimple gcc c. o + gimple c. o + gimple includes summary information contains results of WPO

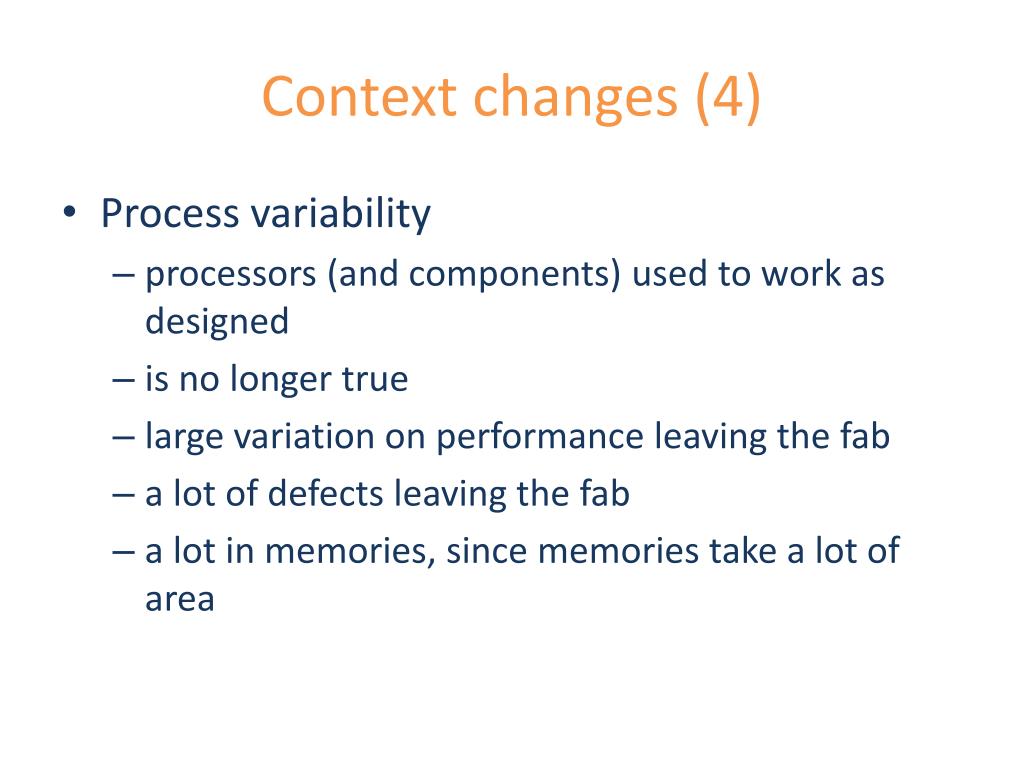

  10. Context changes (4) • Process variability • processors (and components) used to work as designed • is no longer true • large variation on performance leaving the fab • a lot of defects leaving the fab • a lot in memories, since memories take a lot of area

  11. New Opportunities (1) • Large parts of whole-program optimization is done in the compiler. • What remains to be done for the binary rewriter? • Is interesting research question, but there are also practical applications.

  12. New Opportunities (2) • customization of binaries • diversity • software protection in general • cannot be done during compilation because it takes too much time • updating and patching of software requires install-time rewriting • load-time applications? • optimizations based on known addresses?

  13. New Opportunities (3) • Dealing with defects in processors • some systems will not have run-time code generation • implants • wireless sensors • still need to shrink the transistors because of power consumption limitations and temperature • so many devices will have defects

  14. New Opportunities (4) • adapt software to defects at install time or at run time • not full rewriting • more a kind of fine-grained relocation capabilities
