  1. Monday, 13 October 2014 The Circle Why am I doing this? Know the names of a circle’s features Calculate the circumference Calculate an arc length Deal with the revolution of wheels and journey problem Levels 5 8 A wheel is a circle! Circles in design – Mickey Mouse is made from circles A real favourite SAT and GCSE question OK - What have I got to do?

  2. Circle Starter Level 5

  3. Name these Features The distance from the centre to the edge The distance from one side to the other passing through the centre The distance all of the way round the edge The blue line Area Circumference Rotation Radius Degree Chord Sector Segment Diameter Sphere Concentric Arc

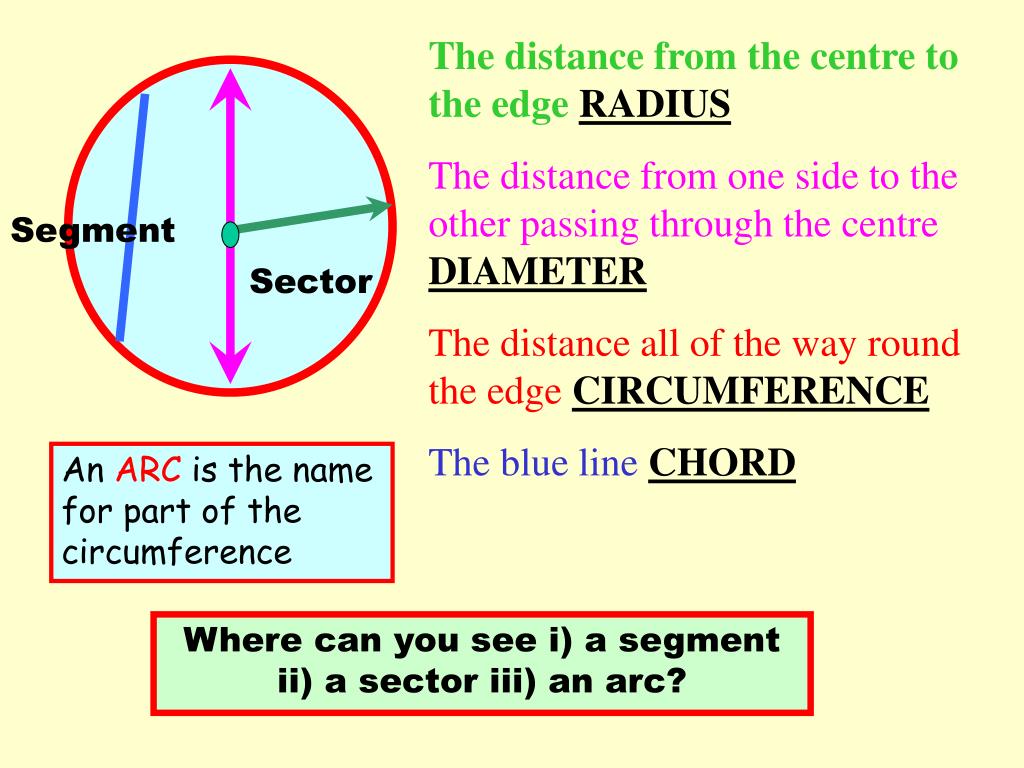

  4. The distance from the centre to the edgeRADIUS The distance from one side to the other passing through the centre DIAMETER The distance all of the way round the edge CIRCUMFERENCE The blue lineCHORD Segment Sector An ARC is the name for part of the circumference Where can you see i) a segment ii) a sector iii) an arc?

  5. APPROXIMATELY FINDING THE CIRCUMFERENCE Level 5

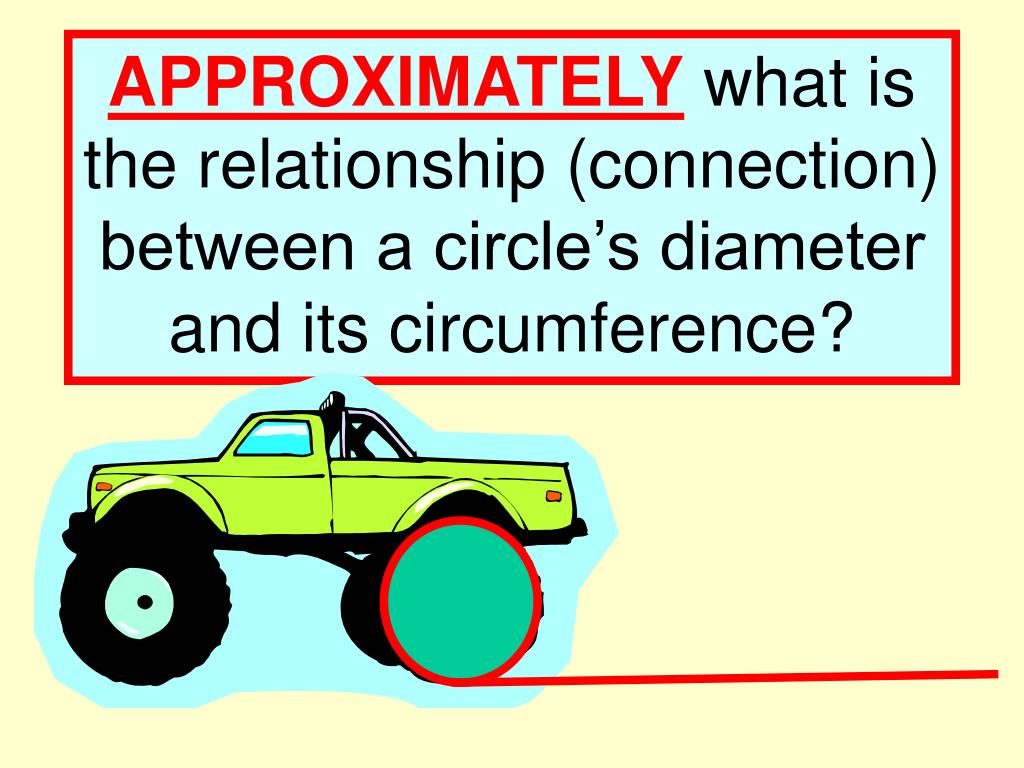

  6. APPROXIMATELY what is the relationship (connection) between a circle’s diameter and its circumference?

  7. To APPROXIMATELY find the CIRCUMFERENCEMULTIPLY the DIAMETERby 3(C = 3 x d)

  8. To APPROXIMATELY find the CIRCUMFERENCEMULTIPLY the DIAMETERby 3(C = 3 x d)

  9. SAT Aural Question ( Answer a question in 10 seconds) • A circle has a diameter of 10 cm. APPROXIMATELY (ROUGHLY), what is its circumference? • A circle has a circumference of 18 cm. Approximately, what is its diameter? 30 cm 6 cm

  10. Calculate the Circumference Using the Correct Formula Level 6

  11. How to calculate the circumference Evaluate the CIRCUMFERENCE Always, write the formula (rule) C = d C = 3.14 X 12 C = 37.68 Diameter = 12 cm The symbol is the Greek letter pi. It stands for a number that can never be found exactly. It is approximately 3.14

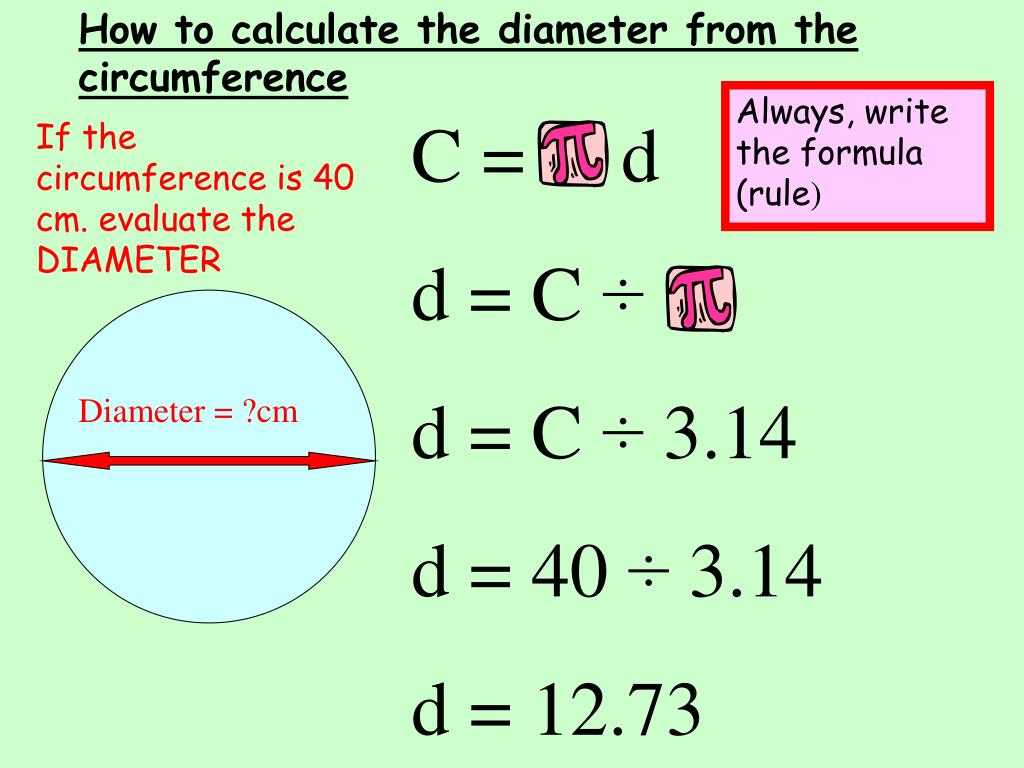

  12. How to calculate the diameter from the circumference Always, write the formula (rule) C = d d = C ÷ d = C ÷ 3.14 d = 40 ÷ 3.14 d = 12.73 If the circumference is 40 cm. evaluate the DIAMETER Diameter = ?cm

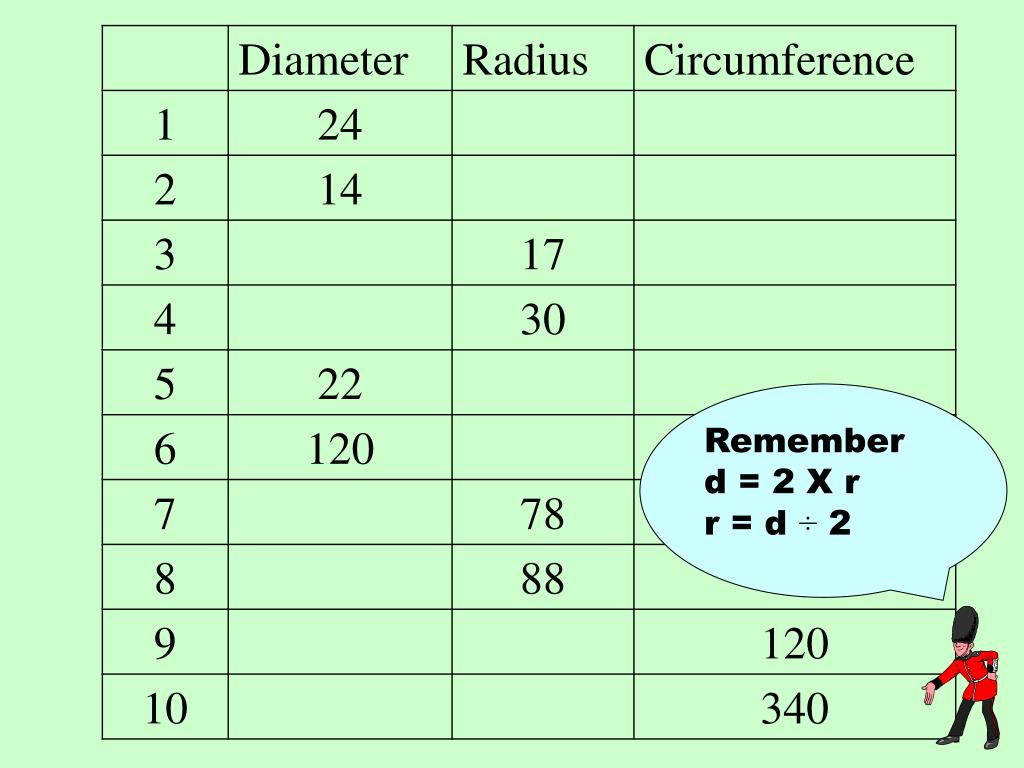

  13. Remember • d = 2 X r • r = d ÷ 2

  14. Calculate an Arc Length Level 7

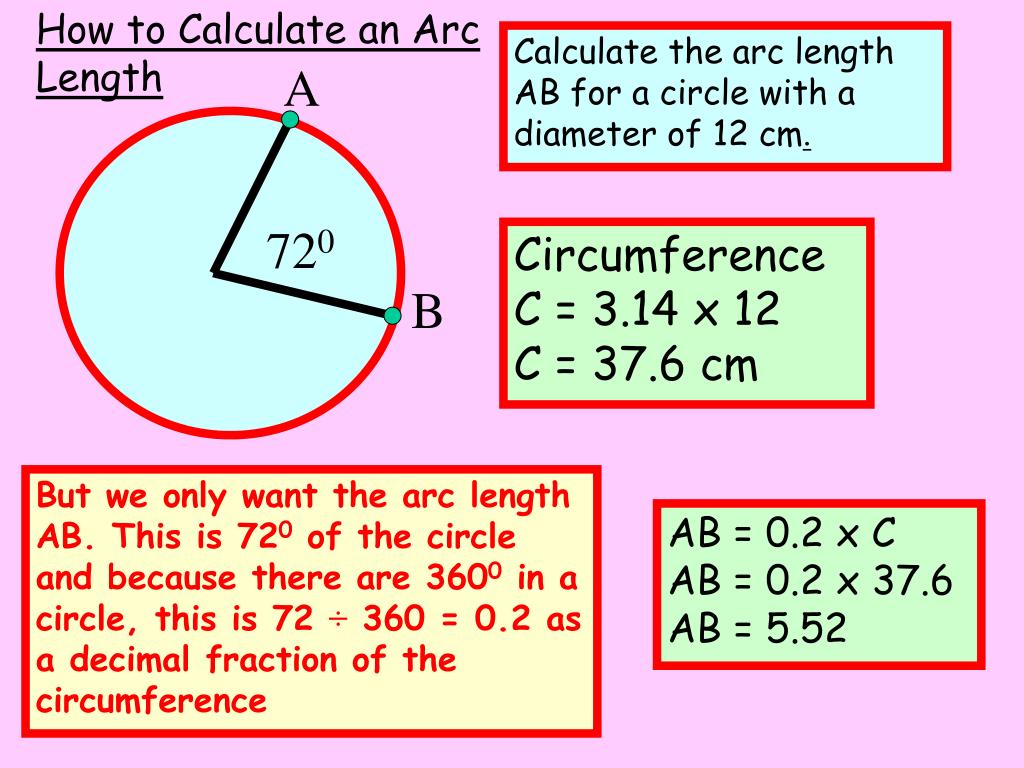

  15. How to Calculate an Arc Length Calculate the arc length AB for a circle with a diameter of 12 cm. A 720 Circumference C = 3.14 x 12 C = 37.6 cm B But we only want the arc length AB. This is 720 of the circle and because there are 3600 in a circle, this is 72 ÷ 360 = 0.2 as a decimal fraction of the circumference AB = 0.2 x C AB = 0.2 x 37.6 AB = 5.52

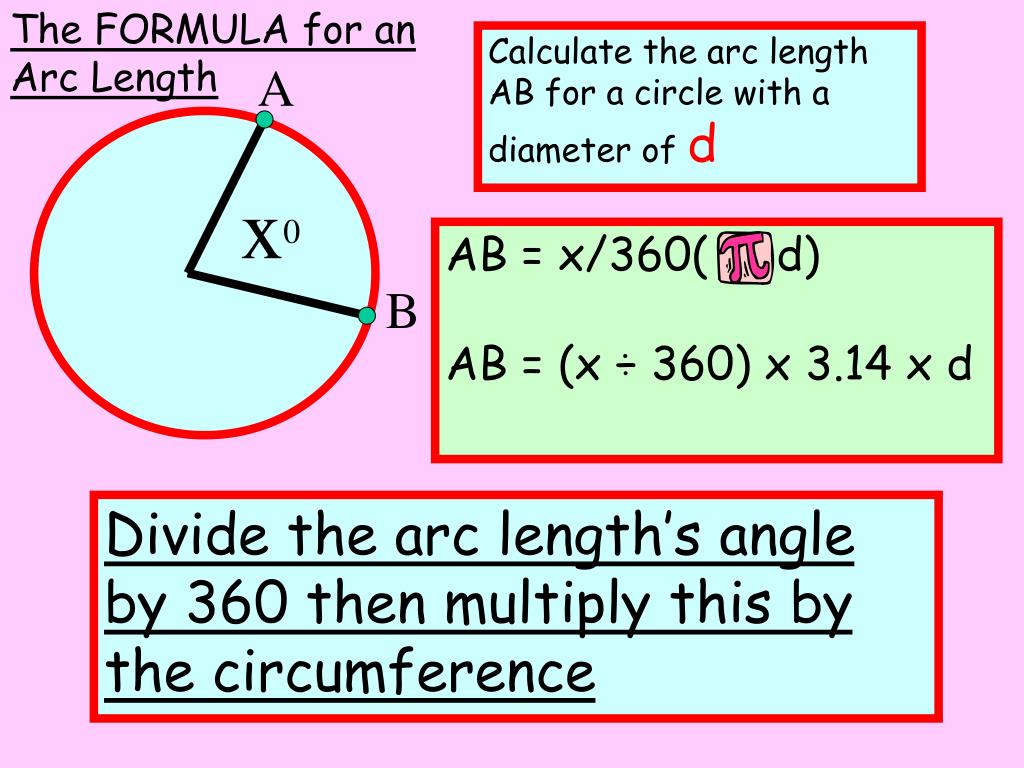

  16. The FORMULA for an Arc Length Calculate the arc length AB for a circle with a diameter of d A x0 AB = x/360( d) AB = (x ÷ 360) x 3.14 x d B Divide the arc length’s angle by 360 then multiply this by the circumference

  17. Using the FORMULA for an Arc Calculate the arc length AB for these circles A AB = x/360( d) AB = (x ÷ 360) x 3.14 x d x0 B

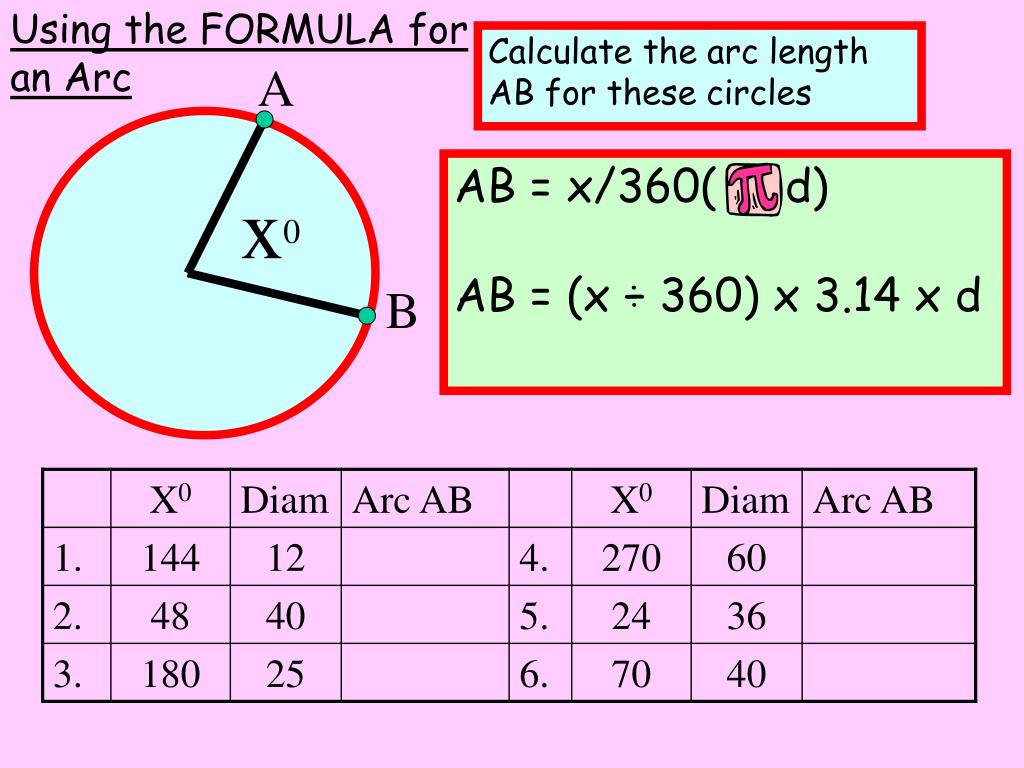

  18. Using the FORMULA for an Arc Calculate the arc length AB for these circles A AB = x/360( d) AB = (x ÷ 360) x 3.14 x d x0 B

  19. Finding the Number of Revolutions (turns) of a Wheel on a Journey Level 8

  20. A wheel with a spot of blue paint The wheel turns once This distance is the circumference When a wheel makes one complete revolution, the distance that it travels is its circumference

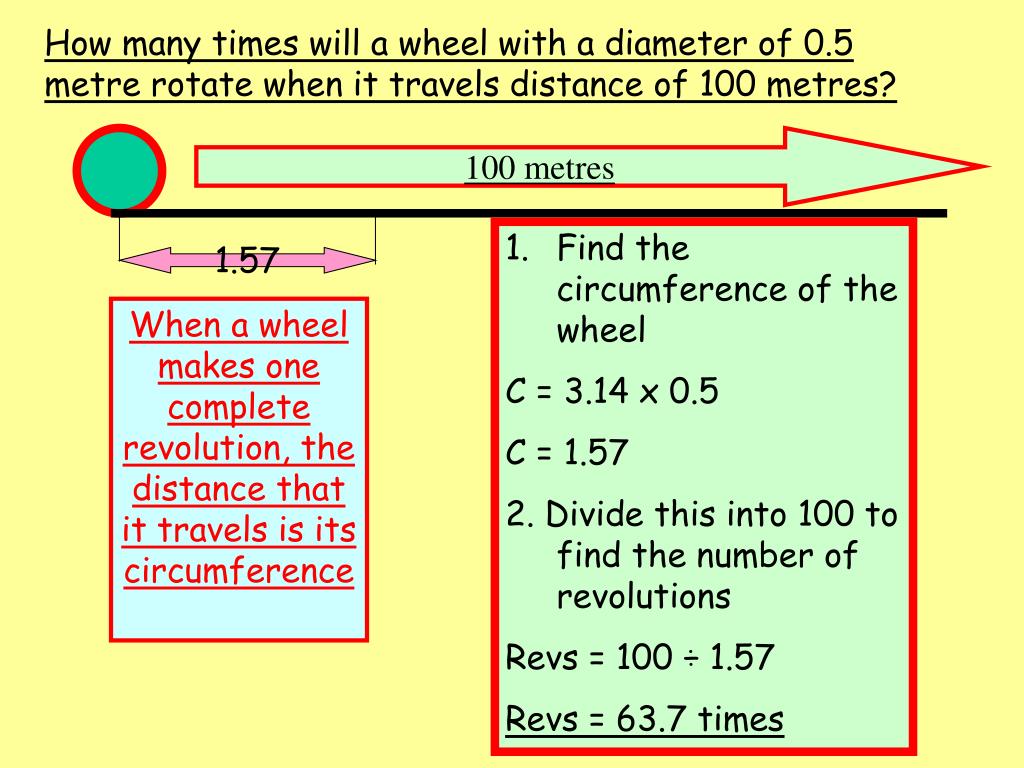

  21. How many times will a wheel with a diameter of 0.5 metre rotate when it travels distance of 100 metres? 100 metres • Find the circumference of the wheel • C = 3.14 x 0.5 • C = 1.57 • 2. Divide this into 100 to find the number of revolutions • Revs = 100 ÷ 1.57 • Revs = 63.7 times 1.57 When a wheel makes one complete revolution, the distance that it travels is its circumference

  22. Find the circumference of the wheel • C = 3.14 x d • 2. Divide this into the journey to find the number of revolutions • Revs = Journey Distance ÷ C

  23. A bike’s wheels have a diameter of 70 cm. How many times will the wheel revolve during a journey of 50 km? A car’s wheels have a diameter of 45 cm. How many times will the wheel revolve during a journey of 100 km? Level 8
