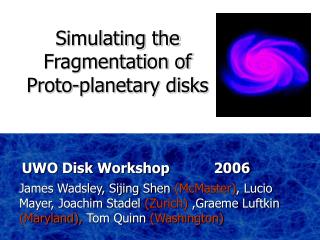

  1. Simulating the Fragmentation of Proto-planetary disks UWO Disk Workshop 2006 James Wadsley, Sijing Shen (McMaster), Lucio Mayer, Joachim Stadel (Zurich) ,Graeme Luftkin (Maryland), Tom Quinn (Washington)

  2. Overview Gravitational instability: a mechanism to produce structure in proto-planetary disks • Instability  Spiral waves  energy/mass transport (self regulation?) • Non-linear spiral waves  fragmentation • Fragmentation  rapid gas giant planets • Alternative: Interplay between dust/planetesimals and gas structures dramatically modifies standard planetesimal picture

  3. Disk Stability Criterion • Toomre Q parameter (gaseous disk) • Toomre’s Stability Criterion : Locally Q > 1 for a thin disk to be stable under axisymmetric perturbations (Toomre, 1964) • QMIN > 1.4 for a thin disk to be stable against fragmentation under non-axisymmetric perturbations (Papaloizou & Savonije 1991, Mayer et al., 2004) Cs Sound Speed κ Epicycle Freq. G Gravitational constant Σ Surface Density

  4. Initial conditions Q < 1.5 Requires a heavy, cold disk: Typically order 0.05-0.1 Msun ~ 10 times Minimum mass solar nebula (but within observational constraints) Temperatures: < 100 K -a ~ r (a=1-1.5)

  5. Further Limitations(Or: was QIC reasonable?) • Are assumed initial conditions “natural” ? • Effective cooling necessary for fragmentation: tcool < 3/Ω ( = 2, Rice et al 2003), tcool < 12/Ω ( = 7/5, Mayer et al) (cf. Rafikov 2005) • Self regulation: will viscous evolution saturate instabilities above Q ~ 1.5? Ideal solution for proto-planetary disk sims: • Model collapse to form star+disk • Include full physics: MHD, radiation, dust, …

  6. Different regime for GI:Early Proto-stellar Disks • High disk/star mass ratio 1:1 • Lower surface density: optically thin Radiative cooling effective Highly flared Large sizes ~ 2-3000 AU Quasi-static collapse Timescale ~ 105 years Yorke & Bodenheimer 1999

  7. Self-consistentDisk Density Profile • Temperature structure assumed • Vertically hydrostatic (with self-gravity), Radially centrifugally balanced • Disk mass peaks ~ 500-1000 AU • Result close to the density profile of disk formation simulation by Yorke et al., 1999 Shen & Wadsley 2006

  8. Extended Disks:Modified expectations for Toomre-Q • Toomre’s stability criterion for gaseous disk (Toomre, 1964) • Finite thickness lowers critical Q to ~ 0.75 (Kim et al. 2001) Non-Axisymmetric modes Q ~< 1.1 Cs Sound Speed κ Epicycle Freq. G Gravitational constant Σ Surface Density

  9. Thickness of the Disk Minimum Q = 0.9 Minimum Q = 1.1 Minimum Q = 1.3 Note: Watkins et al 1998 Q ~ 2.4 More sphere than disk

  10. Resolution Matters…So Does Finite Thickness 200,000 particles Finite disk thickness 2000 particles single layer 20000 particles, single layer • Isolated Disk Q = 1.3 Spurious fragmentation No structure Must resolve both Jean Mass (Bate et al 1997) and Vertical structure

  11. Resolution Matters…So Does Finite Thickness 200,000 particles ,Finite disk thickness 2000 particles, single layer • Collisions: Disk Q = 1.3 Spurious fragmentation No structure In this regime, well resolved models with Q > 1.1 do not fragment, even in collisions Previous work (Watkins et al 1998) used flat disk assumptions, low resolution and see fragmentation even with Q ~ 2.4 (see also Lin et al 1998)

  12. Large proto-stellar disks • Large cross-section for disk-disk and disk-star encounters • Initially stable but very extended: Suffer massive perturbations in encounters • Outcome? … see talk by Sijing Shen on Friday

  13. Controversy? Best to pour on some … • N-body Solver (Tree Method) and Smoothed Particle Hydrodynamics, Parallel • Physics: Gravity, Hydrodynamics, Atomic Chemistry (Radiative Heating, Cooling), *New*: Flux Limited Diffusion • Subgrid Physics: Star Formation, Supernova Feedback, Planetesimal Collisions (NB: NOT at the same time) Wadsley, Stadel & Quinn 2004

  14. Back to Proto-planetary disks Start simple: Efficient Cooling  Isothermal Qmin = 1.3 Locally isothermal, T(r) N=1 million particles Qmin < 1.4 gives gravitationally bound clumps (Mayer, Quinn, Wadsley, Stadel 2002) Q threshold agrees with several other works, e.g. Pickett et al. 2000, Rice et al 2003, Johnson & Gammie (2003) T=250 years T=150 years Qmin=1.5 T=150 years T=250 years

  15. Optically thick, Inefficient cooling  Clumps Adiabatic -5 3 max~10 g/cm Adiabatic after t ~ 160 yr Isothermal= cooling perfectly balances heating Adiabatic cooling by expansion, heating by compression/shocks Locally Isothermal T=350 yr T=350 yr -10 3 EOS switches to adiabatic when local densityr > r* , r* ~ 10 g/cm (density threshold from simulations with radiation transport - Boss 2002) Grav. bound clumps persist with adiabatic transition

  16. FRAGMENTATION NEEDS RAPID COOLING Density Temperature Models with shock heating, specified cooling timescale: Long lived clumps require Tcool <~ Torb Tcool=0.8Torb; g=7/5 See Mayer, Wadsley et al . (2004, 2005) Rice et al. (2003), Lodato & Rice (2004) T=300 years Snapshots of sims with different Tcool, all after ~ 10 Torb (10 AU) ~ 300 years Tcool=1.4 Torb; g=7/5

  17. Clump Properties Sensitive to surface density/temperature: Lighter & colder  smaller characteristic masses Clump mass distribution

  18. Clump Properties Initial Eccentric Orbits Differential rotation, on coplanar orbits along disk midplane - Flattened oblate spheroids with c/a ~ 0.7-0.9 - Rotation: ~ 0.3-2 x Rotation of Jupiter after contraction down to the mean density of Jupiter, assuming conservation of angular momentum - Wide range of obliquities, from 2 to 180 degrees. Clump-clump and disk-clump J exchange.

  19. Orbital Evolution 200.000 particles with switch to adiabatic T = 4000 yr (~ 150 orbital times at 10 AU) T = 320 yr T = 1900 yr (~ 70 orbital times at 10 AU) Merging drastically reduces the number of clumps. Only three remain after ~ 500 yr, with masses 2Mj < 7 Mj. Orbits remain eccentric (e ~ 0.1-0.3). “Chaotic” migration.

  20. Orbital Evolution No rapid (< 104 years) planet migration in disk instability. No clear gap forms, slight outward migration PPV: Durisen, Boss, Mayer et al. 2006

  21. Binary Systems T=250 years T=150 years With companion In isolation Tmap For Mdisk=0.1 Mo tides generate strong spiral shocks that suppress clump formation through heating the disk ( Mayer, Wadsley et al 2005) See alsoNelson (2000):High temperatures problematic also for survival of water ice and core accretion

  22. About 15% of known extrasolar planets are in binary systems (Eggenberger et al. 2004; Patience et al. 2003)and targeted surveys are on the way (e.g. the Geneva Group). • Runs with different • cooling times, orbit with • ecc ~ 0.1, mean sep. 60 AU. • In massive disks • (M~ 0.1Mo) clump formation • does not occur even with • Tcool as short as ~ 1/3 • Torb (shown here). • Fragmentation needs • d >~ 100 AU • t Binary Systems T=10 Years T=450 years d=120 AU T=200 years Prediction: giant planet formation less likely in tight binaries Consistent with recent survey (Eggenberger et al. 2005)

  23. Gravitational InstabilityCode Disagreements: SPH vs. Grid Boundary Conditions Thermal Assumptions Gravitational Resolution vs. Hydro Radiative Transfer: Convection?

  24. Wengen code comparison, HI-RES ISO sims Code Agreements: Same ICs for all codes Convergence on isothermal behaviour? GASOLINE (SPH) GADGET2 (SPH) Mayer et al., in prep. Indiana code (fixed cyl. grid l with a.v) FLASH (PPM AMR, Cartesian grid)

  25. 3D SPH simulations with radiative transfer With Graeme Lufkin (Maryland) • - (Flux-limited) diffusion equation implemented as inCleary & Monaghan • (1999)for optically thick part of the disk (t > 1). Flux limiter as in • Bodenheimer et al. (1990). • - Complete set of (Rosseland mean) dust grain opacities for grain • sizes up to 1 mm(from D’Alessio et al. 2001, same as those used by • Pickett, Durisen, Meija & collaborators) • Optically thin disk boundary cools as a blackbody (t < 2/3, depth • of radiating zone and radiative efficiency adjustable) • No external irradiation from central star/neighboring stars and no back • scattering of emitted photons (crudely mimic these by changing radiative • efficiency at the boundary) • - Shock heating included via standard Monaghan artificial viscosity.

  26. 3D SIMULATIONS WITH RADIATIVE TRANSFER (flux-limited diffusion) (Mayer, Lufkin et al., 2006) Disk grows to ~0.1 Mo over ~ 50 Torb -Fragmentation less likely than in ISO+ADI Simulations. Need more massive disk, M > 0.12 Mo instead of M > 0.08 Mo as in Boss (2004) -Fragmentation sensitive on (a) molecular weight (controls strength of pressure gradient in spiral shocks) And (b) efficiency of radiative losses in optically-thin region Link with frequency/metallicity relation of extrasolar planets? m=2.4, RS= 1.4 m=2.4, RS= 1 m=2.4, RS= 0.8 m=2.7, RS= 1

  27. Convective cooling? From Mayer et al. (2004) and Rice et al. (2002)we know that Tcool ~ 1-2 Torb at the midplane to overcome shock heating and lead to fragmentation. But timescale for cooling by vertical radiation transport too long at overdensities ~ 10 years! Boss (2002):disks cooled by convection. In our FLD simulation up/downwelling with typical speeds ~ 0.1 Km/s (orbital velocities ~ 1 km/s at 10 AU), enough to transport the heat from the midplane to the upper layers (disk scale height ~ 2 AU) in ~ 30 years (Torb at ~ 10 AU). 4 0.5 AU 0.5 AU T=120 years T=160 years Clump Colour = Temperature

  28. Cells of vertical motions are: • - intermittent • apparently associated with superadiabatic gradients • (Schwarzschild criterion for convection) Evolution of vertical temperature profile of a cooling clump

  29. Analysis complicated by: • shock bores that can also produce vertical motions and • superadiabatic gradients (see alsoCai et al. 2005) • concurrent 3D accretion flow towards overdensities) • Accretion of nearby colder, optically-thin regions could also • promote growth of clumps. Cooling highly inhomogeneous!
