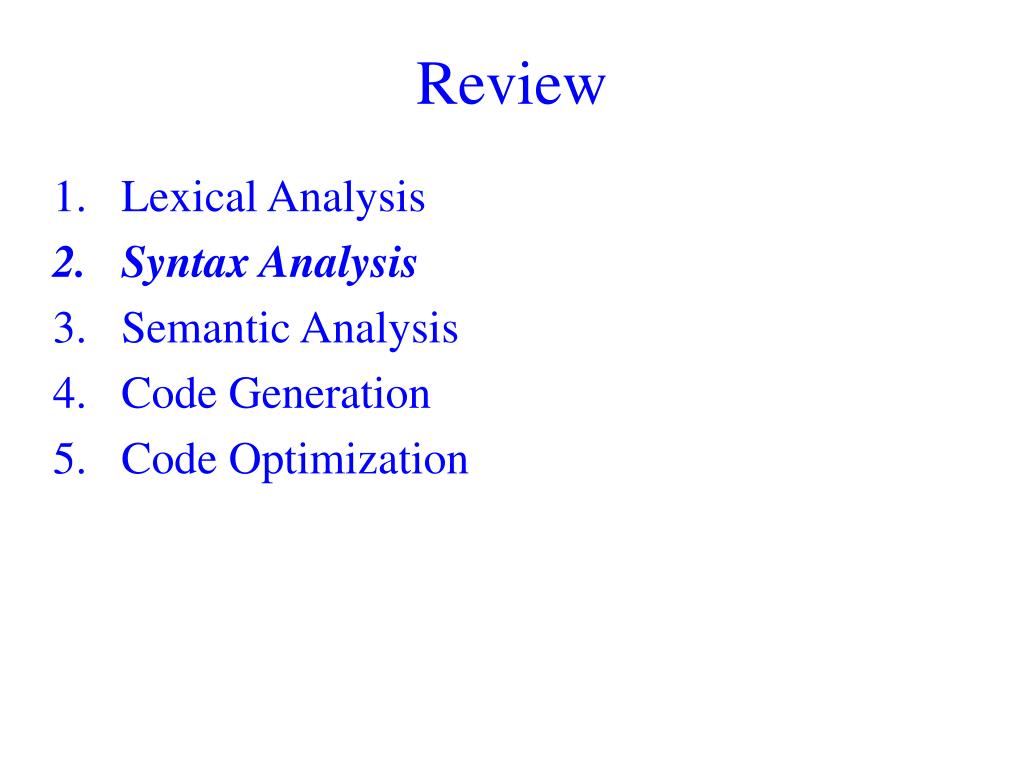

  1. Review • Lexical Analysis • Syntax Analysis • Semantic Analysis • Code Generation • Code Optimization

  2. Syntax Analysis • Often called parsing • Groups tokens of source program into grammatical phrases that are used by the compiler to check for correct syntax and to help in generating code • Creation of a hierarchical structure called a syntax tree • Tree helps us determine if program is syntactically correct • Also aids in the translation of source program to target language

  3. Seattle San Francisco Grammar Example • Lexical • Ogay orthnay eightay undrendhay ilesmay • Syntactical • Miles go hundred north eight • Logical • Go eight hundred miles(facing south) • Run-Time • Go eight hundred miles (facing West)

  4. Grammars – Defining the Language Rules • Terminals (tokens) • Non-terminals - Syntactic variable. Contains groups of tokens that define some part of the language • Example: expression, if statement, etc • Start symbol - A special non-terminal (i.e. a program) • Productions • The manner in which terminals and non-terminals are combined to form statements • A non-terminal in LHS and a string of terminals and non-terminals in RHS

  5. Example • Variable Declaration • A type followed by one or more comma separated identifiers that end with a semi-colon. <Var> -> <Indent> <Var> -> <Var> , <Ident> • <Var> and <Ident> are non-terminals • The comma is a terminal • The two lines are called productions

  6. Grammars • We will be defining a grammar for the entire JO99 programming language. • We will then have JCUP produce for us a parser that detects if the JO99 program is syntactically correct. • In addition, the parser will create for us a tree that represents the program and allows us to be able to do other things like semantic checks and code generation.

  7. Example • Simple arithmetic expressions with + and * • 8.2 + 35.6 • 8.32 + 86 * 45.3 • (6.001 + 6.004) * (6.035 * -(6.042 + 6.046)) • Terminals (or tokens) • num for all the numbers • ‘+’, ‘-’, ‘*’, ‘(‘, ‘)’ • What is the grammar for all possible expressions?

  8. Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  *

  9. Categories of Parsers ( )

  10. Categories of Parsers • L - parse from left to right • R - parse from right to left ( )

  11. Categories of Parsers • L - leftmost derivation • R - rightmost derivation ( )

  12. Categories of Parsers • Number of look ahead characters ( )

  13. Categories of Parsers • Examples: • LL(0) – Parse Left to Right, Derive the tree using a leftmost derivation (top down), no look ahead characters • LR(1) – Parse Left to Right, Derive the tree using a rightmost derivation (bottom up), 1 look ahead character. • Each category of parsing handles a different type of language. • We will be learning about LR(k) parsers and will implement an LR(k) parser.

  14. Why LR(k)? • Virtually all programming language grammars can be parsed using a LR(k) technique • Most general parsing method for programming grammars • Can build a very efficient parser engine given just the syntax rules of the language. • Can detect a syntactic error as soon as it is possible to do so • Because its so general, programs have been written (JCUP) that produce the parser instead of writing it from scratch.

  15. LR(k) Parser implementation • Sometimes called a Shift-Reduce Parser • Parse from left to right (get the tokens from left to right) • Bottom up parsing (same as rightmost derivation)

  16. Actions of a Shift-Reduce Parser Parse Tree

  17. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  18. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  19. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  20. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  21. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  22. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  23. Actions of a Shift-Reduce Parser Parse Tree Parse Tree

  24. Actions of a Shift-Reduce Parser Parse Tree

  25. Actions of a Shift-Reduce Parser Parse Tree

  26. Actions of a Shift-Reduce Parser Parse Tree

  27. Actions of a Shift-Reduce Parser Parse Tree

  28. Actions of a Shift-Reduce Parser • How do we build this tree? • As productions are recognized, a portion of the tree is created. • This portion of the tree will be needed later to build bigger portions of the tree and therefore must be saved for future use. • This requires a stack. • The stack plus the next token read from the source program determines the action.

  29. Parser Engine Actions of a Shift-Reduce Parser stack Parser Action Stack Current Symbol

  30. Actions of a Shift-Reduce Parser • Shift • Shift the current element into top of the stack • Move the current pointer (next token) • Reduce • Apply a production (we recognize a part of the program) • Top of the stack should match the RHS of the grammar • Remove those symbols from the stack • Add the LHS non-terminal • Accept • End of stream reached and stack only has the start symbol • Reject • End of stream reached but stack has more than the start symbol

  31. Shift-Reduce Parser Example num * ( num + num )

  32. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num * ( num + num )

  33. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num * ( num + num )

  34. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num SHIFT num * ( num + num )

  35. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num REDUCE num * ( num + num )

  36. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <expr> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  37. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <expr> * <expr> <expr> SHIFT <expr> <op> <expr> <op> <expr> num * ( num + num )

  38. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <expr> * <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  39. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  40. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> ( <expr> <op> <expr> <expr> SHIFT <expr> <op> <expr> <op> <expr> num * ( num + num )

  41. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> num ( <expr> <op> <expr> <expr> SHIFT <expr> <op> <expr> <op> <expr> num * ( num + num )

  42. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> num ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  43. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  44. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * + <expr> <expr> ( <expr> <op> <expr> <expr> SHIFT <expr> <op> <expr> <op> <expr> num * ( num + num )

  45. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * + <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  46. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <op> <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  47. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num <op> <expr> <expr> ( <expr> <op> <expr> <expr> SHIFT <expr> <op> <expr> <op> <expr> num * ( num + num )

  48. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * num <op> <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  49. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <op> <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )

  50. Shift-Reduce Parser Example <expr>  <expr> <op> <expr> <expr>  ( <expr> ) <expr>  - <expr> <expr>  num <op>  + <op>  - <op>  * <expr> <op> <expr> <expr> ( <expr> <op> <expr> <expr> REDUCE <expr> <op> <expr> <op> <expr> num * ( num + num )
